The Halomonhystera disjuncta population is homogeneous across the Håkon Mosby mud volcano (Barents Sea) but is genetically differentiated from its shallow-water relatives
Contributing authors: Derycke Sofie ([email protected]), Tchesunov Alexei ([email protected]), Portnova Daria ([email protected]), Vanreusel Ann ([email protected])
Abstract
The deep sea has a high biodiversity and a characteristic bathyal fauna. Earlier evidence suggested that at least some shallow-water species invaded the ecosystem followed by radiation leading to endemic deep-sea lineages with a genetic and/or morphological similarity to their shallow-water counterparts. The nematode Halomonhystera disjuncta has been reported from shallow-water habitats and the deep sea [Håkon Mosby mud volcano (HMMV)], but the morphological features and the phylogenetic relationships between deep-sea and shallow-water representatives remain largely unknown. Furthermore, nothing is known about the genetic structure of the H. disjuncta population within the HMMV. This study is the first integrative approach in which the morphological and phylogenetic relationships between a deep-sea and shallow-water free-living nematode species are investigated. To elucidate the phylogenetic relationships, we analysed the mitochondrial gene Cytochrome oxidase c subunit I (COI) and three nuclear ribosomal genes (Internal Transcribed Spacer region, 18S and the D2D3 region of 28S). Our results show that deep-sea nematodes comprise an endemic lineage compared to the shallow-water representatives with different morphometric features. COI genetic divergence between the deep-sea and shallow-water specimens ranges between 19.1% and 25.2%. Taking these findings into account, we conclude that the deep-sea form is a new species. amova revealed no genetic structure across the HMMV, suggesting that nematodes are able to disperse efficiently in the mud volcano.
Introduction
The deep sea represents the largest ecosystem on earth and supports a high species diversity (Hessler and Sanders 1967), which, however, remains to date largely uninvestigated (Levin and Sibuet 2012). Identifying and understanding this hidden component of biodiversity is one of the major challenges for deep-sea biologists. Fossil evidence (Hessler and Thistle 1975; Jablonski and Bottjer 1988; Sepkoski 1991) suggests that shallow-water echinoderms and isopods have dispersed to the deep sea followed by adaptive radiation and retreat from shallow-water habitats resulting in strictly deep-sea ‘endemic’ lineages. In addition, evidence from isopods shows that deep-sea populations are a mixture of old and recently dispersed taxa as a result of multiple independent colonizations of the deep sea (Wilson 1998; Brandt et al. 2007). The initial step in speciation between intertidal and deep-sea populations is a geographical separation that interrupts gene flow between both populations. This separation can then be followed by ecological adaptations to local environmental conditions and/or the rapid evolution of genes linked to mate recognition (Taylor and Hellberg 2005). Morphologically and/or genetically closely related representatives from deep-sea and shallow-water habitats have been reported for a variety of invertebrates, ranging from Hydrozoa (Moura et al. 2012), Foraminifera (Pawlowski et al. 2007), Polychaeta (Nygren et al. 2010), Gastrotricha (Kieneke et al. 2012), Porifera (Reveillaud et al. 2010) and Nematoda (Bik et al. 2010).
Nematodes are the most abundant and arguably the most diverse metazoan phylum in terms of species richness in the animal kingdom (Lambshead 2004). Many nematode species have a worldwide distribution, despite an endobenthic life style, a lack of pelagic larvae and supposedly limited dispersal capacity (Palmer 1988). However, transoceanic distribution of Litoditis marina suggests that effective long-distance dispersal can occur (Derycke et al. 2008b). The widespread distribution of species may further be complicated by the presence of cryptic species, that is morphologically similar but genetically distinct species. The occurrence of cryptic species can transform what was previously thought to be a generalist species with widespread distribution into several specialist species with more restricted distributions. Cryptic species have been reported in marine nematodes belonging to different orders (Derycke et al. 2005, 2007a, 2008a, 2010a), illustrating that knowledge of their presence is important for correctly interpreting biodiversity patterns in different habitats.
Interestingly, most marine nematode genera and also several species have been identified as occurring in shallow-water environments as well as in deep-sea habitats (Heip et al. 1985; Muthumbi et al. 2004; Fonseca et al. 2007; Van Gaever et al. 2009b; Vanreusel et al. 2010). Repeated and recent interchanges between the deep-sea and intertidal zone have been observed (Bik et al. 2010), supporting the idea that habitat transitions are frequent and common among nematodes (Holterman et al. 2008). In contrast, the evolutionary relationships and connectivity patterns between deep-sea and shallow-water populations of a single species remain unstudied.
The genus Halomonhystera belongs to the Monhysteridae, a common family of nematodes often highly represented in both shallow and deep-water environments. Andrássy (1981) initially included Monhystera disjuncta with related species in the genus Geomonhystera (Andrássy, 1981). Later, Andrássy (2006) divided the genus Geomonhystera into two morphologically and ecologically distinct groups and placed G. disjuncta and related marine and brackish species into the newly created genus Halomonhystera (Andrássy, 2006). Species from this genus also inhabit sulphidic environments in the deep sea such as vents and seeps (Van Gaever et al. 2006; Zekely et al. 2006; Copley et al. 2007; Gollner et al. 2007). In this study, we focus on the free-living marine bacterivorous species Halomonhystera disjuncta known from shallow and deep-sea environments. Halomonhystera disjuncta can be distinguished from the other six marine species from this genus by differences in body size, position of the vulva, shape and length of the tail, mode of reproduction (oviparity or viviparity), and shape and number of eggs (Stekhoven et al. 1931; Hopper 1969). Halomonhystera disjuncta is further known for its high tolerance to temperature changes and high heavy metal concentrations (Vranken et al. 1985, 1988b, 1989). In addition, it is a fast colonizer in shallow waters, successfully exploiting organically enriched substrata such as sediments from estuarine mudflats (Heip et al. 1985) or decomposing algal thalli (Derycke et al. 2007b). Both features could explain the occurrence of H. disjuncta in different environments (deep sea and shallow water). In addition, it is abundant on decomposing macroalgae which can be transported over large distances and could explain in part the occurrence of H. disjuncta over a large geographical area. Halomonhystera disjuncta has been reported from different geographical areas including Western Canada (Trotter and Webster 1983), the White Sea in northern Russia (Mokievsky et al. 2005), the North Sea South of Norway (Vranken et al. 1988a) and along the coast of Belgium and the south-western part of the Netherlands (Derycke et al. 2007a). A recent study showed that H. disjuncta from the southern North Sea actually consists of five cryptic species (Derycke et al. 2007a) with subtle morphometric differences (Fonseca et al. 2008). Up to three of these species co-occurred in a single location, and genetic structuring was low when populations were compared within an estuary (Derycke et al. 2007a). Interestingly, H. disjuncta has also been reported in unusually high densities (11 000 ind. per 10 cm−2) at the Håkon Mosby mud volcano (HMMV) at a depth of 1280 m in the Barents Sea (Van Gaever et al. 2006) and occurred in high densities at the Nyegga pockmarks (Portnova et al. 2010). However, it remains unclear how this deep-sea H. disjuncta population is related to the shallow-water species complex. Such information is, however, critical in assessing whether the same species can occur in both shallow and deep-sea environments.
We investigated nematode population structure at the HMMV. The HMMV is an active mud-expelling and methane-venting volcano located on the South West Barents Sea slope (72°00.25′N/14°43.50′E) discovered in 1999 (Vogt et al. 1999). The cake-shaped caldera is 1 km in diameter and has an 8–10 m rise from the foot. The central zone of the caldera is about 200 m in diameter and characterized by strongly reduced conditions; methane concentration in the surface sediment layer and in the water just above the sediment reaches here 12.5 and 6 ml l−1, respectively (Sauter et al. 2006). The HMMV incorporates several habitats that differ in microbial and megafaunal community composition (Niemann et al. 2006) such as (1) the active central zone with a high mud flow, (2) the zone covered with Beggiatoa mats and with highly sulphidic sediments (Pimenov et al. 2000; Lichtschlag et al. 2010) and (3) the Siboglinidae fields (Vogt et al. 1997; Gebruk et al. 2003; Losekann et al. 2008). Halomonhystera disjuncta thrives with unusually high densities in the whitish bacterial Beggiatoa mats of the HMMV that cover the sediment around the central zone and that form an important food source for H. disjuncta (Van Gaever et al. 2009a). Observations in 2009 and 2010 revealed that just north of the centre, new Beggiatoa mats colonized the previously bare sediment which was then followed by a colonization of nematodes. The source origin of the nematodes in the newly colonized area and the connectivity of populations within the HMMV are, however, unknown.
Here, we investigated how the H. disjuncta specimens from the sulphidic bacterial mat-covered zone of the HMMV are related to the intertidal cryptic species. For this, we amplified one mitochondrial and three nuclear genes to infer species identity and phylogenetic relationships. The phylogenetic species concept (Adams 1998) was used to delineate species. Subsequently, a detailed morphological analysis was conducted to investigate whether morphological differences accompanied the molecular phylogenetic clades. Finally, the population genetic structure of H. disjuncta within the HMMV was investigated using Cytochrome oxidase c subunit I (COI) to reveal colonization patterns and connectivity in these remote and highly reduced deep-sea sediments.
Materials and Methods
Study area
We investigated specimens identified earlier as H. disjuncta (Van Gaever et al. 2006; Portnova 2009) from the active methane-seeping Håkon Mosby mud volcano (HMMV, Fig. 1), situated west of the Barents Sea (72.1°N 14.73°E) at an average water depth of 1280 m. We studied three locations within the HMMV characterized by thiotrophic bacterial mat cover, the north (N, 72°0.29′N 14°43.61′E, Station MSM16-2_841-1), south-east (SE, 72°0.17′N, 14°43.88′E, Station MSM16-2_802-1) and south-west (SW, 72°0.14′N, 14°43.21′E, Station MSM16-2_857-1). The distance between N-SE, SE-SW and SW-N is 270, 387 and 360 m, respectively.
Sampling strategy

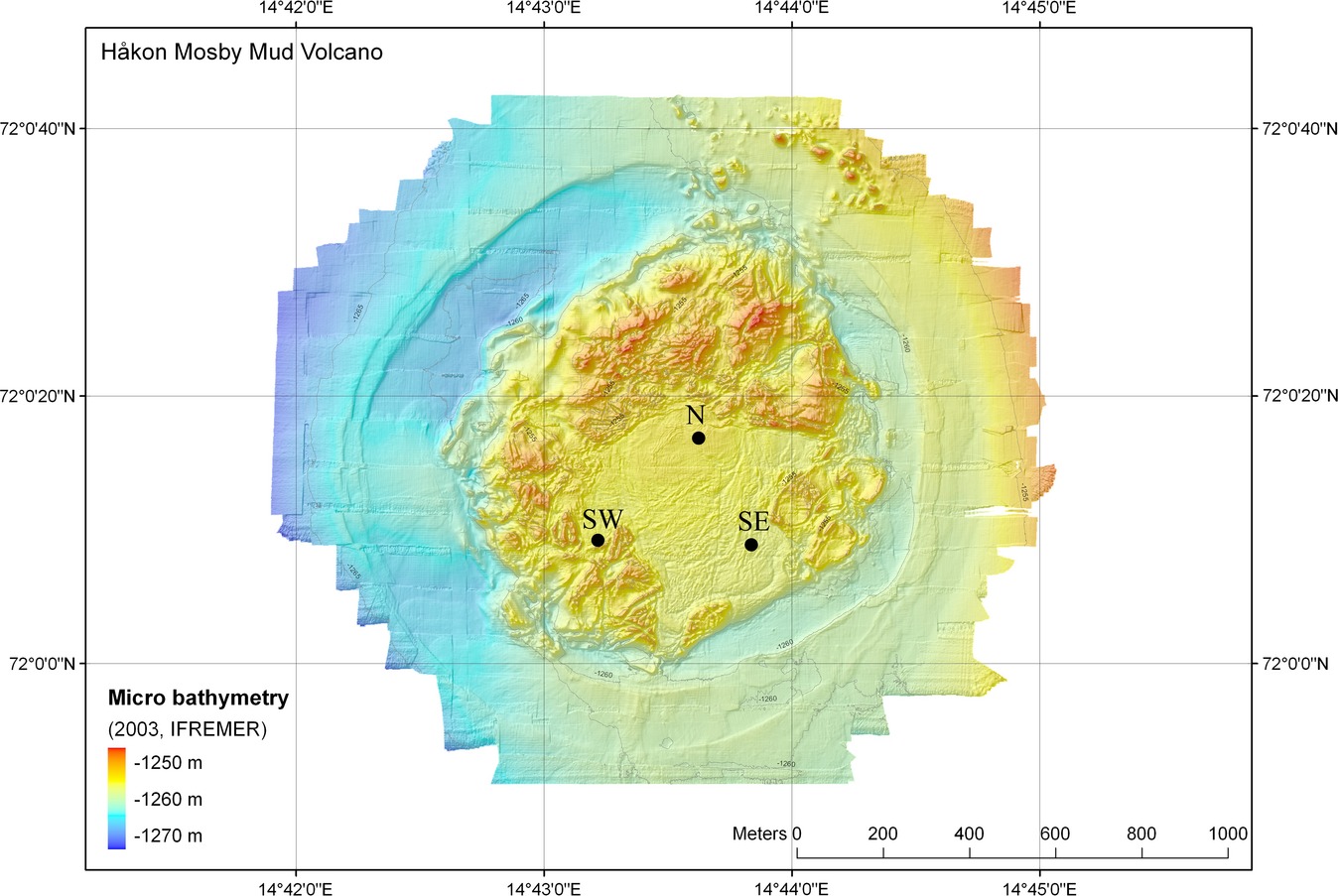

Sediment samples were collected in the north (N), south-east (SE) and south-west (SW) of the HMMV (Fig. 1) during the Maria S. Merian cruise 2010 (MSM 16/2). Utilizing a TV-guided multicorer (TV-muc), we were able to aim for bacterial mats, the preferred habitat of H. disjuncta. Samples for both morphological and molecular purposes were immediately sliced from 0 to 10 cm with a one cm interval. Samples for molecular analysis were frozen in liquid nitrogen onboard and stored at −80°C. Other samples were fixed in 4% buffered formaldehyde. Three replicates were sampled in each region and processed according to the same protocol.
Sequence data
Halomonhystera disjuncta has very high densities in the top centimetres of the HMMV bacterial mat sediments (Van Gaever et al. 2006). Therefore, DNA was extracted (following the procedure of Derycke et al. 2005) from 155 specimens from the first centimetre of the three different geographical locations in the HMMV (51 specimens from the South East, 50 specimens from the North and 54 specimens from the South West). After DNA preparation, we amplified 425 base pairs (bp) of the mitochondrial Cytochrome oxidase c subunit I (COI) gene with the primers JB2 (5′-ATGTTTTGATTTTACCWGCWTTYGGTGT-3′) and JB5GED (5′-AGCACCTAAACTTAAAACATARTGRAARTG-3′) from Derycke et al. (2007a) yielding sequence fragments for two individuals from each of the three locations (Table 1). Based on these sequences, new primers were developed to increase the amount of successful amplifications: JB2_HD_HMMV (5′-TGAGGCATTCTATTATATATATGTCGG-3′; 30 bp downstream of JB2) and JB5_HD_HMMV (5′-AGCAACAACATAGTAAGTATCGTG-3′; 30 bp upstream of JB5GED). Using these primers, we amplified a 365 bp region of the COI gene of an additional 45, 46 and 51 nematodes from the SE, N and SW, respectively, of the HMMV. After removal of the primers and checking for insertions and deletions, we ended up with a fragment of 314 bp. Haplotypes were inferred from good sequence spectra, that is without any ambiguous nucleotide positions, from 25, 32 and 33 nematodes from the SE, N and SW, respectively (accession numbers: HF572956, HF572957, HF572959, HF572960 and HF572966). Sequences showing ambiguous positions were removed from the data set. Standard PCR amplifications were conducted in 25 μl volumes for 40 cycles, each consisting of a 30 s denaturation at 94°C, 30 s annealing at 54°C and 30 s extension at 72°C, with an initial denaturation step of 5 min at 94°C and a final extension step of 10 min at 72°C. We loaded 4 μl of each PCR product onto a 1% agarose gel to determine the size of the amplified product.
| Marker sequence | Haplotypes | Accession numbers | South East (SE) | North (N) | South West (SW) |
|---|---|---|---|---|---|
| 18S | – | HF572952 | SE1-5 | N9, N10, N18, N19, N21 | SW5, SW10, SW13, SW14, SW18 |
| ITS | – | HF572967 | SE1-6, SE8-11 | N9, N10, N18, N19, N21, N24, N25, N28, N29, N30 | SW5, SW10, SW13, SW14, SW18, SW21, SW22, SW25, SW26, SW29 |
| D2D3 | – | HF572953 | SE1-5 | N9, N10, N18, N19, N21 | SW5, SW10, SW13, SW14, SW18 |
| COI | Haplotype A | HF572956 | SE11 | – | SW5* |
| Haplotype B | HF572957 | SE3, SE14, SE26 | – | SW16, SW22 | |
| Haplotype C | HF572966 | SE2, SE4, SE5, SE8, SE9, SE19, SE21, SE29, SE31*, SE33*, SE35, SE39, SE40, SE48 | N9*, N10*, N16, N18, N19, N25, N26, N27, N31, N32, N36, N39, N43, N44, N45, N47, N48, N49, N50 | SW8, SW10*, SW18, SW21, SW24, SW25, SW26, SW29, SW35, SW36, SW39, SW41, SW43, SW46, SW49, SW50, SW53, SW54, | |
| Haplotype D | HF572959 | SE7, SE24, SE25, SE34, SE37 | N2, N6, N11, N12, N15, N21, N23, N24, N30, N42 | SW9, SW11, SW14, SW17, SW30, SW33, SW37, SW47 | |
| Haplotype E | HF572960 | SE6,SE43 | N28, N29, N38 | SW13, SW40, SW45, SW55 |
In addition, ca. 1700 bp of the ribosomal 18S gene were amplified with primers G18S4 (5′-GCTTGTCTCAAAGATTAAGCC-3′) and 18P (5′-TGATCCWMCRGCAGGTTCAC-3′) for five nematodes from each of the three sampling locations on the HMMV (Table 1). PCR conditions were the same to those for amplification of the COI fragment except for the extension step in which the time was increased to 120 s.
The Internal Transcribed Spacer region (ITS) was amplified (accession number: HF572967) using primers Vrain2F (5′-CTTTGTACACACCGCCCGTCGCT-3′) and Vrain2R (5′-TTTCACTCGCCGTTACTAAGGGAATC-3′). PCR conditions were the same to those described above except for the extension step in which the time was set at 60 s. For ITS, we were able to retrieve sequences of ca. 900 bp for 10 individuals from each of the three sampling locations (Table 1).
A third nuclear fragment, the D2D3 region (ca. 300 bp) of the ribosomal 28S gene, was amplified using D2/F1 (5′-TTCGACCCGTCTTGAAACACG-3′) and D3b (5′-TCCTCGGAAGGAACCAGCTACTA-3′) and yielded sequence fragments for five individuals from each of the three sampling regions (Table 1, accession number: HF572953). PCR conditions were the same to those previously described, only the extension time was set at 45 s.
All gene fragments were Sanger-sequenced by Macrogen Inc. (http://www.macrogen.com). COI, ITS and D2D3 gene fragments were bidirectionally sequenced with the above-described primers. The 5′ region of the 18S rDNA gene was sequenced with the primers G18S4, 9Fx (5′-AAGTCTGGTGCCAGCAGCCGC-3′), 4R (5′-GTATCTGATCGCCKTCGAWC-3′) and 23R (TCTCGCTCGTTATCGGAAT-3′) for five individuals from each of the three locations because the 18S sequences of GD1-5 were limited to the first 700–900 bp. In addition, six individuals in total (two from each location) were sequenced completely with additional primers 18P, 4F (5′-CAAGGACGAWAGTTWGAGG-3′) and 23F (5′-ATTCCGATAACGAGCGAGA-3′) to obtain a 1726-bp-long sequence for GenBank submission (accession number: HF572952).
Morphometric data
Formaldehyde-fixed samples from the first centimetre were washed over a 32-μm mesh sieve, and nematodes were extracted by density-gradient centrifugation, using Ludox (a colloidal silica polymer; specific gravity 1.18) as a flotation medium (Heip et al. 1985). The extracted nematodes were stained with rose bengal in a 4% buffered formaldehyde solution. Nematodes were sorted using a binocular microscope and were placed into embryo dishes containing Seinhorst solution (70 parts of distilled water, 29 parts 95% ethanol and one part of glycerine) (Seinhorst 1959). Specimens were then mounted into permanent glycerine slides with a paraffin ring.
Using a Leica MM AF NX microscope, we measured 12 different parameters: length (L), pharynx length (PL), amphid-anterior distance (A-A), head diameter (Hdia), anus-anterior length (AL), maximum body width (W), vulva-anus distance (V-A) or spicule length (SL), anal body diameter (ABD), tail length (TL, from anus till the end of the tail), progaster diameter (PD) and the progaster corresponding body diameter (PCBD). In addition to H. disjuncta from the South East part of the HMMV (HD-HMMV) location, we also measured these parameters in specimens belonging to the five cryptic species from the intertidal zone. These specimens were retrieved from a previous study (Derycke et al. 2007a; Fonseca et al. 2008) and have been preserved and transferred into glycerine slides according to the same protocols.
Data processing
Sequence data
Contigs of individual fragments (18S, ITS, D2D3 and COI) were created using SeqMan (Lasergene®; DNASTAR). Forward and reverse primers were removed, and sequences were blasted against known sequences of H. disjuncta and GenBank. The newly retrieved sequences were analysed together with published sequences of the five intertidal cryptic species (Derycke et al. 2007a). Finally, a Diplolaimelloides meyli (AM748759.1) sequence was added to the COI alignment. All nuclear phylogenetic analyses were performed in the absence of an outgroup. Consequently, trees were mid-point rooted.
All four data sets (18S, ITS, D2D3 and COI) were aligned in ClustalX v1.74 (Thompson et al. 1997) using default alignment parameters (gap opening/gap extension costs of 15/6.66). The alignment ends were cropped to remove parts where only some sequences had data. The aligned sequences were used for further phylogenetic analysis in paup*4.0 beta 10 (Swofford 1998). Prior to phylogenetic tree construction, Modeltest 3.7 (Posada and Crandall 1998) using the Akaike information criterion (Posada and Buckley 2004) was used to determine the evolutionary model for constructing neighbour joining (NJ) and maximum likelihood (ML) phylogenetic trees. The models selected for 18S, ITS, D2D3 and COI were GTR + I (Tavaré 1986), GTR + G, HKY + I (Hasegawa et al. 1985) and TrN + I + G (Tamura and Nei 1993), respectively. The best model for Bayesian analysis (BA) was determined with MrModeltest 2.2 (Nylander 2004) using the Akaike information criterion. The selected models for BA were GTR + I, GTR + G, HKY + I and HKY + I + G for 18S, ITS, D2D3 and COI, respectively.
Maximum parsimony (MP), NJ and ML trees were calculated in paup using heuristic searches and a tree-bisection-reconnection branch swapping algorithm (10 000 rearrangements) and a random stepwise addition of sequences in 100 replicate trials. One tree was held at each step. Bootstrap values for MP, NJ and ML were inferred from 1000, 1000 and 100 replicates, respectively. In addition, a BA was performed in MrBayes v3.2 (Ronquist et al. 2012). Four independent Markov chains were run for 500 000 generations, with a tree saved every 100th generation. The first 1000 trees were discarded as burn-in.
We subsequently performed an incongruence length difference (ILD) test (Mickevich and Farris 1981) in paup, to investigate whether the different nuclear gene fragments could be combined in one analysis. Because we lacked 18S sequences for several GD nematodes for which we had both ITS and D2D3 sequences, we did not add the 18S sequence to the concatenated data set. Consequently, the 18S gene marker was analysed separately. The combined data set (ITS + D2D3) was used to construct MP, NJ, ML and BA trees, based on the GRT + G model, calculated as described above. Trees were mid-point rooted.
Pairwise uncorrected p-distances between HD-HMMV and GD1-5 were computed using mega 5.05 (Tamura et al. 2011). Insertions and deletions were pairwise deleted.
Morphometric data
The clades recovered in the phylogenetic analyses were used to group specimens for further morphometric analyses. All statistical analyses were performed using the statistica 7.0 software package (StatSoft 2001). The morphological data were thoroughly checked for outliers, but no measurements had to be removed. To minimize effects of body length differences between nematodes, the continuous variables were divided by the total body length of the nematode followed by a log transformation. Afterwards, each parameter was tested for homogeneity of variances/covariances (Levene's test) and correlations between means and variances (visual assessment). The maximum body width (W) was removed from the data set because of a significant Levene's test (p = 0.000002). We also performed a pairwise correlation between the length (L) normalized morphometric parameters. The anus-AL was correlated (R > 0.90) with both pharynx (PL) and TL and was therefore removed prior to further analysis.
Univariate analysis of variance (anova) was performed, in case of homogeneity of variances (Levene's test) and normal distribution (Shapiro–Wilk's normality test), to test whether the different species showed significant differences in morphometric measurements. In cases where homogeneity of variances was violated, even after log transformation of the raw data, a nonparametric test was used (Kruskal–Wallis). Both female and male data sets (without anus-AL and maximum body width due to violation of homogeneity of variances) were subjected to a backward stepwise discriminant function analysis (DFA; Klecka 1980; Garson 2008). DFA finds linear combinations of variables (roots) that maximize differences among a priori defined groups (in this case species). The classification success rate was evaluated based on the percentage of individuals correctly classified in the original sample.
Population genetic structure
The COI sequences obtained from 90 specimens from three locations in the HMMV (25, 32, 33 specimens from the SE, N and SW respectively) were used to assess the genetic diversity and structure in this highly specialized deep-sea habitat. Nucleotide (π) and haplotype diversity (h) and their standard deviation were calculated with Arlequin v.3.0 (Excoffier et al. 2005). Analysis of molecular variance (amova) applying Tamura–Nei distances (Tamura and Nei 1993) was used to investigate the percentage of variation within and between locations. Significance levels were determined with 1000 permutations. Population pairwise ΦST values were calculated using Tamura–Nei distances. A minimum spanning network was created using tcs1.21 (Clement et al. 2000) and was adapted to incorporate the haplotype frequencies using Excel and PowerPoint.
Results
Sequence data: phylogenetic analysis of COI from HMMV and shallow-water specimens
A total of 314 bp of the COI gene were screened from 25, 32 and 33 HD-HMMV individuals from the South East, the North and the South West, respectively. In total, four variable sites were observed that resulted in five different haplotypes (A–E). After combining the five observed HD-HMMV COI haplotypes with the published sequences of the five intertidal cryptic species GD1–GD5 (Derycke et al. 2007a), the alignment (Supporting information) used for phylogenetic analysis consisted of 49 sequences and was 343 bp long. At the 5′ and 3′ end, HD-HMMV sequences were respectively 29 bp shorter and 32 bp longer compared to GD1-5 sequences. The alignment contained 153 variable sites, of which 124 were parsimony informative. Not all substitutions were synonymous, and the amino acid alignment (114 amino acids long) yielded 32 variable sites. No start/stop codons and insertions/deletions (indels) were observed. The alignment was subjected to four different methods for phylogenetic tree construction: MP, NJ, ML and BA. The MP consensus tree was inferred from 35 most parsimonious trees of length 384. The consistency index (CI) was 0.6328, and the retention index (RI) was 0.9250. The optimal NJ phylogenetic tree (tree length = 395) had a CI of 0.6152 and a RI of 0.9191. Negative ln likelihood values for ML and BA phylogenetic trees were 2094.29 and 2163.19, respectively.

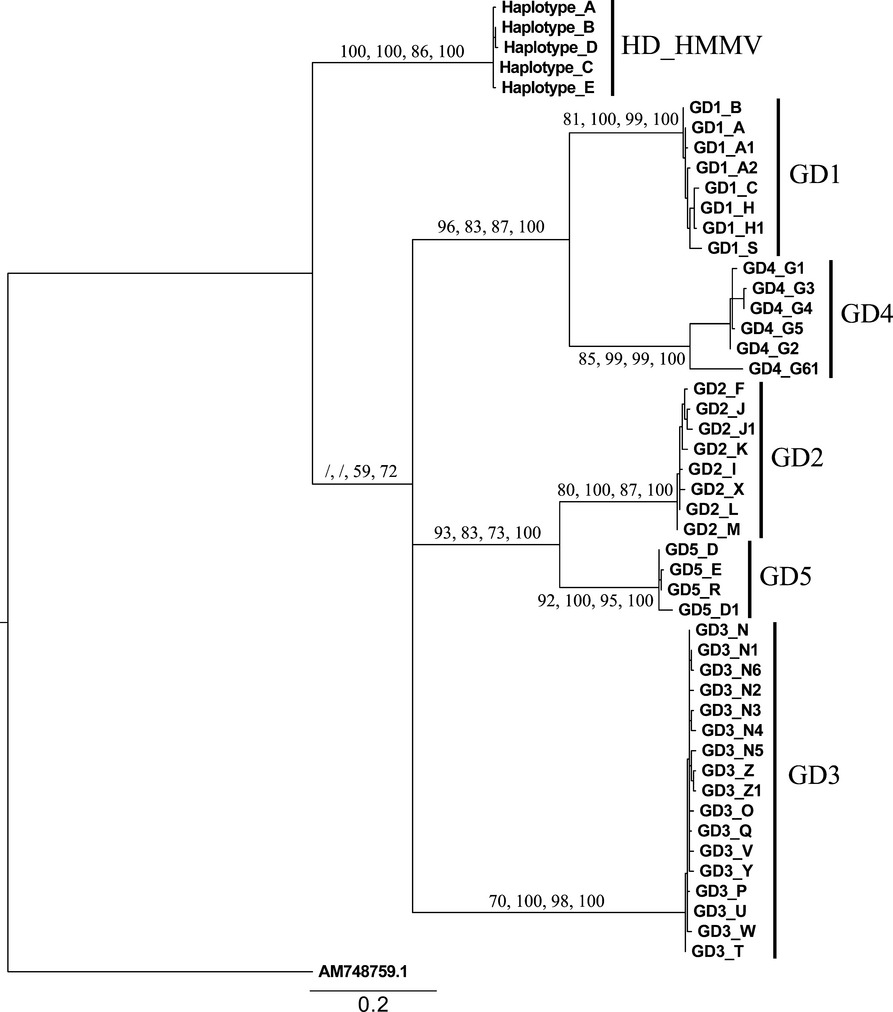

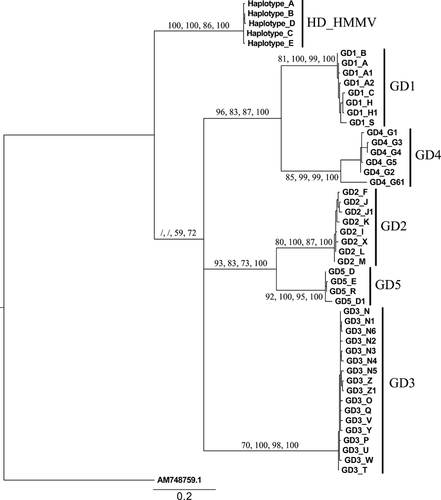

All methods used (MP, NJ, ML and BA) showed six distinct clades (Fig. 2, Figures S1–S3). Even though GD1 and GD4 were always observed close together (bootstrap values: 83–100), as well as GD2 and GD5 (bootstrap values: 73–100), the clustering was not highly supported in the NJ and MP analysis. Furthermore, the position of GD3 and HD-HMMV remained ambiguous. Based on our COI data, HD-HMMV is clearly differentiated from individual intertidal clades (GD1-5) with divergences ranging between 19.1% and 25.2%. The presence of GD4 haplotype G16 resulted in a maximum interspecific uncorrected p-distance of 10.9% within the GD4 lineages. Leaving haplotype G16 out of the data set revealed that divergence ranges were much lower within lineages (0.3–2.9%) than between lineages (13.3–25.7%, Table 2).
| GD1 | GD2 | GD3 | GD4 | GD5 | HD-HMMV | |
|---|---|---|---|---|---|---|
| GD1 | 0.3–2.9 | |||||
| GD2 | 17.7–20.6 | 0.3–2.3 | ||||
| GD3 | 23.5–25.4 | 20.6–23.2 | 0.3–1.9 | |||
| GD4 | 17.4–19.3 | 21.2–25.7 | 21.9–25.4 | 0.3–10.9 | ||
| GD5 | 22.0–23.5 | 13.3–16.1 | 22.3–25.7 | 21.2–25.1 | 0.3–2.3 | |
| HD-HMMV | 19.9–22.0 | 19.1–20.6 | 22.7–25.2 | 22.7–24.1 | 20.4–22.0 | 0.3–1.0 |
Sequence data: phylogenetic analysis of 18S, D2D3 and ITS from HMMV and shallow-water specimens
The alignments used for phylogenetic tree construction of the three nuclear sequences (18S, D2D3 and ITS) had a length of 760, 299 and 909 bp, respectively. The 18S alignment contained 175 variable sites, of which 168 were parsimony informative. Seven indel positions were observed ranging from 1 to 2 bp in length. The D2D3 alignment contained 29 variable sites, of which 28 were parsimony informative. No insertions and deletions were observed. The average length of the last nuclear fragment (ITS) used in the alignment was 800 bp over all sequences. Because of 41 different insertions and deletions, ranging from 1 to 28 bp in length, the total length of the alignment increased to 909 bp. The ITS alignment contained 286 variable positions, of which 270 were parsimony informative. When analysing the ITS nuclear marker prior to concatenation (Figure S4), GD1 and GD4 (bootstrap values = 100), and GD2 and GD5 (bootstrap values = 100) pooled together as was also observed in the COI tree. HD-HMMV now showed a closer relation to the GD1/GD4 clade (bootstrap values: 97, 99, 67, 100 for ML, MP, NJ and BA, respectively), while the position of GD3 remained ambiguous. The D2D3 sequences of GD1 and GD4, and GD2 and GD5 were identical. Furthermore, HD-HMMV was positioned close to GD1/4 (bootstrap values: 87, 64, 92 and 98 for ML, MP, NJ and BA respectively, Figure S5). The position of the GD3 clade remained unresolved. Even though the position of HD-HMMV and especially of GD3 between the different methods of phylogenetic tree construction remained unresolved, the ILD tests (p = 1) allowed us to combine ITS and D2D3 into a single data set (Supporting information). The concatenated alignment was 1208 bp long with 314 variable sites, of which 297 were parsimony informative. The combined nuclear tree yielded the same topology for all four methods (MP, NJ, ML and BA, Fig. 3A). The MP tree (inferred from five optimal trees) had a tree length of 387. The CI and RI were 0.9121 and 0.9664, respectively. The NJ tree had a length of 389 and a CI and RI of 0.9075 and 0.9644, respectively. Negative ln likelihood values for ML and BA phylogenetic trees were 3498.24 and 3517.67, respectively. The clustering of GD1/GD4 and GD2/GD5 was confirmed with bootstrap values of 100 for both clades in all four analyses. The close relation of HD-HMMV with GD1/GD4 was strengthened and highly supported in most methods (96, 99, 74 and 100 for ML, MP, NJ and BA, respectively). The position of GD3 remained unresolved. Divergences between species ranged between 0.5% and 18.1% (Table 3).
| GD1 | GD2 | GD3 | GD4 | GD5 | HD-HMMV | |
|---|---|---|---|---|---|---|
| GD1 |
0.0–0.4* 0.1–0.1** |
15.7–16.5 | 8.7–9.1 | 0.0–0.4 | 18.7–19.0 | 2.4–2.9 |
| GD2 | 12.9–14.5 |
0.0–0.2* 0.3–0.3** |
18.5–19.6 | 15.7–16.3 | 0.2–0.2 | 16.3–16.8 |
| GD3 | 12.7–15.0 | 16.9–17.7 |
0.0–0.0* 1.6–1.6** |
8.7–8.9 | 22.7–23.2 | 8.9–9.1 |
| GD4 | 0.5–0.8 | 14.4–14.6 | 13.9–14.8 |
0.0–0.0* 0.0–0.3** |
18.6–18.9 | 2.4–2.5 |
| GD5 | 12.7–14.8 | 2.2–2.4 | 17.4–18.1 | 14.7–14.9 |
0.0–0.0* 0.2–0.2** |
19.3–19.3 |
| HD-HMMV | 9.5–9.5 | 14.2–14.3 | 14.8–15.5 | 9.3–9.4 | 14.0–14.0 |
0.0–0.0* 0.0–0.0** |

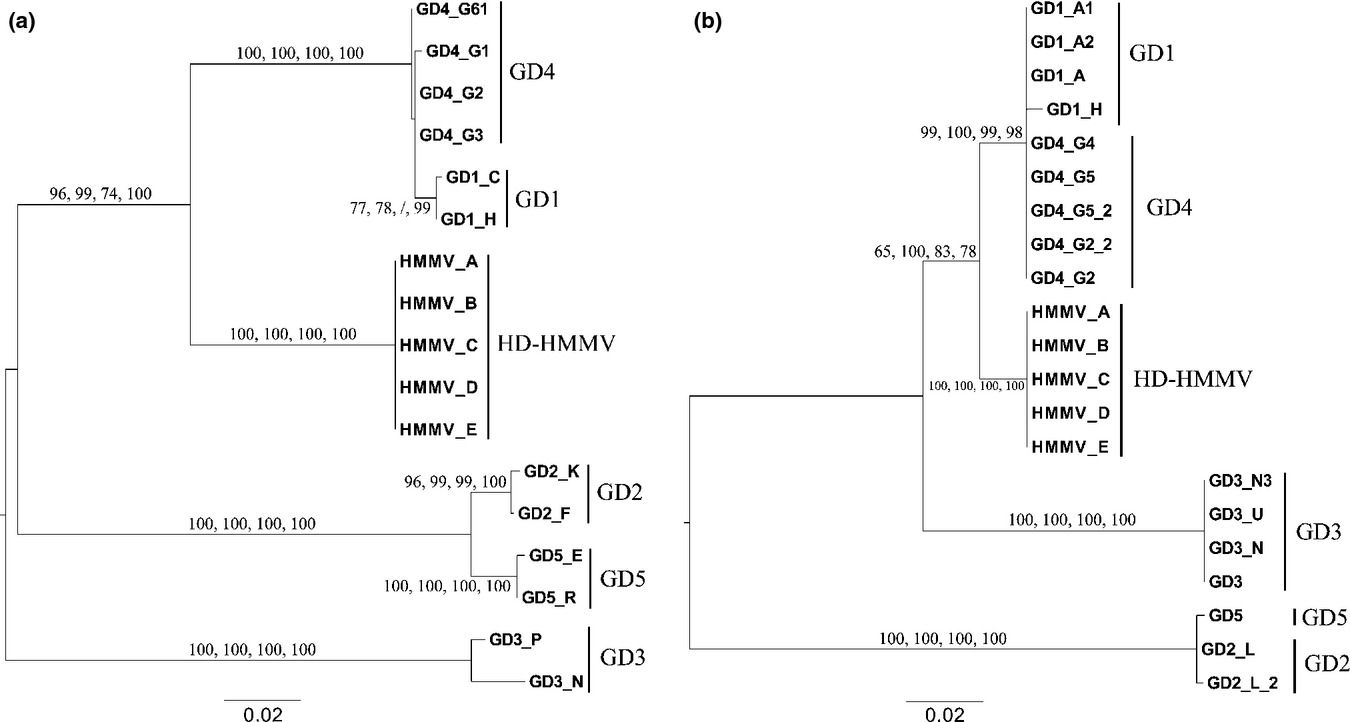

The 18S phylogenetic trees all showed the same topology. The MP tree (inferred from 17 optimal trees) and NJ tree had a length of 192. The CI = 0.9792 and the RI = 0.9916 were the same for both trees. Negative ln likelihood values for ML and BA phylogenetic trees were 1891.27 and 1918.96, respectively. All methods revealed that the relationships between GD1/4 on the one hand and between GD2/5 clades on the other hand were highly supported (Fig. 3B). Furthermore, HD-HMMV was positioned close to the GD1/4 (65, 100, 83 and 78 for ML, MP, NJ and BA, respectively), but with less support compared to the concatenated tree. The relationships of GD3 with the other clades were again unresolved (Fig. 3B). Divergences between species ranged between 0.0% and 23.2%.
In view of the distinct clade formed by the HMMV specimens in both mitochondrial and nuclear data sets, this clade is treated as a separate species throughout the rest of this work.
Morphometric data

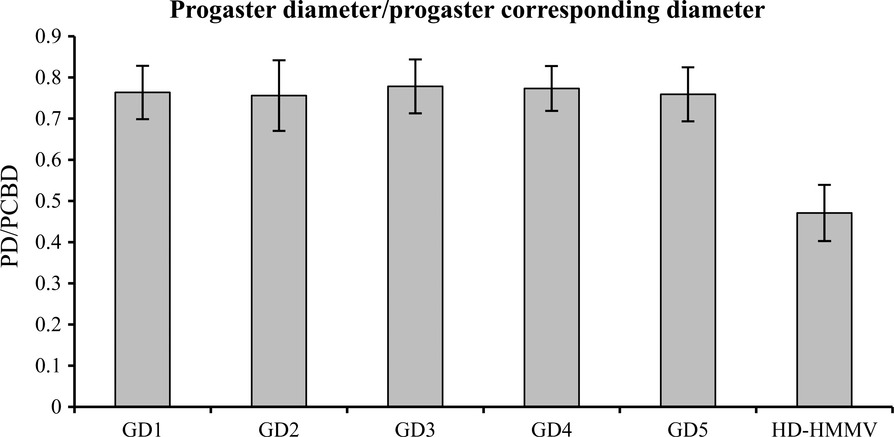

The most pronounced morphological difference between the HD-HMMV and the shallow-water specimens, observed with a light microscope, was the presence of a progaster. The progaster is a narrowing after the first four secretory cells of the intestine (Fig. 4). Scoring absence and presence of this progaster revealed that it is not a unique characteristic. This progaster was exhibited by both HD-HMMV (98%) and shallow-water nematodes (5%). In addition to scoring on absence and presence, we have also measured the progaster diameter (PD) and divided it by the corresponding body diameter (PCBD, Fig. 4). Statistical analysis of the ratio of all six groups revealed a significant difference (anova, p < 0.05) between deep-sea and shallow-water nematodes (Fig. 5). These measurements were used in the morphometric analysis that follows.
The morphometric analysis was carried out on the male and female data set (measurements are summarized in Table S1, all measurements can be found in Table S2 and S3, Supporting information) separately using the six groups observed in the molecular analysis. There was a significant difference in length between the six different nematode species for both females (Kruskal–Wallis χ2 = 23.985, df = 5, p-value = 0.0002) and males (Kruskal–Wallis χ2 = 30.3274, df = 5, p-value = 1.27E-05). The HD-HMMV nematodes were significantly smaller compared to all five intertidal species (anova, p < 0.05), while pairwise comparisons within the GD1-5 group yielded no significant differences.

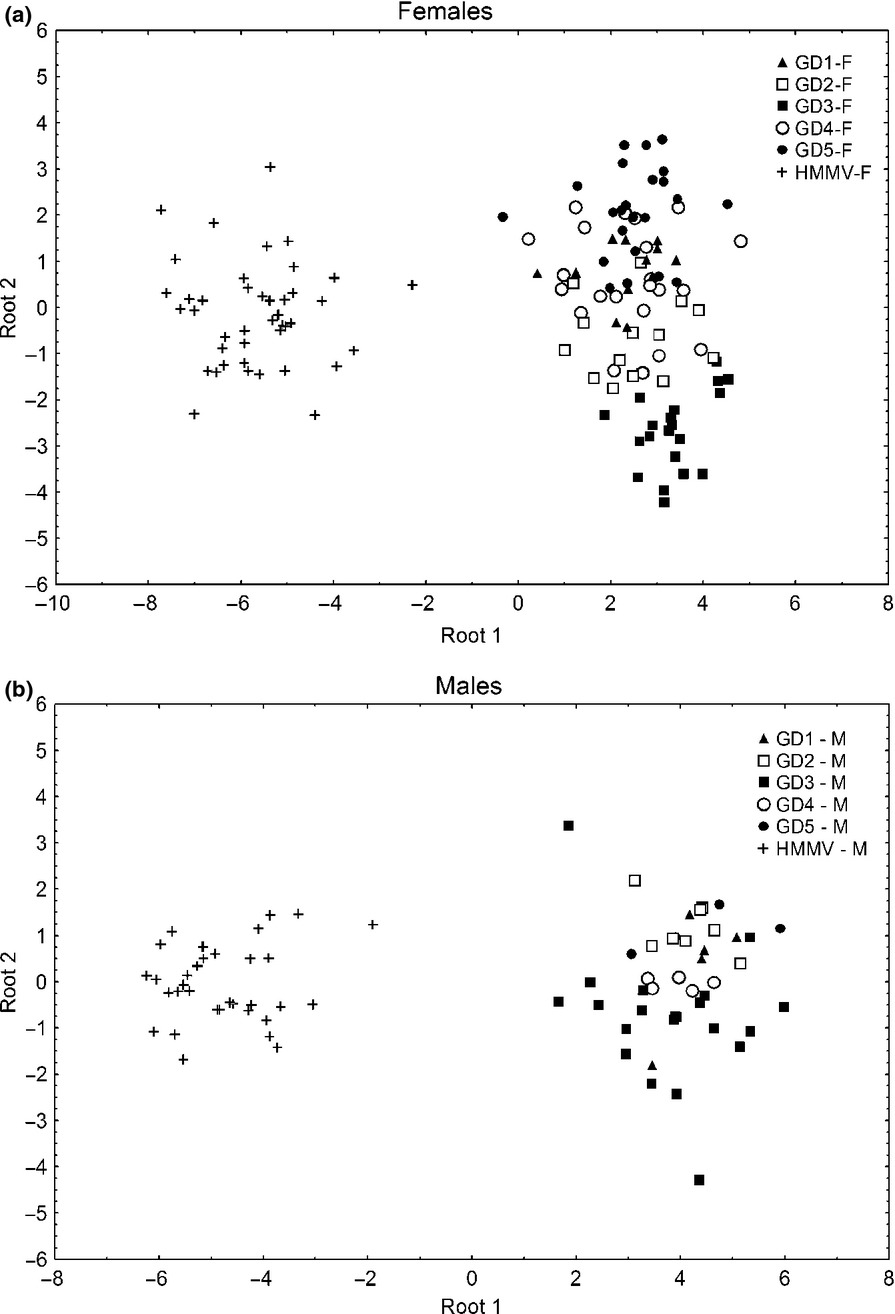

The backward stepwise DFA on the female data set revealed that all but two (amphid-anterior distance and TL) of the morphometric characters contributed significantly to the multivariate discrimination between HD-HMMV and GD1-5 (Table 4). Wilks' lambda was 0.01392 and highly significant (ca. F40.543 = 22.267; p < 0.0001). A clear separation of the HD-HMMV-F population and GD1-5-F could be observed along root 1 and accounted for 86.53% of the explained variance (Fig. 6A). The segregation along root 1 was mainly caused by differences in the pharynx length (PL), head diameter (Hdia), PD and PCBD as evidenced by the high correlation of these morphometric characteristics and the canonical root (Table 5). The cross-validation test using the discriminant functions derived from the morphometric features showed that 100% of HD-HMMV-F of the a priori grouped cases is classified correctly. For GD1-5-F, these percentages range between 100% (GD3-F) and 41% (GD1-F). Root 2 separates GD1-5-F to a certain extend and reveals a high variance within the HD-HMMV-F population. The differences along root 2 were mostly caused by differences in length between vulva and anus.
| Wilks' lambda | Partial lambda | F-remove (11.198) | p-level | Toler. | 1-Toler. | |
|---|---|---|---|---|---|---|
| PL | 0.01963 | 0.70923 | 10.00345 | 0.00000 | 0.69856 | 0.30144 |
| A-A | 0.01501 | 0.92704 | 1.92030 | 0.09572 | 0.72738 | 0.27262 |
| Hdia | 0.02379 | 0.58501 | 17.30882 | 0.00000 | 0.72599 | 0.27401 |
| V-A | 0.02278 | 0.61100 | 15.53430 | 0.00000 | 0.82679 | 0.17321 |
| ABD | 0.01599 | 0.87045 | 3.63160 | 0.00426 | 0.68217 | 0.31783 |
| TL | 0.01593 | 0.87367 | 3.52810 | 0.00516 | 0.79860 | 0.20140 |
| PD | 0.02700 | 0.51559 | 22.92452 | 0.00000 | 0.49399 | 0.50601 |
| PCBD | 0.01884 | 0.73890 | 8.62187 | 0.00000 | 0.40191 | 0.59809 |
- PL, pharynx length; A-A, amphid anterior distance; Hdia, head diameter; V-A, distance between vulva and anus (females); ABD, anal body diameter; TL, tail length (starts from the anus up to posterior end of the tail); PD, progaster diameter; PCBD, progaster corresponding diameter.
| Females | Males | |||
|---|---|---|---|---|
| Root 1 | Root 2 | Root 1 | Root 2 | |
| PL | −11.1064 | −9.3934 | −12.2058 | 5.2670 |
| A-A | 3.4138 | 1.2342 | 8.9834 | 3.1978 |
| Hdia | −13.0000 | 6.0534 | −17.3690 | −3.2824 |
| V-A or SL | 3.5563 | −15.8004 | −1.5043 | −1.3382 |
| ABD | 2.8719 | 8.0373 | −5.4302 | 16.7224 |
| TL | −2.3187 | −7.5270 | −4.3070 | −17.0851 |
| PD | 16.9927 | −0.7826 | 5.2990 | −4.6488 |
| PCBD | −11.5991 | 10.1090 | 5.9494 | −9.0158 |
- Left = females; right = males; SL, spicule length (other abbreviations as explained in Table 4).
The DFA on the male data set also showed a highly significant model (Table 6). Wilks' lambda was 0.02673 and was highly significant (ca. F40.299 = 9.6895; p < 0.0001). Compared to our female DFA, only three morphometric parameters are significant in our model namely PL, amphid-anterior distance (A-A) and the head diameter (Hdia). These three morphometric features capture 96.93% of the variation within the proposed model. It is clear that the HD-HMMV-M population is separated from GD1-5-M along root 1 (Fig. 6B). As expected, PL, A-A and Hdia showed the highest correlation with root 1 (Table 5). Very similar to the female DFA, males of the GD1-5 species are separated along root 2, but this distinction is not as obvious. The predicted classification compared to the observed of HD-HMMV-M is 100%, while for GD1-5-M, it ranges between 25% (GD5) and 80.95% (GD3). Even though the observed classification GD1-5-M is not perfect, none of the intertidal nematodes were classified within the HD-HMMV-M group.
| Wilks' lambda | Partial lambda | F-remove (11.198) | p-level | Toler. | 1-Toler. | |
|---|---|---|---|---|---|---|
| PL | 0.035454 | 0.754039 | 4.43621 | 0.001481 | 0.612625 | 0.387375 |
| A-A | 0.033398 | 0.800462 | 3.39019 | 0.008570 | 0.559192 | 0.440808 |
| Hdia | 0.055218 | 0.484151 | 14.49042 | 0.000000 | 0.591645 | 0.408355 |
| SL | 0.028155 | 0.949522 | 0.72300 | 0.608482 | 0.883521 | 0.116479 |
| ABD | 0.030793 | 0.868192 | 2.06474 | 0.080529 | 0.468351 | 0.531649 |
| TL | 0.030732 | 0.869900 | 2.03399 | 0.084746 | 0.588614 | 0.411386 |
| PD | 0.028713 | 0.931071 | 1.00683 | 0.420523 | 0.590864 | 0.409136 |
| PCBD | 0.029582 | 0.903731 | 1.44873 | 0.218234 | 0.290288 | 0.709712 |
- Abbreviations as explained in Tables 4–5.
Population genetic structure of HMMV specimens

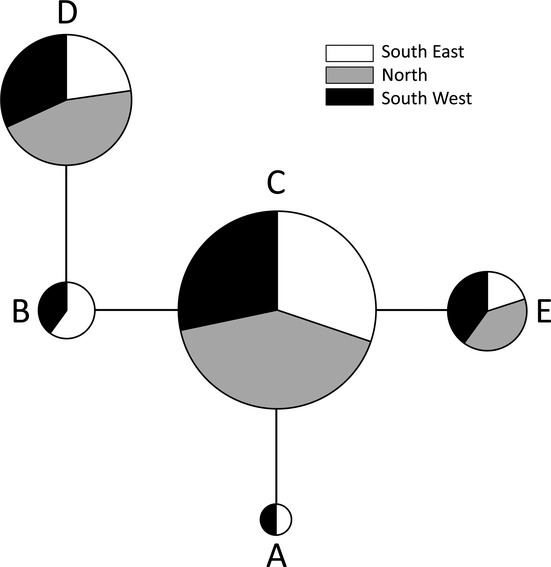

amova did not reveal significant differences between the three locations (ΦST = −0.02659, p = 0.93). Pairwise ΦST values ranged between −0.02222 and −0.03252, but were all not significantly different from zero (p-values > 0.65). The haplotype network (Fig. 7) shows that haplotypes C (56.67%) and D (25.56%) were the most common and accounted for 82.23% of the observed haplotypes. All haplotypes were present in the South West and South East, but haplotypes A and B were not encountered in the North (Fig. 7).
Discussion
Is HD-HMMV conspecific to shallow-water nematodes?
The extensive application of molecular tools in systematic studies has revealed that the number of described morphospecies tends to be an underestimation of the real biological diversity in marine taxa (Knowlton 1993; Meyer and Paulay 2005; Malay and Paulay 2010). Using sequence information for several genes allowed us to identify six different species within the morphologically described H. disjuncta, five of which were previously recognized by Derycke et al. (2007a). The mitochondrial and nuclear data reported in this paper clearly show that HD-HMMV, earlier identified as H. disjuncta (Van Gaever et al. 2006; Portnova 2009), forms a distinct phylogenetic clade which is in accordance with previous studies (Van Gaever et al. 2009b). This illustrates that HD-HMMV has a distinct evolutionary trajectory and is a different species according to the phylogenetic species concept (Adams 1998). The genetic divergences observed in the COI gene within clades (<2.9%, except for GD4) is in agreement with the proposed threshold level of interspecific divergence (5%) for marine nematodes (Derycke et al. 2010b). Divergences between HD-HMMV and GD1-5 range from 19.1% to 25.2%. These divergences are comparable to those observed between different species (Derycke et al. 2010b).
The morphological data also showed clear differences between HD-HMMV and the five shallow-water species. The DFA using the six molecular clades as groups revealed a clear separation of HD-HMMV from the GD1-5 complex for both males and females. The PL, head diameter (through buccal cavity) and the presence of a progaster explained most of the difference between deep-sea and shallow-water species. Previous studies have suggested that the length of the pharynx could be an adaptation to the diet of nematodes (Roggen 1970, 1973). In addition, the buccal cavity (and also the head diameter) of HD-HMMV is 25–40% larger than that of GD1-5 and is also known to be a good indicator for the diet (Jensen 1987, 1992). Halomonhystera disjuncta from the shallow water is a bacterivorous opportunistic species surviving in the presence of a high food diversity (Vranken et al. 1988a; Moens and Vincx 2000). In contrast, the bacterial mats at HMMV are dominated by Beggiatoa (Losekann et al. 2007). The larger buccal cavity of the deep-sea HMMV could be an adaptation to the suggested Beggiatoa diet (Van Gaever et al. 2009b), which occur in filaments making it harder to eat and digest. The most anterior midgut cells forming the progaster of monhysterids function as secretory cells producing digestive enzymes (Deutsch 1977), which may also aid in the breaking down of these Beggiatoa filaments. Even though linking buccal cavity size with diet is tempting, we lack direct observations of feeding behaviour and gut contents, which are necessary to draw firm conclusions of dietary effects on the morphology of HD-HMMV. The progaster has been previously observed in nematodes (Steiner 1958; Chitwood and Murphy 1964), even in deep-sea nematodes (Jensen 1991). Our results show that the deep-sea habitat favours nematodes with a progaster. This may be caused either by selection or by phenotypic plasticity. Regardless of the evolutionary process leading to the presence of the progaster, it was not exclusively associated with the deep-sea form and is therefore not a diagnostic morphological character to discriminate the deep-sea from the shallow-water form. Furthermore, other morphometric features are significantly different between the deep-sea and intertidal species, indicating that feeding strategy alone cannot be responsible for the observed differences. Whatever the driving force behind the morphological differences may be, our data show that the previously assumed widespread distribution of a single species in quite distinct habitats (deep sea versus intertidal) actually turns out to be a disjunct distribution of cryptic species. A proper taxonomic description of HD-HMMV along with a scientific name is provided by A. Tchesunov, D. Portnova, J. Van Campenhout (in preparation).
Our results further confirm that an integrative approach aids in species discovery and identification of nematodes (De Ley and Blaxter 2002; Holterman et al. 2006; Meldal et al. 2007; Derycke et al. 2010a) and highlights that morphometric features such as the progaster, vulva-anus distance, the anal body diameter and the amphid anterior distance are suitable for discriminating HD-HMMV from their shallow-water relatives.
Phylogenetic relationship between HD-HMMV and the shallow-water species
Our nuclear sequence data further reveal that HD-HMMV is more closely related to GD1/GD4 than to the three remaining cryptic species GD2/GD3/GD5 (Table 3). The evolution of the rDNA genes is slower than that of COI and is influenced by factors such as functional and structural constraints, unequal crossing over and gene conversion, which all reduce intraspecific variation (Hillis and Dixon 1991). Furthermore, mitochondrial genes have higher mutation rates and a fourfold smaller effective size, so that they consequently evolve more rapidly than nuclear genes (Avise 1995). Saturation of the COI gene may therefore blur the deeper phylogenetic relationships. In addition, the length of the 18S (760 bp) and ITS-D2D3 concatenated alignment (1208 bp) was much larger than the COI alignment used for analysis (343 bp). The differences in evolutionary rate and length of the fragment explain the fact that the relationships between HD-HMMV and its shallow-water relatives are better resolved in the nuclear trees compared to the mitochondrial tree. The topology of the nuclear trees showed that HD-HMMV is an integral part of the shallow-water species complex and suggests an invasion of the deep sea by shallow-water species. If the opposite was true, an invasion of shallow-water habitats from the deep sea, we would expect all five shallow-water species to cluster together with HD-HMMV being the ancestral nematode from which the shallow-water relatives have evolved, which is not the case. A repeated invasion of the deep-sea and shallow-water habitats was also inferred from the tree topology of Enoplid marine nematodes (Bik et al. 2010). Similar observations were made for the Nemertesia hydroids where the tree topology also showed an interwoven pattern of shallow-water and deep-sea species (Moura et al. 2012).
A successful invasion of deep-sea habitats from shallow waters can be related to the biology of the nematode. Halomonhystera disjuncta from intertidal habitats has a higher temperature resistance when compared with brackish water species from the same region (Vranken 1987). In addition, H. disjuncta is an early colonizer (Derycke et al. 2007b) and has a large tolerance for heavy metals (Vranken et al. 1988b). Recent experimental data also reveal a tolerance for wide ranges in sulphur concentrations and salinities (J. Van Campenhout, unpublished data). Halomonhystera disjuncta is a small nematode (ca. 1 mm) with a short generation time of 1 week and a high reproductive output [ca. 200–500 eggs female−1, (Vranken et al. 1988a)]. As all non-secernentean nematodes, H. disjuncta does not produce dauerlarvae, but exhibits a facultative ovoviviparous reproduction strategy (Boffé 1985; Van Gaever et al. 2006), which is an important adaptation allowing nematodes to secure survival and early development of their offspring. This ovoviviparous reproduction strategy has previously been seen as an adaption to changes in environment (Boffé 1985). These features together with the high food supply at the HMMV could thus have facilitated the successful colonization of the deep sea.
The transfer from shallow water to the deep sea requires dispersal over substantial geographical scales, which is thought to be highly limited for nematodes because they do not have pelagic larvae, and eggs are generally deposited in situ. Phylogeographic and population genetic studies in marine nematodes have revealed that dispersal is substantial at geographical scales of 10–100 km, but highly restricted at larger geographical scales (Derycke et al. 2013). Generally, the lack of a free-swimming life stage or pelagic larval phase limits long-distance dispersal, but given enough offspring and time, some animals will be able to colonize new habitats at long distances from the parental population (Leese et al. 2010). Such infrequent long-distance dispersal has been observed for the rhabditid nematode L. marina (Derycke et al. 2008b), which has a short generation time, high reproductive output and strong colonization ability comparable to H. disjuncta from the shallow water.
The dispersal of marine animals without a pelagic larval phase has different modes: (1) autonomous drifting, (2) creeping, (3) hopping or intergenerational stepping-stone dispersal (4) hitchhiking and (5) rafting (Reviewed in Winston 2012). The occurrence of HD-HMMV was hypothetically explained by means of rafting on macroalgae after the observation of decaying Fucus at the HMMV (Van Gaever et al. 2009b). Moreover, observations were made of nematodes rafting on algae (Thiel and Gutow 2005; Derycke et al. 2008b), indicating long-distance dispersal capacities of nematodes despite the lack of pelagic larvae. The occurrence of H. disjuncta on macroalgae makes rafting a likely hypothesis. However, different modes of dispersal remain possible. Because H. disjuncta has no dauerlarvae and eggs are generally deposited in situ, autonomous drifting over large distances without any food source seems the most unlikely. Autonomous drifting can be more successful if favourable sedimentary microhabitats are present along its way (hopping). Halomonhystera disjuncta is also present at the Nyegga pockmark (64°N 5°E) offshore mid-Norway (Portnova et al. 2010). This pockmark could be a stepping stone for dispersal from shallow water to the HMMV. Unfortunately, we do not have any genetic information for nematodes from this location. In addition, H. disjuncta also occurs in marine sediments (Heip et al. 1985; Vranken 1987). Consequently, creeping in the sediment from shallow to the deep-sea waters is plausible. As long as a food source is available, nematodes may also be hitchhikers carried in the ballast water of ships to a new region along a coast or over an ocean. As H. disjuncta has a broad geographical distribution in shallow-water areas (along the coast of Belgium and the South Western part of The Netherlands, Western Canada, the White Sea in Northern Russia and the North Sea South of Norway) and we so far only have data from the North Sea area, we cannot infer the area from which the original dispersal has occurred. Nevertheless, the absence of shared haplotypes and the deep phylogenetic divergences between our shallow-water and deep-sea nematodes results in a deep-sea population that is geographically isolated from the studied shallow-water nematodes. The long distances between suitable habitats can form insurmountable barriers [i.e. ‘isolation by distance' (Wright 1943)] even in homogeneous habitats such as the abyssal plains (Zardus et al. 2006). Dispersal can also be limited by bathymetrical distances: morphotypes of the echinoderm Zoroaster fulgens are reproductively isolated over bathymetrical distances of ca. 1 km (Howell et al. 2004). The bathymetrical difference (ca. 1280 m) and a distance of ca. 2500 km between the intertidal and deep-sea area are therefore likely to have facilitated the separation of the Halomonhystera populations between both areas.
Population genetic structure within the Håkon Mosby mud volcano
The HMMV is a small geographical area of ca. 1 km2. We have sampled three locations within the HMMV, separated by only several hundreds of metres. The high number of shared haplotypes among the three locations and the low number of mutations between haplotypes indicate that there is substantial gene flow between all three areas. The mud volcano can thus be seen as a homogeneous population. Earlier studies have shown that nematodes are able to disperse up to metres (Gingold et al. 2011; Thomas and Lana 2011) and even kilometres (Derycke et al. 2007b). Active dispersal has also been observed in the deep sea (Gallucci et al. 2008; Guilini et al. 2011). Furthermore, the mud volcano itself is a very dynamic environment, with mud flows and local methane bubbling which can force nematodes into the water column and promote dispersal. The North area was colonized by bacterial mats between 2009 and 2010, which has most likely been followed by a recolonization of nematodes from other parts of the mud volcano. This is supported by the lower number of haplotypes and by the absence of unique haplotypes in the North area, a pattern typical of founder effects (Boileau et al. 1992; De Meester et al. 2002).
Conclusion
In this paper, an integrative approach clearly revealed that the deep-sea form of the originally identified H. disjuncta is genetically and morphologically distinct from its shallow-water counterparts and should be described as a new species. We supplied morphometric features to discriminate HD-HMMV from the intertidal species. Our nuclear sequence data reveal that HD-HMMV is embedded within the GD1-5 species complex providing proof for a deep-sea invasion by shallow-water nematodes. The large geographic distance and bathymetrical depth between both locations may explain the genetic distance between lineages. However, other dispersal constraints such as currents need to be considered.
Within the HMMV, we did not observe a genetic structure indicating substantial gene flow at this small geographical scale.
