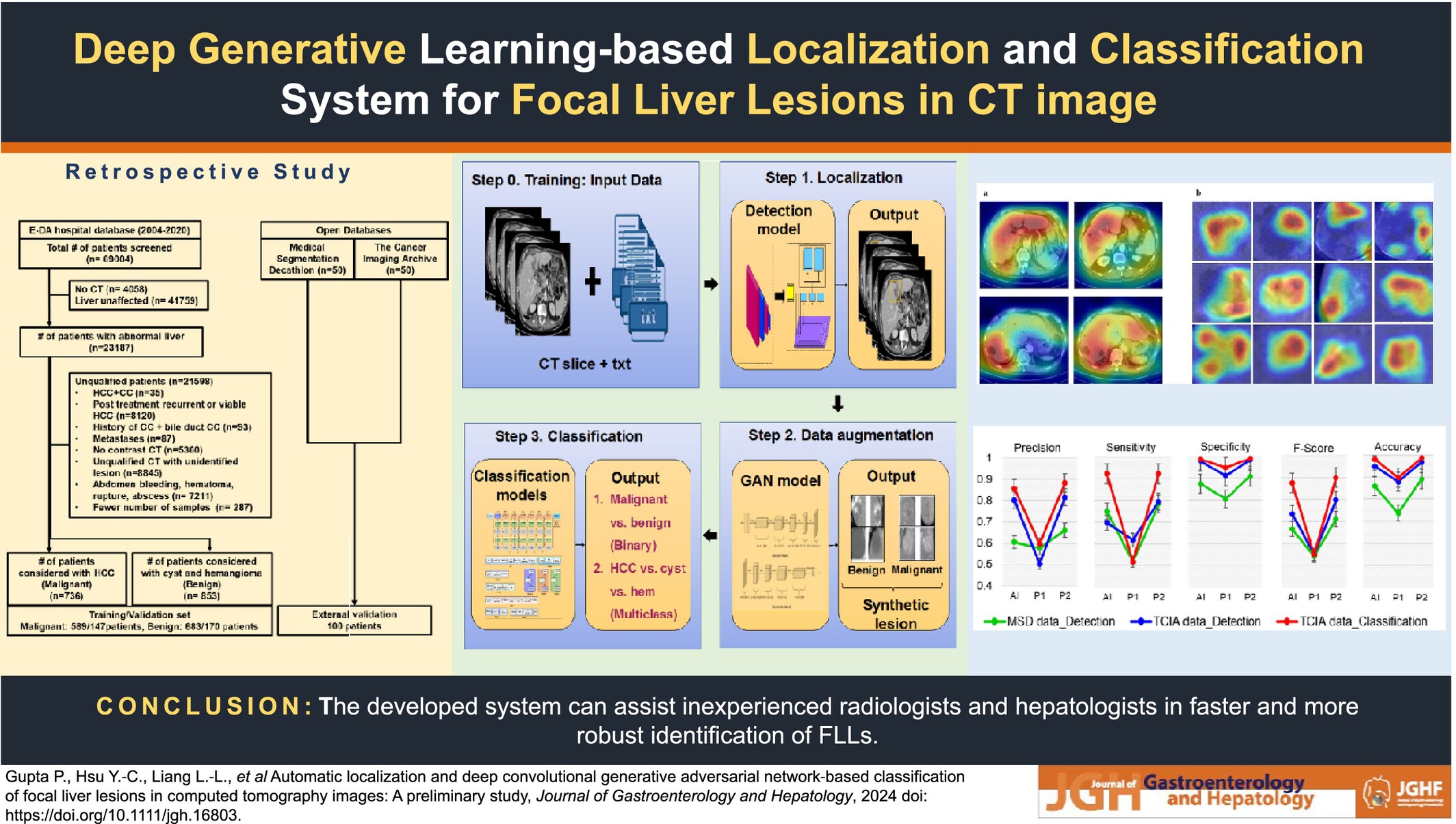

Patient eligibility

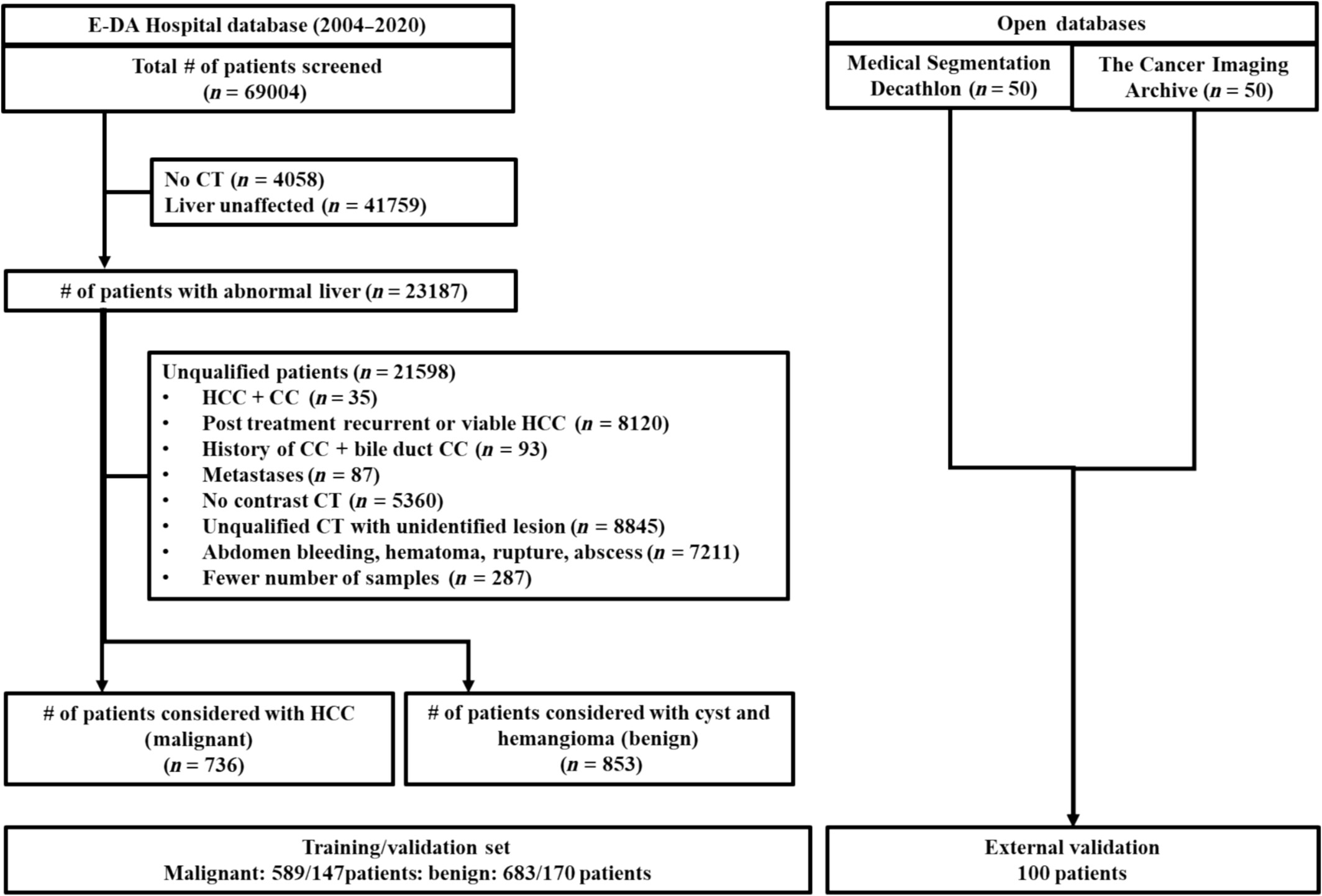

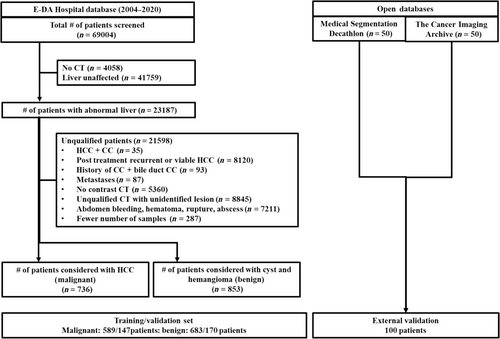

Our study included data collected from January 2004 to December 2020, screening 69 004 patients. For contrast-enhanced CT examinations, we utilized advanced imaging technology such as Sensation 16 (Siemens, Germany), LightSpeed VCT (GE Medical Systems, United States), BrightSpeed (GE Medical Systems), SOMATOM Definition AS (Siemens), Emotion 16 (Siemens), and Optima CT660 (GE Medical Systems). To ensure the accuracy of our findings, we excluded patients who did not have a suitable CT before treatment, had inappropriate artifacts on preoperative CT, showed massive intra-abdominal bleeding due to rupture, had an unclear tumor on preoperative CT, did not undergo contrast CT examination, or were under 20 years of age. For HCC cases, we preferred patients who had quadruple phases (precontrast, arterial, venous, and delay phases). However, obtaining a quadruple phase for benign lesions was challenging. We considered the precontrast, contrast (slices were included in the venous phase during analysis), and delay phases for benign cases. Ultimately, our study included 1589 patients, with 736 patients having naïve HCC primarily, as shown in Figure 2. Of the 853 patients with benign lesions, 593 had cysts, and 454 had HEM. In addition, demographic data such as age and gender were also collected for all 1589 patients in our study. After eligibility assessment, a total of 1589 patients (mean age, 60 years ± 11.26 [SD]; 1004 male [63%]) with the age of patients ranging from 20 to 95 years were included in the study (Table 1).

Data preparation and annotations

In this retrospective study, all preoperative CT images were obtained from the picture archiving and communication system. The patients' data collected in digital imaging and communications in medicine (DICOM) format were converted to JPEG format, widely accepted for medical image analysis, using MicroDicom, a free DICOM viewer (https://www.microdicom.com/). All the slices were viewed in the abdomen window, and the slices in axial planes were exported to a fixed dimension of 512 × 512 with optimal lossless quality maintained and patients' information anonymized. Moreover, the converted slices were verified by experienced radiologists and hepatologists to ensure no eye-catching distortion of the liver tissue. A patient with an abdomen CT contains approximately 25–40 slices per phase; however, the FLL may not appear on all slices. As a result, the experts separated the slices containing FLL manually. Consequently, 17 335 slices were extracted and used for the annotation process. To use a supervised learning-based detection approach for the localization of FLLs in the CT slices, the labeled samples were created using the extracted slices and adopting the LabelImg tool (https://pypi.org/project/labelImg/1.4.0/), where boxes were drawn around the FLL region and the coordinates of the bounding box for FLL in the form of region of interest (ROI) were stored in Extensible Markup Language (XML) format and text format. The annotation was initially made in slices obtained from phase A of CT because HCC is hyper-enhanced and conveniently visible in phase A. This was followed by annotating the slices obtained from phase V of CT. The radiology report was used to categorize all FLLs; annotator 1 (a physician with 4 years of experience) initially made the bounding box. The bounding box made by annotator 1 was verified by annotator 2 (a hepatologist with more than 8 years of experience). Another independent annotation was made by annotator 3 (a hepatologist with more than 15 years of experience). Annotator 2 and annotator 3 were unaware of each other's annotations. For qualitative ground truth generation, the inter-reader agreement was obtained between annotator 2 and annotator 3. There was variability of FLL sizes in patients, as shown in Figure S1, where the first row shows the images and the second row shows bounding boxes for the labeled ROI. In total, 17 335 slices were labeled out of 45 049 from 1589 patients, resulting in 1535 HCC, 866 cysts, and 794 HEMs, altogether 3195 lesions.

Data augmentation

The main issue of supervised learning-based training of models is the requirement of a large, labeled training dataset. To increase the training samples and improve the model performance in classifying the FLL into different categories, we used two approaches for augmenting the dataset: (i) conventional augmentation that uses image transformation techniques and (ii) generation of synthetic new samples after learning from given real images using generative models. Both approaches are described in the following.

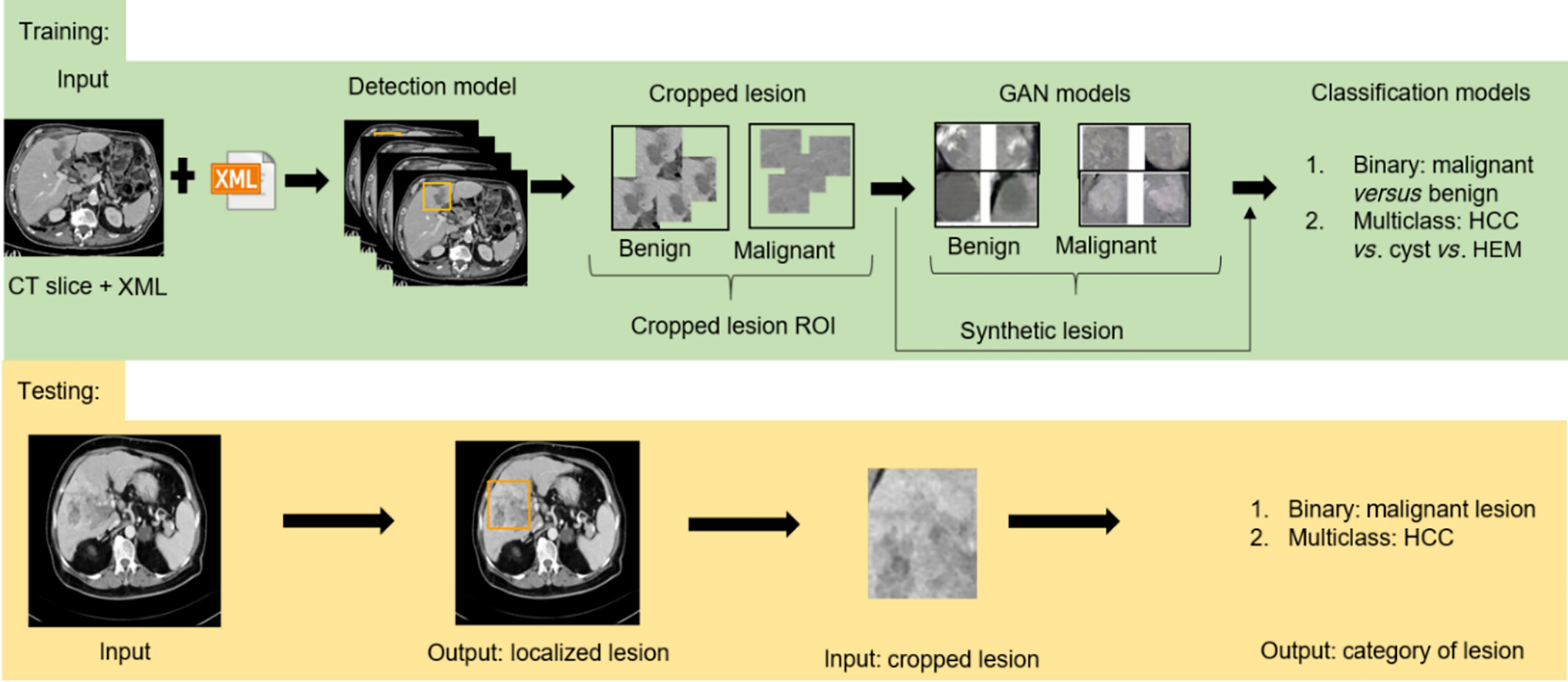

Deep learning models

Statistical analysis

The Cohen κ test²⁸ was used to evaluate the level of agreement between annotator 2 and annotator 3 in their annotation of images. The statistical significance of normally distributed variables was tested using a t-test, and differences in count variables were tested using the chi-squared test. The P-value less than 0.05 was considered statistically significant. Identifying FLL as malignant was considered positive, and benign was considered negative in both detection and classification. Similarly, for multiclass, the one-versus-all scheme was applied while viewing each class as positive at each instance, and finally, the average value was obtained. Consequently, true positives (TPs), true negatives (TNs), false positives (FPs), and false negatives (FNs) were obtained to calculate accuracy = (TP + TN)∕(TP + FP + TN + FN), sensitivity = TP∕(TP + FN), specificity = TN∕(TN + FP), precision = TP∕(TP + FP), and F1-score = (2 × precision × sensitivity)∕(precision + sensitivity) to evaluate the performance of different models. In addition, the mean Average Precision (mAP) of the model showing the tradeoff between precision and sensitivity was also determined during detection. In addition, receiver operating characteristic (ROC) curves were generated, and the AUC was also determined to assess the performance of models. All experiments were conducted on a Tesla V100 PCIe GPU with 32 GB of system RAM. Torch 2.0.0+cu117 and TensorFlow 2.12²⁹ were implemented in the Python 3.10 environment. Scikit-learn was primarily used to perform statistical analyses.

Patient demographics and imaging data

Out of 1589 patients, 1272 (mean age, 61.75 ± 10.97 [SD]; male, 776 [61%]) were considered for training, and 317 (mean age, 56.94 ± 11.84 [SD]; male, 228 [72%]) were considered for testing. The FLL ranged from 0.02 to 25 cm (median: 2 cm) (Fig. S4). During patient separation, care was taken to have lesion separation without any bias in size. Therefore, out of 3195 FLLs, we used 1545 (49%) (FLL ≤ 3 cm) and 928 (29%) (FLL > 3 cm) for training and 395 (12%) (FLL ≤ 3 cm) and 321 (10%) (FLL > 3 cm) for testing.

Inter-reader agreement for qualitative computed tomography images

Table S1 shows the inter-reader agreement between the readers and κ statistics for each imaging. The agreement was considered slight (κ = 0.01–0.20), fair (κ = 0.21–0.40), moderate (κ = 0.41–0.60), substantial (κ = 0.61–0.80), almost perfect (κ = 0.81–0.99), and perfect (κ = 1). Annotator 2 and annotator 3 agreed with κ between 0.81 and 0.99 for all three FLLs, showing almost perfect inter-reader agreement. It was observed that for even HCC ≤ 3 cm, the inter-agreement was almost perfect κ = 0.95 (0.90–1), and for cyst ≤ 3 cm, the κ value was 0.91 (0.88–0.93). Further, it was observed that the annotation of HEM had better agreement in comparison with HCC and cyst with κ = 0.97 (0.95–1) for size ≤ 3 cm and κ = 1 (0.99–1) for size > 3 cm.

Selection of detection model

In the optimization phase of the detection model, various models were evaluated based on their performance with the hyperparameter configurations specified in Table S2. It was observed that YOLOv8 had the best performance with mAP 0.81 and an FN rate of 0.27 (instance-wise) for the validation set. The different performance metrics obtained for each model were recorded (Table S3). Nonetheless, during patient-wise analysis, if a lesion could be identified in at least 50% (threshold) of the total number of labeled slices, the model accuracy was 100%. Such a threshold was efficient when considering lesions of variable sizes ranging from 0.02 to 25 cm. For instance, it was found that a small FLL was primarily visible in two slices of patients; failing to localize FLL in one slice made the accuracy 50%; on the other hand, localizing 10 out of 16 slices for an FLL of size 8 cm resulted in 100% accuracy. With the significant potential of recognizing smaller ROIs, YOLOv8 achieved an average accuracy of 0.92 (95% confidence interval [CI]: 0.86–0.96) during patient-wise testing. Consequently, few samples for the slice-wise performances of YOLOv8 are shown in Figure S5. The ground truths provided by experts are shown in Figure S5a, and the corresponding outputs provided by the artificial intelligence model—YOLOv8—are shown in Figure S5b. It can be observed that the model performed well in localizing the FLLs, even of smaller size (≤ 3 cm). In addition, patient-wise performance of YOLOv8 is demonstrated (Fig. S6). Figure S6a,b contains slices with the FLL localized in slices for phases A and V, respectively. In addition, Figure S6c,d includes FLLs localized in slices for the non-contrast phase and delayed phase, respectively. It can be observed that although our model was not trained with images of non-contrast and delay phases, the model could localize the FLLs with 0.70 (95% CI: 0.619–0.781) and 0.84 (95% CI: 0.789–0.901) accuracies, which suggest better usability of the model for all phases of CT.

Generation of generative adversarial network-based augmented images

The ROIs for HCC, HEM, and cyst were input to the DCGAN model separately, and the model generated the augmented samples to obtain many training examples. Approximately 12 000 samples for phase A and 23 000 for phase V for each type of lesion were used. In Figure S7a–c, the top row represents the input samples for the model showing HCC, HEM, and cyst, respectively. Correspondingly, the bottom row of Figure S7a–c shows the output produced by the model for the three types of FLLs. Both the real images and synthetic samples were used to train the classification model in the third phase.

Selection of classification model

The real image and synthetic images were used as input to select the best-performing classification models. During model selection, a fivefold cross-validation study was performed, and average values of training, validation, and testing accuracies were recorded (Table S4). Based on the observation, hyper-tuned EfficientNetB5 was considered our classification model.

Diagnostic accuracy of classification model

After the model selection, the testing performances of different models with EfficientNetB5 as the base, considering phase A and phase V of CT individually and together, were recorded in Table 2. It can be observed that the model derived with only phase A images performed better with the addition of GAN-based images, where the AUC increased from 0.97 (95% CI: 0.94–1.00) to 0.98 (95% CI: 0.98–1.00) (Fig. S8a,c) when classifying the lesion into benign or malignant categories. Moreover, during multiclass differentiation, the model performance increased by 5% (Table 2). This can be again justified from Figure S8b,d, where the area under the ROC curve has increased from 0.95 (95% CI: 0.90–1.00) to 0.98 (95% CI: 0.98–1.00) (Table 2).

The data collected in this study consisted of approximately 3195 lesions (61% FLL ≤ 3 cm), where 1452/1545 (accuracy: 0.94 [95% CI: 0.85–1.00]) lesions were correctly localized during training and 327/395 (accuracy: 0.83 [95% CI: 0.68–0.98]) could be correctly localized during testing. Furthermore, when classifying the FLLs and GAN-based images for FLL ≤ 3 cm, the accuracy for binary and multiclass classification was 0.95 (95% CI: 0.92–0.98) and 0.94 (95% CI: 0.89–0.99) during testing, respectively. On the other hand, for FLLs > 3 cm, the models achieved accuracy of 0.97 (95% CI: 0.94–1.00) and 0.95 (95% CI: 0.90–1.00) for binary and multiclass classification, respectively. Furthermore, the performance of the model was observed to vary with the size of FLLs; during training, for size ≤ 3 cm, the accuracy for HCC was 0.97 (95% CI: 0.93–1.00), HEM was 0.96 (95% CI: 0.94–0.98), and the cyst was 0.97 (95% CI: 0.94–1.00). On the other hand, for size > 3 cm, the accuracy was 0.98 (95% CI: 0.96–1.00) for both HCC and HEM and 0.97 (95% CI: 0.96–0.98) for the cyst. Additionally, during testing, for size ≤ 3 cm, the accuracy for HCC was 0.94 (95% CI: 0.88–1.00), HEM was 0.94 (95% CI: 0.91–0.97), and the cyst was 0.94 (95% CI: 0.89–0.99). On the other hand, for size > 3 cm, the accuracy was 0.95 (95% CI: 0.91–0.99) for HCC, 0.95 (95% CI: 0.90–1.00) for HEM, and 0.96 (95% CI: 0.93–0.99) for the cyst. The summaries of model performances during training and testing with demographics (gender and age) and size of patients are given in Table S5.

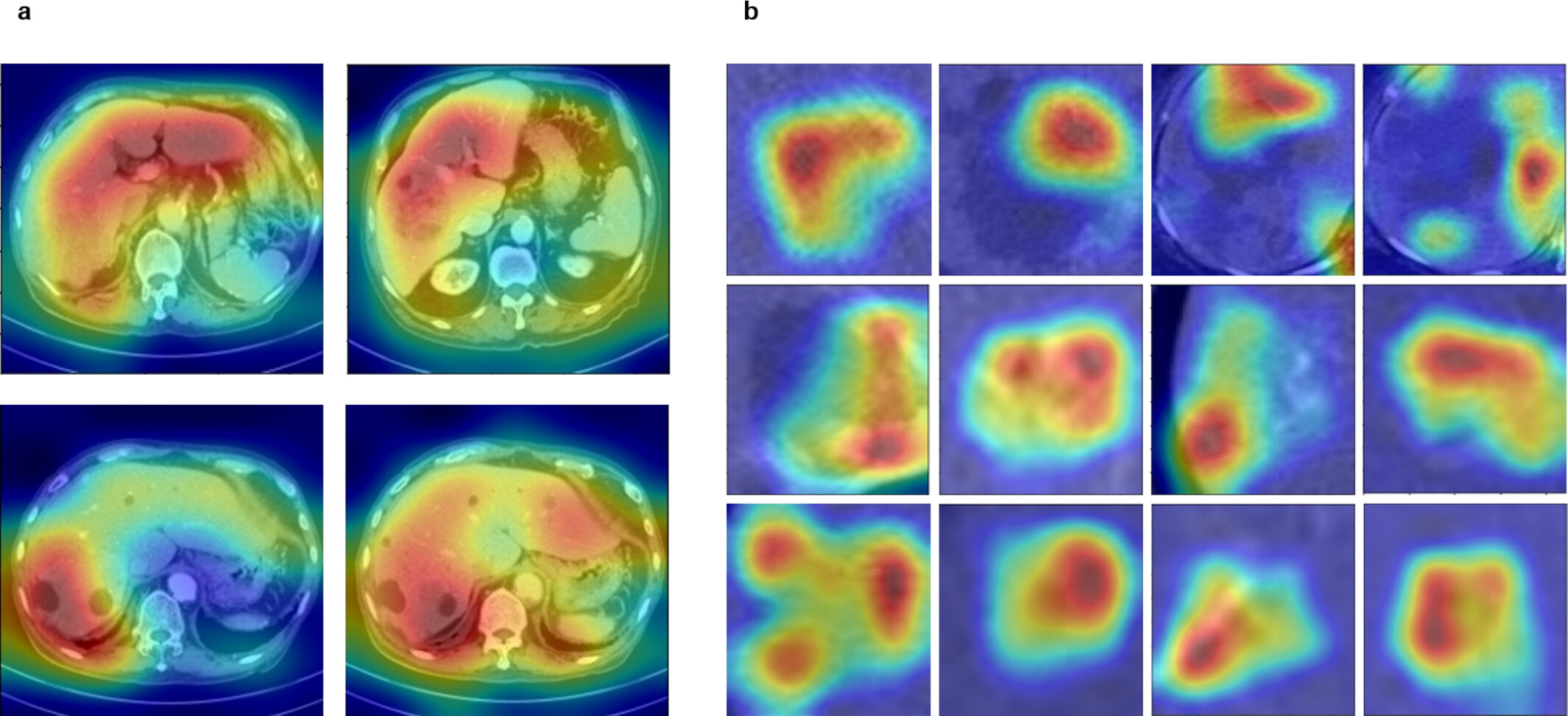

Although the interpretation made by DL models cannot be explained entirely because of the black-box nature of the DL models,³⁰ we have attempted to produce a visual explanation in Figure 3, where the heatmaps were generated using Grad-CAM.³¹ The whole slices in Figure 3a show the features focused on by YOLOv8. It can be observed that the model captured the region with FLLs with more attention and, therefore, localized the FLLs correctly. Similarly, when performing FLL classification, EfficientNetB5 could focus on the fast washout pattern of HCC (Fig. 3b, row 1), peripheral enhancement in the case of HEM (Fig. 3b, row 2), and hypoattenuation pattern of the cyst (Fig. 3b, row 3) to differentiate the lesions into respective categories.

Comparison of physicians versus artificial intelligence model considering open data source

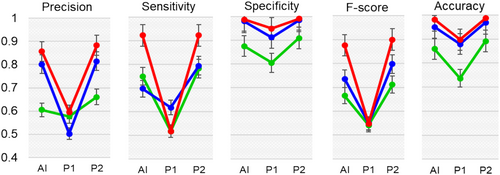

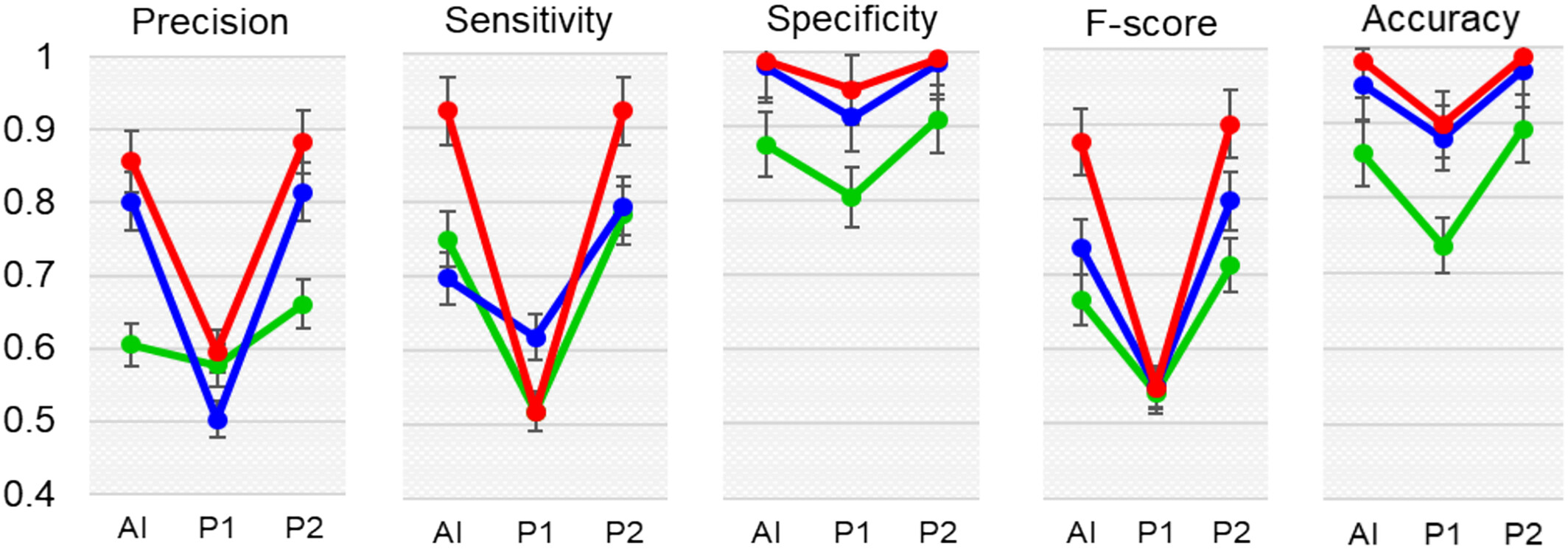

To verify the robustness of the derived DL-based localization and classification (DLLC) system, we performed a comparative analysis with two physicians: physician 1, who has 4 years of experience, and physician 2, who has more than 8 years of experience in liver CT imaging. The physicians were unaware of FLL location and category. Each physician localized and labeled the FLLs in the LabelImg tool, with the liberty to view the slices multiple times. We randomly used 50 patients each from the Task03_Liver dataset, Medical Segmentation Decathlon (MSD),³⁴ and the hcc_tace_seg dataset, The Cancer Imaging Archive (TCIA).³² During localization, the accuracy achieved was 0.858 (95% CI: 0.8–0.918) for MSD and 0.95 (95% CI: 0.89–1.00) for TCIA (Table 3). Figure 4 shows the performance of the DLLC system in comparison with that of both physicians. The performance of our derived system was better than that of physician 1 and similar to that of physician 2.

Comparison of two-stage approach versus one-stage end-to-end approach

When considering FLL diagnosis, especially when focusing on HCC, HEM, and cyst, these lesions exhibit some similarities, which can be observed from the output obtained from the t-distributed stochastic neighbor embedding (t-SNE) algorithm (Fig. S9a). Because of some similar features, we also noticed that although some FLLs were correctly localized, the model could not determine the type of lesion as benign or malignant (Fig. S9b), where the blue box represents the ground truth. In contrast, the red and yellow boxes represent benign and malignant lesions. It was observed that the model considers the lesions as both benign and malignant with similar confidence. Consequently, we localized lesions as a single class (FLL) and generated synthetic images for each FLL separately using GAN. Finally, we used classification models to differentiate the lesions. Incorporating GAN-based images remarkably differentiated the FLLs, shown using t-SNE (Fig. S9c), ultimately improving our two-stage approach performance by 5%.

Demographic data and imaging features

During model derivation, the data were separated in such a way that the age of patients ranged from 20 to 95 years (mean ± SD: 61.75 ± 10.97) during training and from 22 to 93 years (mean ± SD: 56.94 ± 11.84) during testing, with a P-value < 0.001. A similar observation was made with the ratio of male to female (61:39) during training and (72:28), with a P-value < 0.001. The proper data distribution shows no gender or age bias in the data included for model derivation.

Size-wise analysis for lesion detection and classification

In addition, during data annotation, it was observed that 16% of HCC patients (117/736) had infiltrative lesions, where the bounding box was generated with utmost mindfulness. Consequently, our model had a lower mAP @ IOU 0.5 when localizing the FLLs. Our objective was to localize the FLLs with IOU @ 0.5; therefore, we achieved better accuracy of 0.83 (95% CI: 0.68–0.98) and 0.87 (95% CI: 0.77–0.97) for FLL ≤ 3 and > 3 cm, respectively. It is to be noted that, although our work aims to develop a fully automatic system for the localization and classification of FLLs, because of some FNs in the current derived localization model, we used cropped FLLs for those cases missed during localization and performed classification. Another observation made during annotation was that approximately 50% (1565 out of 3195) of FLLs had a size less than 2 cm. In most cases, diagnosis of smaller HCC as HEM could be possible. In addition, because the HCC data considered were of different types, such as confluent with nodular growth of 27.8% (205/736), it was challenging to annotate the FLL, which also led to misclassification of HCC as cyst during model testing.

This study focused on developing a DL-based diagnostic system for the automatic localization and categorization of FLLs. Existing works in this field include a study¹² that uses manual cropping of lesions to differentiate HCC from non-HCC lesions. With 342 patients (449 lesions), the model achieved 85.6% accuracy with no external validation performed. Another similar work¹³ focused on detecting primary hepatic malignancies in patients with high risk for HCC, with 1350 multiphase CT scans used for model development. The model achieved 84.8% sensitivity with no external validation performed. Unlike previous studies, multiclass classification of FLLs was performed in Wang et al.,¹⁵ considering 445 patients (557 lesions) with lesions cropped from multisequence MRI. The model achieved 79.6% accuracy during seven-class classification. When considering the earlier-derived models for clinical implementation, it is necessary to identify and crop the lesions from CT/MRI slices. The human intervention might affect the efficiency of DL models because the input to the model depends on the physicians' experience. The lesions must be manually cropped before evaluation. On the other hand, a fully automatic method for detecting and classifying lesions is proposed in Zhou et al.,¹⁶ using multiphase CT of 435 patients (616 nodules) to avoid human intervention. Although the model achieved 82.8% precision during detection and an average of 82.5% and 73.4% accuracy during binary and six-class classification, the model might suffer from overfitting due to limited data and a single-center study with no external validation. In summary, although few works have proposed detecting and classifying lesions into different categories in either CT or MRI, our study stands out from similar research in multiple ways. Firstly, it attempts to use fully automatic data input in the form of abdomen slices, which sets it apart from other studies that rely on cropped regions. Secondly, adopting GAN-based augmentation significantly improved the models' performance by 5%. Moreover, this study validates the robustness of the developed system for FLL localization and categorization externally with two different datasets (Task03_Liver and hcc_tace_seg) obtained from well-known sources (MSD and TCIA).

We used external data to verify the robustness of our derived model. The Task03_Liver dataset from MSD had 131 training samples with mask annotation of the tumor and liver. Another dataset, hcc_tace_seg, contained 105 confirmed HCC patients who underwent CT prior to and after transarterial chemoembolization procedure. We used pretreatment CT of randomly 50 patients each for both datasets. All the images were converted from DICOM to JPG using similar procedure as during model derivation. These masks helped generate the bounding box (by annotator 3, a hepatologist with more than 15 years of experience). When observing the datasets, it was found that hcc_tace_seg (TCIA) had larger lesions (HCC) than Task03_Liver (MSD); this could be one potential reason for better localization. The second phase of our DLLC system is the classification of FLLs; however, the type of lesion was unknown in the MSD dataset, which could affect our evaluation. Besides, the TCIA dataset contained HCC only. As a result, we only used the TCIA dataset to classify lesions into benign or malignant. It was observed that physician 1 (annotator 1) misclassified 11% of FLL as benign; however, only 2% were misclassified as benign lesions by the DLLC system, which is similar to the performance of physician 2 (annotator 2). Potential reasons that physician 2 had better diagnoses are due to experience in the field and being able to view slices continuously and multiple times.

This study has several limitations. First, because of the availability of a smaller number of samples, we could only include some types of FLLs in this study. The data containing other FLLs, such as dysplastic and regenerative nodules, might bias the model performance. In addition, CT images of patients with prior treatment, such as ablation and resection, might also result in misdetection and misclassification of the treated region as FLL. Second, our study was a single-center study where using a single kind of contrast agent might affect the imaging features learned, thus limiting the model's applicability. Third, in this study, we used phase A and phase V of CT for HCC; most benign cases did not have quadruple CT, and fewer images in phase A affected the models' performances. Our preliminary study suggested that if the model is trained well with arterial and portal venous phase images, the FLLs can be well localized in precontrast and delayed phase images. However, extensive study is suggested to support our findings. Therefore, in our future work, we will perform a nationwide study to collect images from different hospitals and include several categories of FLLs, including cholangiocarcinoma and dysplastic nodules, with preferably more samples for each phase of CT, comparing both 2D and 3D detection approaches. Furthermore, we will perform model validation by utilizing newly obtained data collected prospectively. This approach aims to incorporate the validated model into ongoing clinical trials, allowing for real-time validation within clinical settings. The process will involve comprehensive validation to ensure the model's accuracy and efficacy in diverse clinical scenarios, thereby establishing its robustness and reliability for real-world implementation.
