NFAT5 promotes arteriogenesis via MCP-1-dependent monocyte recruitment
Abstract
Studies have demonstrated that nuclear factor of activated T cells 5 (NFAT5) is not only a tonicity-responsive transcription factor but also activated by other stimuli, so we aim to investigate whether NFAT5 participates in collateral arteries formation in rats. We performed femoral artery ligature (FAL) in rats for hindlimb ischaemia model and found that NFAT5 was up-regulated in rat adductors with FAL compared with sham group. Knockdown of NFAT5 with locally injection of adenovirus-mediated NFAT5-shRNA in rats significantly inhibited hindlimb blood perfusion recovery and arteriogenesis. Moreover, NFAT5 knockdown decreased macrophages infiltration and monocyte chemotactic protein-1 (MCP-1) expression in rats adductors. In vitro, with interleukin-1β (IL-1β) stimulation and loss-of-function studies, we demonstrated that NFAT5 knockdown inhibits MCP-1 expression in endothelial cells and chemotaxis of THP-1 cells regulated by ERK1/2 pathway. More importantly, exogenous MCP-1 delivery could recover hindlimb blood perfusion, promote arteriogenesis and macrophages infiltration in rats after FAL, which were depressed by NFAT5 knockdown. Besides, NFAT5 knockdown also inhibited angiogenesis in gastrocnemius muscles in rats. Our results indicate that NFAT5 is a critical regulator of arteriogenesis and angiogenesis via MCP-1-dependent monocyte recruitment, suggesting that NFAT5 may represent an alternative therapeutic target for ischaemic diseases.
1 INTRODUCTION
Although interventional therapy and bypass surgery are effective treatments for patients with coronary heart disease (CHD), these procedures are not suitable for some patients and are associated with a high postoperative restenosis rate.1, 2 Well-developed coronary collateral circulation (CCC) is crucial for improving the symptoms and prognosis of CHD patients.3, 4 Therefore, investigating the regulatory mechanism of CCC formation and promoting the opening and development of CCC to reconstruct a patient's autologous blood supply may be a promising solution to those patients.
Arteriogenesis, the basic process of CCC formation, during which pre-existing small arterioles are remodelled into large and functional collateral arteries to divert blood flow around stenotic lesions, is a complex set of events involving interactions among various cell types and signalling circuits.5, 6 Inflammation plays a crucial role in arteriogenesis.7 Shear force can induce activation of endothelial cells (ECs), with a subsequent up-regulation of cell adhesion molecules such as intercellular adhesion molecule-1 (ICAM-1), vascular cell adhesion molecule-1 (VCAM-1) and chemokines such as monocyte chemoattractant protein 1 (MCP-1), these factors further recruit monocytes which secrete matrix metalloproteinases (MMPs) and growth factors, leading to rearrangement of the extracellular matrix and outward remodelling of the arterioles.8-11 However, the intracellular modules regulating MCP-1 release and monocytes recruitment during arteriogenesis are still unclearly.
The transcription factor, nuclear factor of activated T cells 5 (NFAT5), belongs to the Rel family, which includes the NF-κB and NFATc proteins.12, 13 Originally described as a hypertonicity-responsive transcription factor that orchestrates cellular homeostasis, NFAT5 has also been implicated in regulating the expression of genes associated with migration and proliferation of cells.14, 15 NFAT5 mediates the migration and proliferation of smooth muscle cells, and thus promotes arterial stiffening.16, 17 Besides, NFAT also involves in vascular endothelial growth factor (VEGF)-mediated human umbilical vein endothelial cell (HUVECs) migration and angiogenesis.18 More importantly, arterial wall stress, which plays critical part in arteriogenesis, activates NFAT5 in cultured vascular smooth muscle cells (VSMCs) which may contribute to an improved migratory activity of VSMCs and thus promote maladaptive vascular remodelling processes.19
NFAT5/MCP-1 axis has been suggested to play considerable roles in inflammation-related diseases. NFAT5 regulates macrophage apoptosis, survival and proliferation by inducing MCP-1 secretion and thereby plays a central role in the pathogenesis of macrophage-dependent chronic inflammatory diseases such as rheumatoid arthritis.15 Besides, in human kidney, the high interstitial sodium concentration in the medulla generates a defence zone with enhanced antibacterial immunity via NFAT5/MCP-1-dependent monocytes chemotaxis, mononuclear phagocytes bactericidal activity and cytokine production.20 However, it is not clear whether MCP-1 release and monocytes recruitment during arteriogenesis are determined by NFAT5.
In this study, we will demonstrate that NFAT5 controls MCP-1 release in ECs, as well as promotes monocytes recruitment and arteriogenesis in hindlimb ischaemia after femoral artery ligation (FAL), in order to discover a new mechanism and provide a novel therapeutic target for the development of collateral circulation.
2 MATERIALS AND METHODS
2.1 Rat hindlimb ischaemia model
All animals care protocols and experiments were reviewed and approved by the Animal Care and Use Committee of the Department of Laboratory Animals, Xiangya School of Medicine, Central South University. All of the rats were maintained in the specific pathogen-free facility of the Department of Laboratory Animals, Central South University. 250-300 g male Sprague-Dawley (SD) rats were anaesthetized with 3% pentobarbital sodium (50 mg/kg) by intraperitoneal injection, and the surgical procedures were performed under sterile conditions. For hindlimb ischaemia model, we performed femoral artery ligature (FAL) referencing previous studies.21, 22 Briefly, a vertical longitudinal incision was made in the left hindlimb, and the femoral artery and its branches were then dissected and ligated. For the arteriogenesis experiments, adductor muscles were harvested 3 or 21 days after surgery. For the angiogenesis experiments, gastrocnemius muscles were harvested 7 or 21 days after surgery. The muscles were fixed in 4% paraformaldehyde (PFA) for further experiments. For MCP-1 supplement experiments, MCP-1 (450 ng/mL, Abcam) in phosphate-buffered saline (PBS) or PBS alone was infused via osmotic minipumps (10 μL per hour for 7 days, DURECT Corporation) after surgery, as described previously.23
2.2 Postmortem angiography
For postmortem angiography, lead sulphate/gelatin contrast agent was infused into rat hindlimbs as previously described.22 X-ray pictures were taken in a X-ray chamber (model DHF-155H, HITACHI MEDICAL CORPORATION) exposed to 50 kV and 100 mA for 30 ms Pictures were taken and transferred to a computer where identification and counting of collateral arteries were performed. Angiographies were obtained after 21 days of the FAL.
2.3 NFAT5 shRNA adenovirus production and administration
The adenoviral vectors carried rat NFAT5 shRNA (Ad-shNFAT5) or the negative control (Ad-null) were constructed by Genechem Co., Ltd. The shRNA sequences were as follows: Ad-shNFAT5 (5′-CCGGGCAATGGAAGTGTTGACTTGGCTCGAGCCAAGTCAACACTTCCATTGCTTTTTG -3′) and Ad-null (5′-CCGGTTCTCCGAACGTGTCACGTCTCGAGACGTGACACGTTCGGAGAATTTTTG-3′). For NFAT5 knockdown experiments in rats, Ad-shNFAT5 or Ad-null was delivered (1 × 1010 PFU per rat) after being divided among four to five injection sites in the adductor or gastrocnemius and surrounding muscles 3 days before FAL.
2.4 Laser speckle imaging
Blood flow recovery was measured by scanning both rear paws with laser speckle contrast imaging (LSCI) (PeriCam PSI Z, Perimed) before and after the surgical procedure (0, 3, 7, 14 and 21 days). During the procedure, the animals were kept under pentobarbital sodium anaesthesia and their body temperatures were strictly maintained between 36.5°C and 37.5°C. Plantar perfusion was quantified within anatomically defined regions of interest (ROIs). The results were reported as the ratio of blood flow in the left to the right (L/R) hindlimb.24
2.5 Cell culture and transfection
Human umbilical vein endothelial cells were purchased from ScienCell Research Laboratories, Inc and maintained in endothelial cell medium (ScienCell) supplemented with 5% foetal bovine serum (FBS), endothelial cell growth supplement and 1% penicillin/streptomycin (ScienCell). THP-1 cells were obtained from the Cell Bank of Type Culture Collection of Chinese Academy of Sciences and cultured in RPMI-1640 medium (Gibco) supplemented with 10% FBS (ScienCell) and 1% penicillin/streptomycin solution. Both HUVEC and THP-1 cells were maintained in a humidified atmosphere containing 5% CO2 at 37°C. The human NFAT5 siRNA (si-NFAT5) and siRNA negative control (si-NC) (Santa Cruz Biotechnology, Inc) were transfected to HUVECs for 24 hours using Lipofectamine 2000 (Life Technologies) according to the manufacturer's instructions.
2.6 Quantitative real-time PCR
Total RNA was extracted from muscle or cell samples using RNAiso Plus reagent (TaKaRa), RNA concentration was quantitated by NanoDrop One (Thermo Fisher Scientific). For detection of NFAT5, ICAM-1, VCAM-1, MCP-1 and GAPDH mRNA expressions, cDNAs were synthesized by using PrimeScript™ RT reagent kit with gDNA Eraser (TaKaRa) according to the manufacturer's instructions. Real-time PCR was performed on the 7500 Real-Time PCR System (Applied Biosystems) using SYBR Premix Ex Taq reagent (TaKaRa) with NFAT5, ICAM-1, VCAM-1, MCP-1 and GAPDH specific primers. GAPDH was used as internal standard to normalize the mRNA expression level using 2−ΔΔCt method. The sequences for each primer were shown in Table S1.
2.7 Western blot analysis
Muscle or cell samples were lysed for 30 minutes on ice in RIPA lysis buffer (Beyotime Institute of Biotechnology), and the protein concentration was determined by BCA Protein Assay Kit (Beyotime Institute of Biotechnology). Total protein (50 to 100 μg) was resolved by SDS-polyacrylamide gel electrophoresis, transferred to a nitrocellulose membrane, and subjected to immunoblot analysis. The primary antibodies for NFAT5 (1:1000, Abcam), MCP-1 (1:2000, Abcam), p-ERK1/2 (1:2000, Cell Signaling Technology), ERK1/2 (1:1000, Cell Signaling Technology) or GAPDH (1:10 000, Abcam) and horseradish peroxidase-conjugated secondary antibody (Santa Cruz Biotechnology) were used. The proteins were detected using enhanced chemiluminescence reagents (Millipore, Burlington), and bands were analysed with Image J software normalized by GAPDH.
2.8 Immunohistochemistry and immunofluorescence assay
We harvested the adductor or gastrocnemius muscles after FAL. The mid-zone of the muscle (the 5-mm-wide centremost section) was trimmed. Samples were embedded in paraffin and 4 μm thick cross-sections were performed for haematoxylin and eosin (HE) staining. For immunohistochemistry, we used antibodies to α-SMA (1:800, Sigma), Ki-67 (1:200, Abcam) and CD68 (1:200, Abcam). Paraffin section was rehydrated and endogenous peroxidase activity was blocked for 30 minutes in methanol which contains 0.3% hydrogen peroxide. Primary antibody was incubated at 4°C overnight, followed by 60 minutes for biotinylated secondary antibody (1:500, Abcam). All specimens were counterstained with haematoxylin staining solution (Beyotime Institute of Biotechnology), then neutral gum sealed piece for storage. Analysis of collaterals was performed after scanning the section through OLYMPUS CX41 and Leica Application Suite 4.0 software. For immunofluorescence assays, primary antibodies for NFAT5 (1:100, Abcam), MCP-1 (1:100, Abcam), α-SMA (1:400, Sigma) or CD31 (1:50, Abcam) were applied, secondary antibodies were used with labelling with Alexa Fluor dye (1:200, Abcam) with a maximum excitation at 488 nm (green), and for red with Alexa Fluor 594 nm. The slides were counter stained with DAPI (Sigma) to visualize cellular nuclei. Images were obtained by fluorescence microscope (DMI4000B, Leica) and analysed by Image-Pro Plus 6.0.
2.9 ELISA assay
The concentration of MCP-1 in the supernatant of the cultured HUVECs was determined by using enzyme-linked immunosorbent assay (ELISA) kit (R&D Systems) according to the manufacturer's instructions.
2.10 Chemotaxis assay
4 × 105 THP-1 cells were placed in the upper chamber of a modified Boyden chamber (pore size 8 μm; Corning). The chambers were placed into 24-well cell culture plate containing conditioned culture supernatant of the HUVECs treated with or without si-NC, si-NFAT5 or ERK1/2 inhibitor (U0126). After incubation for 3 hours at 37°C, the cells on the lower surface of the chamber were fixed with 4% PFA and counterstained with crystal violet and counted manually in five random fields using a microscope, the cells in the lower chamber were observed using a haemocytometer.
2.11 Statistical analysis
The data were presented as means ± standard deviation (SD). Differences between two groups were determined by Student's t test. Comparisons of multiple groups were performed with one-way analysis of variance (ANOVA). All statistical analyses were performed using the SPSS 13.0 software package (SPSS Inc), and a two-tailed P value < .05 was considered to be statistically significant.
3 RESULTS
3.1 NFAT5 is required for the development of collaterals in rats after hindlimb ischaemia

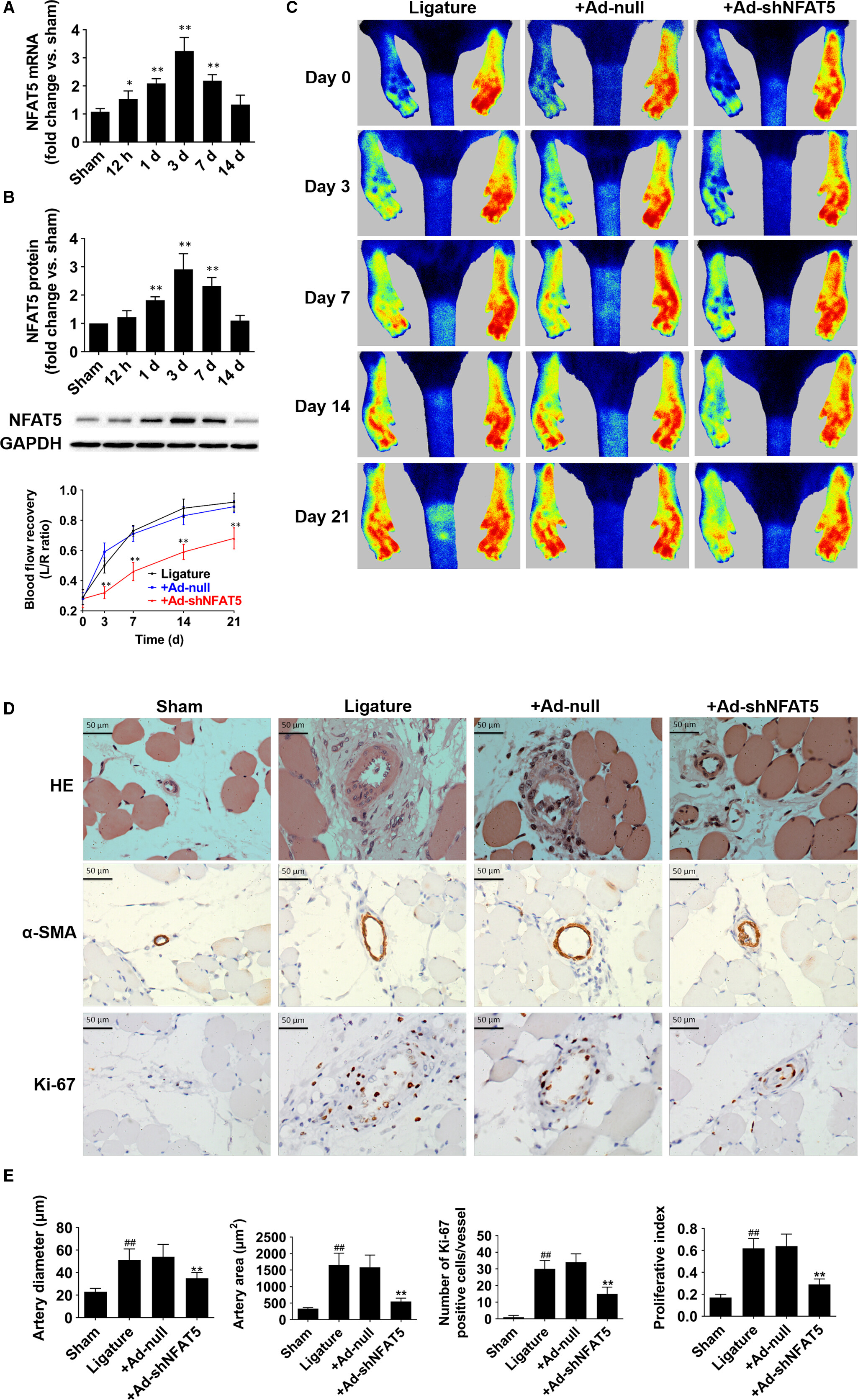

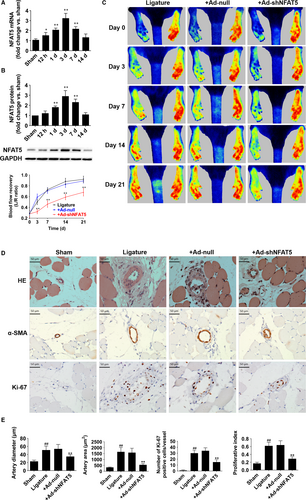

In order to investigate whether NFAT5 participates in the development of collateral circulations, we performed hindlimb ischaemia in rats by FAL, which induced arteriogenesis from pre-existing collateral anastomoses. Rats were subjected to FAL at one side and the other side was unligated hindlimb that was regarded as sham control. We detected NFAT5 expression in adductor muscles, found that both NFAT5 mRNA and protein expressions were increased at day 1, 3, 7 after FAL when compared with sham hindlimb and showed the most significant increase at day 3 (Figure 1A,B). Meanwhile, we also found the similar result that NFAT5 was activated by hypoxia in HUVECs (Figure S1A,B). We furtherly examined whether NFAT5 knockdown could reduce collateral circulations formation via locally injection of NFAT5 shRNA adenovirus into hindlimb muscles. As a result, NFAT5 mRNA and protein expressions in adductor muscles were increased at day 3 after FAL but both were remarkably decreased when treated with Ad-shNFAT5 (Figure S2A,B). Meanwhile, double staining of NFAT5 and α-SMA in adductor muscles 3 days after surgery indicated that NFAT5 was mainly located in ECs of collateral arteries and Ad-shNFAT5 could markedly reduce NFAT5 expression in ECs of collateral arteries (Figure S2C). Besides, the number of angiographically visible collateral vessels was also significantly decreased in rats treated with Ad-shNFAT5 compared with Ad-null at day 21 after FAL (Figure S2D).
As arteriogenesis and collateral remodelling are the largest contributors to perfusion recovery after FAL,25 so we next investigated whether NFAT5 knockdown inhibits blood flow recovery using laser speckle contrast imaging at day 0, 3, 7, 14 and 21 after FAL. Consistent with the above, the Ad-shNFAT5-treated rats showed attenuated perfusion recovery in the hindlimbs as early as 3 days after surgery when compared with Ad-null group (day 3, 32.3 ± 4.1% vs 59.1 ± 6.6%, P < .01; day 7, 46.5 ± 6.2% vs 71.8 ± 5.3%, P < .01; day 14, 59.5 ± 5.0% vs 83.2 ± 6.2%, P < .01; day 21, 68.3 ± 7.1% vs 89.2 ± 4.6%, P < .01; Figure 1C). Furtherly, HE staining and immunohistochemistry of α-SMA (alpha-smooth muscle actin) and Ki-67 (a proliferation marker) in the adductors were used to determine the effects of NFAT5 knockdown on arteriogenesis (Figure 1D,E). At day 21 after FAL, the diameter of collaterals in Ad-shNFAT5-treated rats was smaller than those of control in Ad-null-treated rats (35 ± 5 vs 54 ± 11 μm, P < .01). Additionally, the artery area was also smaller in Ad-shNFAT5-treated group than those in Ad-null-treated (548 ± 102 vs 1584 ± 371 μm2, P < .01). To evaluate the proliferation of collateral arteries, we assayed cell proliferation in and around the collaterals by Ki-67 staining. Ad-shNFAT5-treated rats showed lower Ki-67 positive cells (15 ± 4 vs 34 ± 5, P < .01) as well as lower proliferation index (0.29 ± 0.05 vs 0.64 ± 0.11, P < .01) than those treated with Ad-null. These results demonstrated that NFAT5 is required for collateral arteries growth which was inhibited by NFAT5 knockdown.
3.2 NFAT5 knockdown inhibits monocyte recruitment and MCP-1 expression in rats hindlimb ischaemia model

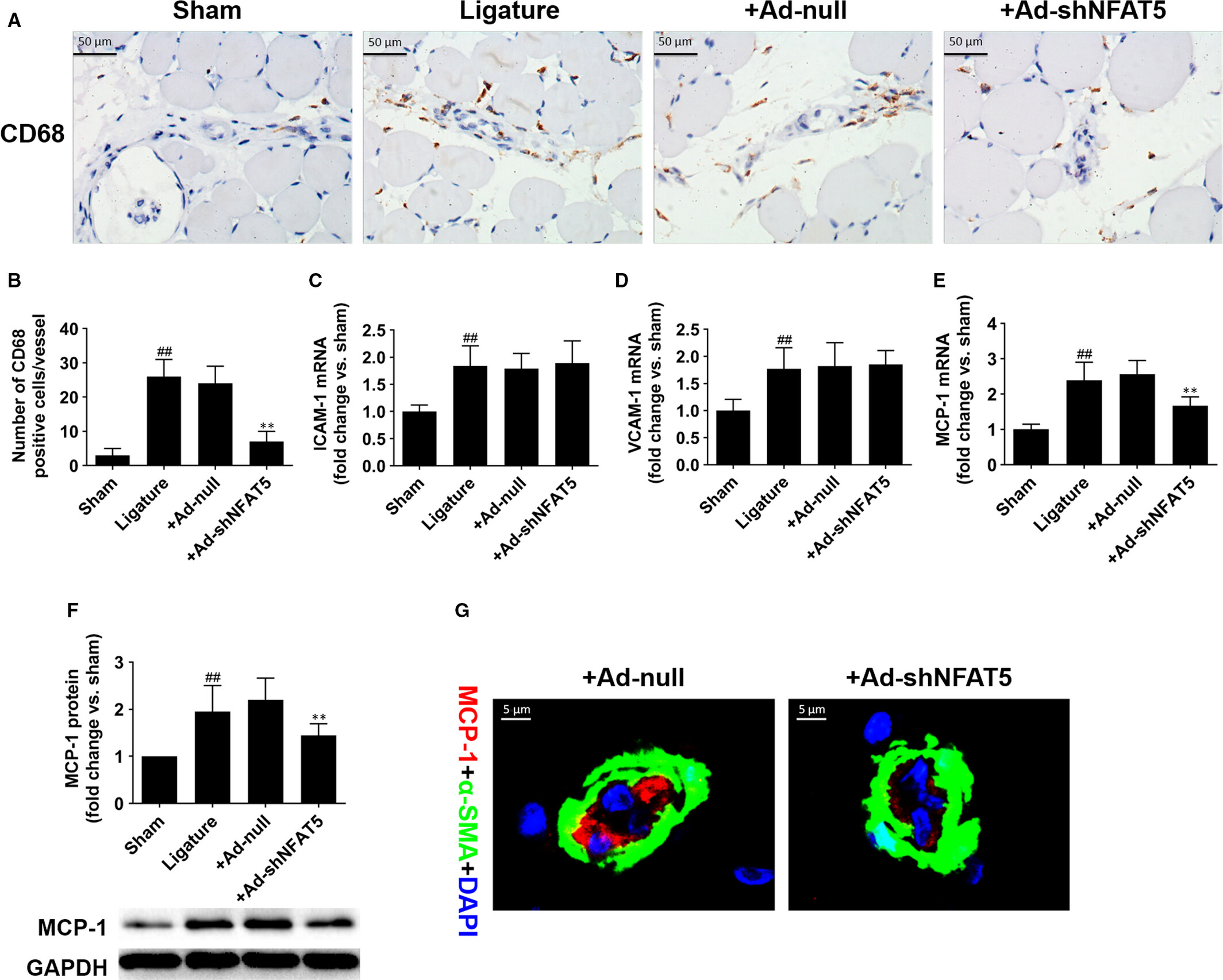

Evidence suggested that inflammation is responsible for collateral vessel remodelling and NFAT5 is a critical regulator of inflammation,7, 26 so we therefore explored whether the infiltration of macrophages and secretion of inflammatory factors were affected by NFAT5 in vivo. Similarly, our results also demonstrated that collateral circulation growth was accompanied with increase of macrophage infiltration around the collateral vessels in the adductors, which was assessed by CD68-positive staining (26 ± 5 vs 3 ± 2, P < .01, Figure 2A,B). Nevertheless, the infiltrating macrophages were significantly decreased when rats were treated with Ad-shNFAT5 (7 ± 3 vs 24 ± 5, P < .01, Figure 2A,B). According to previous studies, ICAM-1, VCAM-1 and MCP-1 are the three predominant molecules up-regulated that induce monocyte recruitment during arteriogenesis.8-11 So we investigated the expressions of these inflammatory factors in adductors 3 days after surgery and found that neither ICAM-1 mRNA nor VCAM-1 mRNA expression was affected by NFAT5 knockdown (Figure 2C,D). However, MCP-1 mRNA and protein were significantly down-regulated in rats treated with Ad-shNFAT5 compared with Ad-null (Figure 2E,F). In addition, double staining of MCP-1 and α-SMA in adductor muscles 3 days after surgery indicated that NFAT5 knockdown could markedly reduce MCP-1 expression in the ECs of collaterals arteries (Figure 2G). These data suggested that NFAT5 knockdown results in the reduction of macrophage infiltration in adductors and MCP-1 expression in ECs of collateral arteries.
3.3 IL-1β promotes NFAT5 expression and translocation to the nucleus in HUVECs

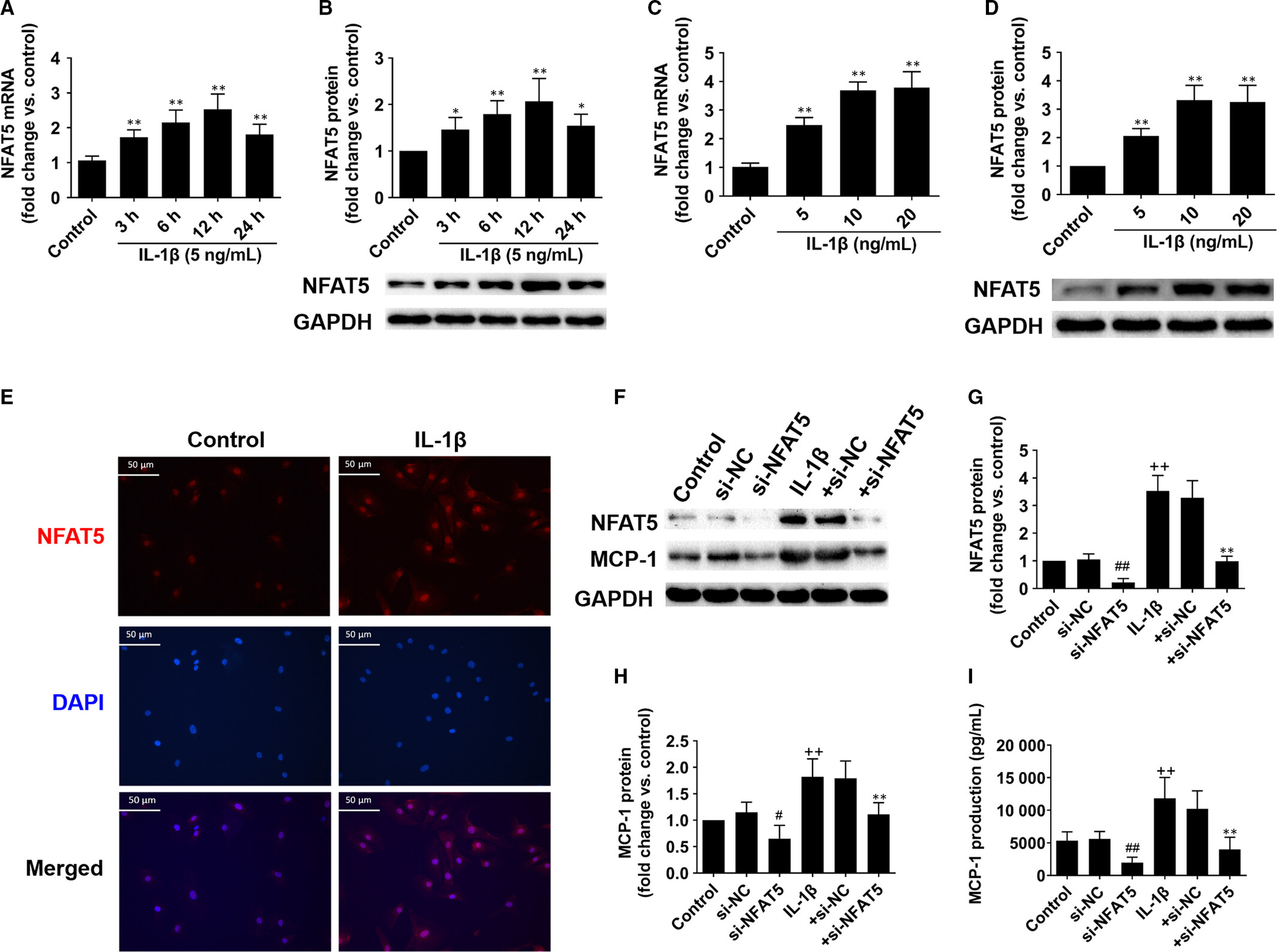

As MCP-1 released from ECs is an important mediator for arteriogenesis,9 which could be induced by interleukin-1 β (IL-1β),27 so we further investigated whether NFAT5 is involved in this process in HUVECs. Our results indicated that IL-1β could apparently increase NFAT5 mRNA and protein expressions in time- and dose-dependent manner in HUVECs (Figure 3A-D), as well as promote NFAT5 translocation to the nucleus demonstrated by immunofluorescence assay (Figure 3E). Furthermore, we treated HUVECs with NFAT5 siRNA under both basal- and IL-1β-treated conditions, finding that NFAT5 and MCP-1 protein expressions as well as MCP-1 concentration in the culture supernatant were markedly increased stimulated by IL-1β (Figure 3F-I), but significantly decreased when treated with NFAT5 siRNA under both basal- and IL-1β-treated conditions (Figure 3F-I).
3.4 NFAT5 enhances THP-1 cell chemotaxis by regulating MCP-1 release in HUVECs depending on activation of ERK1/2 pathway

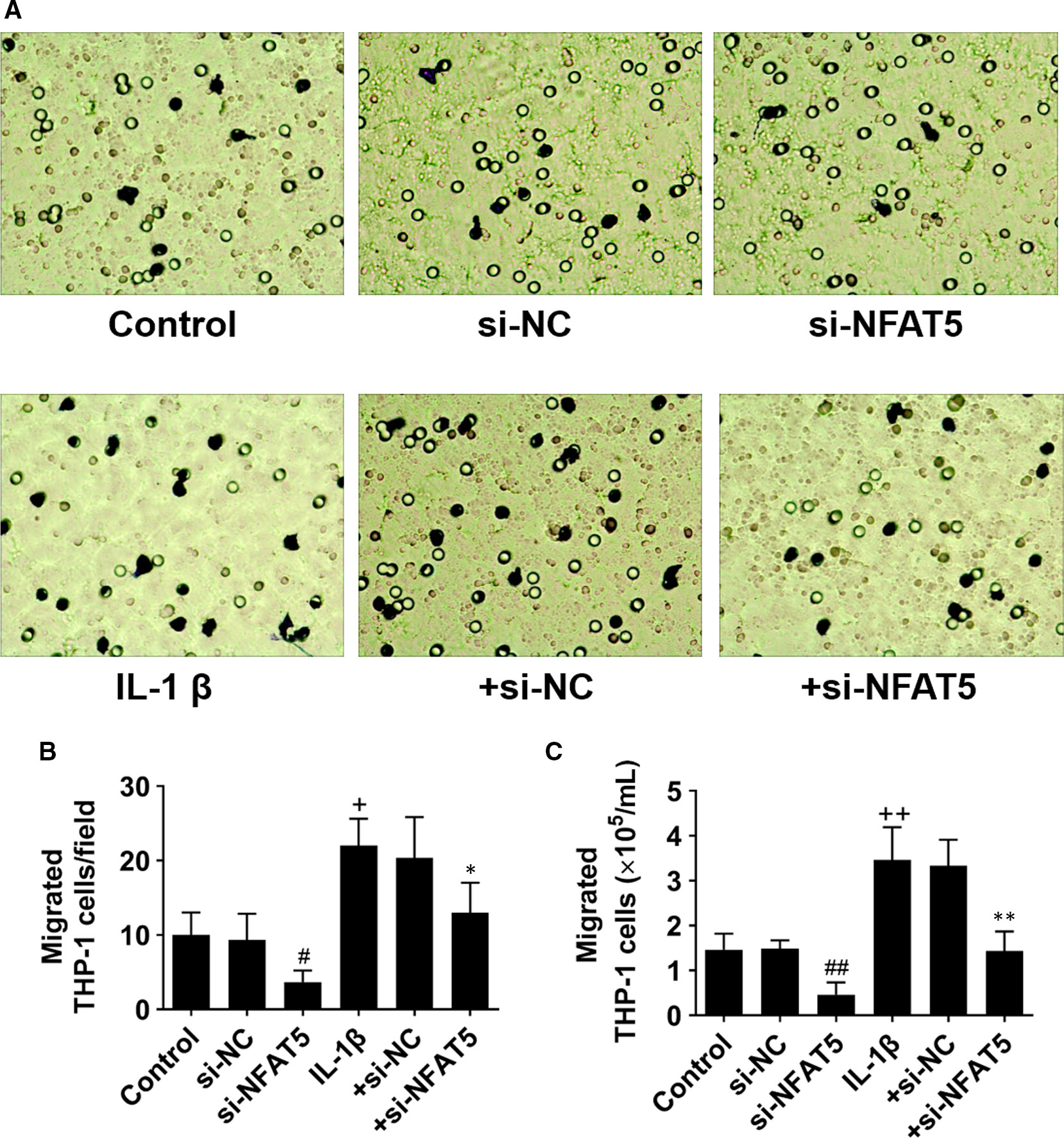

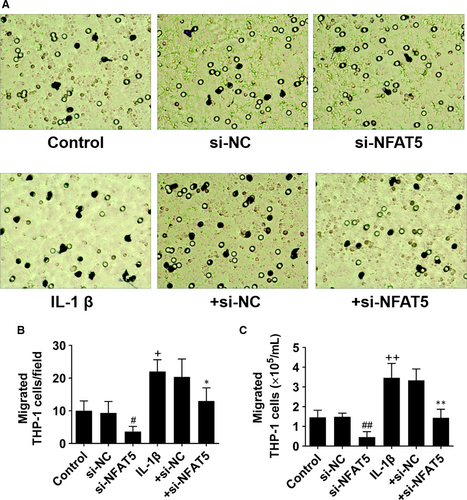

As the chemotaxis and adhesion of monocytes to ECs are an important process of arteriogenesis,9, 11 so we next investigated whether NFAT5 in HUVECs affects the chemotaxis of THP-1 cells in vitro using transwell migration assay to imitate the process during arteriogenesis in vivo. We firstly cultured HUVECs under different conditions and then investigated the chemotaxis of THP-1 cells cultured in the culture supernatant of HUVECs. Our results indicated that IL-1β could significantly induce chemotaxis of THP-1 cells, but NFAT5 knockdown by NFAT5 siRNA markedly inhibited the migration of THP-1 cells migrated into the lower surface of the chambers and the medium under both basal- and IL-1β-treated conditions (Figure 4A-C). These data and the results suggested that NFAT5 is essential for IL-1β-induced THP-1 cell chemotaxis.

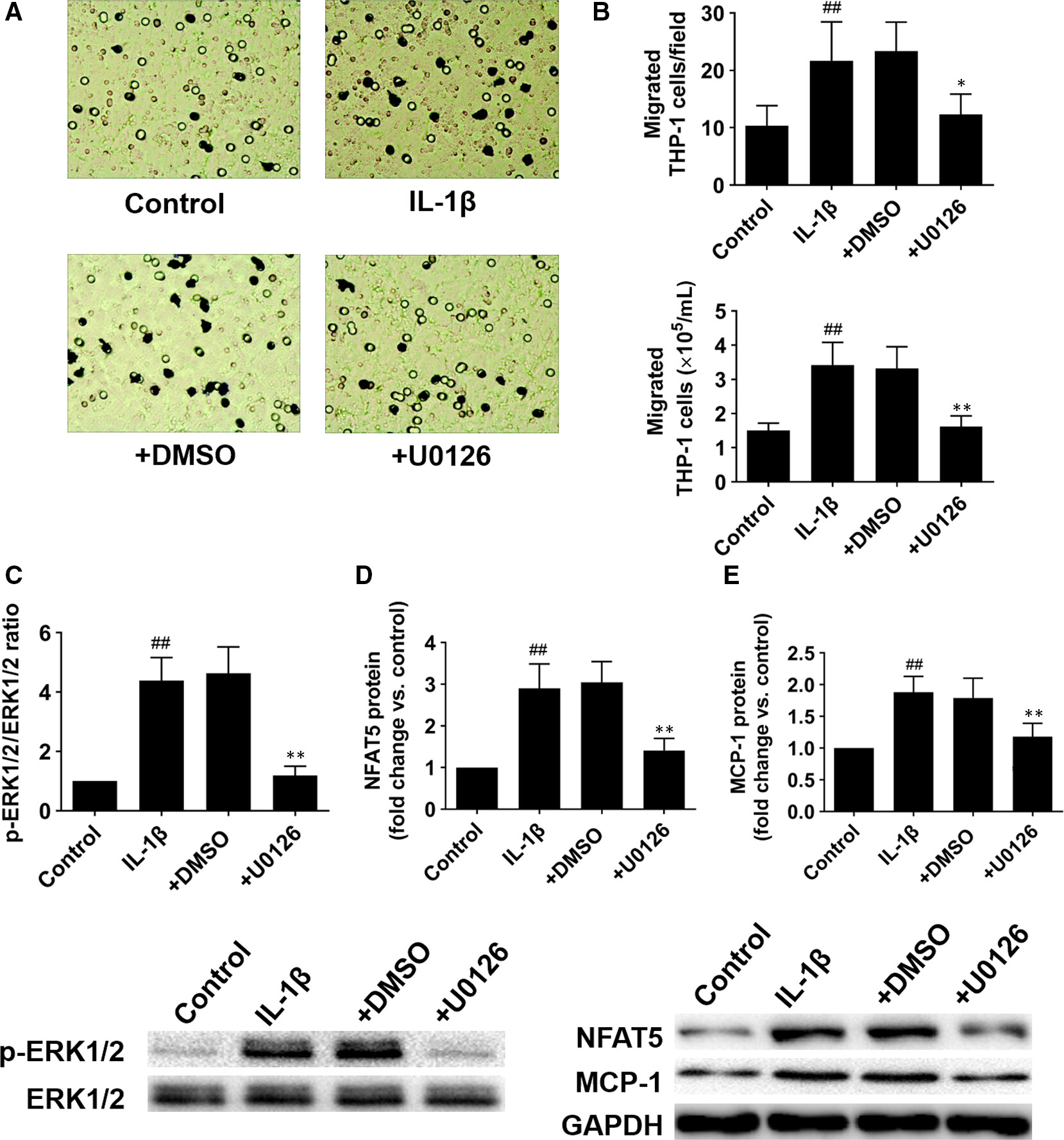

Because activation of ERK1/2 pathway is required for IL-1β-induced MCP-1 expression,28 so we further investigated the role of ERK1/2 pathway in NFAT5-regulated chemotaxis of THP-1 cells. Our results showed that ERK1/2 pathway inhibitor (U0126) could significantly inhibit IL-1β-induced THP-1 cells migration (Figure 5A,B). Meanwhile, IL-1β induced phosphorylation of ERK1/2 as well as increased NFAT5 and MCP-1 protein expressions, which can be abolished by ERK1/2 inhibitor (Figure 5C-E). All these data stated clearly that NFAT5 induced chemotaxis of THP-1 cells through MCP-1 which was depended on the activation of ERK1/2 pathway.
3.5 MCP-1 delivery reverses the inhibitory effects of NFAT5 knockdown on collateral circulations growth in rats

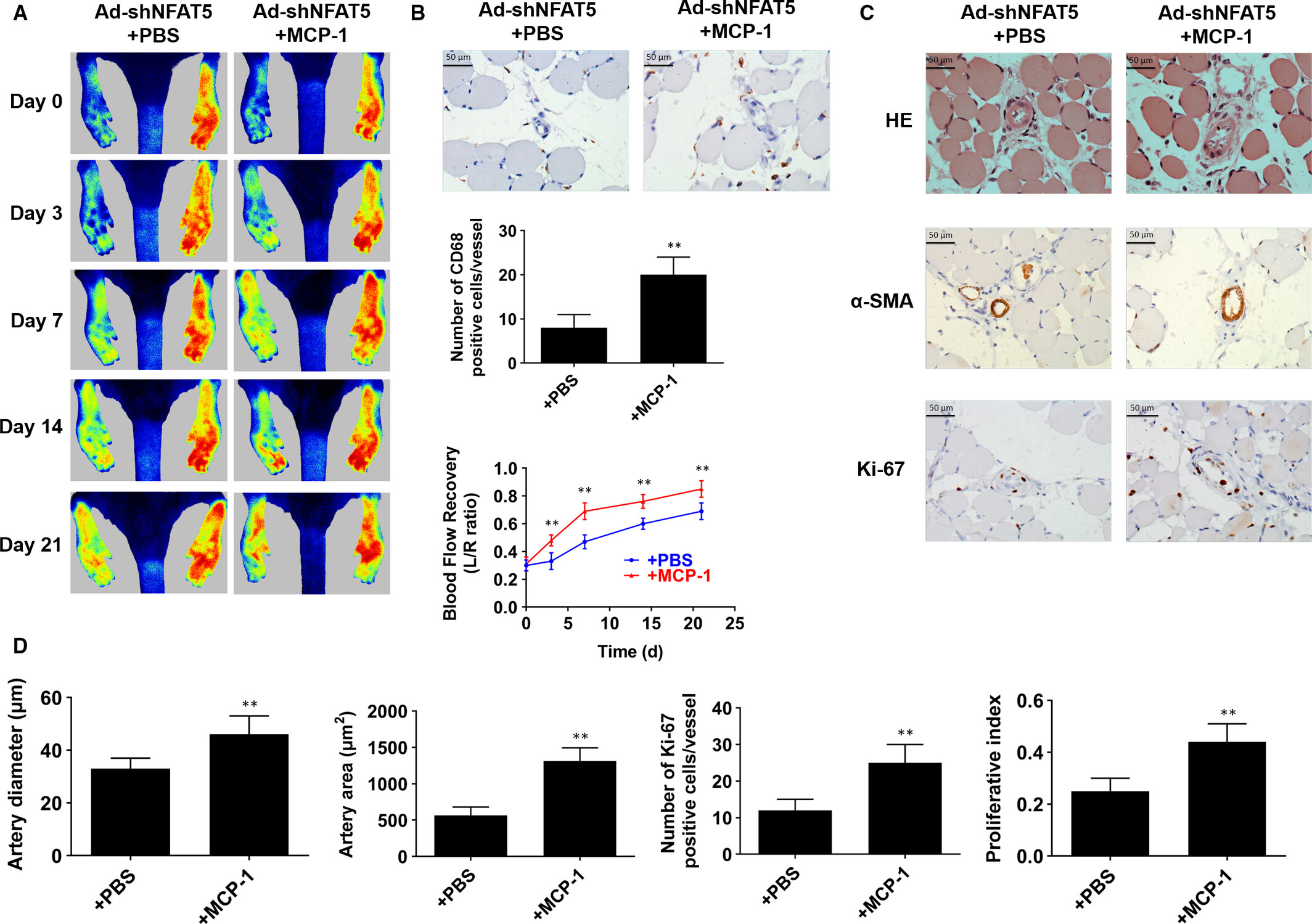

As we have proved that NFAT5 knockdown in ECs may result in the reduction of monocytes chemotaxis through MCP-1, which in turn leading a decreased infiltration of macrophages. Therefore, we investigated whether MCP-1 delivery could reverse the impairment of collateral circulations growth result from NFAT5 knockdown. As shown in Figure 6A, laser speckle contrast imaging demonstrated that MCP-1 delivery into rats hindlimb muscles could markedly restore the blood perfusion of hindlimb that was inhibited by NFAT5 knockdown at day 3, 7, 14 and 21 after surgery (day 3, 33.3 ± 6.1% vs 48.5 ± 4.6%, P < .01; day 7, 47.5 ± 5.5% vs 69.8 ± 6.1%, P < .01; day 14, 60.5 ± 4.0% vs 76.2 ± 5.2%, P < .01; day 21, 69.3 ± 6.1% vs 85.9 ± 6.6%, P < .01). Similarly, corresponding angiographies of MCP-1-treated rat hindlimbs illustrated good collaterals growth when NFAT5 knockdown (Figure S3). Besides, immunohistochemistry of CD68 indicated that MCP-1 obviously promoted macrophages to infiltrate into the adductors when NFAT5 knockdown (8 ± 3 vs 20 ± 4, P < .01, Figure 6B). Next, to explore whether MCP-1 reverse the inhibitory effect of NFAT5 knockdown on collateral vessels growth, we examined the adductors 21 days after FAL. Consequently, the induction of arteriogenesis in the adductor was better in MCP-1-treated rats compared with control rats in condition of NFAT5 knockdown, which was reflected by significant increases in artery diameter (33 ± 4 vs 46 ± 7 μm, P < .01), artery area (566 ± 115 vs 1312 ± 182 μm2, P < .01), Ki-67 expression (12 ± 3 vs 25 ± 5, P < .01) and proliferative index (0.25 ± 0.05 vs 0.44 ± 0.07; P < .01, Figure 6C,D).
3.6 Angiogenesis is also impaired in rats lacking NFAT5
We also investigated whether NFAT5 is required for angiogenesis during collateral circulations growth. Our results showed that injection with Ad-shNFAT5 in gastrocnemius significantly impaired the blood flow recovery in the hindlimbs (day 3, 53.3 ± 6.1% vs 41.9 ± 7.6%, P < .01; day 7, 72.6 ± 5.5% vs 52.8 ± 4.3%, P < .01; day 14, 86.2 ± 4.0% vs 72.7 ± 5.3%, P < .01; day 21, 90.1 ± 7.3% vs 77.6 ± 4.2%, P < .01; Figure S4A). Meanwhile, macrophages infiltration at day 7 (19.7 ± 4.5 vs 5.3 ± 3.4, P < .01; Figure S4B) and the number of capillaries at day 21 (58.2 ± 11.3 vs 23.7 ± 4.4, P < .01; Figure S4B) in Ad-shNFAT5-treated rats were also weakened when compared with Ad-null-treated rats.
4 DISCUSSION
The primary findings of the present study are as follows: (a) genetical silence of NFAT5 attenuates arteriogenesis and angiogenesis in rat hindlimb ischaemia model; (b) NFAT5 can regulate monocyte recruitment by regulating the expression of MCP-1 in ECs both in vivo and in vitro; (c) MCP-1 supplementation can reverse the inhibitory effect of NFAT5 knockdown on monocyte recruitment and arteriogenesis. Collectively, these findings mainly suggest that NFAT5 promotes arteriogenesis via MCP-1-dependent monocyte recruitment.
Hindlimb ischaemia model showed that NFAT5 increased since the 12th hour after FAL, reached the highest level at the 3rd day, began to decrease from the 7th day and returned to normal level at the 14th day. After NFAT5 was knocked down, the blood flow recovery of the lower limbs was inhibited. The diameter and covering area of collateral arteries were decreased, as well as the number of proliferative cells, implying that arteriogenesis was inhibited by NFAT5 knockdown after FAL. Therefore, these results indicated that NFAT5 can promote collateral artery formation. It was evidenced that the 3rd day when NFAT5 increased maximally is also the time when maximal monocyte recruitment occurred.23, 29 Compelling evidence has indicated an essential role for monocytes in arteriogenesis.30, 31 Specifically, in the rabbit and mouse hindlimb ischaemia models, pharmacological monocyte depletion led to impaired arteriogenesis which can be rescued by restoring monocyte blood count through the injection of exogenous cells.32 In keeping with these results, the magnitude of their infiltration at the site of collateral arteries positively correlates with arteriogenesis development.33, 34 Our experiments showed that after NFAT5 knockdown, the formation of collateral arteries was inhibited, and the aggregation of macrophages around collateral arteries was significantly inhibited on the 3rd day after ligation as was shown with CD68 immunochemistry assays. At the same time, immunofluorescence assays showed that NFAT5 was mainly expressed in the endothelium of collateral artery. Therefore, we speculated that endothelial NFAT5 might regulate arteriogenesis by regulating monocyte recruitment.
Next, we explored the mechanism of NFAT5 regulating monocyte recruitment. According to previous study, ICAM-1, VCAM-1 and MCP-1 are the three predominant up-regulated molecules that induce monocyte recruitment during arteriogenesis.6, 35 Our results showed that NFAT5 knockdown did not affect ICAM-1 and VCAM-1 mRNA expression, but both mRNA and protein expressions of MCP-1 were notably decreased, and MCP-1 around collateral arteries was also decreased. Apart from the importance of monocytes for arteriogenesis, it is apparent that MCP-1 plays a pivotal role for monocyte recruitment during arteriogenesis. In different animal models of FAL, infusion of MCP-1 led to an increased number of macrophages surrounding growing collaterals and improved collateral flow.36-38 By contrast, mice genetically deficient for MCP-1 or its isogenous receptor CCR2 displayed reduced monocyte infiltration and decreased arteriogenesis following artery occlusion.39, 40 Moreover, clinical data also demonstrated that in the early stage of acute myocardial infarction, patients with high plasma level of MCP-1 developed better collateral vessels than those with low level.41 From the evidence above, we have reason to believe that NFAT5 affects monocyte recruitment by regulating MCP-1 expression, which in turn to affect arteriogenesis.
In order to further verify the molecular mechanism of NFAT5 affecting arteriogenesis, we carried out experiments in vitro. The expression of NFAT5 and nuclear transfer were increased in HUVECs when stimulated by IL-1β. NFAT5 knockdown inhibited IL-1β induced MCP-1 secretion and the chemotaxis of THP-1 cells. Thus, NFAT5 could regulate monocyte recruitment via regulating the expression of MCP-1. Besides, IL-1β was also suggested to promote ischaemia-induced neovascularization via mobilizing CD34−/B220−CD3–Flk-1+ endothelial precursor cells (EPCs), however, whether NFAT5 involves in this process as well as affect EPCs needed further study.42
It should be noted that in the early stage of arteriogenesis, MCP-1 is mainly secreted by the activated endothelium induced by hemodynamic forces,43 which is followed by accumulation of a large number of macrophages that release a variety of inflammatory cytokines (such as IL-1β, TNF-α). These cytokines potently induce MCP-1 expression in arteries. Our study showed that the expression of NFAT5 peaked at the 3rd day when it was also found, by immunofluorescence and immunohistochemistry, to be mainly expressed in the endothelial cells of collateral arteries surrounded by numerous macrophages and when the ECs are stimulated strongly by inflammatory cytokines. Hence, it is reasonable for using ECs stimulated by inflammatory cytokines to explore the cellular regulatory role of NFAT5 in the process of arteriogenesis. Moreover, animal studies showed that NFAT5 increased as early as 12 hours after FAL when the ECs are mainly stimulated by mechanical forces. Thus, exploring the effect of mechanical stimulation on NFAT5 in ECs and its mechanism is still necessary, which is also the limitation of this study and worth further studies.
In addition, we explored the possible upstream pathway that might affect the expression of NFAT5 and MCP-1. Previous studies showed that endothelial ERK1/2 pathway is critical for arteriogenesis,44, 45 and ERK1/2 pathway is also involved in the regulation of MCP-1 expression via NFAT5 in NRK52E cells.46 Besides, activation of ERK1/2 pathway is required for IL-1β induced MCP-1 expression in various cells.47-49 Therefore, we have been suggested that ERK1/2 pathway might be the upstream pathway in this study. Accordingly, our experiments in vitro showed that the expression of NFAT5 and MCP-1, as well as the chemotaxis of THP-1 cells were attenuated after ERK1/2 pathway was inhibited by U0126. To summarize, ERK1/2 pathway may be involved in the regulation of MCP-1 expression via NFAT5 and thus promote monocyte recruitment during arteriogenesis.
In order to further confirm the upstream and downstream relationship between NFAT5 and MCP-1 in the formation of collateral arteries, we performed an exogenous MCP-1 supplement to NFAT5 knockdown rats with FAL. We found that the MCP-1 supplement group showed increased diameter, and covering area of collateral arteries, as well as greater number of proliferating cells, enhanced macrophages infiltration and better blood flow recovery. Therefore, the inhibitory effect on arteriogenesis induced by NFAT5 knockdown could be reversed by MCP-1 supplement, demonstrating that NFAT5 plays a role in promoting arteriogenesis through MCP-1 pathway.
Previous study also showed that NFAT5 can promote angiogenesis both in vitro and in vivo.26 Our result showed that when injection of Ad-NFAT5 into gastrocnemius, macrophage infiltration and density of capillaries in gastrocnemius as well as blood flow of lower limbs were also inhibited. Therefore, NFAT5 is also required for angiogenesis in hindlimb ischaemia rats dependent on monocyte recruitment.
In summary, our results demonstrated that NFAT5 can promote arteriogenesis via MCP-1-dependent monocyte recruitment, suggesting that NFAT5 may be an endogenous regulator of arteriogenesis. Therefore, targeting NFAT5 may be considered as a novel strategy in the treatment of ischaemic diseases.
ACKNOWLEDGEMENTS
This study was supported by the National Natural Science Foundation of China (No. 81670267, No. 81873479, No. 81570461 and No. 81873509), National Basic Research Program of China (973 Program, No. 2014CB542402) and Natural Science Foundation of Hunan Province (No. 2018JJ6057).
CONFLICTS OF INTEREST
The authors declare no conflicts of interest.
AUTHOR CONTRIBUTION
GGZ and CCL conceived the project, funded this study and revised the manuscript. XCL designed and performed most experiments, performed statistical analysis and wrote the manuscript. MP, LPZ, QS and ZSZ partially performed some experiments. We also thank Professor Wei-Jun Cai for his kind guidance of our animal experiments.
Open Research
DATA AVAILABILITY STATEMENT
The data that support the findings of this study are available from the corresponding author upon reasonable request.
