Geometric morphometrics applied to viscerocranial bones in three populations of the Lake Tanganyika cichlid fish Tropheus moorii

Preparation of specimens

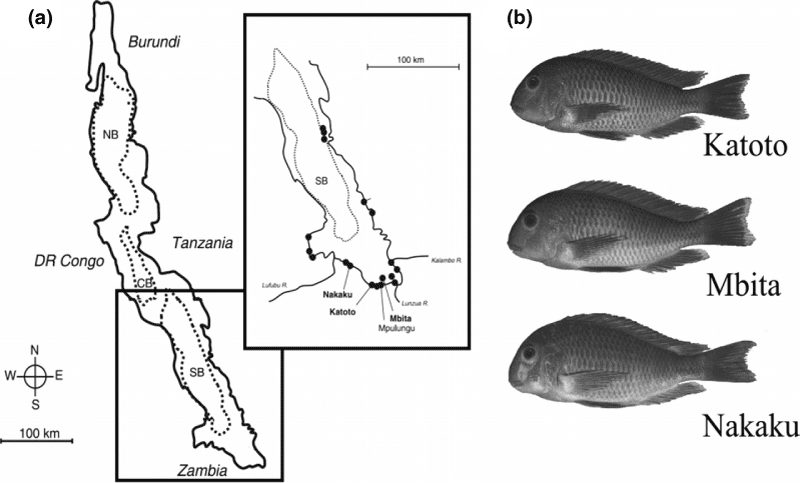

The specimens of T. moorii (n = 120; standard length (SL) 57.8–87.8 mm) used in this study were adult fish collected in May 2005 from three different locations in the southern part of Lake Tanganyika (Katoto n = 38; Nakaku n = 40; Mbita Island n = 42; see Fig. 1b). The fish were sent to our laboratory (Graz, Austria) alive via air freight. After scanning the clove-oil anaesthetized fish with a flatbed scanner (Herler et al. 2007) individuals were killed by an overdose of clove oil, preserved in 10% formalin and ascending concentrations of ethanol, to be finally stored in 70% EtOH (for detailed information on the specimens see Table A1 in the Appendix).

The heads were cut off behind the fifth dorsal fin ray and the eyes and scales were removed. Sixty of the 120 specimens were cleared and stained with alcyan blue and alizarin red using a modification of the procedure described by Potthoff (1984). After rinsing the heads overnight they were stained with alcyan blue for 48 h (70 ml ethanol 70%, 30 ml glacial acetic acid and 20 mg of alcyan blue for each head). Specimens then were neutralized in sodium-tetraborate for 2 h (55 g l⁻¹ aqua dest. dissolved at 100°C). Next the skin was scarified prior to bleaching with H₂O₂ and KOH (3–5 ml H₂O₂ per 100 ml 0.178 M KOH). The bleaching time depended on specimen size and varied between 4 and 5 h. Before starting the maceration heads were cleared for about 1 week in 0.178 M KOH at room temperature. Then they were transferred into trypsine solution (35 g trypsine in 1000 ml sodium-tetraborate plus 2.33 l aqua dest.) to be digested at 30 to 35°C for 3 days. To support the process and to avoid decay the solution was changed every day. Subsequently, specimens were macerated further in 0.178 M KOH as long as necessary, but never exceeding a total processing time of 14 days. The heads were then carefully stained with alizarin red (100 mg alizarin red in 1000 ml 0.178 M KOH) for up to 30 min maximum and washed out for about 60 min in 0.178 M KOH. Finally, heads were transferred to pure glycerine for 24 h as follows: The first rinse overnight in 0.089 M KOH and glycerine in a ratio of 2 : 1, followed by 0.089 M KOH and glycerine in a ratio of 1 : 2 for 24 h, and finally two changes of pure glycerine.

For 60 individuals the head was disarticulated by digestion with KOH and trypsine for 21 days (0.178 M KOH, before weekend 0.089 M KOH; trypsine-solution: 35 g trypsine in 1000 ml sodium-tetraborate plus 2.33 l aqua dest.). The other 60 specimens were disarticulated with Enzyrim® (Bauer Handels GmbH, Adetswil, Switzerland) (Grundmann and Roetzscher 2000) following the standard recipe with an incubation overnight at 55°C (20 g Enzyrim® l⁻¹ water, 10 g l⁻¹sodium chloride and 2.5 g l⁻¹ Supralan, a detergent, adjusted at pH 8.5 with sodium carbonate).

Geometric morphometrics and statistical analyses

Following Albertson and Kocher (2001), the following skeletal elements of the viscerocranium were analysed: dentary, articular, premaxilla, quadrate and preopercle. All elements were taken from the left body side unless they were damaged. Digital images were obtained in standardized position with an Olympus digital camera (Olympus E-1 – Zuiko Digital 14-54 mm f 2.8–3.5; Olympus Optical Co., GmbH, Hamburg, Germany) mounted on an Olympus SZX-ILLB2-200 binocular eyepiece (Olympus Life and Material Science Europa GmbH, Hamburg, Germany). The images were imported into the software tpsDig 2.10 (TPS Software Series, Stony Brook, NY, USA) (Rohlf 2006) and digitized. Details about the positioning of the landmarks are given in Table 1 and Fig. 2. The positioning of these landmarks was standardized to represent all structural features in the two-dimensional image and to capture the overall shape of each bone.

The statistical analyses were performed with imp (Integrated Morphometrics Package, Buffalo, NY, USA; Sheets 2003) or TPS (Rohlf 2006, 2007). First, the raw coordinates were generated and aligned utilizing the partial Procrustes superimposition (Rohlf 1999; Slice 2001) in the subprogram CoordGen6 (coordinate generating utility program; Integrated Morphometrics Package), then a relative warp analysis (RW), which is similar to a principal component analysis of shape variables, was carried out with tpsRelw (version 1.45; TPS Software Series; Rohlf 2007). The RWs were calculated to summarize the variation among the specimens (related to their partial warp scores) in preferably few dimensions. To test for morphological variation between the three populations a canonical variate analysis (CVA) was carried out in CVAGen6 (canonical variate analysis generating program; Integrated Morphometrics Package). This CVA identified the set of axes which best discriminates among two or more groups. After computing partial warp scores to a general reference this program was also used to conduct a multivariate analysis of variance (manova), followed by a CVA. In this way, all distinct CVA axes were examined for the data at a significance level of p < 0.05 and the canonical variate scores of all analysed specimens were calculated.

Finally, pair-wise comparisons based on the CVA-results were carried out using TwoGroup6 (Integrated Morphometrics Package) which is also part of the imp software package. Goodall’s F-test (Bonferroni-corrected) was used to test significant shape differences between the three populations. Calculations of the full and partial Procrustes distances between the means of two groups were conducted in TwoGroup6. For the two views of the dentary thin-plate spline deformation grids for the two CVA axes were generated.

Relative warp analyses

Relative warp-scatter plots for the five bony structures show RW axis 2 against RW axis 1. Only the plot for the caudal view of the dentary (Fig. 2a) separated the Nakaku-population, which was placed on the positive side of RW axis 1, while the Mbita- and Katoto-population were placed on the negative side. Neither of the plots for the remaining bony elements could separate groups; the populations overlapped widely (Fig. 2).

Canonical variate analyses and Goodall’s F-test

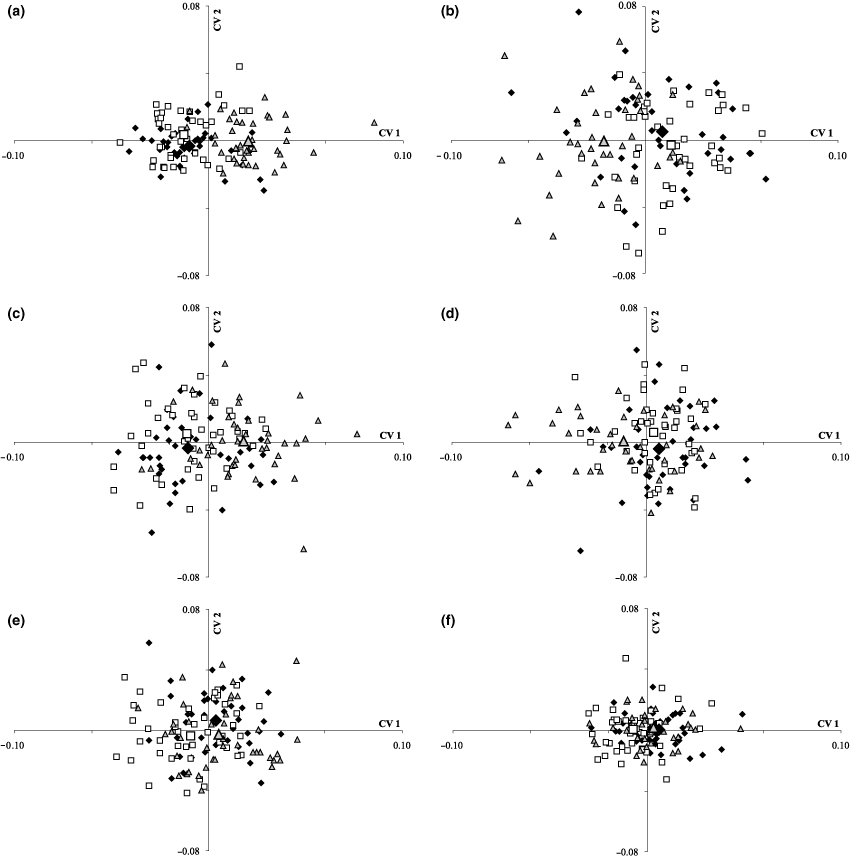

The CVA for the dentary separated the Nakaku population from the other two (Fig. 3a and b). However, the CVA for the articular, premaxilla, quadrate and preopercle could not clearly discriminate the three populations (Fig. 3c–f). Goodall’s F-test (Table 2) was calculated to test in-between population shape differences of viscerocranial elements between populations. Lack of independence in the comparisons amongst the three populations was aligned by the use of Bonferroni correction factor.

Pair-wise comparison with Goodall’s F-test between Katoto and Nakaku and between Mbita and Nakaku showed significant differences in dentary shape (p < 0.05). As can be seen in the CVA-plot for the caudal view of the dentary, most data points of the Nakaku-population and their mean value were situated on the positive side of CV 1, while values for the Katoto- and Mbita-population were mostly placed on the negative side, and overlapped extensively with each other. Concerning the lateral view of the dentary, Nakaku was again clearly separated from the other two populations, but this time was placed more on the negative side of CV 1. Likewise, Katoto and Mbita were similar and overlapped extensively, but on the positive side of CV 1 (Fig. 3b; Ev CV 1 = 0.39 and Ev CV 2 = 0.027). For the articular the same trend as for the caudal view of the dentary was observed in that the Nakaku-population was placed on the positive side of CV 1, while Katoto and Mbita were placed on the negative side, again with greater overlap (Fig. 3c; Ev CV 1 = 0.35 and Ev CV 2 = 0.02). In case of the premaxilla, all three populations were more similar and overlapped widely (Fig. 3d; Ev CV 1 = 0.13 and Ev CV 2 = 0.03). The quadrate (Fig. 3e; Ev CV 1 = 0.14 and Ev CV 2 = 0.03) and the preopercle (Fig. 3f; Ev CV 1 = 0.11 and Ev CV 2 = 0.0) showed a different trend, in that Nakaku and Katoto were more similar to each other and placed on the positive section of CV 1, while Mbita was shifted slightly to the negative section of CV 1, as corroborated by Goodall’s F-test for the two bones (Table 2).

Thin plate spline deformation grids for the dentary

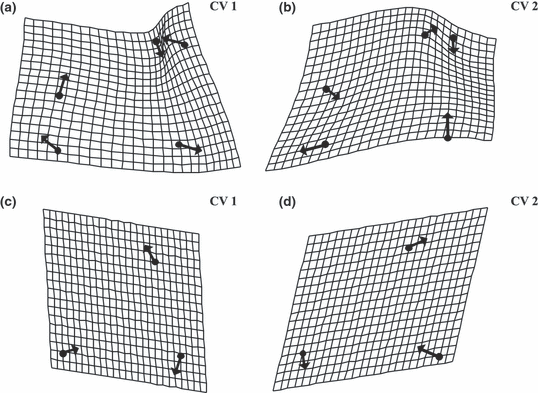

Trends of morphological divergence displayed in the CVA are shown in two sets of deformation grids for CV 1 and CV 2 (Fig. 4a and b for the caudal view and Fig. 4c and d for the lateral view of the dentary). The most significant differences in the deformation grid of the caudal view for the CV 1 were observed for the medial tip of the the ventral process (Landmark 1) and the lateral tip of the dentigerous part (Landmark 3; for landmark positions see Fig. 3a). The ventral process was shortened, whereas the dentigerous part was elongated.

In case of CV 2 the deformation grid of the caudal view (Fig. 4b) also showed the strongest variation for the medial tip of the ventral process (Landmark 1) and the lateral tip of the dentigerous part (Landmark 3); both process height and the overall height of the tooth-free process of the dentary was shortened. Concerning the deformation grid of the lateral view for CV 1 the tooth-bearing part, the rostral tip of the dentary, seemed to decrease (Landmark 3), while both the dentary process (the dorsal tip of the dentary process, Landmark 1) and the ventral process (the ventral-most endpoint of the mandibulary sensory canal on the ventral process, Landmark 2) seemed to elongate (Fig. 4c). The deformation grid for CV 2 showed elongation of the dentary process (Landmark 1) and compression of the ventral process (Landmark 2) and the dentigerous part (Landmark 3), as depicted in Fig. 4d. In conjunction with the CVA-scatter plots for the two views of the dentary (Fig. 3a and b), a more distinct morphology was found for the Nakaku population, in relation to the other two populations analysed.

Methodological aspects

Our initial methodical approach was examination of the bony structures on the head in situ. Therefore, the bony structures of the head of sixty specimens were stained with alcyan blue and alizarine red (Dingerkus and Uhler 1977; Potthoff 1984). Then digital images of the lateral view of the stained heads were generated. Unfortunately, placing landmarks on scans of the non-disarticulated and glycerine-stored heads could not be carried out because the tissue was not clear enough to unambiguously define the chosen structures. Moreover, the long clearing procedure led to tissue deformations. For this reason the heads had to be fully disarticulated with KOH and trypsine in order to analyse the bones separately. The disarticulation procedure with KOH and trypsine caused partial loss of the teeth, while disarticulation by digestion with Enzyrim® led to a total loss of the teeth. For this reason neither the first nor the second method can be recommended for quantitative comparative investigations of oral and pharyngeal teeth. However, for studying the morphology of bony elements Enzyrim® is better suited, because the procedure is faster and decay is not a problem.

Landmark analysis on bony elements

Interestingly, RW analysis could not distinguish groups clearly for all five selected bony elements (Fig. 2); the populations partly overlapped. The same was found for the CVA analyses for the articular, premaxilla, quadrate and preopercle. In contrast, the CVA-analysis of both views of the dentary differentiated the Nakaku population from the two others, Mbita and Katoto (Fig. 3a and b). The Goodall’s F-tests (Table 2) showed significant differences between the three groups for both views of the dentary. Results imply a closer morphological similarity between the Mbita and Katoto which is also supported by investigations based upon the overall body shape (Maderbacher et al. 2007). This is interesting because it recently was shown that the population at Katoto comprises descendents of a secondary admixis event between the Kasakalawe–Mbita mtDNA lineage and the mtDNA lineage north of Katoto, represented here by fish from Nakaku (Sturmbauer et al. 2005; Sefc et al. 2006).

The great similarity in four of the five surveyed bony structures can be explained by the fact that all Tropheus populations occupy the same ecological niche, despite a long time of separate evolution. As alternative interpretation for the observed similarity, a relatively weak power of separation, either caused by non-optimal selection of landmarks or by non-optimal positioning of bones for the two-dimensional image, may be put forward although in general, GM is particularly useful for the discrimination of slight differences and varieties between species and populations. Thus, as perspective for future work, it may be important to further optimize and standardize the positioning of bones for image-taking as well as the positioning of the landmarks. It may also be interesting to test different two-dimensional representations from different orientations, to find the most informative image for a given structure. Alternatively, one might consider 3D-scans to cope with the problem of unequal outline projection onto 2-dimensional images. In addition, more comparative investigations using traditional and geometric morphometrics in parallel, are also suggested in order to find out the more appropriate approach for discriminating osteological structures of morphologically similar entities such as populations or sister species.

Morphological differentiation of species and populations on the basis of bony structures

Fryer and Iles (1972) observed that the head region, especially the viscerocranium, varied to a great extent in cichlid fishes as recently corroborated by a stringent analysis of Chakrabarty (2005). It was suggested this was due to strong natural selection on those morphological structures immediately responsible for trophic niche separation. Meanwhile, several morphological characters in the cichlid head have been classified that predict feeding performance of the biting mode (Liem 1973, 1991; Otten 1983; Meyer 1989; Bouton et al. 2002a,b). Recent hybridization experiments on two eco-morphologically distinct epilithic algae feeding cichlids of Lake Malawi attributed the observed marked differences in certain bony elements of the viscerocranium to distinct trophic specialization (Albertson and Kocher 2001). These differences were shown to be genetically controlled via quantitative trait loci-analyses (Albertson et al. 2003a). In this study, we analysed three populations of the Lake Tanganyika rock-dwelling cichlid T. moorii which – unlike the previously analysed Lake Malawi cichlids – are eco-morphologically equivalent and remained morphologically similar despite considerable evolutionary age and colour variation among populations (Sturmbauer and Meyer 1992). A parallel study on the overall morphology of these three populations established considerable morphological variation, even if the fish live in similar shore habitats and occupy the same trophic niche (Maderbacher et al. 2007). Five bones of the viscerocranium, for which adaptive significance was demonstrated (Albertson and Kocher 2001; Bouton et al. 2002a,b), were selected for our landmark-based geometric morphometric analysis, in order to investigate whether the three consecutive populations were also distinguishable via osteological structures of the viscerocranium. Specifically, we focused on the lower jaw (dentary and its complementary part, the articular), the premaxilla (part of the upper jaw) and on quadrate and preopercle. Important indicators for the biting mode are for example a short ascending arm of the dentary (Otten 1983), a wide, robust lower jaw (Liem 1991), an obtuse angle formed between the two arms of the premaxilla (Otten 1983) and a short load-bearing region of the ascending arm of the premaxilla. In our study it turned out that within the species level – despite long-term separation – most bony structures are highly conserved in evolutionary terms. Only the dentary, the tooth-bearing anterior part of the lower jaw, showed significant shape variation between the three populations analysed. The two populations belonging to two major mtDNA lineages with a divergence time of 0.55 to 1.1 million years age (Baric et al. 2003; Sturmbauer et al. 2005) were more distinct from each other than the natural hybrid population of the two lineages.

Evolutionary implications

While it is well established that head morphology and the underlying bony structures can vary tremendously among species and genera of cichlid fishes and that they are highly indicative for particular ecological and trophic specializations, it was so far assumed that they are the same or at least highly similar among populations. However, one has to consider the time of evolution available in a species flock. The flocks of cichlid fishes in the three East African Great Lakes, Victoria, Malawi and Tanganyika are of substantially different age. Lake Victoria is certainly less than 200 000-year old, its majority of species perhaps even 12 000 years (Johnson 1996). Lake Malawi is about 1 million-year old, while the Lake Tanganyika flock may go back 5–6 million years, perhaps even 9- to 12-million years. Greenwood (1984) argued that evolutionary age is reflected in the degree of morphological divergence observed in the three species flocks, in that Lake Victoria species are morphologically most similar and vary continuously, while Lake Tanganyika species are so highly distinct from each other that intermediates are lacking, and Lake Malawi cichlids being intermediate. Thus, it was suggested that the adaptive radiation in Lake Tanganyika is already in a highly mature stage, in which a densely packed species community reduces the probability for further eco-morphological innovation, so that speciation mostly proceeds allopatrically without further eco-morphological change (Sturmbauer 1998). It was, however, shown that not all Lake Tanganyika-species subdivided into populations are homogeneous. Considerable morphological differences among populations of eretmodine cichlids were found, sometimes even indicating parallel evolution (Rüber et al. 1999). Other species show considerable geographic variation, but mostly in colour. This is especially true for the genus Tropheus, for which about 120 colour morphs are known (Schupke 2003). Local adaptation causing population differentiation was suggested to be a major driving force of speciation during the process of adaptive radiation. All allopatric models involve local differences in environmental conditions, in that abiotic or biotic influences cause differential natural selection. So, it was important to test, to which extent morphological structures can vary among populations, in particular those that are considered of selective relevance.

The genus Tropheus– despite considerable morphological stasis – was shown to be about equally old as the entire mbuna clade of Lake Malawi (Sturmbauer and Meyer 1992), so that one can postulate a long period of allopatric evolution in the absence of substantial morphological change, due to the action of stabilizing selection keeping species in the niches they invaded. Thus, the here observed significant differences in the shape of the dentary are interesting in the light that all other bones remained more similar among the surveyed populations. Indeed, the observed difference may indicate differential selective forces, or be the result of neutral drift within the constraints enforced by stabilizing selection. Given that these populations for a long time live in the same niche and the same type of habitat, it is indeed possible that morphology of specialization-relevant structures can vary slightly within the freedom granted by stabilizing natural selection, so that populations remain competitive on the community level for the niche they once occupied.

Taken together with the results recently obtained for the overall morphology of these three populations (Maderbacher et al. 2007), it seems that overall morphology may drift considerably under stabilizing selection. Most but not all bony structures in the head with established selective relevance for trophic specialization seem indeed quite static in terms of evolutionary change. A combined morphometric and population genetic analysis is needed to explore these perspectives further.
