2.1 Targeted locus amplification

TLA cross-links and fixes loci within close spatial proximity. Due to stochastic variation, subsequent digestion and religation lead to DNA circles with different DNA fragments from around the breakpoint locus. The DNA circles are amplified by means of inverse primers, which are located in the anchor fragment, and the DNA library is prepared using the Nextera XT-sample preparation kit for MiSeq sequencing.⁹

TLA was originally developed for cultured cells, but since no cells were available and fresh material could not be obtained, we have used a proprietary assembly mix from Cergentis to fold the fragmented, isolated DNA prior to the fixation. This means that the obtained range of coverage depends on the fragment length of the degraded DNA, which had been stored for 6 years at 4℃ in this particular case. During TLA we wished to capture and analyze DNA segments that surround a selected site (anchor fragment) situated as close to the breakpoint as possible. Custom inverse primers (forward 5′-TGGTGGTACAGCCCTTATCTG-3′ and reverse 5′-CTCAGCACCCATCCTGTCTAC-3′) were carefully designed at the borders of two NlaIII sites using Primer3plus,¹⁰ forming the anchor fragment. The anchor fragment is located at the border of the last MLPA probe at the 5’ breakpoint side still present (chr16:159,469-159,541), to ensure incorporation of the breakpoint-containing fragment in the DNA circles. No inverse primers were designed within the region of the 3’ breakpoint side, as unique primer design was hampered by high sequence homology. Library preparation was conducted using the Illumina Nextera XT library-preparation kit followed by sequencing on the Illumina MiSeq platform. The UCSC Genome Browser¹¹ and Integrative Genomics Viewer¹² on Human Hg38 assembly were used for localization, visualization of read alignment, and deletion detection.

2.2 Primer design and breakpoint PCR

Based on the TLA results, the 5’ breakpoint gap-PCR primer was designed upstream of position 161,200, while the 3’ breakpoint gap-PCR primer was designed downstream of position 178,674 (Ju-del forward 5′-AACCACGAGCCACCATGT-3′ and Ju-del reverse: 5′-CCACCACATTTTGTTTACCC-3′, respectively). Amplification was performed with a T-Professional thermal cycler (Biometra) in a final volume of 15 µL using 50 ng DNA template (measured with NanoDrop), 5 pmol of each primer, 3 mM dNTP’s (Thermo Fisher Scientific), and 0.6 U DNA polymerase per reaction. A hot start PCR was used running the following program: Hot start: 95℃, 1 cycle initial denaturation: 10 minutes 95℃, 30 cycles of 45-second denaturation at 94℃, 45-second annealing at 60℃, and 30-second elongation at 72℃, followed by 10 minutes of elongation at 72℃. PCR-products were analyzed using the LabChip GX (PerkinElmer) and sequenced by Sanger sequencing on the ABI 3730XL.

2.3 Patients

Patients were referred to the Hemoglobinopathy Reference Laboratory of the Department of Clinical Genetics (LUMC) as suspected of carrying thalassemia. After giving informed consent, routine diagnosis for hemoglobinopathies was done using standard hematology, Hb-separation, and molecular analysis as described previously and according to the European Molecular Genetics Quality Network (EMQN) recommendations.^{13, 14} DNA material was collected from the index patient and the 10 selected patients carrying a similar deletion based on previous hematologic and MLPA analysis.

3.1 Targeted locus amplification

The index patient was preselected for the α⁰-thalassemia phenotype based on a microcytic (MCV 61 fL) hypochromic (MCH 18.7 pg) anemia (Hb 8.9 g%) in the presence of Inclusion Bodies. As all common variants and deletions were excluded, subsequent MLPA analysis was performed using the MRC-Holland P140B kit. This revealed a 5′ breakpoint between chr16:159,541 and chr16:162,720 (3179 bp region) and a 3′ breakpoint between chr16:177,962 and chr16:179,774 (1812 bp region), removing the HBZP, HBM, HBA1P, HBA2, and HBA1 genes while leaving HBZ and HBQ intact, as depicted in Figure 1A.

An inverse TLA primer pair was designed in the region between the last MLPA probe present and the first absent (chr16:159,469-159,541). The anchor fragment (chr16:159,665-160,999) was as close as possible to the undefined 5′ breakpoint deleted region. Several attempts were made to design an additional primer set at the 3′ end, but due to dependency on NlaIII sites for the anchor fragment and the highly repetitive nature of the 3’ breakpoint target sequence, no eligible sites were located.

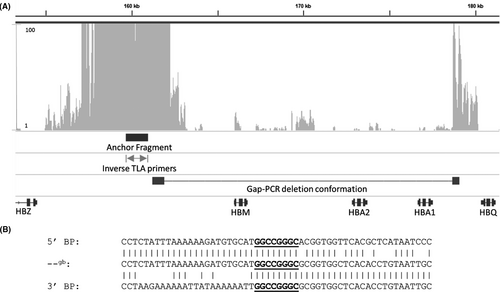

MiSeq sequence data obtained after TLA showed a normal distribution of reads adjacent to the inverse primers, caused by the religation of fragments within close proximity to the anchor (Figure 2A). While only mapping 8 kb surrounding the anchor fragment, an abrupt drop of reads is visible at 162 250, which align with a NlaIII site. This is caused by the lower ligation efficiency of more distal fragments, which are therefore, less likely to be included within the DNA circle.

We were able to identify a reappearing peak at 178 673 kb (Figure 2A). The reappearing peak has a read depth of 100+ reads, suggesting that this fragment is near the anchor during TLA, while the linear genomic distance in the absence of a deletion would have been approximately 17 kb. This pattern is indicative of the presence of a deletion, of which the reappearance of reads at 178 673 shows the exact 3’ breakpoint.

3.2 Gap-PCR

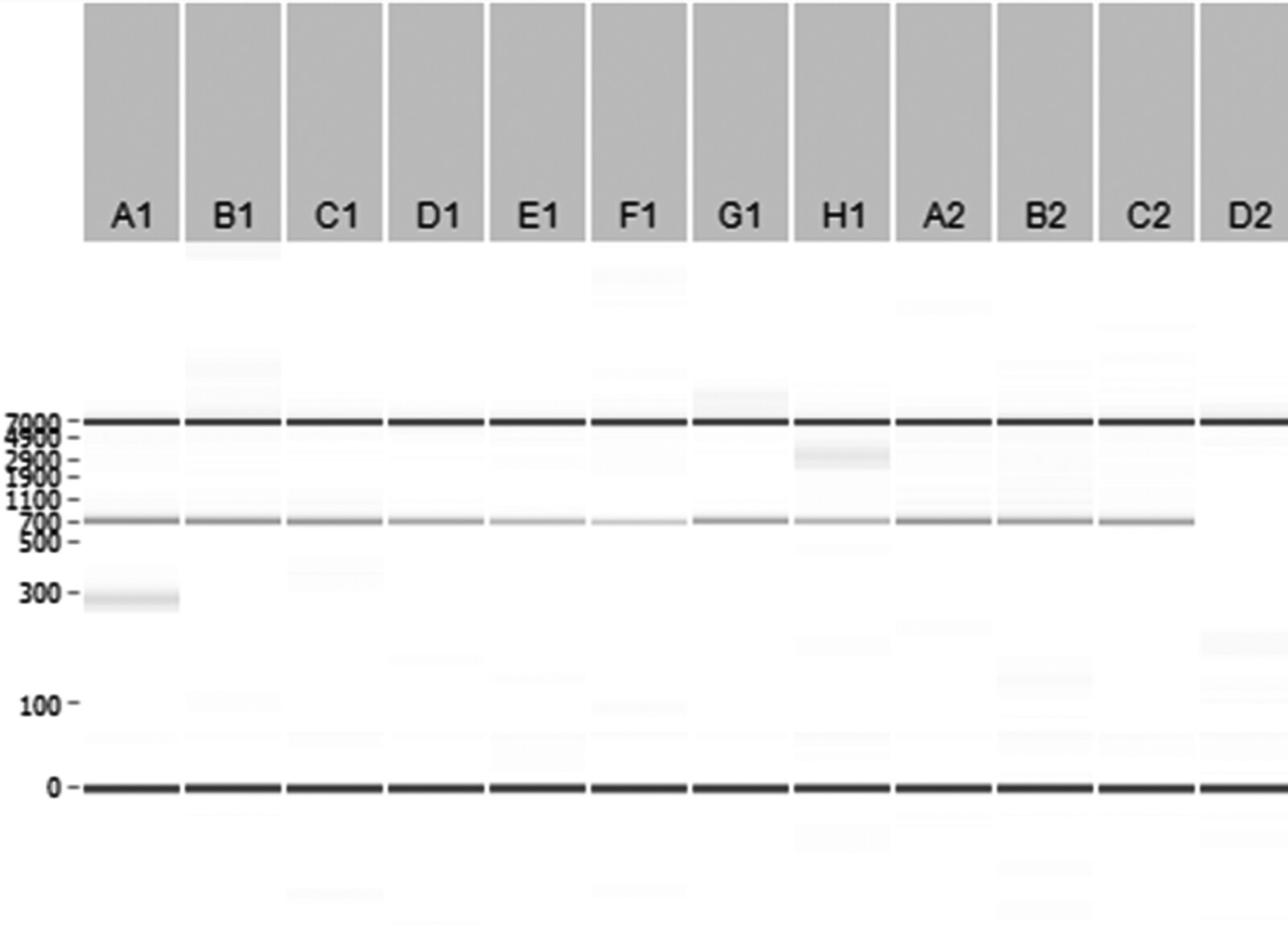

Gap-PCR followed by Sanger sequencing was performed to confirm the exact breakpoint sequence. The 5′ breakpoint is located between 161,901 and 161,910, while the 3′ breakpoint is located between 178,672 and 178,681 (±16 771 bp del), with GGCCGGGC as overlapping homologous sequence present at both sides, as shown in Figure 2B. Initial TLA, MiSeq sequencing, gap-PCR, and Sanger sequencing were performed on one patient with a thalassemia phenotype. Ten nonrelated cases with an equivalent α⁰-thalassemia trait phenotype and similar MLPA deletions were screened with the same set of gap-PCR primers. Electrophoresis of the PCR fragments (Figure 3) and confirmation by Sanger sequencing demonstrated that all of the 10 unrelated individuals had the exact identical breakpoint sequence, suggesting a common founder for this α⁰-thalassemia deletion in these individuals.

3.3 Dot-plot analysis

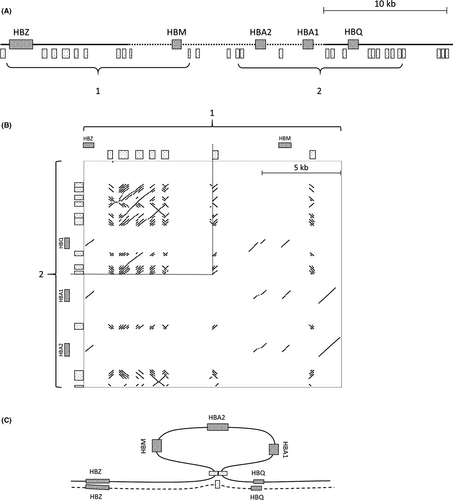

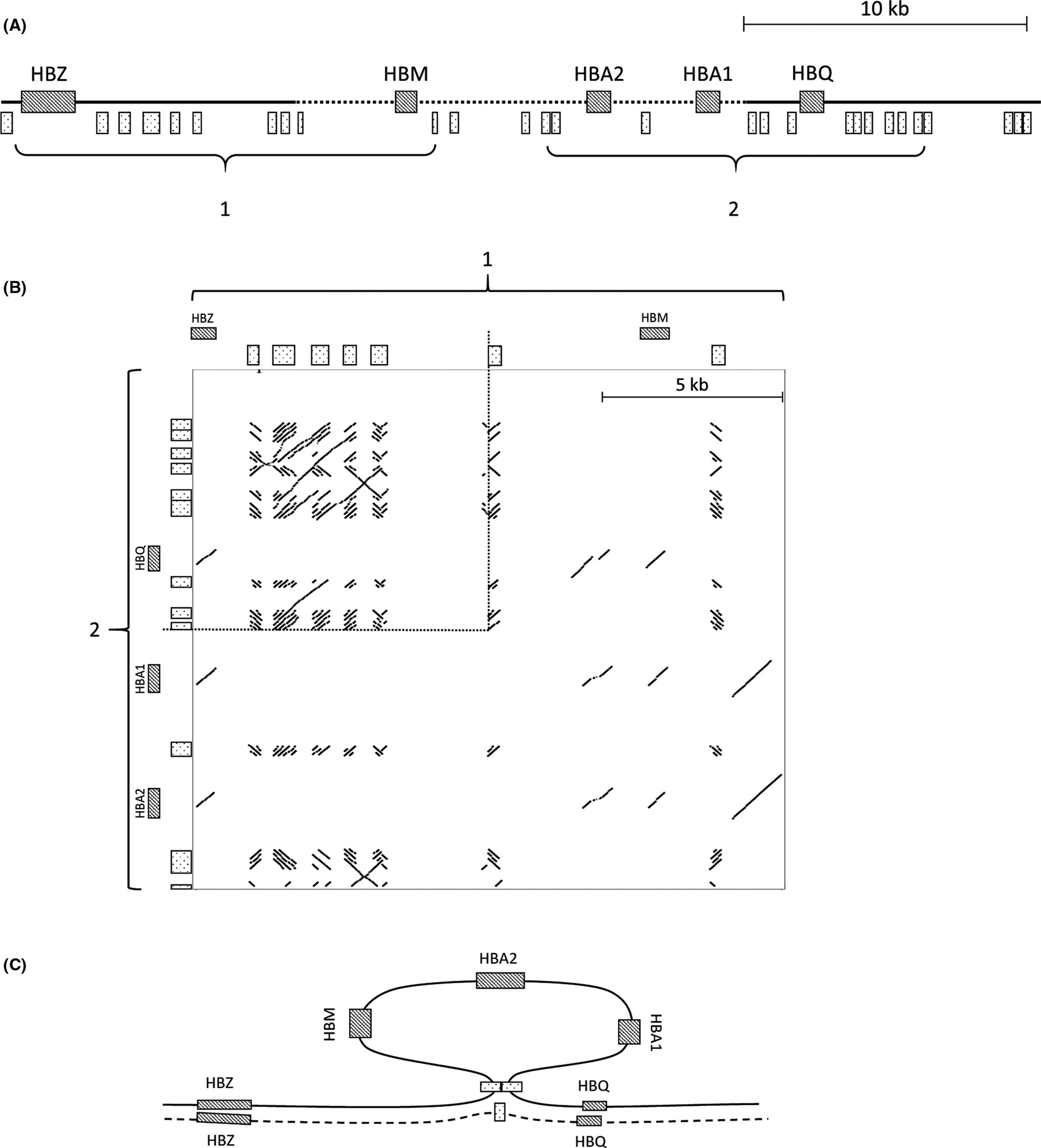

Dot-plot analysis of the 5’ breakpoint region vs the 3′ breakpoint region (Figure 1B) revealed an extremely high homology in the α-cluster due to the high density of Short Interspersed Elements (SINEs) (Alu repeats) and Long Interspersed Elements (LINEs). Additionally, nearly all hemoglobin genes in this region are paralogous, contributing to homology between coding and noncoding regions. Interestingly, both breakpoints are located next to an Alu repeat.

4.1 Targeted locus amplification

During this study, we have used the gDNA-based TLA approach on native (isolated) DNA instead of cells to identify the exact breakpoints of a deletion in the α-globin cluster in an index α-thalassemia carrier. Gap-PCR primers were designed to verify the deletion and to confirm the presence of an identical deletion in 10 nonrelated individuals which showed similar MLPA results.

The gDNA-based TLA is an interesting alternative to WGS and long-range PCR, where success can be limited by highly repetitive and GC-rich loci such as the alpha-globin-gene cluster. While WGS generates much more sequence information, overall coverage usually is low, making it especially challenging to detect structural variants in difficult DNA templates. In contrast to the use of RNA fishing baits, TLA requires no prior information on potential sequence variants in the region. The gDNA-based TLA protocol was updated and fine-tuned during the project, meaning that the current sequence mapping distances for the gDNA protocol could be increased.

The cell-based TLA is preferred when cells are available since the range of coverage can be orders of magnitude greater.¹⁵ DNA samples are typically more readily available, however, especially for historical cases.

Theoretically, TLA should be able to pinpoint the exact breakpoint locations. An additional breakpoint PCR was needed in this particular case, most likely due to the highly repetitive nature of the target sequence that made correct alignment of MiSeq reads challenging. Furthermore, the range of coverage, mapping only 8 kb flanking the anchor, was lower than expected since gDNA TLA should be able to cover 20-50 kb on either side of the primer, as described in the gDNA TLA application note. This might be lower in isolated DNA and is expected to be even lower by the poor quality of the DNA sample, which was stored at 4℃ for 6 years and may be partially degraded. This, in combination with the α-globin cluster isochore region impeding correct alignment of reads, may explain the low coverage.

Despite all this, we were able to detect the breakpoints using the gDNA TLA, which is a great advantage over cell-based TLA as for many unresolved genomic deletions only gDNA is stored.

4.2 Deletion annotation

The deletion initially appeared to be novel, but after the determination of the breakpoint sequence, we have found that this deletion is previously described in earlier articles, where the breakpoints were characterized and the deletion named --^gb. While Phylipsen et al,¹⁶ had characterized the --^gb deletion to be 16 771 bp in three Dutch individuals, the corresponding Ithanet page: IthaID: 3292, describes a 15 kb deletion. Additionally, Mota et al,¹⁷ found this deletion in a Brazilian patient solely by MLPA and registered this deletion as the 15.2 kb --^gb on Ithanet (IthaID: 3296) without determining the breakpoint. Consequently, it is not certain that the deletion found in the Brazilian patient is identical to the --^gb deletion. This illustrates the importance of correct registration of novel variants to the appropriate database, as discussed in Giardine et al.¹⁸ This also demonstrates the necessity of a protocol regarding submission of deletions where the breakpoints are undetermined, to prevent duplicated registrations concerning the same mutation.

Since this deletion was not registered in HbVar and incorrectly in the Ithanet database, we were led to believe that we were dealing with a novel deletion, reinforcing the need for timely and accurate submission to the variant databases in general. We have now submitted the breakpoint locations of the --^gb deletion to both databases, according to reference sequence GRCh38/Hg38.

4.3 Deletion mechanism

Alu-sequences belong to the retrotransposon family of SINE, which are noncoding sequences that uses LINEs to replicate and move around the genome by means of an RNA intermediate. Because SINEs have the tendency to cluster in specific regions, nonallelic homologous recombination (NAHR) events are more likely to occur here, resulting in duplications, deletions, inversions, or translocations.¹⁹ This is also the case within the α-cluster, where approximately one-third of all known deletion breakpoints are located between position 177,501-186,001 (Hg38). Of these, atleast 12 break between the α₁- and θ-globin gene, including the --^gb deletion. Multiple deletions within the α-globin-gene cluster have their 3’ breakpoint in an Alu repeat, such as –^MedII,²⁰ --^Dutch1,²¹ --^CAL,²² --^SA,²³ and --^JB24 supporting the hypothesis of NAHR during genesis of the --^gb deletion.²⁵ We suggest that the --^gb deletion arose during meiosis where NAHR occurred, leading to recombination of micro-homologous sequences which are far apart on the linear DNA but could be in close proximity within the nucleus. This leads to loop formation of the chromatin that is excised, resulting in loss of genetic material, as is first described by Vanin et al.²⁶

Previously the --^gb deletion was described as a Dutch deletion.¹⁶ However, since the Netherlands is not endemic to Plasmodium falciparum, there is no evolutionary advantage of having this deletion, which makes its selection in the Netherlands unlikely. Furthermore, the cases in this study cohort all had either typical Dutch or Indonesian family names, suggesting that the --^gb deletion may have arisen in Indonesia and, because of the Dutch colonial past, was transferred to the Netherlands during the last 400 years of intermixture and migration of populations.

In conclusion, this study has shown the successful characterization of the 16 771 bp --^gb deletion in the α-globin-gene cluster, using gDNA-based TLA on DNA that has been stored for 6 years at 4℃. Despite mapping only 8 kb, which may be caused by the isochoric nature of the α-globin cluster in combination with the quality of the DNA sample, the anchor fragment was within detection range of the deletion breakpoint. Ideally, a cell-based TLA is preferred since the coverage is significantly higher, making it a more reliable method for breakpoint detection and characterization. Nonetheless, the gDNA-based TLA should be able to map up to 70 kb with a single primer pair, which makes it an interesting alternative for long-range gap-PCR when sequence knowledge is necessary for both breakpoint ends. TLA has been shown to be valuable in deletion breakpoint characterization when no cell material could be obtained. The TLA results allowed for effortless gap-PCR primer design, which were used to confirm the --^gb deletion in 10 additional patients with similar MLPA results.
