Changes of motor corticobulbar projections following different lesion types affecting the central nervous system in adult macaque monkeys

2.1 Surgical procedures

The four cortically lesioned animals (MCI: Mk-MO, Mk-VA, Mk-RO and Mk-BI) were deeply anesthetised as previously reported (Schmidlin et al., 2005; Freund et al., 2006; Wannier et al., 2005) and chronic chambers were implanted for easier access to the hand region of M1. Cortical lesion of M1 hand area was obtained by multiple injections of ibotenic acid (10 μg/μl in phosphate buffered saline) with a 10-μl Hamilton syringe at multiple sites corresponding to digits areas previously identified by ICMS, as previously reported (Hamadjida et al., 2012; Kaeser et al., 2010, 2011; Liu & Rouiller, 1999; Wyss et al., 2013). Detailed information about the cortical lesion volume and location is available in Table 1 and Figure 1.

Cervical hemi-spinal cord lesion at C7 level (SCI) was performed with a surgical blade and all the protocols used for sedation, surgery procedures as well as postoperative cares were previously published (see Freund et al., 2006, 2007, 2009; Wannier et al., 2005). Information about the cervical cord lesion size and location is given in Table 1 and Figure 1.

Animals involved in Parkinsonian lesion (PD: Mk-LY, Mk-LL, Mk-MY and Mk-MI; see Borgognon et al., 2017) underwent daily MPTP, 0.5 mg/Kg, Sigma; i.m. injections (see Mounayar et al., 2007) with the purpose to destroy dopaminergic neurons in the substantia nigra pars compacta (SNpc). During the lesion period (about 1 month), the animals were transferred daily in small cages with a movable Plexiglas plate in order to reduce the risks for the experimenter and to get an easier access to the targeted muscles. Once injected, the animal was placed back in its home cage. At the end of the lesional protocol the animals had received between 6.25 mk/kg and 7.75 mg/kg of MPTP (Table 1; see also Borgognon et al., 2017). The protocol consisted of two series of injections for 4 days each with a break after the fourth day. After the second break the animals received between four and five extra injections (0.25 mg/Kg) depending on their symptoms. The symptoms were assessed according to the Schneider rating scale (Schneider, Lidsky, Hawks, Mazziotta, & Hoffman, 1995). All safety protocols were adapted in accordance to the American national institute of health (NIH) and were based on a previously published technical report of Przedborski et al. (2001). Information about dopaminergic neuronal loss in SNpc, as well as about decrease of ¹⁸F-DOPA uptake in the striatum (post-MPTP lesion and post-ANCE transplantation), is available in Table 1 (see also Borgognon et al., 2017).

2.2 Treatments

All animals involved in the present study were subjected to a “therapeutic” treatment with exception of Mk-RO and Mk-BI (untreated monkeys), which were both subjected to M1 lesion (Table 1). The other two cortically lesioned animals (Mk-MO and Mk-VA) were treated with anti-Nogo-A antibodies (3 mg/ml) administrated by two osmotic pumps (Alzet, model 2ML2, 5 μl/hr) implanted under deep anaesthesia in a subcutaneous pouch in the neck region. One pump administered the treatment intrathecally to the cervical spinal cord (see Freund et al., 2006, 2007, 2009), whereas the other pump delivered the antibody close to the lesioned site in M1 below the dura. The treatment was delivered for a total duration of 4 weeks before surgical removal of the two osmotic pumps. The treatment was delivered immediately after the lesion, thus the surgery for pumps implantation followed the injection of ibotenic acid (Hamadjida et al., 2012; Wyss et al., 2013).

All five animals subjected to SCI were treated with antibodies applied intrathecally by infusion over 4 weeks into the subdural space of the lower cervical spinal cord (Table 1). Mk-CG and Mk-CP received a control antibody, whereas Mk-AC, Mk-AG and Mk-AP received anti-Nogo-A antibodies (see Beaud et al., 2008; Freund et al., 2006, 2007). In both cases, the treatment was delivered with an osmotic pump (Alzet, 2ML2, 2 ml of volume) located in the back of the animal at 3–5 mm rostral to the lesion site and connected to it by a silastic tube. The implantation of the osmotic pump was performed a few minutes after the cervical lesion itself (Freund et al., 2006, 2007).

Parkinson's disease animals were treated with autologous neural cell ecosystems (ANCE: see Borgognon et al., 2017) obtained by cell culture of cortical neurons developed in vitro from cortical biopsies (Table 1). The protocol for cortical biopsy surgery was the same as that previously published (Badoud et al., 2017), whereas the protocols to prepare the cell culture and cell labelling were the same as previously used (Bloch et al., 2014; Brunet et al., 2005, 2009). ANCE were then reimplanted in the same monkey (sedation, surgical procedure and postimplantation treatment was the same as that used for cortical biopsies). The injections sites (two in the Putamen and one in the Caudate nucleus on each side) were identified by aid of postlesional T1-weighted MRI scan (OsiriX, v 4.1.2) and confirmed by the Paxinos atlas (Paxinos, Huang, & Toga, 2000). Cells were implanted via a Hamilton microsyringe (10 μl culture medium; 2 μl/min during 5 min per injection site) using a nanoinjector (Stoelting, Wood Dale, IL, USA) fixed to a stereotaxic frame. Each animal received between 250,000 and 400,000 cells (Borgognon et al., 2017).

2.3 Sacrifice

At the end of the experimental protocol, after completion of behavioural and electrophysiological investigations, we injected the anterograde tracer biotinylated dextran amine (BDA) in either PM (n = 4 cortically lesioned animals and n = 2 PD animals, namely Mk-LL and MK-MY) or in M1 (n = 5 spinal cord injured monkeys and n = 2 PD animals, namely MK-LY and Mk-MI). The volume of BDA injected, the number of injected sites, the hemisphere injected and the number of CS axons labelled (used as a reference for normalization) are indicated in Table 1. Following a survival time of 3 weeks to allow the axonal transport of BDA (down to the cervical cord), the monkeys were euthanized. Surgical procedure for sacrifice in cortical lesioned animals (n = 4) and spinal cord injured animals (n = 5) were previously reported (Hamadjida et al., 2012; Wannier et al., 2005; Wyss et al., 2013). In the four animals subjected to PD lesion the euthanasia protocol was different. They were sedated by i.m injection of ketamine (10 mg/Kg) before an i.v. injection of sodium pentobarbital (60 mg/Kg). Once deep anaesthesia was present and the heart rate significantly dropped (as assessed with ECG), 1 ml of heparin was injected in the left ventricle and then the animal was subjected to transcardiac perfusion (400 ml, 0.9% saline). The animals were further perfused with first 3 L 4% paraformaldehyde (0.1 M phosphate buffer, pH 7.6) and then three series of 2 L each of sucrose solutions (10%, 20% and 30%) to fix and cryopreserve the tissue.

2.4 Histology, data analysis and statistics

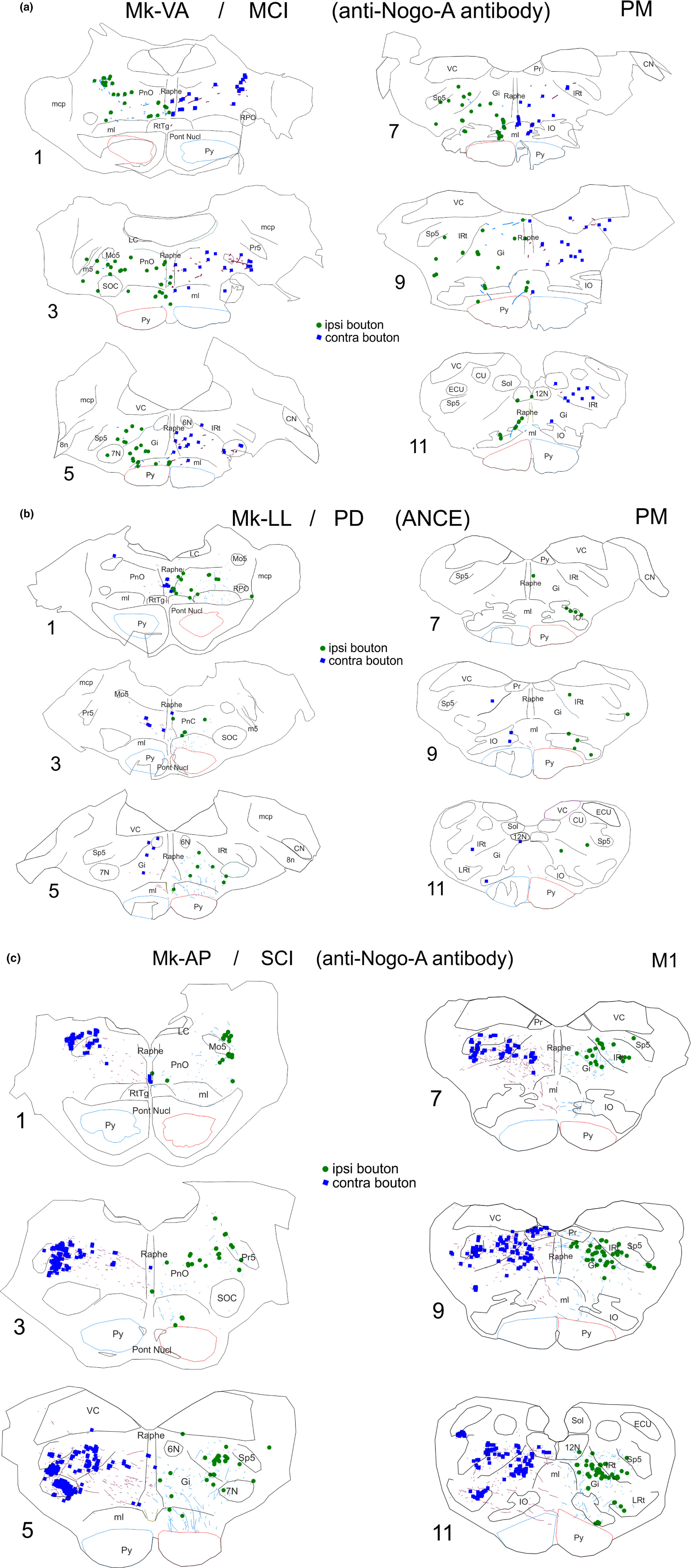

The procedures and the analysis performed in PMRF on brainstem tissue (series stained one with BDA and one with Nissl) are the same as those recently published (Fregosi & Rouiller, 2017; Fregosi et al., 2017) for intact monkeys. Briefly, the relevant extent of the brainstem comprising PMRF included usually 12 sections from an individual series of sections, which were scanned using an Olympus BX40 microscope interfaced with the Neurolucida^® software (MBF, Bioscience-MicroBrightField, Inc. Version 11). The interval between consecutive analysed sections ranged from 0.9 to 1 mm. The Nissl series was used to delineate the nuclei, and then they were aligned to the corresponding BDA adjacent sections used to chart the axonal boutons (en passant and terminaux) and stem axons. Boutons en passant were defined as boutons along an axon segment, visible at magnification 200x, exhibiting a diameter at least twice that of the axon's diameter. In each analysed BDA histological section, all labelled corticobulbar axonal boutons (en passant and terminaux) were counted in the delineated area of the brainstem, corresponding to a quantification method based on exhaustive plotting instead of stereology (see Fregosi & Rouiller, 2017). Furthermore, across monkeys, all histological samples were analysed according to the same procedure.

The size and precise location of the BDA injection sites is inevitably variable across monkeys, and therefore this may impact the uptake of BDA by corticobulbar neurons in the cerebral cortex, namely in layer V where they are located. In order to tentatively normalize the number of corticobulbar boutons in the brainstem, the number of CS axons labelled with BDA was assessed and taken as a reference. In each monkey, a frontal section of the brainstem taken just above the pyramidal decussation was used to count the number of BDA labelled CS axons in the pyramid. In a previous study (Rouiller, Moret, Tanné, & Boussaoud, 1996), it was found that such counts repeated on consecutive sections in the same animal yielded comparable numbers and therefore, in most subsequent cases, the count of CS axons was performed on a single brainstem section. For normalization, the absolute number of corticobulbar boutons was divided by the total number of BDA-labelled CS axons, then multiplied by 1000, corresponding to the normalized number of corticobulbar boutons. As the CS axons also arise from neurons in layer V, such normalization procedure is likely to reflect the extent of layer V which was indeed invaded by BDA, thus taking into account the probable zone of tracer uptake (see Fregosi et al., 2017; Fregosi & Rouiller, 2017 for more detail). The pros and cons (limits) of the normalization procedure were discussed in detail in two recent reports (Fregosi & Rouiller, 2017; Fregosi et al., 2017), and will not be repeated here.

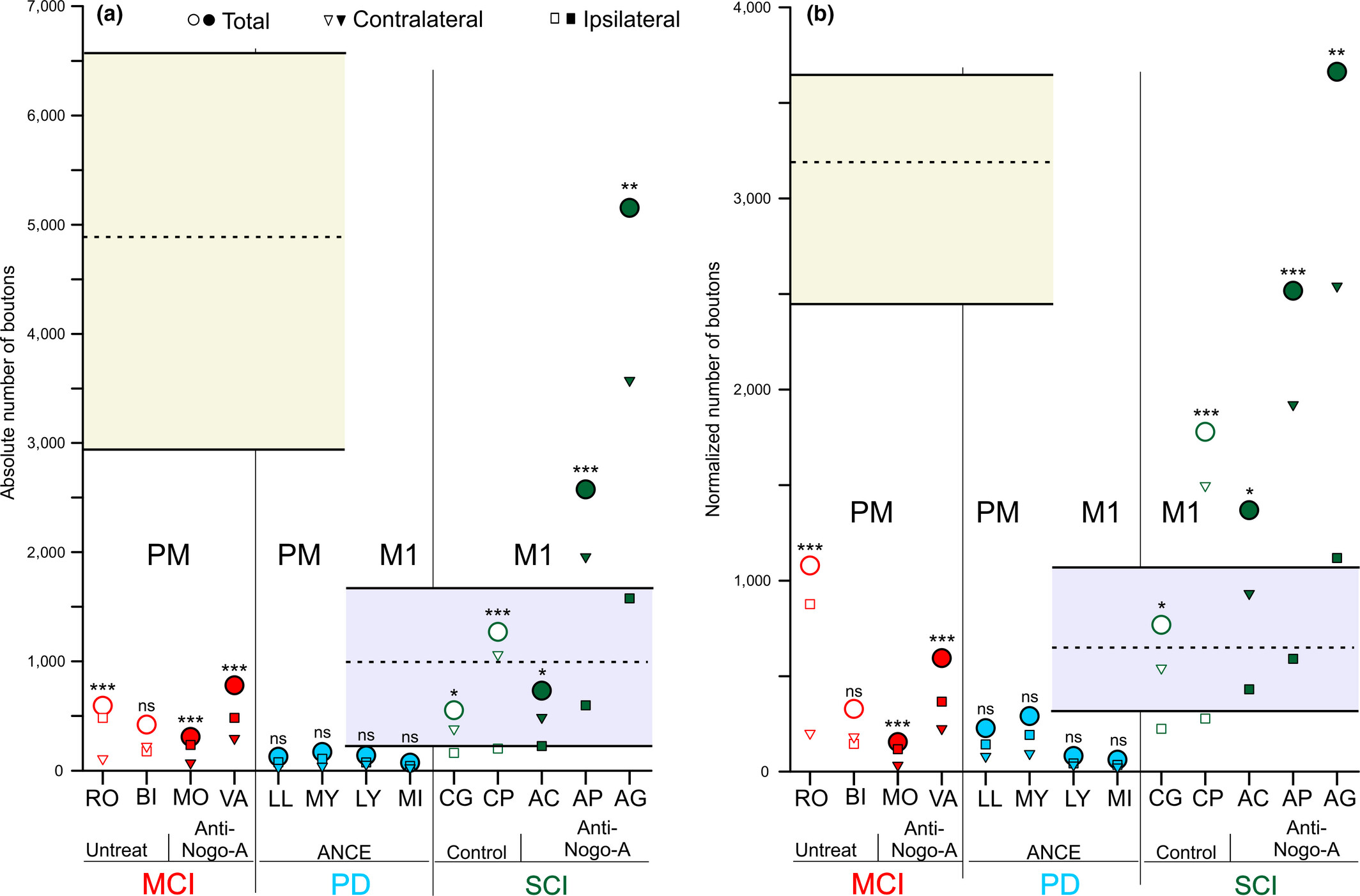

Statistical analysis was performed to compare the numbers of corticobulbar axonal boutons ipsilaterally versus contralaterally with respect to the injected hemisphere, when considering their total numbers (Figure 3) and within individual brainstem nuclei or group of nuclei (Supporting information Figure S1). These bilateral comparisons were based on parametric paired t-test (and nonparametric Wilcoxon when required) applied to each of the consecutive individual sections analysed along the rostrocaudal axis (usually 12 sections overall, as in Fregosi et al., 2017; see also legend to Figure 3 and Supporting informationFigure S1).

3.1 Brief summary of the corticobulbar projection in intact monkeys

The present study aims at assessing possible changes of the corticobulbar projection in adult monkeys following lesion, such as MCI, SCI or MPTP. This requires a comparison with the corticobulbar projection in intact monkeys, as reported recently (Fregosi et al., 2017). The normal corticobulbar projection to the PMRFis briefly summarized here. First, the corticobulbar projection was found to be clearly denser when originating from PM or the supplementary motor area (SMA) than from M1. This is clearly illustrated in Figure 3 with the comparison of corticobulbar boutons in PMRF originating from PM versus M1 (yellow vs. blue areas, respectively). Second, irrespective of the origin, the corticobulbar projection was bilateral although with a predominance on the ipsilateral PMRF when originating from PM or SMA and on the contralateral PMRF when coming from M1. Third, in PMRF, the main nuclei targeted by the corticobulbar projection were the pontine reticular nucleus pars caudalis and oralis (PnC and PnO), the gigantocellular reticular nucleus (Gi) as well as the lateral and intermediate reticular nuclei (LRt and IRt).

3.2 Corticobulbar projections from PM after motor cortical injury (MCI)

The quantitative data for the corticobulbar axonal boutons in PMRF originating from PM in the four MCI monkeys are available in Table 3. Independently of the treatment, after a lesion of M1 hand area, the corticobulbar projections arising from the ipsilesional PM strongly decreased in PMRF in all four MCI monkeys, as compared to intact monkeys (Figure 3a). The strong decrease in the density of corticobulbar projection from PM in MCI monkeys was confirmed based on the normalized number of boutons (Figure 3b). Figure 3a also indicates for each monkey the bilateral distribution of corticobulbar boutons in PMRF (ipsilateral vs. contralateral with respect to the BDA-injected hemisphere), together with the related statistical analysis. Out of the four MCI monkeys, three exhibited a statistically significant ipsilateral predominance (see also Table 3), as observed in two out of three intact monkeys (Fregosi et al., 2017).

As far as the target nuclei in PMRF are concerned (Supporting information Figure S1a), the four MCI monkeys exhibited some individual variability (as previously observed in intact monkeys), although it remained that the pontine reticular nuclei (PnO+PnC), the gigantocellular reticular nucleus (Gi) and the lateral/intermediate reticular nuclei (LRt+IRt) are the main target nuclei in PMRF. There was, however, a tendency towards a slight increase of the corticobulbar projection to the raphe nuclei in the MCI monkeys (Supporting information Figure S1a) as compared to intact monkeys (Fregosi et al., 2017). Looking at the rostro-caudal distribution of the corticobulbar boutons in PMRF for the MCI monkeys (Supporting information Figure S2a), they were generally more abundant in the rostral half of PMRF; this rostro-caudal distribution also confirms the general ipsilateral dominance, mentioned above based on Figure 3a and Table 3.

Considering the volume of the lesion in M1, there was a slight trend towards a greater decrease in the density of the corticobulbar projection to PMRF originating from PM for increasing lesion size in M1 (Supporting information Figure S3a). However, this observation is limited by the small number of monkeys subjected to MCI (n = 4). Regarding the treatment (anti-Nogo-A antibody), the two treated monkeys exhibited a comparable decrease of the corticobulbar projection from PM as the two untreated monkeys (Figure 3; Supporting information Figure S3a), taking the intact monkeys as reference. In other words, in case of MCI, the anti-Nogo-A antibody treatment did not impact on the decreasing effect of the M1 lesion on the corticobulbar projection from PM, although again, the number of cases is limited.

3.3 Corticobulbar projections from PM and M1 after MPTP lesion (PD monkeys)

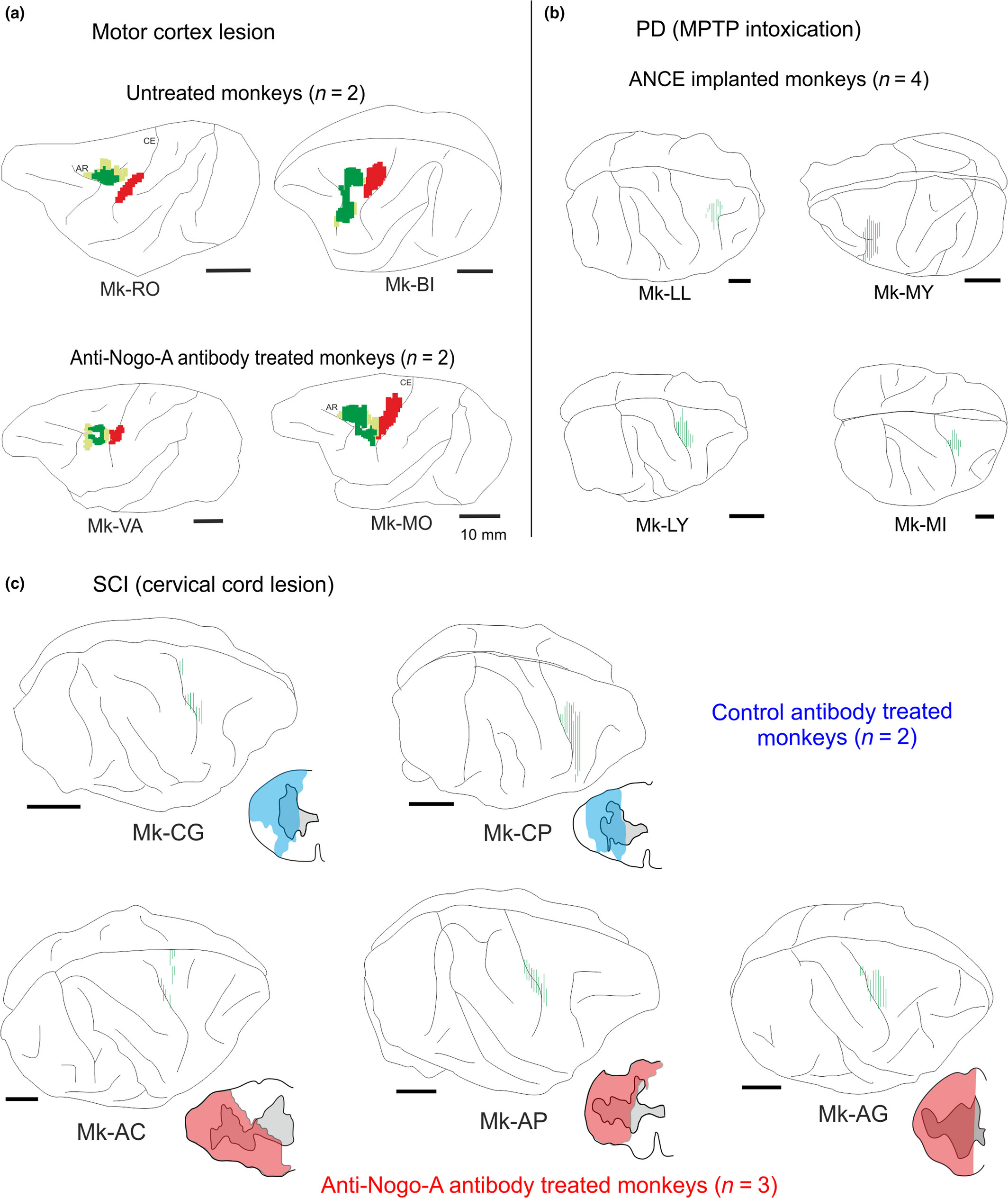

The PD monkeys Mk-LL and Mk-MY received BDA injections in both PMd and PMv, whereas Mk-LY and Mk-MI were injected with BDA in M1 (Figure 1). The detailed quantitative data are available in Table 4 for these four monkeys. A dramatic effect in the PD monkeys was observed for the corticobulbar projection from PM, which was substantially decreased as compared to intact monkeys (Figure 3a). A decrease was also observed in PD monkeys for the corticobulbar projection originating from M1, but apparently to a lesser extent than from PM (Figure 3a), although proportionally to the density in intact monkeys the decrease of the projection from M1 appears also strong (Figure 3a). The same changes in corticobulbar projections from PM and M1 in PD monkeys were maintained in the normalized data (Figure 3b).

The corticobulbar projections to PMRF from PM in MPTP monkeys showed no statistically significant bilateral difference towards any side of the brainstem; the same is true for the projections from M1 (Figure 3a). There were globally more boutons on the ipsilateral side in the four PD monkeys (Table 4), but the differences were not statistically significant based on paired sections’ comparison (Figure 3b). As compared to intact monkeys, bilateral predominance observed in intact monkeys was thus eliminated after MPTP lesion.

The distribution of the boutons across the nuclei of PMRF (Supporting information Figure S1b) revealed that they were located in the same three main targets nuclei (Pn, Gi, Rt), as in the intact monkeys and MCI monkeys. As the latter group, there was also a tendency to observe more boutons in the raphe nuclei in PD monkeys than in intact animals (Fregosi et al., 2017). Moreover, as compared to MCI monkeys, in PD monkeys the boutons were somewhat more homogeneously distributed along the rostro-caudal axis of PMRF after injection in M1 (Supporting information Figure S2b).

The normalized amount of boutons in PMRF in the four PD monkeys was confronted to the percentage loss of dopaminergic neurons in the SNpc (Table 1; Supporting information Figure S3B). One animal (Mk-LY) exhibited a loss of 39%, whereas the other three PD monkeys had a loss of 67%–74%. Nevertheless, all four PD monkeys exhibited a comparable number of corticobulbar boutons in PMRF, suggesting that at about 40% loss or more, the decrease of the density of the corticobulbar projection is large and comparable (floor level).

3.4 Corticobulbar projections from M1 after spinal cord injury (SCI)

Five monkeys subjected to SCI, namely, lateral cervical cord hemi-section (Mk-CG, Mk-CP, Mk-AC, Mk-AP and Mk-AG) were injected with BDA in M1 (Figure 1). The two monkeys Mk-CG and Mk-CP were treated for 4 weeks intrathecally with a control antibody, whereas the other three monkeys were infused with the anti-Nogo-A antibody (Table 1). The quantitative data on the corticobulbar projection to PMRF from M1 in these five monkeys are available in Table 5. The SCI lesion had a different impact on the corticobulbar projection than MCI or PD. Indeed, there was no decrease of the density of the corticobulbar projection from M1 but rather a maintenance or a moderate increase in the control antibody treated monkeys, whereas following anti-Nogo-A antibody treatment, the density of the corticobulbar projection from M1 was substantially increased in two out of three monkeys (Figure 3a, b). In all five SCI monkeys, there was a significant bilateral bias towards the contralateral PMRF (Figure 3a; Table 5), as was the case in intact monkeys after BDA injection in M1 (Fregosi et al., 2017).

With respect to the nuclear distribution of boutons in PMRF, they were numerous in the nuclei Gi and Rt in the five SCI monkeys, as in intact monkeys, but less in the nucleus Pn than in intact monkeys (Supporting information Figure S1c). In contrast to the MCI and PD groups, there was no trend for an increase of the number of boutons in the raphe nuclei in the five SCI monkeys (Supporting information Figure S1c). Along the rostro-caudal axis of PMRF (Supporting information Figure S2c), there was in the five SCI monkeys a large interindividual variability, although the distribution confirms the contralateral predominance. Finally, the number of boutons in the SCI monkeys did not show a systematic relation with the extent of the cervical lesion (Supporting information Figure S3c).

4.1 Summary of the main findings

The present data first demonstrate that after cortical lesion of M1 hand area the density of corticobulbar projections from PM onto the PMRF strongly decreased (Supporting information Figure S3), but nevertheless largely maintained their ipsilateral predominance present in intact animals (Table 3). Second, the corticobulbar projections from PM in animals affected by MPTP lesion mimicking PD (and treated with ANCE) showed a strong decrease in density (Figure 3) with a maintenance of ipsilateral predominance (Table 4); similarly, also in PD monkeys there was a decrease of the density of the corticobulbar projections from M1 (Figure 3), but to a lesser extent than from PM, and associated with a loss of contralateral lateralization (Table 4). Third, monkeys subjected to cervical cord hemi-section at C7 level exhibited an increase of the corticobulbar projections from M1 onto the PMRF after a treatment with anti-Nogo-A antibody (Figure 3) with a maintenance of a contralateral predominance (Table 5); in contrast, SCI monkeys treated with a control antibody did not show such an increase of corticobulbar projection density from M1, whereas the contralateral predominance was preserved.

4.2 Limitations of the present study

A first limitation of the present study is obviously the fairly low numbers of monkeys included in each group of pathologies, although this is common in nonhuman primate studies for ethical reasons. Also, in order to minimize the number of monkeys involved, this study capitalized on previously available cases, initially designed to test various therapies applied to MCI, PD or SCI. Furthermore, in each group of pathologies, the animals were further subdivided into treated versus control (or untreated) animals, at least in the motor cortex lesion and SCI groups. Such small numbers in groups and subgroups prevent reliable and robust correlations of changes in the number of corticobulbar axonal boutons with lesion size (SCI or motor cortex lesion) or neuronal loss (dopaminergic cells in SNpc in PD monkeys) and consequently any indirect inference as to whether the lesion-related adaptation of the corticobulbar projection may have played a role in the functional recovery. For instance, following M1 lesion, the trend towards less corticobulbar boutons for increasing lesion volumes (Supporting information Figure S3a) has to be taken with great caution.

A further limitation is the variability in the motor cortical area injected with the tracer BDA. The choice to inject BDA in PM in monkeys subjected to M1 lesion was dictated by the evidence that PM plays an important role in the functional recovery from M1 lesion (Hoogewoud et al., 2013; Liu & Rouiller, 1999). In SCI monkeys, M1 only was injected with BDA as the initial goal in these animals was to study the reorganization of the CS projection originating mainly from M1 (Freund et al., 2007). In other words, the present study does not address the possibility of a change in CS projection originating from PM in SCI monkeys. In PD monkeys, although BDA was injected in PM or in M1, there are only two monkeys in each subgroup of BDA injections.

The corticobulbar projections in intact monkeys was shown to be denser when originating from PM and SMA than when originating from M1 (Fregosi et al., 2017). As a result, in the present study, a possible decrease of the density of the corticobulbar projections due to a lesion could be better detected when originating from PM than from M1. Moreover, this study lacks cases injected with BDA in SMA. Lesion-related changes affecting the corticobulbar projections from SMA are nevertheless likely, considering the quantitative importance of supraspinal projections originating from SMA (Fregosi et al., 2017; Macpherson, Wiesendanger, Marangoz, & Miles, 1982) and the changes of the CS projection from SMA reported after a cortical lesion involving M1 and the lateral PM (McNeal et al., 2010; Morecraft et al., 2015). Another limitation of the present study in the group of PD monkeys (n = 4) is that they were all subjected to the ANCE treatment, thus missing a subgroup of MPTP-lesioned monkeys without treatment. As a consequence, the decrease of the corticobulbar projection observed in the PD monkeys (especially that originating from PM) may result from the MPTP lesion, the ANCE treatment, or both.

The plastic changes observed for the corticobulbar projections onto the PMRF as a result of M1 lesion or SCI or PD reflect the state of the connectivity taken at a single time point, which is several months (range 3–8 months) postlesion or MPTP intoxication when the monkeys reached a plateau of usually incomplete functional recovery (see Kaeser et al., 2011; Wyss et al., 2013; Freund et al., 2006, 2009; Borgognon et al., 2017 for behavioural data). The pattern of corticobulbar connectivity may not be the same at an earlier time point, especially during the acute phase of functional recovery before reaching the plateau. We therefore cannot exclude that the corticobulbar projection pattern (density and laterality) dynamically varies during the consecutive phases of the functional recovery, for instance in the form of a sequence of sprouting followed by pruning (see e.g., Pernet & Schwab, 2012 for review).

The comparison of the corticobulbar projection from PM versus M1 is based on a given volume of cortical tissue injected with BDA. However, the total volume of the M1 cortical area is larger than the PM cortical area, although it is difficult to estimate how much larger, as the borders between the motor cortical areas are not strict, but rather correspond to progressive functional transition zones. In other words, if considering the entire M1, would the total number of corticobulbar projections from M1 be closer to that from PM? To take into account this difference in total cortical area volume, in the intact monkeys (Fregosi et al., 2017) the BDA injections in M1 in two out of three monkeys were about three times larger than those in PM (still slightly larger in the third animal). In the present study, in both groups MCI and SCI (Table 1), the volumes of BDA injected in PM and M1, respectively, were comparable to those injected in PM and M1 in intact animals (for M1 comparable to the two large injections in intact monkeys). Larger BDA injections in M1 than in PM then contribute to attenuate, at least to some extent, the difference in total volume between these two motor cortical areas, reducing the risk of a bias towards PM. In the present study, the exceptions are the MPTP monkeys (PD group) in which the volume of BDA injected in M1 was lower, comparable to that injected in PM (Table 1). One cannot exclude the possibility that the moderate decrease of corticobulbar projection from M1 in PD monkeys as compared to intact monkeys (Figure 3) is due to smaller BDA injection sites.

4.3 Changes of corticobulbar projections as a function of lesion type and treatment

The plastic changes of the corticobulbar projections from PM or M1 resulting from a CNS lesion are different for each type of pathology (MCI, PD, SCI). They may be interpreted in the context of a wide but tightly interrelated system of multiple descending projections, all cooperating to the control of unilateral voluntary movements and exhibiting various laterality properties. It includes the corticospinal, corticothalamic, corticorubral, corticobulbar (corticoreticular), corticotectal, rubrospinal, reticulospinal, vestibulospinal, tectospinal projections. On top of these, there are the motor corticocortical connections (intra- and interhemispheric), the motor loops via the basal ganglia and cerebellum, all contributing also importantly to the shaping of voluntary movements. In case of lesion, the subtle function of this complex system of multiple projections and loops is challenged, requesting an adaptation in order to reestablish the best possible motor control. To this aim, one can speculate that spontaneous plasticity (in absence of treatment) may lead to a rearrangement within this system, by reducing some projections and increasing others, though within a restricted range as the adult CNS has limited plastic capacity, especially in terms of axonal regrowth (Schwab, 2010; Schwab & Strittmatter, 2014). The present data show that, following brain lesion (MCI or PD), there is a general adaptation of the system towards a decrease of the remote corticobulbar projections, originating from PM in case of MCI and coming from both PM and M1 in case of PD. Whether this distant corticobulbar adaptation contributes to the (incomplete) functional recovery remains an open question, as well as to what extent all the other subsystems of projections are also modified in parallel. In case of application of treatments, one may expect different types of postlesion adaptation of the overall motor system, either in the sense of emphasizing the spontaneous changes or implementing a different balance between the multiple projections subsystems. After unilateral M1 lesion, the callosal projections reaching the ipsilesional PM were enhanced by the anti-Nogo-A antibody treatment, especially the homotopic one coming from the opposite PM (Hamadjida et al., 2012). In the present study, following unilateral M1 lesion, the corticobulbar projection from the ipsilesional PM spontaneously decreased, an adaptation which was not impacted in one direction or the other by the anti-Nogo-A antibody treatment (Figure 3). In the case of PD, there was a strong decrease of the corticobulbar projection from both PM and M1 (Figure 3). A signal needs to be sent to the motor cortex in order to generate an adaptation (decrease) of the corticobulbar projection density in the PD monkeys. By reducing the number of dopaminergic neurons subcortically (mainly in SNpc, but not only), the MPTP lesion is also likely to decrease the diffuse dopamine innervation of the cerebral cortex at large (Gaspar, Duyckaerts, Alvarez, Javoy-Agid, & Berger, 1991; Rosenberg & Lewis, 1995; Sesack, Snyder, & Lewis, 1995), including the motor cortex. This may represent the plasticity signal through which the PD lesion may trigger the decrease of the corticobulbar projection density, as compared to intact monkeys. The ANCE treatment may also play a role in such plasticity process, as the reimplanted ANCE cells produce growth factors (Bloch et al., 2014; Brunet et al., 2009) where they have been injected (in the striatum), but which can diffuse up to cerebral cortex.

As far as the animals subjected to SCI are concerned, the cervical cord hemi-section did not generate any spontaneous change of the corticobulbar projection. However, the present study provides evidence that the anti-Nogo-A antibody treatment can significantly influence, as the corticobulbar projection from M1 was enhanced in the anti-Nogo-A antibody treated monkeys as compared to control antibody-treated monkeys (Figure 3a). With that respect, the corticobulbar projection from M1 behaves similarly to the CS projection following SCI (Freund et al., 2007).

How to interpret the opposite effects of the same anti-Nogo-A antibody treatment on the corticobulbar projection following either lesion of M1 or SCI (Figure 3a)? It can be hypothesized that the axonal collateralization plays an important role. About one-third of the corticobulbar projection consists of collaterals emitted by CS axons on their way to the spinal cord (Keizer & Kuypers, 1989). The corresponding neurons of origin in layer V were therefore impacted by the SCI, which may have represented a retrograde “damage signal”, triggering the anti-Nogo-A antibody to promote sprouting in PMRF in this specific subpopulation of M1 neurons. In contrast, in the case of MCI, the neurons of PM projecting to PMRF may not have been impacted directly by the cortical lesion, possibly explaining the absence of a trigger initiating the axonal sprouting in PMRF. On the level of molecular mechanisms, there might also be differences between M1 and PM neurons and axons with regard to Nogo-A receptors and responses to the neutralization of endogenous Nogo-A.

The corticobulbar projection terminating in the PMRF is functionally acting as a cortical regulator of the reticulospinal tract (RST) projection system. As a consequence, when the density of the corticobulbar projection is decreased as a result of M1 lesion or MPTP lesion, the regulation from the cortex on the RST system is also reduced, leading to a more autonomous influence of the RST system on the spinal cord and motor output, which may be part of the functional recovery mechanisms. In other words, if the corticobulbar projection normally exerts an inhibitory effect, then a decrease in its density after MCI or MPTP lesion would lead to disinhibition of the cells of origin of the reticulospinal system. Such adaptation would correspond to a release mechanism, assisting reticulospinal-mediated movements. On the contrary, in case of SCI and in the absence of treatment (control antibody cases) the cortical regulation of the RST system is largely unchanged (Mk-CG and Mk-CP in Figure 3). However, when the SCI monkeys received the anti-Nogo-A antibody treatment, the corticobulbar projection was enhanced (Figure 3), in at least two out of three monkeys, indicating that the motor cortex (M1) has increased its regulation on the RST system, potentially via its indirect influence on the spinal cord and motor output. This increased indirect influence may substitute part of the lost CS projection, representing a mechanism of functional recovery. The present increase of corticobulbar projection after SCI and anti-Nogo-A antibody treatment is reminiscent of an increase in density of other corticofugal projections observed in rodents, onto the red nucleus and pontine nuclei, after unilateral pyramidotomy or stroke and administration of anti-Nogo-A antibodies (Bachmann, Lindau, Felder, & Schwab, 2014; Seymour et al., 2005; Z'Graggen, Metz, Kartje, Thallmair, & Schwab, 1998). In the three monkeys subjected to SCI and anti-Nogo-A antibody treatment, two of them exhibited a strong increase of the corticobulbar projection density from M1, which was much less in the third monkey Mk-AC (Figure 3a). For the latter monkey, this result may be explained, at least in part, by the small size of the BDA injection in M1 and less well targeted to the hand area (Figure 1c).

4.4 Laterality of the corticobulbar projection

The complexity of the postlesion adaptive response of the overall system of multiple motor projections and loops is even amplified when considering their different laterality properties. The CS tract is clearly a predominantly crossed subsystem of projections (Lacroix et al., 2004; Rosenzweig et al., 2009), whereas the corticobulbar projection is more bilateral (Fregosi et al., 2017). The reticulospinal subsystem is also largely bilateral (Fregosi et al., 2017; Sakai et al., 2009).

In PD monkeys (symmetrical lesion) the two animals with BDA injections in PM exhibited a preservation of the ipsilateral predominance comparable to intact animals, whereas in contrast, the laterality in the two PD monkeys with BDA injections in M1 was modified in the form of a loss of contralateral predominance present in intact animals: 45%–48% contralateral corticobulbar projections in the two PD monkeys and 58%–71% in intact monkeys (Fregosi et al., 2017). On the other hand, after unilateral cervical hemi-section and BDA injection in M1, the contralateral predominance of the corticobulbar projection from M1 in intact animals (58%–71%) was preserved if not slightly enhanced (68%–84%). Finally, following unilateral M1 lesion, the corticobulbar projection originating from PM remained predominantly ipsilateral, at least in three out of four monkeys, as in intact animals (Fregosi et al., 2017).

4.5 Corticobulbar projections onto lateral reticular (Rt), raphe nuclei and PMRF nuclei

The lateral tegmentum of the brainstem contains, together with the sensory nuclei, the lateral reticular formation (Paxinos et al., 2000), in which we identified the lateral reticular nucleus (LRt) and the intermediate reticular nucleus (IRt), together referred to as Rt nucleus (see also Alstermark & Ekerot, 2013 for a review). As compared to intact animals (Fregosi et al., 2017) and control SCI antibody-treated monkeys, the SCI monkeys treated with anti-Nogo-A antibody exhibited increased projections from M1 to Rt nuclei in the monkeys Mk-AP and Mk-AG. This may strengthen indirect projections to the cerebellum and medial reticular formation, thus contributing to postlesion compensatory mechanisms.

In intact animals, the raphe nuclei receive bilateral projections from motor areas (Fregosi et al., 2017). The corticobulbar projections from motor areas to the raphe nuclei are also present after motor cortex or spinal cord lesions and PD, with projections from PM remaining slightly stronger than those from M1.

Besides expected individual variability, there was no systematic and major change of distribution when comparing the location of corticobulbar boutons in PMRF in the three groups of monkeys subjected to M1 lesion, or SCI or MPTP lesion (Supporting information Figure S1) with that of corticobulbar boutons in intact monkeys (Fregosi et al., 2017; : their figure 6). The exception is a substantial increase in the percentage of the corticobulbar boutons in the pontine reticular nuclei (PnO + PnC; Supporting information Figure S1) observed in the MPTP lesioned monkeys after BDA injection in M1.

4.6 Functional significance

There is still incomplete understanding of the precise role played by brainstem-descending pathways in motor recovery from lesion, as well as by corticobulbar pathways. Although previous reports speculated that corticobulbar projections may play an important role in motor recovery after lesion of the CNS (Beaud et al., 2008; Hoogewoud et al., 2013; Mosberger et al., 2017; Wyss et al., 2013; Zörner & Schwab, 2010), this descending tract still remains mysterious for the most part, possibly due in part to its location and the difficult access to the corresponding target nuclei in the brainstem. The present study is original as it represents a unique study in nonhuman primates quantitatively investigating the rearrangement of the corticobulbar projections onto the PMRF following different pathologies affecting the CNS, such as motor cortex lesion, PD or SCI. The corticobulbar projections act as cortical modulator onto descending brainstem pathways, mainly the RST as far as the PMRF is concerned.

There is evidence in both nonhuman primates and humans that the RST is also involved in the control of distal muscles allowing crude hand motor function (Baker, 2011; Honeycutt et al., 2013; Riddle & Baker, 2010; Riddle et al., 2009; Soteropoulos et al., 2012). However, few investigations have assessed the role of the RST in nonhuman primates in motor recovery after stroke or medullary pyramidal lesion (Herbert et al., 2015; Zaaimi et al., 2012) and still none after spinal cord injury. After unilateral medullary CST lesion, flaccid paralysis of the hand was first observed that was then followed by some spontaneous functional recovery in which the RST was involved (Zaaimi et al., 2012). After cortical injury of shoulder/elbow M1 representation in monkeys, the RST was shown to play a role in the recovery of reaching movements (Herbert et al., 2015). Corresponding observations in rats were reported on the role of the RST in functional recovery in rodents after either cortical lesion (Bachmann et al., 2014) or spinal cord lesion (Ballermann & Fouad, 2006; Filli et al., 2014; Garcia-Alias, Truong, Shah, Roy, & Edgerton, 2015; Zörner et al., 2014). In a rat model of spinal cord contusion, it was demonstrated that a reorganization of the cortico-reticulo-spinal circuit enabled functional recovery of walking and swimming (Asboth et al., 2018). Studies on mice showed that after stroke of the sensorimotor cortex there was an increase of the CST and RST projections as well as corticoreticular projections, with projections from RST six times stronger than those from CST (Bachmann et al., 2014). They observed an increased innervation of the nucleus Gi and Raphe nuclei from the contralesional cortex and, in turn, these nuclei were the main source of increased projections to the denervated spinal cord.

The regulation exerted by the motor cortical areas via their corticobulbar projections to PMRF on the RST system varies according first to the cortical area of origin in intact monkeys (denser from PM and SMA than M1: Fregosi et al., 2017) and, second, to the type of lesion/pathology as well as treatment administered (present study). The precise impact of the corticobulbar terminals, when activated, onto the RST neurons remains unknown: is it excitatory, inhibitory or both? The latter is most likely and in that case it would be crucial to know whether plastic changes induced by lesion/pathology and/or treatment are restricted to either excitatory or inhibitory synapses, or whether it is unspecific. This information is needed in order to interpret how the regulation of the motor cortical areas onto the RST is modified after lesion and administration of a treatment, an issue to be addressed in future studies. The motor cortex, the reticular formation and the spinal cord contribute altogether to the control of coordinated voluntary movements, including reaching and grasping (Zaaimi, Dean, & Baker, 2018). These authors demonstrated that the brainstem output is more efficient, but less precise in producing motor output than the motor cortex or the spinal cord, the latter two contributing to the refinement of gross muscles synergies produced by the reticular formation. The changes of the corticoreticular projections observed in this study following CNS lesions may thus represent an adaptation of the cortical influence on the intact reticular formation.
