Molecular phylogeny of Indo-Pacific carpenter ants (Hymenoptera: Formicidae, Camponotus) reveals waves of dispersal and colonization from diverse source areas

Specimen collection and selection

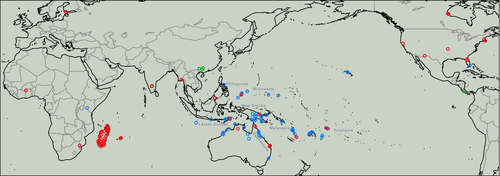

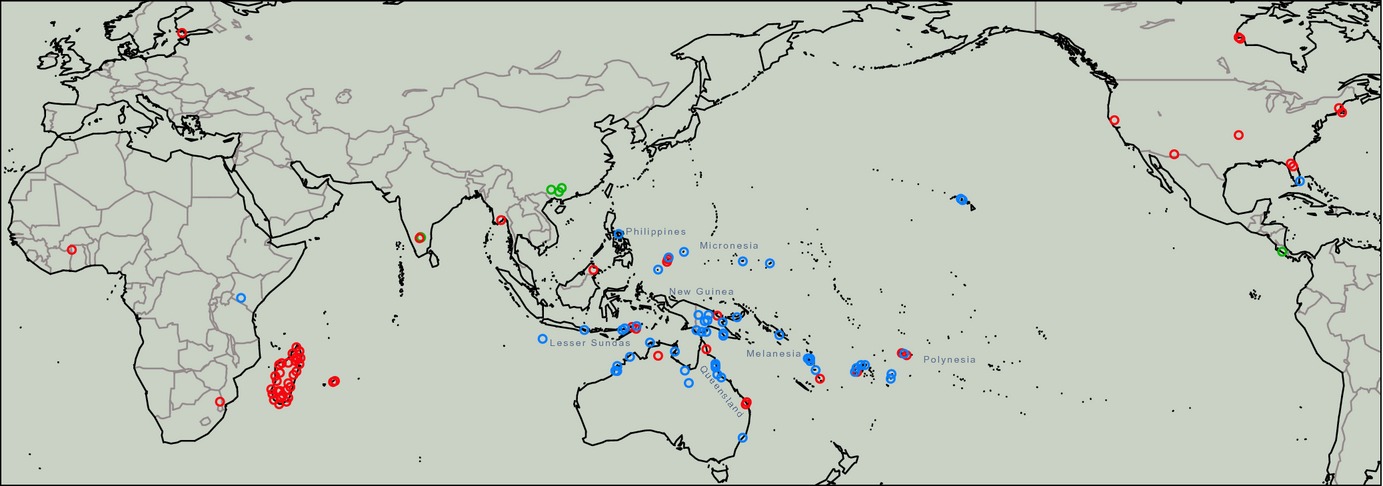

We assembled an extensive range of tissues from C. maculatus-like specimens via new field collections and sampling older, mounted specimens (Fig. 1). We included C. chloroticus Emery, 1897, C. eperiamorum Clouse 2007, C. irritans kubaryi Mayr, 1876, C. humilior, the C. dorycus (Smith 1860) group, and a wide variety of other C. maculatus-like morphotypes. We also downloaded sequences for all maculatus-like specimens found on GenBank and BOLD (Ratnasingham and Hebert, 2007), and, given the instability of C. maculatus taxonomy and its dubious monophyly, we included a selection of all Camponotus subgenera with publicly available data, especially those with more than one genetic marker available.

Of the 357 specimens used for this study, we collected and sequenced 119 ourselves. In addition we sequenced 27 specimens from older museum collections. Sequences for 211 terminals were gathered from public databases (BOLD, GenBank), of which 56 were previously published. The sources, museum and author research collections where specimens are deposited, and data coverage are provided in supplementary Table S1. Images of specimens representing different terminals collected by the authors will be available online at the following public databases: www.newguineants.org, www.antweb.org, and www.antwiki.org.

We aimed to conduct our analyses with minimal assumptions about the relationships among different Camponotus lineages, including the monophyly of C. maculatus-like species. Some Camponotus species in the region, such as certain Micronesian ones described by Clouse (2007a), were not included both because they are extremely rare, known from only a few historical specimens, and also because they present a number of characters at considerable variance from those generally associated with C. maculatus. However, we did include the widespread Pacific species C. reticulatus Roger, 1863 and the supposedly convergently evolved Australian species C. claripes Mayr, 1876. After preliminary analyses, some outgroups, such as C. tortuganus Emery, 1895, placed among C. maculatus specimens, and thus we added more Camponotus terminals for which we could find public data, including representatives of all Camponotus subgenera. For further outgroups, we used Odontomachus simillimus Smith, 1958 and Strumigenys specimens (for which we had fresh tissues and success at sequencing most genetic markers), as well as publicly available data from other formicine genera. O. simillimus was used to root the phylogeny, because we were able to obtain from it the complete gene sampling that we utilized for the ingroup.

DNA sequencing

Total DNA was extracted using Qiagen's DNEasy® tissue kit (Valencia, CA, USA). We then amplified the mitochondrial markers cytochrome c oxidase I (COI) and cytochrome b (CytB), and the nuclear markers carbomoyl-phosphate synthase II (CAD), elongation factor-1α (EF-1α), long wavelength rhodopsin (LR), and wingless (Wg). Primer sequences, fragment lengths, and temperature protocols are provided in Table 1. The touchdown temperature profile “TD6” is from Chenuil et al. (2010). Fifty of the publicly available COI sequences extended as much as 831 bases past our reverse primer, and the COI sequences from the C. maculatus-group study of McArthur and Leys (2006) had only the end part of this longer fragment. Sequence data were inspected and edited using Sequencher^™ (Gene Codes Corp., Ann Arbor, MI, USA), SeaView v. 4 (Gouy et al., 2010), and BioEdit (Hall, 2007).

Phylogenetic reconstructions

We performed three independent phylogenetic analyses on three different selections of terminals. Terminal sets had 337 members (95.6% of all terminals) with at least one mitochondrial marker (“any-one”; many of which were obtained from public databases with only COI sequenced), 164 members (46.5%) with at least two markers, one of which was mitochondrial (“any-two”), and 132 members (37.4%) with at least three markers (“any-three”). For the “any-one” terminals, the COI sequence needed to be nearly complete in order for the data to be included in the alignment. The goal of making three data sets was to explore the tradeoff between increased amounts of data versus increased numbers of terminals. In the latter case, we would expect resampling supports to be low, but we would also be able to see the placement of interesting terminals that have only COI available (such as C. floridanus). Our main concern was avoiding the inclusion of terminals that had only a small amount of nuclear data, as those did not provide as much variation as mitochondrial data, and such terminals would probably place randomly and also lower resampling support.

Most sequences with only publicly available COI sequences had 658 bp that overlapped with the fragment we generated, sometimes with a maximum of 30 bases missing from either end of the DNA sequence. Thirty terminals had an additional 831 bases of COI, which overlapped with the 12 terminals included from the McArthur and Leys (2006) C. maculatus-group study, which utilized only this latter 831-bp fragment of COI and CytB. This latter fragment of COI was analysed as a separate partition in tree searches. One specimen, BOLD ID ANIND001-11, identified as C. compressus (once a subspecies of C. maculatus) from India, had only the 658-bp fragment, but it was missing 92 bases at the end and was extremely unstable in preliminary analyses; being recovered in nearly any possible position under different search strategies and resampling calculations, it was therefore excluded from the main analyses. It was the only terminal excluded based on instability and a lack of data. One specimen with an even shorter fragment of the 658-bp COI fragment, a specimen of C. aurosus from Madagascar, was not particularly unstable and was included alongside many other Madagascar specimens, including another also identified as C. aurosus.

We aligned the sequences in MAFFT (Katoh et al., 2002) under default settings. Aligned marker and intron lengths, as well as indel numbers are provided in Table 1. We performed tree searches under the maximum-likelihood criterion in RAxML (Stamatakis et al., 2008) on the CIPRES (Miller et al., 2010) computing cluster, using GTR and a partitioned model. The same alignment was used to conduct tree searches using Bayesian inference, using MrBayes v. 3.1.2 (Ronquist and Huelsenbeck, 2003) with a unique model of sequence evolution with corrections for a discrete gamma distribution and a proportion of invariant sites specified for each partition, as selected in Modeltest v. 3.7 (Posada and Crandall, 1998) under the Akaike information criterion. Default priors were used starting with random trees, and four runs, each with three hot Markov chains and one cold Markov chain, were performed until the average deviation of split frequencies reached < 0.01 (2–107 generations). After burnin samples were discarded, sampled trees were combined in a single majority consensus topology, and the percentage of nodes was taken as posterior probability. Finally, we searched under dynamic homology and parsimony in POY 5 (Varón et al., 2009), using an equal transformation cost scheme (gaps, transversions, and transitions all costing 1). Initial search strategies for the any-two and any-three terminal sets were determined automatically by the program using the “search(max_time DD:HH:MM)” command and various other cost transformation schemes (combinations of gaps costing 1–4 times the cost of transversions, transversions costing 1–4 times transitions, and gap-openings costing 3 with gap-extensions 1). For the any-one terminals, starting trees of initial searches were obtained from RAxML searches and random builds in POY, as Wagner building under dynamic homology with so much missing data taxed memory resources; these trees were then read into POY and swapped using SPR and TBR under different cost schemes. Finally, the best trees from all preliminary searches were read into POY and put through a final round of swapping under equal costs, and bootstrap support was calculated using 100 pseudoreplicates, aligned data (“static_approx”), and the best tree as the starting tree.

Ancestral area reconstructions

We used the Bayesian ancestral area reconstruction program implemented in RASP (Yu et al., 2011), coding each terminal for its region as indicated in Table S1. RASP is designed specifically for ancestral area reconstructions, giving different costs to inferred biogeographical events, such as vicariance and dispersal, and it is derived from the programs DIVA (Ronquist, 1997) and S-DIVA (Yu et al., 2010). Ancestral areas were not constrained, and a probability was allowed for each coded region. Because the number of areas that can be input to the program is limited, we combined Fiji and Polynesia, Micronesia and Palau, New Guinea and the Solomons, and the Holarctic and Japan for reconstructions on the any-one and any-two phylogenies. Vanuatu was coded separately in all reconstructions. These combinations had no impact on results, as they consisted of regions whose specimens were recovered as closely related in the final trees.

COI branch length optimizations

We explored the feasibility of dating diversification events in C. maculatus-like lineages by generating an ultrametric tree with 95% confidence intervals for node heights. Using only the COI partition, we took the tree for the any-two terminal set recovered under maximum-likelihood and made it ultrametric with optimized branch lengths in the program BEAST (Drummond and Rambaut, 2007), as implemented on the CIPRES computing cluster (Miller et al., 2010). Eight terminals that did not have COI in the original terminal set were removed from the tree before the analysis. Setting the mutation rate to 1, with a lognormal relaxed clock, we ran four chains for 5 million generations with a GTR + Γ model and empirical base frequencies. All runs stabilized with nearly identical likelihoods (log likelihood range < 1), so the maximum clade credibility tree was derived from the run with the highest log likelihood effective sample size, using a burnin of 500 000 generations.

Phylogenetic hypotheses

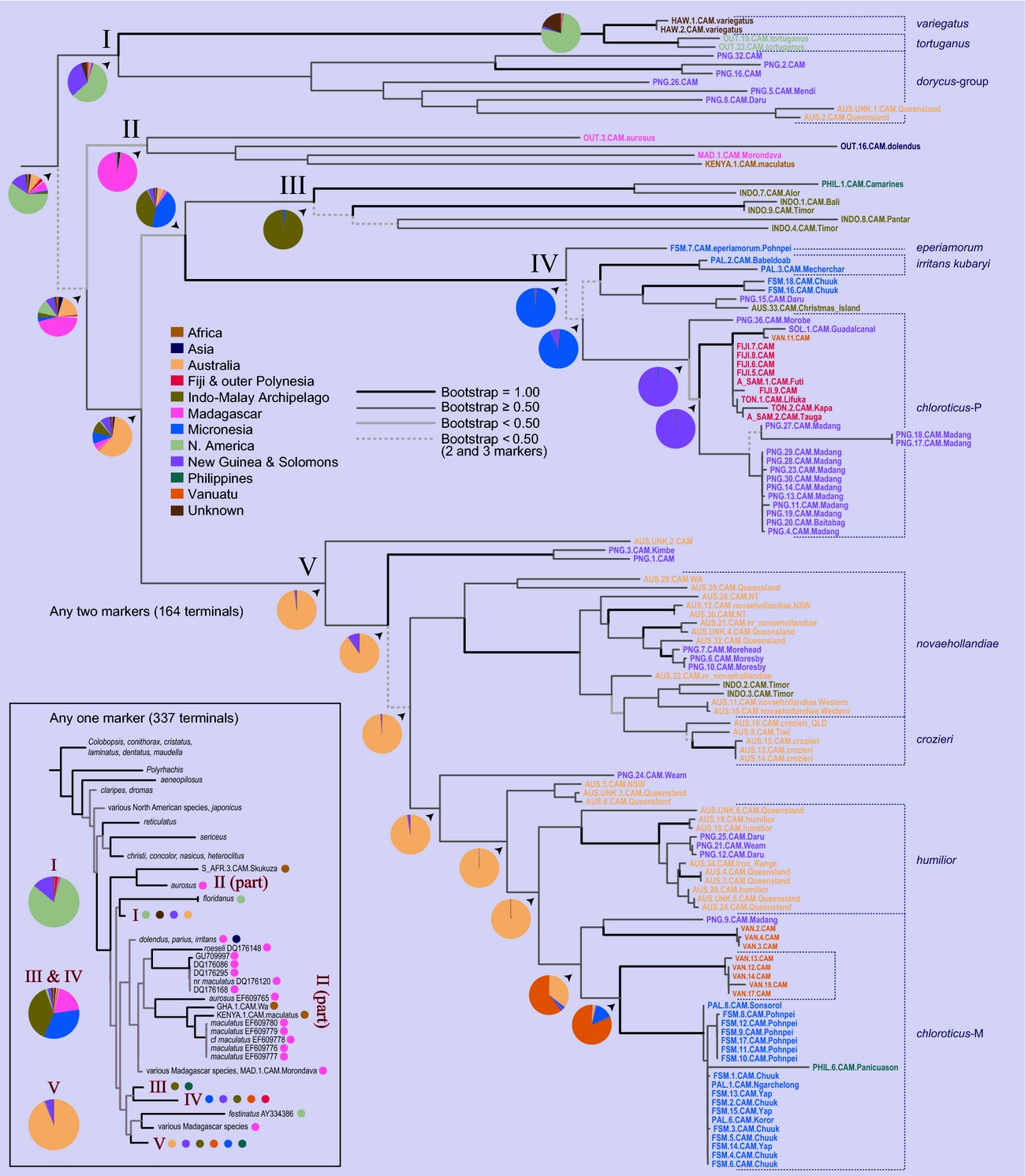

From the tree searches on the any-two and any-three terminal sets we recovered trees that had five main clades holding most of the terminals of interest (Fig. 2, clades I–V, support values in Table 2). Using the any-one terminal set, Clade II, containing African and Malagasy lineages, became mixed with the large number of Old World terminals added from public databases (Fig. S1). The remaining four clades were generally recovered and supported using the any-one terminal set (clades III and IV under parsimony being exceptions) and can be characterized as follows: Clade I contains C. tortuganus from southern Florida and C. variegatus (Smith, 1858) from Hawaiʻi (pictured in Fig. S2), as well as members of the C. dorycus (Smith, 1860) group (which includes species in New Guinea and C. dorycus confusus Emery, 1887 from Australia); Clade III is a relatively small clade containing species from the Lesser Sundas and the Philippines; Clade IV contains some darker lineages from Micronesia, including C. eperiamorum, a terminal from Christmas Island and other lineages from New Guinea, and then a large clade containing all the specimens from Fiji, Samoa, Tonga, and some Vanuatu and New Guinean terminals that have been called C. chloroticus; and, finally, Clade V contains the bulk of Australian, New Guinean, Vanuatuan, and Micronesian specimens, including lineages previously identified as C. novaehollandiae Mayr, 1870, C. crozieri, C. humilior, and C. chloroticus. Clades III and IV tended to be recovered as sister groups, and in the any-one analyses, when two C. floridanus (Buckley, 1866) COI sequences were included, that species and Clade I were recovered as monophyletic in maximum-likelihood and Bayesian searches.

The main clades, especially IV and V, were recovered under a variety of conditions. They were stable under different cost schemes in POY, the any-two and any-three phylogenies when gaps and transversions cost 2 (instead of 1, like transitions) being identical to those from equal costs, for example; the main difference with the any-one phylogeny when gap and transversion costs were higher was that Clade II was recovered as a paraphyletic grade at the base of Clade IV. The clades, especially I, IV, and V, were usually recovered under separate partitions, and all five clades were recovered when using just the nuclear marker Wg (separate phylogenies for Wg, LR, EF-1α, and CytB are given in Fig. S3). Camponotus dolendus Forel, 1892, which had two markers and was recovered in Clade II in the likelihood any-two phylogeny, was unstable, placing near or sister to Clade III under Bayesian and parsimony, and among a large group of mostly Malagasy terminals in the any-one phylogeny. Under parsimony C. floridanus also placed inside this group, away from a sister relationship with Clade I, as found from likelihood and Bayesian analyses.

We found that C. maculatus-like species in the Pacific were composed of several distinct lineages that originated via diverse colonization pathways. What has been considered a single species, C. chloroticus, was inferred as two species in our analysis, one predominately occurring in Micronesia, the other mostly in Polynesia, with overlapping ranges in Melanesia. Ancestral area reconstructions pointed to Australia and even North America as likely sources for different clades, and deep origins for the group remain unresolved.

Ancestral area reconstructions

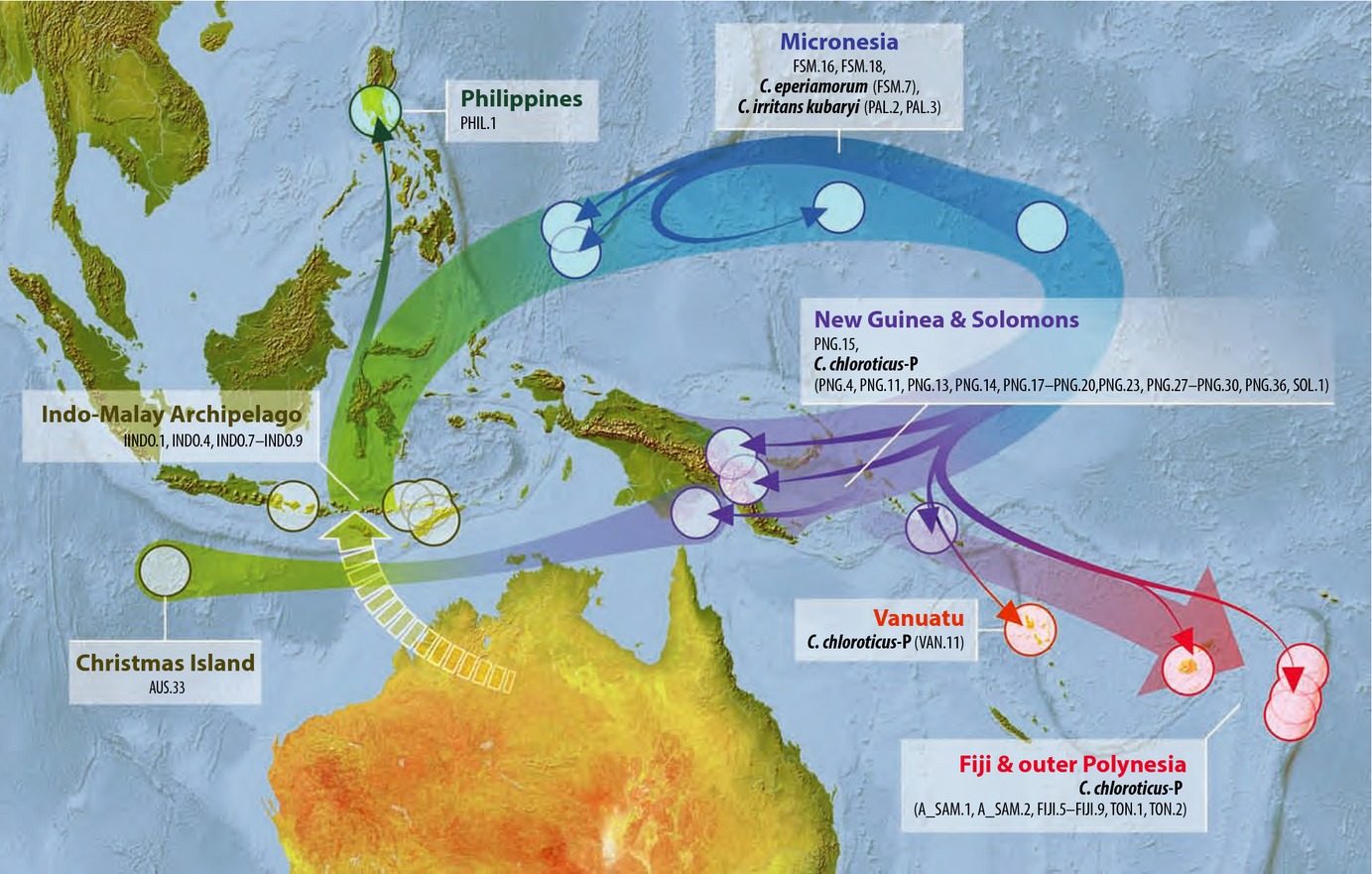

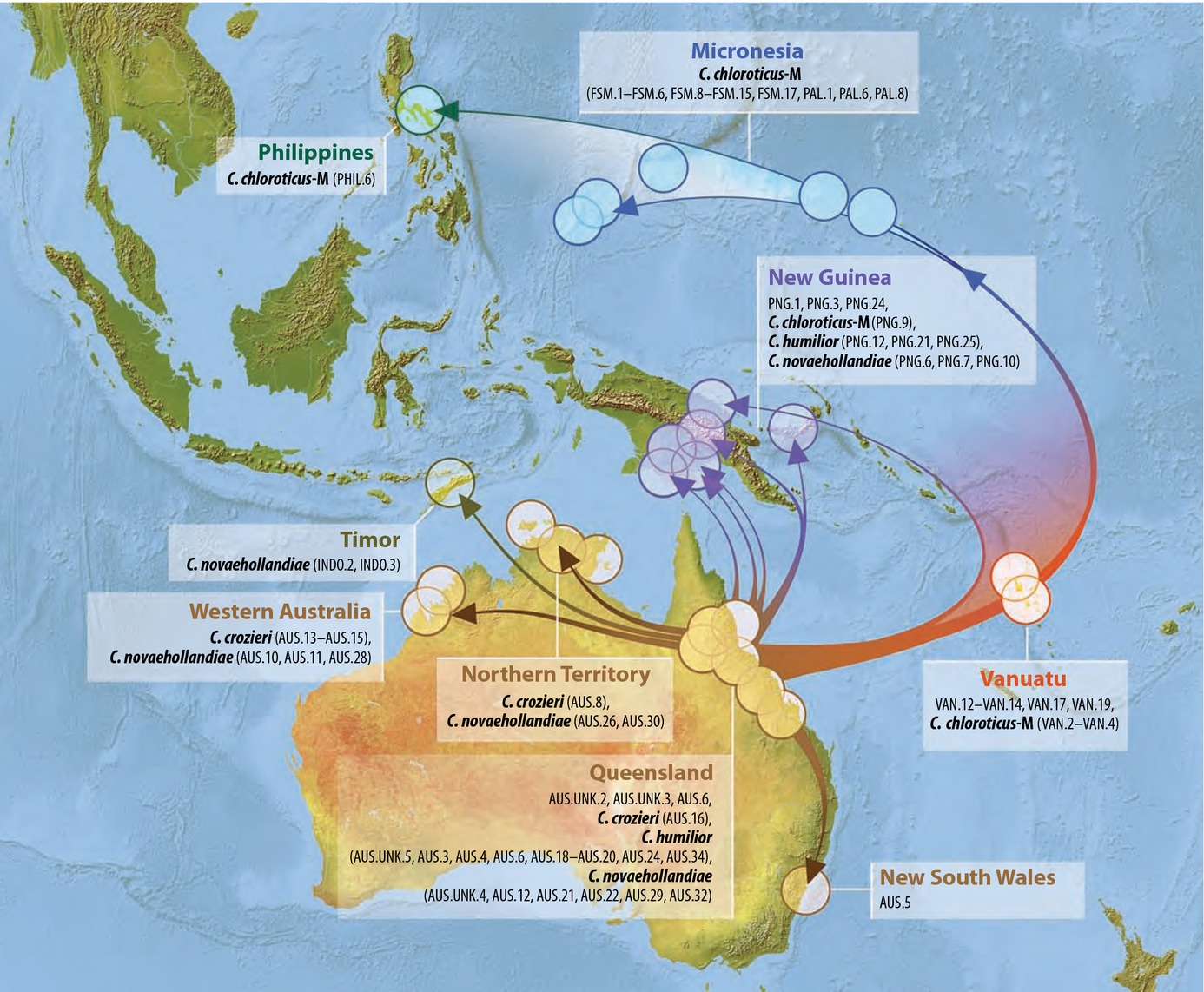

Ancestral area reconstructions supported the following origins for the five main clades in the any-two phylogeny recovered under maximum-likelihood (Fig. 2): I—North America (58%, New Guinea 31%), II—Madagascar (95%), III—Indonesia (98%), IV—Micronesia (98%), and V—Australia (95%). New Guinea was reconstructed as the ancestral locality for species in Polynesia (excluding Hawaiʻi; Clade IV), but before that the ancestral location was probably Micronesia and before that possibly Australia. For the large clade of Australian, New Guinean, Vanuatuan, Micronesian, Indonesian and Philippine species (Clade V), the ancestral locality was reconstructed as Australia. Other than the Polynesian colonization within Clade IV, New Guinea was reconstructed as an endpoint for several lineages, and Queensland ancestors appear to have diversified in all directions, including into Malesia. Ancestral area reconstructions for Clades III+IV and V in the any-two phylogeny (Fig. 2) were interpreted on maps as historical pathways (Figs 3 and 4, respectively). These reconstructions suggest that Clade IV has most recently moved south from Micronesia into New Guinea and Polynesia (Fig. 3), a result driven by the consistent recovery of Micronesian species as the early lineages in Clade IV, and Polynesian ones more derived (Fig. 2). The large number of lineages in Clade V appear to have originated in Queensland, which was the source of multiple colonizations of Melanesia, one of which subsequently colonized Micronesia (Fig. 4).

Branch length optimizations and dating

Optimizing COI branch lengths on the any-two phylogeny using a variable clock in BEAST produced an ultrametric tree with ln L = −15 566.291 (Fig. S4). Confidence intervals were large, however, often half as long as branch lengths themselves. Combined with ambiguities over the proper mitochondrial mutation rate, we found dating attempts unconvincing. Divergence rates for ants have been estimated to range from about 2%/Ma (Quek et al., 2004; Steiner et al., 2006; Goropashnaya et al., 2007) to 3%/Ma (Solomon et al., 2008; Pennings et al., 2011), and even as high as 5%/Ma (Leppanen et al., 2011). Taking into account the 95% confidence interval on the initial diversification of C. maculatus-like lineages in the Pacific (which has a per-site mutation probability in the COI tree of 0.2976–0.4535), as well as the range of mitochondrial mutation rates suggested for ants (half the diversification rate, 0.01–0.025), we would estimate the diversification to have started approximately 12–45 Ma. An alternative approach was to use the emergence of the Micronesian island of Pohnpei and its endemic species, C. eperiamorum, as a rough calibration point, but even this date, as well as that of other Micronesian islands, is difficult to ascertain. Volcanic activity continued on Pohnpei from 0.9 to 8.7 Ma (Hafiz Ur et al., 2013), and when the island was truly above water and quiet enough to allow the permanent establishment of a flora and fauna is not clear.

Morphology and taxonomy

We have noted species determinations where they are the clearest, and we found that what has been understood as C. chloroticus—a yellow–orange lineage found throughout the Pacific—is actually polyphyletic; the proper application of this name is the subject of a separate study, and here we simply distinguish the Polynesian and Micronesian lineages as “chloroticus-P” and “-M.” The important aspect of C. maculatus-group morphology and taxonomy for our test of colonization histories in the Pacific is that they frequently give a misleading measure of diversity. Also, the molecular data show the presence of multiple distantly related clades on remote islands, which does not support Gressitt's (1982) hypothesis that diversity in such places is probably the result of a single colonization event. For example, in Micronesia, endemic species on Pohnpei, Chuuk, and Palau that could easily be interpreted from their morphologies as local variations or speciations out of C. chloroticus-M (Clade V) are actually members of a distantly related lineage (Clade IV) that was on the islands perhaps millions of years before; and in Vanuatu, “C. chloroticus” is actually comprised of members of clades IV and V (Fig. 5). It appears that C. maculatus-like species in the Pacific, in addition to being a collection of long-separated lineages that have followed odd routes around the islands, are also capable of rapidly generating new morphologies, both divergent and convergent, and thus easily confounding taxonomic studies, as has been recently noted in the ant Pheidole megacephala (Wills et al., 2014) and an Indo-Pacific bird species (Irestedt et al., 2013). Outside of the Pacific, and indeed outside of the C. maculatus-group, the genus as a whole is morphologically confounding, with few of our clades conforming to subgeneric designations. Indeed, similar to the results of Brady et al. (2006), even the genus Camponotus as a whole was not recovered as monophyletic, the subgenus Colobopsis falling outside Polyrhachis and the remaining Camponotus in the any-one analyses.

In general we do find support for most maculatus-like lineages in the Pacific originating from a common ancestor, as they are usually recovered as more closely related to each other than to other Pacific groups, like the widespread Pacific species C. reticulatus or the convergent C. claripes and related species in southern Australia. However, we also find that a close connection between the Pacific lineages and C. maculatus and its allies in Africa or even Asia is difficult to support when using a large sample of species.

Deep origins

Most of the C. maculatus-like species in the Pacific (Clade V and perhaps clades III and IV) appear to have derived from the Australian wet tropics, but they are not closely related to the endemic Gondwanan fauna there, which includes C. aeneopilosus Mayr, 1862, C. dromas Santschi 1919, and C. claripes. Presumably the Queensland ancestor originated in Southeast Asia, but the signal of that connection is clouded by back-tracking and a lack of Asian material. Relationships among the Pacific lineages and Asian and African species in our best trees are unstable, with short branch lengths and low resampling support.

The close relationship between C. tortuganus and C. variegatus (Fig. S2) is one of the most stable and supported relationships in our study but not readily explained. Counter to a hybridization explanation (which might confuse phylogenetic reconstruction), the relationship was recovered using separate nuclear and mitochondrial partitions (with high support from RAxML, 100% with Wg, 99% with LR, 83% with EF-1α, and 100% with CytB; Fig. S3), and the sequences are different enough between the species that one does not appear to be an unusual colour morph of the other. We also tested for long branch attraction by removing one species or the other and rerunning tree searches in RAxML; we still recovered Clade I with C. tortuganus or C. variegatus, with high support (70–85%), regardless of the terminal set, and C. floridanus was still recovered as sister to Clade I in the any-one analyses. C. tortuganus was originally described in the maculatus-group, and it remains in the subgenus Tanaemyrmex, but C. floridanus, which placed close to C. tortuganus and Clade I in any-one analyses, is in the subgenus Myrmothrix.

The origins of Pacific maculatus-group lineages prior to Australia will probably only be resolved by analysing a global sample of fresh specimens from which the full complement of molecular markers can be obtained, as well as additional collections from the Pacific. To this end we did a follow-up analysis using CytB sequences reported for a collection from southern China (including one identified as C. variegatus) (Pang et al., 2009), COI sequences of three unidentified species from Costa Rica, and COI from an Indian specimen identified as the former maculatus-group species C. compressus Fabricius, 1787 (excluded earlier due to a lack of data and instability). The resulting placements suggest that Clade I is indeed part of a large Neotropical lineage (Figs S5 and S6), that Clade III is part of a larger Southeast Asian lineage, and that species determinations based on morphology, including that of C. variegatus, are easily misled by convergence. We also recovered C. compressus from India as sister to Clade V (with high bootstrap support), a promising indication of the utility of Asian samples in clarifying the origin of Clade V prior to Australia.

We found that the sister species of what is called C. variegatus on Hawaiʻi is C. tortuganus in Florida, and that this pair probably has a close relationship with some of the other New World species in our sample. This raises several questions about this species which, given our focus on Indo-Pacific and Old World species, we are unable to resolve here. Is the Hawaiian Camponotus the same species as those identified as C. variegatus in Sri Lanka, Singapore, and China (Pang et al., 2009)? We have no way of knowing without examining and sequencing those specimens ourselves. In addition, is it an ancient inhabitant of Hawaiʻi or a more recent arrival of an unknown species from the Americas, perhaps even mediated by human activity? Again, we are unable to determine that here without more specimens from the New World. If the Hawaiian Camponotus is a native Hawaiian ant, that would contradict the long-held belief that Hawaiʻi has no native ants (Zimmerman, 1948; Wilson and Taylor, 1967; Wilson, 1996). This possibility may not be as radical as it sounds, for the hypothesis that remote islands in the eastern Pacific may have completely lacked ants before human contact has recently been challenged by subfossil data, reports of which are under preparation (N. Porch, pers. comm.).

We remain open to the hypothesis that hybridization has contributed to the lack of deep phylogenetic resolution and of distinct morphological characters that are useful for taxonomic purposes. Using a manageable subset of our data to develop a parsimony network analysis, it was found that certain species were best explained as the direct results of reticulate events (the joining of lineages through time) in the most parsimonious network (Kannan and Wheeler, 2014), and we recommend expanding this line of investigation with Camponotus going forward.

Drivers of colonization

Ecology, reproductive biology, and human-mediated transfer are important sources of complexity in colonization patterns (Foucaud et al., 2010; Cerdá et al., 2011; Rabeling and Kronauer, 2013; Waters et al., 2013). We note that C. chloroticus-M and C. chloroticus-P show the pattern of favouring marginal habitats (Clouse, 2007b; Sarnat and Economo, 2012) while also (i) covering large ranges and (ii) being two of the more recent lineages in our phylogeny. This is consistent with Wilson's hypothesis (Wilson, 1959, 1961) of the historical taxon cycle, which postulates that lineages first evolve morphologies and behaviour that allow them to expand their ranges from restricted local areas. The large range eventually divides as populations adapt to local conditions, become specialists, and speciate. They tend to be found in interior habitats as local endemics, especially during times of human colonization, when coastal regions undergo extensive disturbance and homogenization among islands. This then sets the stage for the cycle to repeat. This can perhaps be seen in Clade IV on Pohnpei Island, where C. eperiamorum, an older colonist than C. chloroticus-M, is now restricted to upland, native forest and is an island endemic of only moderate abundance. For most other maculatus-like lineages in the region, detailed habitat and range data have not been compiled, but our phylogeny offers a first step to identifying these lineages and using them to understand the processes of historical colonization in the Pacific. One aspect of colonization emphasized in the original taxon-cycle hypothesis, as well as the later theory of island biogeography (MacArthur and Wilson, 1963), was the role of large landmasses as sources of island faunas, but here we find that not necessarily to be the case, as has been seen recently in other groups (Filardi and Moyle, 2005; O'Grady and Desalle, 2008; Balke et al., 2009).

The taxon cycle has been tested in Melanesia using ants in the genus Pheidole (Economo and Sarnat, 2012), where a comprehensive data set has been built over many years. Key predictions of the hypothesis were supported, such as the connectivity of species in lowland habitats. In addition, the impact of marginal habitat being converted to human-disturbed zones was presented as a new area of inquiry, perhaps setting the stage for a global taxon cycle driven by the modern wave of human-associated exotics. Perhaps the chloroticus-like lineages in Micronesia and Polynesia are early examples of this, having been spread primarily by ancient human travel. Their preference for low-elevation and coastal habitats puts them in closer contact with people, whose voyages are based on cultural connections and would more easily explain the odd combination of wide but constrained distributions among specific groups of oceanic islands. Nonetheless, other than C. variegatus, none of the maculatus-like species in the Pacific has been hypothesized to be exotic, and our phylogeny does not suggest the presence of any pan-tropical species in the group.
