Facing the facts: adaptive trade-offs along body size ranges determine mammalian craniofacial scaling

I. INTRODUCTION

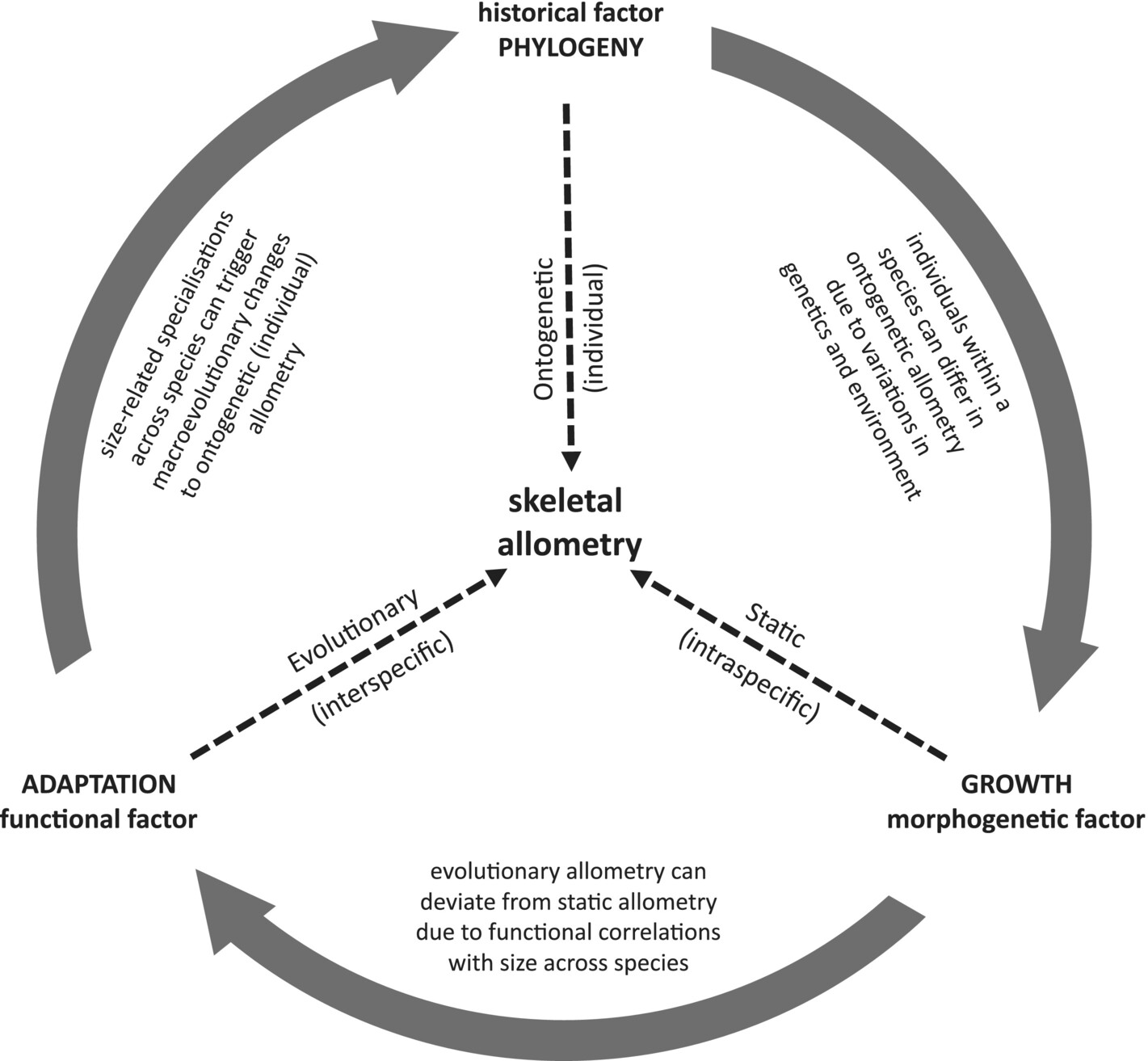

(3) The three levels of allometry: constraint versus adaptation

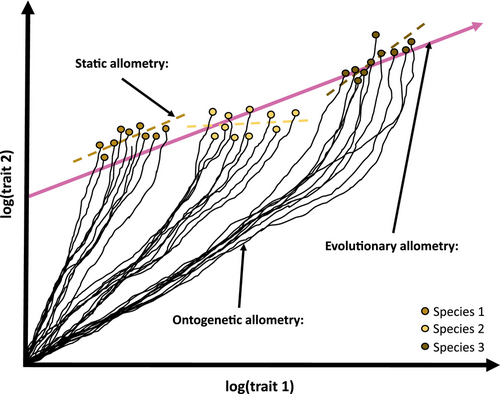

Allometry is defined as the size-related changes of morphological traits (Huxley, 1932; Huxley & Tessier, 1936; Gould, 1966; Klingenberg, 1996, 2016). While the physical traits of a larger species will exhibit increased absolute size compared to homologous features in smaller species, allometry is related to relative size changes. If all features were to become larger at the same rate, this would be isometric enlargement. However, if a given trait is larger than expected by isometry, this is positive allometry (hyperallometric); and if it is smaller than expected, it is negatively allometric (hypoallometric) (Huxley, 1932; Rensch, 1948). In the context of skeletal shape, allometry is typically researched and discussed at three main levels (Fig. 1): ontogenetic allometry concerns changes to the size proportions of physical traits that occur throughout the growth and development of an individual; static allometry refers to covariation in size or trait proportions for individuals of the same species at a similar age or developmental stage; and evolutionary allometry involves interspecific trends in size-correlated changes to trait proportions (Cock, 1966; Cheverud, 1982; Hallgrímsson et al., 2019).

Ontogenetic, static, and evolutionary allometry are each important aspects of mammalian diversity. However, while the three types are often correlated (Pélabon et al., 2013), they are not necessarily equivalent, nor always simple to distinguish from one another. For example, even though individuals of a species share similar overall ontogenetic allometry, many aspects of their ontogeny can be influenced by variation in developmental genetics and differences in their environment (e.g. food types or nutrition levels). This variation can cause the species' ontogenetic allometry to vary among individuals and static allometry to deviate from the ontogenetic pattern (Lande, 1979; Pélabon et al., 2013; Voje et al., 2013; Hallgrímsson et al., 2019). Similarly, differences in the functional relationships between traits and body size across species can change the evolution of ontogenetic allometries, and thus result in interspecific differences in both ontogenetic and static allometries (Rensch, 1948). This can cause evolutionary allometry to deviate from static allometry (Voje et al., 2013). For evolutionary allometry to emerge from static allometry, the developmental processes leading to static allometry need to be fixed across species, or a consistent allometric relationship between shape and size must be selected for through evolutionary time (Gould, 1975; Lande, 1979; Voje et al., 2013). Given these relationships, it is not always easy to distinguish where one kind of allometry ends and another begins. The difficulty of disentangling how the levels of allometry relate to each other is particularly obvious regarding the generation of hypotheses to explain evolutionary allometry in the mammalian cranium.

Hypotheses regarding evolutionary allometry tend to be defined either as a product of developmental constraints on trait evolution, or functional adaptation (Smith, 1993; Voje et al., 2013). With respect to CREA, patterns of relatively longer faces in larger-sized skulls have been explained by the hypoallometric scaling of the brain (and therefore the brain case) with body size (Radinsky, 1984a), which would support a constraint-based hypothesis. Similarly, both interspecific differences in face length and hyperallometry of face length in mammals has been suggested to relate to heterochrony, or size-related constraints on heterochrony, respectively [Cardini & Polly, 2013; Usui & Tokita, 2018; see Bhullar et al. (2012) for a similar argument in birds]. However, this perspective leaves little room for an adaptive component, and requires a strict form of the allometric-constraint hypothesis, whereby evolutionary changes must lack evolvability and follow trajectories imposed solely by ontogenetic or static allometries (Voje et al., 2013). Because these hypotheses do not consider the form–function relationship in the living animal, which is ultimately what is selected for, a constraints-focused explanatory approach has the potential to overlook size-related ecomorphological specialisation (Pyron & Burbrink, 2009). Approaching from a functional perspective, convergence of size-related specialisations can result in similar evolutionary allometries in disparate groups of mammals (Zelditch & Swiderski, 2023). If so, the repeated cases of facial elongation across mammalian clades would be a product of size-correlated adaptations to maintain a base level of equivalent function across size ranges (von Bertalanffy & Pirozynski, 1952; Emerson & Bramble, 1993; Zelditch & Swiderski, 2023). Furthermore, dietary pressures and biomechanical adaptations have been suggested as potential explanations for the pattern (Cardini, 2019). Defining mechanisms behind allometric patterns in cranial evolution, and teasing apart the processes involved, therefore requires insights into the degree to which constraint and adaptation contribute to the observed pattern of facial elongation with increased body size.

II. HOW DO WE TEST FOR CRANIOFACIAL ALLOMETRY?

Cranial allometric variation in mammals is often related to changes in the facial dimensions relative to the braincase (Radinsky, 1984a, 1985; Emerson & Bramble, 1993; Zelditch & Swiderski, 2023). CREA captures this by noting that, ‘Adults of larger species, in a group of closely related mammals, tend to have relatively longer faces and smaller braincases’ (Cardini, 2019, p. 239). However, for this definition to be translated into testable scenarios, several aspects of it require clarification: (i) what is ‘closely related’, and how is relatedness considered in testing; (ii) what is a ‘relatively longer face’; and (iii) are we seeking evidence of just one allometric pattern or a combination of several partially or entirely independent patterns? The following discusses these concepts, which we then use to put forward a simple methodological framework that accommodates them, in order to test for allometric facial elongation across species.

(1) What is ‘closely related’ and how is relatedness considered in testing?

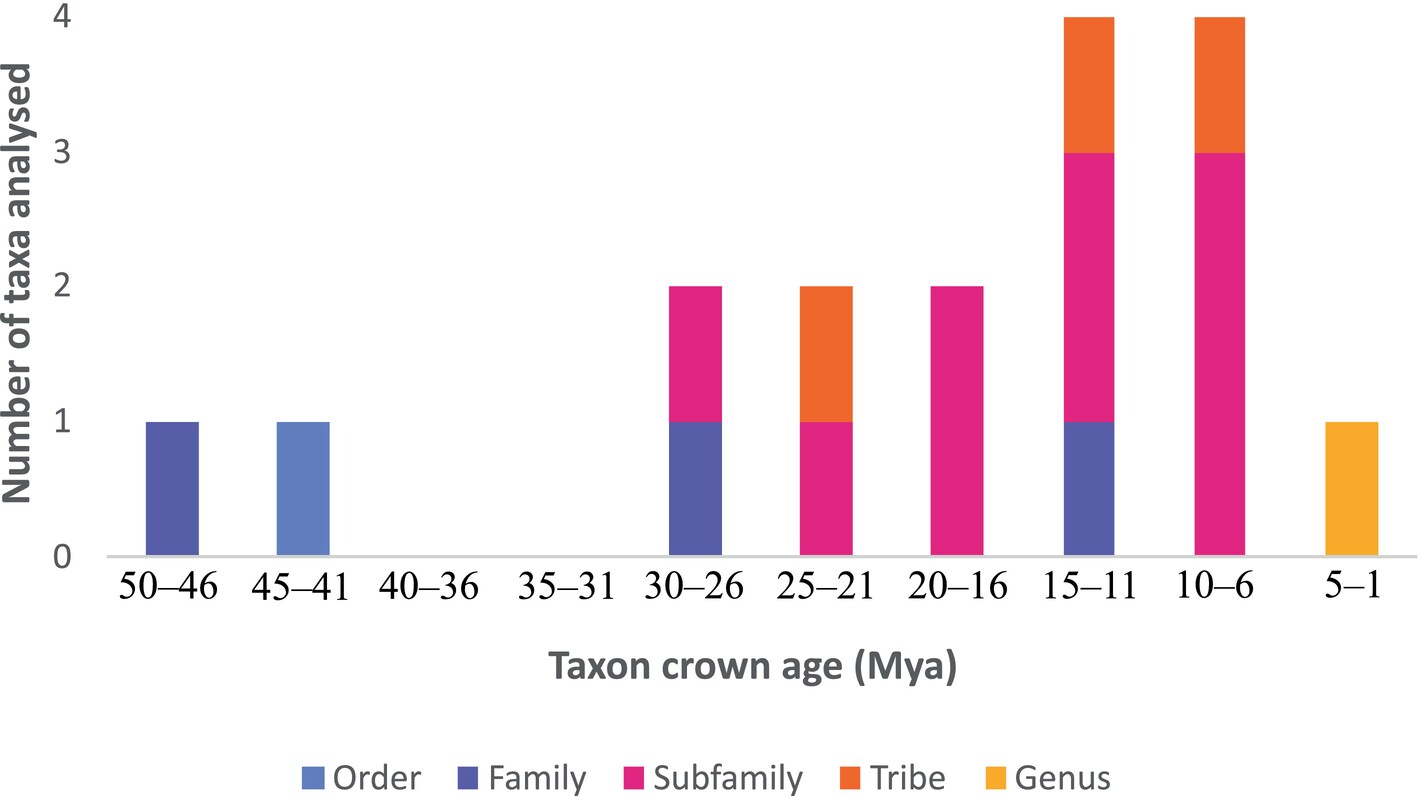

The definition of ‘closely related’ postulated as part of CREA requires careful attention, because identifying the evolutionary levels and times of divergence across which we expect allometric regularities is an important part of analysing them. Cardini (2019) discussed the difficulties of defining a taxonomic scale for which to test CREA, and the initial studies of CREA are a case in point because taxa that have been tested in these studies range from order (Cingulata) to genus (Equus), with divergence times spanning an estimated ~46 million years ago (Mya) (family Leporidae) to less than 3 Mya (genus Equus) (Fig. 2). However, most tested taxa tend to be at the level of family to tribe, with divergence times of 30–6 Mya. The influence of taxonomic scale on patterns of craniofacial allometry has not been explicitly tested; however, some subsets within clades have been assessed in isolation after initial analysis, all of which have yielded results congruent with the broader taxon under study (Cardini et al., 2015; Tamagnini et al., 2017).

Another aspect to consider is how relatedness is factored into allometry testing, and how this might influence results. If the degree of relatedness is defined by phylogenetic proximity, there may be a problem with applying phylogenetic comparative methods when size is correlated with phylogeny. For example, Cope's rule states that there can be a tendency of larger body sizes to evolve over evolutionary time (Cope, 1896; Benton, 2002); and this is particularly prevalent in mammals (Alroy, 1998). How potential correlations between relatedness and body size might impact analyses and interpretations of cranial evolutionary allometry therefore needs addressing as well, because accounting for phylogenetic relatedness in statistical analysis has the potential to obscure size-correlated shape changes.

(2) What is a ‘relatively longer face’?

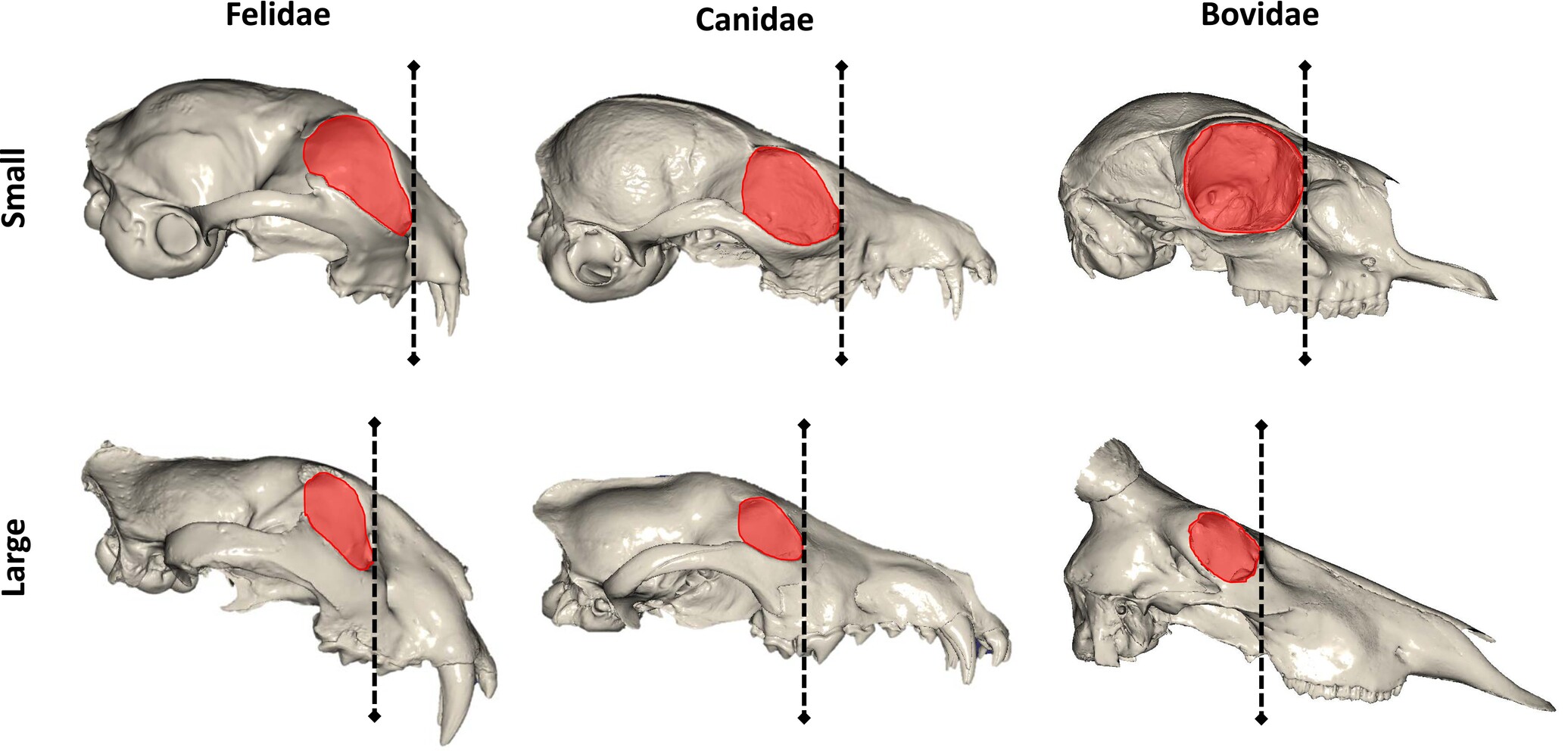

Relative face length is a subjective concept, because the term ‘longer’ is a question of proportions. For example, a longer face might be a product of a longer rostrum (projected maxillae/premaxillae/nasal bones); more posterior positioning of the zygomatic arches and jaw muscles; or just an overall contrast between stout (wider/deeper/more sturdy) and gracile (narrower/flatter/more slender) shape. In other words, a relatively shallower or narrower face might also be interpreted as being a longer face when rostrum (or muzzle/snout) length, in fact, remains consistent. This is similar to Figueirido et al. (2010a)'s finding that the extinct giant short-faced bear (Arctodus simus) has a similar rostrum length to other bears, but the appearance of a short face in this species is an optical illusion due to it having a much deeper skull. Some research has noted a relatively thinner or shallower face within the context of CREA (Tamagnini et al., 2017; Magnus et al., 2018; Weisbecker et al., 2019; Hennekam et al., 2020; van der Geer, 2020), and the CREA pattern itself has occasionally been defined as including relative skull flatness (Zelditch & Swiderski, 2023), braincase width (Linde-Medina, 2016), or width of the zygomatic arches (Weisbecker et al., 2019) alongside shifts in face length (Table S1). None of these interpretations are necessarily inaccurate, but they highlight the need for a more consistent definition to allow an appropriate interpretation of craniofacial allometric patterns. This requires consideration of whether a ‘longer’ face must involve elongation of the rostrum, as defined in a large proportion of studies that reference CREA (Table S1) or can be accepted as present simply due to increased gracility of the cranium.

The definition of what constitutes the ‘face’ also represents a substantial challenge to understanding craniofacial allometry, as reflected in the diverse interpretations of the limits of the ‘face’ relative to the remainder of the skull. For example, ~20% of studies define CREA specifically as involving a longer rostrum (Table S1), with some studies mentioning both rostrum and face interchangeably. It would seem that many researchers therefore define face length as rostrum length. The rostrum is typically defined as the part of the cranium that is anterior to the orbits (Devillers et al., 1984; Van Valkenburgh et al., 2014), and this region of the cranium is usually delineated by the nasofrontal suture and anterior orbits (e.g. Cardini & Polly, 2013; Mitchell et al., 2018; Marcus, Hingst-Zaher & Zaher, 2000). However, it has not been acknowledged that relative orbit size itself can influence the appearance of a longer rostrum in larger species. In mammals with a body mass above ~1 kg, eye size is hypoallometric (Hughes, 1977; Howland, Merola & Basarab, 2004), with an eye of 35–50 mm diameter meeting the needs of most mammalian species over ~500 kg in body mass (Hughes, 1977). Shifts in eye size are evidenced in the size of the bony orbits, such that relatively smaller eyes in larger species are accompanied by relatively smaller orbits (e.g. Radinsky, 1984b, 1985; Emerson & Bramble, 1993; Kitchener et al., 2010; Debey & Pyenson, 2013; Singleton, 2013; Krone, Kammerer & Angielczyk, 2019). Figure 3 demonstrates how, in smaller mammals, the orbit is positioned more anterior relative to the cheek tooth row. Relatively smaller orbits in larger mammals can therefore potentially be interpreted as rostrum elongation with increased body size, despite being due to relative orbit size. This trade-off between orbit size and rostrum length is similar, in principle, to the theoretical morphospace of diapsid skulls, which predicts that a proportional increase in orbit size must result in a corresponding proportional decrease in rostrum length (Marugán-Lobón & Buscalioni, 2003). Orbit size could be influencing interpretations of facial elongation; however, as previously discussed, ‘face length’ is also a question of skull proportions, which orbit size has little influence over. Furthermore, the face has been measured from the ventral aspect to include regions as far posterior as the rear palate (Wayne, 1986; Cardini & Polly, 2013; Cardini, 2019) or rear tooth row (Radinsky, 1985; Hallgrímsson et al., 2006). These regions fall behind the orbits in many (but not all) species, suggesting that the ‘face’ should include more than just the rostrum anterior to the orbits. Facial elongation might therefore be better defined in the absence of this confounding issue of orbit size, and instead via investigation of overall craniofacial proportions.

III. REVISITING FACIAL SCALING WITH STANDARDISED METHODS

In the following section, we apply a standardised framework to test for allometric patterns that addresses the aforementioned concerns. Firstly, we limit taxonomic level of investigation to a single level, the family, which has been used in previous studies (Fig. 2). The family level tends to contain sufficient species diversity for a reasonable sample across diverse mammalian taxa from published research. Focusing on the family level is arbitrary and might not be biologically meaningful in terms of morphological and ecological ranges. However, choosing an arbitrary taxonomic level removes the potential for biased sampling due to prior assessment of what kind of lineage might be suitable for a study. Secondly, we provide a standardised definition for what constitutes the face. This accommodates the concerns we outline above: the CREA pattern reported by others does not always involve elongation of the rostrum, but instead a general increase of gracility across the entire facial skeleton, or viscerocranium, with increased body mass across species, henceforth referred to as ‘hyperallometric gracilisation’. While elongation of the rostrum might be common, it is not a necessary feature to identify relative gracility, which can also be observed through a narrower or shallower viscerocranium. This represents a more literal definition of gracility as meaning slender or thin overall, rather than the absence of broader specific facial features, as is often used in anthropology (e.g. ‘robust’ versus ‘gracile’ australopithecines). Under this new condition, the term ‘face’, and considerations of the influence of relative orbit size, are no longer required. Thirdly, we more explicitly observe hyperallometric gracilisation in association with hypoallometry of the braincase through allometric predictions of shape differences. These predictions can be obtained through analysis of landmarks representing gross cranial morphology. All specimens in a given study need to have homologous landmarks. But because our hypothesis relates to overall cranial proportions, the homology is not necessary among data from different studies as long as the same features are being described (e.g. landmarks from the premaxillae representing the anterior rostrum), and as long as landmarks encompass major dimensions of the entire cranium. This rationale permits the comparison of outputs from diverse landmarking protocols (see Appendix S1). We use examples of both 3D (length/width/depth) and 2D (length/width) landmark data to show that hypotheses relating to hyperallometric gracilisation can be evidenced in both formats. By using landmarks representing the entire braincase and facial skeleton, shape differences of the viscerocranium proportions along an allometric gradient can be visually identified alongside changes in relative brain size expected from Haller's rule, yet not confounded by Haller's rule.

We apply this approach to 22 taxonomic families of mammals, and test for patterns of hyperallometric gracilisation across the ranges of cranial sizes. The data used are geometric morphometric landmark coordinates representing whole crania from undomesticated mammals, sourced from published studies. These data are analysed with a standard suite of multivariate statistics frequently used in shape analysis, involving a combination of ordinary least squares regression (OLS), principal component analysis (PCA), and phylogenetic generalised least squares regression (PGLS). Given that elongation is often represented in PCA in the first few dominant principal components (PCs) for most geometric morphometrics-based shape analyses (reviewed e.g. in Weisbecker et al., 2021), we explore relationships between size and the first three PCs individually. We then generate shape predictions along the size range of each family. Importantly, predictions for the sample are generated through estimates of shape scores along the regression line of shape~log(cranial size), and a regression line for the sample will exist whether the regression is significant or not. Therefore, evidence of CREA requires any instances of more gracile cranial proportions predicted in larger species to be accompanied by statistical support for allometry from the model of shape~log(cranial size), which we perform both with and without accounting for phylogeny.

We also test for correlations of phylogeny and size within each family by estimating phylogenetic signal of cranial size, as this could influence the results of phylogenetic comparative methods (see methods in Appendix S1). R scripts with data for each family are available at https://github.com/DRexMitchell/Mitchell-etal-facial-scaling. As allometric tests would not be meaningful across a group with very similar sizes, we also generate an approximation for size diversity within each family with a centroid size index (CSI), by dividing the largest cranial size in each sample by the smallest cranial size. We then test how strongly the CSI correlates with the coefficient of determination (R²) values of allometry tests to see whether size disparity influences the amount of variation attributable to allometry. With the above approaches, we show that the allometric pattern of facial gracilisation is common, but not necessarily ubiquitous, among mammals. We then demonstrate how the occurrence of size-related functional traits can be obscured when using phylogenetic comparative methods, and that abrupt shifts in ecology across size gradients can subvert existing patterns. For the remainder of the review, we present a theoretical framework detailing why allometric facial gracility is most often a by-product of shifting selective pressures incurred with increasing body size on a macroevolutionary scale, and suggest the place of facial scaling patterns in our understanding of skeletal allometry as a whole.

IV. GRACILISATION PATTERNS IN MAMMALIAN FAMILIES

The results of our analyses across 22 mammalian families are summarised in Table 1, and a more detailed interpretation for each family is provided in Appendix S2. We accept a P value of 0.052 for the Herpestidae as marginal evidence of allometry, given its support in prior research (Cardini & Polly, 2013). Evidence of evolutionary allometry was found for 20 of the 22 families, as given by statistically significant OLS regressions (without including phylogenetic relatedness). The two exceptions were families of bats, the Phyllostomidae and the Molossidae. The CSI (see Table 1) was not correlated with the R² values of allometric tests across the families (R² = 0.028, P = 0.501), indicating that the strength of allometry is not influenced by the scale of size variation. The two bat family exceptions were unlikely to be due to a smaller range of cranial sizes in these families as there were several families with smaller skull size ranges (i.e. CSI values) that did exhibit allometry.

Seven families (~32%) had significant evolutionary allometry when phylogeny was included in the model (PGLS; Table 1). Interestingly, evidence for evolutionary allometry in the PGLS and a phylogenetic signal of cranial size might often be mutually exclusive: 14 of the 22 families tested (~64%) had either a significant phylogenetic signal of cranial centroid size (11/14) or significant evolutionary allometry in the PGLS test (3/14), but not both. This suggests that size-related shape variation can be obscured by phylogenetic corrections in statistical analysis when size has a significant phylogenetic signal, which adds an additional complication to assessments of cranial allometry that deserves further research. The finding is likely attributable to the prevalence of size correlations in phylogenies, such as Cope's rule and others, across mammals. Covariation of size and phylogeny make it impossible to distinguish statistically between shape variation attributable to either evolutionary divergence unrelated to size or shape variation causally related to size, such that factoring the phylogeny into the model would result in a lack of significance of potentially existing evolutionary allometry. In cases where a phylogenetic signal is present in the predictor trait (cranial size), inclusion of phylogenetic relatedness in tests should therefore not be necessary (Rohlf, 2001, 2006; Uyeda, Zenil-Ferguson & Pennell, 2018).

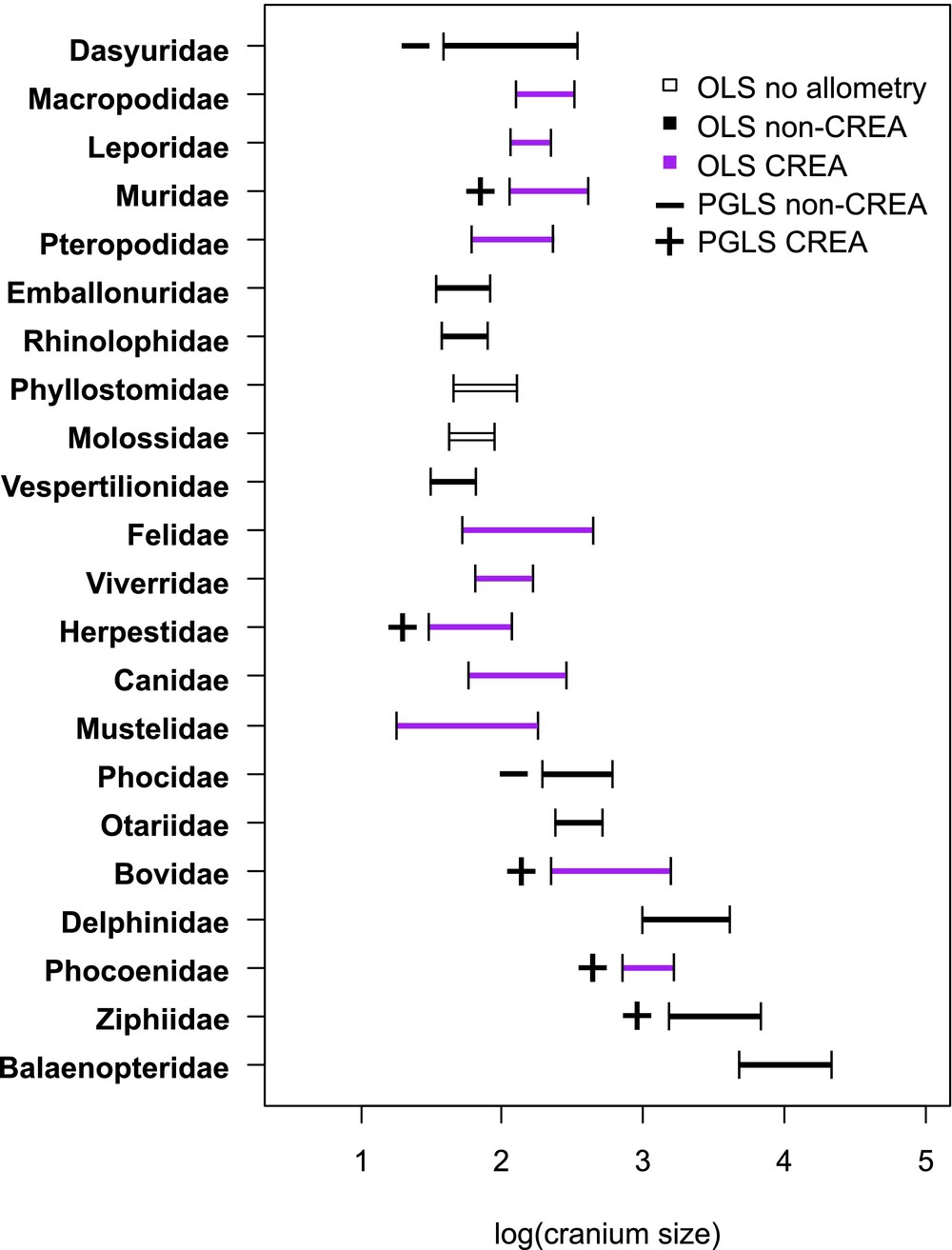

A summary of the presence of hyperallometric gracilisation across the size ranges of each family, assessed through visual inspections of predicted landmark vector displacements (see Appendix S2), is presented in Fig. 4. All families exhibiting evolutionary allometry display relatively smaller braincases in larger species, in agreement with Haller's rule. However, predictions for hyperallometric gracilisation, requiring both significant evolutionary allometry and a more gracile viscerocranium predicted for larger sizes, were more variable (see Appendix S2). Eleven families showed evidence of allometric facial gracility, while nine showed a reverse trend of more stout features (any or all of shortening/widening/deepening of the viscerocranium) predicted in larger species. Among analyses of the seven families with significant evolutionary allometry after phylogenetically informed tests, five exhibited increased gracility in species with larger crania. Therefore, a finding of significant allometry in a PGLS test alongside a significant phylogenetic signal of cranial size might indicate that size variation is influenced by a developmental constraint on shape that is consistent regardless of relatedness. This would agree with previous suggestions that allometry explains the majority of cranial shape diversity in some of these taxa, such as the Bovidae (Bibi & Tyler, 2022; Rhoda et al., 2023) and rodents (Marcy et al., 2020). However, an alternative that could be investigated in the future is that phylogenies comprising speciose taxa with multiple monophyletic groups each spanning much of the total size ranges for the clade, such as bovids and rodents, can limit the impact of including the phylogeny in the model and result in similar statistics to the OLS. By contrast, phylogenies with small-bodied monophyletic clades and large-bodied monophyletic clades might have more of an impact on congruence of the two statistical approaches.

Importantly, Fig. 4 demonstrates that both smaller-bodied and larger-bodied families exhibit examples consistent and inconsistent with hyperallometric gracilisation of the cranium, such that large species can have more stout skulls than smaller relatives within a family, just as small species can have longer, more slender skulls than larger species. As a result, facial gracility cannot be reliably predicted from cranial size. This result speaks against a strong influence of a universal developmental constraint as a source of allometric facial scaling in mammals, which would be expected to result in predictable and repeatable allometric changes across certain size thresholds.

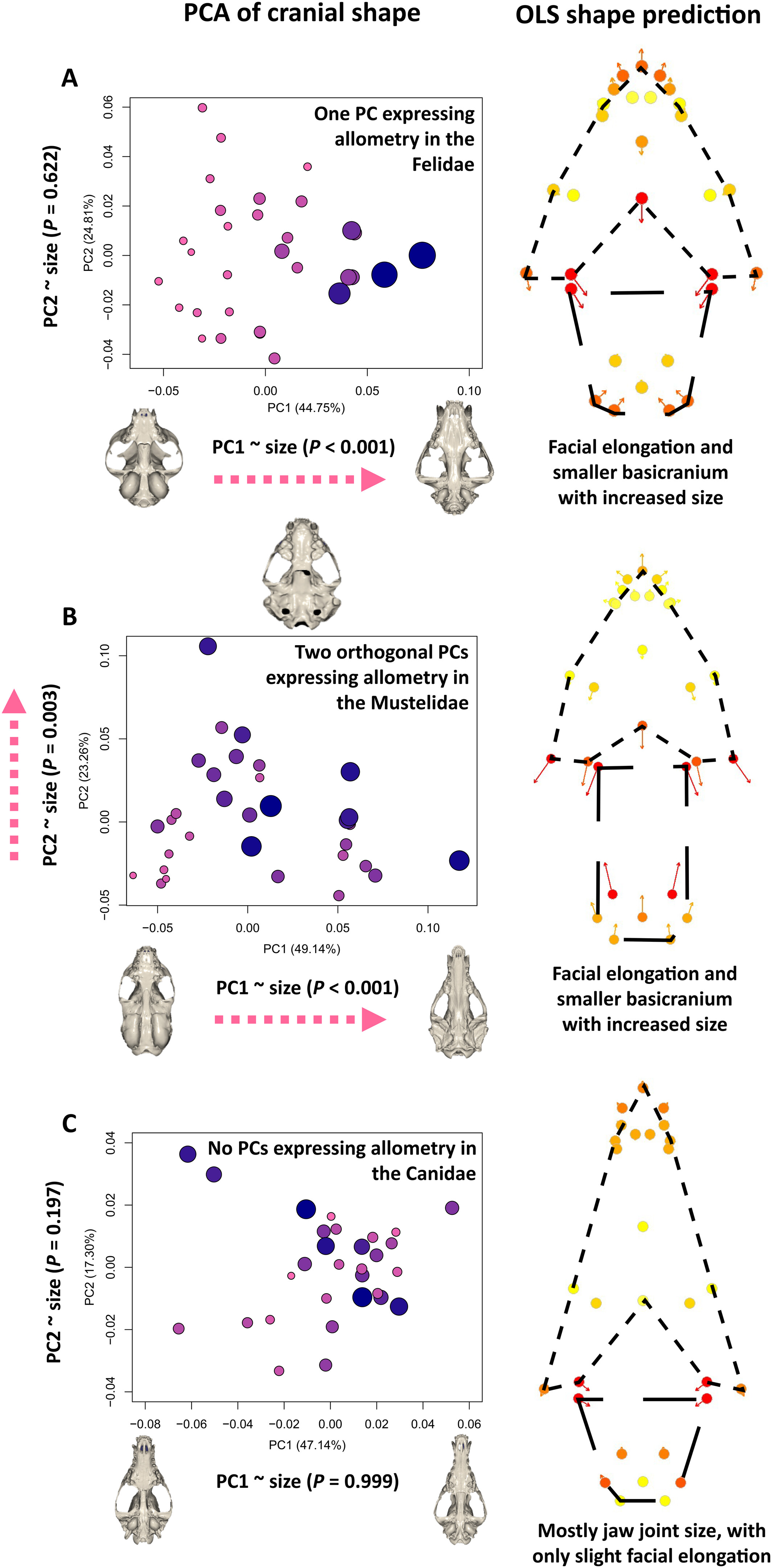

While our allometric shape predictions are useful to examine the broad trends of allometric variation, our analyses include an important caution about the assessments of patterns across taxa with high levels of shape variation, which can obscure the diversity inherent in the taxon in question. To illustrate this point, we will here present a more detailed analysis of the 2D-landmark-based data from three carnivoran clades (Fig. 5). We focus on the cats (Felidae; Fig. 5A), weasels and relatives (Mustelidae; Fig. 5B), and wolves and relatives (Canidae; Fig. 5C). Figure 5 uses PCA plots to demonstrate that producing a single allometric prediction along the cranial size gradient of an entire clade can miss many important nuances of allometry. For example, Fig. 5B shows an allometric facial elongation pattern on PC1, but also a second allometric trajectory among the Mustelidae that is orthogonal to facial elongation and represents facial stoutness. This is exemplified by the sea otter (Enhydra lutris) at the maximum of PC2, a species with an extremely stout cranium that can reach a body mass greater than 30 kg (Laidre et al., 2006) (Fig. 5B). Otters therefore provide an example of a taxonomic subset of the Mustelidae that would not follow a pattern of hyperallometric gracilisation, showing that not all taxonomic subsets can be expected to conform to a broader pattern of allometric facial elongation across the family [unlike what was found in the subsets of e.g. Cardini et al. (2015) and Tagmanini et al. (2017)].

Despite the above exception, we found evidence for hyperallometric gracilisation in more than half of the families tested, suggesting that the pattern is quite common. However, as with the otter example discussed above, there are easily conceivable evolutionary scenarios where the pattern might represent a substantial component of cranial evolution, without strong (or indeed, any) evidence from visualisations of allometric shape variation. We demonstrate this on the example of the Canidae, by showing how hyperallometric gracilisation can be observed at finer taxonomic scales (see Appendix S2 for more detailed analyses). The phylogeny of Canidae (Fig. 6A) can be broadly separated into three monophyletic groups: one dominated by foxes (Vulpes spp.), one dominated by South American foxes (Lycalopex spp.), and one containing wolves, dogs, and coyotes (Canis spp.). Hyperallometric gracilisation is present among the Vulpes group crania alone (R² = 0.220, P = 0.044) (Fig. 6B). However, this effect disappears outside of the Vulpes clade because the bush dog (Speothos venaticus), the smallest of the Canis clade, is larger than most species of the Vulpes clade, but has the most robust cranium in the entire Canidae family. Therefore, while the smaller Vulpes clade might appear at a glance to be at odds with hyperallometric gracilisation within the family Canidae, in being longer faced but smaller than the more short-faced species, the hyperallometric gracilisation pattern can be found in the Vulpes branch when observed in isolation. Notably, the same can be found in the Canis branch, but only when accounting for their feeding strategies (see Appendix S2).

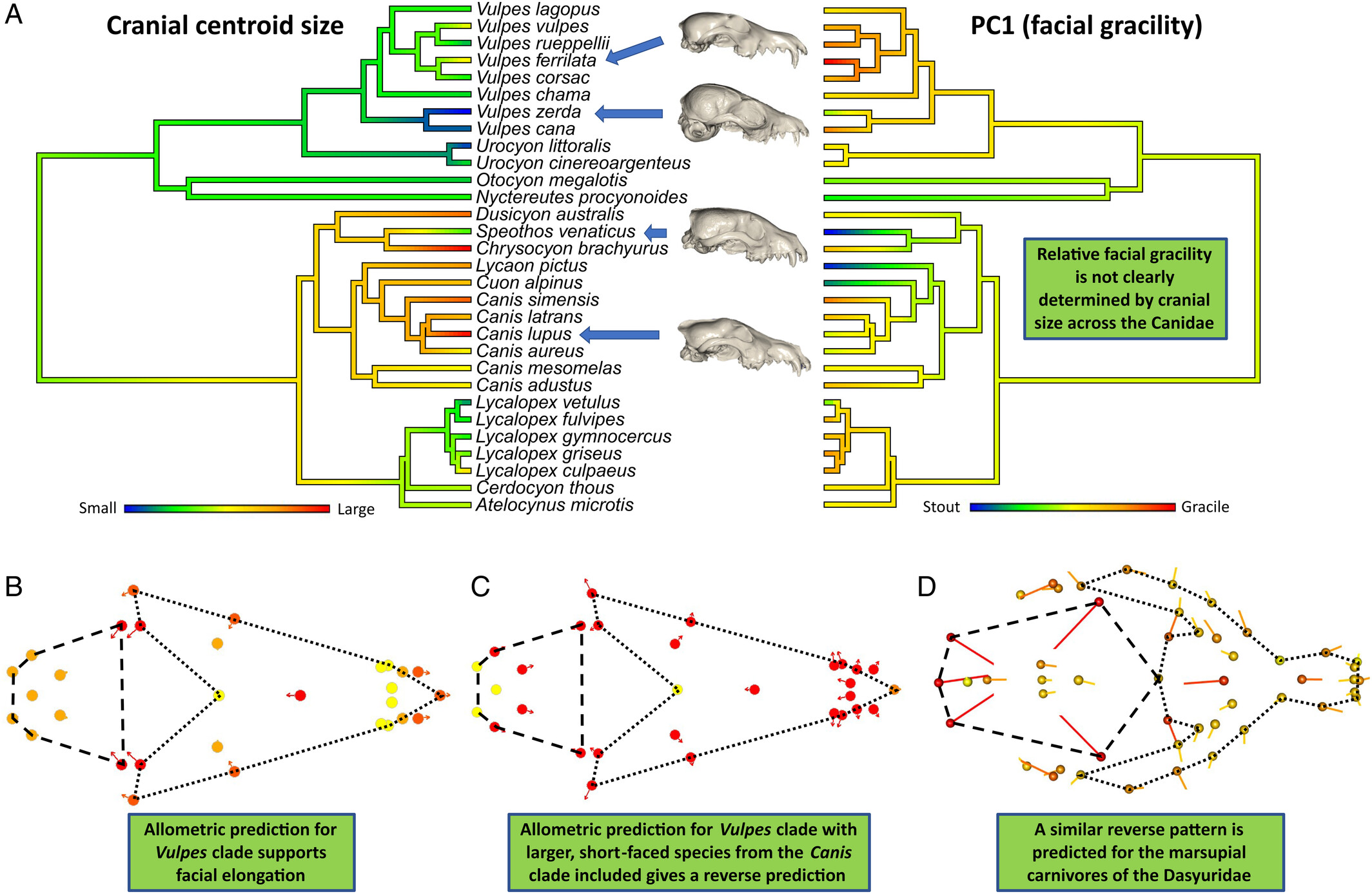

The Canis clade is unique within the Canidae, in comprising both small-prey specialists and large-prey specialists, whereas the remaining two clades specialise only on small prey [see Van Valkenburgh & Koepfli (1993) and Christiansen & Wroe (2007) for classifications of prey types]. The largest of the Canis clade, the wolf (Canis lupus), has a more gracile cranium than the remaining three large-prey specialists (S. venaticus, Lycaon pictus, and Cuon alpinus), which represent the stout-shape extremes of the Canidae in Fig. 5C. But C. lupus also has a stouter cranium than the small-prey specialists within the Canis clade (see Appendix S2). This results in no statistical support for allometry within the Canis clade alone because the stouter large-prey specialists envelop the small-prey specialists along their size range. Yet, among the large-prey specialists alone, larger crania are noticeably more gracile. Together, these trends among the Vulpes and Canis clades and the results and interpretations of the other families tested (Appendix S2) suggest that the scale of relatedness for testing craniofacial allometry is largely arbitrary and the presence of hyperallometric gracilisation often depends on the consistency of the dietary ecology for all species involved.

With this in mind, the data set of Canidae can be used to demonstrate how the introduction (or removal, e.g. through extinction) of ecomorphs within a clade can disrupt overall trends of hyperallometric gracilisation. When a hypothetical clade is generated that includes the Vulpes clade of small-prey specialists together with the three most stout morphologies of the large-prey specialists from the Canis clade (S. venaticus, Lycaon pictus, and Cuon alpinus), the linear model shows a significant association of shape with size (R² = 0.175, P = 0.044), but instead predicts larger species to have wider crania (Fig. 6C). This is because the three large-prey specialists included represent a more stout ecomorph capable of accommodating the mechanical demands of more resistant foods (in this case, large prey). A similar effect can be observed in our data set of marsupial carnivores, the Dasyuridae (Fig. 6D). This is due to the broad-faced, bone-cracking morphology of the largest species, the Tasmanian devil (Sarcophilus harrisii), positioned as a sister taxon to the quolls (Dasyurus spp.) among the Dasyuridae (see Fig. S2 in Appendix S2).

The above examples show that predictions for hyperallometric gracilisation appear highly sensitive to the occurrence of the ecological shifts that occur towards size extremes. Our analyses exhibit multiple instances of species occupying divergent dietary niches within their respective clades (see Appendix S2), generally associated with ecomorphological shifts of their respective cranial shapes that can result in less gracility at larger sizes, or increased gracility at smaller sizes. In summary, if niche-specific adaptations resulting in stouter proportioned crania occur in larger species within a clade; this appears to impact predictions of facial gracility with increased size (Cardini & Polly, 2013; Tamagnini et al., 2017). This concept of divergent ecomorphs is, in principle, similar to deviations from a common ecomorphological ‘Bauplan’ discussed in previous publications on CREA (Cardini et al., 2015; Tamagnini et al., 2017; Cardini, 2019), but must also be considered within the phylogenetically constrained ‘ordinal Bauplan’ described by Hiiemae (2000), where phylogeny dictates the overall musculoskeletal anatomy that can be acted upon by functional selection. This is a highly relevant point when considering the inclusion of extinct species, many of which possibly occupied niches no longer utilised by their extant relatives, that share an ordinal Bauplan with relatives but differ in ecomorphology.

The above shows that the common approach of studying patterns in cranial morphology only in extant taxa can be an issue if a clade contains extinct ecomorphs that are not represented in the extant sample. It is well known that inclusion only of extant morphologies has the potential to oversimplify, misidentify, or misrepresent morphological diversity and macroevolutionary patterns (Hautier et al., 2014; Raj Pant, Goswami & Finarelli, 2014; Cuff et al., 2015; Jablonski, 2019). This issue is relevant to the majority of studies specifically examining craniofacial allometry, and CREA in particular, which have included only extant species, with the exceptions of Gomes Rodrigues et al. (2018), Krone et al. (2019), Tamagnini et al. (2023), and the cetacean data set we used here from Coombs et al. (2020). The lack of fossil representation is understandable because many fossil specimens exhibit damage and deformation that can limit their use in shape analysis (Mitchell et al., 2021a), but this nonetheless presents a clear issue with testing an accurate approximation for cranial diversity within clades (see Tamagnini et al., 2017). Many mammalian taxa include extinct stout-skull species that could influence the results for tests of facial elongation. These include bone-cracking borophagine canids (Van Valkenburgh, Sacco & Wang, 2003; Tseng & Wang, 2010) and hyaenids (Turner & Antón, 1996; Palmqvist et al., 2011), durophagous mustelids (Valenciano et al., 2016; Tseng et al., 2017), short-faced bears (Figueirido, Palmqvist & Pérez-Claros, 2009; Figuierido & Soibelzon, 2010), giant short-faced kangaroos (Prideaux, 2004; Mitchell, 2019; Mitchell & Wroe, 2019), glyptodont armadillos (Machado, Marroig & Hubbe, 2022), merycoidodont artiodactyls (Greaves, 1972), and pantodontids (de Muizon et al., 2015). Such examples showcase an apparent abundance of stout cranial morphologies that have not been included in tests thus far and we revisit the abundance of stout cranial forms in the fossil record in Section VIII. But for now, we focus on the fact that, despite many exceptions, increases of facial gracility with size are a common occurrence across mammals, particularly among those with a common ecomorphology. This leads us to ask: what might be driving the frequent pattern of hyperallometric gracilisation in extant species groups? In order to answer this question, we begin with the question of what conditions can govern the evolution of more stout cranial proportions.

V. WHY THE SHORT FACE? CRANIAL ADAPTATIONS FOR HARDER BITING

To assess the mechanisms behind deviations from hyperallometric gracilisation, it is imperative to contextualise the mammalian cranium within its crucial role in food prehension and processing. Biting biomechanics present a strong functional constraint on cranial shape, and much of the morphological variation of the mammalian feeding apparatus at a macroevolutionary scale is considered a product of adaptations that accommodate the most strenuous biting activities employed (Van Valkenburgh, 1989; Strait et al., 2009; Santana, Grosse & Dumont, 2012; Figueirido, Tseng & Martín-Serra, 2013; Mitchell, 2019), further enhanced by safety factors to withstand occasional extremes (Alexander, 1981; Willie et al., 2020). In the assessment of functional morphology of the cranium, feeding groups are therefore often predicted better by the most challenging foods consumed (Santana, Dumont & Davis, 2010; Zelditch et al., 2017; Hedrick & Dumont, 2018; Mitchell & Wroe, 2019). This is because cranial features of biomechanical significance can arise in parallel across different clades for similar functional demands, in a manner that is independent of body size and instead more associated with how hard an animal can bite (Radinsky, 1985; Emerson & Bramble, 1993; Figueirido, Serrano-Alarcón & Palmqvist, 2012).

The manner by which a given species interacts with its environment can, in part, be delineated by size-independent (absolute) bite force capability. Bite force can determine the ability for an animal to manipulate, obtain, or process foods and other resources. Vertical force during biting is a product of muscle size (muscle cross-sectional area) and leverage (Popowics & Herring, 2006), but a skull must also be able to accommodate the bone stresses associated with the hardest bites. Figure 7 offers first-principles schematic representations of well-established and tested cranial adaptations involved in the production and accommodation of harder bites. In summary, adaptations for harder biting can involve: an increase of bite force via increased muscle mass (Fig. 7A–C; Greaves, 1985; Wroe, McHenry & Thomason, 2005; Herrel et al., 2008; Attard et al., 2011; Tseng, 2013; Tseng & Flynn, 2018), or increased leverage (i.e. mechanical efficiency) through changes to the relative lengths of the in-lever and out-lever (Fig. 7D–F; Herring & Herring, 1974; Van Valkenburgh & Koepfli, 1993; Antón, 1996; Biknevicius, Van Valkenburgh & Gittleman, 1996; Ravosa, 1996; Aguirre et al., 2003; Wroe et al., 2005; Christiansen & Wroe, 2007; Wroe & Milne, 2007; Koyabu & Endo, 2009; Nogueira, Peracchi & Monteiro, 2009; Figueirido et al., 2010b; Goswami, Milne & Wroe, 2010; Dumont et al., 2012, 2014, 2016; Smith et al., 2015; Mitchell et al., 2018; Ledevin & Koyabu, 2019; Mitchell & Wroe, 2019; Giacomini et al., 2021; Harano & Asahara, 2022). In addition, to accommodate the forces experienced in the cranium during hard biting (Greaves, 1991; Covey & Greaves, 1994; Ross & Hylander, 1996; Ross, 2001; Herring et al., 2001; Rafferty, Herring & Marshall, 2003; Herring, 2007; Santana et al., 2012; Mitchell, 2019), deepening and buttressing of the skull at specific regions of high stress adds further bone volume as reinforcement (Fig. 7G,H; Constantino, 2007; Strait et al., 2008; Samuels & Van Valkenburgh, 2009; Tseng, 2009; Kitchener et al., 2010; Tseng & Wang, 2010; Wilson & Sanchez-Villagra, 2010; Figueirido et al., 2011, 2013; Wilson, 2013; Dumont et al., 2016; Ledogar et al., 2017; Mitchell, 2019). This reinforcement likely occurs because bone stress is equal to force per unit of area; hence, an increase in the amount of bone at a specific region of the cranium will result in a decrease in stress for a given magnitude of force at that region (Mitchell, 2019; Mitchell et al., 2021b).

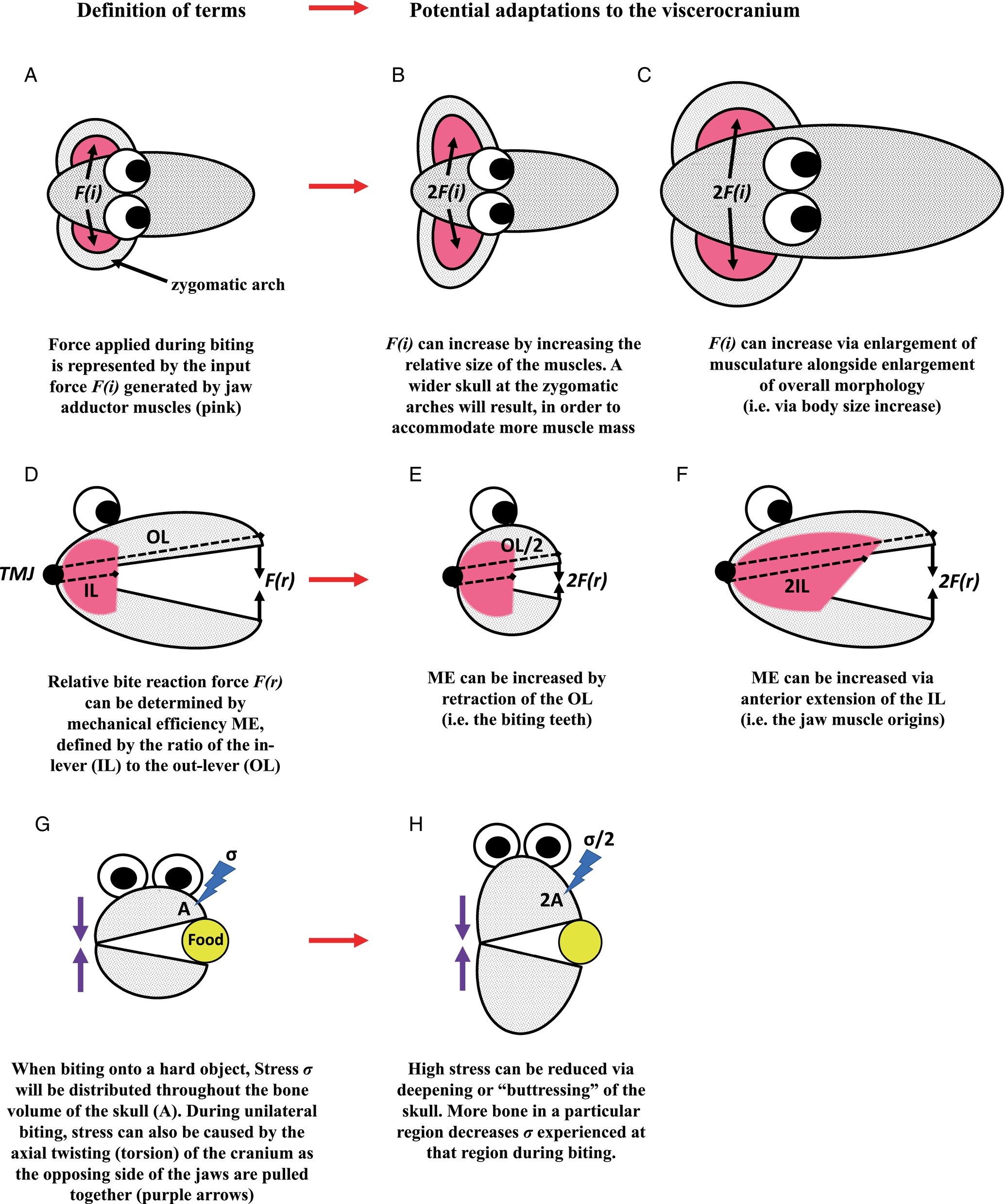

The adaptations given in Fig. 7 are not necessarily exclusively associated with hard biting. For example, a deeper maxilla and mandible might also accommodate deeper rooted, continuously growing (hypselodont) molars (Bargo, 2001; Raia et al., 2010). Furthermore, there are also potential adaptations to muscle physiology that might, at least to some extent, mitigate losses to bite force in a more gracile cranium (Wall et al., 2008; Allen et al., 2010; Hartstone-Rose, Perry & Morrow, 2012; Martin et al., 2020). However, the adaptations presented in Fig. 7 nonetheless hold biomechanical significance in improving the skull's ability to produce and withstand higher bite forces, and crania adapted for harder biting will likely exhibit more than one of these compared to relatives that do not perform strong bites. In many cases, these adaptations will also covary to some extent. With this understanding, facial stoutness could be considered an example of ‘many-to-one mapping’, whereby multiple evolutionary adaptations result in a similar function (Wainwright, 2007; Figueirido et al., 2011; Tseng & Flynn, 2015). Alternatively, the reverse of any of these adaptations (i.e. from more stout to more gracile morphologies) will represent a reduction in either muscle force, mechanical efficiency, or the ability to withstand higher stress during biting. Of course, a species without robust features will not necessarily be incapable of attempting tasks requiring harder bites. For example, a longer-faced animal can add additional bite force for hard foods by increasing the use of the posterior (postcanine) dentition during biting (see Dumont, 1999; Dumont & O'Neal, 2004). Yet, such behaviours emphasise the ineffectiveness of the anterior dentition for hard biting in long-faced species, which are the teeth used by most mammals in the initial prehension of food or other behaviours for environmental manipulation (but see Section VIII for exceptions). It is also true that an elongate rostrum can increase jaw closure speed (see Section VII), thereby potentially maintaining higher absolute bite forces. However, a longer rostrum is also less efficient at withstanding the stresses of hard biting with the anterior dentition than a more compact rostrum (e.g. Attard et al., 2011; Mitchell et al., 2018; Mitchell & Wroe, 2019). This relative weakness could be compensated for through heavier reinforcement of bone along an elongate rostrum (a variant of Fig. 7H). But this morphology coincides with fast jaw closure speeds, allowing an animal to seize large prey quickly with powerful bites from the anterior dentition (e.g. as observed in crocodiles; Pooley & Gans, 1976). This is not a niche currently expressed among mammals, with the possible exception of some odontocete whales. Therefore, at least in terrestrial mammals, selection for harder biting behaviours over evolutionary time is expected to be accompanied by more stout cranial proportions in many cases.

All but one of the adaptations to higher bite forces listed in Fig. 7 can result in a facial skeleton that could be perceived as more stout, robust, or shorter. The important exception is an increase in total body size – the only process also associated with allometry (Fig. 7C). If larger-bodied species within clades frequently exhibit an allometric pattern of cranial gracility, Fig. 7 shows that these species must be sacrificing a capacity to generate or withstand higher relative bite forces in the structure of their skulls. To understand the processes behind hyperallometric gracilisation, we must give additional consideration to the distributions of diet regimes, mechanical properties of food, and biting behaviours along allometric gradients, which we discuss in the following section.

VI. ALLOMETRIC DISTRIBUTIONS OF DIET

Size-related shifts in feeding ecology and behaviour can be observed across many mammalian clades (Fleagle, 1985; Bodmer, 1990; Carbone et al., 1999; Chemisquy et al., 2021; Bubadué et al., 2022), and are thus expected also to play a role in facial allometry. For example, small herbivores are more likely to incorporate nutrient-rich foods including fruits, nuts, and seeds, while larger herbivores tend to include larger proportions of more abundant graze (grasses) and/or browse (leaves, twigs, and stems of trees and shrubs) (Bodmer, 1990; Arman & Prideaux, 2015). Different resources can present variable demands for their access and processing because of their varying mechanical properties, including hardness, toughness, or elasticity (Berthaume, 2016). A shift in resource usage across size ranges within a clade might therefore sometimes result in selection for either increased or decreased absolute bite force. This will, in turn, be evidenced in their cranial morphology and influence predictions of shape along a size gradient. We can summarise this by identifying three potential trajectories of bite force shifts that can occur within a clade.

(2) A mechanism: bite force allometry and niche conservatism

We propose a prevalence of the third scenario outlined above – retention of dietary mechanical resistance across body size ranges – as the underlying reason for the common occurrence of hyperallometric gracilisation in the mammalian cranium. This offers a particularly powerful explanation when considering a widespread pattern known as phylogenetic niche conservatism, involving the retention of ecological traits over time among related species (Wiens & Graham, 2005; Wiens et al., 2010; Losos, 2008). In other words, more closely related species tend to be more ecologically similar. In the context of hyperallometric gracilisation, we suggest that phylogenetic niche conservatism can be observed in mammals when closely related species share more similar diets and/or absolute bite force requirements. Phylogenetic niche conservatism relating to diet has been widely quantified across animals (Olalla-Tárraga et al., 2017; Fraser, Haupt & Barr, 2018; Roman-Palacios, Scholl & Wiens, 2019). Thus, mapping diet onto any mammalian phylogenetic tree will show a tendency for more closely related species to prefer similar foods, regardless of their body sizes (e.g. Cruz-Neto, Garland & Abe, 2001; Arman & Prideaux, 2015; Mitchell et al., 2018; Kartzinel & Pringle, 2020; Melstrom et al., 2021). Within these groups of species with similar diets, a skull capable of high mechanical efficiency and low muscle force can generate comparable absolute bite force to a skull with low mechanical efficiency and high muscle force (Tseng, 2013). Assuming that bite force requirements remain relatively consistent for larger species with similar niche specifications, the relative reduction of mechanical constraints offered by increased size can therefore permit cranial gracility, without sacrificing mechanical safety factors of the bone.

Some taxa might appear at first glance not to follow our prediction that hyperallometric gracilisation of the cranium is a product of consistent bite forces across body size ranges. There are in fact many cases where larger species of some mammalian groups exhibit a broadening of the diet to include items with greater mechanical resistance (Lucas & Luke, 1984), but which also have more elongate skulls. For example, the largest species of the Cervidae, the moose (Alces alces), feeds on browse from the same trees and shrubs as smaller, sympatric cervid species. However, this species also consumes thicker twigs or branches of these plants (Shipley et al., 1999; Nichols, Cromsigt & Spong, 2015). This naturally involves greater bite forces, however, the facial skeleton of the moose has more gracile proportions than smaller relatives (Schilling, Calderón-Capote & Rössner, 2019; Rhoda et al., 2023), contrary to our above arguments. Similarly, the Felidae clearly exhibit a pattern of hyperallometric gracilisation (Fig. 5A), but the tiger (Panthera tigris) does not have absolute bite forces comparable to the smallest cat species, as they subdue and process larger prey (Christiansen & Wroe, 2007) with diverse tissues, including tough hide, sinew, and bone (Pollock et al., 2021). For both moose and tigers, these dietary additions occur alongside the increase of bite forces gained through the stronger jaw muscles from simply being larger (Fig. 7C). For such instances, hyperallometric gracilisation will be found as a product of the relative gradients of bite force increasing alongside increased body mass, and food resistance increasing with increased body mass. This is described in the following equations:

• (1)

  Bite force (BF) increases with body mass (BM) at a rate given by:

$$\frac{\mathit{dy}}{\mathit{dx}}=\frac{\mathrm{\Delta BF}}{\mathrm{\Delta BM}}$$ (1)

• (2)

  And if food resistance (FR) increases with body mass, this occurs at a rate given by:

$$\frac{\mathit{dy}}{\mathit{dx}}=\frac{\mathrm{\Delta FR}}{\mathrm{\Delta BM}}$$ (2)

• (3)

  Then the relationship between absolute bite force and food resistance across body size ranges is given by:

$$\frac{\mathrm{\Delta FR}}{\mathrm{\Delta BM}}~\frac{\mathrm{\Delta BF}}{\mathrm{\Delta BM}}$$ (3)

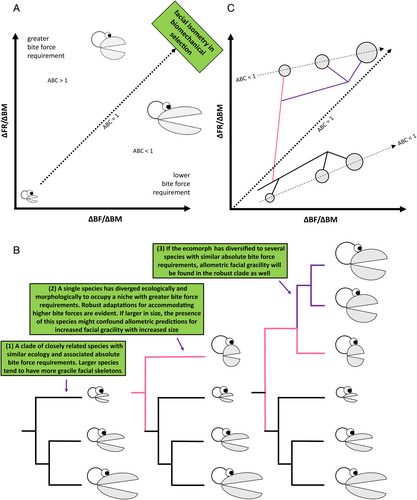

We refer to the slope of this relationship as the allometric bite coefficient (ABC). If ABC = 1, there is isometry in the biomechanical demands of the cranium across size ranges (Fig. 8A). If ABC >1, the biomechanical demands will be greater and non-size-related adaptations for harder biting shown in Fig. 7 are more likely to be present in larger species. If ABC <1, a more gracile facial skeleton is more likely. In other words, for a given change in body size, if the rate of increase in food resistance is less than the rate of increase in bite force capacity, this results in reduced biomechanical demand on the facial skeleton, permitting facial gracility in larger species.

Importantly, any future considerations of bite force allometry must also quantitatively factor in the hypoallometry of muscle force common across mammals, known as the 2/3 power rule. This means that larger species have relatively weaker bites than smaller species because muscle force scales with cross-sectional area, while body mass scales with volume (Alexander, 1985; Wroe & Sansalone, 2023). However, this will not ultimately affect the relationship defined by the ABC, because the 2/3 power rule is an intrinsic aspect of the rate with which muscle force scales with size, thus standardising its effects across all observations.

Our analyses in Section IV demonstrate that hyperallometric gracilisation should be observed more often in the crania of clades where species share similar diets and biting behaviours. However, consistent with the concept of biomechanical adaptations outlined above, the pattern often does not occur in allometric predictions when species deviate from relatives in ecomorphology towards substantially more mechanically demanding biting activities at larger sizes. Figure 8B presents a simplified case of how different allometric predictions might be obtained from novel, stout ecomorphs represented in a phylogeny, and once again be supportive of allometric facial gracility if the ecomorph has also diversified to multiple species of various body sizes that can accommodate the new greater threshold of absolute bite force. We map these examples over the ABC regression in Fig. 8C, showing that when a greater food resistance threshold is crossed by a novel ecomorph, subsequent diversification will likely follow a gracility pattern with an ABC <1, assuming those species also maintain similar ecology. This distribution is reflected well in the effects of dietary shifts from small-prey specialists to large-prey specialists in the Canidae described in Section IV.

In this section, we have detailed instances where hyperallometric gracilisation is a more likely observation within clades. However, there remains the question of why the facial skeletons of larger mammalian species, within an ecologically similar clade, have shown a tendency to become more gracile in the first place, when relaxed biomechanical demands for bite force should permit morphological shifts along any dimensions. We discuss several potential hypotheses in the following section.

VII. SO WHY THE LONG FACE?

A reduction of biomechanical constraints does not translate to selection for a more gracile face. Instead, it is expected to relax selection for harder bite forces, and permits adaptations related to other selective pressures. We suggest that the prevalence of apparent directional selection for hyperallometric gracilisation across clades of ecologically similar mammals is largely a product of three main factors: (i) moderation of bone resources; (ii) a range of other, well-documented selective advantages arising from an elongate viscerocranium; and (iii) some possible secondary developmental influences of negative braincase and orbit allometry.

VIII. EXCEPTIONS: EVOLUTION DOES NOT ALWAYS PLAY BY THE RULES

Our above arguments assume that most mammals employ biting, particularly with the anterior dentition, as a primary jaw action. But this is of course not always the case, so that regularities or ‘rules’ of bite force-related allometry cannot be expected to explain the evolution of all cranial shapes. There are many examples where biting to obtain and mechanically break down food is either not necessary or is assisted by variations in soft-tissue anatomy and behaviour. For example, strong lips, tongues, or trunks are frequently used by a range of mammalian herbivore taxa to acquire vegetation (Coombs, 1983; Mitchell et al., 2018; Williams, 2019), often bypassing the need for hard biting with the anterior dentition and limiting associations between bite force and food accessibility. In a similar fashion, much of primate food prehension, and sometimes initial processing, is assisted by forelimb manipulation and, occasionally, tool use (Van Schaik, Deaner & Merrill, 1999). For such taxa, macroevolutionary shifts in facial morphology are probably less influenced by selection for bite force optimisation (although not necessarily absent altogether) and these groups are thus potentially able to respond more strongly to selection from alternative factors. Contrary to the predictions of our framework, there are also cases where low bite force demands might instead lead to stouter cranial dimensions. For example, the stout craniofacial anatomy of round-headed pilot whales and relatives (Globicephalinae) is an adaptation not for hard biting, but instead for suction feeding (Werth, 2006), and the effects of contrasting conditions of aquatic environments on feeding mechanics in the context of CREA deserve further investigation. Likewise, the extinct giant short-faced kangaroo (Procoptodon goliah) was the largest representative of the extinct Sthenurine kangaroos, and yet did not have a more gracile facial skeleton than smaller relatives. In fact, this species exhibited extreme reduction of the incisors and premaxillary region, reflecting further shortening of the rostrum (see Prideaux et al., 2009). Prideaux (2004) suggested that the dietary yield per incisor bite would not have been efficient enough for such a large animal, and that vegetation would instead have been fed directly to the premolars and molars. Therefore, in some cases, rostrum length might exhibit hypoallometry when incisor biting is not an important part of food acquisition. However, it is important to note that for a group such as the sthenurine kangaroos that are often characterised by extremely robust facial skeletons, a perceptibly gracile morphology might have been unattainable. As a conclusion to this section, we therefore discuss the potential limitations to morphological adaptation imparted by phylogenetic legacy.

Dollo's Law of irreversibility states that an organism can never return exactly to a former macroevolutionary state, even if placed under identical former evolutionary selection regimes (Gould, 1970). Exactly how much facial gracility or stoutness can evolve before a morphology comparable to the ancestral condition can no longer be attained is difficult to answer and is probably unique to each clade in question. From a biomechanical perspective, there is less selective pressure for a stout-faced clade to become more gracile over evolutionary time than the reverse because, while a more gracile form will not as easily bite foods that require higher bite forces, a stout-faced animal can exploit both less resistant and more resistant resources. Therefore, in the absence of alternative selective pressures that would encourage a more elongate facial skeleton, such as those listed in Section VII, more stout proportions might be retained. In such cases, a stout cranium might not always be indicative of hard biting behaviours, but instead be a result of phylogenetic contingency. While some stout-faced ecomorphs could have arisen due to genetic bottlenecks or hard ‘fallback foods’ during dietary stresses in their evolutionary history, subsequent diet shifts to more easily obtained and processed foods might not immediately result in a return to more gracile forms, if at all [see Liem's Paradox (Liem, 1980; Robinson & Wilson, 1998; Ungar, Grine & Teaford, 2008)]. Thus, some stout ecomorphs might represent macroevolutionary ‘ratchets’, in which reversals from hyperspecialised cranial dimensions are rare, thereby increasing extinction risk when subjected to changing environmental conditions or competition with species that exhibit more gracile ecomorphology (Van Valkenburgh, 2007; Tseng & Wang, 2011; Tseng, 2013; Balisi, Casey & Van Valkenburgh, 2018). In carnivorans, stout cranial proportions among larger extinct species are associated with heightened dietary specialisation, and a greater vulnerability of these morphotypes to extinction has been suggested (Holliday & Steppan, 2004; Van Valkenburgh, Wang & Damuth, 2004; Van Valkenburgh, 2007). If stout facial proportions are attributable to hyperspecialisation for particular diets, and these morphologies are relatively immutable, metabolically expensive, and impractical in novel environmental conditions, this could possibly contribute to the prevalence of these ecomorphs among extinct groups that are not represented in tests for CREA.

IX. WHERE DOES MAMMALIAN FACIAL SCALING FIT INTO OUR UNDERSTANDING OF CRANIAL ALLOMETRY?

For the many mammalian groups that have a strong reliance on biting with the anterior teeth as part of their niche demands, we have presented a functional mechanism governing patterns of facial scaling, based on biting biomechanics. However, as outlined above, there remain many instances where biting mechanics are less influential and facial scaling is instead a product of other adaptations. This strongly indicates that observed patterns of allometric facial scaling are not a product of a ubiquitous ‘rule’ across all mammals, nor a product of a specific constraint, but are instead the combined result of multiple well-documented macroevolutionary phenomena involving ecology, behaviour, anatomy, and phylogenetic proximity that form the foundations of our proposed framework. The degree of influence and combined effects of these phenomena are undoubtedly unique to each taxon of interest and should be considered for analyses and interpretations going forward, rather than attributing results to any singular pattern. We use this section to discuss how the framework and patterns of facial scaling might fit into a new, simple conceptualisation of allometry of the mammalian skeleton.

It is well established that a particular phenotype is the result of genetic, structural, functional, and environmental factors. ‘Constructional morphology’ is a conceptual framework that binds these factors together for an integrated understanding of the diversity of biological form (Seilacher, 1970; Thomas, 1979; Briggs, 2017). The framework involves three main pillars: the historical factor is a product of genetic heritage, the morphogenetic factor defines the contribution of growth and development processes, and the functional factor describes the niche-specific functional improvements obtained through natural selection. Interestingly, these three pillars naturally align with the three levels of allometry (Fig. 9; Thomas, 1979): ontogenetic allometry is represented by individual ontogeny following a genetic blueprint determined by phylogenetic history (i.e. the historical factor); static allometry describes variation in size-related shape at a specific developmental stage, attributable to variation in genetics and environmental factors during growth (Lande, 1979; Voje et al., 2013) (i.e. the morphogenetic factor); and evolutionary allometry is influenced by size-related functional adaptation causing deviations to ontogenetic and static allometries (Voje et al., 2013) (i.e. the functional factor). As detailed in Section I, these three pillars of allometry can influence each other in different and often complicated ways (Fig. 9) (Rensch, 1948; von Bertalanffy & Pirozynski, 1952; Lande, 1979; Voje et al., 2013), thereby acting together to generate allometric diversity in skeletal form.

While no mechanism has been identified to explain the pattern of hyperallometric facial elongation that is currently most discussed in the context of CREA (Cardini, 2019), it has been suggested to be related to heterochrony (differences in developmental rate or time relative to an ancestor) and to represent a size-related constraint on cranial diversity (Cardini & Polly, 2013). Through our investigation of 22 mammalian families, we found some evidence suggesting the presence of size-mediated constraints that are independent of phylogeny, but this was only found in seven of the 22 families. However, this could also be an artifact of how size is structured within these phylogenies. We found that braincase size was consistently smaller in larger species of all taxa with significant allometry, in agreement with Haller's rule. But this was not coupled with patterns of facial gracilisation. Instead, the biomechanical principles we have outlined in this review, their close association with hyperallometric gracilisation, and the exceptions we have discussed, suggest that allometric variation related to facial elongation is dominated by adaptive responses to functional demands across size ranges, rather than being a product of developmental constraint. It is certainly possible for developmental constraints, such as discussed for braincase and orbit size, to influence interpretations of facial elongation, but this can only occur within the bounds of functional selection. Therefore, the question of interspecific differences in ‘face length’ is better answered by considering aspects of natural selection, placing patterns of allometric facial scaling among the adaptive factors influencing morphological diversity, with developmental constraints likely a secondary factor.

The interplay between allometry and adaptation is a venerable field which can be substantially improved through better understanding of the processes behind the evolution of allometric patterns. This is important because of the fundamental importance of size variation in the evolution of mammalian diversity. For example, Huxley (1924) noted that advantages to larger body sizes might explain the prevalence of the evolution of larger species across most mammalian groups. Size variation indeed provides the basis for greater phenotypic plasticity among mammals, facilitating the arrival of novel adaptive morphologies (Björklund, 1996; Bubadué et al., 2022). The capacity for adaptive innovation of the cranium to expand beyond the confines of biomechanical constraints might impart selective advantages to increased body sizes, alongside other advantages suggested to promote Cope's rule [Kingsolver & Pfennig (2004) and references therein]. This could be an important component in the allometric ‘line of least resistance’ that facilitates evolutionary adaptation in the mammalian cranium (Huxley, 1924; Marroig & Cheverud, 2005; Shirai & Marroig, 2010). It has been argued previously that the CREA pattern follows this line of least resistance (Cardini & Polly, 2013; Cardini, 2019; Rhoda et al., 2023), with which we agree. However, we suggest that this might be largely mediated by bone moderation and enhanced cranial functions at larger sizes that are permitted through relaxed bite force demands (see Section VII), rather than extensions of ontogenetic or static allometries. With a better understanding of the interplay between adaptations and constraints, and the realisation that this relationship can change along body size ranges, future research will have an excellent starting point for an integrated view of how allometry-driven diversity arises across the vast range of mammalian body sizes.
