1 INTRODUCTION

Traumatic brain injury (TBI) is a major health problem that is experienced by over 2.8 million people in the United States every year (1). Importantly, people who experience TBI often have permanent brain dysfunction and have a higher likelihood of developing chronic neurological disorders including major depressive disorder, post-traumatic stress disorder, and Alzheimer's disease (2). TBI is typically caused by a mechanical insult that rapidly accelerates the head producing diffuse shear deformation forces throughout the brain. These mechanical forces can produce diffuse axonal injury (DAI), cytoskeletal fragmentation, synapse disruption, cellular membrane permeabilization, and blood–brain barrier breakdown (3-7).

Subsequent secondary injury cascades may exacerbate initial brain trauma by amplifying astrocyte reactivity, leukocyte infiltration, and neuronal death which leads to tissue loss that can be more significant than the original insult (4, 6, 8, 9). It is important to note that while glial cells play a central role in producing secondary injury, they also contribute to neuroprotection, plasticity, and regeneration. Indeed, recent studies found that microglia, the resident immune cell of the central nervous system, play a critical role in directing and facilitating tissue regeneration (10-13). Microglia also contribute to neuroinflammation by rapidly proliferating, secreting inflammatory cytokines, pruning axons and synapses, phagocytosing debris, and stabilizing the extracellular environment (14-18). Secondary injury cascades can persist in the brain for weeks, years, or even decades, as demonstrated in chronic assessments of mild TBI in rodents, acute assessments of mild TBI in pigs, and chronic assessments of moderate-to-severe TBI in humans (8, 16, 19-22). Moreover, the dynamic and diverse activity of microglia may also include region-specific responses to injury and tend to be more subtle following mild TBI (23, 24).

In order to detect subtle morphological changes in microglia, sensitive and quantitative morphological analysis is needed. This type of analysis has not yet been applied to the study of the chronic effects of mild injury in pigs. Therefore, using a rotation-acceleration model of closed-head TBI in pigs, the current study seeks to histologically characterize the extent of axonal pathology and the resulting glial activity in the brain out to 1-year post-injury, with a particular focus on the diverse changes to microglia morphology. We hypothesized that specimens would display acute axonal pathology with morphologically altered microglia associating with regions of axonal pathology following a single mild TBI.

2 MATERIALS AND METHODS

All procedures were approved by the Institutional Animal Care and Use Committees at the University of Pennsylvania and the Michael J. Crescenz Veterans Affairs Medical Center and adhered to the guidelines set forth in the NIH Public Health Service Policy on Humane Care and Use of Laboratory Animals (2015).

For the current study, specimens were obtained from a tissue archive of castrated male pigs subjected to a single mild TBI. This tissue archive was also used in Grovola et al. (25). All pigs were 5 to 6 months old, sexually mature (considered to be young adult), Yucatan miniature pigs at a mean weight of 34 ± 4 kg (total n = 29, mean ± SD). Pigs were fasted for 16 hours then anesthesia was induced with 20 mg/kg of ketamine and 0.5 mg/kg of midazolam. Following induction, 0.1 mg/kg of glycopyrrolate was subcutaneously administered and 50 mg/kg of acetaminophen was administered per rectum. All animals were intubated with an endotracheal tube and anesthesia was maintained with 2% isoflurane per 2 liters O₂. Heart rate, respiratory rate, arterial oxygen saturation, and temperature were continuously monitored throughout the experiment. A forced-air temperature management system was used to maintain normothermia throughout the procedure.

In order to attain closed-head diffuse mild TBI in animals, we used a previously described model of head rotational acceleration in pigs (26, 27). Similar methods were described in Grovola et al. (25). Briefly, each animal's head was secured to a bite plate, which itself was attached to a pneumatic actuator and a custom assembly that converts linear motion into angular momentum. The pneumatic actuator rotated each animal's head in the coronal plane, reaching an angular velocity between 165 and 185 radians per second (rad/s) for the lower-level injured group (n = 4) and 230–270 rad/s for the higher-level injured group (n = 15). Any presence of apnea was recorded (maximum apnea time = 45 s), and animals were hemodynamically stabilized if necessary. No animals were excluded from the study due to apnea or hemodynamic instability. Sham animals (n = 10) underwent identical protocols, including being secured to the bite plate, however, the pneumatic actuator was not initiated. All animals were transported back to their housing facility, monitored acutely for 3 hours, and given access to food and water. Afterward, animals were monitored daily for 3 days by veterinary staff.

At 3 days post-injury (DPI) (n = 4), 7 DPI (n = 4 at 165–185 rad/s; n = 5 at 230–270 rad/s), 30 DPI (n = 3), or 1-year post-injury (YPI) (n = 3), animals were induced and intubated as described above. Sham animals survived for 7 days (n = 4), 30 days (n = 1), or 1 year (n = 5). While under anesthesia, animals were transcardially perfused with 0.9% heparinized saline followed by 10% neutral buffered formalin (NBF). Animals were then decapitated, and tissue was stored overnight in 10% NBF at 4°C. The following day, the brain was extracted, weighed, and post-fixed in 10% NBF at 4°C for 1 week. To block the tissue, an initial coronal slice was made immediately rostral to the optic chiasm. The brain was then blocked into 5 mm thick coronal sections from that point by the same investigator. This allowed for consistent blocking and section coordinates across animals. All blocks of tissue were paraffin-embedded and 8 µm thick sections were obtained using a rotary microtome.

Four sections from each specimen––one containing striatal tissue (approximately 10 mm anterior to the optic chiasm), one containing anterior aspects of hippocampal tissue (approximately 10 mm posterior to the optic chiasm), one containing posterior aspects of hippocampal tissue (approximately 15 mm posterior to the optic chiasm), and one containing cerebellar tissue (approximately 35 mm posterior to the optic chiasm)––were used for the ensuing Amyloid Precursor Protein (APP) histological analysis. Additional histological analysis examined only two sections from each specimen––one containing anterior aspects of hippocampal tissue and one containing posterior aspects of hippocampal tissue, as these sections displayed increased APP pathology in specific neuroanatomical regions. Histological analysis of the corpus callosum only included sections with anterior hippocampal tissue, as sections with posterior hippocampal tissue did not contain corpus callosum.

For 3,3′-Diaminobenzidine (DAB) immunohistochemical labeling, we used a protocol outlined in Johnson et al. (5). Briefly, slides were dewaxed in xylene, rehydrated in ethanol and de-ionized water. Antigen retrieval was completed in Tris-EDTA buffer pH 8.0 using a microwave pressure cooker then blocked with normal horse serum. Slides were incubated overnight at 4°C using either an anti-mouse APP (22C11) (Millipore, MAB348, 1:80,000), an anti-mouse GFAP (SMI-22) (Millipore, NE1015, 1:12,000), or an anti-rabbit Iba-1 (Wako, 019-19741, 1:4000) primary antibody. The following day, slides were rinsed in PBS and incubated in a horse anti-mouse/rabbit biotinylated IgG secondary antibody (VECTASTAIN Elite ABC Kit, Vector Labs, PK-6200). Sections were rinsed again, then incubated with an avidin/biotinylated enzyme complex (VECTASTAIN Elite ABC Kit), rinsed again, and incubated with the DAB enzyme substrate (Vector Labs, SK-4100) for 7 min. Sections were counterstained with hematoxylin, dehydrated in ethanol, cleared in xylene, and finally coverslipped using cytoseal. All sections were stained in the same histological sample run. All sections were imaged and analyzed at 20× optical zoom using an Aperio CS2 digital slide scanner (Leica Biosystems Inc., Buffalo Grove, IL).

For Luxol Fast Blue (LFB) staining, slides were dewaxed in xylene, and rehydrated in ethanol and deionized water. Slides were placed in a solution of 0.1% Solvent Blue 38 (Sigma, S-3382) and 95% ethanol warmed to 60°C for 4 h, then differentiated in a lithium carbonate solution followed by 70% ethanol. Slides were counterstained in cresyl violet solution (Sigma, C5042), dehydrated in ethanol, cleared in xylene, and finally coverslipped using cytoseal. All slides were stained for LFB in the same histological sample run.

To assess brain atrophy, we examined the size of the lateral ventricle during gross pathological evaluation at the level of our initial coronal slice made immediately rostral to the optic chiasm. To measure the ventricle-to-brain ratio, we drew a region of interest to contain all brain parenchyma followed by regions of interest containing the lateral ventricles to determine area using ImageJ software. Ventricle-to-brain ratio was calculated as the total ventricular area divided by total brain area, multiplied by 100 so that the ratio is reported in whole numbers.

For APP semi-quantitative analysis, we initially characterized four specimens (three 7 DPI and one sham) and stained sections every 5 mm throughout the brain and brainstem for APP. Based on these slides, we identified six anatomical regions that contained APP pathology: periventricular white matter, striatum, ventral thalamus, dorsal thalamus, fimbria/fornix, and cerebellum. These regions were assessed by two blinded observers in the four previously described tissue sections for every specimen and given a 0–3 pathological burden score based on the amount of APP+ axons in the region (Figure 1A–C). The scores were summed then divided by the number of anatomical regions to provide a single, averaged pathological score for each specimen.

For astrocyte semi-quantitative analysis, hippocampus and periventricular white matter were assessed in two sections per specimen, as well as inferior temporal gyrus and cingulate gyrus––two anatomical regions without APP pathology. We have adapted a semi-quantitative scale from Sofroniew et al. to histologically classify the progressive severity of reactive astrocytes (28). Each region was given a 0–3 glial fibrillary acidic protein (GFAP) reactivity score based on cell body size and density of GFAP+ cells in the region (Figure 2A–D). The scores were summed then divided by the number of anatomical regions to provide a single, averaged reactivity score for each specimen.

For microglia cell density, Fiji software (National Institute of Health) was used to convert the ionized calcium-binding adapter protein-1 (Iba-1)-stained images to grayscale and perform color deconvolution, and then the “Analyze Particles” plugin was used to count cells in an automated fashion using an objective set of exclusion parameters (29). Particles less than 20 µm² were excluded as these tended to be DAB-stained microglial processes in the field of view, detached from a microglial cell body.

For Iba-1 skeletal analysis, we employed methods similar to Morrison et al., who imaged three coronal brain sections per animal twice, once in each left and right hemisphere, for analysis (23). The current study imaged five 40× images per anatomical region for analysis. The number of images were determined by power analysis of pilot skeletal analysis data. Specifically for the pilot study, we analyzed one image in the hippocampal molecular layer from one animal at each time point post-injury and calculated the effect sizes. A moderate effect size (Cohen's d = 0.50) was observed between several groups. Using this effect size, an a priori power analysis required a sample size of five images per animal to achieve a power of 0.80. To conduct skeletal analysis, all Iba-1 positive cells in each 40× field were manually selected, and the image was deconvoluted using Fiji software. Bandpass filters, unsharp mask, and close plugins were applied before converting the image to binary, skeletonizing, and removing skeletons not overlaid with the manually selected cells (Figure S1). The Analyze Skeleton plugin was then applied to quantify the skeletal features such as number of process branches, junctions, process endpoints, and slab voxels in order to measure changes in microglia ramification (30). For each image, each feature was summed then divided by the total number of cells, thus providing a single field average normalized per cell. Therefore, we examined five values from five images in the same histological slide for each animal in each anatomical region, which serves as a repeated measure, regional analysis. Slab voxels were then multiplied by the volume of the voxel to calculate the summed process length per cell.

For LFB analysis, measurements of the superior to inferior extent of the corpus callosum were obtained at five points along the mediolateral extent: at its juncture with the cingulate gyrus in both hemispheres as the lateral boundaries, at the midline of the corpus callosum, and midway between the corpus callosum midline and these lateral boundaries. These five measurements were averaged for each specimen. To measure the color intensity of the staining, the RGB color components were measured in ImageJ on a 0–255 AU scale. The scale for the blue color component was then inverted so that a zero value would indicate the whitest color while a 255 value would indicate the bluest color.

Statistical analysis was performed using GraphPad Prism statistical software (GraphPad Software Inc. La Jolla, CA). Due to low sample size, the 230–270 rad/s injured group's APP, GFAP, Iba-1 cell density, corpus callosum thickness, and LFB color intensity data were analyzed with a Kruskal–Wallis test and Dunn's multiple comparisons. Kruskal–Wallis test results are reported as (H (degrees of freedom) = H test statistic, p value). The 165–185 rad/s injured group's APP data were analyzed via a two-tailed Mann–Whitney test. Mann–Whitney results are reported as (U = U test statistic, p value). Nonlinear regression lines were created via an exponential growth equation. Goodness of fit is quantified using the standard deviation of the residuals (Se), the vertical distance (in Y units) of the experimental data point from the regression line, with a lower Se score indicative of a better predictive model. The skeletal analysis was statistically assessed via one-way analysis of variance (ANOVA) and Tukey's multiple comparisons test. One-way ANOVA results are reported as (F (degrees of freedom numerator/degrees of freedom denominator) = F value, p value). Mean, standard deviation, and 95% confidence intervals were reported. Differences were considered significant if p < 0.05. As this was an archival study, power calculations were not used to determine the number of specimens for each experimental group; the current study used all available specimens exposed to a single mild TBI. The number of images chosen for skeletal analysis was determined by power analysis from a pilot study.

3 RESULTS

3.5 Microglia skeletal analysis revealed morphological changes in the periventricular white matter at 7 DPI

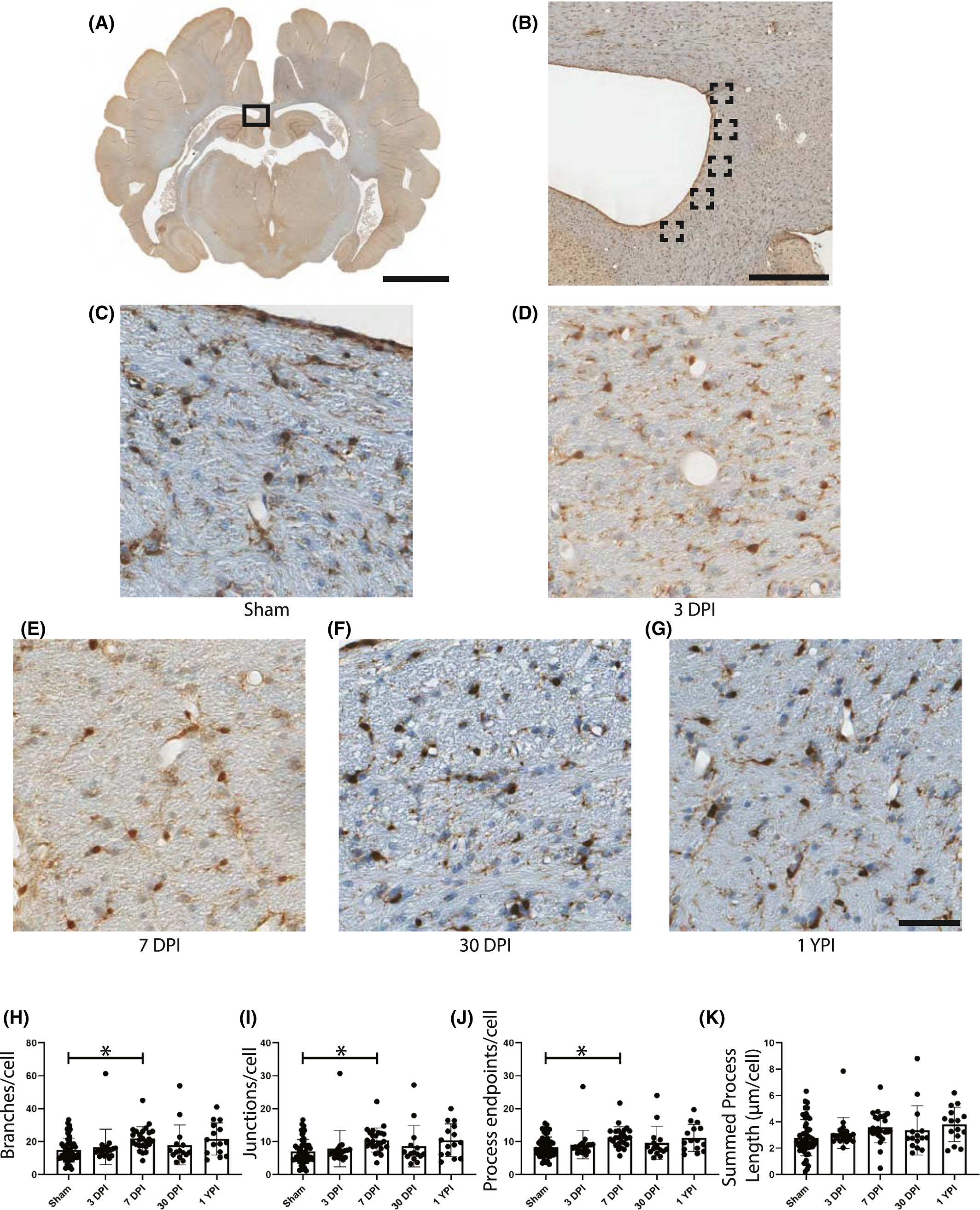

Microglia have been shown to alter their morphology in response to a change in CNS homeostasis (18). Therefore, we first quantified potential morphological changes in the periventricular white matter, a region with increased APP pathology, via automated skeletal analyses (Figure S1). As there were no significant changes in APP pathology burden or GFAP reactivity in the 165–185 rad/s injured group, all microglia skeletal analysis was conducted in the 230–270 rad/s injured group only. In the periventricular white matter, there were significant increases in the number of process branches, junctions, and endpoints per microglia. Specifically, there was an increase in the number of branches per cell (F (4/120) = 3.402, p = 0.0113) at 7 DPI (Mean = 21.81, SD ± 7.23, 95% CI [18.83, 24.80]) compared to sham (Mean = 14.9, SD ± 7.24, 95% CI [12.85, 16.96]) (p = 0.0184) (Figure 3H). There was also a significant change in the number of junctions per microglia (F (4/120) = 3.310, p = 0.0131) with an increase at 7 DPI (Mean = 10.46, SD ± 3.65, 95% CI [8.95, 11.96]) compared to sham (Mean = 7.00, SD ± 3.70, 95% CI [5.95, 8.05]) (p = 0.0223) (Figure 3I). Additionally, there was an increase in the number of endpoints per microglia (F (4/120) = 3.588, p = 0.0084) with an increase at 7 DPI (Mean = 11.33, SD ± 3.20, 95% CI [10.01, 12.65]) compared to sham (Mean = 8.31, SD ± 3.11, 95% CI [7.42, 9.19]) (p = 0.0117) (Figure 3J). However, there were no significant changes in branches, junctions, or endpoints at 30 DPI or 1 YPI, and there was no significant change in summed process length per microglia (F (4/120) = 2.355, p = 0.0576) (Figure 3K).

3.6 Microglia skeletal analysis revealed subacute changes in the anterior hippocampal hilus

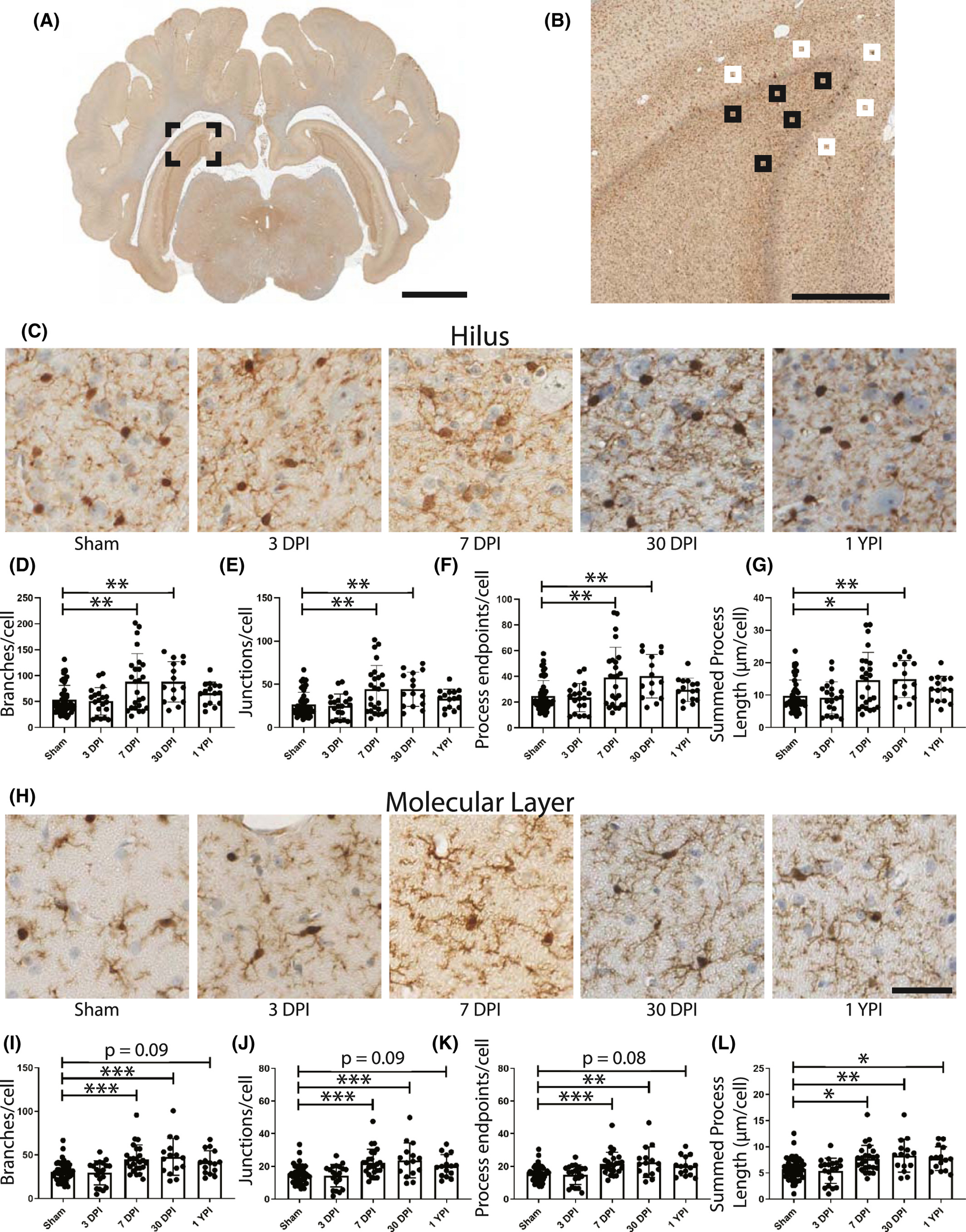

In anterior hippocampal hilus, we observed significant increases to the number of branches, junctions, and endpoints per cell at 3 DPI and 7 DPI, and an increase in summed process length at 3 DPI (Table 1). Specifically, there was a significant increase in the number of branches per cell (F (4/119) = 4.171, p = 0.0034) at 7 DPI (p = 0.0260) and 3 DPI (p = 0.0124) compared to sham (Figure 4D). The number of junctions per cell significantly increased (F (4/119) = 4.104, p = 0.0038) at 7 DPI (p = 0.0324) and 3 DPI (p = 0.0116) compared to sham (Figure 4E). Additionally, the number of endpoints per microglia significantly increased (F (4/119) = 4.389, p = 0.0024) at 7 DPI (p = 0.0165) and 3 DPI (p = 0.0128) compared to sham (Figure 4F). Finally, the summed process length per cell increased (F (4/119) = 3.854, p = 0.0056) at 3 DPI compared to sham (p = 0.0076) (Figure 4G). There were no significant changes at 30 DPI or 1 YPI.

TABLE 1. Skeletal analysis features in anterior hippocampal hilus

	Branches/cell	Junctions/cell	Endpoints/cell	Summed process length (µm)/cell
Sham	46.76 ± 38.81, 95% CI [35.73, 57.79]	23.29 ± 19.84, 95% CI [17.65, 28.93]	21.80 ± 16.44, 95% CI [17.13, 26.47]	8.504 ± 6.78, 95% CI [6.58, 10.43]
3 DPI	87.82 ± 54.64, 95% CI [61.49, 114.2]	44.52 ± 28.94, 95% CI [30.57, 58.47]	38.91 ± 20.77, 95% CI [28.90, 48.92]	15.84 ± 9.69, 95% CI [11.17, 20.51]
7 DPI	81.06 ± 43.07, 95% CI [63.28, 98.84]	40.48 ± 21.87, 95% CI [31.46, 49.51]	36.82 ± 18.43, 95% CI [29.21, 44.42]	13.42 ± 6.86, 95% CI [10.59, 16.26]
30 DPI	66.87 ± 33.81, 95% CI [48.15, 85.60]	33.27 ± 17.02, 95% CI [23.84, 42.70]	31.10 ± 14.96, 95% CI [22.81, 39.39]	11.13 ± 4.96, 95% CI [8.38, 13.88]
1 YPI	78.11 ± 67.92, 95% CI [40.50, 115.7]	39.13 ± 34.64, 95% CI [19.95, 58.31]	35.54 ± 29.03, 95% CI [19.47, 51.62]	13.41 ± 11.83, 95% CI [6.86, 19.96]

• All values are reported as mean ± standard deviation, 95% confidence interval [Lower 95% CI, Upper 95% CI].

3.8 Microglia skeletal analysis of posterior hippocampus revealed subacute changes in the hilus and molecular layer

In posterior hippocampal hilus, we observed significant increases to the number of branches, junctions, endpoints, and summed process length per cell at 7 DPI and 30 DPI (Table 3). There was a significant increase in the number of branches per cell (F (4/120) = 6.483, p < 0.001) at 7 DPI (p = 0.0011) and 30 DPI (p = 0.0085) compared to sham (Figure 5D). The number of junctions per cell significantly increased (F (4/120) = 6.446, p < 0.0001) at 7 DPI (p = 0.0010) and 30 DPI (p = 0.0094) compared to sham (Figure 5E). Additionally, the number of endpoints per microglia significantly increased (F (4/120) = 6.383, p = 0.0001) at 7 DPI (p = 0.0016) and 30 DPI (p = 0.0069) compared to sham (Figure 5F). The summed process length per cell increased (F (4/120) = 5.028, p = 0.0009) at 7 DPI (p = 0.0095) and 30 DPI (p = 0.0223) compared to sham (Figure 5G).

TABLE 3. Skeletal analysis features in posterior hippocampal hilus

	Branches/cell	Junctions/cell	Endpoints/cell	Summed process length (µm)/cell
Sham	53.35 ± 27.91, 95% CI [45.42, 61.29]	26.58 ± 14.25, 95% CI [22.53, 30.63]	24.81 ± 12.02, 95% CI [21.39, 28.22]	9.75 ± 4.90, 95% CI [8.36, 11.14]
3 DPI	50.46 ± 26.47, 95% CI [38.07, 62.84]	25.16 ± 13.66, 95% CI [18.77, 31.56]	23.45 ± 11.02, 95% CI [18.29, 28.61]	9.18 ± 4.95, 95% CI [6.87, 11.50]
7 DPI	88.09 ± 54.43, 95% CI [65.62, 110.6]	44.29 ± 27.58, 95% CI [32.91, 55.68]	39.28 ± 23.38, 95% CI [29.62, 48.93]	14.59 ± 8.59, 95% CI [11.05, 18.14]
30 DPI	88.29 ± 38.77, 95% CI [66.83, 109.8]	44.19 ± 19.58, 95% CI [33.34, 55.03]	40.09 ± 16.92, 95% CI [30.72, 49.46]	14.99 ± 5.74, 95% CI [11.81, 18.17]
1 YPI	65.91 ± 21.61, 95% CI [53.94, 77.88]	33.17 ± 11.10, 95% CI [27.02, 39.31]	29.57 ± 9.04, 95% CI [24.57, 34.57]	11.90 ± 3.92, 95% CI [9.73, 14.07]

• All values are reported as mean ± standard deviation, 95% confidence interval [Lower 95% CI, Upper 95% CI].

In posterior hippocampal molecular layer, we observed significant increases to the number of branches, junctions, endpoints, and summed process length per cell at 7 DPI and 30 DPI (Table 4). Moreover, we found a significant increase in summed process length at 1 YPI. Specifically, there was a significant increase in the number of branches per cell (F (4/120) = 8.361, p < 0.001) at 7 DPI (p = 0.0007) and 30 DPI (p = 0.0008) compared to sham (Figure 5I). The number of junctions per cell significantly increased (F (4/120) = 8.347, p < 0.0001) at 7 DPI (p = 0.0008) and 30 DPI (p = 0.0007) compared to sham (Figure 5J). Additionally, the number of endpoints per microglia significantly increased (F (4/120) = 7.954, p > 0.0001) at 7 DPI (p = 0.0009) and 30 DPI (p = 0.0016) compared to sham (Figure 5K). The summed process length per cell increased (F (4/120) = 6.736, p < 0.0001) at 7 DPI (p = 0.0126), 30 DPI (p = 0.0044), and 1 YPI (p = 0.0316) compared to sham (Figure 5L). This increase in summed process length is the only statistically significant change at 1 YPI in the posterior hippocampus.

TABLE 4. Skeletal analysis features in posterior hippocampal molecular layer

	Branches/cell	Junctions/cell	Endpoints/cell	Summed process length (µm)/cell
Sham	30.76 ± 10.53, 95% CI [27.77, 33.75]	14.99 ± 5.38, 95% CI [13.46, 16.52]	15.50 ± 4.50, 95% CI [14.22, 16.78]	5.78 ± 2.05, 95% CI [5.19, 6.36]
3 DPI	29.45 ± 13.75, 95% CI [23.02, 35.88]	14.28 ± 6.94, 95% CI [11.04, 17.53]	14.90 ± 6.08, 95% CI [12.06, 17.75]	5.42 ± 2.40, 95% CI [4.30, 6.54]
7 DPI	45.03 ± 16.22, 95% CI [38.34, 51.73]	22.15 ± 8.26, 95% CI [18.74, 25.56]	21.62 ± 7.01, 95% CI [18.73, 24.52]	7.67 ± 2.60, 95% CI [6.60, 8.75]
30 DPI	47.82 ± 21.26, 95% CI [36.05, 59.59]	23.70 ± 10.71, 95% CI [17.76, 29.63]	22.56 ± 9.34, 95% CI [17.39, 27.73]	8.33 ± 3.16, 95% CI [6.58, 10.07]
1 YPI	41.43 ± 13.43, 95% CI [33.99, 48.87]	20.37 ± 6.78, 95% CI [16.61, 24.12]	20.17 ± 5.90, 95% CI [16.90, 23.44]	7.74 ± 2.26, 95% CI [6.49, 8.99]

• All values are reported as mean ± standard deviation, 95% confidence interval [Lower 95% CI, Upper 95% CI].

4 DISCUSSION

A history of mild TBI is associated with chronic health problems such as reduced memory performance and an increased likelihood of neurological disorders, as well as life-long healthcare costs (2, 33, 34). After a single mild TBI caused by head rotation at 230–270 rad/s using our pig model of closed-head diffuse brain injury, we found significant increases in APP pathology burden at 3 DPI and 7 DPI, which resolved by 30 DPI. Importantly however, we did find microglial morphological changes out to chronic time points, indicating a more ramified phenotype and possible altered function. Specifically, we found an increase in the number of branches, junctions, endpoints, and summed process length per microglia at acute and subacute time points in the hippocampal hilus, and at acute, subacute, and chronic time points in the hippocampal molecular layer. Moreover, we found an increase in the number of branches, junctions, and endpoints in the periventricular white matter at 7 DPI, which coincides with an increase in APP pathology. These results support our original hypothesis that acute axonal pathology and regional microglial morphological changes will occur after a single mild TBI. These morphological changes coincide with our previous study that demonstrated microglia density increases in hippocampal subregions after a single mild TBI (25).

In the current study, we assessed brain weight and ventricle-to-brain ratio as gross pathological measurements of brain integrity. However, there were no significant differences between groups for brain weight and ventricle-to-brain ratio. Ventricular dilation is a frequent finding after TBI as neuronal atrophy may occur accompanied by post-traumatic hydrocephalus, yet ventricular dilation typically occurs after moderate-to-severe TBI, or in cases of chronic traumatic encephalopathy (CTE) (31, 35, 36). Single mild TBI may not produce sufficient neuronal atrophy within a year to be detected by these gross pathological measures. Future studies should continue to assess brain weight and ventricle-to-brain ratio at time points greater than 1 YPI and after repetitive injuries.

Utilizing immunohistochemistry to provide a more detailed pathological assessment, we measured the APP pathology burden within the tissue, as APP accumulations are the hallmark pathology of TBI and axonal injury. Following axonal injury, anterograde vesicular transport along the axon is disrupted and APP accumulates intracellularly (32, 37). Traditionally, this protein buildup will progress from hours to months post-injury and the distal axonal segment may gradually undergo Wallerian degeneration, where any cellular debris would be phagocytosed primarily by microglia (38, 39). These APP+ axons can therefore take the form of discrete bulb formations at the end of disconnected axons or as varicosities along the length of an axon depending on its time course through this process. APP pathology has historically been characterized in this pig model of injury (40). However, we used a new strain of pig that has a lower peak body weight and is more amenable to animal handling out to 1 year following injury. Therefore, re-characterization of APP pathology was necessary. We observed an increase in the overall APP pathology burden at 7 DPI at forces of 230–270 rad/s and no change at forces of 165–185 rad/s (Figure 1). This may inform future rotational injury studies of the forces needed to obtain significant axonal injury. Moreover, when we assessed specific neuroanatomical regions for APP pathology, we noted an increase at 3 DPI and 7 DPI in the periventricular white matter and at 7 DPI in the fimbria/fornix surrounding the hippocampus. This is consistent with previous pathological assessments of this injury model. Browne et al. created regional schematics of APP+ axons at 7 DPI in both single coronal and axial rotational injuries, illustrating axonal pathology within the deep white matter (40). Importantly, we examined APP pathology out to 1 YPI, but did not observe significant pathology at this chronic time point, thus suggesting significant clearance of damaged axons by phagocytosis in our model. Yet, this does not necessarily mean that all damaged axons are phagocytosed. Some human postmortem evidence suggests that axonal pathology may occur for years after injury, though the degree of axonal pathology is less extensive than acute axonal pathology (41). Additionally, APP staining for axonal injury may not identify all injured axons. Subpopulations of injured axons may undergo calcium-dependent proteolysis of the cytoskeleton, while other axons may experience physiological changes such as increased intra-axonal calcium or sodium (5, 42, 43). Neuronal plasma membrane disruptions may also occur causing a loss of ionic gradients and osmotic imbalance (3, 44). Future studies utilizing multiple markers for trauma-induced alterations will identify a more comprehensive profile of mild TBI pathology, potentially informing clinical outcomes.

We also examined the changes to microglial morphology in anatomical subregions in response to mild TBI. We began with the periventricular white matter, a region with increased axonal pathology, where we found an increase in the number of microglial branches, junctions, and endpoints at 7 DPI. While microglia morphological changes have been noted following injury in many studies after TBI, microglia skeletal analysis has become increasingly utilized for in-depth quantitative morphological analysis, particularly when subtle changes are suspected after mild injuries (23, 24, 45). Morrison et al. employed skeletal analysis in a rodent model of fluid percussion injury, finding a decrease in microglia ramification as measured by summed process length and number of endpoints around the site of impact (23). In contrast, we found an increase in microglia ramification in a region vulnerable to TBI. These conflicting responses may be due to the different species and injury model used in the current study versus the Morrison study. Gorse and Lafrenaye explored these species differences in neuro-immune interactions while characterizing the interaction of APP+ axons with microglia in both rats and pigs at 6 h post-injury and 1 DPI; rats had a reduction in microglia-to-injured axon interactions at 6 h while pigs had an increase at 1 DPI (46). While the current study did not examine the direct interactions of microglia and APP+ axons, we did detect an increase in microglia ramification in a region with significantly increased APP pathology. Future studies in our model could examine the role of microglia around APP pathology to determine if microglia are adopting a more phagocytic behavior, potentially contributing to synapse remodeling, or promoting neurotoxicity by increasing inflammatory cytokine release (18, 47).

Microglia morphological changes were also seen in subregions of the hippocampus. It is important to note that we did not detect APP pathology in the hippocampus, but rather in the fimbria/fornix, the main efferent white matter tract from the hippocampus, which also contains some afferent projections to the hippocampus. The hippocampus, a structure essential for memory formation, has been reported to have synaptic dysfunction and neuropathological alterations after a single mild TBI in both rat and pig preclinical models (25, 48-51). As the hippocampus is vulnerable to TBI across different preclinical models, in-depth microglia morphological analysis is warranted to provide additional neuropathological details. In a previous study, we detailed an increase in microglia density in hippocampal subregions after injury, particularly in the molecular layer (25). We expanded on that microglial analysis in the current study using skeletal analysis. In both anterior and posterior hippocampal hilus, we found various morphological changes out to 30 DPI. Yet, in both anterior and posterior hippocampal molecular layer, we found morphological changes out to 1 YPI. This suggests that the molecular layer may be vulnerable to chronic inflammation after a single mild TBI.

Unfortunately, we are limited in the interpretation of these morphological changes at this time. Traditional microglial evaluation attempted to classify resting or inactivated microglia as ramified, whereas activated microglia are ameboid. While phagocytic microglia tend to exhibit an ameboid morphology, ramified microglia are also active and continually survey the parenchyma by clearing metabolic products and tissue debris, as well as monitoring the functional status of synapses (52, 53). Additionally, transcriptomic profiling of microglia has shown a much more dynamic response to injury: microglial changes are context dependent and cannot fit into a classic M1 (pro-inflammatory) or M2 (anti-inflammatory) bimodal arrangement (54, 55). Therefore, morphological changes in microglia likely only indicate that microglia have detected a change in homeostasis (18), and it appears that microglia in our model register a homeostatic change in the molecular layer out to 1 YPI. It is possible that our observed microglial changes indicate increased surveillance for debris and synapse functionality, but additional experiments to assess neuronal and synaptic integrity are needed to understand this complicated response.

Moreover, our molecular layer skeletal analysis examined photomicrographs immediately superior to the granule cell layer. This region is where the commissural/associational fibers terminate from the hilar mossy cells. While we did not find chronic hilar changes, efferent fibers from hilar mossy cells may still be chronically altered in the molecular layer. Future experiments should consider both whole cell electrophysiological recordings on mossy cells, as well as local field potential recordings in the molecular layer, at chronic time points to better characterize functional changes to the hippocampus. Circuit level disruption of the hippocampus has been reported from our group in ex vivo hippocampal slices and presynaptic staining around mossy cells have increased at 7 DPI (25, 51). The synthesis of this physiological and histological data suggests that the next steps should be an examination of the mossy cell outputs.

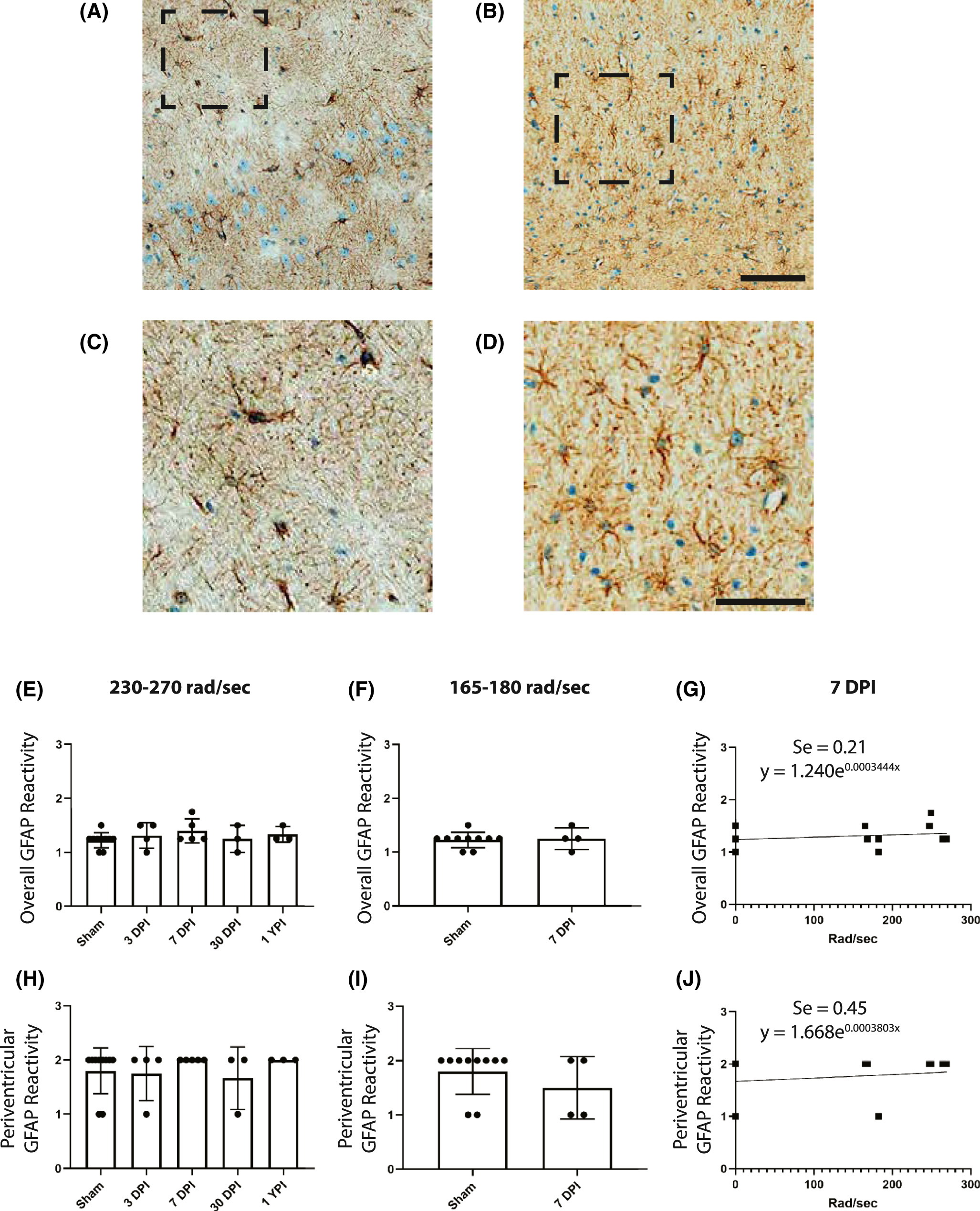

We also assessed GFAP reactivity following injury but did not observe any significant changes at any time point post-injury compared to sham. This is particularly interesting as reactive astrocytes are widely considered a hallmark pathology of diseased or injured CNS tissue (28). In the healthy brain, astrocytes maintain the extracellular space by buffering neurotransmitters and regulating osmolarity; however in TBI pathogenesis, astrocytes can undergo genomic and proliferative changes that may vary depending on the severity of the injury and location in the brain (for a review, see (56)). Within this model of closed-head, single mild TBI, colleagues have described blood–brain barrier breakdown through the histological colocalization of fibrinogen and astrocytes at 3 DPI (57). While astrocyte reactivity was not noticeable on its own in the current study, ongoing studies are assessing fibrinogen extravasation and astrocytic involvement in pigs at these chronic time points.

Finally, we conducted histological analyses to assess the corpus callosum following injury. No overt APP pathology was detected in the corpus callosum and there were no significant changes in skeletal analysis features compared to sham. In addition to skeletal analysis, we also measured the thickness of the corpus callosum and the staining intensity of LFB to measure potential demyelination; however, there were no significant changes. Johnson et al. had previously found that the thickness of the corpus callosum was reduced with survival greater than 1 YPI in moderate-to-severe TBI patients, and that ongoing axonal pathology was paired with CD68+ microglia (8). Indeed, progressive white matter pathology and corpus callosum volume loss has been noted in both human TBI and other animal models of TBI (41, 58, 59). Yet in this closed-head rotational model of single mild TBI, no significant changes to the corpus callosum have been detected out to 1 YPI. Examining specimens for corpus callosum deficits at time points greater than 1 YPI may be difficult to conduct, but they may be necessary to truly assess any potential chronic degeneration. Additional immunohistochemical staining, such as myelin basic protein, and genomic profiling may yield other pathological details into the state of the corpus callosum over time.

Overall, we have detailed a distinct temporal sequence of axonal pathology after TBI followed by residual changes in glial reactivity (Table 5). At 3 DPI, APP increased in the periventricular white matter and microglia developed a more ramified morphology in the anterior hippocampus. At 7 DPI, APP increased overall as well as in the periventricular white matter and fimbria/fornix. Simultaneously, microglia became more ramified in the periventricular white matter and in both anterior and posterior hippocampus. At 30 DPI, all APP pathology resolved yet microglia maintained a more ramified phenotype in posterior hippocampal hilus and molecular layer. Finally, at 1 YPI, microglia displayed a more ramified phenotype in both anterior and posterior hippocampal molecular layers.

While the current study examined single mild TBI in pigs, human studies have detailed diverse pathological and functional changes after single moderate-to-severe TBI or multiple mild TBIs. Persistent neuroinflammatory pathology has been described out to 18 years after single moderate-to-severe TBI in humans (8). Similarly, chronic inflammation, as well as neuronal loss, white matter degradation, and tau pathology have been documented in repetitive mild TBI, particularly in cases of CTE (36, 60). Moreover, mounting evidence from the Chronic Effect of Neurotrauma Consortium (CENC) multi-center study suggests that three or more mild TBIs are associated with higher exosomal tau, chronic neurobehavioral problems, balance disturbances, and chronic pain (61-63). Future studies in our model should not only study the functional outcomes but also repetitive injuries as an increasing body of literature associates repetitive mild TBI with chronic sequelae.

In summary, we demonstrated that a single, closed-head, mild TBI is associated with axonal pathology out to 7 DPI and alterations to microglia homeostasis out to chronic time points in certain anatomical subregions. This suggests that TBI can produce persistent changes to the neuroimmune response. Microglia activity has profound clinical significance as microglia-related pathways have become increasingly linked to Alzheimer's disease and other neurodegenerative disease pathogenesis (64). Moreover, microglia may contribute to synapse loss, which is correlated to cognitive decline (65). However, further experimentation is needed to supplement our histopathology as we do not know if these microglia morphological changes reflect persistent changes in cellular function. Changes to gene expression followed by in situ hybridization may provide a wide array of inflammatory markers within an appropriate spatial context. Additionally, characterization of complement system activation and cytokine production may identify the therapeutic targets. MRI or other neuroimaging studies would allow us to track neuroinflammation and white matter degeneration in a single specimen over time, providing us additional details that terminal time point pathology cannot provide. Finally, as various behavioral and cognitive changes have been clinically identified as potential post-TBI outcomes, future studies in this model should conduct behavioral experiments related to learning, memory, and socialization (2, 66). While it is difficult to obtain and characterize human tissue for corresponding analysis, it is hoped that further understanding of the chronic neuroinflammatory sequela of mild TBI in preclinical models such as this will translate to advances in the treatment and prevention of the long-term consequences of TBI in people.
