Genetic diversity and phylogeographic structure of Bactrian camels shown by mitochondrial sequence variations

The Bactrian camel is adapted to the specific weather conditions of both desert and semi-desert regions and is an important livestock species in many areas. The Bactrian camel's wool, meat and milk are all useful products, the latter two especially due to their high nutritional value. In addition, these camels are used as transportation within small, remote regions.

The domestic Bactrian camel is distributed mainly in central Asian countries, including Mongolia, China, Kazakhstan, Turkmenistan, North Eastern Afghanistan, Russia and Uzbekistan (Mirzaei 2012; Vyas et al. 2015). In addition, it is also found in north Pakistan (Isani & Baloch 2000), Iran, Turkey (Moqaddam & Namaz-Zadeh 1998) and India (Vyas et al. 2015). In China, the domestic Bactrian camels are distributed mainly in Inner Mongolia, Xinjing, Qinghai and Gansu, and there are six breeds of Bactrian camel currently recognized: the Alashan, Sunit, Qinghai, Tarim, Zhungeer and Mulei (Jirimutu et al. 2009). The domestic Bactrian camel population of Mongolia is distributed mainly in the following regions: Umnegobi, Dornogobi, Dundgobi, Bayankhongor, Gobi-Altai, Khovd, Uvs and Uvurkhangai (Temuulun et al. 2013). There are three breeds recognized: the Hos Zogdort, Galbiin Gobiin Ulaan and Haniin Hetsiin Huren (Saipolda 2004). The Russian Kalmyk Bactrian camel is found mainly in and around the Astrakhan province. Most of the extant wild Bactrian camels are distributed in the Great Gobi Strictly Protected Areas in Mongolia, with an estimated population size of 350 to 1950 (Hare 1997; Reading et al. 2005; Dovchindorj et al. 2006).

Mitochondrial DNA (mtDNA) has been used to determine the genetic diversity and phylogeography of many animals such as goats (Chen et al. 2005), cattle (Lai et al. 2006) and pigs (Yang et al. 2003). Although these parameters have been studied in domestic Mongolian Bactrian camels (Chuluunbat et al. 2014), they are not yet well understood in Bactrian camels from wider geographical locations. In the present study, we investigated the 809-bp mtDNA fragment nucleotides 15120–15928 (accession no. NC_009628.2) in 113 individuals from seven Chinese breeds, three Mongolian breeds, one Russian breed, one wild breed and two hybrid individuals to investigate the genetic diversity and phylogeography of Bactrian camel populations.

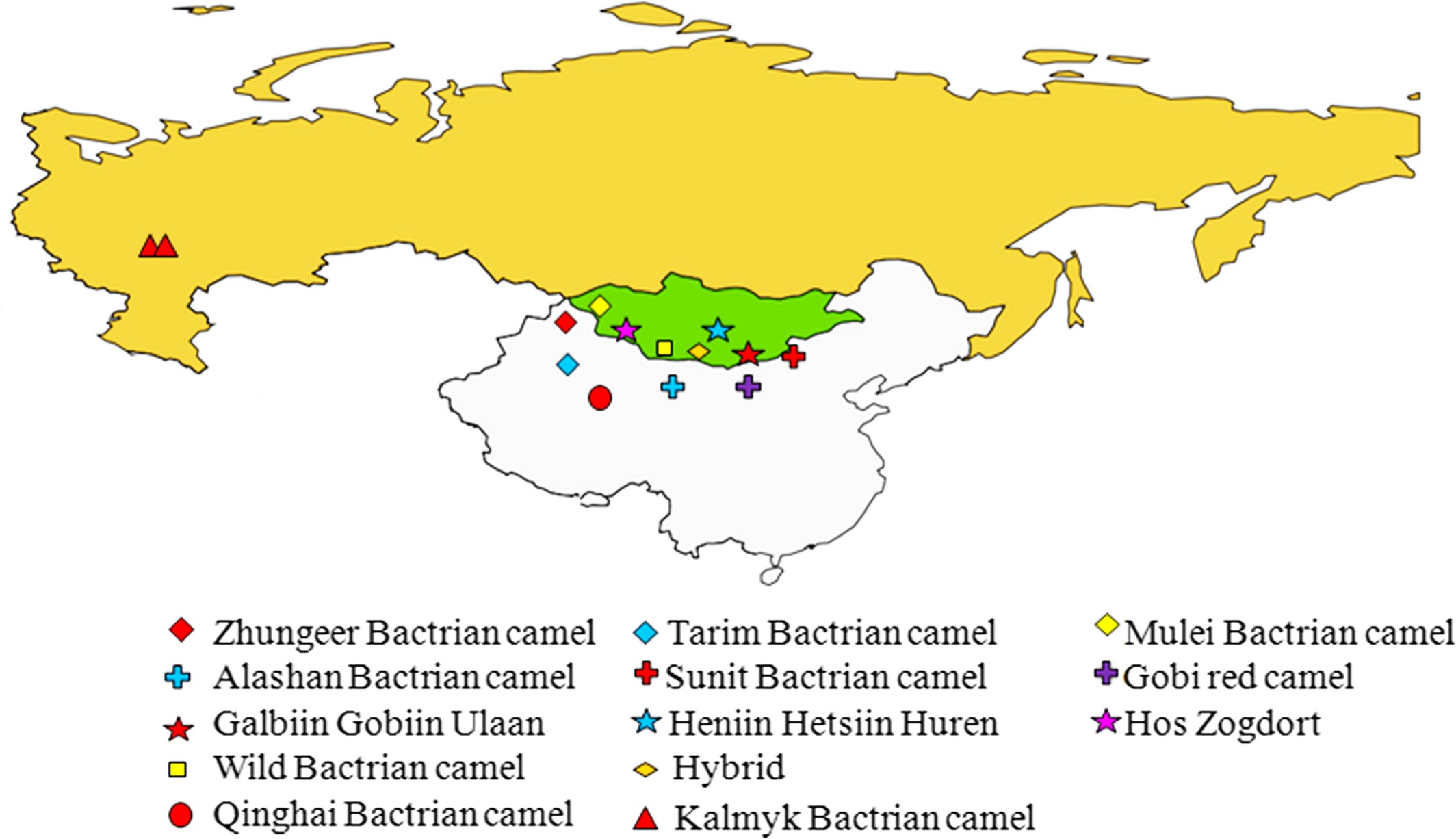

Blood or ear samples from 92 domestic Bactrian camels (Camelus bactrianus) representing 11 domestic breeds were collected from China, Mongolia and Russia (Fig. 1, Table S1). Ear samples were collected from 19 wild Bactrian camels (Camelus ferus) and two hybrid Bactrian camel samples in the Gobi-Altai province of Mongolia (Fig. 1).

Total genomic DNA was extracted from ear samples using a standard phenol–chloroform extraction method and from blood samples using a QIAmp DNA kit (Qiagen). Detailed information on the breeds, geographic regions and sample sizes is given in Table 1. In all, 809 bp of mtDNA (nucleotides 15120–15928; accession no. NC_009628.2) from 113 individuals were sequenced in both directions with two overlapping primer pairs (Silbermayr et al. 2010) on a MegaBACE 1000 sequencing system. The amplicons were aligned to reference sequence NC_009628.2 using codoncode aligner (version 3.0.2).

Sequences of the partial mtDNA were aligned using mega (version 6.0.6) (Kumar et al. 2001). To investigate the comparison research, 23 sequences of mtDNA fragment—six sequences from wild Bactrian camels (EF507800, EF507801, FJ792684, FJ792685, NC_009629 and EF212038) and 17 sequences from domestic Bactrian camels (EF507798, EF507799, EF212037, FJ792680–FJ792683, KF640722–KF640727, KF640729–KF640731 and NC_009628)—were also aligned using the mega program.

The parameters of the mitochondrial polymorphisms were computed using dnasp (version 5.1.0) (Librado & Rozas 2009), including nucleotide diversity (π), the number of haplotypes, haplotype diversity (Hd) and its standard error (SE). A median-joining network (Bandelt et al. 1999) was drawn using the program network (version 4.6.1) to investigate possible relationships among the haplotypes. Phylogenetic trees were constructed using the neighbour-joining method (Saitou & Nei 1987). The analysis of molecular variance (AMOVA) (ExcoYer et al. 1992) was computed using integrated software for population genetics data analysis (arlequin, version 3.5.2) (Excoffier et al. 2007).

The analysis of 809-bp mtDNA sequences in 113 Bactrian camels yielded 25 variable positions defining 15 different haplotypes (Table S2). These haplotypes included six previously described haplotypes (H1–H3, H6, H14 and H15; Silbermayr et al. 2010) and nine new ones (H4, H5, H7–H13; sequences deposited under accession nos. KX377598–KX377606). The largest haplotype group (H1) consisted of 41 individuals, and four haplotype groups (H1, H2, H3 and H14) included more than 10 individuals.

In the domestic Bactrian camel populations, the number of haplotypes detected in each domestic breed varied from two to six, and the haplotype diversity values ranged from 0.9000 ± 0.1610 in the Zhungeer to 0.5110 ± 0.1640 in the Alashan (Table 1). The level of nucleotide diversity (π = 0.00106) and haplotype diversity (Hd = 0.429± 0.089) of all the wild Bactrian camels were both lower than that of domestic Bactrian camels (π = 0.00207, Hd = 0.739 ± 0.035; Table S2). The nucleotide diversity (π = 0.0072) and haplotype diversity (Hd = 0.808 ± 0.025) of all the Bactrian camels in this study were calculated.

A variation was found in mtDNA among camels from China, Russia and Mongolia. The level of nucleotide diversity and haplotype diversity within Mongolia (π = 0.0026, Hd = 0.796 ± 0.048) were slightly higher than that of camels from China (π = 0.0019, Hd = 0.719 ±0.048) and Russia (π = 0.0017, Hd = 0.722 ± 0.159). Furthermore, we combined previously published sequences of Bactrian camel mtDNA fragment with 23 sequences in our data. The analysis showed 25 haplotypes in all 136 sequences, and the levels of nucleotide and haplotype diversity were 0.00897 and 0.972 ± 0.013, respectively.

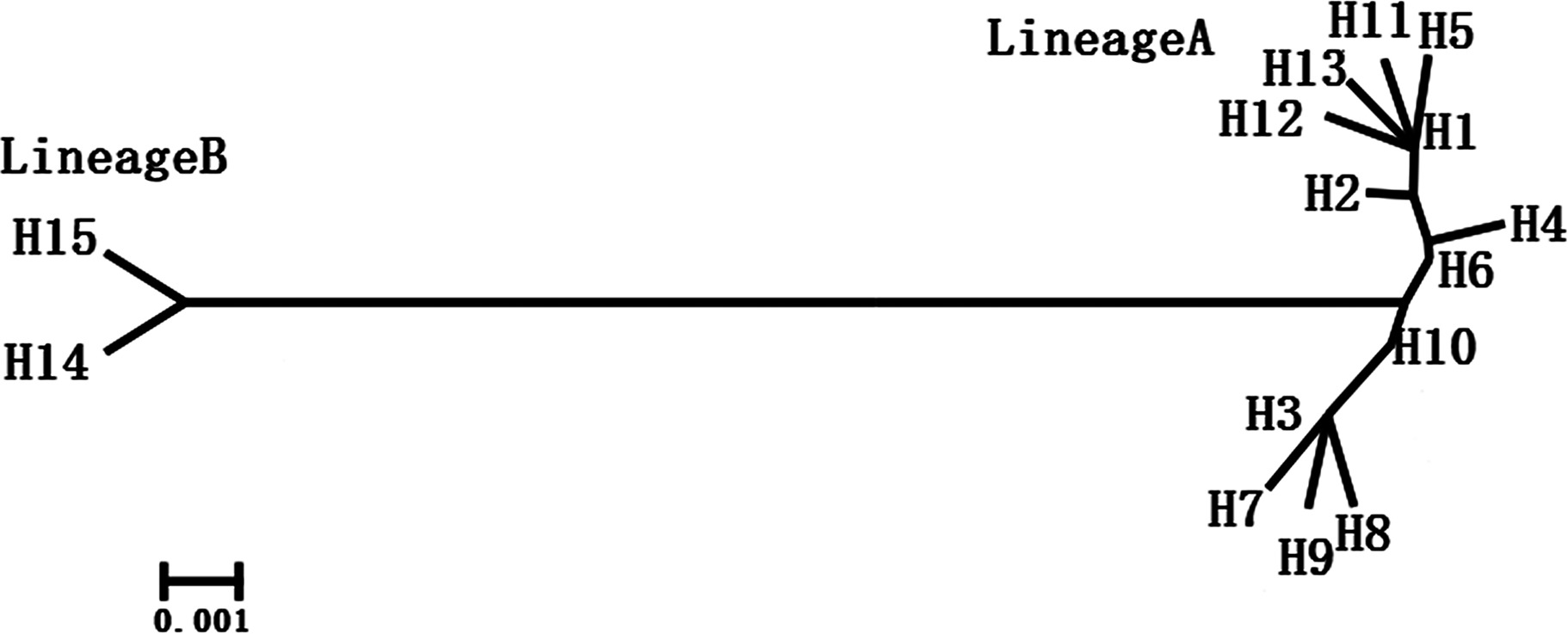

A neighbour-joining phylogenetic tree was constructed to investigate the relationship between the 15 Bactrian camel mtDNA haplotypes (Fig. 2). The result clearly showed that all Bactrian camels were divided into two distinct lineages: A and B. Lineage A included 13 haplotypes from all domestic individuals, and Lineage B included two haplotypes from all wild and hybrid individuals. Furthermore, we combined previously published sequences from six wild Bactrian camels and 17 domestic Bactrian camels with our data to construct a phylogenetic tree using the dromedary camel (Dromedary camelus) as the outgroup (accession no. NC_009849.1) (Fig. S1). The result also supported the above statement and indicated that the wild and domestic Bactrian camel did not share a recent common ancestor and may have a long-term divergence in their maternal origins. This is in agreement with a previous study that showed that the extant wild and domestic Bactrian camel had different maternal origins (Ji et al. 2009).

The two distinct lineages were also identified using a median-joining network method with 25 haplotypes from 136 sequences (Fig. S2). The 23 haplotypes of domestic Bactrian camels showed that breeds from different geographic regions intermingled. Some haplotypes were shared by individuals of different breeds from different geographical regions. In domestic Bactrian camels, all of the three main haplotypes—H1, H2 and H3—were found to comprise Chinese, Russian and Mongolian Bactrian camels. Haplotypes specific to a geographic region were also found. However, these region-specific haplotypes accounted for only a small proportion of our samples (6.2%).

We performed several AMOVA to investigate geographical structuring. AMOVA analysis placed most of the genetic variance (90.14%, P < 0.01) between the wild and domestic camel clusters and little variance within the clusters (9.86%, P < 0.01). This result is similar to that from a previous study (95.64% and 4.36% respectively; Silbermayr et al. 2010).

In conclusion, the domestic Bactrian camel and wild Bactrian camel evolved as two distinct lineages, and it is suggested that they do not have the same maternal origins. The wild Bactrian camels displayed lower levels of nucleotide diversity and haplotype diversity, which may be due to the extremely small effective population size of the wild Bactrian camel. In addition, there was no significant geographical structuring among domestic Bactrian camels, and these results imply that gene flow and genetic admixture may exist between these domesticated Bactrian camels from different geographic regions.
