Does luminance-contrast contribute to a saliency map for overt visual attention?

Subjects

For this experiment five volunteers (two female, three male, age between 24 and 41 years) with uncorrected normal vision were used, four of which (K.C., P.B., R.S., T.F.) were naïve to the purpose of the experiment and none of whom had previously been exposed to the stimuli used. All experiments were undertaken with the understanding and written consent of each subject. Experiments conformed with the institutional and national guidelines for experiments with human subjects and with the Declaration of Helsinki.

Stimuli

All stimuli used in this study are based on natural photographs of local outdoor environment. They depict scenes of open area or in the forest and no man-made objects are visible on these images. Subjectively, they resemble stills from previously recorded natural stimuli by a camera mounted on the head of a cat (Kayser et al., 2003), but are taken with a high quality digital camera (3.3Mega pixel colour mosaic CCD, Nikon Coolpix 995, Tokyo, Japan) for increased spatial resolution. They are then downsampled to a resolution of 1024 × 768 and converted to 8-bit greyscale using the standard MatLab (Mathworks, Natick, MA, USA) function rgb2gray.

As a measure of contrast we follow the definition of Reinagel & Zador (1999): contrast equals the standard deviation of the luminance within a square image region divided by the mean intensity of the image. This definition canonically extends the two-point contrast and is numerically robust. Unless otherwise stated, the length of the square region was chosen to be 80 pixels. For some aspects of later analysis, images were low-pass filtered. This was carried out by applying a two-dimensional Fourier transform to the image, multiplying it with a Gaussian kernel centred at the DC-component and transforming the result back to image space. The width (HWHM) of the kernel will be referred to as cut-off-frequency (f_cut). As the filtering suppresses the contribution of high-frequency components the total contrast is reduced. Note that low-pass filtering was performed for analysis only, and in all cases stimuli were presented at full resolution.

In order to modify contrast within a stimulus without introducing intensity boundaries, we applied the following procedure: Five points (x_i,y_i) were randomly chosen in the image, excluding points closer than 160 pixels to the image boundary. A two-dimensional Gaussian:

with λ = 80 pixel was centered at each of these points. If any of the points were closer to each other than 160 pixels (i.e. 2λ) different random points were selected. Taking the maximum over G_i resulted in the mask:

At each image point the original pixel intensity I₀(x,y) was then modified to:

where 〈I₀〉 denotes the mean of I₀ over the image, and α is the peak contrast modification level. If I(x,y) exceeded the 8-bit range of possible pixel values, the result was cropped to the maximum, respectively, minimum possible value. By this procedure local contrast around the points (x_i, y_i) was increased or decreased, while minimally affecting overall intensity and avoiding the introduction of artificial ‘object’ boundaries. For the experiments described below contrast modification levels from −0.6 to +1.0 were used (Fig. 1A).

Stimuli were generated on a Macintosh G4/800 computer (Apple, Cupertino, CA, USA) using MatLab (Mathworks, Natick, MA, USA) including the Psychophysics Toolbox extensions (Brainard, 1997; Pelli, 1997). The stimuli were presented at 1024 × 768 pixel resolution and 120 Hz refresh rate on a 19-inch computer screen (Hitachi CM 772, Tokyo, Japan), which was located at a distance of 57 cm from the subject.

Recording eye position

Eye position was recorded using a commercial oculometer (Dr Bouis, Karlsruhe, Germany; Bach et al., 1983). This provides two voltage outputs for horizontal and vertical eye position, respectively, which were recorded by a CIO-DAS16/JR/CTR-card (Computer Boards, Mansfield, MA, USA), installed into a i80486DX4 PC (Image Microsystems, McLean, VA, USA) at a sampling rate of 1 kHz. From these voltage data, absolute eye position was computed using the following calibration protocol: before each block of stimuli subjects were instructed to subsequently fix points which appeared on an equally spaced 7 × 7 grid in a 600 × 600 wide pixel region around the screen centre for 2 s each. The coordinate-transform from oculometer output-voltages to image location chosen for the following stimuli was the bilinear transform which minimizes the sum of squared errors for these 7 × 7 fixation points. Additionally each stimulus was preceded by a 2-s fixation period, in which the subject was instructed to fixate the centre of the screen. In the fixation as well as the calibration period, fixation points were presented as low intensity (black) crosses on a medium intensity level (grey) background.

The computers used for stimulus presentation and eye-position recording were synchronized through a digital optical signal, which was located in the lower right corner of the presentation screen and covered to be invisible to the subject. In order to minimize head movements subjects were fixed by a forehead rest, a chin rest and a bite-bar made of thermoplastic impression material (Kerr).

Eye tracking paradigm

In order to avoid any task-specific bias in the eye movements, the sole instruction to the subjects regarding the natural stimuli was to ‘study the images carefully’.

The experiment consisted of four sessions. The first session for all subjects was composed of three blocks, in each of which each of eight different natural images was presented once for 8 s without any modification and in random order. In each of the sessions 2–4, each image was subjected to nine different peak contrast modification levels (−60%, −40%, …, +100%). Using the same eight ‘basis’ images as in the first session, this yields a total of 72 stimuli per session. These were presented for 8 s in random order and split into six blocks of 12 stimuli. For one of the subjects (P.K.) only peak modification levels from −40% to +60% were used instead, yielding four blocks of 12 stimuli per session. In all other aspects the protocol was as with the other subjects as described above. Between sessions subjects were allowed to leave the recording set-up.

In all sessions each block was preceded and succeeded by a calibration period and each stimulus by a fixation period. Blocks were excluded from analysis if the root mean square error of the preceding calibration period was larger than 40 pixel (λ/2), single stimuli were excluded if the error of the preceding fixation period exceeded 40 pixels. We deliberately chose these conservative criteria in order not to miss any potential effects of contrast modification. After applying these criteria, eye traces from a total of 504 (K.C. 153 of 240; T.F. 136/240; R.S. 135/240; P.K. 58/168; P.B. 22/240) stimulus presentations were used for analysis.

Analysis of eye tracking data

To avoid boundary effects and to exploit the most linear range of the oculometer, data analysis was restricted to the part of the recorded eye-traces that fell within the central 600 × 600 pixel-wide region.

To analyse eye tracking data with respect to the selection of fixation points, different approaches can be taken: First, all recorded data can be analysed without a classification of the underlying eye movement. This avoids introducing arbitrary parameters defining the different types of eye movements. However, a small contamination by image regions grazed during a saccade is included. In a second measure saccades are therefore defined by a velocity threshold, and the gaze directions during a saccade are excluded from data analysis. Both measures implicitly weigh the fixations with their duration. As a third measure, the fixation points as such, i.e. without temporal weighing, are analysed. In the present study we report results of all three types of analysis. Because in our data sample saccades occupy only 12% of the continuously sampled data, we do not observe a qualitative change of results in any case. In all instances of a quantitative deviation between the first two types of analysis both results are given. The third type of analysis additionally addresses the relation of the duration of fixation as a function of contrast, which is interesting in its own right. Therefore, we dedicate a separate section to this analysis.

The distribution of contrasts was computed along the measured eye traces/fixation points of each unmodified image (referred to as ‘actual’ condition). This result was then compared with the contrast-distribution computed on the same image along all eye traces/fixation points of the same subject obtained on all unmodified images (‘control’ condition for unmodified images). This procedure excludes those differences between ‘actual’ and ‘control’ distributions, which would result from a general bias in eye traces or a consistent nonuniformity of contrast-localization over all images. Whether or not there was a significant bias towards higher (or lower) mean contrast in the actual compared to the control condition was assessed using a two-sided sign test.

In the case of the contrast modified images, for each stimulus presentation the distribution of contrast-modification was computed along the eye trace that was recorded on that stimulus (‘actual’ condition). Then an ‘average’ eye trace was generated by concatenating all eye traces/fixation points of the same subject obtained from all presentations of the same basis image. Computing the distribution of contrast modification along the according (i.e. from same subject and basis image) ‘average’ eye trace for each modified stimulus yields the ‘control’ condition for that stimulus. It corresponds to the distribution that would be expected if the contrast modification had no influence on fixation.

Separated according to peak contrast modification level, actual and control distributions were then totalled over subjects and basis images. Normalization to unit integral yielded an actual and a control probability density function (PDF) for each peak modification level. The control PDF provides an unbiased prediction of the fixation distribution if the contrast modification had no influence on fixation. That means that if fixation does not depend on contrast modification then control and actual PDF are identical. To statistically measure the similarity of actual and control distribution without any a priori assumption a two-sided Kolmogorov–Smirnov (KS) test was performed. As first step the cumulative density functions (CDF) were computed for both conditions at each peak modification level. These CDFs correspond to the integrals over the PDFs. The eye position sampling rate of 1 kHz has no particular rationale regarding the velocity of change of gaze-direction and it was much faster than average fixation time (472 ms). In the first two types of analysis subsequent data-points were therefore not independent. Therefore using the recorded sample length in computing the KS-test P-value would overestimate the actual sample size and thus invalidate the P-value. To correct for this effect, an effective sample size was calculated as complete recorded sample size divided by average fixation time. Average fixation time was computed as the half-width (FWHM) of the temporal autocorrelation function of the considered eye trace. This effective sample size was used for computing the KS-test P-value from the maximum CDF differences.

For the analyses that only use periods of fixation we applied the following procedure to separate periods of fixation from the rest of the data: Any period not interleaved by eye movements faster than a threshold velocity (v_thresh) and lasting at least a minimum duration of T_min, is regarded as a single fixation. Gaze location during a fixation is defined as the mean eye position during this period. Unless otherwise stated we used v_thresh = 50 °/s and T_min = 10 ms.

Modification detection paradigm

In order to measure the degree to which contrast modification is detectable by subjects, the following two-alterative forced choice protocol was performed in a separate session: modified stimuli were generated as in the eye tracking paradigm, i.e. contrast modifications of identical peak modification level were applied in five randomly chosen locations across the image. Then one randomly chosen half of the image was replaced by its unmodified version. To avoid potential boundary cues between modified locations in one part and their unmodified counterpart, the midline of the complete stimulus was covered by a 60 pixel-wide grey bar (Fig. 1B). Additionally, 50% of the resulting stimuli were mirror-reversed on the vertical midline. Subjects were instructed to indicate by a button press which part of the stimulus was contrast-modified. The stimulus was shown until the subject made its decision and then followed by a 0.5-s blank. At no time were templates of unmodified images presented. Therefore, subjects had to rely on general ‘knowledge’ of how natural images look to detect the contrast manipulations. The extreme modifications of −60% and +100% were described as foggy areas and very high contrast structures. Subjective visibility of the moderate contrast modifications was low, and subjects reported that they were often guessing which side contained the modification. However, no feedback was given to the subjects on the correctness of their decision. Five instances of each of the 16 image versions (eight images + eight reversed) and each of the nine contrast modifications were presented in random order, yielding a total of 720 stimuli. For each stimulus presentation, correctness of response as well as reaction time were recorded. To account for intersubject differences in total reaction time, reaction times were normalized to unit standard deviation within each subject.

For this experiment four subjects (three male, one female, age between 23 and 41 years) with normal or corrected to normal vision were used. Apart from the fact that the bite-bar was not used in this protocol, the equipment for stimulus presentation and localization of subjects were identical to the eye tracking task.

Correlation of contrast and fixation

First we analysed whether contrast correlates with fixation probability in unmodified natural images. For each unmodified image eye traces obtained on the same image (‘actual’ condition; green traces in Fig. 2A) are compared with eye traces obtained from different images but applied on the same image (‘control’ condition; red traces in Fig. 2A). If contrast is computed at the resolution used for stimulus presentation, only one out of the three actual traces has higher mean contrast than the control in the example (average relative difference −3%; Fig. 2B, bottom row). On the other hand, if contrast is computed on a low-passed version (f_cut = 0.52 cyc/°), contrast is higher for all actual traces compared to the control (average relative difference +30%; Fig. 2B, top row). Note, that low-pass filtering was carried out for analysis only; all stimulus presentations were performed at full resolution. Performing this analysis for all images and all subjects yields a highly significant (P < 0.01) difference between ‘actual’ and ‘control’ condition if contrast is defined on the low-pass (f_cut = 0.52 cyc/°) filtered image (Fig. 2C; left panel) and no significant difference on the unfiltered images (P > 0.6; Fig. 2C, right panel). Analysing this frequency dependence further, reveals that the difference between actual and control condition is maximal for cut-off frequencies around 0.5 cyc/° and remains significant over a wide range of cut-off frequencies. Nevertheless, very high as well as very low spatial frequency contrast has no significant relation to fixation behaviour (Fig. 2D).

In order to address the influence of different spatial scales, the same analysis for the same cut-off frequencies is performed with 40 × 40 and 160 × 160 pixel-wide patches instead of the default 80 × 80. Although in these cases significant differences (P < 0.05) are only observed at the cut-off frequencies 0.26 cyc/° (at 40 × 40 only for including saccades; and at 160 × 160), 0.52 cyc/° (for both 40 × 40 and 160 × 160) and at 1.3 cyc/° (at 160 × 160), the qualitative dependence of the difference on cut-off frequency is similar. Furthermore, for all patch sizes the maximum influence of contrast on fixation probability is found for the cut-off frequency of 0.52 cyc/°. This shows that a fixation preference for higher contrast is only present for contrasts below certain spatial frequencies, whereas high frequency contrast has no relation to the selection of fixation points.

Reinagel & Zador (1999) report that the effects of contrast on fixation probability are strongest in the first 4 s after stimulus onset. Indeed, analysing the time course of contrast at fixation points, a significant effect is observed at low-spatial frequencies during the first 4 s (with f_cut ≤ 1.30 cyc/°, P = 0.01 including saccades and P = 0.02 excluding saccades), whereas in the interval from 4 s to 8 s, contrast and fixation are not significantly related (with f_cut = 1.30 cyc/°, P = 1.00 including saccades and P = 0.93 excluding saccades). Investigating this effect further at finer temporal resolution, however, shows that the main contribution to the effect does not result from the period directly following stimulus onset (for f_cut = 1.30 cyc/° including saccades, the 0–2 s P = 0.40 and 2–4 s P = 0.01; for f_cut = 1.30 cyc/° excluding saccades, the 0–2 s P = 0.51 and 2–4 s P = 0.02). Despite some variation in the effect's time-dependence across cut-off frequencies, for all 0.52 cyc/° ≤ f_cut < 5.18 cyc/°, the major contribution stems from the 2–4 s time interval. As for the complete dataset, no significant effect can be found in any of the mentioned intervals using the unfiltered images (P > 0.11 for all 2 and 4 s intervals). Thus the highest influence of low-frequency contrast on attention is found about 2–4 s after stimulus onset and high frequency contrast has no significant influence on attention in any time interval.

Using each basis-image 30 times for each subject (six times unmodified and 24 modified versions) also allows investigation of the effects of stimulus novelty. We performed the same analysis as above separated for session 1 (unmodified only) and sessions 2–4 (unmodified within modified). The general pattern, that significant influence on fixation probability is found for low-pass filtered images (at f_cut = 0.52 cyc/°: session 1 P = 0.02 and sessions 2–4 P = 0.02 including saccades; all sessions P = 0.01 excluding saccades) but not for unfiltered stimuli (session 1 P = 0.33 and session 2–4 P = 0.56 including saccades; session 1 P = 0.47 and session 2–4 P = 0.56, excluding saccades), is preserved for either session-type. Thus, previous presentation of the same basis-image has no impact on the direction of attention in our experimental paradigm. Therefore the obtained results neither depend on how often a subject has been exposed to a basis stimulus nor whether the unmodified stimuli are shown within a series of modified stimuli. Supported by the fact that none of the subjects could confidently name the number of used basis images when asked after the experiment and the subjective richness of the stimuli, this is strong evidence that effects of stimulus familiarity because of previous exposures to the same basis image does not influence the direction of overt attention.

Modified images

As a next step we addressed whether the observed correlation is a causal consequence of high contrast attracting attention. This is carried out by locally modifying luminance-contrast in the images. The spatial frequency of these modifications is given by the inverse of the standard deviation of the Gaussian masks G_i (i.e. λ/√2) to 0.47 cyc/°. The distribution of contrast modification along the eye traces are computed for each contrast-modified stimulus and totalled over subjects and basis images but separated according to peak contrast modification level (Fig. 3A, top row). For each peak modification level, this ‘actual’ distribution is compared to the according ‘control’ distribution (see methods), which represents the prediction if the modifications have no influence on fixation (Fig. 3A, bottom row). Thus the similarity of ‘actual’ to ‘control’ distribution measures the influence of contrast-modification on the selection of fixation points. This similarity is assessed statistically by the KS-test.

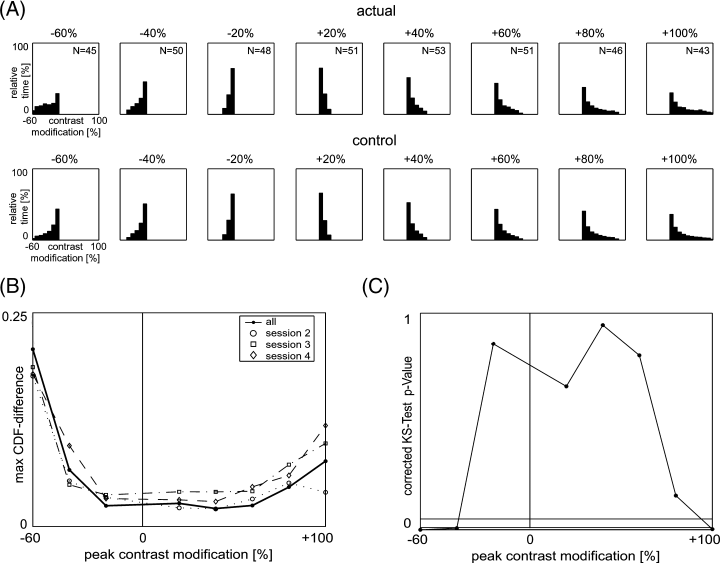

The data obtained are used to test two predictions made by any model that proposes luminance-contrast as a contributor to the saliency map of visual attention. First, these models predict that enhanced contrast (positive modification) would lead to increased fixation probability whereas reduced contrast (negative modification) would lead to decreased fixation probability. Second, as the smallest used modifications already influence the local image contrast profoundly, they would also have significant an impact on attention if it is founded on a luminance-contrast based saliency map. Contrary to the latter prediction, the KS-test yields significant differences between actual and control only for −60% (P < 0.001; maximal CDF-difference 0.21 including saccades, 0.22 excluding saccades), −40% (P < 0.01; maximal CDF-difference 0.07) and +100% (P < 0.01; maximal CDF-difference 0.08). In the range from −20% to +60% the maximal CDF difference remains about constant (between 0.021 and 0.027 including saccades, Fig. 3B, solid line; between 0.022 and 0.029 excluding saccades) and no significant difference between actual and control is found (P > 0.62 for all modification levels; Fig. 3C), which is also valid for +80% modification (P > 0.11; CDF-difference 0.05). Therefore, only contrast modifications above +80% and below −20% are found to have a significant influence on attention. Even more decisive for the contribution of luminance-contrast to the saliency map is the result on the first prediction: In all cases in which there is a significant influence of contrast modification on the eye traces, the region of modification always has a higher likelihood to be attended, irrespective of the sign of the modification. This means that locally reduced contrast increases fixation probability at least as strongly as enhanced contrast. This fact, taken together with the large range (−20% to +80%) in which no significant influence of contrast modification is observed, leads to the conclusion that luminance-contrast by itself does not contribute to a saliency map for overt visual attention.

In analogy to the analysis of viewing unmodified images, we here investigate the time course of the effect of contrast modifications on the choice of fixation points. Separating the analysis according to the different experimental sessions shows no systematic effect of the session number on the difference between actual and control condition as represented by the CDFs (Fig. 3B, dotted lines). Thus, as for the unmodified images, the direction of overt attention is not influenced by the memory on previous exposure to the same basis image. Separating the analysis into 2 s and 4 s time-intervals (0–2 s, 2–4 s, 4–6 s, 6–8 s, 0–4 s and 4–8 s) of stimulus presentation yields qualitatively similar results as for the total 8 s; for the −60% peak modification level all intervals show a significantly increased fixation probability for decreased contrast (P < 10⁻⁵ for all intervals). For the +100% peak modification level significant differences are only observed for the second half of stimulus presentation (P > 0.36 for 0 s to 2 s, 2 s to 4 s and 0 s to 4 s; P < 0.02 for all other intervals). Although decreased contrast attracts attention already in the early phase of looking at a stimulus, strongly increased contrast attracts attention only in the later phase of the stimulus presentation. Taken together with moderate contrast enhancements not attracting attention, this finding further supports that there is no causal contribution of contrast to overt attention.

Unweighted analysis of fixation points

Making use of the high sampling frequency of the eye-tracker and using all of the sampled data, the analysis above does not need to distinguish different types of eye movement patterns (saccades, fixations, etc.) and thus can avoid the necessity to select several arbitrary parameters defining these patterns. Although the results are not affected by excluding saccades, the analysis above implicitly weighs fixation probability with fixation duration. Therefore we set out to control for correlation of the latter to contrast and to contrast modifications. Over all unmodified images and all subjects, we found no correlation between contrast and fixation duration (|r| ≤ 0.051 for all cut-off frequencies; r = −0.012 for f_cut = 0.52 cyc/°; r = −0.051 for unfiltered images; Fig. 4A). This holds also true for individual subjects (|r| < 0.495 for all subjects and frequencies) and individual images (|r| < 0.138 for all images and frequencies), nor do we find any correlation of contrast modification to fixation duration for the modified stimuli (r = −0.016; |r| < 0.112 for individual subjects, |r| < 0.076 for individual basis images, Fig. 4B). In both cases (modified and unmodified images) the results do not depend on the parameters v_thresh and T_min (|r| < 0.060; for all combinations of v_thresh = {25, 50, 100} °/s and T_min = {5, 10, 20} ms for unmodified; and |r| < 0.017 for the same parameters in the modified case). These controls show that neither contrast nor contrast modification is related to the duration of fixation, and an implicit weighing with fixation duration thus cannot confound the analysis. To address this issue more directly, we repeated the analysis for modified and unmodified images using only the mean eye-position at fixation periods (at v_thresh = 50 °/s and T_min = 10 ms) instead of the complete traces. This provides a measure of fixation position which is not weighted by fixation duration. In the unmodified case we find the same qualitative results of the sign-test, although the ‘optimal’ cut-off frequency is slightly shifted (P < 0.05 for f_cut = 1.3 cyc/°; P < 0.01 for 2.6 cyc/° ≤° f_cut° ≤° 5.2 cyc/°; P > 0.2 for unfiltered stimuli). In the modified case no significant (P > 0.05, KS-test) differences between actual and control condition are found between −20% and +60% peak modification levels, whereas differences at −60%, −40% and +100% are highly significant (P < 0.001, KS-test). Most notably, at the +60% peak modification level actual and control conditions are still highly similar (P = 0.50, KS-test).

To assess the actual influence of the performed modifications, their impact is compared to the natural contrast distribution in our sample of natural images. On average the analysed 600 × 600 central region of the unmodified images has a mean contrast of 0.30 ± 0.05 (mean ± SD over all images). The average standard deviation of contrast in this region within one image is 0.05 ± 0.02. The average within image standard deviation thus matches the minimally used peak modification level of ± 20%, indicating that even the minimal contrast modifications used are in the physiologically relevant range and have a profound influence on local image contrast. By contrast, they do not introduce dramatic global changes to the contrast distribution, as the ± 20% peak modification introduce 4% change in the mean contrast over the whole image. Furthermore, the contrast variation across images is similar to the within image variation. This suggests that the basis images are similar to each other regarding their contrast properties, which justifies averaging over images when analysing the data from contrast-modified stimuli.

Modification detection task

The fact, that moderate contrast modifications do not attract attention, but strong modifications of either sign do, raises the question whether the moderate modifications are in a relevant range, i.e. available to the subject on the system level. This issue is addressed in a two-alternative forced choice detection paradigm in which the side containing contrast modifications has to be detected (see methods). These measurements reveal that already a ± 20% modification, as all considered non-zero modification levels, can be detected above chance level. Furthermore, it shows that −40% modification, which significantly attracts the gaze, has a similar detection probability (78% ± 6% correct) as +80% modification, which is the maximum positive modification that does not significantly attract the gaze (81% ± 9% correct, Fig. 5A). The analysis of reaction times reveals a similar pattern as the detection probability. The normalized reaction times are slightly smaller for ± 20% modification than at 0% and about identical (2.9 ± 1.1 vs. 3.1 ± 1.2) at −40% and +80% (Fig. 5B). As non-gaze-attracting positive modifications show similar detection and reaction-time patterns as gaze-attracting negative modifications, the increased fixation probability at decreased contrast is unlikely to be based solely on a better detectability of the negative modification. This finding does not exclude, however, that the better detectability partly contributes to the increased fixation probability at highly decreased contrasts, as this unnatural modification might consciously attract the attention of the subjects. As the main finding, the modification detection experiment shows that the result, that gaze is not attracted by increased contrast, cannot be explained as consequence of a lack of detectability, i.e availability on the system level.
