CC⁺: A searchable database of validated coiled coils in PDB structures and AlphaFold2 models

1 INTRODUCTION

Protein–protein interactions (PPIs) are critical for all biological processes (Kuriyan et al., 2012). There are various classes of PPI involving the common protein secondary structure elements—α helices and β strands—less-well-defined turns, loops, and intrinsically disordered regions, and many types of protein tertiary structure. Gathering sequence and structural data on PPIs (McDowall et al., 2009; Pagel et al., 2005; Szklarczyk et al., 2023; Xenarios et al., 2000) is important and necessary if we are to understand protein networks, target them for biomedical applications, and exploit them in synthetic biology and biotechnology.

One class of PPI that is well defined both at the sequence and structural levels is the α-helical coiled coil (CC). As a result, CCs can be readily identified and examined. In turn, this provides insight into protein structure and function, and a solid basis for protein design and engineering. Indeed, structure, design, and engineering studies of CCs are relatively mature and have been reviewed extensively (Hartmann, 2017; Korendovych & DeGrado, 2020; Lapenta et al., 2018; Lupas et al., 2017; Lupas & Bassler, 2017; Woolfson, 2017, 2023). Therefore, this introduction focusses on the most-relevant points that underpin the work presented in this paper. One thing lagging behind these advances is an understanding of the biological diversity and functions of the many natural CCs (Woolfson, 2023). One of our aims for the revised database of CC structures and associated data presented is that it will help others reach a full understanding of this particularly widespread and diverse class of PPI.

CCs are assemblies of two or more α helices that wrap around each other to form rope-like, or supercoiled, helical bundles. At the most basic level, these assemblies are encoded by seven-residue (heptad) sequence repeats in which hydrophobic (h) residues are spaced alternately three and four residues apart. The intervening residues are often polar (p) resulting in hpphppp repeats usually labeled abcdefg. Combined with the 3.6 residues per turn of the α helix, these patterns encode amphipathic helices with distinct hydrophobic (a + d) and polar faces. In aqueous media, multiple copies of such helices come together to bury their hydrophobic faces and form hydrophobic cores that stabilize the assemblies. The helices supercoil around each other because the average hydrophobic spacing of 3.5 residues falls short of the fixed 3.6 residues per turn of the α helix. Moreover, and because of this combination of sequence repeat and α-helical geometry, residues at a and d form knobs that can insert into holes formed by four residues of a neighboring helix (e.g., d-g-a-d or a-d-e-a, respectively, in parallel CCs). This so-called knobs-into-holes (KIH) packing is the true signature of CC structures and assemblies.

However, this apparent simplicity masks underlying complexities (Lupas et al., 2017; Lupas & Gruber, 2005). For instance, although heptad sequence repeats are the most common, other repeats based on 3,4-spacings of hydrophobic residues are possible, and these lead to different CC supercoils. Furthermore, expanding the helix–helix interfaces from the canonical a + d sites to include the g and e positions accesses oligomer states beyond the dimers, trimers, and tetramers that are most common in nature. As well as these different CC oligomers from dimers upwards, the component helices of CC assemblies can be in all-parallel, antiparallel, or mixed arrangements. And, though many CCs are homo-oligomers, hetero-oligomers are also common. Finally, as well as these oligomeric CCs, many CCs are formed within single chains, that is, they form parts of tertiary structures. Access to complete and robust databases of CCs would help assess the breadth of CC structural space, and the interrogation of CCs en masse would give a deeper understanding of sequence-to-structure/function relationships. In turn, this would aid structural molecular biology, chemical and synthetic biology, protein design, and other fields and applications.

Some time ago, we wrote the program SOCKET to identify KIH packing between α helices in 3D coordinates of protein structures, that is, RCSB PDB files (Bittrich et al., 2022; Walshaw & Woolfson, 2001). SOCKET has allowed us to identify CCs in the whole of the PDB and create a relational database of CC structures, CC⁺ (Testa et al., 2009). Using these resources, we have been able to classify CCs in a Periodic Table of Coiled Coils (Moutevelis & Woolfson, 2009) and a graph-based Atlas of Coiled Coils (Heal et al., 2018). Others have used SOCKET to generate similar databases and useful resources for collating and analyzing CC structures; notably, SamCC-Turbo (Szczepaniak et al., 2020). Web-based resources for predicting, analyzing, and categorizing CCs more widely have been reviewed elsewhere (Woolfson, 2023).

Recently, we have updated SOCKET to Socket2 (Kumar & Woolfson, 2021). This includes improvements in the SOCKET algorithm itself to capture CC structures that SOCKET could not find, and a new visualizer to allow users to view and analyze identified CCs directly in real time. Here, we describe an update and overhaul of the CC⁺ database using Socket2. Moreover, we include CCs identified by Socket2 in both the experimentally validated structures of the RCSB PDB and those found in tertiary structures predicted by AlphaFold2 (Jumper et al., 2021) collated in the EMBL-EBI AlphaFold Protein Structure Database (https://alphafold.ebi.ac.uk/), which at the time of updating CC⁺ had models for 48 proteomes (Table S1) (Varadi et al., 2022). We envision that the new CC⁺ database and its associated tools will be of use to expert and non-expert users interested in all aspects of CC biology, structure, and design.

2 DESIGN, ARCHITECTURE, AND POPULATION OF THE CC⁺ DATABASE

The new CC⁺ database has three components: First, an automatically updated backend houses the core data on the identified CC structures/models and their associated sequences and structural parameters. Second, as described in the next section, an accessible frontend allows users to access these data using a wide range of search parameters and criteria. Third, following user-defined searches, CC⁺ can generate search-specific data on the fly, including: position-specific scoring matrices (PSSMs) from the selected sequences; and models of the CC regions in context of the whole protein structure, which can be visualized and interrogated using the interactive GUI of Socket2 (Kumar & Woolfson, 2021).

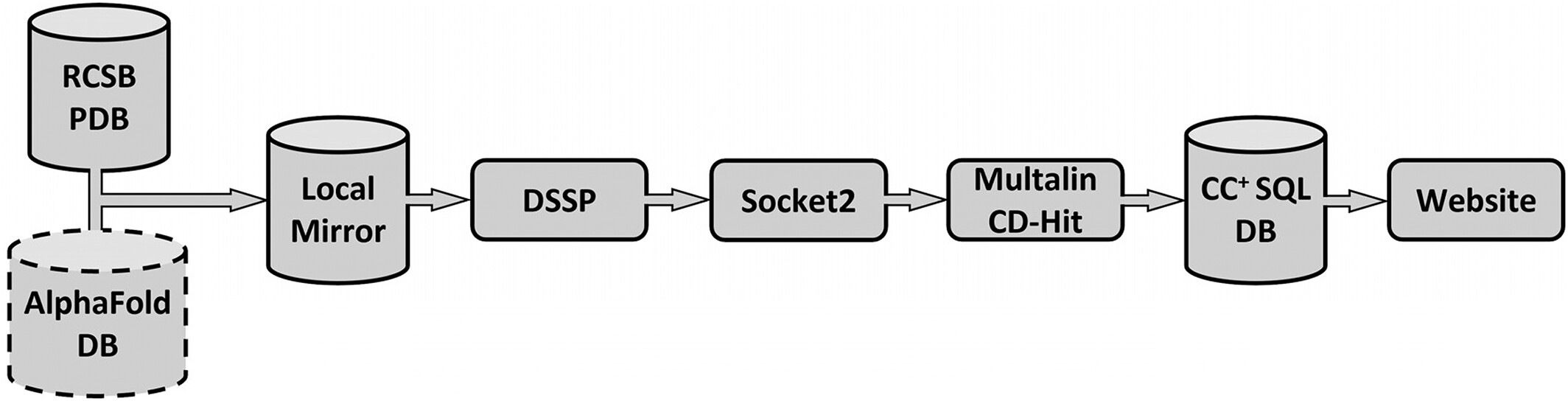

The design and architecture of the backend borrow from the original database reported in 2009 (Testa et al., 2009): that is, it is an updated rather than a completely rewritten resource. The process of populating this is outlined in Figure 1 and described below.

PDB-formatted files from the January 2023 release of RCSB PDB (PDB) (Bittrich et al., 2022), and the AlphaFold Protein Structure Database (Varadi et al., 2022) of predicted models for 48 genomes were downloaded from https://alphafold.ebi.ac.uk/. For the PDB structures, the corresponding asymmetric and biological units were also considered in the following process. DSSP (Joosten et al., 2011; Kabsch & Sander, 1983) and Socket2 (Kumar & Woolfson, 2021) were used to identify α-helical regions and to assign CCs, respectively. MultAlin (Corpet, 1988) was then used to determine if partnering helices had the same or different sequences. CD-Hit (Fu et al., 2012; Li & Godzik, 2006) was used to categorize sequences into four groups based on redundancy: ≤50% identity, ≤70% identity, non-redundant (<100% identity), and redundant (i.e., all examples are included, including those with identical sequences). As described below, these categories can be used to focus user-defined searches. Biopython (Cock et al., 2009) was employed to generate PDB files for just the CC regions. CC assignments and associated data were stored in a MySQL database for easy access and searchability. The full set of these assignments, or “default structures,” are summarized in Figure 2, where they are broken down according to the number and orientation of α helices in each CC.

The user-accessible frontend of CC⁺ was developed using HTML, JavaScript, and CSS, and the backend using CGI/Perl, HTML, JavaScript, and CSS. The MySQL database was used to create the associated sequence and parameter tables. For on-the-fly sequence analyses, the Numpy and Pandas packages of Python were used to generate PSSMs. The SciPy Stats module of Python was used for the χ² tests. Matplotlib (Hunter, 2007) and PyMol (Schrödinger, 2021) were used to generate plots and figures for protein structures, respectively. The CC⁺ database is available at http://coiledcoils.chm.bris.ac.uk/CCPlus/Home.html.

3 USING THE CC⁺ DATABASE

3.1 Overview

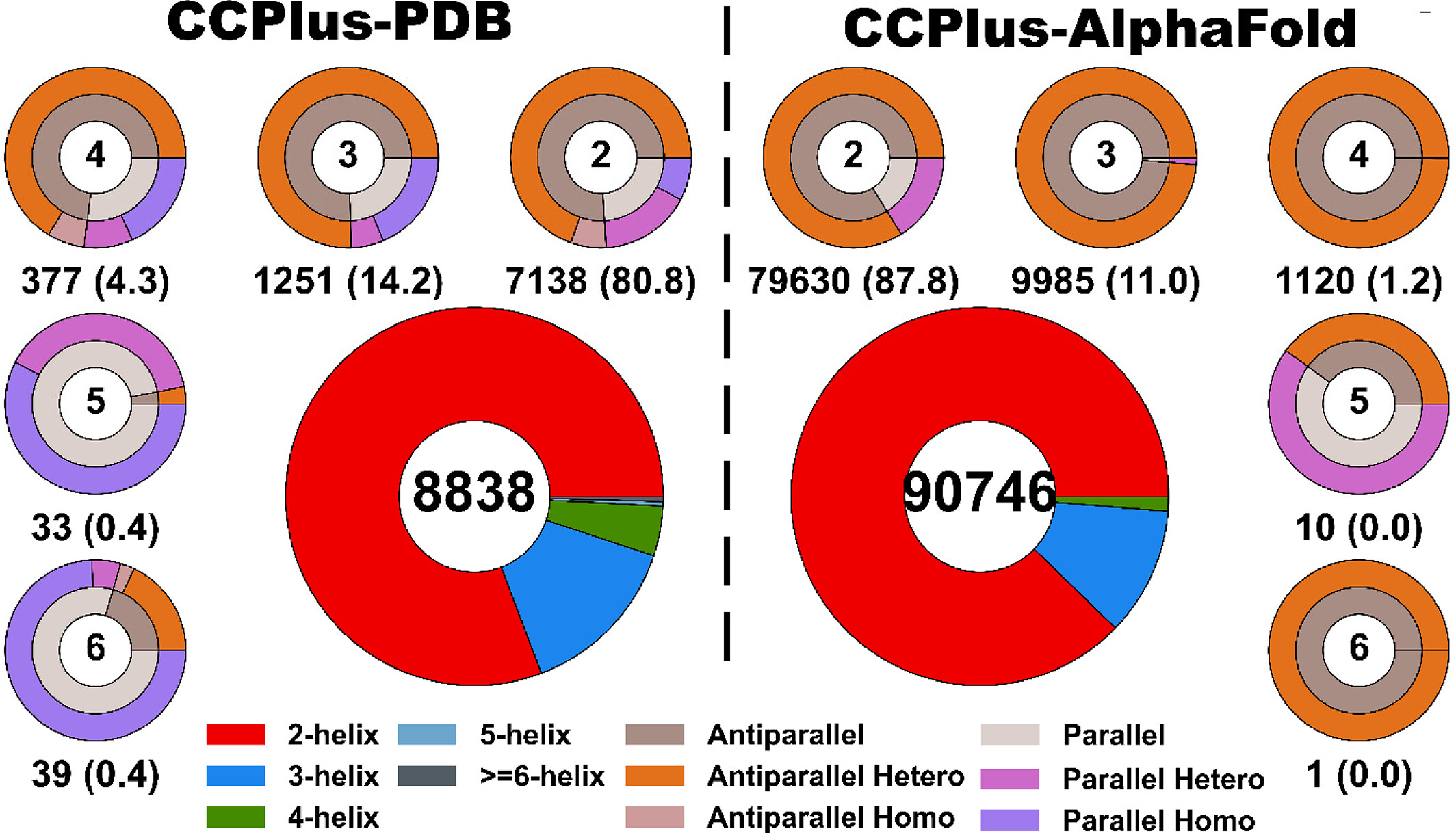

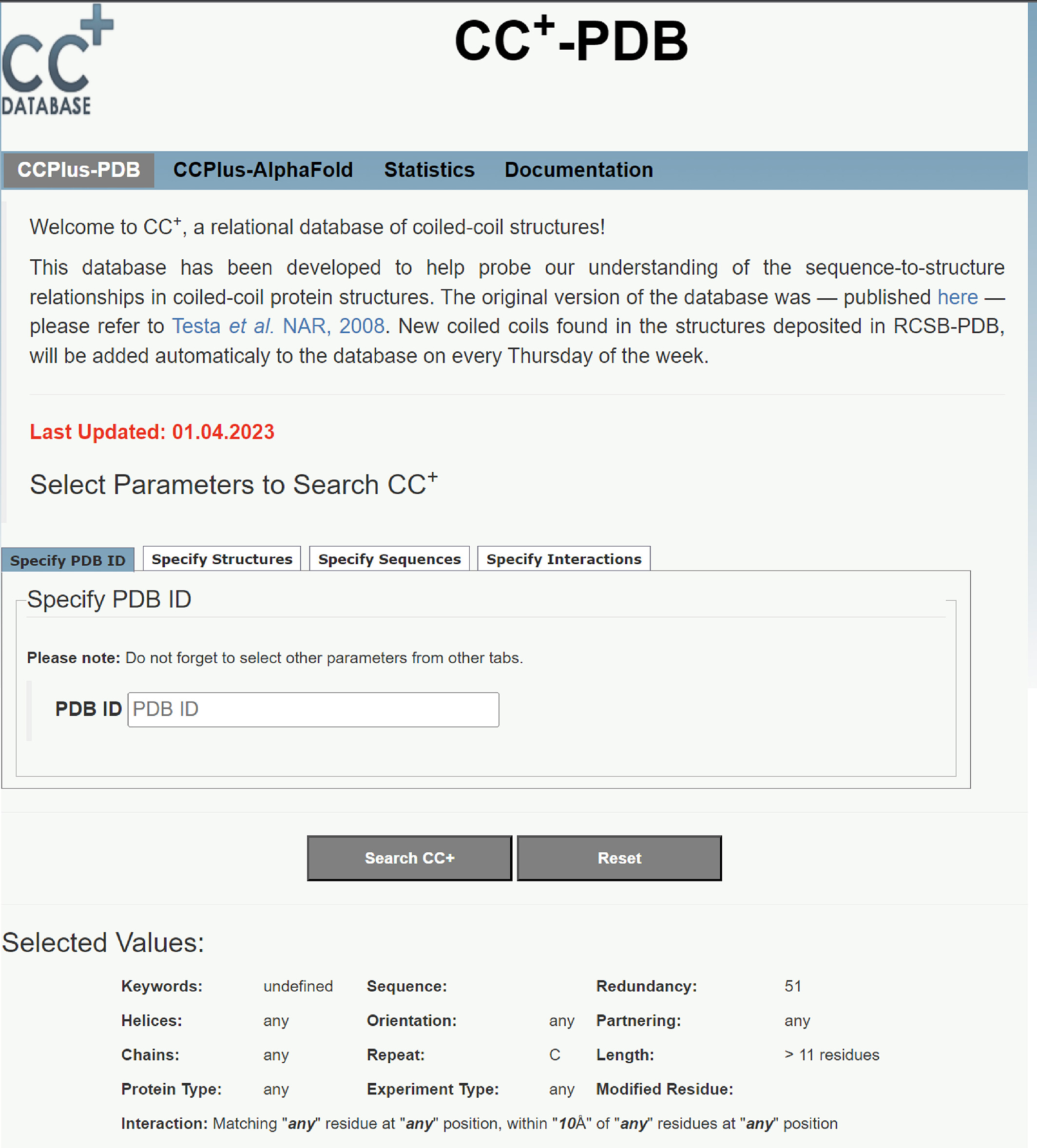

The CC⁺ Homepage provides links to two form-based “Dynamic Interface” tabs, one each for customizable searches of CCs in PDB structures and AlphaFold2 models, CCPlus-PDB (Figure 3), and CCPlus-AlphaFold, respectively. These are described in detail below. The “Statistics” tab provides users with quick-glance summaries of the content of the current version of the database in terms of the number of CCs categorized as intra- (same chain) and inter-molecular (multiple chains), the number of helices/oligomeric state in the CC assemblies, and the arrangement of helices within these (parallel or antiparallel). These summaries can be tailored by users selecting the Socket2 cut-off value (7, 7.5, 8, 8.5, or 9 Å) and the sequence redundancy or similarity (50%, 70%, non-identical, redundant) used to find the CCs. Finally, the “Documentation” tab provides users with comprehensive descriptions of Socket2 (Kumar & Woolfson, 2021), and advice on using the Dynamic Interface, what can be done when searches fail or return no hits, and how data can be downloaded and used.

3.2 Searching the dynamic interfaces

A major advance in protein science since the launch of the CC⁺ database in 2009 has been the success of AlphaFold2 in predicting protein structures (Jumper et al., 2021) and its application to 48 complete genomes (https://alphafold.ebi.ac.uk/) (Varadi et al., 2022). Therefore, along with CC structures found by Socket2 (Kumar & Woolfson, 2021) in the RCSB PDB (Bittrich et al., 2022), for the updated CC⁺, we have included those found in AlphaFold2 models predicted from these 48 proteomes. However, to avoid confusion between experimental structures and predicted models, and to give users control over how they use (separate or combine) these data, we have separated the backend data and frontend searches of the two groups via the CCPlus-PDB and CCPlus-AlphaFold “Dynamic Interface” tabs. As detailed below, some of the subtabs used to search these are common to both parts of the CC⁺ database, but others are unique to each arm of the database. In all cases, searches are initiated by clicking the Search CC⁺ button, and default values for each of the parameters can be regained with the Reset button. Searches using default values include any number of canonical helices that are over 11 residues in length, in any orientation, with any type of partnering, from any number of chains, and with 50% sequence identity or less.

3.2.1 Specify PDB IDs

This subtab only applies to CCPlus-PDB. It can be used to find any CCs in a chosen PDB file. This can be used in conjunction with other search parameters. However, to avoid missing any CCs, we advise setting the Redundancy parameter to “redundant” and leaving the other subtabs at their default settings in the “Specify Structures” subtab.

3.2.2 Specify structures

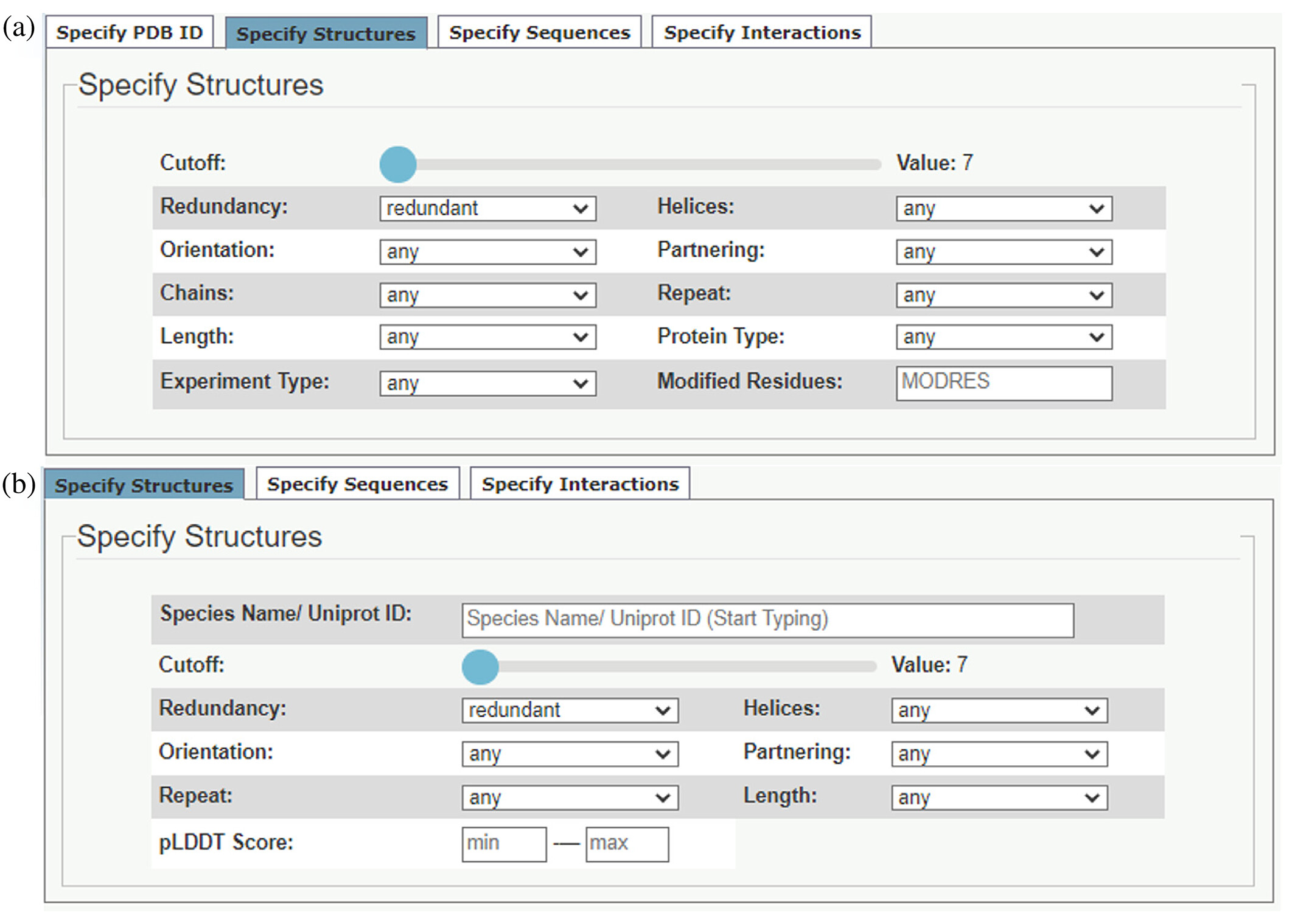

This subtab has undergone major updates. For both the CCPlus-PDB (Figure 4a) and CCPlus-AlphaFold (Figure 4a) tabs, a slider allows users to choose the Socket2 cut-off value for identifying CCs. The default value is 7 Å, which we recommend using, as the other values (7.5, 8, 8.5, and 9 Å) are increasingly less stringent and may pull in non-coiled-coil regions.

The “CCPlus-PDB” tab (Figure 4a) offers several search parameters for CCs, including: Redundancy, as introduced above; the number of α Helices and their relative Orientation; whether the Partnering helices have the same (homo-mers) or different (hetero-mers) sequences; whether the helices are from the same or different polypeptide Chains; if the underlying CC sequence Repeats are heptad or non-heptad based; and the minimum Length of the CC helices. In addition to these options adopted from the original CC⁺, users can now specify the Protein Type (membrane or globular); the Experiment Type used to solve the parent structure; and request specific Modified Residues, that is, non-proteinogenic residues. When Experiment Type is defined, a Resolution range can be added by the user.

As AlphaFold2 predicted models are for single chains and contain only the 20 standard proteogenic residues, the “CCPlus-AlphaFold” tab (Figure 4b) offers similar search parameters to the above but without options for the number of Chains, Protein Type, Experiment Type, and Modified Residues. These searches can also be filtered by a min—max pLDDT Score for the predicted CC regions.

3.2.3 Specify sequences

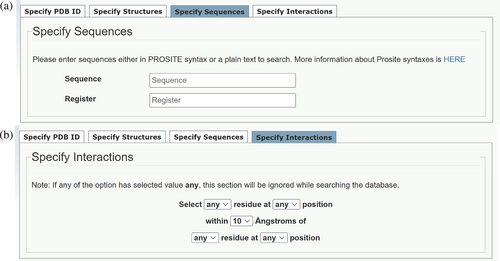

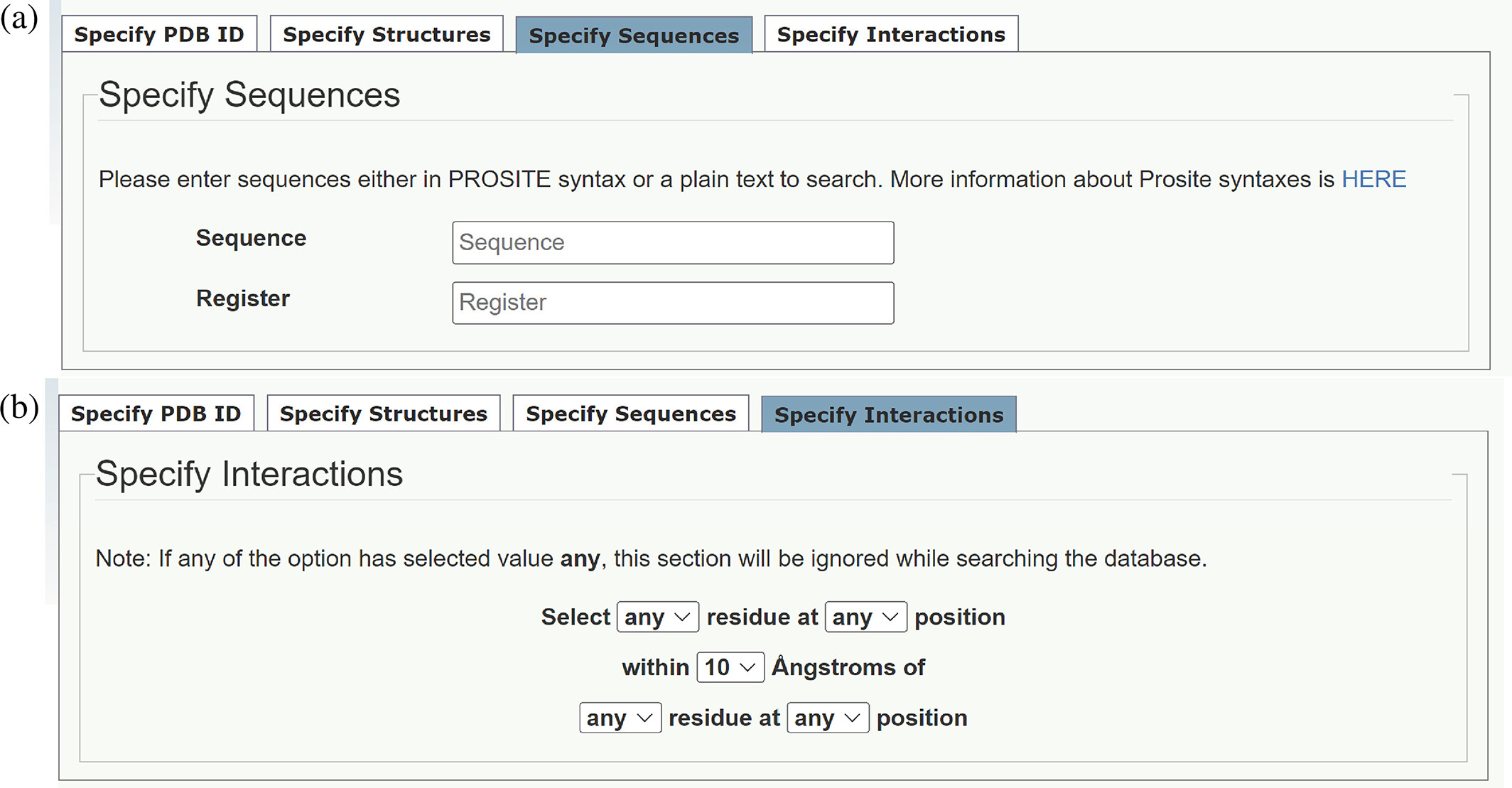

Searches can be defined further using this subtab (Figure 5a) to find CCs that contain specified sequences or sequence patterns. Users can enter plain text for a query sequence or use PROSITE (Sigrist et al., 2010) notation to find sequence patterns. Furthermore, these sequences and patterns can be requested to fall at specified positions of the heptad repeats using the a–g heptad notation.

The Register field of this subtab can be used to search for non-canonical repeats. For instance, 11-residue, hendecad repeats can be found by entering “abcdefgdefg.” This is because Socket2 locates KIH interactions and then assigns them as a–g sites only, as heptad repeats predominate in CC sequences and structures. In the case of hendecad repeats, the hijk positions are analogous to an addition of defg to a heptad repeat.

3.2.4 Specify interactions

Finally, searches can be defined even further using this subtab (Figure 5b), which allows users to identify residue–residue interactions within a specified distance in a CC search. This has the option to specify the register positions of the interacting residues. Thus, this feature allows the compilation of CC datasets with potential residue–residue interactions that underpin sequence-to-structure relationships in CCs.

3.3 Displaying and using results from CC⁺ searches

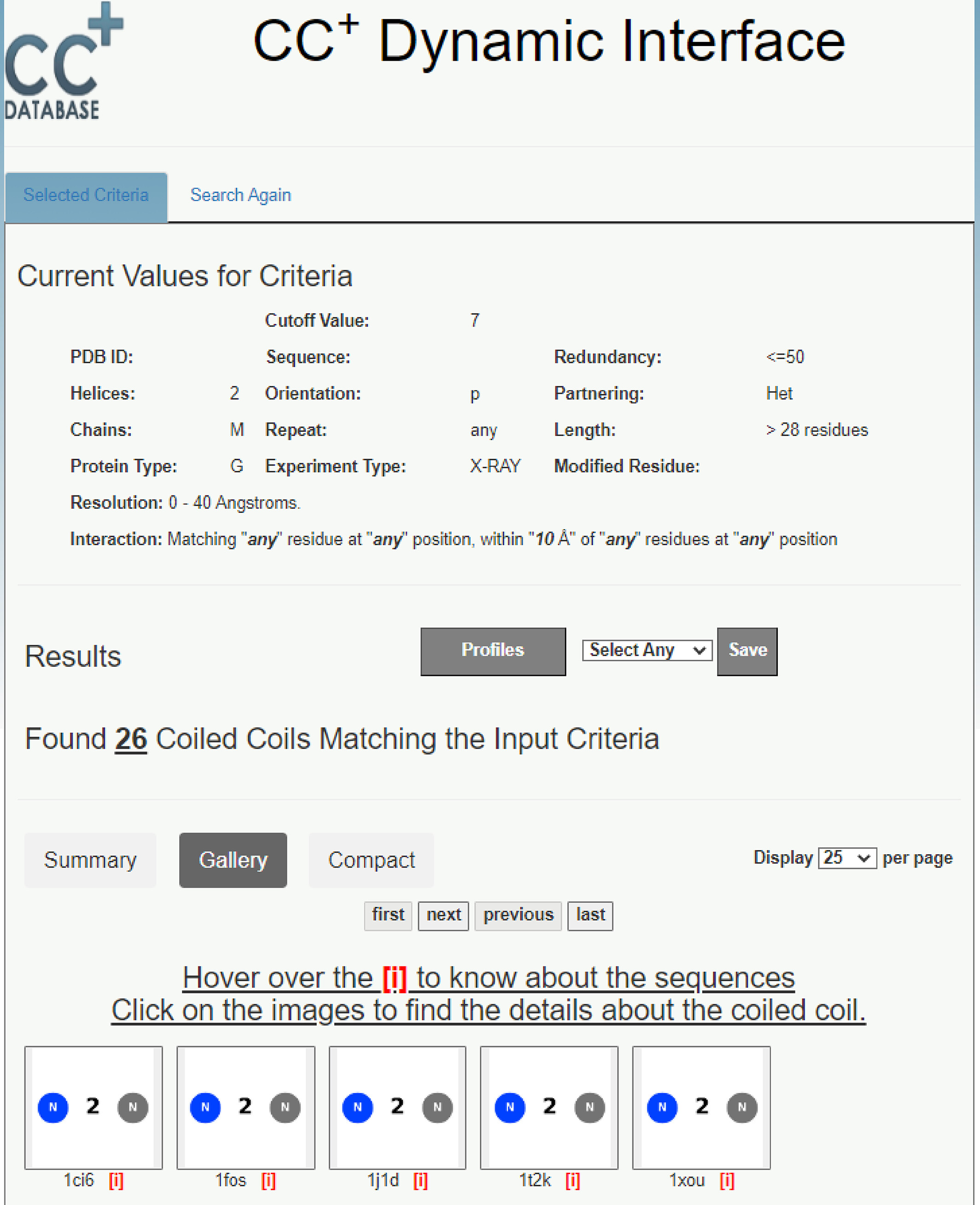

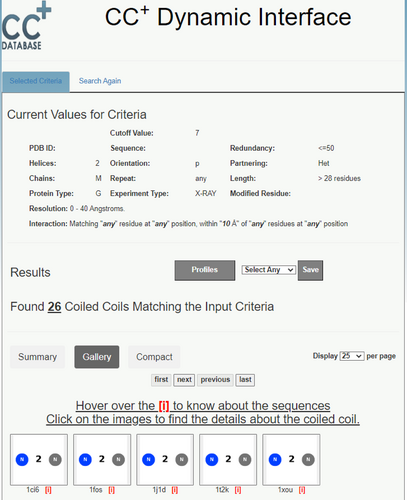

On completion of a search, the results are displayed in a new page, Figure 6. Here, users can choose several options to display and analyze the data. Each “Results page” has four main features: (i) “Selected Values for the Current Search,” which simply tabulates the current selection criteria and their values; (ii) the “Results” section itself, which is explained below; (iii) an associated “Gallery” of cartoons for the CCs returned, which allows quick access to their structures and sequences; and (iv) a “Search Again” tab, which allows the user to search the database with a new set of parameters.

In more detail, the “Results” section has two main features: (a) a list of the returned CCs; and (b) options to download associated data from the search. The subtabs enable displaying the list of CCs in “Summary,” “Gallery,” or “Compact” forms, with “Gallery” being the default view. It provides clickable images summarizing the architecture of each CC. Users have the option to select the number of CCs displayed, with 25 as the default. In these three displays, the images or PDB codes are also clickable links to a Socket2-based GUI for visualizing the CC in context of the whole structure. This is described in more detail below.

Above these display items, users are given options for downloading data from the search. For instance, the “Profiles” button links to PSSMs for the selected CCs; that is, 20 x 7 tables for the occurrence of each amino acid at the seven positions of the heptad repeats, which can be normalized internally or using amino-acid frequencies from Uniprot/Swissprot (UniProt, 2023). In addition, the adjacent drop-down menu and “Save” button allow users to download a flat csv files for the “Summary and CC Sequences,” or a zipped file giving the “3D-Coordinates” of the CC regions only in PDB file format. For the latter, the CCs are extended by one residue at each terminus of the constituent helices. These summary, sequence, and coordinate files are provided to facilitate further user-specified analyses and applications of the CC datasets.

Finally, if the database does not provide any hits for a set of search parameters, the “Results” section will display the message “No Results Satisfying the Input Criteria.” In such cases, users are encouraged to redefine their search criteria or to visit the “Documentation” tab.

4 RESULTS

As described above, the new CC⁺ database allows searches of CC structures and predicted models from the RSCB PDB and AlphaFold Protein Structure Database, respectively. The new features that we have introduced allow users to search for CCs that are either broadly defined or highly specified in terms of structure, sequence, protein type, experimental methods for structure determination, organism, and so on. We have implemented many of these features to give flexibility to users, and because we could not possibly anticipate all searches that users might choose to run. Therefore, here we do not give an exhaustive list or overview of what searches can be done and the data that might be retrieved. Instead, we show a few examples of the shape of the data that CC⁺ contains and how this can be accessed by users.

4.2 Comparison of CCs in PDB structures and predicted AlphaFold2 models

We note that for the current version of CC⁺, direct comparisons between the PDB- and AlphaFold2-derived datasets are limited because CCPlus-PDB contains both intra- and inter-molecular CCs, whereas, at present, CCPlus-AlphaFold necessarily only has the former. We discuss how this is being addressed below. Nonetheless, the currently available structures and models do allow some comparisons to be made.

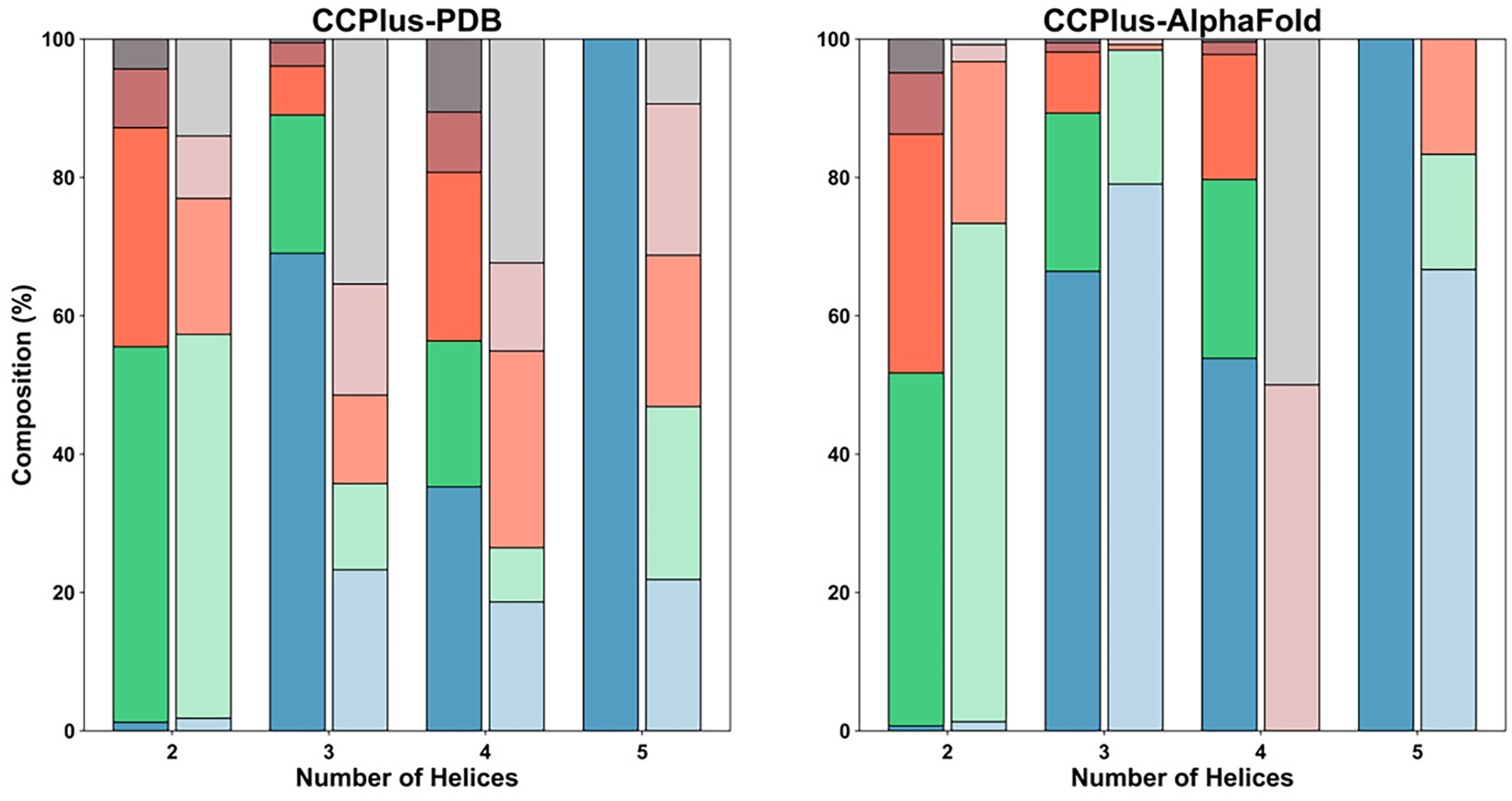

Using search parameters of 7 Å Socket2 cut-off and ≤ 70% sequence identity, CCPlus-PDB and CCPlus-AlphaFold currently house ≈9000 structures and ≈91,000 models, respectively. Both datasets predominantly have CCs with canonical (heptad-based) sequence repeats. As CC⁺ allows searches of CCs with non-canonical repeats, we asked if the proportions of these differed between the two datasets. Out of 8838 and 90,669 CCs, we found 755 (8.54%) and 6116 (6.75%) non-canonical CCs in CCPlus-PDB and CCPlus-AlphaFold datasets (Figure 2), respectively.

Next, we compared the experimental and modeled CCs as a function of minimum length binned into five categories: (i) <11, (ii) 11–14, (iii) 14–21, (iv) 21–28, and (v) >28 residues (Figure 7). For the two-helix structures, the length distributions of the CCs from the two datasets were similar. However, above this, the predicted CCs from the AlphaFold2 dataset tended to be shorter than the corresponding classes from the PDB dataset. We suspect that this is related to the CCs predicted by AlphaFold2 being intra-molecular. Therefore, it will be interesting to see if and how these distributions change when predicted quaternary structures become available.

Both datasets have examples of CCs with helices >100 residues. For instance, in the PDB dataset, a dimeric CC in a cryo-EM structure of the motor-protein dynein tail-dynactin-BICD2N complex (PDB ID, 5afu) (Urnavicius et al., 2015) has a helix spanning 165 residues. And in the AlphaFold2 dataset, a tropomyosin-like protein (Uniprot ID: A0A077ZIM1) from Trichuris trichiura is predicted to have a two-helix antiparallel CC with a helix of 176 residues, although the average pLDDT score is in the confidence range of 70–90.

5 CONCLUSION

We have described the structure, main features, and a small number of many possible uses of an updated database of coiled-coil (CC) structures and predicted models, the CC⁺ database. The CCs are found using the program Socket2 (Kumar & Woolfson, 2021), which identifies the signature KIH packing between neighboring α helices of CCs. Therefore, it does not rely on, and is not biased by sequence-based CC predictions, which are not always consistent or reliable (Simm et al., 2021). The new CC⁺ database includes both experimentally derived CCs from the RCSB PDB (Bittrich et al., 2022) and predicted AlphaFold2 models for 48 proteomes (https://alphafold.ebi.ac.uk/; Varadi et al., 2022). This represents a significant expansion of CC⁺ since its inception in 2009.

We recognize that the PDB and AlphaFold2 parts of the new CC⁺ database are not directly comparable because currently available AlphaFold2 predictions are only for protomers, that is, single-chain, tertiary structures. We are working to remedy this, and we aim to link the two parts of the database fully in the future. For instance, recent work has predicted homo-oligomeric quaternary-structure models based on AlphaFold2 tertiary-structure predictions for four proteomes (Schweke et al., 2023). Interestingly, application of Socket2 to these models indicates that CCs are major enablers of PPIs, particularly in eukaryotes. However, because this study considers PPIs and quaternary structures more widely, and is distinct from the update of the CC⁺ database presented here, it will be presented elsewhere (Schweke et al., 2023).

The new version of CC⁺ is available at http://coiledcoils.chm.bris.ac.uk/CCPlus/Home.html. It can be searched in a wide variety of ways at the sequence and structural levels to generate user-defined datasets. In turn, the identified CCs can be visualized and analyzed in a user-friendly GUI as part of Socket2. There are also options for analyzing datasets within CC⁺. Alternatively, the datasets (sequences, coordinates, and metadata) can be downloaded in bulk for analysis off-line. Thus, we hope that CC⁺ will be useful to many users interested in an array of CC chemistry, structure, and biology. For instance, from gathering examples of related CC structures for basic biological research to garnering sequence-to-structure/function relationships for underpinning protein design and engineering projects.
