Feasibility of dynamic T₂*-based oxygen-enhanced lung MRI at 3T

2.1 Simulations

We simulated the signal behavior of the dual-echo RF-spoiled gradient echo sequence at our chosen TR (16 ms) over a range of FA and TE values to match the experimental sequence and protocol, described as follows.¹⁷ First, the expected signal difference between air breathing and 100% oxygen breathing (∆S) and percent signal enhancement (PSE; 100% × ∆S/S(air)) in the lung was simulated as a function of FA up to 30° and TE up to 3 ms using the following parameters: T₁ (air) = 1281 ms,¹⁸ T₁ (100% O₂) = 1102 ms,¹⁸ T₂* (air) = 0.68 ms, and T₂* (100% O₂) = 0.62 ms. Given the absence of previously reported lung hyperoxic T₂* values in the literature, we computed T₂* values for all subjects in our study, then averaged those values for use in the simulations (Table S1). Then, the expected ∆S values were simulated as a function of TE using FA of 5°, which was shown to maximize the absolute signal difference between the 21% and 100% oxygen images. Simulations were performed in MATLAB R2022b (MathWorks, Natick, MA).

2.2 Participants

Following local research ethics committee approval (Ref: 18837/001) and written informed consent, we recruited 16 healthy volunteers with no previous record of lung diseases. Of these, eight subjects (three males, age range = 26–54 y, median = 39.5 y) underwent lung MRI on a 3T scanner from two vendors in different cities (Philips Ingenia in London, and Siemens MAGNETOM Vida in Manchester, UK) at a 4-wk interval. Eight separate subjects (four males, age range = 23–51 y, median = 27) were scanned twice to assess scan-rescan repeatability at a 4- to 6-wk interval using the Philips scanner. The inclusion criteria for participants specified healthy adult volunteers aged 18–80 y, who self-declared absence of current or previous lung diseases and exhibited no MRI contraindications.

2.3 MRI acquisition

Where possible, protocols for the two different scanner manufacturers utilized identical acquisition parameters for a 2D interleaved multi-slices dual-echo RF-spoiled gradient echo sequence, while some options required manufacturer-specific parameters. Site-independent parameters included: six coronal slices of 10 mm thickness with 4 mm gap with phase-encoding right/left; in-plane resolution 4.69 × 4.69 mm²; FOV covering entire lungs in all 16 volunteers (except for the inter-slice gaps in the anterior/posterior direction); TR = 16 ms; matrix size = 96 × 96; and dynamic temporal resolution = 1.54 s. Selection of FA (5°) was based on our simulations (Figure 1). The shortest TE values available for the chosen acquisition were selected for each scanner (L, Philips in London; M, Siemens in Manchester): TE_1L = 0.71 ms, TE_2L = 1.2 ms; TE_1M = 0.81 ms, TE_2M = 1.51 ms. Scan parameters for each vendor are listed in Table 1.

Subjects were fitted with a disposable/MRI-compatible non-rebreathing mask (Intersurgical, Berkshire, UK) to allow for medical air and 100% oxygen delivery while lying supine in the scanner. Piped gases were delivered to the subject at 15 L/min using a standard low flow oxygen blender (Inspiration Healthcare, Leicestershire, UK). The initial 60 dynamic acquisitions were obtained while breathing medical air. The gas supply was then switched to 100% O₂ for the following 150 dynamic acquisitions, after which the supply was returned to medical air for further 130 acquisitions. Images were acquired during uncontrolled free-breathing to minimize participant burden and avoid interrupting gas delivery. Total scanning time for the dynamic series was approximately 9 min.

2.4 Data analysis

For motion correction, non-linear image registration was performed on the dynamic time series data using Advanced Normalization Tools (ANTs).^{19, 20} Subsequently, the lung parenchyma, excluding central major vasculature, was manually segmented from registered images. For an initial exploration of the data, first, image registration and density correction were performed as described below. Secondly, averaged hyperoxia images (61st to 210th) were subtracted from averaged normoxia images (10th to 60th). Last, mean PSE maps was calculated from the subtracted images normalized to the averaged normoxia images.

The R₂* of each voxel was quantified analytically from the magnitude-reconstructed signal from the masked lung images acquired at TE₁ and TE₂ after tissue density correction as described in Eqs. 5 and 6. ∆R₂* maps were calculated by the subtraction of mean normoxia R₂* maps across multiple time points (30th to 60th time series acquisitions) from mean hyperoxia R₂* maps across multiple time points (120th to 180th). Median ∆R₂* values were averaged over the two most posterior slices for multi-site comparison between Manchester and London, and six slices for scan-rescan comparison in London.

Data were analyzed by an experienced (>10 years) MRI physicist using a computational pipeline written in MATLAB R2022b (MathWorks, Natick, MA), taking ˜60 min per subject visit, primarily due to motion correction.

2.5 Statistical analysis

Normality was assessed for all metrics using the Shapiro–Wilk test. For non-normally distributed metrics, we log-transformed the data before statistical analyzes (Figure S1). We used Bland–Altman plots with 95% limits of agreement (LOA) and derived the repeatability coefficient (RC), reproducibility coefficient (RDC), and intraclass correlation coefficient (ICC) to evaluate the agreement of repeated measures, as recommended in the QIBA guidelines.²⁵ For the log-transformed metric, we calculated the asymmetric cut-points for RC and RDC through back-transformation,²⁶ and ICC values were computed as described in Pleil et al.²⁷ An inter-rater ICC analysis was conducted on London data from eight volunteers at the initial time point, using additional lung masks outlined by a second rater. The agreement levels were: excellent for ICC > 0.74, good for ICC 0.6–0.74, fair for ICC 0.4–0.59, and poor for ICC < 0.4.²⁸ Coefficient of variation (CV) was calculated across all subjects at each TE. All statistical analyzes were performed using SPSS v28.0 (SPSS Inc, Chicago, IL).

3.1 The effect of oxygen on signal intensity–simulations

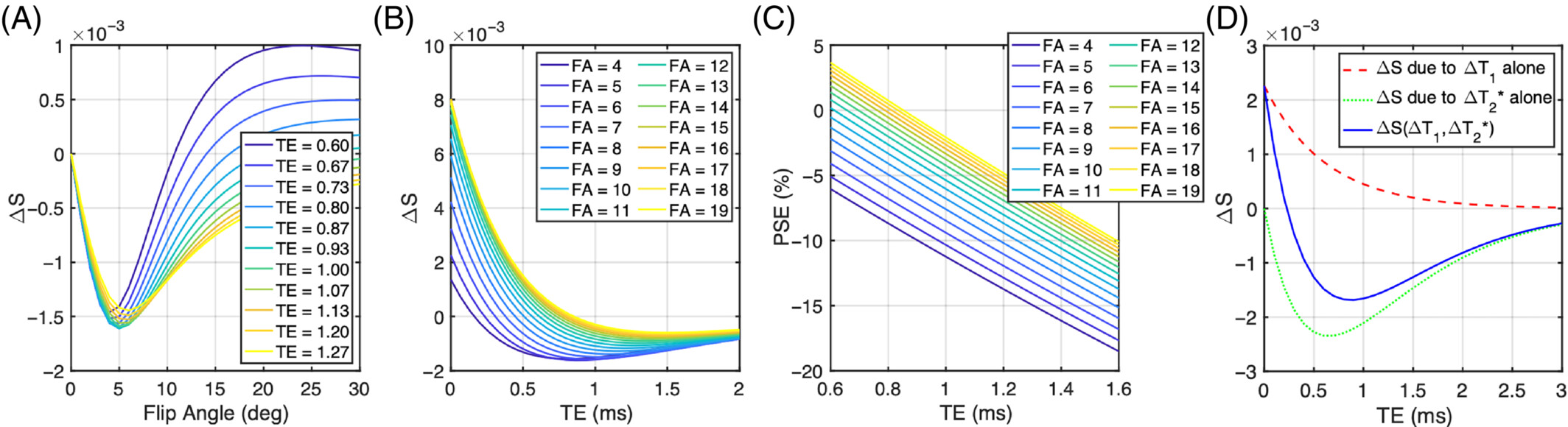

Simulations show that ∆T₂*-induced negative enhancement (∆S) for our chosen TR = 16 ms is maximum at FA ˜5°, independent of the choice of TE (Figure 1A). The amplitude of the TE dependence of ∆S reduces with smaller FA (Figure 1B), with negative-going signal change occurring at shorter TE. The magnitude of negative PSE increases with lower FA and longer TE, while PSE values are closer to 0 at shorter TE and high FA (Figure 1C). We also observed that ∆T₂* dominates the signal change and produces negative contrast at TE > 0.2 ms for FA = 5° (Figure 1D). The expected signal change at TE_1L (0.71 ms) is about 55% more sensitive to changes in ∆T₁ and about 21% more sensitive to changes in ∆T₂* than at TE_2L (1.2 ms) (Figure 1D).

3.2 The effect of oxygen on signal intensity–experimental

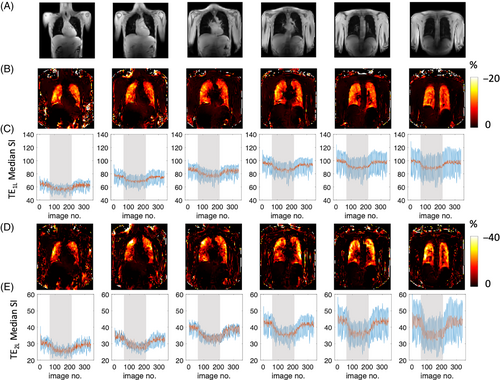

Typical location of the acquired images is shown in Figure 2A. PSE maps at both TEs demonstrate uniform PSE across the parenchyma (Figure 2B,D). As expected, due to the dominant effect of T₂* changes, time course plots of mean PSE from masked lungs exhibit negative contrast induced by 100% O₂ inhalation (Figure 2C,E), in agreement with the simulated results (Figure 1D). The median signal intensity is higher in posterior slices due to greater proton density, associated with the subjects' supine position (Figures 2C,E and S2).

3.3 The effect of density correction

The time course plots (Figure 2C,E) post-density correction (red solid line) show smaller magnitude signal fluctuation than pre-density correction (blue solid line) due to the reduced impact of respiratory motion-induced signal changes. Example signal time courses with their downslope and upslope fits (Eqs. 2 and 3) also show improvement in time course wash-in fitting with tissue density correction (Figure S3).

Table 2 summarizes the mean PSE and CV before and after applying density correction for the evaluation of inter-scanner TE-dependence. Across eight healthy volunteers, the magnitudes of all negative PSE values were reduced by applying tissue density correction. Moreover, this correction enhanced the linearity of the reduction in negative PSE magnitudes. In addition, CV of mean PSE was also decreased for all except TE_1M PSE (mean PSE values over two posterior slices) or TE_2M PSE (mean PSE values over all six slices). All repeatability metrics were improved by the density correction step (Figure S4) as also described in the Section 3.7.

3.4 TE dependence

While the mean signal intensity is higher at TE_1L than for TE_2L (Figure 2C,E), PSE is greater at TE_2L than at TE_1L (Figure 2B,D), again in agreement with our simulations (Figure 1B,C). The TE dependence of PSE expected from simulations (Figure 1C) is also observed in the density-corrected PSE values from four separate TEs at two sites (Table 2).

3.5 ∆R₂* quantification

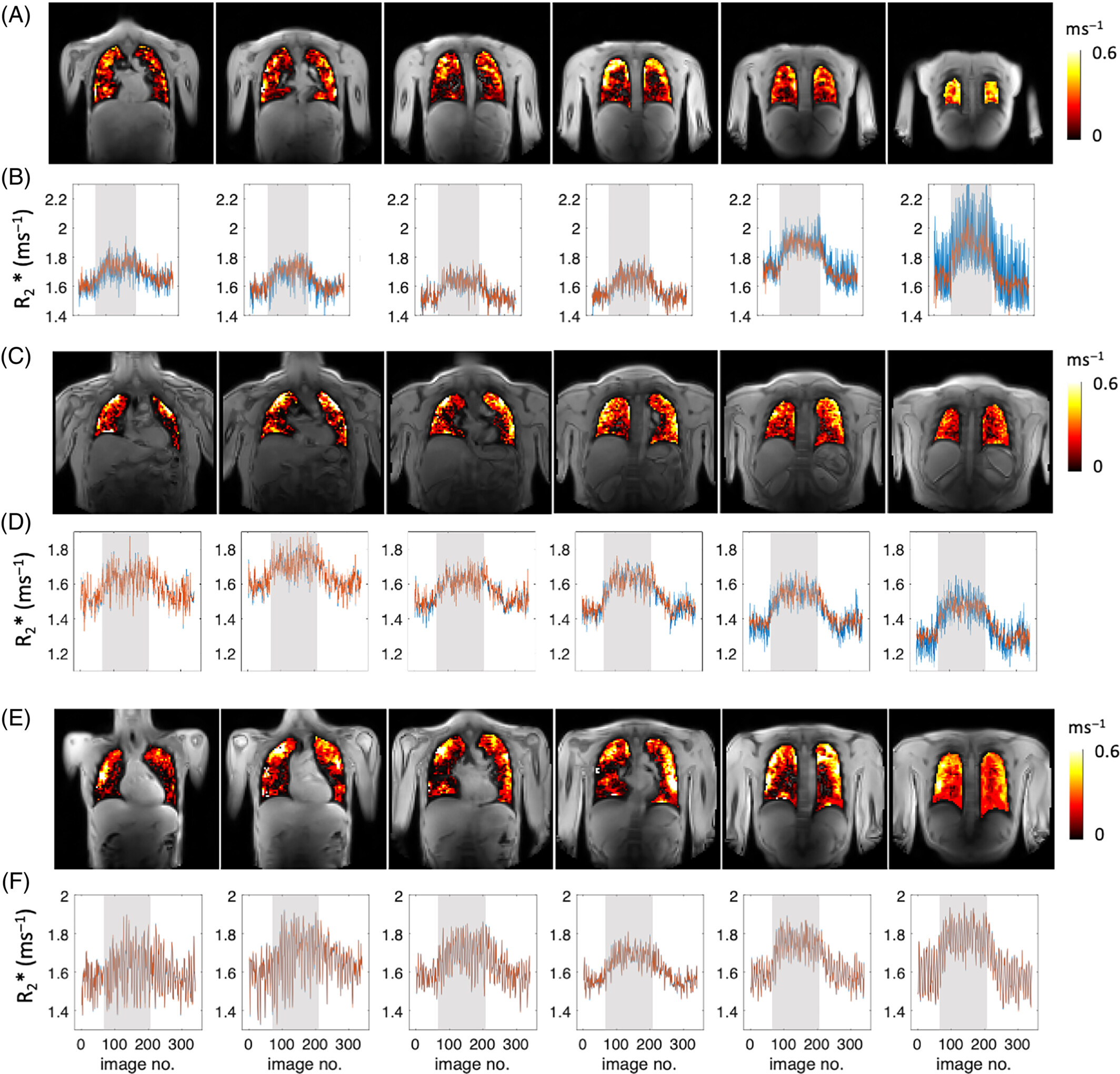

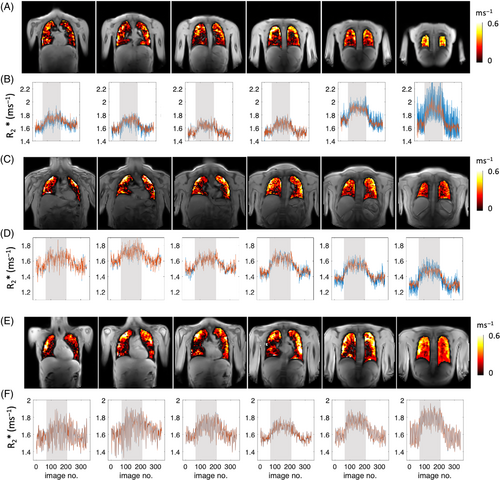

Figure 3 shows examples of plateau ∆R₂* maps across six slices from anterior to posterior, the corresponding time course plots of the median R₂* from the maps of masked lungs for each slice. Median ∆R₂* maps illustrate clear O₂ delivery in the entire lung (Figure 3A,C,E), with a spatial distribution that is heterogeneous compared to the patterns observed in the PSE maps (Figure 2).

Median R₂* time course plots show R₂* is largely unaffected by density correction (because the calculation of R₂* normalizes for density) except for the last posterior slice. We observed that the discrepancy between tissue density corrected (red) and uncorrected (blue) ∆R₂* plots (Figure 3B) is a common occurrence among volunteers with smaller lung volumes. In such cases, the final posterior slice is aligned with the rear of the lungs, adjacent to the ribcage (Figure 3A) and appears to be influenced by the partial volume effects.

A trend of ∆R₂* increase from anterior to posterior slices is observed (Figure 4C), and the mean T₂* values of 16 healthy volunteers from the two posterior slices were 0.68 ± 0.05 ms (T₂* for 21% O₂) and 0.62 ± 0.05 ms (T₂* for 100% O₂), while mean ∆R₂* was 0.14 ± 0.03 ms⁻¹ (Table 3).

3.6 Signal variation with slice position in the lung

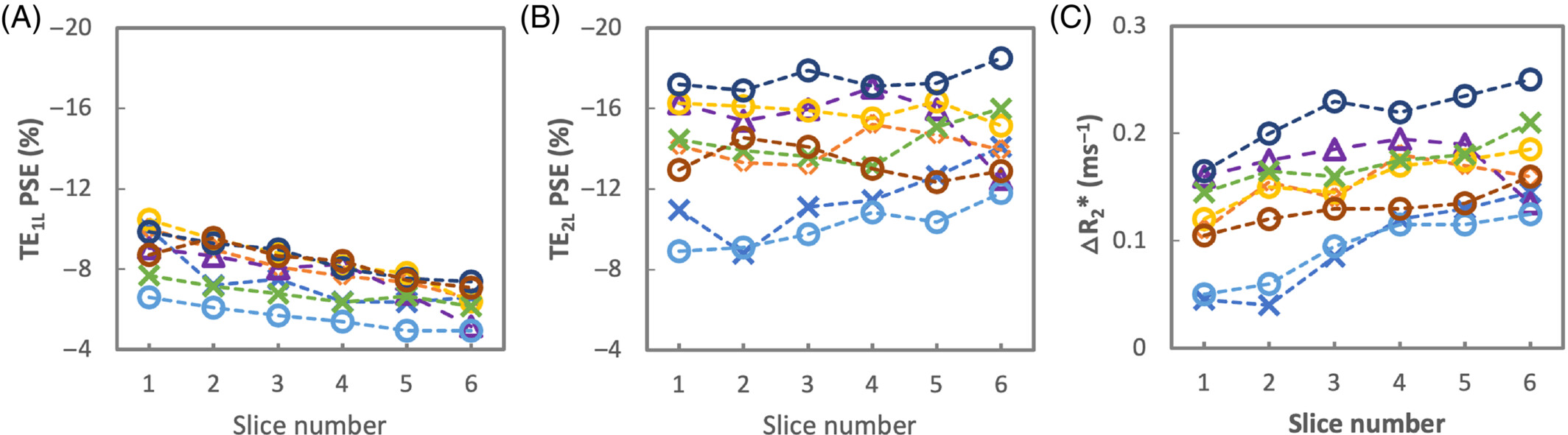

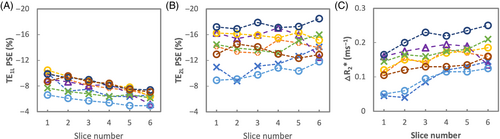

The PSE of TE_1L gradually decreases from anterior to posterior slices across all subjects (Figure 4A), whereas the PSE of TE_2L do not noticeably change (Figure 4B). ∆R₂* shows a gradual increase from anterior to posterior.

3.7 Repeatability and reproducibility

All metrics were normally distributed except a subset of τ-nBR (Table S2).

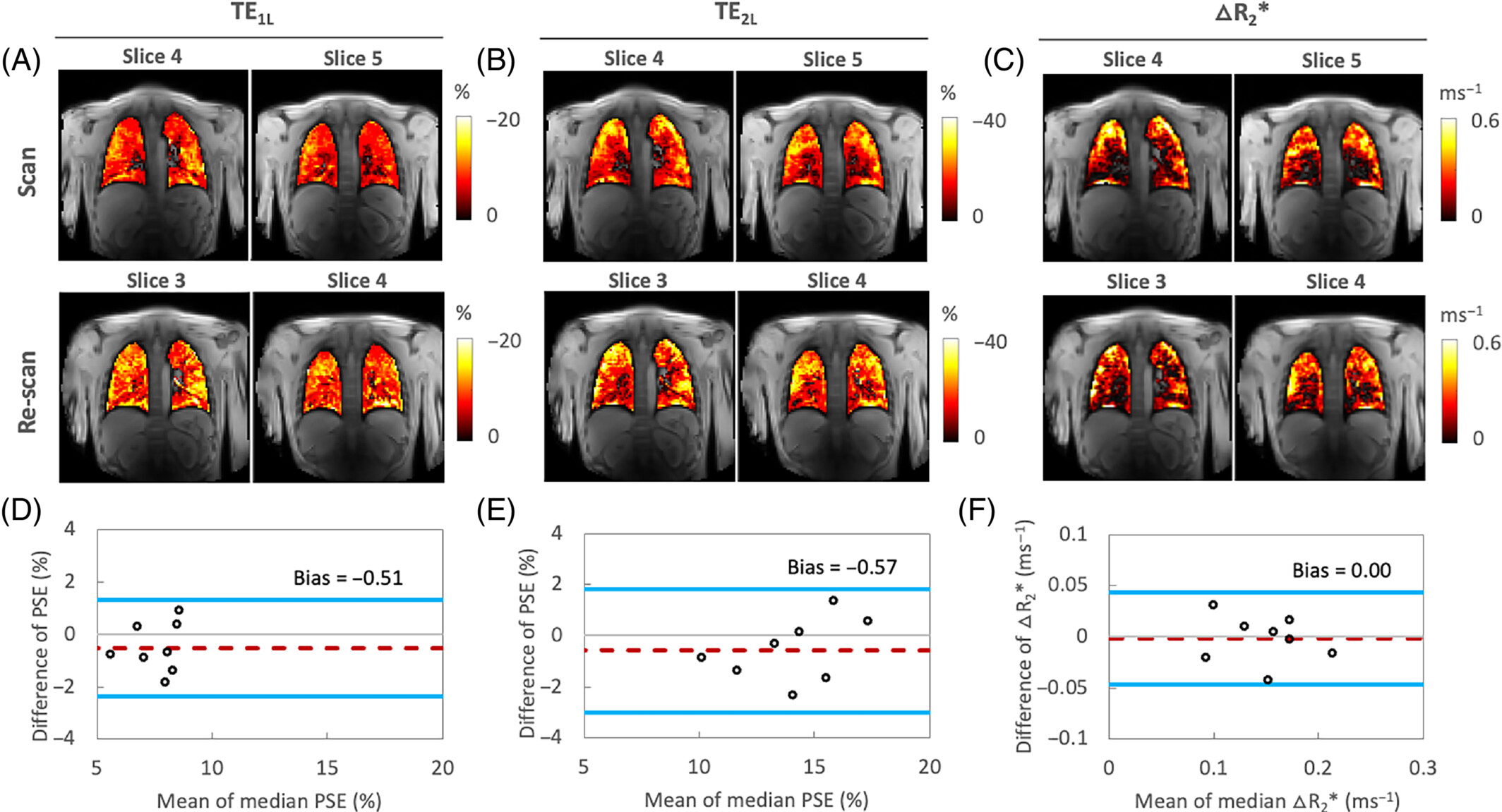

Example intra-scanner PSE maps show relatively homogeneous enhancement at both TEs (Figure 5A,B). The mean PSE values from eight healthy volunteers varied little between the repeat scans.

The plateau △R₂* maps from the same data set show relatively heterogeneous △R₂* distribution, wherein certain structures, particularly areas of major vasculature, do not appear to respond to 100% O₂ inhalation (Figure 5C). This is expected as the R₂* change is mainly due to gaseous oxygen in the alveoli but not dissolved oxygen as previously reported.¹⁵

The Bland–Altman plot analyzes of the repeated measurements of PSE and △R₂* indicate little and insignificant bias between two intra-scanner measurements in London, respectively, as shown by the 95% LOA (Figure 5D–F). The ICC and RC measurements of PSE at TE_1L and TE_2L, and intra-scanner △R₂* show excellent intra-scanner repeatability (Table 3).

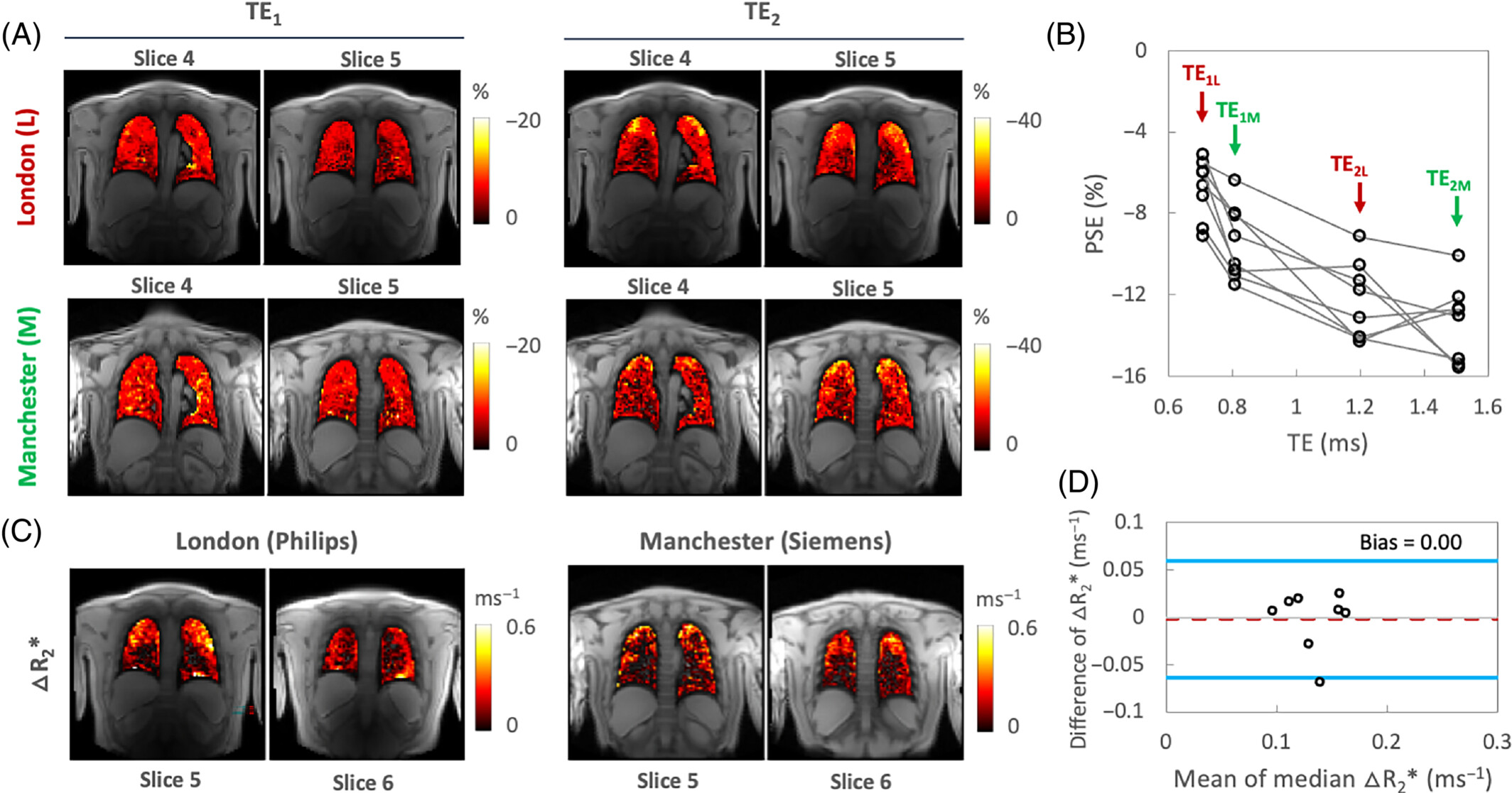

The PSE maps from inter-scanner traveling volunteers' scans show similar spatial distribution of enhancement at TE₁. However, the PSE observed at TE₂ from the Manchester site exhibits more pronounced noise, which could be attributed to the signal approaching the noise floor at the longer TE (Figure 6A). Plots of the combined PSE values at four separate TEs from the two MRI systems display the expected TE dependence of the signal (Figure 6B, Table 2), similar to simulation (Figure 1C).

The △R₂* maps display a lack of enhancement near major vasculature (Figure 6C). Notably, the △R₂* maps obtained from the Manchester site continue to show increased noise, a pattern consistent with the TE_2M PSE maps. Nevertheless, △R₂* comparison between two different scanners again shows little evidence of bias, with the 95% LOA measurements being (−0.06%, 0.06%) (Figure 6D). The values of ICC and RDC observed for inter-scanner △R₂* comparisons reflect good reproducibility (Table 2).

The ICC_inter measurement of the log-transformed τ-nBR values shows fair repeatability and reproducibility, while ICC_intra, RC, and RDC values are in the poor range due to existence of outliers as shown in Figure S5.

4.1 T₂*-weighting allows good oxygen delivery contrast at 3T

Our simulations (Figure 1D) show the expected dependence of spoiled gradient echo PSE on both ∆T₁ and ∆T₂*, which can lead to reduced oxygen-related signal change if TE and FA are not optimized. Maximum (negative) PSE for our chosen TR of 16 ms is found with a FA of ˜5° across a wide range of TE (Figure 1A). Our simulations also indicate that negative PSE at TE longer than approximately 0.23 ms when using this FA, is due to the significant oxygen-level dependent ∆R₂* effect dominating the signal change in the lungs (Figure 1B,D). Our experimental data are consistent with our simulations, with negative PSE observed throughout the lung parenchyma, at levels that are in agreement with simulations. Importantly, this allows the generation of visually high-quality mean PSE maps at the TEs used in this study (Figures 2, 5, 6). The mean PSE values of traveling healthy volunteers (Table 2) are consistent with the expected trend of PSE with variable TEs from our simulations (Figure 1C). Specifically, the simulated PSE plots, derived from the individual T₂* values of eight healthy volunteers, demonstrate the significant impact of the chosen T₂* values on the variability of simulated PSE values (Figure S6). Nonetheless, the experimental PSE values remain within the range of PSE values predicted by simulations.

The mean T₂* value across all healthy volunteers for 21% O₂ inhalation (0.68 ± 0.05 ms) aligns closely with the literature-reported values (0.74 ± 0.1 ms) at 3T.³⁰ We observed that upon 100% O₂ inhalation, the mean T₂* value decreased by about 9% relative to normoxia, resulting in ∆R₂* of 0.14 ± 0.03 ms⁻¹. To the best of our knowledge, this is the first study that reports mean values of hyperoxic T₂* and ∆R₂* of healthy human lungs at 3T. While the influence of T₂* on PSE is large at 3T, the effect will also be present at lower field strengths when using gradient echo methods and should be accounted for when interpreting nominally T₁-weighted OE-MRI.¹⁷

4.2 T₂*-weighted OE-MRI demonstrates good repeatability and reproducibility

The Bland–Altman, RC, and ICC analysis of the repeated measurements of PSE and △R₂* suggest high intra-scanner repeatability (Table 3, Figure 5). They also demonstrate that comparable dynamic OE-MRI protocols for the lung can be implemented at 3T across different sites and scanners with good repeatability and reproducibility for △R₂*. While maximum gradient strength and maximum gradient slew rate between the two systems from the different manufacturers are identical, matching TE and bandwidth between scanners proved challenging, which results in variability of OE signal enhancement. For this reason, direct reproducibility assessments for PSE were not feasible although the variation in PSE with TE between scanners closely aligned with our simulations (Figures 1C and 6B). We were able to assess ∆R₂* reproducibility, as T₂* signal decay is, to the best of our knowledge, monoexponential with TE in the lung. In this work, we derived a new metric, τ-nBR, to compensate differences in individual participant's breathing patterns between scans, which have a direct impact on ventilation. The τ-nBR metric showed fair to poor reliability of the dynamic parameter, and this disparity may be attributed to inaccuracies in gas switching time points, impacting on the fitting, as the gas blender was manually operated. Therefore, further investigation is necessary to optimize the enhancement (see Section 4.5 for details).

4.3 Density correction improves repeatability

While previous studies have demonstrated that density variation due to respiration could provide useful physiological parameters, in the current study, our motivation was to optimize the OE signal. We, therefore, utilized the adapted sponge model, which was introduced by Zha et al.²² to correct for density variation. In line with the previous reports,^21-24 our results demonstrate that the density correction significantly improves quantification of OE-MRI metrics by decreasing fluctuation due to respiratory motion-induced signal changes (Table 2, Figure S4). This is particularly useful in posterior slices (in supine position) where fluctuation of signal changes is greater (Figure S2).

The accuracy of the sponge model for density correction depends on the assumption that all signal change is due to density variation associated with ventilation. In practice, it is likely that other factors, such as changes in blood volume and local alveolar susceptibility profiles, also influence the signal change during the breathing cycle, and that these factors may vary depending on disease status. Nevertheless, the clear reduction in breathing-related signal variation after correction provides evidence that the density correction is largely successful in our experiments. Furthermore, our results show that the proposed method at 3T yields excellent intra-scanner repeatability after correction of pixel-wise signal intensity using the deformation fields from image registration (Table 3). Previous studies utilizing a non-Cartesian UTE approach with free-breathing at 1.5T²² or breath-held acquisitions at 0.55T¹⁰ similarly demonstrated improvement of repeatability in both mean PSE and the low-enhancement percent.

4.4 Signal variation with position in the lung

Mean signal intensity for both baseline and O₂-induced change is observed to be higher in posterior slices across all subjects due to greater proton density in subject's supine position (Figures 2C,E and S2). Interestingly, we also observed that the absolute PSE of TE₁ gradually decreases, from anterior to posterior slices, across all subjects (Figure 4A) whereas the PSE of TE₂ does not noticeably change (Figure 4B). While PSE combines both ∆T₁ and ∆T₂* effects, the PSE at TE₁ contains a stronger ∆T₁ effect than that at TE₂, as shown in the simulation (Figure 1D). On the contrary, ∆T₂* effect is more substantial and dominating over ∆T₁ effect in the PSE at TE₂. Thus, this may be attributed to increasing effect of ∆T₁ from anterior to posterior, possibly due to increased vessel density and/or blood pooling due to gravity, which require further investigation. A trend of ∆R₂* increase observed from anterior to posterior slices may reflect the expected predominant sensitivity of ∆R₂* to ventilation, as more ventilation is expected in the posterior slices when the lungs are in supine position. This is consistent with a previous report that T₂*-related signal is potentially more specific to ventilation due to an effect of changing concentrations of oxygen gas in the alveoli.¹⁵

4.5 Limitations and future directions

The present study has several limitations. First, we employed a 2D multi-slice readout, which was designed to prioritize relatively high temporal resolution and allow reasonable lung coverage while accommodating free-breathing for participant comfort. Although the temporal resolution of 1.54 s is currently the highest achievable resolution in dynamic lung OE-MRI, it cannot still resolve all cardiac and respiratory motion-related artifacts during acquisition. Moreover, a 2D interleaved multi-slice excitation affects the signal variation due to through-slice respiratory motion and inflow of blood, which are likely to be a source of noise for our T₂*-sensitized signal. Additionally, slice gaps and the limited number of slices may mean that some localized pathology could be missed. This could be mitigated by increasing the number of slices, either by increasing TR (thereby lowering temporal resolution and leading to more motion-related image blurring and artifacts) or by employing acceleration methods. Since there may be inconsistencies between the slice positions, a multi-slice acquisition also leads to challenges for inter-scanner, inter-session image registration that is essential for voxel-wise comparison. The 3D non-Cartesian UTE OE-MRI methods have been demonstrated at 1.5T and lower field strengths to allow isotropic spatial resolution whole lung OE-MRI measurements.^{10, 17, 22, 31} However, those studies are limited to static acquisitions which employed either breath-hold or two separate free-breathing sessions of normoxia and hyperoxia. Dynamic OE-MRI using such methods may be possible by employing temporal view sharing methods, but we are unaware of any studies to date that have made use of this strategy. Although currently existing dynamic methods utilize respiratory gating approaches resulting in longer temporal resolution compared to our proposed method, it's worth noting that these 3D dynamic methods offer enhanced spatial resolution and SNR. Consequently, there is a need for future investigations to explore the implementation of 3D UTE acquisition in our proposed method, while maintaining a reasonable temporal resolution.

Second, our study design lacked a reference standard due to the absence of established dynamic OE-MRI methods at 3T. This also aligns with a key motivation of the present study, which focuses on developing a reliable protocol tailored for 3T. Future investigations could compare our methods with OE-MRI at lower field strengths or with other functional lung MRI methods.

Thirdly, low SNR in the current study leads to poor performance in extracting dynamic parameters, particularly wash-in time. Although our results show that PSE and △R₂* measures are repeatable, these largely reflect steady-state conditions. Nonetheless, our primary aim was to explore a complete free-breathing acquisition approach that spans the entire gas delivery time course for both air and O₂ phase. This approach not only enhances subject comfort but also maintains physiological realism, features that breath-hold or separate free-breathing methods for each gas phase may lack. Therefore, the feasibility of the proposed method with the full free-breathing acquisition suggests potential for future development of OE-MRI for evaluating dynamic parameters. Furthermore, optimizing the methodological approach, such as new hardware for the administration or additional monitoring to track breathing patterns, might improve reproducibility in this measurement.

Lastly, being a proof-of-concept investigation, our current study is limited by a small sample size and the absence of individuals with disease. Future studies will provide a more comprehensive understanding of the method's applicability in such settings.
