Monte Carlo (MC) random walk simulations in the myocardium have been performed to simulate self-diffusion of water molecules in histology-based media with varying extracellular volume fraction (ECV) and permeable membranes. The effect of microvascular perfusion on simulations of the DT-CMR signal has been incorporated by adding the contribution of particles traveling through an anisotropic capillary network to the diffusion signal. The simulations have been performed considering three pulse sequences with clinical gradient strengths: monopolar stimulated echo acquisition mode (STEAM), monopolar pulsed-gradient spin echo (PGSE), and second-order motion-compensated spin echo (MCSE).

Results

Reducing ECV intensifies the diffusion restriction and incorporating membrane permeability reduces the anisotropy of the diffusion tensor. Widening the intercapillary velocity distribution results in increased measured diffusion along the cardiomyocytes long axis when the capillary networks are anisotropic. Perfusion amplifies the mean diffusivity for STEAM while the opposite is observed for short diffusion encoding time sequences (PGSE and MCSE).

Conclusion

The effect of perfusion on the measured diffusion tensor is reduced using an increased reference b-value. Our results pave the way for characterization of the response of DT-CMR to microstructural changes underlying cardiac pathology and highlight the higher sensitivity of STEAM to permeability and microvascular circulation due to its longer diffusion encoding time.

1 INTRODUCTION

Diffusion Tensor Imaging is an in-vivo non-invasive MR technique for characterizing the underlying tissue microstructure. This MR technique measures the self-diffusion of water molecules within a voxel providing information on the magnitude of diffusion, the degree of diffusion anisotropy and its orientation.^{1, 2} Diffusion tensor imaging applied to the heart presents several challenges such as the intrinsic deformation during the cardiac cycle or the respiratory associated movement.^{3, 4} However, recent developments^{4, 5} in diffusion tensor cardiovascular magnetic resonance (DT-CMR) have overcome these difficulties providing in-vivo insights into the microstructural abnormalities underlying various myocardial pathologies.^{6, 7} Typical DT-CMR sequences allow water molecules to diffuse tens of micrometers probing the local tissue microstructure. However, the MR signal is measured in a much larger voxel region ( $3\times 3\times 8\;{\mathrm{mm}}^3$ ) effectively averaging the measured tissue microstructure. Furthermore, the link between a given change in microstructure and the corresponding change in DT-CMR parameters is not well established. The comprehension of this missing link between the MR image data and the microscopic structure lends itself to investigations using Monte Carlo (MC) random walk simulations^8-10 or finite element method (FEM) based simulators,^{11, 12} which have the power to elucidate the sensitivity of the DT-CMR signal to confounding factors or biological parameters present in the tissue microstructure.

The first cardiac microstructure numerical phantom^{8, 9} utilized MC simulations and simplified cardiomyocytes to cylindrical geometries with differing hexagonal cross sections and lengths. Recently,¹⁰ we generated a more realistic numerical phantom based on manually segmented histology. In this virtual tissue, the membranes were considered impermeable and radially adjacent blocks were rotated in the local coordinate system to simulate the helix angle (HA) present in the myocardium.¹³ By performing MC random walk simulations, we showed that the distribution of extracellular space (ECS) has a measurable impact on the DT-CMR parameters. We also showed that, in the case of permeable membranes, the distances diffused in long diffusion time sequences such as Stimulated Echo Acquisition Mode (STEAM) would be sufficient to span multiple cardiomyocytes. Simultaneously, experimental studies have shown that cardiomyocytes are not fully impermeable and exchange rates for intra-extracellular water exchange have been reported from 6 to 30 Hz.^14-16 Mathematical models^{17, 18} can be utilized in the MC random walk simulations to accurately represent the cell permeability by solving the interface boundary condition.¹⁹ However, these models suffer from numerical limitations²⁰ when the membrane separates media with different diffusivites.

DT-CMR techniques are not only sensitive to molecular diffusion but also to the blood flow in capillaries.²¹ Numerical simulations^{22, 23} have been performed in the brain where the capillary network is modeled as isotropic and several theories have been proposed for characterizing the microcirculation in the capillary network.²¹ Due to the assumption that the capillaries are randomly oriented, most of these models do not translate well to cardiac and skeletal muscle tissue as the capillary network is anisotropic and, on average, parallel to the myocytes.^{24, 25} More recent numerical simulations^26-28 have created anisotropic capillary network models to simulate the effect of several perfusion parameters on the diffusion weighted MR signal.

The aim of this work is to study the sensitivity of DT-CMR parameters to changes in cell membrane permeability and microvascular perfusion. The simulations of the diffusion process use a new permeability model²⁰ that improves upon the treatment of the interface boundary condition¹⁹ between regions of different diffusivity as compared to previous numerical simulations of diffusion tensor imaging. In a similar manner, the microvascular perfusion signal has been modeled assuming that a group of particles travel at constant velocities through a capillary network anisotropically oriented according to a Dimroth–Watson distribution.^{29, 30} The sensitivity of the tensor to perfusion has been studied for typical DT–CMR sequences by adding a weighted contribution of the perfusion signal to the simulated diffusion signal, providing a more complete MC random walk simulation than in previous work.

2 METHODS

Here we introduce the histology-based substrate, the treatment of the interface boundary condition substrate, the permeability model and the key elements of the MC random walk simulations. Next, we present the perfusion model and its incorporation into our DT-CMR simulations.

2.1 Histology-based substrate

The histology-based substrate is constructed by replicating a block of tissue of $495\times 392\times 127\kern0.3em \mu {\mathrm{m}}^3$ .¹⁰ This repeating block of tissue is generated by extruding 1182 contours obtained from manual segmentation of porcine histology (Masson staining).³¹ The cardiomyocyte cross-sections were segmented from a region of interest in the mesocardium where the imaging plane was approximately perpendicular to the cardiomyocyte long axis. As observed in Figure 1, each block of tissue is rotated around the myocardial radial direction (Y-direction in Figure 1) by applying a rotation of $1{0}^{\circ}\kern0.3em {\mathrm{mm}}^{-1}$ to account for the transmural HA variation observed in the myocardium.^{4, 13, 32} The different blocks are also shifted half a block every other row in the long axis of the cardiomyocytes (Z-direction in Figure 1) to eliminate long straight channels.

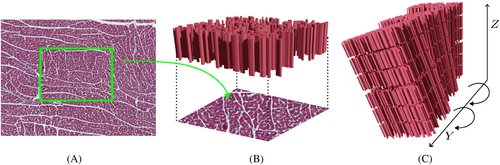

Details are in the caption following the image — **FIGURE 1**
Open in figure viewer PowerPoint

(A) Illustration of the two-dimensional histology-image and the region of interest (ROI) that was manually segmented. (B) Extrusion of the ROI in the long axis of the cardiomyocytes recreating a block of tissue of $500\times 400\times 120\kern0.3em \mu {\mathrm{m}}^3$ . (C) Representation of the rotation applied to adjacent blocks in order to simulate the transmural variation in the helix angle (HA). Note that for illustration purposes, the three-dimensional model contains few block repetitions with fewer cardiomyocytes than the actual histology-image and the spacing between the blocks is not realistic.

2.2 MC random walk

The Brownian motion or self-diffusion of water molecules can be modeled as a MC random walk of massless, noninteracting particles. Particles are uniformly seeded in the histology-based substrate inside a cuboid representing the dimensions of a typical DT-CMR voxel (

2800\times 2800\times 8000\kern0.3em \mu {\mathrm{m}}^3

) and a buffer zone to minimize biases due to particles entering/leaving the voxel during the simulation.¹⁰ Note that a typical DT-CMR voxel has a larger slice thickness (Z-direction) than the in-plane resolution to maintain an acceptable signal-to-noise ratio during the short acquisition times. However, additional simulations have shown similar tensor results for an isotropic voxel (refer to Table S1). At each time step

\delta t

, the position of each particle

\overrightarrow{X}(t)

is updated using a random constant step-size vector

\overrightarrow{R}

, such that for each component

{R}_i

, there is the same equal probability of moving one unit in either possible direction (

{R}_i=+1

{R}_i=-1

). After one whole step,

\overrightarrow{X}\left(t+\delta t\right)=\overrightarrow{X}(t)+\sqrt{2 D\delta t}\overrightarrow{R},

(1)

where

\overrightarrow{R}

is scaled by the local diffusivity

\sqrt{2 D\delta t}

which can either be intracellular,

{D}_{\mathrm{ICS}}

, or extracellular,

{D}_{\mathrm{ECS}}

. The intersections are resolved using additional substeps and the transit model described in Section 2.3. The cumulative phase for each particle is defined by

{\phi}_i=\gamma {\int}_0^T\overrightarrow{X}(t)\cdotp \overrightarrow{G}(t)\kern0.3em dt,

(2)

where

\overrightarrow{G}(t)

is the time-dependent gradient vector. At the end of the random walk, the diffusion signal attenuation is described by the following equation

\frac{S_{\mathrm{diff}}\left(b,\overrightarrow{e_g}\right)}{S_0}=\frac{1}{N_{p,\mathrm{diff}}}\mid \sum \limits_{i=1}^{N_{p,\mathrm{diff}}}{e}^{-j{\phi}_i}\mid,

(3)

where

{S}_{\mathrm{diff}}/{S}_0

is the normalized diffusion signal,

\overrightarrow{e_g}

the gradient direction,

b

a specific sequence b-value³³ and

{N}_{p,\mathrm{diff}}

the number of particles utilized in the diffusion MC random walk simulation. To validate our in-house MC random walk algorithm we compared to a finite element (FE) solution in a representative two-dimensional geometry (refer to Figures S1 and S2).

2.3 Permeability

In this work we assume uniform sarcolemma permeability

{\kappa}_{\mathrm{sarco}}

for all cardiomyocytes. A range of

{\kappa}_{\mathrm{sarco}}

values is considered, to study the effect of intra-extracellular water exchange on DT-CMR parameters, from impermeable

{\kappa}_{\mathrm{sarco}}=0\mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-1}

to highly permeable

{\kappa}_{\mathrm{sarco}}=0.05\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-1}

.^14-16 Whenever a particle interacts with a cell membrane, a probability of transit

{p}_t

is computed via a transit model that represents the permeability embedded in the membrane boundary condition.^{19, 20} This transit model, that we refer to as the hybrid model,²⁰ treats the membrane permeability and the step change in diffusion as successive barrier interactions. Doing so reduces the complexity of the transit probabilities to

{p}_{t_{\mathrm{ECS}\to \mathrm{ICS}}}={p}_b\cdotp {p}_d{p}_{t_{\mathrm{ICS}\to \mathrm{ECS}}}={p}_b,

(4)

respectively, for transit from ECS to ICS and viceversa, where

{p}_b

is the membrane transit probability and

{p}_d

the probability of a particle transitioning between two media of different diffusivities. The membrane transit probability

{p}_b

is derived by Fieremans et al.¹⁷ and the probability of transitioning between two media

{p}_d

of different diffusivity is computed through a step-balanced interface permeability.³⁴ These two probabilities are given by the following equations

{p}_b=\frac{2{\kappa}_{\mathrm{sarco}}\delta x}{D_{\mathrm{ICS}}+2{\kappa}_{\mathrm{sarco}}\delta x}{p}_d=\sqrt{\frac{D_{\mathrm{ICS}}}{D_{\mathrm{ECS}}}},

(5)

where

\delta x

is the distance at the beginning of the step between the particle and the membrane surface projected onto the vector normal to the surface.

2.4 Diffusion experiments

We considered three different sequences; the Stejskal–Tanner monopolar pulsed-gradient spin echo (PGSE),³⁵ gradient duration modulated second-order motion-compensated spin echo (MCSE)^{5, 36} and monopolar STEAM.^{3, 37} Diffusion simulations were performed for each sequence considering two ${G}_{\mathrm{max}}$ values in order to match a reference b-value of ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\kern0.3em \mu {\mathrm{m}}^{-2}$ and a b-value of $b=0.6\kern0.3em \mathrm{ms}\kern0.3em \mu {\mathrm{m}}^{-2}$ . Sequence parameters are summarized in the Table S2. For each experiment we performed six simulations with the following constant parameters: ${D}_{\mathrm{ECS}}=2.5\kern0.3em \mu {\mathrm{m}}^2\kern0.3em {\mathrm{m}\mathrm{s}}^{-1}$ , ${D}_{\mathrm{ICS}}=1\kern0.3em \mu {\mathrm{m}}^2\kern0.3em {\mathrm{m}\mathrm{s}}^{-1}$ , ${N}_t=1{0}^4$ (number of time steps) and ${N}_{p,\mathrm{diff}}=1{0}^5$ (number of particles) using MATLAB (R2017b) with the Parallel Computing Toolbox on the Imperial College High Performance Computing facility (utilizing up to 120 computing nodes and 240 GB of RAM).

2.5 Extracellular volume fraction

The effect of changes in extracellular volume fraction (ECV) is studied by shrinking/growing the manually segmented cardiomyocytes.¹⁰ The cardiomyocytes have been morphed obtaining a default healthy value of $24.69\%$ and two extreme ECV values of $41.82\%$ and $18.8\%$ (see Figure S3).

2.6 Intercalated disks

Intercalated disks (ICD) are complex structures connecting the ends of neighboring cardiomyocytes and are composed of three major complexes: desmosomes, fascia adherens and gap junctions.³⁸ Desmosomes and fascia adherens reinforce the cardiomyocyte junction while gap junctions ensure the passage of electrical current between neighboring cardiomyocytes through intercellular channels.³⁹ To study the sensitivity of the measured diffusion tensor to possible water restriction in the ICDs, we compare simulations for ICDs having the same permeability as the rest of the sarcolemma, with simulations for lower ICD permeability of ${\kappa}_{\mathrm{ICD}}=0.005\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ ⁴⁰ on the end caps of each cardiomyocyte. As depicted in Figure 2, this low permeability region has been extended $2\mu m$ along the long axis of the cardiomyocyte to ensure that the entire end cap is within the region of low permeability irrespective of any geometry irregularity.

2.7 Perfusion model

The microvascular circulation during and between diffusion encoding gradient waveforms causes alterations to the diffusion MR signal magnitude. The contribution of microvascular perfusion to the MR signal is investigated independently from diffusion simulations by simulating a group of particles following specific paths determined by an anisotropic model. As depicted in Figure 2, each particle travels at constant velocity $v$ through different multiple straight segments traversing $k$ segments, each with a length ${l}_k$ and orientation ${\overrightarrow{e}}_{x_k}$ . The multiple segments are derived from an anisotropic model that simulates the orientation of the capillary network providing a simplified representation of the capillary orientation without the need for a detailed network. Note that the mean capillary orientation is always aligned with the mean orientation of the cardiomyocytes, thereby following the same HA rotation described in Section 2.1.

Similarly to random walk, the phase acquired by any particle is given by equation (2). For constant intercapillary velocity, the perfusion phase

{\phi}_{\mathrm{perfusion}}

can be simplified by summing the accumulated phase of each traversed segment. Following this simplification,

{\phi}_{\mathrm{perfusion}}

is normalized by the

b

-value, gradient strength

{G}_{\mathrm{max}}

and velocity

v

^{27, 41} and is then only dependent on the orientation of the segments

{\overrightarrow{e}}_{x_k}

and the gradient profile

\overrightarrow{G}(t)

normalized in amplitude and time

h\left(t/T\right)

, that is,

\overrightarrow{G}(t)={G}_{max}h\left(t/T\right)\kern0.3em \overrightarrow{e_g}

{\Phi}_{\mathrm{perfusion}}=\frac{\phi_{\mathrm{perfusion}}}{v\sqrt{bT}}=\frac{1}{a}\sum \limits_{k=1}^N\overrightarrow{e_g}\cdotp {\overrightarrow{e}}_{x_k}{\int}_{s_{k-1}}^{s_k}{m}_0(s)\kern0.3em ds.

(6)

In the above

{s}_{k-1}

and

{s}_k

are the normalized times when the particle starts and completes a certain capillary segment,

{m}_0={\int}_0^sh\left({s}^{\prime}\right)\kern0.3em d{s}^{\prime }

the normalized 0-th gradient moment and

a

the normalized

b

-value

a=\sqrt{b}/\left(\gamma {G}_{\mathrm{max}}{T}^{3/2}\right)

. At the end of the simulation, the normalized perfusion signal

{S}_{\mathrm{perfusion}}\left(b,\overrightarrow{e_g}\right)/{S}_0

is determined through Equation (3). The total normalized signal (

S\left(b,\overrightarrow{e_g}\right)/{S}_0

) is defined by the weighted contribution:

\frac{S\left(b,\overrightarrow{e_g}\right)}{S_0}=f\frac{S_{\mathrm{perfusion}}\left(b,\overrightarrow{e_g}\right)}{S_0}+\left(1-f\right)\frac{S_{\mathrm{diffusion}}\left(b,\overrightarrow{e_g}\right)}{S_0},

(7)

where

\overrightarrow{e_g}

is the gradient direction and

f

the perfusion fraction (i.e., the proportion of the detectable spins within the capillary network). The total signal loss is defined as

1-S\left(b,\overrightarrow{e_g}\right)/{S}_0

and has been obtained using a healthy ECV of

24.7\%

for the diffusion simulations with

{\kappa}_{\mathrm{sarco}}={\kappa}_{\mathrm{ICD}}=0.03\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-1}

and a default perfusion fraction of

f=10\%

as echocardiographic studies⁴² report a volume fraction of blood in myocardium of

12.6\%\pm 1.8\%

for healthy individuals at rest.

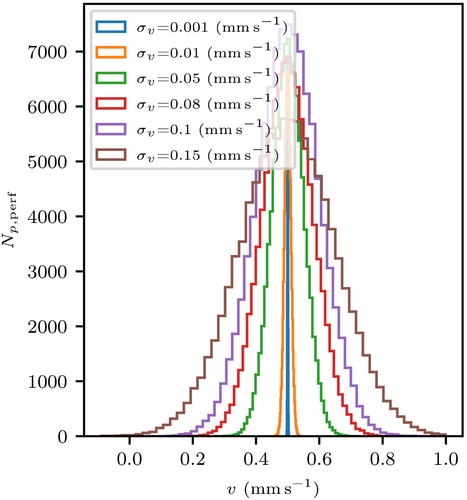

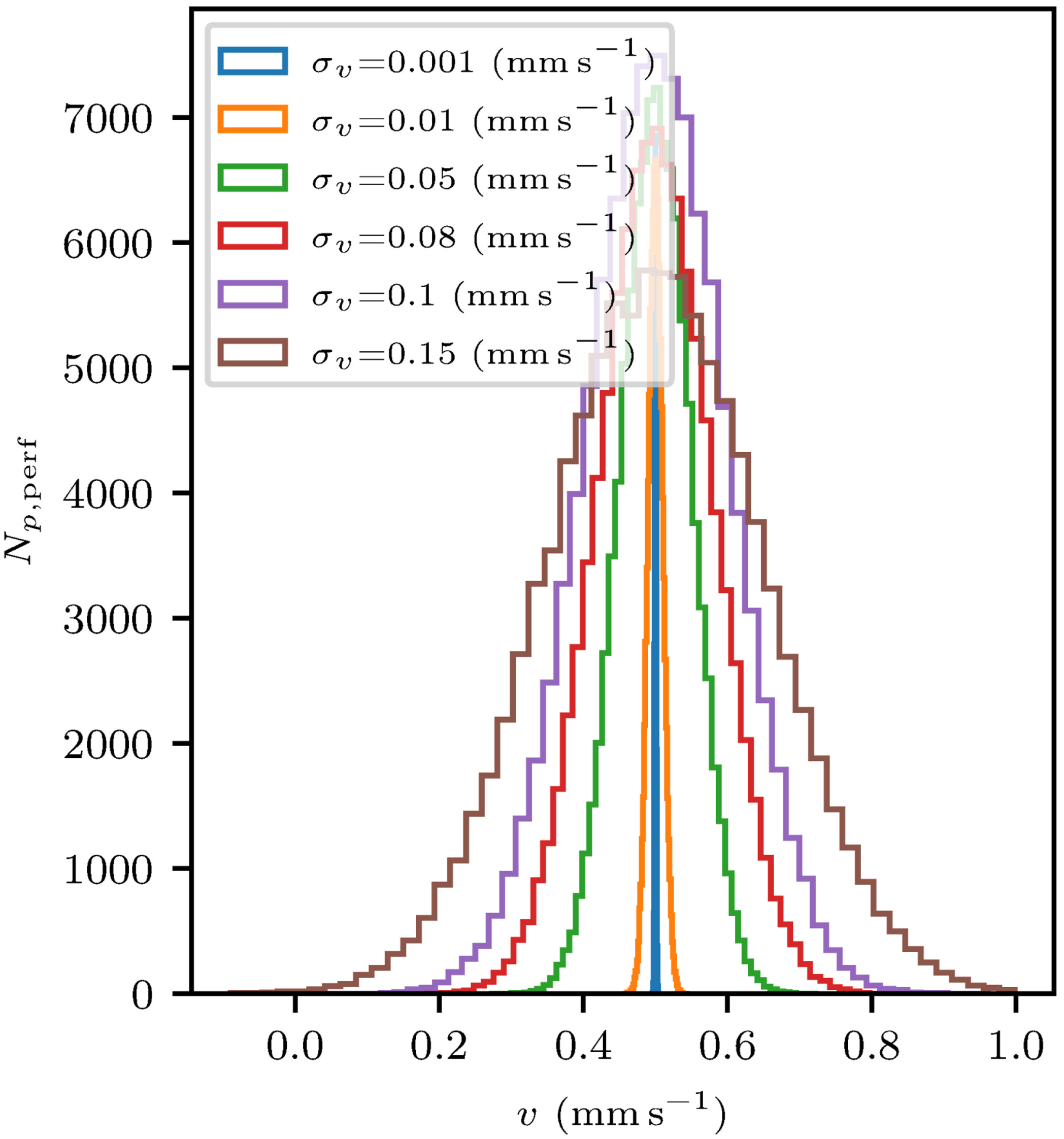

Figure 3 illustrates the intercapillary Gaussian velocity distributions used in the simulations. Increased standard deviation ${\sigma}_v$ corresponds to greater velocity dispersion, while minimal ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ approximately models constant intercapillary velocity. A mean capillary velocity of $\overline{v}=0.5\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ ⁴³ has been assumed while the intercapillary velocity distributions have been truncated at $-0.1$ and $1\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ to avoid extreme velocities.

The perfusing spins ( ${N}_{p,\mathrm{perf}}$ ) have been randomly seeded on one side of the voxel at plane $z=0$ and the perfusion simulations have been performed with ${N}_{p,\mathrm{perf}}=1{0}^5$ which we determined sufficient to reliably compute the perfusion signal (see Figure S4). In the perfusion model, particle displacements are exclusively influenced by the anisotropic model and rotation within the voxel, eliminating the need for a buffer zone.

The effect of perfusion on the diffusion tensor

{\mathbf{D}}_{\mathbf{D}}

has been studied by computing a new tensor

{\mathbf{D}}_{\mathbf{D}+\mathbf{P}}

fitting a mono-exponential model to the total normalized signal calculated in Equation (7).

\frac{S\left(b,\overrightarrow{e_g}\right)}{S_0}=\exp \left(b{\overrightarrow{e_g}}^T{\mathbf{D}}_{\mathbf{D}+\mathbf{P}}\kern0.3em \overrightarrow{e_g}\right).

(8)

Two different tensor fittings have been considered, with

{b}_{\mathrm{ref}}

values of 0 and

0.15\kern0.3em \mathrm{ms}\kern0.3em \mu {\mathrm{m}}^{-2}

, respectively. Additional simulations (see Table S3) suggested that using six encoding directions was enough to reliably calculate tensor parameters. Consequently, six diffusion encoding directions⁴⁴ per b-value were simulated resulting in a total of 12 combinations when using

{b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\kern0.3em \mu {\mathrm{m}}^{-2}

and seven directions using

{b}_{\mathrm{ref}}=0\kern0.3em \mathrm{ms}\kern0.3em \mu {\mathrm{m}}^{-2}

. The mean and variance of the distribution of the eigenvectors has been calculated utilizing the procedure in Basser et al.⁴⁵

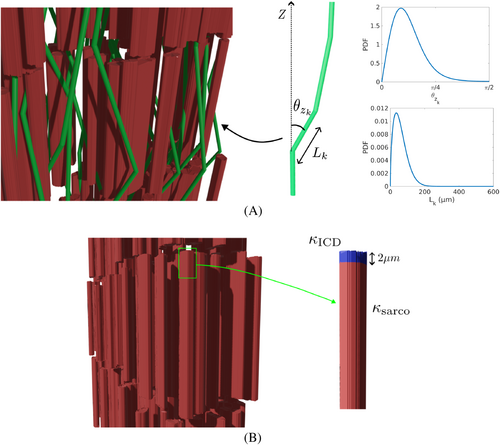

2.8 Capillary network

Diffusion studies traditionally²¹ assumed an isotropic capillary segment distribution. However, the capillaries in skeletal muscle and in the myocardium are highly anisotropic with a preferred orientation aligned with the myocyte long axis.²⁴ Several experimental studies have quantified the anisotropy in skeletal^{29, 46} and cardiac muscle³⁰ capillaries and showed that a hemispherical Dimroth-Watson axial distribution^{47, 48} provides a good fit to capillary segment orientation in both muscle types. On this basis, a Dimroth–Watson distribution has been used here for the zenith angle

{\theta}_z

between each capillary segment and the cardiomyocyte long axis. The joint probability density of

p\Big(\alpha, {\theta}_z

) can be expressed as⁴⁸

\begin{array}{ll}p\left(\alpha, {\theta}_z\right)& =\frac{1}{2\pi {U}_0}\sin {\theta}_z\exp \kern0.2em \left(2K{\cos}^2{\theta}_z\right)\\ {}{U}_0& ={\int}_0^1\exp \kern0.2em \left(2K{x}^2\right)\kern0.3em dx,\end{array}

(9)

and integrating with respect to the azimuth angle (

\alpha

) reduces the equation to:

p\left({\theta}_z\right)=\frac{1}{U_0}\sin {\theta}_z\exp \kern0.2em \left(2K{\cos}^2{\theta}_z\right),

(10)

where

K

is a variable that determines the degree of anisotropy and may vary from isotropic

K=0

to highly anisotropic

K\gg 0

. Note that due to the use of spherical coordinates the isotropic case

K=0

distributes more points around the equator

{\theta}_z=\pi /2

than closer to the cardiomyocytes axis

{\theta}_z=0

. Equation (10) assumes axial directions

{\theta}_z\in \left(0,\pi /2\right)

and a uniform azimuth distribution

{\alpha}_k=U\left[0,2\pi \right]

. A default value of

K=3.25

has been chosen for the perfusion simulations as experimental data performed in rat hearts³⁰ reports mean values of

K=3.28

in the subepicardium and

K=3.20

in the subendocardium. The length of the capillary segments has been obtained through a Weibull distribution with a mean and standard deviation of

{\mu}_L=60\kern0.3em \mu \mathrm{m}

and

{\sigma}_L=40\kern0.3em \mu \mathrm{m}

.^{24, 27}

3 RESULTS

3.1 The effects of ECV and variations in permeability

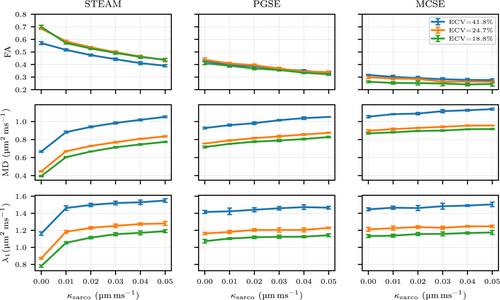

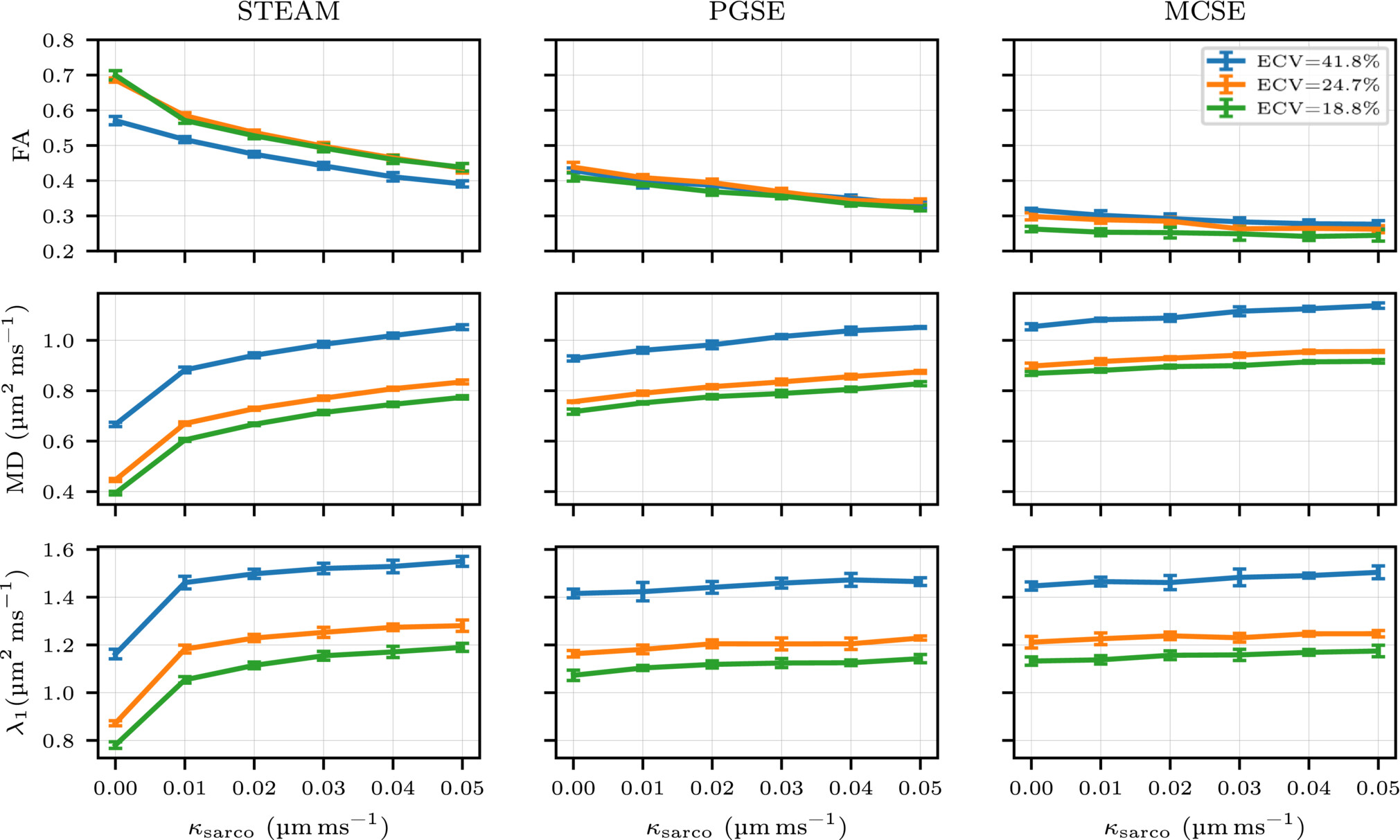

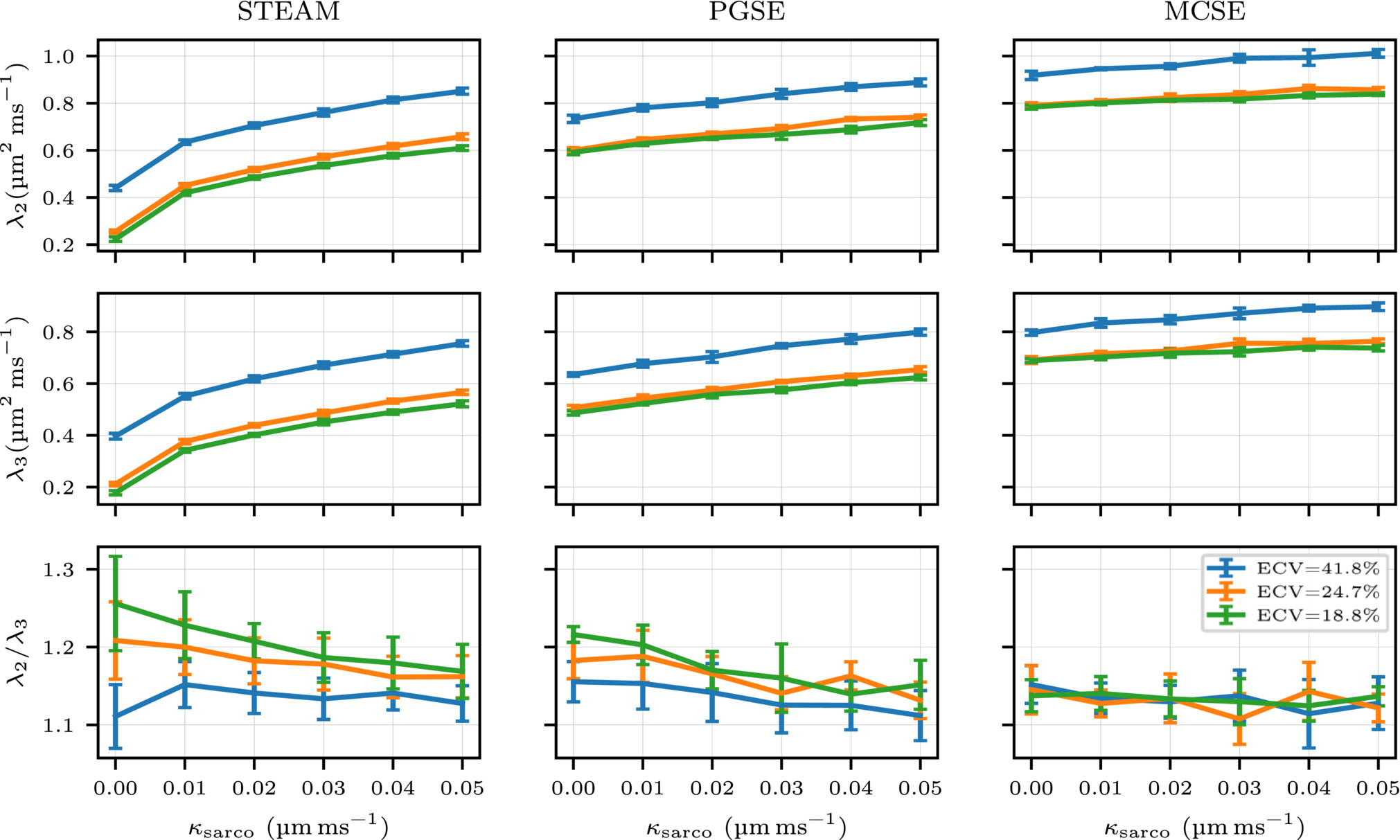

The diffusion tensor is studied for changes in the ECV and sarcolemma permeability ( ${\kappa}_{\mathrm{sarco}}$ ). In Figures 4 and 5, the fractional anisotropy (FA), the mean diffusivity (MD) and each eigenvalue of the diffusion tensor are plotted for three different sequences (STEAM, PGSE, and MCSE). Increasing effects of restrictions on diffusion are observed for all three sequences when reducing the ECV from $41.8\%$ to $18.8\%$ . Conversely, increasing permeability reduces the anisotropy of the diffusion tensor, weakening FA and the ${\lambda}_2/{\lambda}_3$ ratio. Quantitatively, for the impermeable case ${\kappa}_{\mathrm{sarco}}=0\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ , this ECV reduction results in a decrease in MD of $40.9\%$ (STEAM), $22.7\%$ (PGSE) and $17.6\%$ (MCSE). For $\mathrm{ECV}=24.7\%$ , FA decreases from 0.7 to 0.5 as ${\kappa}_{\mathrm{sarco}}$ rises from 0 to $0.03\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ for STEAM. The large MD reduction as ECV decreases observed for STEAM compared with the other sequences is mostly a consequence of large reductions in ${\lambda}_2$ and ${\lambda}_3$ . Considering the same impermeable case, ${\lambda}_2$ only decreases $18.7\%$ (PGSE) and $14.6\%$ (MCSE) while ${\lambda}_2$ is reduced by $50\%$ for STEAM. High ${\lambda}_2/{\lambda}_3$ ratios are observed for low ECV values when using STEAM and PGSE while this tendency is not present for MCSE as ${\lambda}_2/{\lambda}_3$ ratios are similar between the three ECV values.

Regarding the permeability, we observe a MD increase of $87.1\%$ (STEAM), $15.62\%$ (PGSE), and $6.5\%$ (MCSE) and a ${\lambda}_1$ increase of $46.8\%$ (STEAM), $5.6\%$ (PGSE) and $2.9\%$ (MCSE) for $\mathrm{ECV}=24.7\%$ when increasing sarcolemma permeability from impermeable ${\kappa}_{\mathrm{sarco}}=0\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ to the maximum value considered. There are small permeability-related increases in the diffusivity in the direction of the primary diffusion eigenvector ${\lambda}_1$ for PGSE and MCSE. However, for STEAM, we observe a larger ${\lambda}_1$ increase of $\approx 34\%$ for all ECV cases as ${\kappa}_{\mathrm{sarco}}$ rises from 0 to $0.01\kern0.60em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ . A more gradual increase in ${\lambda}_2,{\lambda}_3$ when increasing permeability is noted for STEAM. Quantitatively, there is an increase of $156\%$ for ${\lambda}_2$ ( $\mathrm{ECV}=24.7\%$ ) and $168\%$ for ${\lambda}_3$ ( $\mathrm{ECV}=24.7\%$ ) when going from impermeable to the maximum permeability. These deviations are reduced to $29\%$ , $25\%$ and $8\%$ , $7\%$ for PGSE and MCSE, respectively. In the diffusion simulations, narrow uncertainty angle cones are obtained for all ECV and permeabilities values ranging from ${0}^{\circ }$ to ${1}^{\circ }$ for $\overrightarrow{E}1$ and ${3}^{\circ }$ to ${6}^{\circ }$ for $\overrightarrow{E}2,\overrightarrow{E}3$ suggesting that the eigenvectors are well-defined for all three sequences (see Table S4).

3.2 ICD effect

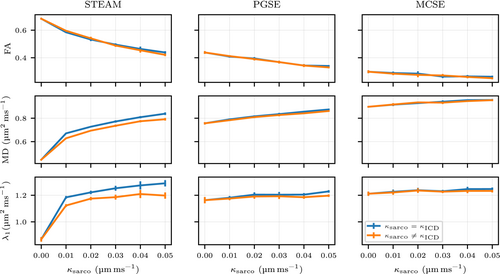

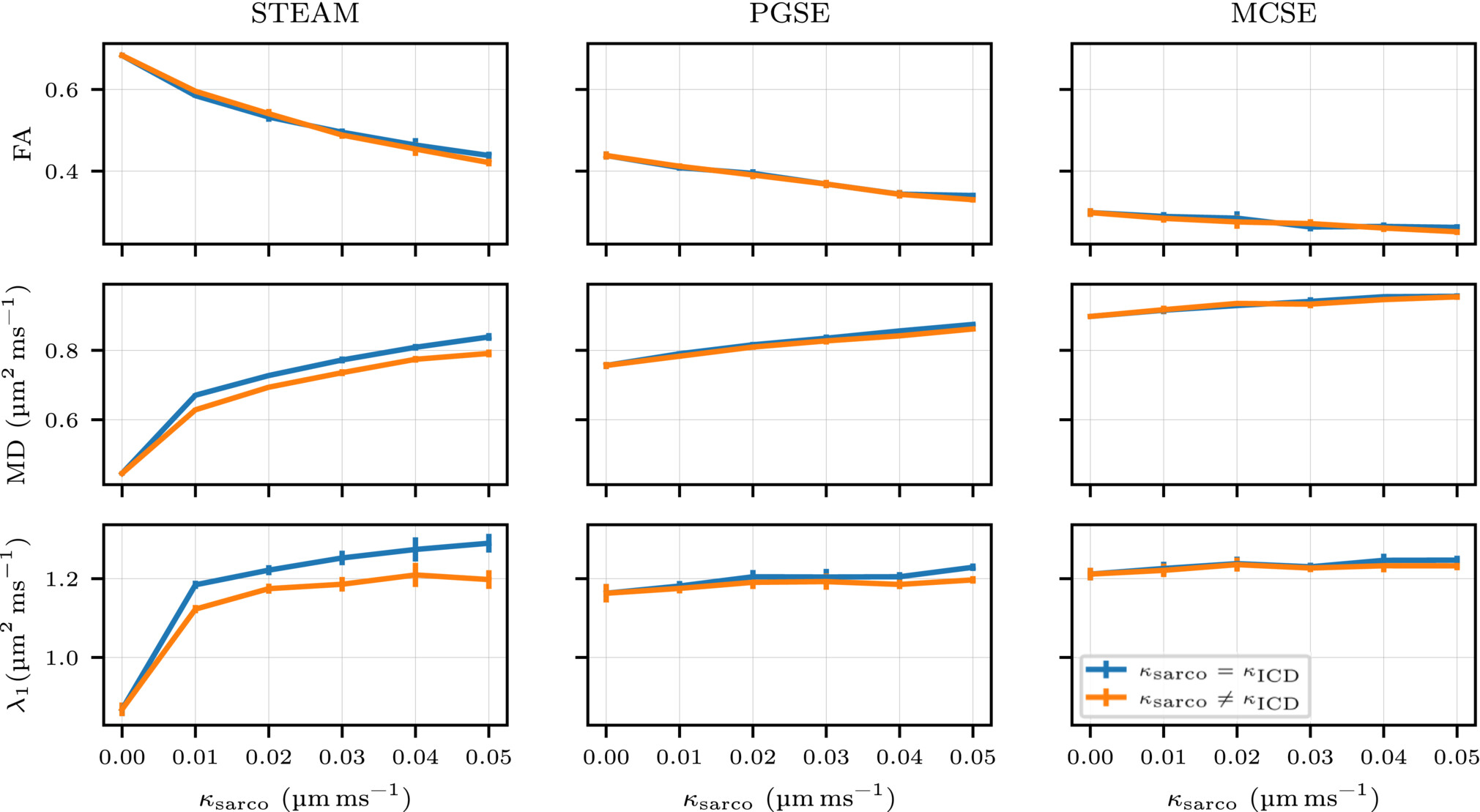

The effect of ICD permeability is investigated by introducing a lower permeability on the endcaps of the simulated cardiomyocytes. Figure 6 illustrates the effect of reduced ICD permeability ( ${\kappa}_{\mathrm{ICD}}$ ) compared to the results obtained when considering a homogenous permeability across all membranes of the cardiomyocytes. The lower ICD permeability predominantly reduces the primary eigenvalue ${\lambda}_1$ ( $7\%$ reduction for ${\kappa}_{\mathrm{sarco}}=0.05\kern0.60em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ ) which in turn reduces the MD for STEAM. This effect is only apparent when ${\kappa}_{\mathrm{sarco}}\ne 0\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ and only for the STEAM sequence. No major changes in FA, ${\lambda}_2$ and ${\lambda}_3$ related to ICD permeability are observed for any of the three sequences (see Figure S5).

3.3 Perfusion simulations

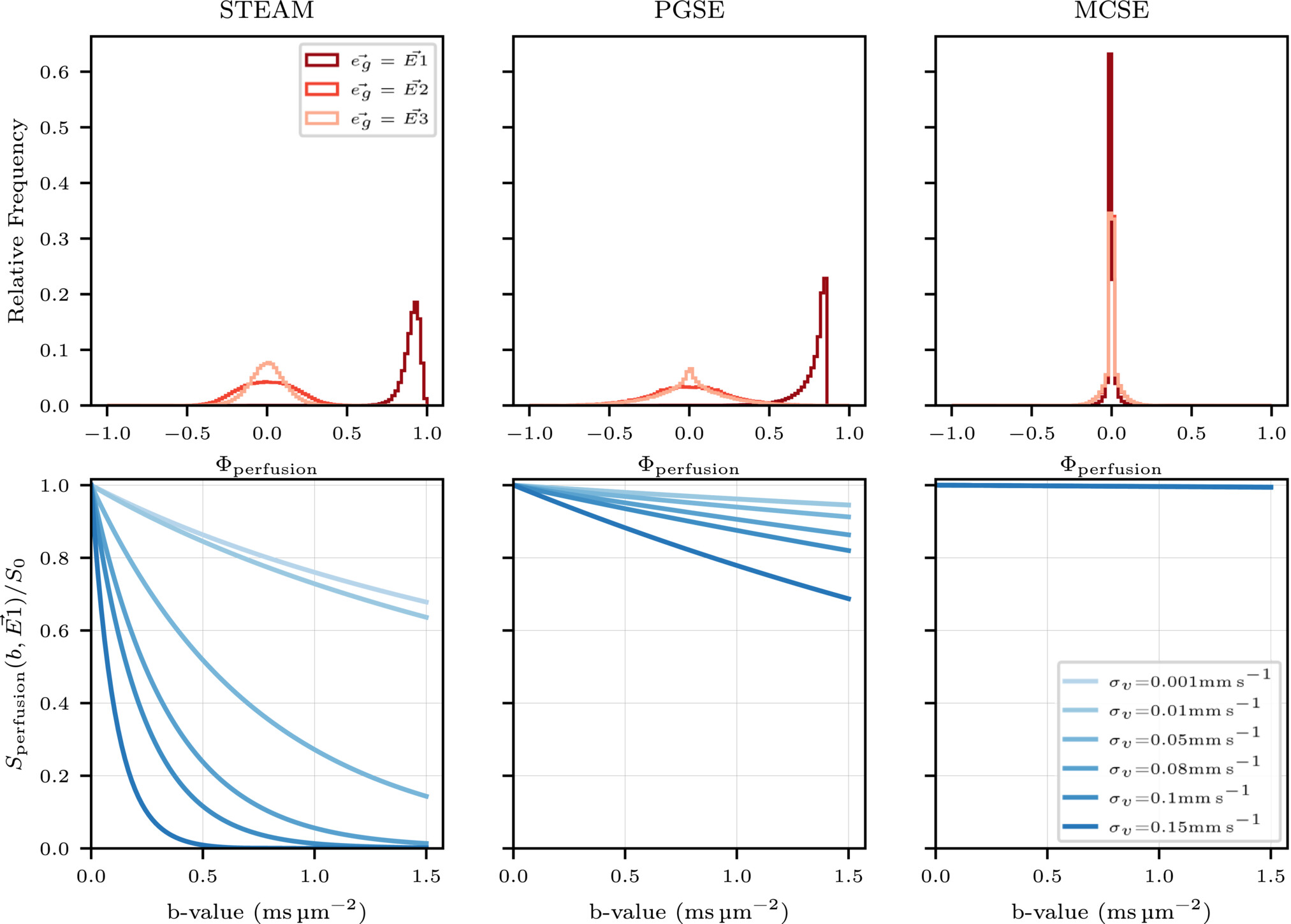

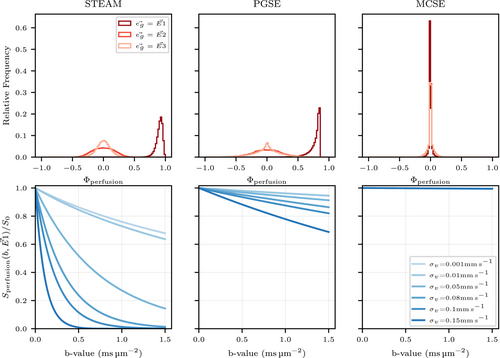

Figure 7 depicts the normalized phase ${\Phi}_{\mathrm{perfusion}}$ described in Equation (6) when the diffusion encoding gradient direction is aligned with each of the three diffusion tensor eigenvectors ( $\overrightarrow{E}1,\overrightarrow{E}2,\overrightarrow{E}3$ ). A narrow phase distribution is noted for STEAM and PGSE when the gradient direction is parallel to the main capillary direction ( $\overrightarrow{E}1$ , which is also the mean cardiomyocyte orientation) while encoding along the two orthogonal directions ( $\overrightarrow{E}2,\overrightarrow{E}3$ ) results in wider symmetric distributions. Encoding along the main capillary direction with minimal inter-capillary velocity dispersion ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ results in the maximum total phase (i.e., all magnetization vectors point in a similar direction) and the highest normalized perfusion signal ${S}_{\mathrm{perfusion}}\left(b,\overrightarrow{e_g}\right)/{S}_0$ , while encoding along the orthogonal directions leads to signal loss reducing the normalized perfusion signal. For MCSE, the normalized phase distributions show a peak centered at 0 for all three gradient directions indicating relative insensitivity to mean capillary flow velocity changes in the intercapillary velocity dispersion while the narrow width of the same ${\Phi}_{\mathrm{perfusion}}$ distributions result in minimal perfusion signal loss in all directions. For STEAM and PGSE, increasing the intercapillary velocity dispersion ${\sigma}_v>>0$ broadens the phase ${\phi}_{\mathrm{perfusion}}$ distribution resulting in reduced normalized perfusion signals. As an example, using STEAM the normalized perfusion signal ( ${S}_{\mathrm{perfusion}}\left(b,\overrightarrow{E}1\right)/{S}_0$ ) in the direction of $\overrightarrow{E}1$ considering a b-value of $0.15\mathrm{ms}\mu {m}^{-2}$ is reduced from 0.951 to 0.234 when the velocity dispersion is increased from ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ to ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ .

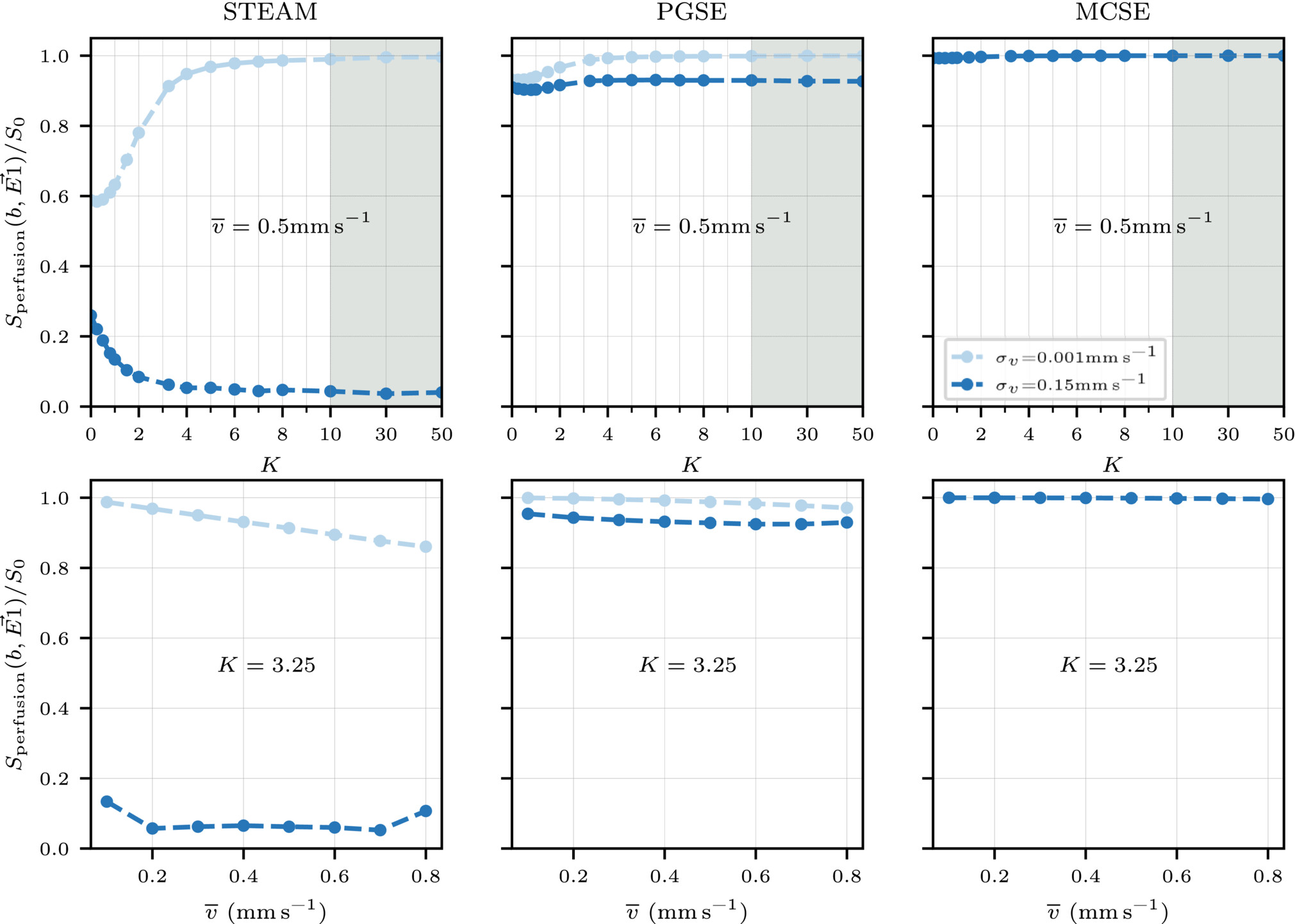

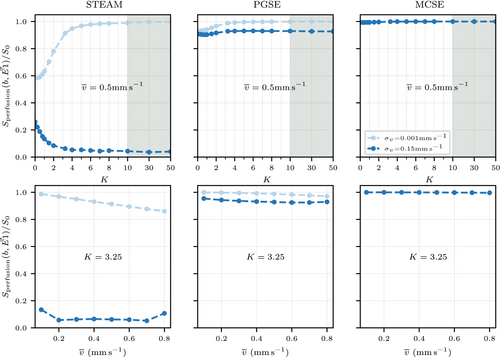

Figure 8 illustrates the effect of the capillary anisotropy $K$ and the mean intercapillary velocity $\overline{v}$ on the normalized perfusion signal measured in the direction parallel to the cardiomyocyte long axis. Even with a spherical distribution, the isotropic regime $K=0$ results in different perfusion signal values for both velocity distributions ${\sigma}_v$ . Increasing the anisotropy of the capillary network $K>0$ increases the normalized perfusion signal and results in almost no signal loss when the particles travel at a constant velocity ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ while using a higher intercapillary velocity dispersion reduces the normalized perfusion signal. Note that these signal differences are greater for long diffusion time sequences. Quantitatively, the normalized perfusion signal at K = 3.25 is reduced from 0.91 to 0.053 and from 0.98 to 0.93, respectively, for STEAM and PGSE when increasing the inter-capillary velocity dispersion ${\sigma}_v$ from 0.001 to 0.15. STEAM and PGSE are less sensitive to changes in $\overline{v}$ than in s_v and K and small deviations in perfusion signal are only observed when the intercapillary velocity distribution is near constant ( ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ ). Similarly to the results in Figure 7, the normalized signal from MCSE displays minimal changes in response to the changes in mean inter-capillary velocity $\overline{v}$ , the velocity dispersion ${\sigma}_v$ or the anisotropy $K$ of the capillary network.

3.4 Perfusion and diffusion

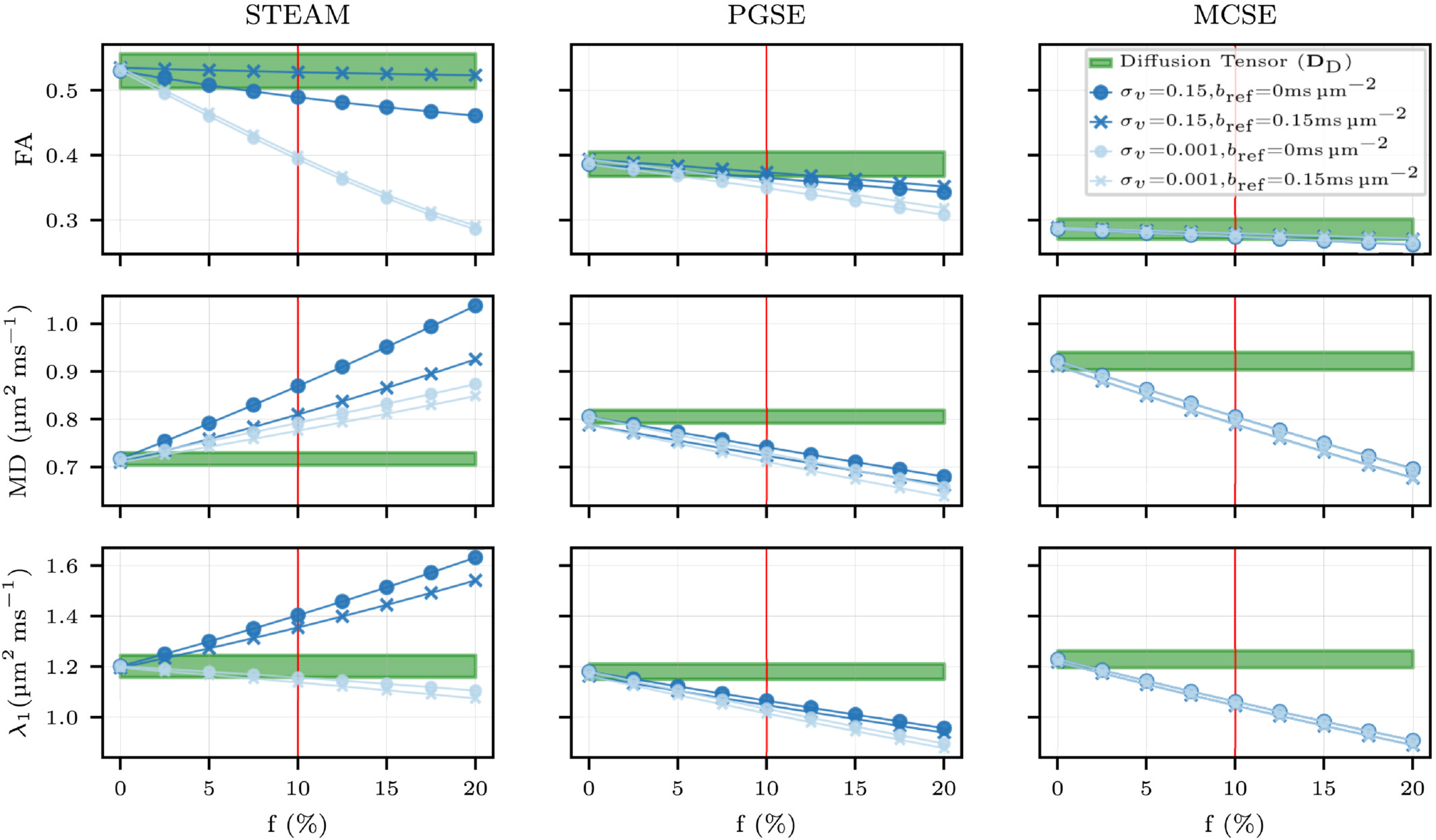

Figure 9 illustrates ${\mathbf{D}}_{\mathbf{D}+\mathbf{P}}$ tensor parameters for several $f$ values considering a constant $K=3.25$ and $\overline{v}=0.5\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ . The tensor fitting is performed with two different reference b-values ( ${b}_{\mathrm{ref}}=0\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ , ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ ) considering two extreme inter-capillary velocity distributions ( ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ , ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ ). The MD, ${\lambda}_{1,2,3}$ , and FA are linearly reduced as the perfusion fraction increases for PGSE and MCSE while STEAM presents higher apparent diffusivity in all diffusion directions (see Figure S6). The eigenvalue reductions observed in both short diffusion encoding sequences are the same for both tensor calculations and both extreme inter-capillary velocity distributions ${\sigma}_v$ . Quantitatively, for both ${\sigma}_v$ and tensor calculations, MD decreases $\approx 23\%$ for PGSE and $\approx 35.6\%$ for MCSE when $f$ rises from $0\%$ to $20\%$ . Despite these large changes in MD, the FA maintains a value close to the diffusion only result ( $f=0\%$ ).

Due to a longer diffusion time, the effect of perfusion when increasing $f\left(\%\right)$ is greater on STEAM than PGSE or MCSE amplifying all the eigenvalues of the tensor ${\lambda}_{1,2,3}$ . For STEAM, a distinction between the two extreme intercapillary velocity distributions ${\sigma}_v$ is observed in the tensor parameters assessed. A small velocity dispersion ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ only increases ${\lambda}_{2,3}$ , maintaining the same diffusivity along the cardiomyocytes long axis direction ( ${\lambda}_1$ ) and reducing the overall tensor FA. On the contrary, as observed in Figure 7, increasing ${\sigma}_v$ for STEAM yields maximum signal loss toward $\overrightarrow{E}1$ intensifying the overall measured eigenvalues in all three principal directions resulting in higher MD and lower FA values. Conversely to PGSE and MCSE, larger variations are observed between the tensor fittings with the two different reference b-values ${b}_{\mathrm{ref}}$ for STEAM. The tensor fitting with ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ results in FA, MD, and ${\lambda}_1$ values closer to the equivalent results from the diffusion only simulation. When ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ the use of ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ in STEAM removes the effects of perfusion from the FA. For STEAM, $f=10\%$ and ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ the tensor fitting using ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ reduces the MD by $8.9\%$ and increases the FA by $10.76\%$ compared to ${b}_{\mathrm{ref}}=0\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ .

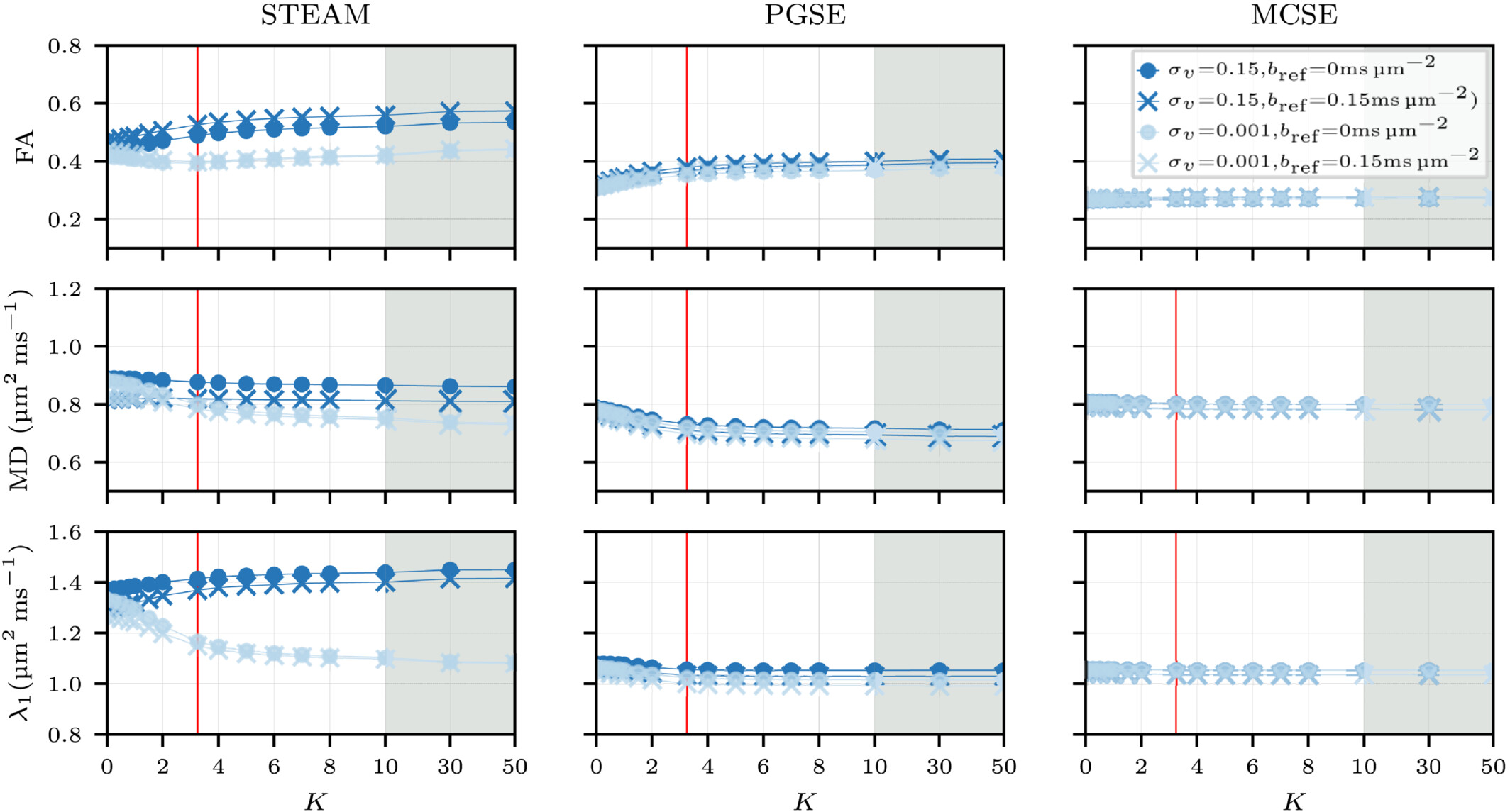

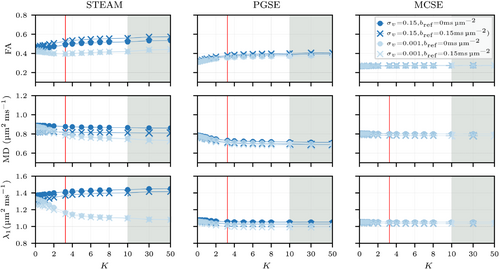

Figure 10 investigates the effect of varying the anisotropy of the capillary network. Similarly to Figure 9, two extreme intercapillary velocity distributions ${\sigma}_v$ are considered together with tensor fittings with two different reference b-values. Note that the differences observed for STEAM in the normalized perfusion signal when the capillary network is isotropic $K=0$ in Figure 8 (top row) are highly reduced in ${\lambda}_1$ (see Figure 10) when adding the normalized diffusion signal. Tensor variations are mostly observed for STEAM and PGSE when $0<K<10$ , while differences in the tensor due to changes in ${\sigma}_v$ are only observed for STEAM. Specifically for this sequence, increasing ${\sigma}_v$ reduces the influence of $K$ on ${\lambda}_1$ . Quantitatively, ${\lambda}_1$ decreases $21\%$ for ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ and only $3\%$ for ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ as $K$ increases from 0 (isotropic network) to 50 (highly anisotropic network).

4 DISCUSSION

Simulations of the effects of cell membrane permeability and capillary perfusion on DT-CMR show a significant dependence on model parameters. Three sequences (STEAM, PGSE, and MCSE) were simulated using MC random walk²⁰ on a histology-based tissue microstructure¹⁰ in which the manually segmented cardiomyocytes were morphed (shrunk and thickened) to represent a physiological range of ECVs ( $18.8\%$ to $41.8\%$ ). While STEAM and MCSE are in vivo and ex vivo DT-CMR techniques, PGSE is only suitable for ex vivo but is included for completeness and scientific interest.

The primary eigenvector of the diffusion tensor ( $\overrightarrow{E}1$ ) is aligned with the cardiomyocytes long axis¹⁰ while the second and third eigenvector directions ( $\overrightarrow{E}2,\overrightarrow{E}3$ ) are contained in perpendicular plane to $\overrightarrow{E}1$ , with $\overrightarrow{E}2$ lying in the sheetlet plane and $\overrightarrow{E3}$ defining the sheetlet structure as its normal.^{31, 49} Having ${\lambda}_2>>{\lambda}_3$ and narrow cones of uncertainty suggests that there is a preferred diffusion direction in the perpendicular plane to $\overrightarrow{E}1$ due to a specific sheetlet geometry structure. The results indicate that STEAM and PGSE have more sensitivity to the sheetlet structure compared to MCSE as low ECV values are linked to higher ${\lambda}_2/{\lambda}_3$ ratios. For all permeability values, all sequences show a reduction in MD with decreasing ECV due to a lower diffusion coefficient in the intracellular space, ${D}_{\mathrm{ICS}}<{D}_{\mathrm{ECS}}$ . PGSE and STEAM show higher FA values for low ECV fractions while MCSE demonstrates the opposite. Due to the short effective diffusion time of the MCSE sequence the ratio ${\lambda}_2/{\lambda}_3$ is the same for all the three extracellular volume geometries and the anisotropy of the tensor (FA) is mostly driven by ${\lambda}_1$ .

The diffusion restriction can be reduced by including permeability in the diffusion simulations allowing the walkers to cross between compartments. The sensitivity of each sequence to permeability is related to the comparison between the diffusion time ( $\Delta$ ) and the exchange time. The exchange time ( ${\tau}_{\mathrm{exchange}}$ ) is directly proportional to ECV and inversely proportional to the permeability.⁵⁰ Small permeability-related deviations in DT-CMR parameters are observed for PGSE and MCSE. However, major deviations are observed for STEAM, particularly at low permeability values. A permeability of ${\kappa}_{\mathrm{sarco}}=0.01\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ is linked to a water exchange time of 96 ms for the highest ECV. Note that for STEAM ( $Δ \approx 𝒪 (1000 ms)$ ) there is ample time for the walkers to cross multiple membranes between ICS and ECS, in contrast to the short diffusion time of both PGSE and MCSE. This explains the sudden jump in ${\lambda}_1$ , MD, and FA when increasing permeability ${\kappa}_{\mathrm{sarco}}$ from $0\kern0.3em \mu \mathrm{m}$ to $0.01\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ , whereas a more gradual transition is observed for PGSE and MCSE as $\Delta <{\tau}_{\mathrm{exchange}}$ .

ICDs connect neighboring cardiomyocytes and enable the passage of ions between cells allowing cardiac action potential to spread along the cardiac muscle.⁵¹ Abnormalities of impulse propagation, arrhythmic tendency and hypertrophied myocardium have been linked to significant changes in gap junctions.⁵² To study the sensitivity of the diffusion tensor to the presence of the ICD, results are compared for constant sarcolemma permeability with results for lowered ICD permeability¹² ( ${\kappa}_{\mathrm{ICD}}$ ). Among all the sequences evaluated only STEAM shows changes in the diffusion tensor in response to reduced ICD permeability, as the spins diffuse further for larger $\Delta$ and are more likely to collide with the cardiomyocyte end caps. Short diffusion time sequences limit the number of collisons with the ICD zones reducing any observable effect.

The perfusion simulations have been performed by recreating an anisotropic capillary network with the mean capillary orientation aligned with the cardiomyocytes long axis ( $\overrightarrow{E}1$ ). The perfusion simulations are performed separately from the diffusion simulations but considering the same HA rotation within the voxel. The simplicity of the perfusion model permits computing a phase for each particle that is normalized ( ${\Phi}_{\mathrm{perfusion}}$ ) by the b-value, the constant capillary velocity and the overall sequence time. The signal at the end of the simulation is obtained by summing the contributions of each particle's magnetization vector which are modified by the phase distribution ${\phi}_{\mathrm{perfusion}}$ .

In order to simulate a distribution of velocities within the capillary network, a Gaussian intercapillary velocity distribution has been assumed with SDs between ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ and ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ . Note that if ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ the Gaussian bell is narrow, approximating a constant velocity which leads to similarly narrow distribution for ( ${\phi}_{\mathrm{perfusion}}$ ) and the normalized phase ${\Phi}_{\mathrm{perfusion}}$ . When the diffusion encoding gradient is parallel to $\overrightarrow{E1}$ and ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ , due to the similarity between ${\phi}_{\mathrm{perfusion}}$ and ${\Phi}_{\mathrm{perfusion}}$ , there is minimal perfusion signal loss as the phase dispersion within a voxel is low, that is, all the magnetization vectors point in a similar direction. This is in line with the results reported in a similar perfusion model.²⁷ However, the findings²⁷ of minimal signal loss due to perfusion in the direction of $\overrightarrow{E}1$ contradict experimental studies²⁶ and other numerical simulations²⁸ which suggest that the direction $\overrightarrow{E}1$ is related to the maximum signal loss.

The present results demonstrate the importance of considering variable velocities within the capillary network as this spreads and changes the normalized phase ${\Phi}_{\mathrm{perfusion}}$ distribution. The perfusion simulations show that incrementing the intercapillary velocity dispersion from ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ to ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ yields a faster perfusion signal reduction with b-value in the $\overrightarrow{E}1$ direction and shifts the maximum signal decrease toward this direction. These results are in line with a numerical study that reported faster signal reduction for laminar flows compared to plug flows for the same capillary networks.²⁶ As shown in Figure 7, large intercapillary velocity dispersions ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ reduce the effect of the anisotropy of capillary network or the mean magnitude of the intercapillary velocity to changes in perfusion signal. Conversely, a capillary network based on the original intravoxel incoherent motion method²¹ (isotropic) is less susceptible to changes in the intercapillary velocity dispersion. Nevertheless, small variations in anisotropy ( $K\approx 2$ ) in the capillary network when using long diffusion time sequences present large deviations from the isotropic case. We argue therefore that it is necessary to consider both dispersion in orientation and in velocity. However, the present perfusion model is limited to constant intracapillary velocities and thus MCSE shows minimal sensitivity to perfusion.

The effect of perfusion on DT-CMR has been simulated by fitting a tensor ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ to a weighted signal from both the diffusion and perfusion processes. The impact of perfusion on the tensor ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ depends on the perfusion fraction $f\left(\%\right)$ and the capillary network geometry. The tensor ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ has been computed considering a b-value of $0.6\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ and two different ${b}_{\mathrm{ref}}$ values of $0\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ and $0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ . Long diffusion time sequences (STEAM) allow water molecules to perfuse and disperse large distances, increasing the sensitivity of the perfusion signal to changes in ${\sigma}_v$ while less sensitivity is observed for short diffusion time sequences (PGSE and MCSE). As demonstrated in Figure 7, for STEAM when the gradient is parallel to $\overrightarrow{E}1$ , increasing ${\sigma}_v$ results in a rapid decline in the normalized perfusion signal as b-value increases. When the b-value is fixed and ${\sigma}_v$ is large, the signal loss from perfusion in STEAM is greater than that of diffusion, lowering the total signal resulting in increased eigenvalues and MD. Conversely, the total signal for PGSE and MCSE increases because the signal loss associated with diffusion is greater than that of perfusion. This results in a counter-intuitive reduction in MD as the perfusion fraction (f) increases as the proportion of signal originating from perfusing spins increases in comparison to diffusing spins.

For STEAM, an increased reference b-value ${b}_{\mathrm{ref}}=0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ reduces the effect of perfusion leading toward similar FA values for both ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ and ${\mathbf{D}}_{\mathrm{D}}$ tensors. Similarly an increase in the reference b-value in experimental studies⁵³ is thought to reduce the effect of perfusion. When using STEAM, increasing the inter-capillary velocity dispersion ( ${\sigma}_v$ ) not only accelerates the perfusion signal decay with b-value as described above, but reduces the contribution of the anisotropy of the capillary network. This can be observed in Figure 10 for changes in ${\lambda}_1$ where STEAM and ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ show moderate changes in the tensor (of the order of $3\%$ for ${\lambda}_1$ ) between $K=0$ and $K\gg 0$ while larger deviations are observed for ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ .

5 CONCLUSION

The separate and combined effects of permeability and microvascular perfusion on DT-CMR measurements have been investigated with the extent of possible confounding contributions due to altered diffusion at the ICD. The models developed in this work provide new insights into the response of DT-CMR to microstructural changes underlying cardiac pathology, which will be of great relevance in interpreting changes observed in clinical DT-CMR studies.

In conclusion, ECV and permeability have measurable impacts on DT-CMR parameters. Increasing permeability reduces the exchange time between the water molecules located in the intracellular and ECS, augmenting the effective diffusion. The ratio of the water exchange and diffusion times determines the sensitivity of a certain sequence to changes in permeability. Of the sequences considered, results show that STEAM is the most sensitive to permeability variations and the only sequence with measurable variations in ${\lambda}_1$ in response to changes in the permeability of the ICD. These findings suggest that STEAM is a potential sequence for the early detection of certain permeability-related pathologies and abnormalities of impulse propagation.

With regard to microvascular perfusion, it is concluded that the intercapillary velocity dispersion ( ${\sigma}_v$ ) has a major impact on the perfusion signal when capillary networks are anisotropic. Long diffusion time sequences (STEAM) are more sensitive to changes in ${\sigma}_v$ as water molecules perfuse further during the diffusion time and over more tortuous paths. Our results show that STEAM yields the highest perfusion signal loss toward the primary diffusion eigenvector $\overrightarrow{E}1$ for the maximum intercapillary velocity dispersion considered. In contrast, PGSE and MCSE are less sensitive to perfusion leading to a more pronounced diffusion signal loss compared to perfusion. This results in an unexpected decrease in MD and all eigenvalues in ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ as the perfusion fraction is increased for PGSE and MCSE sequences.

For all sequences but specifically for STEAM, it is shown that that using a tensor fitting with a ${b}_{\mathrm{ref}}>0\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ reduces the effect of perfusion when comparing the diffusion tensor ${\mathbf{D}}_{\mathrm{D}}$ parameters to ${\mathbf{D}}_{\mathrm{D}+\mathrm{P}}$ . For clinical DT-CMR studies where changes in permeability may be of interest, STEAM should be considered the sequence of choice. However, the sensitivity of STEAM to microvascular perfusion must also be considered and these confounding effects can be at least partially mitigated by the use of a higher reference b-value.

CONFLICT OF INTEREST

Dudley J. Pennell: Research funding from Siemens. Speakers honoraria from Bayer and Circle.

Supporting Information

Filename

Description

mrm29737-sup-0001-Supinfo.pdfPDF document, 1.8 MB

Figure S1. Comparison between Finite Element solution and Random Walk in a representative domain for ${\kappa}_{sarco}=0.05\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ and T=500 $\mathrm{ms}$ . The FE solution was obtained considering Continuous Galerkin (CG) elements while assuming a small buffer region accounting for the membrane.

Figure S2. Comparison between Finite Element solution and Random Walk in a representative domain for ${\kappa}_{sarco}=0\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ and T=500 $\mathrm{ms}$ . The FE solution was obtained considering Continuous Galerkin (CG) elements while assuming a small buffer region accounting for the membrane.

Figure S3. Illustration of three different extracellular volume fractions (ECV) obtained by morphing the manually segmented cardiomyocytes.

Figure S4. Convergence of the perfusion signal obtained for a b-value of $0.6\kern0.3em \mathrm{ms}\ {\mathrm{ms}}^{-2}$ for different number of perfusion particles ${N}_{p,\mathrm{perf}}$ .

Figure S5. Illustration of the effect of ICD in three different sequences illustrating ${\lambda}_2$ and ${\lambda}_3$ . For this plot, an $\mathrm{ECV}=24.7\%$ and a ${\kappa}_{\mathrm{sarco}}=0.05\kern0.3em \mu \mathrm{m}\ {\mathrm{ms}}^{-1}$ have been considered. The different plots show mean values using 6 diffusion simulations with ${N}_{p,\mathrm{diff}}=1{0}^5$ and ${N}_t=1{0}^4$ walkers with a $95\%$ confidence interval. Note that we have considered ${\kappa}_{\mathrm{ICD}}=0.005\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ for all ${\kappa}_{\mathrm{sarco}}$ cases except for the impermeable case where ${\kappa}_{\mathrm{ICD}}={\kappa}_{\mathrm{sarco}}=0\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ has been considered.

Figure S6. ${\lambda}_2$ and ${\lambda}_3$ parameters for several perfusion fraction values using a $K=3.25$ (red vertical line representative of the capillary network in the myocardium). The green area shows the $95\%$ confidence interval obtained in the diffusion simulations without the effect of perfusion. Two extreme inter-capillary velocities are plotted considering two distinct fittings tensor methods with ${b}_{\mathrm{ref}}$ = $0\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ and ${b}_{\mathrm{ref}}$ = $0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ . The diffusion results have been obtained considering 6 simulations of $1{0}^5$ particles and $1{0}^4$ time steps while the perfusion simulations have been performed using only 1 simulation of $1{0}^5$ particles.

Figure S7. The perfusion and diffusion signal attenuations along $\overrightarrow{E1}$ are plotted for the three sequences considering several Gaussian inter-capillary velocities varying its SD from ${\sigma}_v=0.001\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ to ${\sigma}_v=0.15\kern0.3em \mathrm{mm}\ {\mathrm{s}}^{-1}$ .

Table S1. Comparison of diffusion tensor parameters acquired from 6 diffusion simulations using an anisotropic and isotropic voxel. The diffusion simulations are performed considering STEAM, ECV = $24.7\%$ , and ${\kappa}_{\mathrm{sarco}}=0.02\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ . The results show similar results using the anisotropic and isotropic voxels which can be attributed to the similarity in microstructure in the slice direction.

Table S2. Sequence parameters for the three typical DT-CMR sequences considered in the simulations. $\delta$ denotes the gradient flat-top durations and $\epsilon$ the ramp-up and ramp-down time. ${G}_{\max, {b}_{\mathrm{ref}}}$ refers to a reference b-value of $0.15\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ and ${G}_{\max, b}$ to a b-value of $0.6\kern0.3em \mathrm{ms}\mu {\mathrm{m}}^{-2}$ .

Table S3. Comparison of diffusion tensor parameters acquired from 6 diffusion simulations using various sets of directions, illustrating consistent results across different direction configurations. Simulations are performed considering STEAM, ECV = $24.7\%$ , and ${\kappa}_{\mathrm{sarco}}=0.02\kern0.3em \mu \mathrm{m}\kern0.3em {\mathrm{ms}}^{-2}$ .

Table S4. Comparison of cones of uncertainty for MCSE, PGSE and STEAM sequences for the second and third eigenvectors across two distinct extreme permeabilities.

Please note: The publisher is not responsible for the content or functionality of any supporting information supplied by the authors. Any queries (other than missing content) should be directed to the corresponding author for the article.

REFERENCES

1Soares JM, Marques P, Alves V, Sousa N. A hitchhiker's guide to diffusion tensor imaging. Front Neurosci. 2013; 7: 31.
10.3389/fnins.2013.00031
PubMed Web of Science® Google Scholar
2O'Donnell LJ, Westin CF. An introduction to diffusion tensor image analysis. Neurosurg Clin N Am. 2011; 22: 185.
10.1016/j.nec.2010.12.004
PubMed Web of Science® Google Scholar
3Reese TG, Weisskoff RM, Smith RN, Rosen BR, Dinsmore RE. Imaging myocardial fiber architecture in vivo with magnetic resonance. Magn Reson Med. 1995; 34: 786-791.
10.1002/mrm.1910340603
CAS PubMed Web of Science® Google Scholar
4Nielles-Vallespin S, Mekkaoui C, Gatehouse P, et al. In vivo diffusion tensor MRI of the human heart: reproducibility of breath-hold and navigator-based approaches. Magn Reson Med. 2013; 70: 454-465.
10.1002/mrm.24488
CAS PubMed Web of Science® Google Scholar
5Stoeck CT, Von Deuster C, GeneT M, Atkinson D, Kozerke S. Second-order motion-compensated spin echo diffusion tensor imaging of the human heart. Magn Reson Med. 2016; 75:1669–1676.
Web of Science® Google Scholar
6Tseng WYI, Dou J, Reese TG, Van Wedeen J. Imaging myocardial fiber disarray and intramural strain hypokinesis in hypertrophic cardiomyopathy with MRI. J Magn Reson Imaging. 2006; 23: 1-8.
10.1002/jmri.20473
PubMed Web of Science® Google Scholar
7Hashim E, Caverzasi E, Papinutto N, et al. Investigating microstructural abnormalities and neurocognition in sub-acute and chronic traumatic brain injury patients with normal-appearing white matter: a preliminary diffusion tensor imaging study. Front Neurol. 2017; 8:97. doi:10.3389/fneur.2017.00097
10.3389/fneur.2017.00097
Web of Science® Google Scholar
8Wang L, Zhu YM, Li H, Liu W, Magnin IE. Simulation of diffusion anisotropy in DTI for virtual cardiac fiber structure. In: DN Metaxas, L Axel, eds. Functional Imaging and Modeling of the Heart. FIMH 2011. Lecture Notes in Computer Science (Including Subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics). Vol 6666. Springer; 2011.
10.1007/978-3-642-21028-0_12
Google Scholar
9Wang L, Zhu Y, Li H, Liu W, Magnin IE. Multiscale modeling and simulation of the cardiac fiber architecture for DMRI. IEEE Trans Biomed Eng. 2012; 59: 16-19.
10.1109/TBME.2011.2166265
PubMed Web of Science® Google Scholar
10Rose JN, Nielles-Vallespin S, Ferreira PF, Firmin DN, Scott AD, Doorly DJ. Novel insights into in-vivo diffusion tensor cardiovascular magnetic resonance using computational modeling and a histology-based virtual microstructure. Magn Reson Med. 2019; 81: 2759-2773.
10.1002/mrm.27561
PubMed Web of Science® Google Scholar
11Hendrata S, Franklin MA. Performance comparison of parallel finite element and Monte Carlo methods in optical tomography. Paper presented at: Proceedings of the International Conference on Parallel Processing Workshops; January 2001; Valencia, Spain.
Google Scholar
12Lashgari M, Ravikumar N, Teh I, et al. Three-dimensional micro-structurally informed in silico myocardium—towards virtual imaging trials in cardiac diffusion weighted MRI. Med Image Anal. 2022; 82:102592.
10.1016/j.media.2022.102592
PubMed Web of Science® Google Scholar
13Ferreira PF, Kilner PJ, Mcgill LA, et al. In vivo cardiovascular magnetic resonance diffusion tensor imaging shows evidence of abnormal myocardial laminar orientations and mobility in hypertrophic cardiomyopathy. J Cardiovasc Magn Reson. 2014; 16:87. doi:10.1186/s12968-014-0087-8
10.1186/s12968?014?0087?8
Web of Science® Google Scholar
14Coelho-Filho OR, Shah RV, Mitchell R, et al. Quantification of cardiomyocyte hypertrophy by cardiac magnetic resonance: implications for early cardiac remodeling. Circulation. 2013; 128: 1225-1233.
10.1161/CIRCULATIONAHA.112.000438
CAS PubMed Web of Science® Google Scholar
15Seland JG, Bruvold M, Brurok H, Jynge P, Krane J. Analyzing equilibrium water exchange between myocardial tissue compartments using dynamical two-dimensional correlation experiments combined with manganese-enhanced relaxography. Magn Reson Med. 2007; 58: 674-686.
10.1002/mrm.21323
CAS PubMed Web of Science® Google Scholar
16Sobol WT, Jackels SC, Cothran RL, Hinson WH. NMR spin-lattice relaxation in tissues with high concentration of paramagnetic contrast media: evaluation of water exchange rates in intact rat muscle. Med Phys. 1991; 18: 243-250.
10.1118/1.596722
CAS PubMed Web of Science® Google Scholar
17Fieremans E, Novikov DS, Jensen JH, Helpern JA. Monte Carlo study of a two-compartment exchange model of diffusion. NMR Biomed. 2010; 23: 711-724.
10.1002/nbm.1577
CAS PubMed Web of Science® Google Scholar
18Szafer A, Zhong J, Gore JC. Theoretical model for water diffusion in tissues. Magn Reson Med. 1995; 33: 697-712.
10.1002/mrm.1910330516
CAS PubMed Web of Science® Google Scholar
19Powles JG, Mallett MJD, Rickayzen G, Evans WAB. Exact analytic solutions for diffusion impeded by an infinite array of partially permeable barriers. Proc R Soc Lond A Math Phys Sci. 1992; 436: 391-403.
10.1098/rspa.1992.0025
Web of Science® Google Scholar
20Alemany I, Rose JN, Garnier-Brun J, Scott AD, Doorly DJ. Random walk diffusion simulations in semi-permeable layered media with varying diffusivity. Sci Rep. 2022; 12:10759.
10.1038/s41598-022-14541-y
CAS PubMed Web of Science® Google Scholar
21Le Bihan D, Breton E, Lallemand D, Grenier P, Cabanis E, Laval-Jeantet M. MR imaging of intravoxel incoherent motions: application to diffusion and perfusion in neurologic disorders. Radiology. 1986; 161: 401-407.
10.1148/radiology.161.2.3763909
CAS PubMed Web of Science® Google Scholar
22Van VP, Schmid F, Spinner G, Kozerke S, Federau C. Simulation of intravoxel incoherent perfusion signal using a realistic capillary network of a mouse brain. NMR Biomed. 2021; 34:e4528.
10.1002/nbm.4528
PubMed Web of Science® Google Scholar
23Conklin J, Heyn C, Roux M, Cerny M, Wintermark M, Federau C. A simplified model for intravoxel incoherent motion perfusion imaging of the brain. Am J Neuroradiol. 2016; 37: 2251-2257.
10.3174/ajnr.A4929
CAS PubMed Web of Science® Google Scholar
24Kaneko N, Matsuda R, Toda M, Shimamoto K. Three-dimensional reconstruction of the human capillary network and the intramyocardial micronecrosis. Am J Physiol Heart Circul Physiol. 2011; 300: H754-H761.
10.1152/ajpheart.00486.2010
CAS PubMed Web of Science® Google Scholar
25Mekkaoui C, Reese TG, Jackowski MP, Bhat H, Sosnovik DE. Diffusion MRI in the heart. NMR Biomed. 2017; 30:e3426.
10.1002/nbm.3426
PubMed Web of Science® Google Scholar
26Abdullah OM, Gomez AD, Merchant S, Heidinger M, Poelzing S, Hsu EW. Orientation dependence of microcirculation-induced diffusion signal in anisotropic tissues. Magn Reson Med. 2016; 76: 1252-1262.
10.1002/mrm.25980
CAS PubMed Web of Science® Google Scholar
27Spinner GR, Stoeck CT, Mathez L, Deuster C, Federau C, Kozerke S. On probing intravoxel incoherent motion in the heart-spin-echo versus stimulated-echo DWI. Magn Reson Med. 2019; 82: 1150-1163.
10.1002/mrm.27777
PubMed Web of Science® Google Scholar
28Karampinos DC, King KF, Sutton BP, Georgiadis JG. Intravoxel partially coherent motion technique: characterization of the anisotropy of skeletal muscle microvasculature. J Magn Reson Imaging. 2010; 31: 942-953.
10.1002/jmri.22100
PubMed Web of Science® Google Scholar
29Mathieu O, Cruz-Orive LM, Hoppeler H, Weibel ER. Estimating length density and quantifying anisotropy in skeletal muscle capillaries. J Microsc. 1983; 131: 131.
10.1111/j.1365-2818.1983.tb04240.x
CAS PubMed Web of Science® Google Scholar
30Poole DC, Mathieu-Costello O. Analysis of capillary geometry in rat subepicardium and subendocardium. Am J Physiol Heart Circul Physiol. 1990; 259: H204-H210.
10.1152/ajpheart.1990.259.1.H204
CAS PubMed Web of Science® Google Scholar
31Nielles-Vallespin S, Khalique Z, Ferreira PF, et al. Assessment of myocardial microstructural dynamics by in vivo diffusion tensor cardiac magnetic resonance. J Am Coll Cardiol. 2017; 69: 661-676.
10.1016/j.jacc.2016.11.051
PubMed Web of Science® Google Scholar
32Khalique Z, Ferreira PF, Scott AD, Nielles-Vallespin S, Firmin DN, Pennell DJ. Diffusion tensor cardiovascular magnetic resonance imaging: a clinical perspective. JACC Cardiovasc Imaging. 2020; 13: 1235-1255.
10.1016/j.jcmg.2019.07.016
PubMed Web of Science® Google Scholar
33Kingsley PB. Introduction to diffusion tensor imaging mathematics: Part I. Tensors, rotations, and eigenvectors. Concept Magn Reson. 2006; 28:101-122.
Google Scholar
34Maruyama Y. Random walk to describe diffusion phenomena in three-dimensional discontinuous media: step-balance and fictitious-velocity corrections. Physical Review E. 2017; 96:032135.
10.1103/PhysRevE.96.032135
PubMed Web of Science® Google Scholar
35Stejskal EO, Tanner JE. Spin diffusion measurements: spin echoes in the presence of a time-dependent field gradient. J Chem Phys. 1965; 42; 288.
10.1063/1.1695690
CAS Web of Science® Google Scholar
36Welsh CL, Di Bella EV, Hsu EW. Higher-order motion-compensation for in vivo cardiac diffusion tensor imaging in rats. IEEE Trans Med Imaging. 2015; 34: 1843-1853.
10.1109/TMI.2015.2411571
PubMed Web of Science® Google Scholar
37Edelman RR, Gaa J, Wedeen VJ, et al. In vivo measurement of water diffusion in the human heart. Magn Reson Med. 1994; 32: 423-428.
10.1002/mrm.1910320320
CAS PubMed Web of Science® Google Scholar
38Sheikh F, Ross RS, Chen J. Cell-cell connection to cardiac disease. Trends Cardiovasc Med. 2009; 19: 182-190.
10.1016/j.tcm.2009.12.001
CAS PubMed Web of Science® Google Scholar
39Liu W, Cui Y, Wei J, Sun J, Zheng L, Xie J. Gap junction-mediated cell-to-cell communication in oral development and oral diseases: a concise review of research progress. Int J Oral Sci. 2020; 12:17.
10.1038/s41368-020-0086-6
CAS PubMed Web of Science® Google Scholar
40Bastide B, Jarry-Guichard T, Briand JP, Délèze J, Gros D. Effect of antipeptide antibodies directed against three domains of connexin43 on the gap junctional permeability of cultured heart cells. J Membr Biol. 1996; 150: 243-253.
10.1007/s002329900048
CAS PubMed Web of Science® Google Scholar
41Wetscherek A, Stieltjes B, Laun FB. Flow-compensated intravoxel incoherent motion diffusion imaging. Magn Reson Med. 2015; 74: 410-419.
10.1002/mrm.25410
PubMed Web of Science® Google Scholar
42Indermühle A, Vogel R, Meier P, et al. The relative myocardial blood volume differentiates between hypertensive heart disease and athlete's heart in humans. Eur Heart J. 2006; 27: 1571-1578.
10.1093/eurheartj/ehl024
PubMed Web of Science® Google Scholar
43Callot V, Bennett E, Decking UK, Balaban RS, Wen H. In vivo study of microcirculation in canine myocardium using the IVIM method. Magn Reson Med. 2003; 50: 531-540.
10.1002/mrm.10568
CAS PubMed Web of Science® Google Scholar
44Kingsley PB. Introduction to diffusion tensor imaging mathematics: part III. Tensor calculation, noise, simulations, and optimization. Concept Magn Reson. 2006;28A:155-179.
Google Scholar
45Basser PJ, Pajevic S. Statistical artifacts in diffusion tensor MRI (DT-MRI) caused by background noise. Magn Reson Med. 2000; 44: 41-50.
10.1002/1522-2594(200007)44:1<41::AID-MRM8>3.0.CO;2-O
CAS PubMed Web of Science® Google Scholar
46Mathieu-Costello O, Hoppeler H, Weibel ER. Capillary tortuosity in skeletal muscles of mammals depends on muscle contraction. J Appl Physiol. 1989; 66: 1436-1442.
10.1152/jappl.1989.66.3.1436
CAS PubMed Web of Science® Google Scholar
47Mardia KV, Jupp PE. Directional Statistics. Wiley; 2008.
Google Scholar
48Cruz-Orive LM, Hoppeler H, Mathieu O, Weibel ER. Stereological analysis of anisotropic structures using directional statistics. Appl Stat. 1985; 34: 14-32.
10.2307/2347881
Web of Science® Google Scholar
49Sosnovik DE. Magnetic resonance-based characterization of myocardial architecture. Heart Fail Clin. 2021; 17: 85-101.
10.1016/j.hfc.2020.08.007
PubMed Web of Science® Google Scholar
50Reginald WA, Hossein N-SM, Sullivan DR, Kuchel PW. Effects of cholesterol on transmembrane water diffusion in human erythrocytes measured using pulsed field gradient NMR. Biophys Chem. 1995; 55: 197-208.
10.1016/0301-4622(95)00007-K
PubMed Web of Science® Google Scholar
51Zhao G, Qiu Y, Zhang HM, Yang D. Intercalated discs: cellular adhesion and signaling in heart health and diseases. Heart Fail Clin. 2019; 24: 115-132.
10.1007/s10741-018-9743-7
CAS Google Scholar
52Pinali C, Bennett HJ, Davenport JB, et al. Three-dimensional structure of the intercalated disc reveals plicate domain and gap junction remodeling in heart failure. Biophys J. 2015; 108: 498-507.
10.1016/j.bpj.2014.12.001
CAS PubMed Web of Science® Google Scholar
53Scott AD, Ferreira PF, Nielles-Vallespin S, et al. Optimal diffusion weighting for in vivo cardiac diffusion tensor imaging. Magn Reson Med. 2015; 74: 420-430.
10.1002/mrm.25418
PubMed Web of Science® Google Scholar

Citing Literature

Volume90, Issue4

October 2023

Pages 1641-1656

Realistic numerical simulations of diffusion tensor cardiovascular magnetic resonance: The effects of perfusion and membrane permeability

Abstract

Purpose

Methods

Results

Conclusion

1 INTRODUCTION

2 METHODS

2.1 Histology-based substrate

2.2 MC random walk

2.3 Permeability

2.4 Diffusion experiments

2.5 Extracellular volume fraction

2.6 Intercalated disks

2.7 Perfusion model

2.8 Capillary network

3 RESULTS

3.1 The effects of ECV and variations in permeability

3.2 ICD effect

3.3 Perfusion simulations

3.4 Perfusion and diffusion

4 DISCUSSION

5 CONCLUSION

CONFLICT OF INTEREST

Supporting Information

REFERENCES

Citing Literature

Figures

References

Information

About Wiley Online Library

Help & Support

Opportunities

Connect with Wiley

Realistic numerical simulations of diffusion tensor cardiovascular magnetic resonance: The effects of perfusion and membrane permeability

Abstract

Purpose

Methods

Results

Conclusion

1 INTRODUCTION

2 METHODS

2.1 Histology-based substrate

2.2 MC random walk

2.3 Permeability

2.4 Diffusion experiments

2.5 Extracellular volume fraction

2.6 Intercalated disks

2.7 Perfusion model

2.8 Capillary network

3 RESULTS

3.1 The effects of ECV and variations in permeability

3.2 ICD effect

3.3 Perfusion simulations

3.4 Perfusion and diffusion

4 DISCUSSION

5 CONCLUSION

CONFLICT OF INTEREST

Supporting Information

REFERENCES

Citing Literature

Figures

References

Related

Information
