Rigid motion-corrected magnetic resonance fingerprinting

1 INTRODUCTION

Magnetic resonance fingerprinting (MRF) is a novel relaxometry approach based on continuous sampling of the transient state magnetization evolution.1 In MRF, sequence parameters, predominantly flip angle (FA) and repetition time (TR), are varied to explore different magnetization states. Moreover, undersampled trajectories are utilized to sample each combination of sequence parameters (time points) at high temporal resolution. Under these conditions, each unique tissue parameter (e.g., T₁/ T₂) combination is expected to produce a unique signal evolution (fingerprint) that can be simulated using Bloch equations or extended phase graphs.2, 3 The set of simulated signal evolutions (dictionary) can be matched to the measured fingerprints to simultaneously determine tissue parameters like T₁, T₂ and M₀. Incoherent spatial and temporal aliasing of the sampled magnetization time points (attributed to undersampling) is typically achieved with non-Cartesian trajectories to minimize potential bias in dictionary matching step.

Considerable efforts have focused on improving various parts of the MRF approach, among them improving the MRF reconstruction to achieve further scan acceleration. A multiscale MRF reconstruction approach was introduced to reduce the number of measurements by a factor of 3 relative to the original MRF work.4 Integration of MRF with simultaneous multislice with an acceleration factor of 2 has also been achieved.5 Sliding window and soft-weighted reconstructions have also been proposed to share data between time points, improving measurement precision and accuracy.6, 7 Recently, general formulations using low-rank approximations have been introduced for MRF.8-13 Low-rank models have been previously introduced in other MR applications to enable higher acceleration factors.14-17 Fingerprints from different tissues within the dictionary are highly correlated, and methods like singular value decomposition (SVD) can be used to temporally compress fingerprints.8 It has been shown that reconstructions in the compressed domain are faster and better posed. A low-rank projection method operating in k-space was also proposed, reducing aliasing artifacts.9 The low-rank constraint was directly incorporated into the encoding operator and formulated as a least squares problem in a previous work,10 improving parametric map accuracy. A similar approach was taken in another study,11 but the reconstruction was further regularized by the best dictionary matches using the alternating direction method of multipliers.18

MRF was originally introduced for 2D brain acquisitions.1 Recent works have explored further applications, such as abdominal19 and cardiac20 MRF, where physiological motion is a well-known problem. Although the original study1 demonstrated robustness to abrupt motion toward the end of the acquisition, the impact of motion during the MRF acquisition has not been fully investigated. In conventional MRI, several frameworks have been developed to estimate and correct for motion during the acquisition, particularly for brain applications methods that have been proposed which estimate the motion from the data itself.21, 22 Some preliminary works have observed sensitivity to motion during the acquisition in MRF.23-27 Initial approaches for motion compensation/correction in MRF have also been investigated. In one study,23 MRF motion correction was achieved by iteratively identifying corrupted time points, estimating motion, and enforcing data consistency. A different approach24 used a sliding window reconstruction, followed by image registration to align the time-point images before dictionary matching. In a different study,25 a similar approach was followed; however, the estimated motion from image registration was used to directly correct the k-space data and produce a motion-corrected MRF reconstruction. An alternative approach26 introduced gating in MRF as a form of motion compensation. Another approach that has been proposed to minimize motion artifacts is to modify the sampling order such that motion produces incoherent artifacts.27

Low-rank approaches reconstruct compressed images from all acquired data, as mentioned above. In the presence of motion, these reconstructions may introduce motion artifacts (e.g., ghosting and blurring) in addition to quantitative errors attributed to misregistration between time-point images. In this work, simulations were used to investigate the effect of different types of motion in MRF. A novel approach for rigid motion-corrected MRF using a low-rank reconstruction (MC-MRF) is proposed. With MC-MRF, rigid body motion is estimated from an auxiliary sliding window reconstruction. The estimated motion is used to correct k-space, followed by a motion-corrected low-rank reconstruction. We investigated the proposed approach to correct for 2D in-plane motion in a standardized T₁/ T₂ phantom and in brain acquisitions in vivo. Additionally, we investigated the effect of through-plane motion in 2D MC-MRF.

2 METHODS

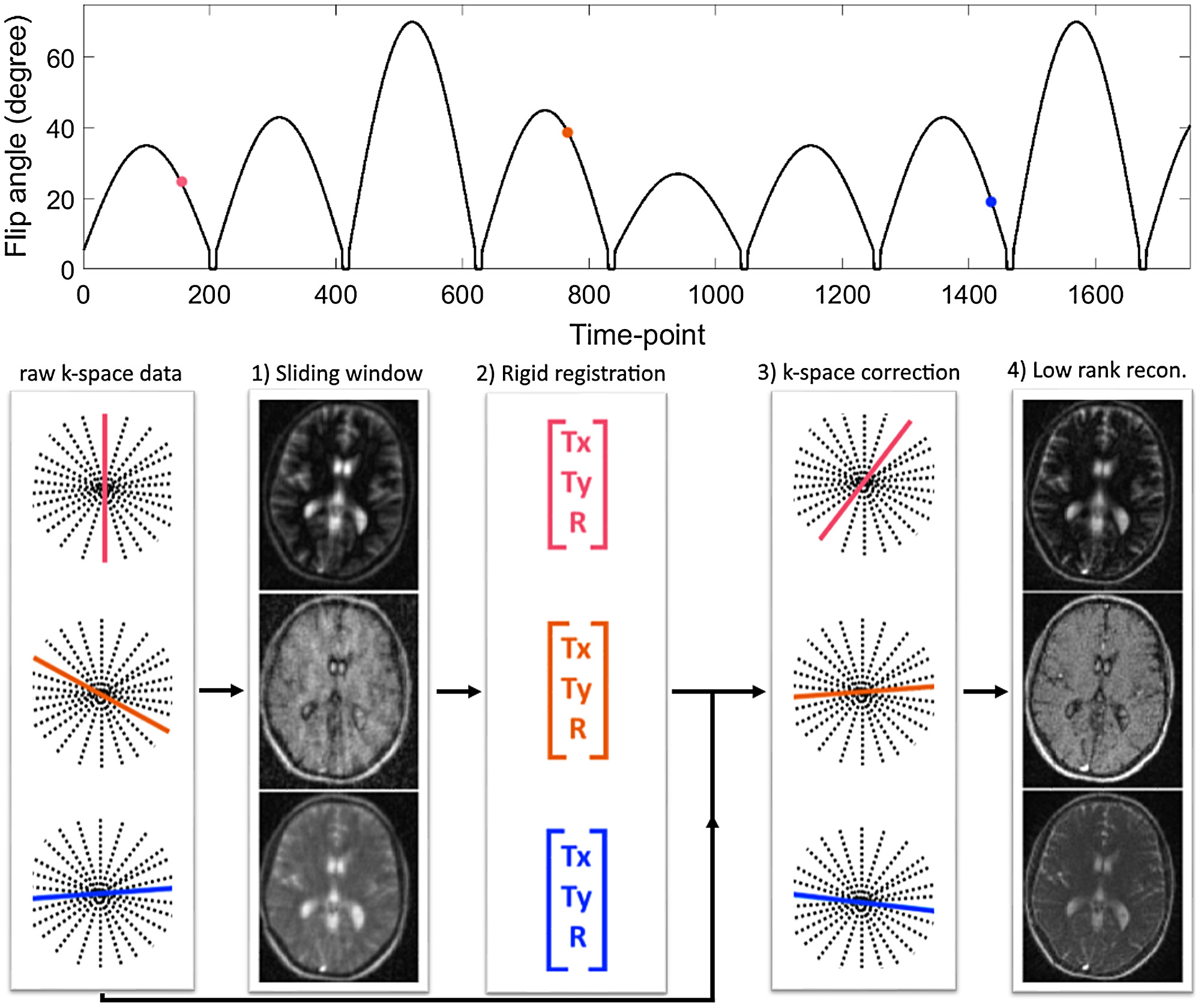

The presence of motion during MRF causes a spatial mismatch between time-point images and causes errors in the estimated maps, as well as ghosting and blurring artifacts, if the data are reconstructed with some data-sharing techniques (e.g., low-rank approximation). To address this problem, in this work we propose a novel motion-corrected MRF reconstruction (MC-MRF). With the proposed MC-MRF approach, motion is first estimated and corrected in k-space preceding a low-rank reconstruction. The proposed method can be divided in 4 steps: (1) iterative sensitivity encoding (SENSE)28 sliding window reconstruction; (2) rigid body image registration; (3) k-space motion correction; and (4) low-rank reconstruction.10 A diagram of the proposed method is shown in Figure 1. Examples for time-point images without motion correction and image outputs for steps 1, 2, and 4 of the proposed approach are shown in Supporting Information Figure S1.

2.1 Sliding window reconstruction: intermediate images

MRF typically uses highly accelerated image acquisition, where individual time-point images exhibit severe reconstruction artifacts that can compromise image registration and therefore motion estimation accuracy. Here, an intermediate sliding window reconstruction is used to reduce aliasing artifacts at the expense of temporal resolution. Intermediate images are reconstructed with iterative SENSE (Equation 1):

(1)

where A is the sampling operator, F is the Fourier transform, C are the coil sensitivities, and is the subset of k-space of a sliding window around time point t. Some motion artifacts may be introduced into , depending on the motion velocity and size of the sliding window. However, a considerable reduction of aliasing artifacts is expected.

2.3 k-Space motion correction

The estimated rigid body motion is used to correct the acquired k-space data , producing the motion-corrected . In the presence of rigid motion, the relationship between and is given by (Equation 2):

(2)

where the matrix A captures the rigid motion, t is the translational component of A and are the k-space coordinates before (after) motion, which are related by .

2.4 Low-rank reconstruction

The motion-corrected k-space is reconstructed using a low-rank inversion method.10, 11 Dictionaries commonly used in MRF are highly compressible along the temporal dimension.8 An SVD of the dictionary reveals the first R singular vectors (the left singular vectors of the SVD, truncated to rank R), which are incorporated into the encoding operator of the low-rank reconstruction (Equation 3):

(3)

where I are the singular value images, related to the time-point images by . Every singular image is a linear combination of data from (potentially) every time point. Thus, if motion is not accounted for, this reconstruction will create typical motion artifacts (e.g., ghosting and blurring), in addition to misregistration between time-point images. Here, k-space is motion corrected before low-rank reconstruction, eliminating these issues.

3 RESULTS

3.1 Simulations

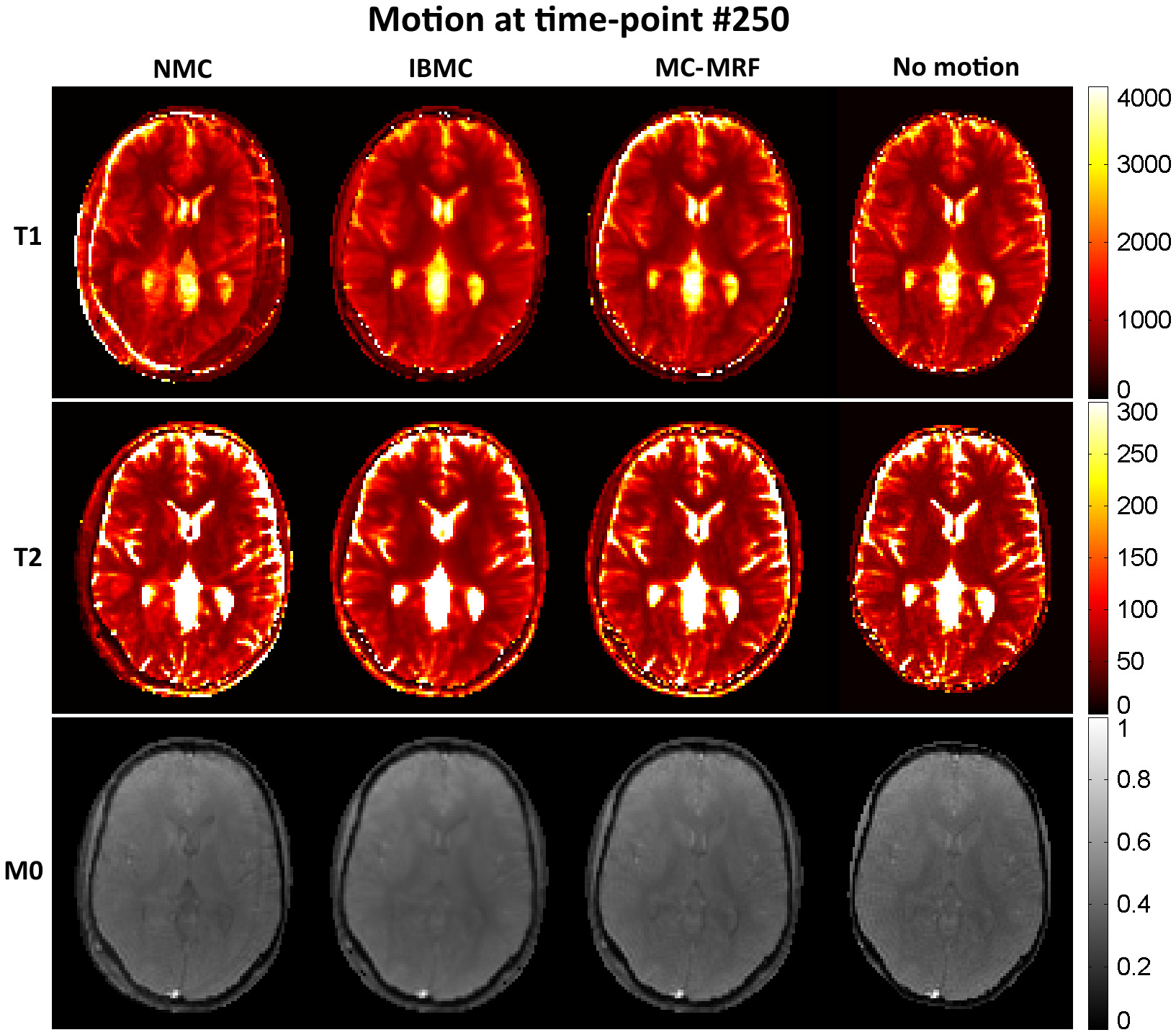

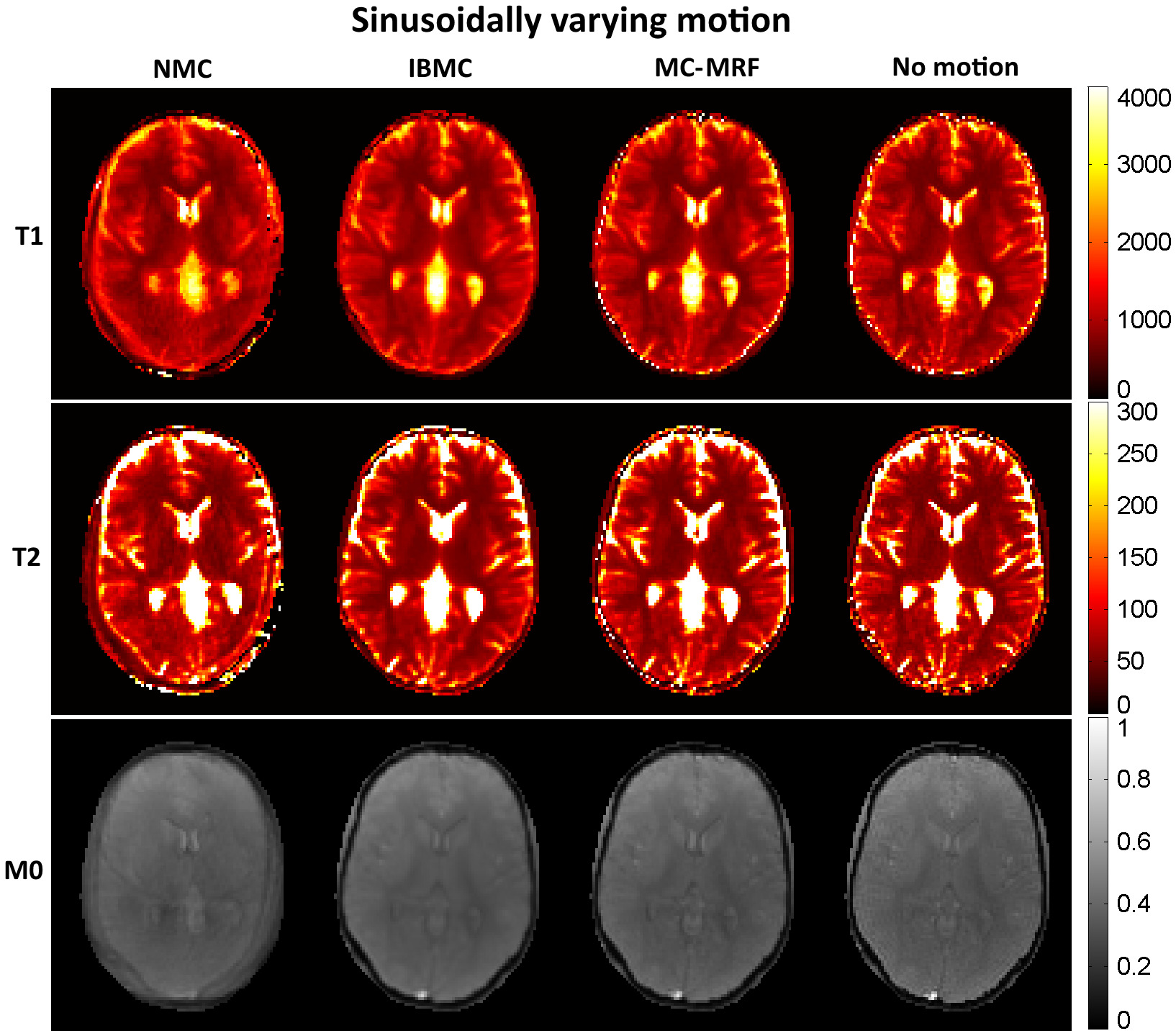

T₁, T₂, and M₀ maps from MRF reconstruction without motion correction, with IBMC and with the proposed MC-MRF, are shown in Figures 2, 3, and 4 for the 3 different types of rigid motion simulated, respectively: (1) 2D abrupt motion at time-point #250 (toward the beginning of the acquisition); (2) 2D abrupt motion at time-point #1500 (toward the end of the acquisition); and (3) 2D sinusoidally varying motion. In the first case (Figure 2), abrupt motion occurs during high encoding of T₁ (close to the IR pulse) and affects primarily the T₁ map. In the second case (Figure 3), abrupt motion occurs near high encoding of T₂ (high FA) and has corresponding effects in T₂. In the third case (Figure 4), sinusoidal motion affects all time points, and corresponding blurring and ghosting artifacts appear in both T₁ and T₂ maps. Motion artifacts in M₀ appear more correlated with motion artifacts in T₂ than in T₁. With MC-MRF, motion artifacts were virtually eliminated in comparison to the motion-free gold standard; however, a slight reduction in resolution was also observed. Rotational motion disturbs the quasi-uniform golden-angle distribution, opening gaps in k-space. This effect makes the following low-rank reconstruction more ill-conditioned and can produce residual artifacts. With the IBMC, improvements in the parametric maps were also achieved; however, residual blurring artifacts were also present, leading to a further decrease in apparent resolution and increase in apparent signal-to-noise ratio (SNR). This is attributed to interpolation effects, residual uncorrected motion within each sliding window, and residual errors in motion estimation.

Corresponding estimated translation and rotation motion for IBMC and MC-MRF are shown in Supporting Information Figures S2, S3, and S4 for the 3 different types of motion, respectively. IBMC produced motion estimates similar to MC-MRF, albeit with slightly more errors. This is attributed to IBMC estimating motion from a single reference image registration, as opposed to using multiple references as in MC-MRF. Good accuracy was generally achieved with MC-MRF; however, small errors in motion estimated were observed around time points of high velocity motion (abrupt discontinuities). Indeed, because MC-MRF estimates motion from intermediate images with a temporal resolution of ~200 ms, it fails to capture abrupt motion in the order of the TR (ie, ~4 ms).

3.2 Phantom acquisition

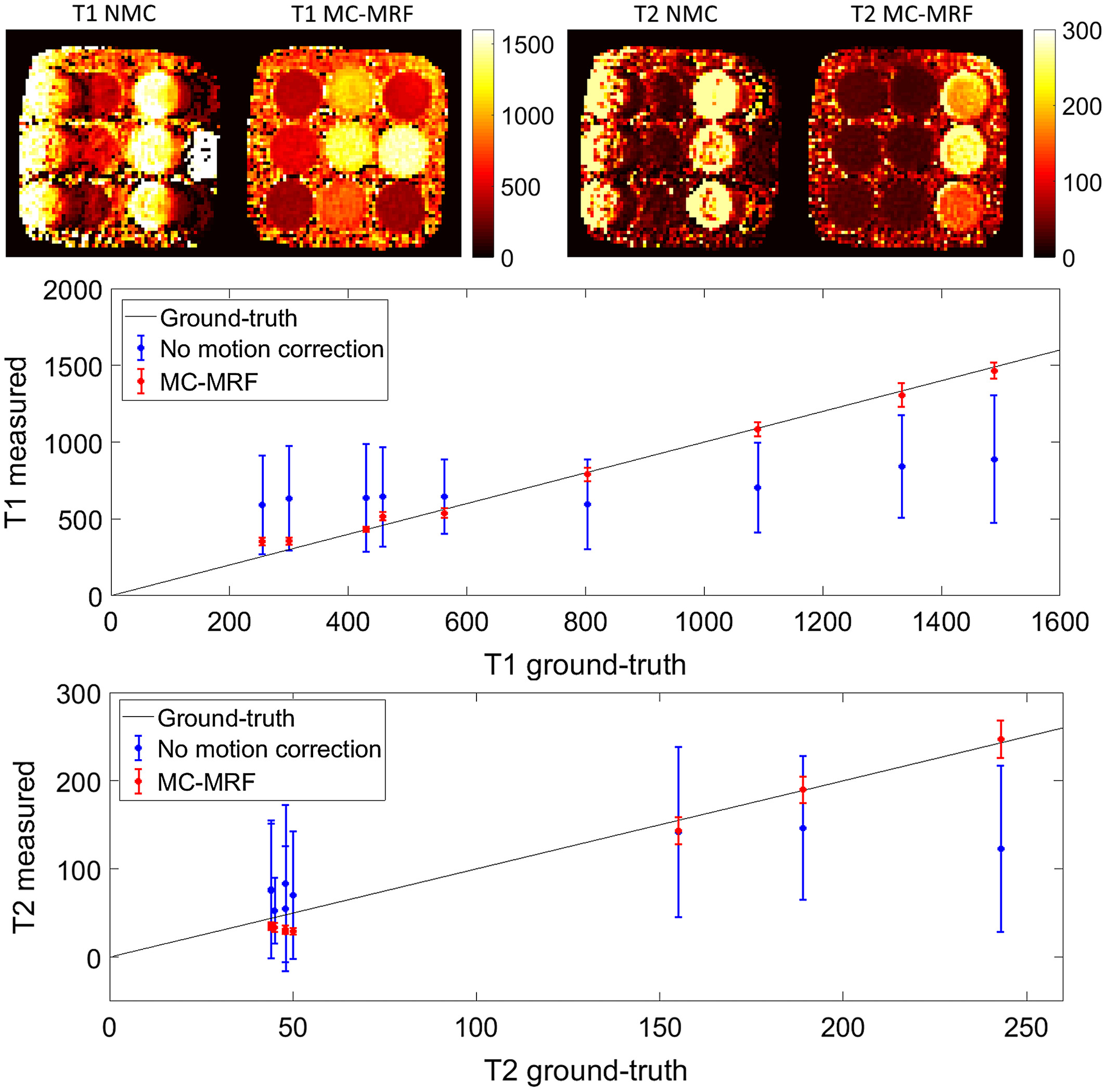

Parametric maps for the phantom experiment are shown in Figure 5 (top). Considerable motion artifacts propagate into the parametric maps without motion correction. With the proposed MC-MRF approach, the motion artifacts are virtually eliminated. Corresponding plots for T₁ and T₂ in comparison to gold-standard values29 are shown in Figure 5 (bottom). A loss in precision and accuracy occurs without motion correction; improvements in both these metrics are achieved with the proposed MC-MRF motion correction.

3.3 In vivo brain acquisitions

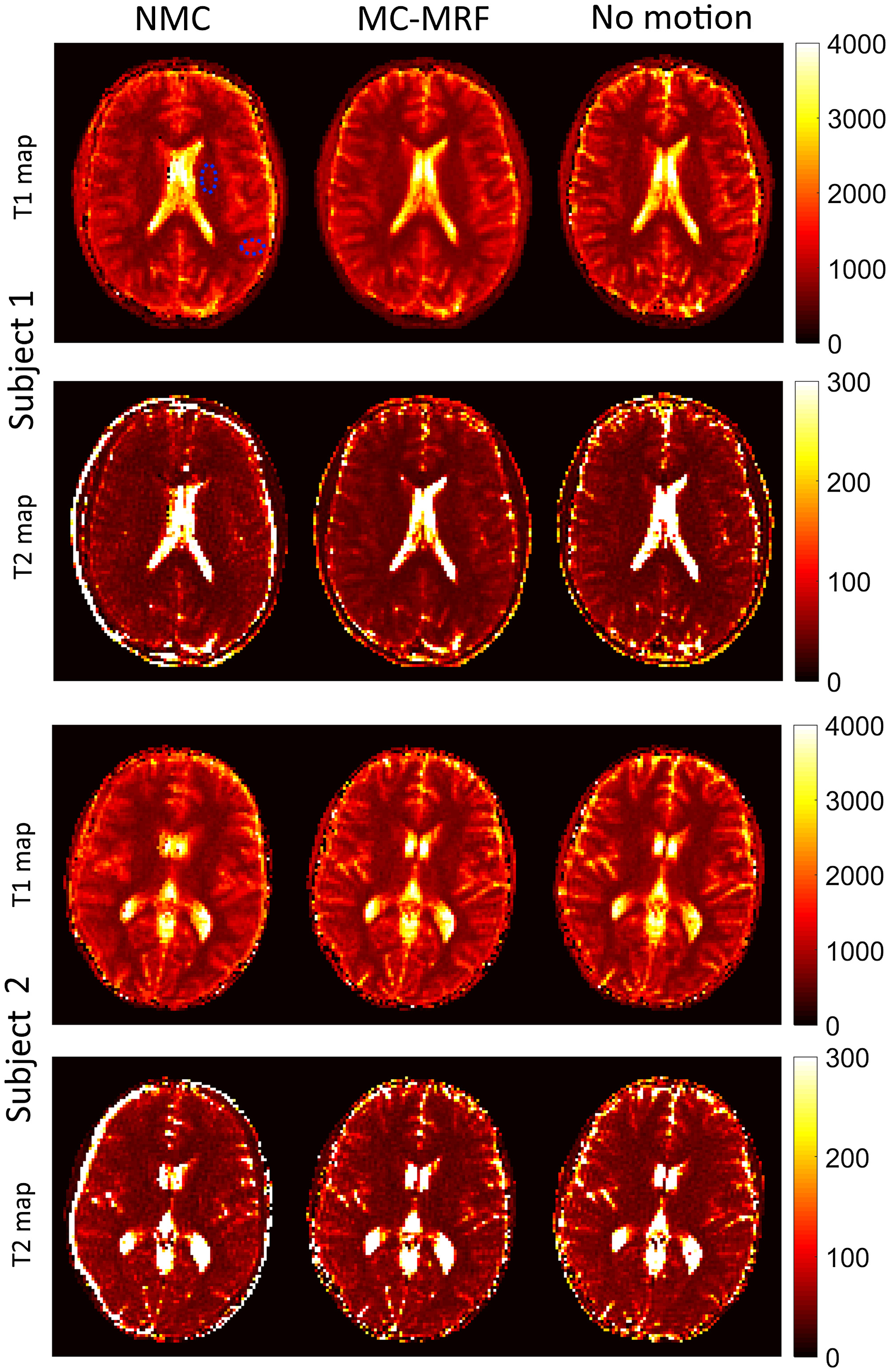

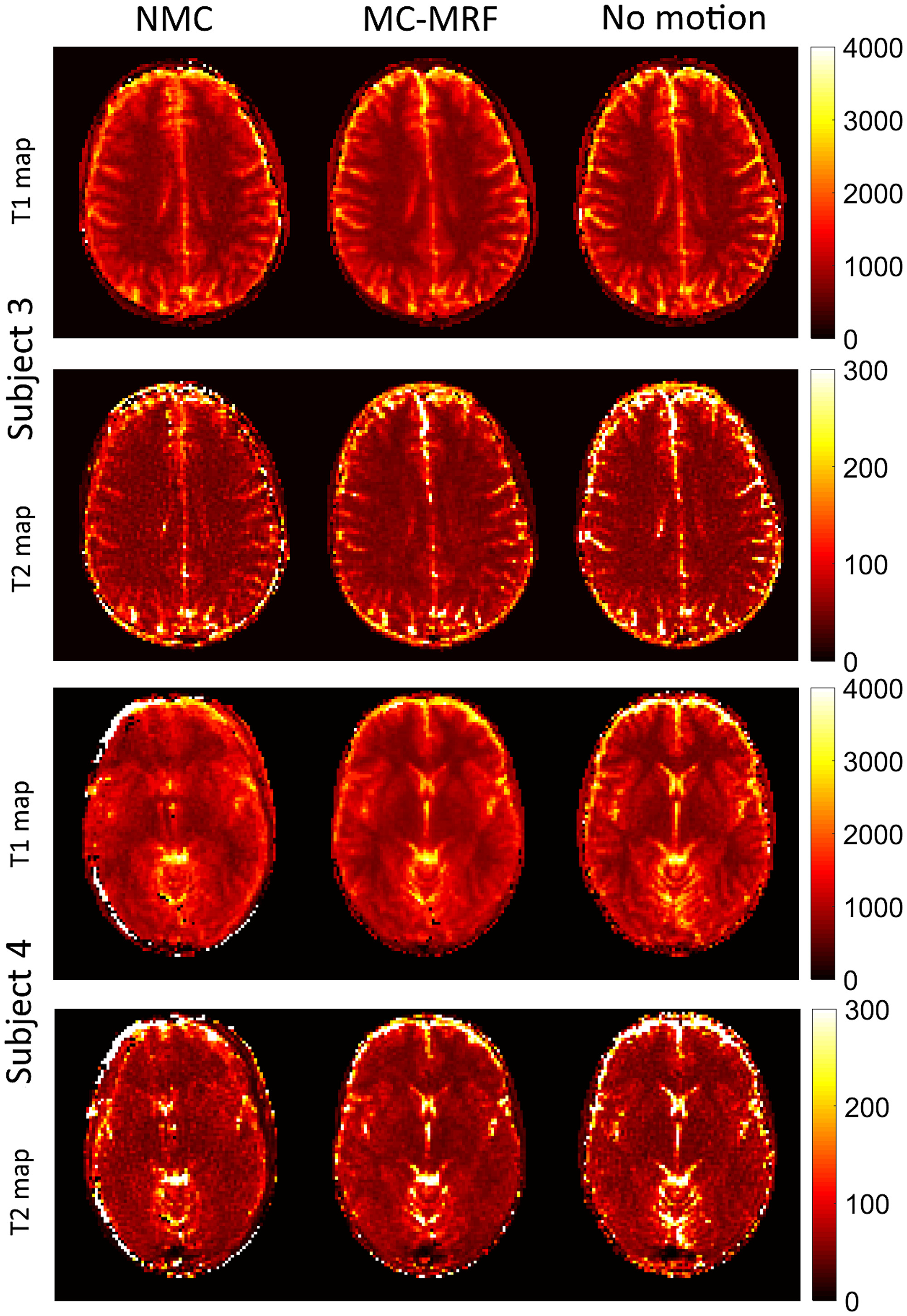

Selected time-point images with and without in-plane motion correction are shown in Supporting Information Figure S5, for 2 subjects (1 and 2). Blurring and ghosting artifacts (in addition to misregistration) are visible when no motion correction is used; conversely, both these effects are minimized with the proposed MC-MRF approach. T₁, T₂, and M₀ maps are shown for 4 representative subjects in Figures 6 and 7. Results without motion correction have ghosting and blurring artifacts, obscuring several brain structures. Motion correction improves parametric maps to a similar quality of the case without motion. The estimated in-plane motion amplitudes for rotation, left-right translation, and anterior-posterior translation in the format [minimum, average, maximum] were R = [5.6, 11.1, 18.3]°, T_x = [5.2, 9.3, 19.4] mm, and T_y = [0.4, 1.1, 1.8] mm, respectively. The corresponding estimated amplitudes for the through-plane experiments were R = [3.1, 9.3 22.1]°, T_x = [8.7, 17.1, 32.2] mm, and T_y = [0.6, 1.8, 4.4] mm, respectively. Subject 1 had the minimum estimated motion amplitudes, whereas subject 4 had the maximum estimated motion amplitudes. The estimated in-plane motion plots in Supporting Information Figure S6 capture the continuous cyclical motion performed by the subjects in Figures 6 and 7.

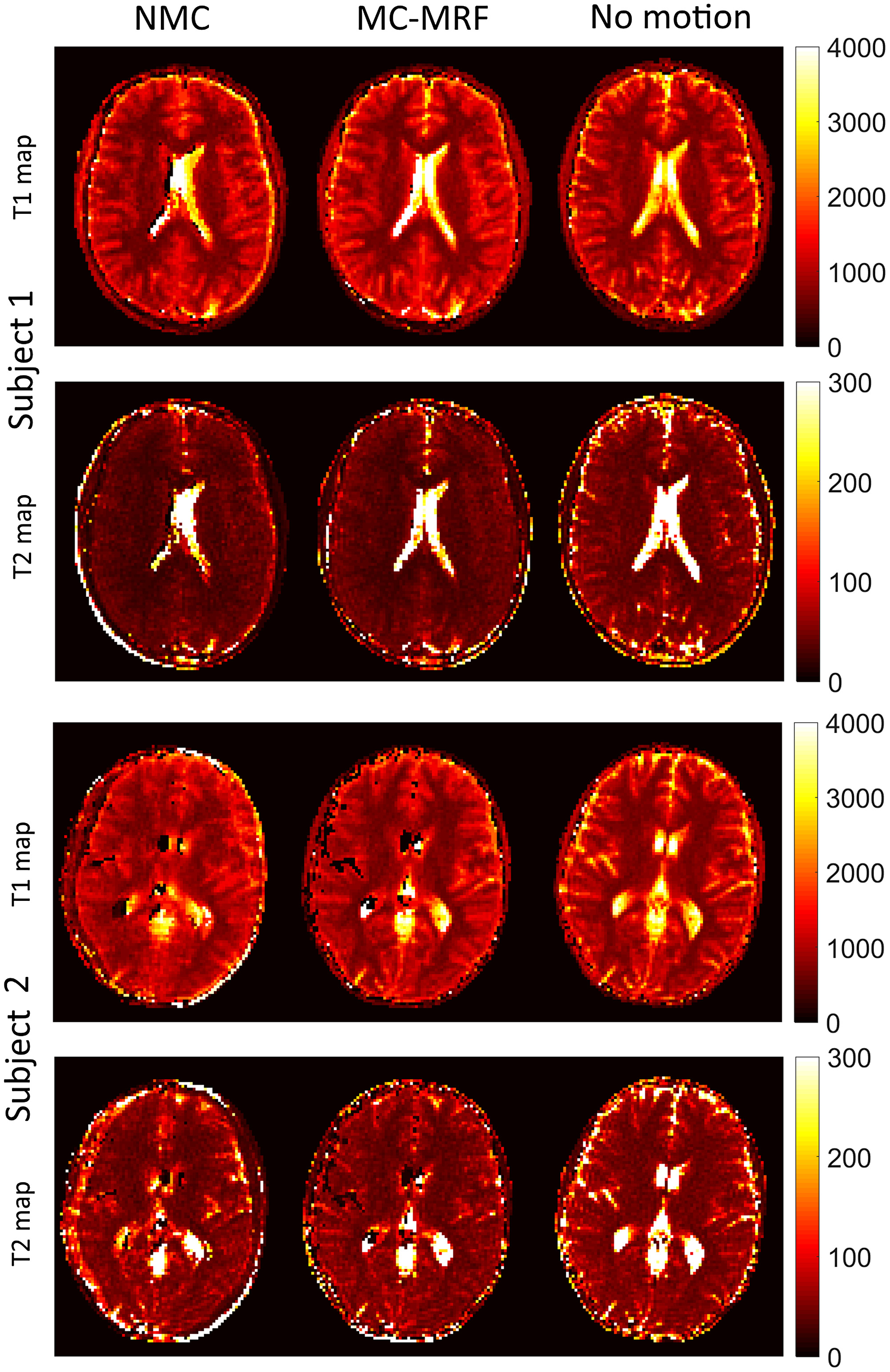

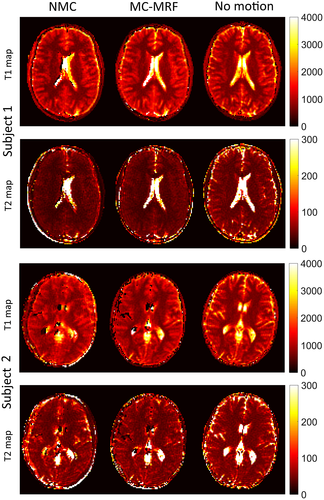

T₁, T₂, and M₀ maps for the case of through-plane motion are shown for the same 4 representative subjects in Figures 8 and 9. Again, motion artifacts are present without motion correction. The proposed MC-MRF corrects for some of this motion; however, considerable artifacts remain after motion correction. These residual artifacts from through-plane motion appear predominantly on the left and right sides of the brain (where maximum through-plane rotation occurs) and have a stronger impact on the T₂ maps.

T₁ and T₂ values for several regions of interest (denoted in Figure 6) are shown in Table 1. T₁ values agreed with literature; however, T₂ values were underestimated for white and gray matter. An additional reduction in observed T₂ occurred for cases of through-plane. Parametric values for MC-MRF in the presence of in-plane motion were comparable with the case of no motion; considerably higher standard deviation was observed for the cases of through-plane motion.

Table 1. T₁ and T₂ in healthy subjects for no motion correction (NMC), the proposed MC-MRF, and the ground truth (no motion)

	In-plane NMC	In-plane MC-MRF	Through-plane NMC	Through-plane MC-MRF	No motion	Literature
T1 white matter	753 ± 33	743 ± 32	769 ± 58	721 ± 47	738 ± 20	608–756
T2 white matter	49 ± 6	47 ± 5	41 ± 7	39 ± 6	48 ± 5	54–81
T1 gray matter	1074 ± 22	1159 ± 29	1069 ± 64	1104 ± 61	1127 ± 28	998–1304
T2 gray matter	63 ± 5	63 ± 4	47 ± 9	47 ± 9	69 ± 5	78–98

4 DISCUSSION

A novel method for rigid body motion correction in MRF was proposed and validated in simulations, a standardized phantom, and brain data of healthy subjects. The proposed approach estimates motion from an intermediate sliding window reconstruction (by image registration) and corrects k-space before a low-rank (motion corrected) reconstruction. The framework does not require additional training data and is suitable for accelerated MRF because of the low-rank reconstruction. The proposed motion correction method successfully improved parametric maps to a comparable degree to that of no motion for in-plane motion. As expected, residual errors for through-plane motion remained after motion correction, especially in T₂ maps.

Simulations show that motion in MRF can affect both T₁ and T₂ maps, depending when it happens in the acquisition. Given that the T₁/ T₂ encoding power varies during the acquisition, motion at different time points will corrupt the parametric maps differently. Most MRF sequences rely on an initial inversion recovery pulse to encode T₁; consequently, motion toward the beginning of the acquisition affects primarily the T₁ map. T₂ encoding in MRF is generally achieved with spin and stimulated echoes (proportional to sin² (FA/2) and sin (FA), respectively); consequently, time points associated with echo creation are more likely to affect the T₂ map. Motion will affect misregistration between time points and introduces motion artifacts if the time-point images are reconstructed from k-space data acquired at multiple motion states (e.g., low-rank approximation). Misregistration will cause each pixel’s tissue to change during the acquisition, effectively making T₁ and T₂ vary with time. Consequently, misregistration will cause the most errors in the border between tissues where the fingerprint will oscillate between different T₁/ T₂ values during the acquisition. This bias can affect the template matching step in MRF, leading to a mismatch in the dictionary. Motion artifacts are generally split into blurring and ghosting. Blurring artifacts will give pixels a mix of signal from different tissues. The fingerprint will correspond to a combination of different T₁/ T₂, similar to a partial volume problem. Ghosting artifacts behave like undersampling artifacts. Temporally, these artifacts are also expected to be noise-like; in the presence of considerable artifacts, the fingerprint template match may also fail because of excessive noise.

The proposed MC-MRF was compared with an alternative IBMC in simulations. Parametric maps obtained with IBMC achieved comparable quality to MC-MRF; however, IBMC suffered from residual blurring artifacts. At higher acceleration factors, IBMC is expected to produce more aliasing artifacts than MC-MRF. Additionally, if the motion approaches the temporal resolution of the sliding window, residual motion artifacts will propagate into the parametric maps of the IBMC, whereas MC-MRF can correct for motion within the sliding window temporal resolution. A comparison between alternative strategies for MRF motion correction will be of interest in future work.

For the in-plane in vivo acquisitions MC-MRF provides T₁ and T₂ white and gray matter values comparable to those obtained from a motionless scan. White and gray matter T₁ values were in good agreement with those reported in literature; however, T₂ values were underestimated. Errors in T₂ with respect to literature values were also observed for the no-motion acquisitions. Reduced acquisition time led to a reduction of T₂ encoding with the current FA pattern. Different FAs patterns that have been shown to be more sensitive to T₂36 in short acquisition times will be investigated in future work. Here, B₁ was not corrected for, which could also lead to errors in T₂.

One of the main limitations of the proposed study is its validation in 2D acquisitions, which cannot account for through-plane motion. Results showed that considerable errors remain, especially underestimation of T₂, even after using the proposed MC-MRF to correct for in-plane motion. Given that different tissues enter and leave the slice, the effective T₁/ T₂ would be described by a time-varying partial volume model. Additionally, because a given tissue moves within the slice, it will experience a different B₁ phase and amplitude, altering the magnetization history of that tissue. This effect compromises the fingerprint and, consequently, the template matching. If through-plane motion could be estimated (in relation to measured in-plane motion perhaps), the effect could be corrected by modeling a temporally varying B₁ for each spatial location along the slice profile, although it would be computationally expensive. Prospective motion correction could also be used, although other challenges would have to be considered.37 A slice thickness of 10 mm was used in these experiments to avoid low SNR and to help reduce accidental through-plane motion during in-plane motion experiments. This way, the effects of in-plane and through-plane motion in MRF could be better separated. Future work will consider higher in- and through-plane resolutions.

The natural solution for through-plane motion will generally be 3D acquisitions. 3D radial trajectories will be considered38, 39 to extend the proposed approach. Adequate temporal resolution for the sliding window reconstruction may be a challenge in 3D. In this case, spatial resolution of the sliding window may be reduced or additional regularization may be used (e.g., compressed sensing).40 Additionally, the FOV and/or the TR may need to be reduced. Another limitation of the current work is the temporal resolution of the estimated motion (~200 ms). This resolution is reasonable for head motion or even respiratory motion, but would not be sufficient for faster motion (e.g., cardiac). Alternatively, motion estimation could be achieved by autofocus,41 potentially achieving a temporal resolution of the order of the TR.

The proposed method only corrects for rigid body motion. Motion correction becomes more challenging as the motion amplitude increases because of possible motion estimation inaccuracies, larger k-space gaps, and, possibly, higher degree of through-plane motion. Expanding the motion correction to more complete models (affine and nonlinear) is also of interest in future work. Whereas extension to affine motion correction would be straightforward (using Equation 2), general elastic motion would require more complex solutions such as a motion compensated reconstruction42 or localized autofocus.43 Finally, the current suboptimal implementation of the proposed framework features slow reconstruction times. This can be improved by reconstructing only a subset of sliding window time points for motion estimation (with adequate temporal resolution) and/or by reconstructing lower spatial resolution images (which should be sufficient for rigid motion estimation, but may be not be the case for more complex models such as affine or elastic motion).

Future work should incorporate effects missing in the current model, such as B₁ inhomogeneity44 or magnetization transfer effects.45 B₀, in addition to being able to both transmit and receive B₁ fields, can vary in the presence of motion and may need to be accounted for in the dictionary simulation. Extension of the current method to 3D MRF46 is desirable; through-plane motion will be eliminated and motion correction will be more relevant because of the increased scan time. Finally, more complex motion models will be required if the method is to be considered for abdominal or cardiac MRF.

5 CONCLUSION

A novel method for rigid body motion correction in MRF has been proposed and validated in vivo for 2D acquisitions. For in-plane motion, the proposed motion correction approach produces similar T₁ and T₂ maps to the case of no motion; however, residual errors exist in the case of through-plane motion, particularly for T₂.
