Blood–brain barrier permeability of normal-appearing white matter in patients with vestibular schwannoma: A new hybrid approach for analysis of T1-W DCE-MRI
Abstract
Purpose
To develop and assess a “hybrid” method that combines a first-pass analytical approach and the Patlak plot (PP) to improve assessment of low blood–brain barrier permeability from dynamic contrast-enhanced (DCE) magnetic resonance imaging (MRI) data.
Materials and Methods
Seven patients with vestibular schwannoma were enrolled. T1-W DCE imaging was acquired on a 1.5T scanner. Normal-appearing white matter (NAWM) was divided into four regions of interest (ROIs) based on the magnitude of changes in longitudinal relaxation rate (ΔR1) after gadolinium administration. Kinetic analysis of ROI-averaged contrast agent concentration curves was performed using both the conventional PP and the hybrid method. Computer simulated uptake curves that resemble those from NAWM were analyzed with both methods. Percent deviations (PD) of the “measured” values from the “true” values were calculated to evaluate accuracy and precision of the two methods.
Results
The simulation showed that, at a noise level of 4% (a noise level similar to the in vivo data) and using a signal intensity (SI) averaging scheme, the new hybrid method achieved a PD of 0.9 ± 2.7% for vp, and a PD of –5.4 ± 5.9% for Ktrans. In comparison, the PP method obtained a PD of 3.6 ± 11.3% for vp, and –8.3 ± 12.8% for Ktrans. One-way analyses of variance (ANOVAs) showed significant variations from the four WM regions (P < 10−15 for ΔR1; P < 10−6 for Ktrans; P < 10−4 for vp).
Conclusion
Both computer simulation and in vivo studies demonstrate improved reliability in vp and Ktrans estimates with the hybrid method.
Level of Evidence: 3
Technical Efficacy: Stage 1
J. MAGN. RESON. IMAGING 2017;46:79–93
Quantification of low blood–brain barrier (BBB) permeability from dynamic contrast-enhanced (DCE) magnetic resonance imaging (MRI) is associated with a number of technical challenges. The analysis must be based on pharmacokinetic analysis of time course data, which requires accurate separation of the contribution of several variables. This can be problematic where the signal-to-noise ratio and temporal resolution are low, as is the case where BBB permeability is low, resulting in inappropriate covariance between parameters derived from curve-fitting approaches. A common approach to these problems is the use of the Patlak method,1-6 where the slope in the Patlak plot (PP) represents the unidirectional influx constant (Ktrans), and the y-intercept represents the fractional plasma volume (vp). In a previous study, Ewing et al found higher vp values from Patlak analysis compared to those estimated by integrating the area under the contrast concentration time course over the first-pass (FP) transit period of the contrast agent (CA) bolus.3 This might reflect the weakness of the Patlak method, which depends on linear regression analysis, and is more prone to nonuniform (distorted) noise. In addition, the model does not allow for backflux of CA from the tumor into the plasma, which will be of particular importance if an inappropriate time interval is chosen for analysis.
In this study we propose a new “hybrid” method that combines a first-pass analytical approach7, 8 with the Patlak plot (PP) to improve assessment of BBB permeability. The PP model describes a unidirectional two-compartment system and uses linear regression analysis to estimate Ktrans and vp. The FP method7, 8 performs an automatic decomposition of the first-pass CA concentration curve into intravascular and interstitial components to allow simultaneous mapping Ktrans and vp. A leakage-corrected estimate of vp is obtained by integrating the area under the intravascular CA concentration curve over the first-pass of the bolus. When combined with high temporal resolution DCE data, the FP method provides accurate and robust measurements of vp.2, 9
The aim of this study was to develop an easy-to-use and reliable approach for detecting subtle BBB permeability in normal-appearing white matter (NAWM) and to apply the proposed techniques in patients with type II neurofibromatosis-associated vestibular schwannoma (VS). We hypothesize that a hybrid approach combining the benefits of the FP and PP analytical approaches will improve the accuracy of parameter estimates in tissues with low permeability.
Theory
Patlak Plot
(1)
(2)Equation [2] expresses the PP, where the slope represents Ktrans and the intercept represents vp. The term on the left side of the equation, Ct(t)/Cp(t), represents the volume of distribution (vd) of the CA in brain tissue at the time of sampling, t.10 If the BBB is intact, then vd should be equivalent to vp. If leakage occurs, then vd becomes larger than the vp, as accessible extravascular compartments are included.2 The abscissa has the units of time, but this is not laboratory time. It is concentration-stretched time and will be referred to hereafter as tstretch.3 Figure 1 shows the relationship between the lab time and tstretch calculated using a Cp(t) measured from low CA dose, high temporal resolution (LDHT) imaging in a patient with VS.11 It can be seen that a tstretch interval 80–250 seconds2 corresponds to a lab time interval 37–157 seconds. The relationship between tstretch and lab time is approximately linear beyond a lab time of ∼37 seconds, but fluctuates within the first-pass and recirculation phase of the CA bolus. In most studies permeability is evaluated during the steady-state component of the plot, ignoring the initial bolus circulation. An additional problem is that experimental errors are distorted when a nonlinear model is transformed to a linear one.12 How these distorted errors and the initial timepoints affect the Patlak fitting will be investigated in the current study.

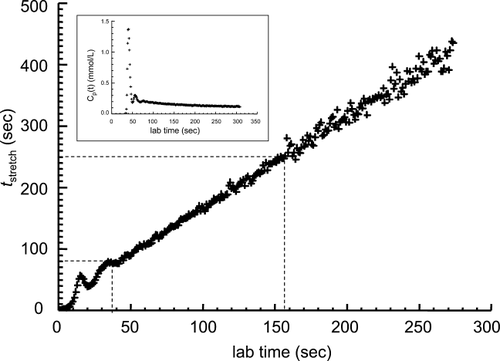

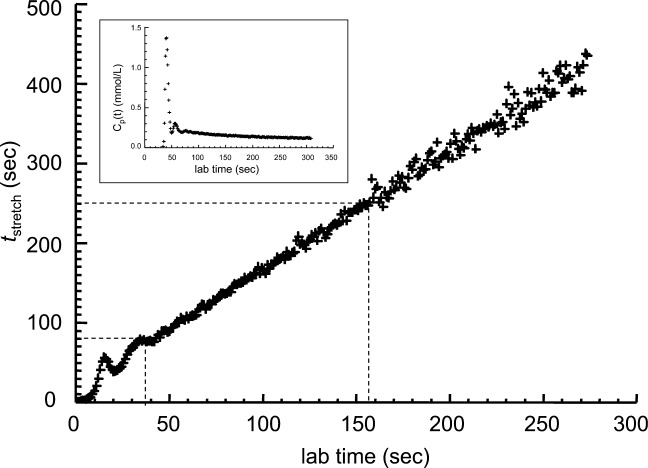

Relationship between tstretch, calculated as
, and the lab time. The panel in the upper-left corner of the graph shows the Cp(t) used in the simulation.
FP Model for Simultaneously Deriving vp and Ktrans (FPsimul)
The FP method7, 8 assumes that backflow during the first-pass transit period of the bolus is negligible, and uses an iterative approach8 to separate the intravascular and interstitial components of the tissue CA concentration curve, which are then used for vp and Ktrans estimation, respectively (see details in Appendix A).
New Hybrid Method
- a conventional PP for simultaneously deriving Ktrans and vp;
- a modified FP analysis with a known Ktrans for deriving vp only;
- a modified PP analysis with a known vp for deriving Ktrans only.
- Step 1: CA time course curves are fitted using the conventional PP to derive an initial estimate of Ktrans and vp values, with a tstretch interval of 85–250 sec used in the fitting;
- Step 2: The estimate of Ktrans from Step 1 is used into Eq. [A.4] (Appendix A) as a known value and vp is then calculated using Eqs. [A.5] and [A.6] (Appendix A);
- Step 3: CA time course curves are then refitted with Eq. [2] to obtain a refined Ktrans estimate. During the fitting, the vp in Eq. [2] is fixed using the value obtained in Step 2, leaving Ktrans as the only free-fitting parameter.

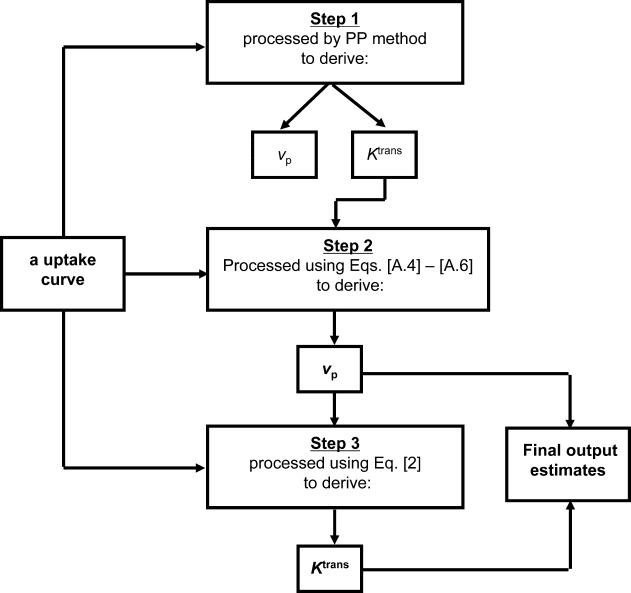

Flow chart of the FP-PP hybrid method.
The estimates of vp from Step 2, and Ktrans from Step 3 are the final output estimates from the analysis.
The conventional PP performed at Step 1 provides an adequate estimate of Ktrans for use as the initial value3 in the modified FP method enabling subsequent calculation of vp, corrected for leakage. In low permeability tissues such as NAWM the intravascular CA concentration is very high compared to the amount of transendothelial leakage. This means that errors in Ktrans estimation from Step 1 will have only very small effects on the calculation of the integral of the intravascular CA time course curve in Step 2. Consequently, the modified FP approach becomes less sensitive to covariance errors that result from simultaneous measurement of Ktrans and vp. The resulting improved estimate of vp is then used in the modified PP method, leaving Ktrans as the only free-fitting parameter. The stepwise estimation of Ktrans and vp may be expected to improve measurement accuracy and enable more reliable estimation in tissue with very low levels of endothelial permeability.
MATERIALS AND METHODS
Patients
Seven patients with type 2 neurofibromatosis (NF2), with a total of 20 tumors (14 VS and 6 meningiomas), were recruited into the study. DCE-MRI studies were performed in the absence of any treatment. All subjects gave informed consent and the Local Research Ethics Committee approved the study (reference number O2-051).
MRI
Patients were imaged on a 1.5T whole body scanner (Philips Achieva, Philips Medical Systems, Best, Netherlands) using an 8-channel head coil. LDHT DCE-MRI data were collected as part of the dual temporal resolution technique, ICR-DICE, as described previously.11 Prior to the LDHT DCE series, four consecutive 3D axial fast gradient recalled echo acquisitions (GRE) with variable flip angle (VFA; α = 2°, 8°, 15°, and 20°) were performed for native longitudinal relaxation rate (R1N = 1/T1N) mapping. The fourth sequence was then repeated (n = 300) to produce a high temporal resolution (Δt = 1.03 sec) T1-W dynamic dataset with a low dose of CA (gadoterate meglumine; Dotarem, Geurbet, Roissy, France) given following the 30th dynamic scan. Contrast agent (a fixed volume of 3 ml, ∼0.02 mmol/kg depending on body weight) was administered by power injector as an intravenous bolus at a rate of 3 ml/s, followed by a chaser of 20 ml of 0.9% saline administered at the same rate. Two sets of high spatial resolution T1-W 3D images with the voxel size of 1 × 1 × 1 mm, ie, isotropic voxels, were acquired before (T1-weighted [W] without contrast) and after the DCE MRI (T1-W + contrast).
Image Processing
Prior to kinetic analysis of the CA concentration curves observed in NAWM, we performed pixel-by-pixel mapping of postinjection changes in longitudinal relaxation rate (ΔR1) to show CA distribution due to BBB leakage in the brain tissue. A four-color scheme was applied to the WM-segmented ΔR1 maps, which divided the WM into four ROIs based on the magnitude of ΔR1. Kinetic analysis of ROI-averaged CA concentration curves was then performed using both the conventional PP and the hybrid method. Computer simulations were performed to generate CA concentration curves that resemble the in vivo CA curves to evaluate accuracy (bias) and precision (standard deviation) of the new hybrid method.
Measuring Plasma CA Concentration Time Course Curve (Cp(t))
The plasma CA concentration time course curve (Cp(t)) was measured from the superior sagittal sinus (SSS) in patient data as shown in Fig. 1. A semiautomatic extraction technique was used in the Cp(t) measurement (see Appendix B for details).
Calculation of R1N and M0
Maps of M0 and R1N were calculated by fitting the signal intensities from VFA images using a nonlinear least squares method (see details in Appendix C).
Pixel-by-Pixel Calculation of CA-Induced R1 Changes
To reduce the influence of Rician noise, the average of the signal intensity (SI) in the last 10 dynamic frames (around 4.5 min postinjection) was used to calculate the postinjection tissue R1 (R1post). Calculation of R1post based on R1N, mean preinjection signal intensity (SIpre), and postinjection signal intensity (SIpost), with a subtraction method (SIpost – SIpre), is described in Appendix D.
Maps of ΔR1 ( = R1post – R1N) were generated. To view the spatial distribution of the residual CA in brain tissues, WM-segmented ΔR1 maps were displayed in four colors (blue, green, red, and yellow) based on the magnitude of ΔR1, and associated vp values. The criteria setting for the color-coding (blue: ΔR1 < 0 or vp < 0.01; green: 0 < ΔR1 < 0.012 and vp > 0.01; red: 0.012 ≤ ΔR1 < 0.025 and vp > 0.01; and yellow: ΔR1 ≥ 0.025 and vp > 0.01; vp was estimated by integrating the area under the first-pass CA concentration curves without leakage correction) was based on in vivo observation from a patient with NF2, and will be explained in more detail in the Results section below.
Segmentation of Gray and White Matter
SPM213 was used for 1) spatial alignment between R1N VFA, DCE-MRI, and 3D T1-W isotropic images, and 2) segmentation of the MRI data into GM, WM, and CSF. The probability maps of GM, WM, and CSF segmented from the T1-W isotropic images were realigned and resliced to the space of the 3D individual frames of the DCE-MRI, as well as the 3D R1N and 3D pharmacokinetic parametric images, ie, Ktrans and vp. WM masks were generated from the WM probability maps by including only voxels with a probability greater than 0.95 and were used for the subsequent quantitative analysis.
Quantitation of Tissue BBB Permeability With the New Hybrid Method
ROI-averaged (SI) time course data were used to test the new hybrid method. Each ROI was made as a collection of all the pixels with same color in a WM-segmented image. Both conventional Patlak and the new hybrid methods were applied and compared. In addition, three tstretch intervals (85–250 sec, 85–300 sec, and 0–250 sec) were used in the fitting to evaluate how much the specific time intervals could affect the results.
Computer Simulation to Evaluate the New Hybrid Method
Based on the results from the in vivo data analysis, Ktrans = 0.0074 min−1 and vp = 0.024 were chosen as “true” values to synthesize tissue CA concentration curves, which resemble the in vivo CA uptake curve in the yellow-coded region. The Cp(t) shown in Fig. 1 was used in the CA concentration curve simulation and fitting.
To investigate the effects on parameter estimation of the assumption that no backflux of CA occurs, zero noise tissue uptake curves were synthesized with the modified Tofts model14, 15 (assuming the fractional volume of the extravascular extracellular space, ve = 0.20) and the unidirectional two-compartment model, respectively. The modified Tofts model with no backflux corresponds to the unidirectional two-compartment model expressed as Eq. [1]. Fitting errors due to ignoring backflux when using the PP and the new hybrid method were compared.
To investigate the effects of noise on parameter estimation, CA concentration curves were simulated with the modified Tofts model and converted into an SI-time curve based on the in vivo mean baseline SI (470; 33 baseline frames); the precontrast T1 relaxation time (T10), and a literature value of longitudinal relaxivity (4.39 mM−1 sec−1).16 The generated SI-time courses were sampled with a temporal resolution of 1.03 seconds. Rician white noise with noise level (ie, standard deviation / mean baseline signal) of 1%, 2%, 3%, 4%, and 5%, respectively, was added to the simulated SI-time curves. Ktrans and vp were calculated using the synthetic datasets to produce the so-called “measured” values. Percentage deviations (PD) of the “measured” values from the “true” values were calculated as: PD = (measured – true)/true. Both the conventional PP and the new hybrid method were used for kinetic analysis. A total of 20,000 repetitions were performed for each method to produce mean and standard deviation (SD) of PD for each parameter estimates.
To investigate the effects of averaging SI curves on parameter estimation while using the two kinetic analysis methods, 100 individual SI-time curves, simulated as described above, were averaged to resemble the ROI-averaged SI curves observed from the in vivo WM yellow-coded region. 200 repetitions were performed for each method to produce mean and SD of PD for each parameter estimates.
A tstretch interval 85–250 seconds was used in the above Monte Carlo simulations. To investigate the effects of including the initial timepoints in the Patlak fitting, we repeated the above simulations using a tstretch interval 0–250 seconds instead. We also repeated the simulations setting Ktrans at 0.004, 0.008, 0.012, 0.016, 0.020, 0.025, 0.030, 0.035 min−1, respectively (other parameters were fixed at ve = 0.20, vp = 0.024, and noise level of 4%), to identify what level of back-diffusion (kep = Ktrans/ve) will cause the new hybrid method to fail, as indicated by high absolute value of PD mean or high SD of PD.
Further In Vivo Study
Correlation Between ΔR1 and Ktrans in WM
Mean ΔR1 of each of the four color-coded WM regions were calculated for each slice in the ΔR1 image volumes. The unidirectional influx constant Ktrans and vp were derived from the corresponding regional uptake curves using the new hybrid method. The whole tstretch interval (from 0 to ∼460 sec) was used in the fitting, which was in agreement with the lab time interval used for calculation of ΔR1. Using longer tstretch interval also benefits the measurement of very low BBB leakage (the red and green-coded WM regions). Linear regression analysis was performed to evaluate the relationship of ΔR1 and the unidirectional influx constant Ktrans.
Comparison of the Four Color-Coded Regions in WM
Mean ΔR1, Ktrans and vp measured in each of the four color-coded WM regions were compared. Data are expressed as mean ± SD for the seven patients. Statistical tests were performed with 95% confidence intervals, using one-way analysis of variance (ANOVA) to assess variations of the parameters in relation to the four color-coded WM regions. Post-hoc Tukey's honestly significant difference (HSD) test was performed to determine statistically significant differences among the mean parameter values for each pair of the WM regions.
Robust Stability Against Variation in the tstretch Interval
For assessing the degree of variation in Ktrans and vp while using various tstretch intervals in the kinetic analysis, the coefficient of variation (CoV), defined as the ratio of the standard deviation to the mean, was computed. Robust stability against variation in the tstretch interval was compared between the two kinetic methods.
Statistical Analysis
The accuracy and precision of the two methods were compared by computer simulation of the mean and SD of percentage deviations for Ktrans and vp estimates assuming the existence of backflux of CA and at varying levels of Rician noise. Stability of the two methods to variation in the tstretch interval was evaluated by computing the CoV in Ktrans and vp estimates derived from the in vivo data using a range of tstretch intervals. Linear regression analysis was performed to assess the relationship between CA-induced R1 changes and the unidirectional influx constant Ktrans in WM. Multiple comparisons of the regional means of ΔR1, Ktrans, and vp in the four color-coded WM regions were performed using one-way ANOVA, followed by all pairwise comparisons using Tukey's HSD test (alpha = 0.05). P < 0.05 was considered statistically significant.
Results
CA-Induced R1 Changes in WM
Figure 3 shows maps of ΔR1 in WM measured around 4.5 minutes post-CA injection in a patient with NF2 who had bilateral VSs and a frontal meningioma. The maps in Fig. 3 covers slices 37–54, whereas the right VS occurred in slices 14–24, the left VS in slices 15–17, and the meningioma in slices 57–61. From the ΔR1 maps it can be seen that the residual CA is not homogeneously distributed in WM.

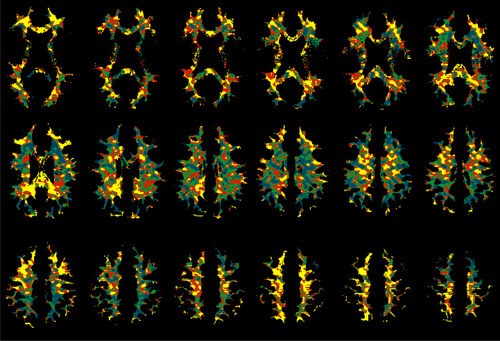

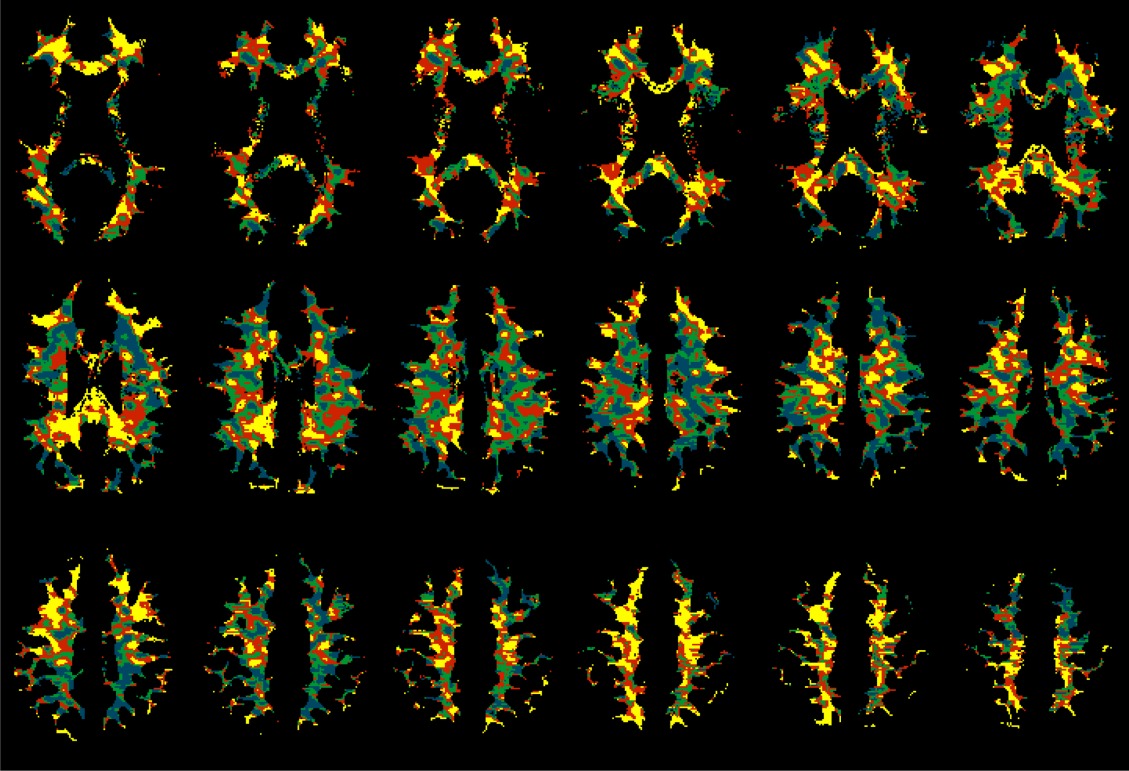

Regional variation in the distribution of residual contrast agent (CA) in white matter (WM) as shown with WM-segmented ΔR1 maps (blue: ΔR1 < 0 or vp < 0.01; green: 0 < ΔR1 < 0.012 and vp > 0.01; red: 0.012 ≤ ΔR1 < 0.025 and vp > 0.01; and yellow: ΔR1 ≥ 0.025 and vp > 0.01; vp was estimated by integrating the area under the first-pass CA concentration curves without leakage correction).
It was found that about one-fifth of the segmented WM voxels showed a negative ΔR1 value, and the WM voxels with negative ΔR1 tended to show low vp estimated with the FP technique. In the above patient, WM voxels with negative ΔR1 had vp 0.0116 ± 0.0107, while those with positive ΔR1 had vp 0.0216 ± 0.0150; WM voxels with vp < 0.01 had ΔR1 0.0028 ± 0.0141, while those with vp > 0.01 had ΔR1 0.0161 ± 0.0163. In Fig. 3, the blue is the area of negative ΔR1. To reflect the low vp attribute of the blue-coded region, we included all WM voxels with vp < 0.01 into the blue-coded region.

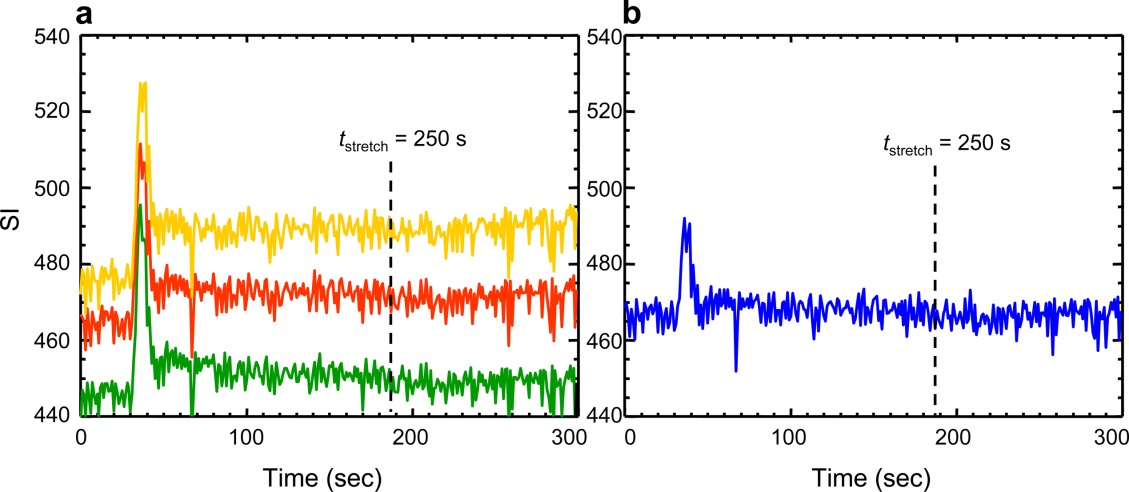

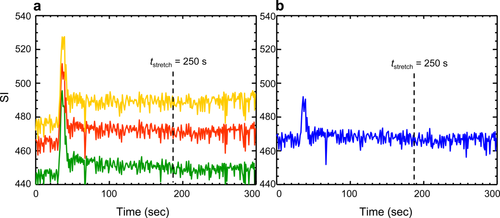

ROI-averaged SI-time curves, which were obtained from the blue-, green-, red-, and yellow-coded regions, respectively, demonstrated variations in baseline level, peak height of first pass of CA bolus, and enhancement extent (Fig. 4).
Quantitation of Tissue BBB Permeability With PP and the New Hybrid Method
Figure 5 shows the fittings of the four regional tissue CA uptake curves using the two kinetic approaches and three tstretch intervals, respectively. For the tstretch interval 85–250 seconds, the results from PP were quite close to those derived from the hybrid method, although the values of vp estimated with PP were generally higher, and the values of Ktrans were generally lower, compared with their hybrid counterparts. Comparing results with various tstretch intervals, the hybrid method showed better robust stability against variation in the tstretch interval.

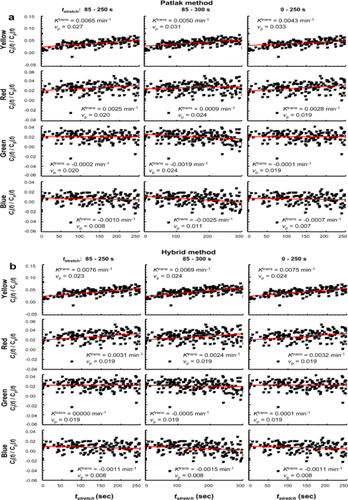

Fitting the tissue CA uptake curves from each of the four color-coded regions. The Patlak analysis (a) and the hybrid method (b) were used, with three tstretch intervals (left column: 85–250 sec; middle column: 85–300 sec; right column: 0–250 sec), respectively. The “measured” values of Ktrans and vp are shown in the panel for each fitting.
Computer Simulation to Evaluate the New Hybrid Method
Figure 6 shows that both PP and the hybrid model yielded parameter estimates equal to the true values when there is neither noise nor backflux (Fig. 6a,b). The Patlak analysis overestimates vp (PD = 4.2%) and underestimates Ktrans (PD = –8.1%) when there is backflux (Fig. 6c). The impact of the backflux was reduced when the new hybrid method was employed (vp: PD = 0.0%; Ktrans: PD = –5.4%) (Fig. 6d).
Zero noise tissue uptake curves synthesized with the unidirectional two-compartment model (a,b) or the modified Tofts model (c,d), which were fitted with the conventional Patlak analysis (a,c) or the new hybrid method (b,d) to assess the effects of ignoring backflux on the parameter estimates. These tissue uptake curves were simulated with “true” values of Ktrans = 0.0074 min−1 and vp = 0.024. The panel in the upper-left corner of each graph presents the “measured” values of Ktrans and vp from the fitting. A tstretch interval 85–250 seconds was used in the fitting.

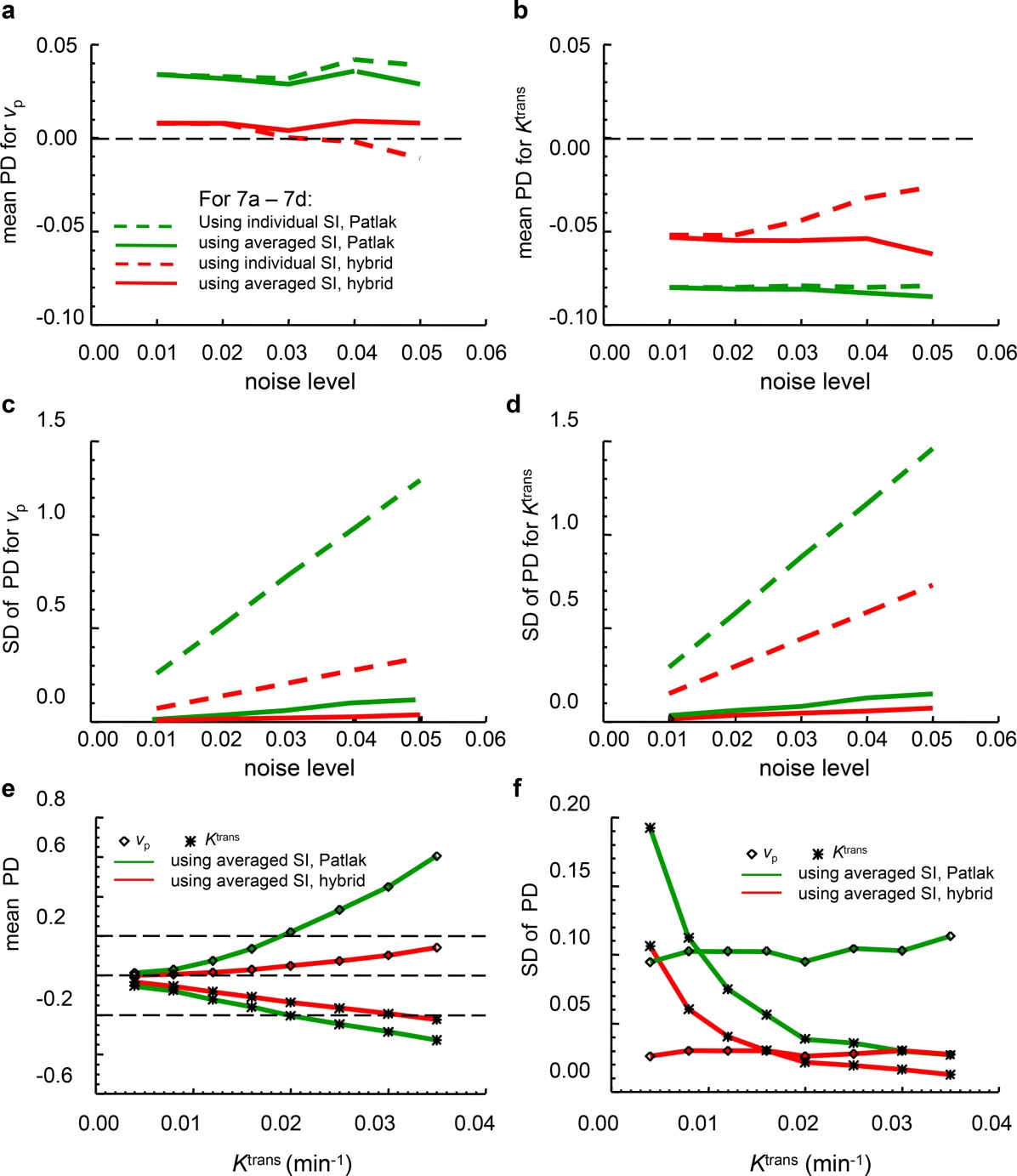

Figure 7a–d compares PD (mean and SD) in vp and Ktrans derived from PP and the hybrid methods, at varying noise levels. The conventional Patlak analysis overestimates vp and underestimates Ktrans. The hybrid method estimates vp accurately, and also reduced the bias in Ktrans estimation. With the new method, the SD of PD for both vp and Ktrans estimates is greatly reduced. In addition, averaging the SI-time curves simulated under the same conditions produces further improved the precision of both vp and Ktrans for both methods. The simulation shows that, at a noise level of 4% (a noise level similar to that in the current in vivo study), it is theoretically possible to reach a PD of 0.9 ± 2.7% for vp, and a PD of –5.4 ± 5.9% for Ktrans using the new hybrid method combined with the SI averaging scheme. In comparison, the PP method could obtain a PD of only 3.6 ± 11.3% for vp, and a PD of –8.3 ± 12.8% for Ktrans. These PD means are similar to the PD values shown in Fig. 6c,d. This means that, under simulation conditions, the bias (means of PD) is caused by the existence of backflux of CA, and the precision (standard deviations of PD) is dominated by the noise. The new hybrid method is shown to be more robust to effects from both the existence of backflux of CA and nonuniform (distorted) noise.
PD analysis for Ktrans and vp estimates with varying noise levels (a–d), or with various backdiffusion levels (e,f). Mean (a,b) and SD (c,d) of percent deviations for vp (a,c) and Ktrans (b,d) calculated from 20,000 Monte Carlo repetitions of fitting individual SI-time curves (dashed lines) and 200 Monte Carlo repetitions of fitting an average of 100 individual SI-time curves (solid lines) using the Patlak (green) and the hybrid (red) methods. The tissue uptake curves in a–d were simulated with “true” values of Ktrans = 0.0074 min−1, ve = 0.20, and vp = 0.024. In e,f, the tissue uptake curves were simulated with varying “true” Ktrans (0.004–0.035 min−1) but with a fixed noise level of 4%. A tstretch interval 85–250 seconds was used in the fitting.
With a tstretch interval 0–250 sec, the simulations showed remarkable improvement in the conventional Patlak analysis, but little effect on the hybrid method. That means that including the initial data points effectively reduced the effects of distorted errors on the Patlak analysis. The accuracy of both Ktrans and vp estimates and precision of Ktrans were approaching those of their hybrid counterparts. The precision of vp, from Patlak, however, remained inferior to the estimate produced by the hybrid analysis. On the other hand, in vivo data fitting with a tstretch interval 0–250 seconds (the right columns in Fig. 5a,b) showed good agreement between the two methods for uptake curves from the red-, green-, and blue-coded regions; however, a strong overestimate of vp and underestimate of Ktrans were seen for the yellow-coded range using the Patlak method. This implies that some other factors, in addition to noise, affect the initial shape of the in vivo uptake curve, especially for the yellow-coded region, and that the hybrid method is more robust in these conditions.
Figure 7e shows that, at a noise level of 4% with SI averaging, the conventional PP has started to yield Ktrans estimates with negative PD beyond –0.20 and vp estimates with positive PD beyond 0.20 when Ktrans > 0.02 min−1 (kep > 0.1 min−1). In contrast, the new hybrid method started to yield Ktrans estimates with negative PD beyond –0.20 only when the “true” Ktrans > 0.030 min−1 (kep > 0.15 min−1), while PD mean for vp estimates remains less than 0.20 even when Ktrans = 0.035 min−1. The SD of percent deviation for Ktrans estimates reduces when the “true” value of Ktrans increases, while the SD of PD for vp estimates was not much influenced by the increase in the “true” value of Ktrans.
Correlation Between ΔR1 and Ktrans in WM
Figure 8 shows scatterplots of ΔR1 and Ktrans measured from the four color-coded WM regions in a representative image slice for each of the seven patients. Linear regression analysis performed on the positive ΔR1 (yellow, red, and green) regions showed that ΔR1 and Ktrans are well correlated, with R2 = 0.991 ± 0.011 and P = 0.04 ± 0.04 (n = 7). The blue-coded region contained voxels with negative ΔR1 and voxels with vp less than 0.01 (their ΔR1 are generally low but may be positive); these were not included in the regression analysis. The correlation between ΔR1 and Ktrans indicated that WM-segmented ΔR1 maps could be used to distinguish between regions in the WM with different Ktrans levels. However, the variation in the slope and the intercept of the linear regression among the seven patients (slope = 0.1740 ± 0.0548; intercept = –0.0012 ± 0.0011) implied that ΔR1 only could not determine the absolute value of Ktrans.

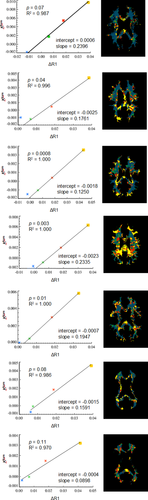

Linear regression analysis of the relationship between ΔR1 and Ktrans (left column) measured from the yellow-, red-, and green-coded regions in WM segments in a representative slice from each of the seven patients (right column).
Comparison of the Four Color-Coded Regions in WM
Table 1 illustrates multiple comparisons of mean values of ΔR1, Ktrans, and vp measured from four color-coded WM regions in a representative image slice for each of the seven patients as presented in Fig. 8 (right column). One-way ANOVAs showed significant variations from the four WM regions (P < 10−15 for ΔR1; P < 10−6 for Ktrans; P < 10−4 for vp, respectively). Post-hoc Tukey's HSD tests indicated statistical differences between the individual regions, except for the blue and green pair on Ktrans and the green and red pair on vp. Table 1 quantitatively revealed the regional inhomogeneity of BBB permeability in NAWM. It also revealed a trend of positive correlation between the Ktrans and vp in NAWM.
| ΔR1 | Ktrans | vp | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Statistics (N = 7) | blue | green | red | yellow | blue | green | red | yellow | blue | green | red | yellow |
| mean | −0.000248 | 0.006370 | 0.018193 | 0.038593 | −0.000887 | −0.000225 | 0.002079 | 0.005324 | 0.007522 | 0.017173 | 0.018685 | 0.028903 |
| sd | 0.005839 | 0.000303 | 0.000311 | 0.003303 | 0.000767 | 0.001059 | 0.001728 | 0.002176 | 0.001177 | 0.001072 | 0.002373 | 0.012767 |
| One-way ANOVA | F = 180.0, P < 10−15 | F = 23.4, P < 10−6 | F = 12.5, P < 10−4 | |||||||||
| Difference for each pair of regions (lower bound, estimate, upper bound), using Tukey's HSD test, Alpha = 0.05 | ||||||||||||
| blue - green | −0.0116 −0.0066 −0.0017* | −0.0029 −0.0007 0.0016 | −0.0193 −0.0097 −0.0000* | |||||||||
| blue - red | −0.0234 −0.0184 −0.0135* | −0.0052 −0.0030 −0.0007* | −0.0208 −0.0112 −0.0015* | |||||||||
| blue - yellow | −0.0438 −0.0388 −0.0339* | −0.0085 −0.0062 −0.0039* | −0.0310 −0.0214 −0.0117* | |||||||||
| green - red | −0.0168 −0.0118 −0.0069* | −0.0046 −0.0023 −0.0000* | −0.0112 −0.0015 0.0081 | |||||||||
| green - yellow | −0.0372 −0.0322 −0.0273* | −0.0078 −0.0055 −0.0033* | −0.0214 −0.0117 −0.0021* | |||||||||
| red - yellow | −0.0254 −0.0204 −0.0154* | −0.0055 −0.0032 −0.0010* | −0.0199 −0.0102 −0.0006* | |||||||||
- Multiple comparisons of the regional means were performed using one-way ANOVA followed by Tukey's all-pairwise comparisons. The new hybrid method was used for deriving Ktrans and vp.
- *The pair is statistically different.
Robust Stability Against Variation in the tstretch Interval
Table 2 lists the Ktrans and vp derived from fitting the yellow- or the red-coded regional curves as shown in Fig. 5a,b using four tstretch intervals, respectively. Parameter mean from the four tstretch intervals and corresponding CoV are also listed in Table 2 for the Patlak method, and for the hybrid method, respectively. The green- and blue-coded regions were excluded from the CoV analysis due to existence of the negative Ktrans values in their fitting results. In agreement with the simulation results, in vivo data also showed the hybrid method superior to the Patlak in the robust stability against variation in the tstretch interval.
| Yellow | Red | |||
|---|---|---|---|---|
| Ktrans | vp | Ktrans | vp | |
| Patlak | ||||
| 85-250s | 0.0065 | 0.027 | 0.0025 | 0.020 |
| 85-300s | 0.0050 | 0.031 | 0.0009 | 0.024 |
| 0-250s | 0.0043 | 0.033 | 0.0028 | 0.019 |
| 0-460s | 0.0045 | 0.032 | 0.0013 | 0.022 |
| Mean | 0.0051 | 0.031 | 0.0019 | 0.021 |
| CoV | 19.6% | 8.6% | 49.0% | 10.4% |
| Hybrid | ||||
| 85-250s | 0.0076 | 0.023 | 0.0031 | 0.019 |
| 85-300s | 0.0069 | 0.024 | 0.0024 | 0.019 |
| 0-250s | 0.0075 | 0.024 | 0.0032 | 0.019 |
| 0-460s | 0.0063 | 0.024 | 0.002 | 0.019 |
| mean | 0.0071 | 0.024 | 0.0027 | 0.019 |
| CoV | 8.5% | 2.1% | 21.4% | 0.0% |
Discussion
Low-level BBB permeability has been identified in apparently normal-appearing white and gray matter in a range of diseases including cerebrospinal vessel disease, diabetes, dementia, stroke, multiple sclerosis, and systemic lupus erythematosis, as well as normal aging.4, 17-24 Recent work has also identified changes in permeability in NAWM following whole brain radiotherapy in patients with cerebral tumors.25 The increase in BBB permeability induced by whole-brain radiotherapy has been used to improve penetration of therapeutic agents for the treatment of primary central nervous system (CNS) lymphoma and metastatic disease typically depending on simultaneous measurement of cerebrospinal fluid (CSF) and plasma concentrations of the therapeutic agent.26, 27 In patients with glioblastoma and, to a lesser extent, some metastatic cerebral tumors, there is commonly extensive disease spread beyond the enhancing tumor areas identified by conventional imaging.28 There is therefore a need to effectively deliver drugs across the BBB, which has led to a growing interest in therapeutic manipulation of BBB permeability.29 The development of techniques for effective measurement of low levels of BBB permeability may provide a potentially valuable imaging biomarker both for prognostic/predictive purposes and for use in clinical trials where BBB permeability manipulation is planned.
We describe a new method, which combines the FP and PP approaches, to measure subtle CA leakage through the BBB using DCE-MRI. Both the FP and PP approaches start from the same equation (Eq. [1]), but use different algorithms for deriving kinetic parameters. The FP approach produces more reliable vp estimates using an integration technique, while the Patlak approach is superior for Ktrans estimation, collecting more data points beyond the first pass, which is necessary to measure subtle leakage. By combining the advantages of these two techniques, the hybrid method becomes more robust to effects from nonuniform (distorted) noise, variation in tstretch interval choice, and error caused by the existence of backflux of CA.
A wide range of tstretch intervals has been used in PP analysis in previous studies. For example, Larsson et al used intervals of 70–250 seconds and 140–250 seconds in a study with patients with brain tumors and healthy subjects,2 while Ewing et al performed the linear regression over a tstretch interval of 30 minutes in their study with a rat model.3 In fact, heterogeneity in brain BBB permeability makes optimization of a tstretch interval choice complicated. Shorter tstretch intervals ensure that the linear regression is performed before major backflux of CA occurs and are appropriate for analysis of higher BBB permeability (yellow-coded WM, eg). On the other hand, the longer tstretch intervals should improve measurements of lower BBB permeability (red- and green-coded WM, eg). A kinetic analysis method with the ability to minimize bias due to backflux and variation in tstretch interval choice, such as we present here, will help in addressing this challenging problem.
This article also proposed the combined use of ΔR1 mapping and ROI-based pharmacokinetic analysis for BBB permeability analysis in NAWM. The information on spatial distribution of residual CA within NAWM is useful since pixel-by-pixel kinetic analysis of WM tissues remains challenging due to a low signal-to-noise ratio (SNR) in the NAWM uptake curves. The color-coded ΔR1 maps were used for automatic delineation of ROIs with different ΔR1 levels. The combined temporal- and spatial-averaging scheme could minimize the effects of low SNR: frame-averaged signal intensities were used to calculate R1pre and R1post, producing ΔR1 maps, and then ROI-averaged tissue uptake curves were used for kinetic analysis. In addition, the finding of a positive correlation between ΔR1 and Ktrans in NAWM shows that WM-segmented ΔR1 maps may be used to demonstrate the spatial distribution of relative levels of BBB permeability.
The WM-segmented ΔR1 maps and the pharmacokinetic analysis performed afterwards provided interesting information on the spatially inhomogeneous distribution of BBB permeability in NAWM. We found that a portion of WM voxels showed negative values of ΔR1 and Ktrans, generally associated with low vp values (<0.01). The mechanism for the apparent negative ΔR1 and Ktrans is not clear. The Ktrans and vp values we observed in the yellow- or red-coded WM regions were similar to those reported by Larsson et al2 and Heye et al.17 In addition, the WM regions with higher BBB permeability tend to have higher vp. These observations have the potential to provide quantitative information about WM microstructure and its changes in pathology.
Low dose (1/5 of the standard Gd-DTPA dose) and high temporal resolution DCE-MRI data were used in this study. Taheri et al used a quarter of the standard Gd-DTPA dose and found that R1 in the vicinity of this reduced dose changed much more rapidly with changes in CA concentration than at higher concentrations.6 A lower dose of Gd-DTPA entails less possibility of introducing a
effect or truncation of the bolus peak of the arterial input function,2, 30 and also less risk of potential side effects of Gd-DTPA in patients with impairment of renal function.6, 31 Our study supported that a dose as low as only 1/5–1/4 of the standard Gd-DTPA dose was still adequate for performing the measurement of BBB permeability in WM. This would enhance the applicability of the technique.
Our study had some limitations. First, we evaluated the new hybrid method only in a small cohort of patients with NF2. Larger studies will be needed to apply the new method in a larger cohort, including patients and healthy subjects for comparison. Second, the plasma concentration curve we measured from the superior sagittal sinus has the merits of high SNR, distinctive peak of first pass, and is free of artifacts resulting from partial volume error or in-flow signal loss.32 However, we realize that the ideal place to extract a vessel input function is from the arteries which supply the white matter. Nevertheless, to obtain a reliable measurement of Cp(t) from the feeding arteries remains challenging.
In conclusion, this study proposed a new pharmacokinetic analysis method for the measurement of subtle BBB permeability in NAWM. Both computer simulation and in vivo study demonstrated improved reliability in vp and Ktrans estimates. The combination of the pharmacokinetic analysis with pixel-by-pixel mapping CA-induced T1 changes provides easy-to-apply and reliable imaging methods for evaluation of BBB permeability. The heterogeneous distribution of ΔR1, vp, and Ktrans, and the relation between them revealed by MRI, may suggest differences in tissue composition between different locations in WM. How it relates to etiology and tissue destruction will be an interesting field to explore.
