1 INTRODUCTION

Chronic granulomatous disease (CGD) (OMIM #306400) is a primary immunodeficiency described by the total absence or low degrees of reactive oxygen species (ROS) generation. ROS is a result of a defect in the nicotinamide adenine dinucleotide phosphate oxidase (NADPH oxidase) complex in phagocytes. Chronic granulomatous disease is a rare disorder with repeated and life-threatening bacterial and fungal infections that involves different organs such as lymph nodes, gastrointestinal tract, and lungs.¹ It is accompanied with pneumonia, abscess, and granuloma formation in response to chronic inflammation.^{2, 3}

Mutations in five different genes can cause CGD with autosomal recessive or X-linked recessive inheritance patterns. CYBA, NCF1, NCF2, and NCF4 genes situated on an autosomal chromosome encode structure segments of NADPH oxidase protein (p22^phox, p47^phox, p67^phox, and p40^phox, respectively). Further, the CYBB (cytochrome b-254 beta-chain) gene (OMIM #300481) is situated on the short arm of the X chromosome at position 21.1, containing 13 exons and spanning 30 kb. It encodes the β-chain of flavocytochrome b₂₄₅ (also called as gp91^phox or NOX2). It is a necessary component of the NADPH oxidase complex in phagocytes, such as granulocytes, monocytes, and macrophages.

The gp91^phox protein encoded by the CYBB gene comprises an N-terminal domain and a C-terminal domain. N-terminal is anticipated to form six transmembrane α-helices, and C-terminal is a cytoplasmic domain containing binding sites for flavin adenine dinucleotide (FAD) and NADPH. These domains are necessary for transferring electrons to phagosomes.⁴ The CYBB gene is created by a wide variety of mutations, including deletions, splice site mutations, and missense or nonsense mutations.^5-9

According to the published data from the United States, European countries, and Japan, the most well-known inherited pattern was X-linked chronic granulomatous disease (X-CGD) (≥65%). Nevertheless, among CGD patients in North Africa, the Arab world, Turkey, and Iran, the autosomal recessive inheritance pattern is more frequent. These results highlight the diverse inherited pattern and a high rate of consanguinity marriages.^10-14

Several studies reported mutations of the CYBB gene in CGD patients with clinical symptoms. Jose Antonio Tavares de Albuquerque et al. (2018) found a novel mutation in the CYBB gene in a male Brazilian patient with pneumonia.¹⁵ Teimourian et al. (2018) characterized four new mutations in the CYBB gene in 10 Iranian families.¹⁶ Harvindar Kaur Gill et al. (2013) examined a Chinese X-CGD patient with prolonged fever and recurrence of lymphadenitis in the axillary lymph node. They found a nonsense mutation in the CYBB gene.¹⁷ Sun Hi Ko et al. (2014) screened 26 Korean families with recurrent infections and found eight novel mutations in the CYBB gene.⁴ Marie Jose´ Stasia et al. (2005) detected six novel mutations and five reported mutations in the CYBB gene of 11 French patients with sepsis, pneumonia, infectious dermatitis, and recurrent or severe abscess.⁹ This study aimed to identify CYBB gene mutations in Iranian patients suspected to have X-CGD and examine the relationship between these mutations and the patients' phenotype.

2 MATERIALS AND METHODS

2.3 Description of patients and kindreds

2.3.1 Family 1

In the first family with Bakhtiari ethnicity, the proband's cousin (Figure 1,II3) was suspected to have X-CGD based on the NBT and DHR tests and his clinical phenotype. He died when he was 8 years old because of pneumonia. No precise information was available on him. Following this history, the proband's mother (Figure 1,I2) was suspected to be an X-CGD carrier based on the NBT test. The proband (Figure 1,II1), born in 2008, was diagnosed to have X-CGD at birth based on the NBT (2 %) and DHR (5 %) tests. He was admitted to a hospital for pneumonia when he was 8 years old and responded to the treatment. After that, acute sinusitis was diagnosed in him several times and then was treated.

2.3.2 Family 2

In the second family with Fars ethnicity, the proband, born in 2009, was diagnosed with severe lymphadenitis and pneumonia when he was 3 months old. He was suspected to have X-CGD based on the NBT (no positive cell) and DHR (2.16 %) tests. Then, he was hospitalized several times due to pneumonia. Finally, he died at the age of eight despite taking preventative medicine. Furthermore, he had an older brother who died of severe fever when he was 40 days before the proband was born.

2.3.3 Family 3

In the third family with Turkish ethnicity, the proband, born in 2017, was diagnosed with chronic gastritis and colitis when he was 10 months old. He was suspected to have X-CGD based on the NBT (no positive cell) and DHR (1.3 %) tests. He was often diagnosed with inflammatory bowel disease (IBD) during his life, although he responded to the treatment and currently has a healthy life. He also had an older brother who died during the childhood because of IBD.

2.3.4 Family 4

In the fourth family with Kurdish ethnicity, the proband, born in 2001, was diagnosed with the frequent abscess when he was 1 year old. He was suspected to have X-CGD based on the NBT (no positive cell) and DHR (2.6 %) tests. A few years later, he underwent surgery due to spinal tuberculosis (TB) when he was nine. He responded well to the operation and medication.

3 RESULTS

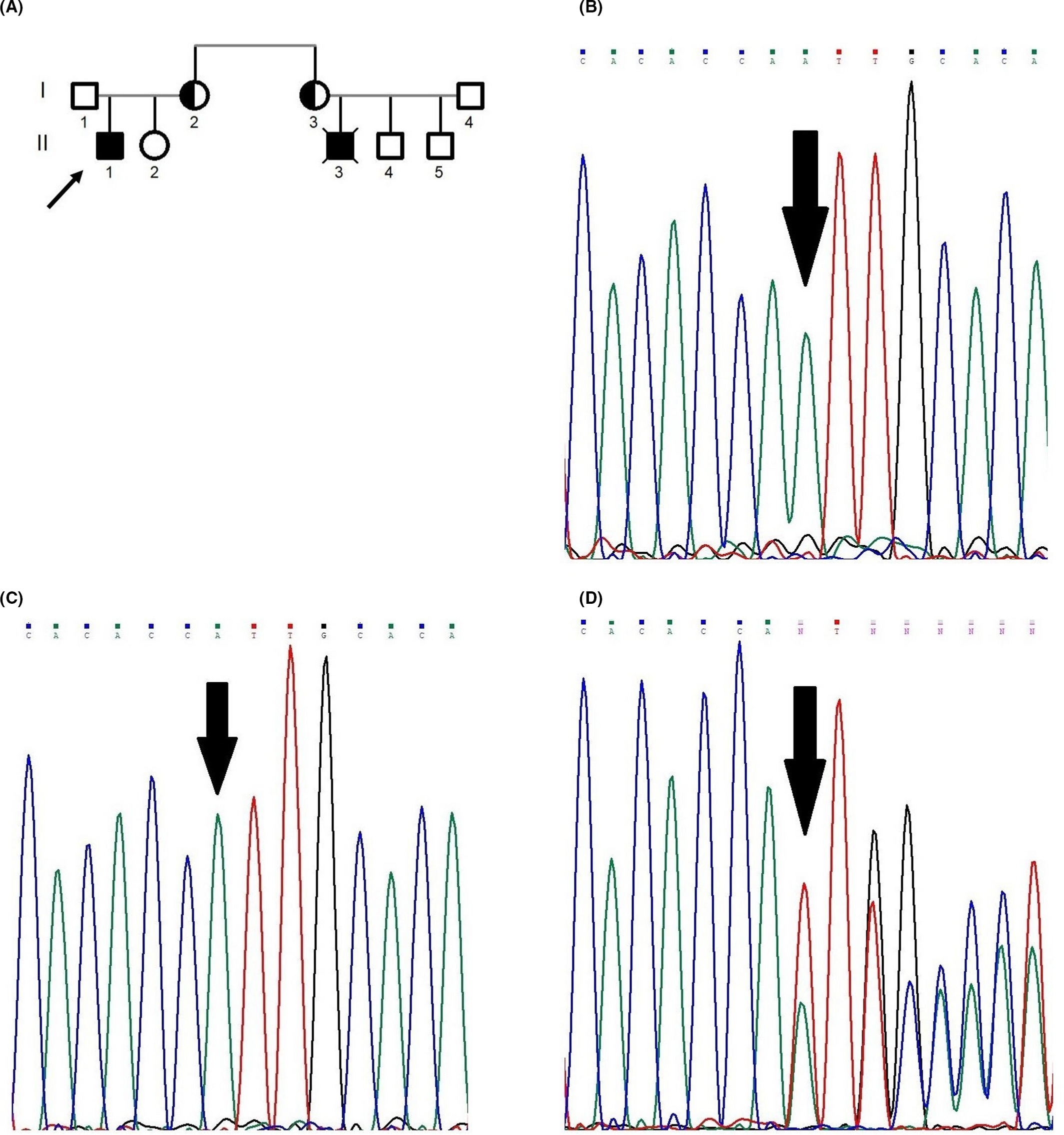

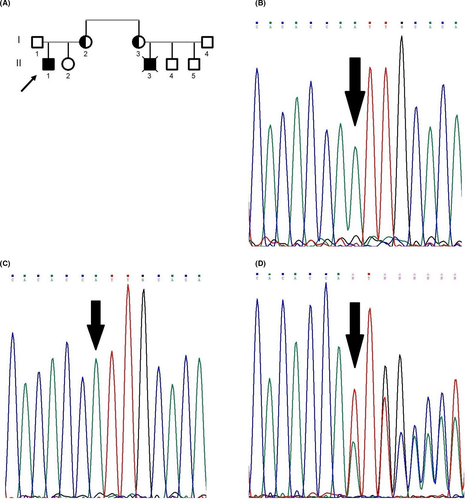

We identified a novel insertion mutation (c.348-349insA) located on exon 5 of the CYBB gene with the hemizygous state for the proband of the first family (Figure 1B). This mutation was a frameshift. The amino acid at position 122 was converted to stop codon and create premature stop codon (p.Ile117AsnfsX6). The pathological effect of the mutation was examined

by in silico analysis (Mutation Taster) (Table 1). The mutation is predicted as a disease-causing agent and is not reported in 1000 genome databases. The patient's mother and sister (Figure 1A,I2,II2) were analyzed. The patient's healthy sister was the wild type for this region (Figure 1C), while his mother was heterozygote for this mutation as a carrier (Figure 1D).

According to the American College of Medical Genetics guideline,¹⁹ the sequence variant (c.348-349insA) in the CYBB gene is classified as a pathogenic variant due to having the pathogenic very strong criterion (PVS1, a null variant in a gene where LOF is a known mechanism of disease) and the pathogenic moderate criterion (PM2, absent from controls in Exome Sequencing Project, 1000 Genomes Project, or Exome Aggregation Consortium).

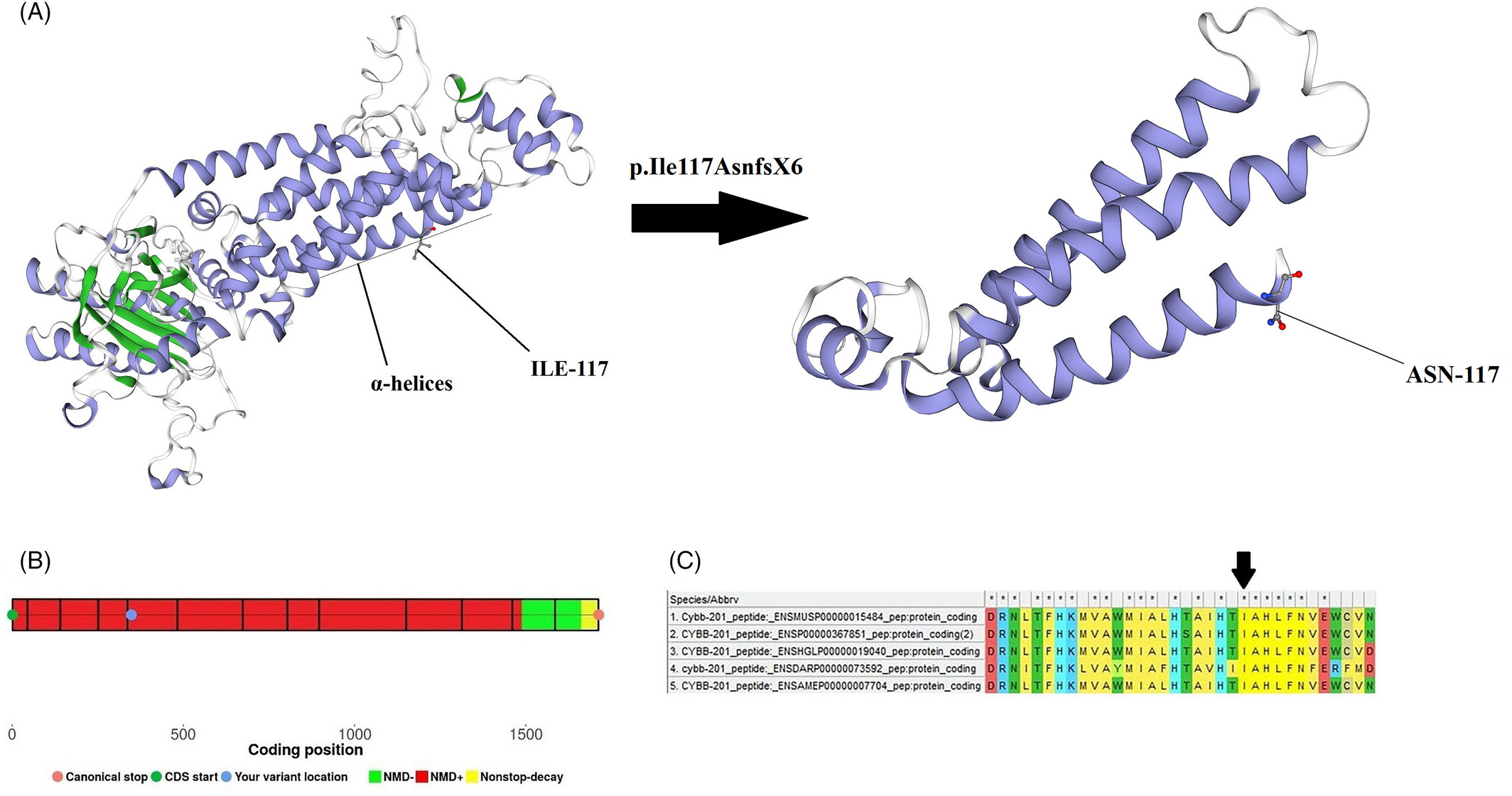

Based on Mutation Taster Server, this insertion mutation is located between amino acids 103-123, which represents the transmembrane α-helices of gp91^phox. The SWISS-MODEL server was used for structural and functional analysis and revealed that this mutation caused loss of some parts of the subunit in the structure of gp91^phox (Figure 2A). Moreover, the NMD prediction Web site predicted that this premature stop codon caused NMD (Figure 2B). This region has been conserved among species (Figure 2C).

The I-Mutant server calculated the free energy changed (ΔΔG) value equal to −1.56 kcal/mol with a reliability index of 6 for this mutation. Therefore, the structural stability of this mutant protein largely decreased.

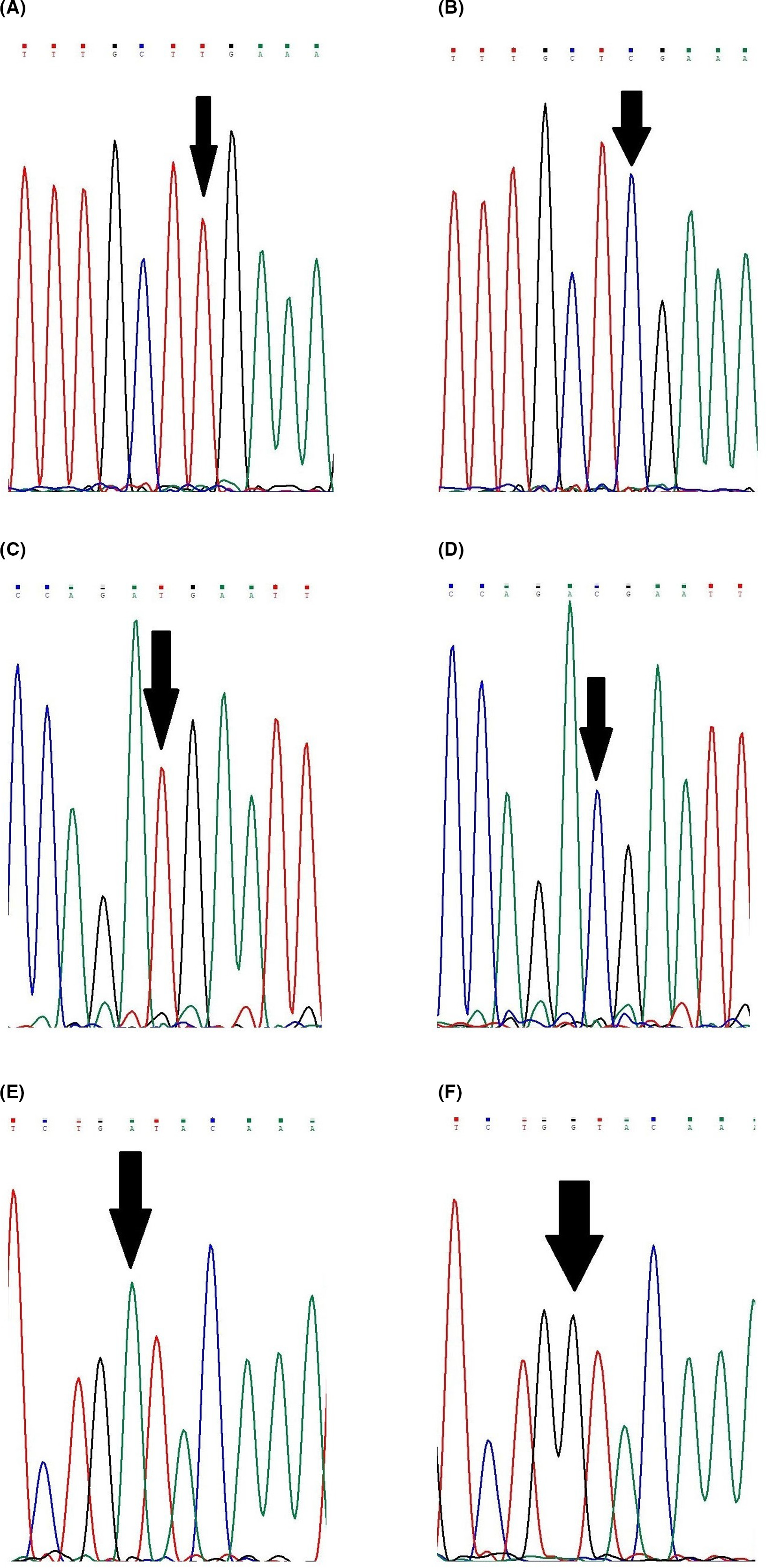

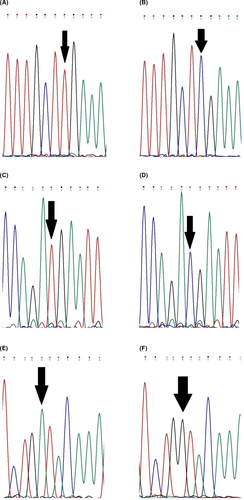

In the proband of the second family, a known pathogenic nonsense mutation was detected in exon 5 of the CYBB gene (c.469C>T) with hemizygous state (Figure 3A,B). The mutation caused the change in arginine to a stop codon (p.Arg157Ter).

In the third family, a known nonsense mutation was found in exon 7 of the CYBB gene (c.676C>T) with hemizygous state (Figure 3C,D). The mutation led to the change in arginine to a stop codon (p.Arg226Ter), and it was located at the N-terminal of gp91^phox. The patient's mother and sister were heterozygous for this mutation as a carrier.

A known pathogenic nonsense mutation (c.1272G>A) with hemizygous state was found in exon 10 of the CYBB gene in the patient 4 (Figure 3E,F). The mutation caused the change in tryptophan to a stop codon (p.Trp424Ter), and it was located at the cytoplasmic domain of gp91^phox. Furthermore, the patient's mother and sister were heterozygous for the mutation.

4 DISCUSSION

In this study, we identified four mutations in four Iranian kindreds with X-CGD patients and realized that one of the mutations was novel.

We detected a novel frameshift mutation (c.348-349insA) in exon 5 of the CYBB gene in the patient 1. It was located at the transmembrane domain of gp91^phox, which is a vital site for transferring electrons. Analyses of in silico tools predicted loss of some essential parts of gp91^phox and changed protein modeling. These essential parts have a α-helical structure and are vital for transferring electrons. NMD probably occurred in the patient 1. Even if this transcript escaped NMD in this patient, the resulting protein appears to be truncated to 122 residues instead of the wild-type protein with 571 residues and will probably be pathogenic and disease-causing. Base on the I-Mutant server, this insertion mutation may alter the free energy and subsequently the protein stability. Folding free energy is an essential biophysical feature in proteins, showing the overall stability of the three-dimensional structure of macromolecules.²⁰ We also detected a nonsense mutation (c.469C>T) in exon 5 of the CYBB gene that led to Arg157Ter. The pathological effect of the mutation was first reported in 1994 by Ariga in Japan. He examined two different Japanese CGD patients based on clinical symptoms and the NBT test and detected a mutation (c.469C>T) in one of them.²¹ In Iran, Teimourian et al. (2018) reported this mutation in an Iranian boy with abscess and fistula.¹⁶ However, the patient 2 with (c.469C>T) in our study developed lymphadenitis and pneumonia.

We detected another nonsense mutation (c.676C>T) in exon 7 of the CYBB gene. The mutation was reported for the first time by Curnutte in 1992²² and by Teimourian in 2008 in Iran.²³ The reported Iranian patient had skin and liver abscesses, while our patient had IBD.

We identified one other nonsense mutation (c.1272G>A) in exon 10 of the CYBB gene in the patient 4. The mutation was described for the first time by Newburger in 1998.²⁴ It was also reported in an Iranian patient in 2008²³ and a Korean patient in 2014.⁴ Iranian patients with (c.1272G>A) presented disease with bloody diarrhea, cervical lymphadenitis, and pneumonia. Our patient with the same mutation developed an abscess and spinal TB.

Furthermore, Jacinta Bustamante et al. indicated that respiratory burst in human macrophages is a crucial mechanism for protective immunity to tuberculous mycobacteria.²⁵ Several studies have been published on X-CGD patients with TB. For example, Cecilia Barese et al. (2004) screened a group of patients with pulmonary tuberculosis and unusual complications in Argentina. They detected seven novel mutations in the CYBB gene in these patients.²⁶ Bustamante et al. (2007) revealed a French 12-year-old boy with dispersed tuberculosis. They detected a mutation in the CYBB gene of the patient, leading to diagnosis of X-CGD.²⁷ Taj Ali Khan et al. (2016) detected a novel mutation in exon 10 of the CYBB gene in a Pakistani patient with Mycobacterium tuberculosis and subcutaneous abscesses in the neck.²⁸

All of the mutations found in these articles, and other X-CGD patients with TB are different from the mutation detected in the patient 4 (c.1272G>A) in the current study. Movahedi et al. (2004) examined the clinical features of Iranian CGD patients. It appears that patients with CGD might be susceptible to tuberculosis infections, and thus, tuberculosis should be properly prevented in all of them.³ Generally, as it has been mentioned, pneumonia is the most well-known infection experienced in CGD patients in all age groups. The patients 1 and 2 in our study also had pneumonia during their life.

Analysis of the nonsense mutations in our patients showed that two out of the three mutations were C>T ([c.469C>T], [c.676C>T]) and the remaining one was G>A (c.1272G>A) (C>T on the antisense). Moreover, Teimourian et al. analyzed nonsense mutations obtained in their study and suggested that the methylation-induced deamination of cytosine may be a significant mechanism for nonsense X-CGD mutations in Iran.²³

Roos et al. listed 681 distinct mutations in the CYBB gene and examined their frequency. They reported that deletion (35.6%) and missense (21.3%) mutations were the most common mutations found in the CYBB gene, with 7.9% of these mutations being insertion and 14.1% of them being nonsense.²⁹ We reported an insertion mutation and three nonsense mutations in this article, with approximately low frequency in the CYBB gene.

In Iran and countries with consanguineous marriages, X-CGD is rare to compare to the autosomal recessive form. For this reason, few studies have been performed on the Iranian population.

5 CONCLUSION

Our data could be helpful to early diagnose patients suspected to have X-CGD, and also, to provide correct clinical diagnosis and optimize therapeutics in these children such as medication, bone marrow transplantation, and gene therapy. Furthermore, carrier screening in X-CGD patients' families could be beneficial for early diagnosis and prevention of X-CGD in children born with the disease. Meanwhile, these findings can expand the genetic database of CYBB gene mutations; however, conducting further research on X-CGD patients will be necessary.
