1 INTRODUCTION

Cystic fibrosis (CF) is the most common autosomal recessive inherited disease in Caucasians, affecting approximately 100,000 individuals worldwide.¹ Due to viscous secretion in various organs, frequent symptoms that compromise quality of life are chronic bronchitis with recurrent pulmonary infections and inflammation, the gradual decline of lung function, chronic sinusitis, pancreatic insufficiency with failure to thrive, and hepatopathy. Despite continuous therapy improvement, patients still suffer from frequent symptoms, compromised quality of life, and shortened life expectancy. Being a multisystemic disease, CF affects almost all organ systems, however, its pulmonary manifestation represents the main cause of CF-related morbidity and mortality. In the airways, genetic cystic fibrosis transmembrane conductance regulator (CFTR) defects lead to impaired mucociliary clearance, mucus plugging, and obstruction.^{2, 3} Accumulation of thickened mucus in the airways contributes to persistent infection and inflammation and subsequent progressive structural lung damage and decline of lung function.^{2, 4}

In CF lung disease, airway clearance techniques (ACT) have been a cornerstone in bronchial drainage and mucus removal. Current guidelines recommend continuous ACT from the time point of diagnosis.⁵ Methods for mucus mobilization include manual techniques and vibrating devices applying intra- or extrathoracic oscillations.⁶ For most of the commonly used bronchial drainage methods, improvement of thoracic mobility, pulmonary function, or further patient-related outcomes have been demonstrated in both infants and adults with CF.^7-9 Although beneficial effects of airway clearance physiotherapy are unquestionable, among the established techniques there is no distinct evidence for the advantages of one method over another.^{8, 9} Therefore, patient-related factors such as individual tolerability, symptoms, and preferences frequently contribute to the selection of airway clearance methods for the individual patient.

The recently approved bronchial drainage device (BDD) Simeox® (Physio-Assist S.A.S.) provides a novel technique for airway clearance therapy. It applies intrathoracic oscillatory negative pressure impulses during exhalation via a mouthpiece. Vibratory signals are considered to spread along the bronchial tree and thereby impact biophysical mucus properties. According to the manufacturers' information, the technology particularly aims at the mobilization of mucus from distal airway areas. The technique is based on a pneumatic vibration signal intended to liquefy airway mucus and facilitate its expectoration. After professional instruction, therapy with the device is designated to be performed independently from the physiotherapist.

The application of the novel BDD for CF airway clearance has had limited investigation. Only one small trial with pediatric subjects with CF examined the use of the novel method during exacerbation and concluded, that the BDD is a safe and appropriate ACT in this group.¹⁰ The effect of the BDD in clinically stable subjects with CF has not been systematically evaluated.

Diaphragm ultrasound can be used to assess air trapping and airway obstruction, as has been demonstrated in patients with chronic obstructive pulmonary disease (COPD).^11-14 In a very recent study, an ultrasound of the diaphragm has been used in CF patients for disease severity.¹⁵

Sputum viscosity correlates with a change in microstructure, measurable by fluorescence recovery after photobleaching (FRAP) and an increase in DNA concentrations.^16-19

In this pilot study, we investigated the short-term effects of therapy with a novel BDD in a cohort of adult subjects with stable CF lung disease. The study objectives were to evaluate: (1) Does the BDD affect lung function even after short-term use? (2) Has the BDD had an impact on diaphragm mobility, assessed by diaphragm excursion during the ultrasound? (3) Does the BDD affect sputum properties, reflected by FRAP and DNA concentration? As the device is supposed to remove mucus from distal lung areas, we hypothesized, that therapy using the BDD affects pulmonary function, thoracic mobility, and properties of expectorated sputum.

2 METHODS

2.1 Study design and recruitment

This study was approved by the Ethics Committee of Ulm University (Chairman Florian Steger; no. 98/20, approved May 8, 2020), registered at the German Clinical Trials Register (DRKS), study ID: DRKS00024819, and conducted according to the Declaration of Helsinki.

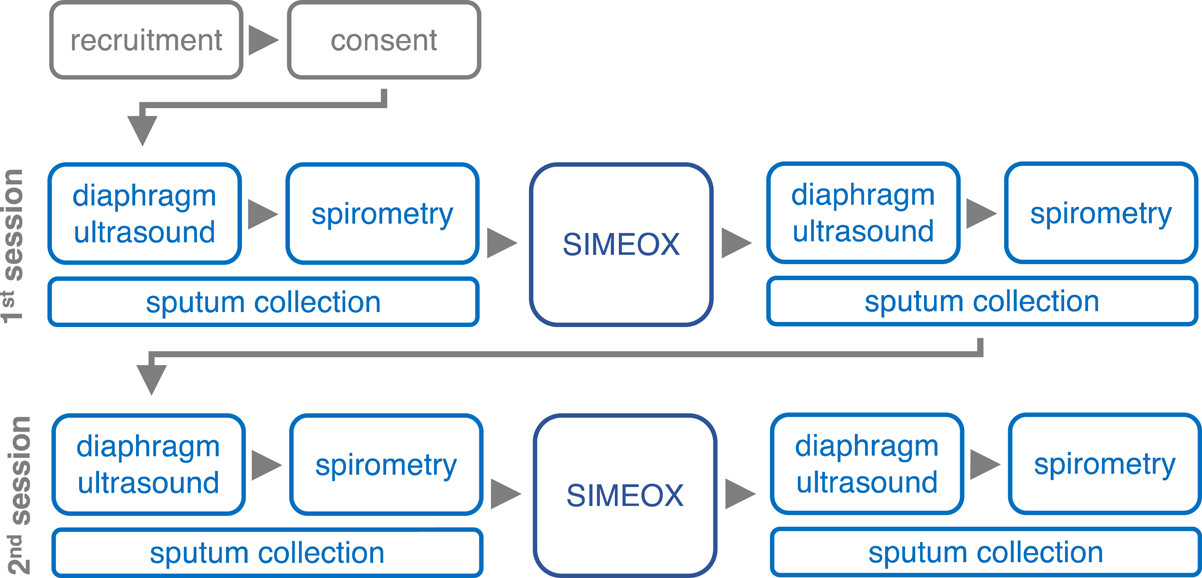

Patients were informed about the study during a regular visit, by e-mail, or additionally by telephone, and recruitment was finalized in our clinic during regular checkups or physiotherapy sessions. Written consent was obtained from all participants after education about the study was provided and before any type of intervention took place. 21 adult individuals with genetically confirmed CF from the Department of Pediatric Pulmonology and Cystic Fibrosis of Ulm University Hospital were invited for ACT sessions with the BDD. Inclusion criteria were: a definitive diagnosis of classic CF based on CF Foundation diagnostic criteria, age >18 years, and clinical stability, defined as the absence of exclusion criteria. Exclusion criteria were: Acute infection, unstable pulmonary or cardiovascular disease, pregnancy, and recent pneumothorax (<6 weeks) or relevant hemoptysis (old blood >5 ml or fresh blood more than traces <4 weeks). None of the participants had used the device previously. All subjects participated in two sessions with a mean interval of 3.4 weeks. Both before and after using the BDD (20 min), we performed diaphragm ultrasound (10–15 min), spirometry (10 min), and collected spontaneous sputum samples (1–2 min), as indicated in a flow sheet (Figure 1). No complications or adverse events occurred related to the intervention.

3 RESULTS

3.2 Diaphragm ultrasound

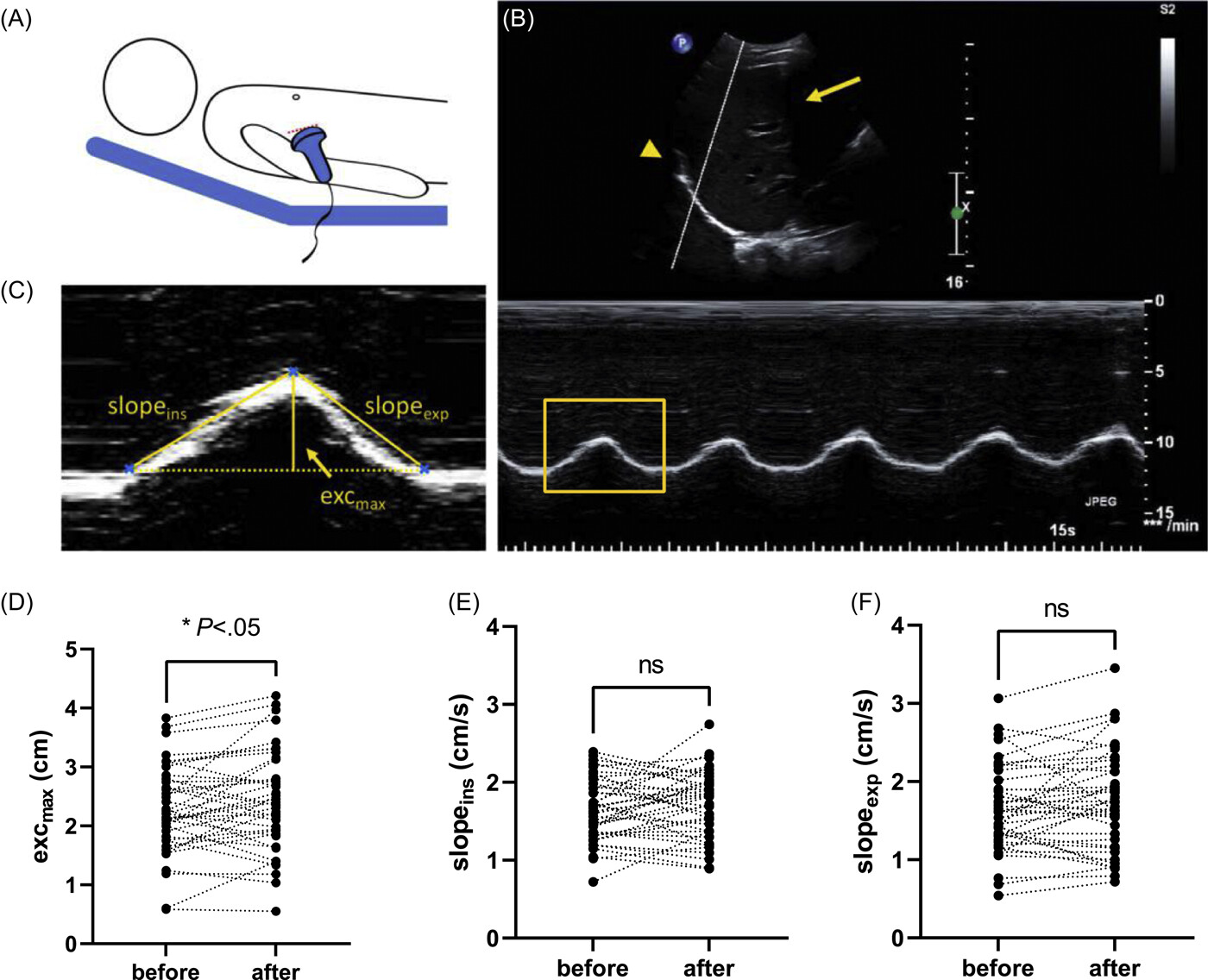

Improvement of diaphragm mobility upon chest physiotherapy has been demonstrated in subjects with COPD.²² We, therefore, hypothesized enhancement of diaphragm movement upon the intervention using the BDD in our CF cohort. Ultrasound-based functional diaphragm analysis was performed as demonstrated in Figure 2A–C. Maximum diaphragm excursion and slopes during inspiration and expiration (exc_max, slope_ins, and slope_exp) were assessed from M-mode measurements, reflecting the extent of diaphragm mobility and the velocity of diaphragm movement during inspiration and expiration, respectively. Comparative analysis of the parameters assessed before and after the intervention revealed slight elevation of exc_max from 2.27 ± 0.74 cm (mean ± SD) baseline to 2.44 ± 0.85 cm (p = 0.02). after using the BDD (Figure 2D). Slope_ins was not affected, slope_exp showed a tendency towards faster diaphragm movements during expiration without reaching statistical significance (Figure 2E,F).

3.3 Spirometry

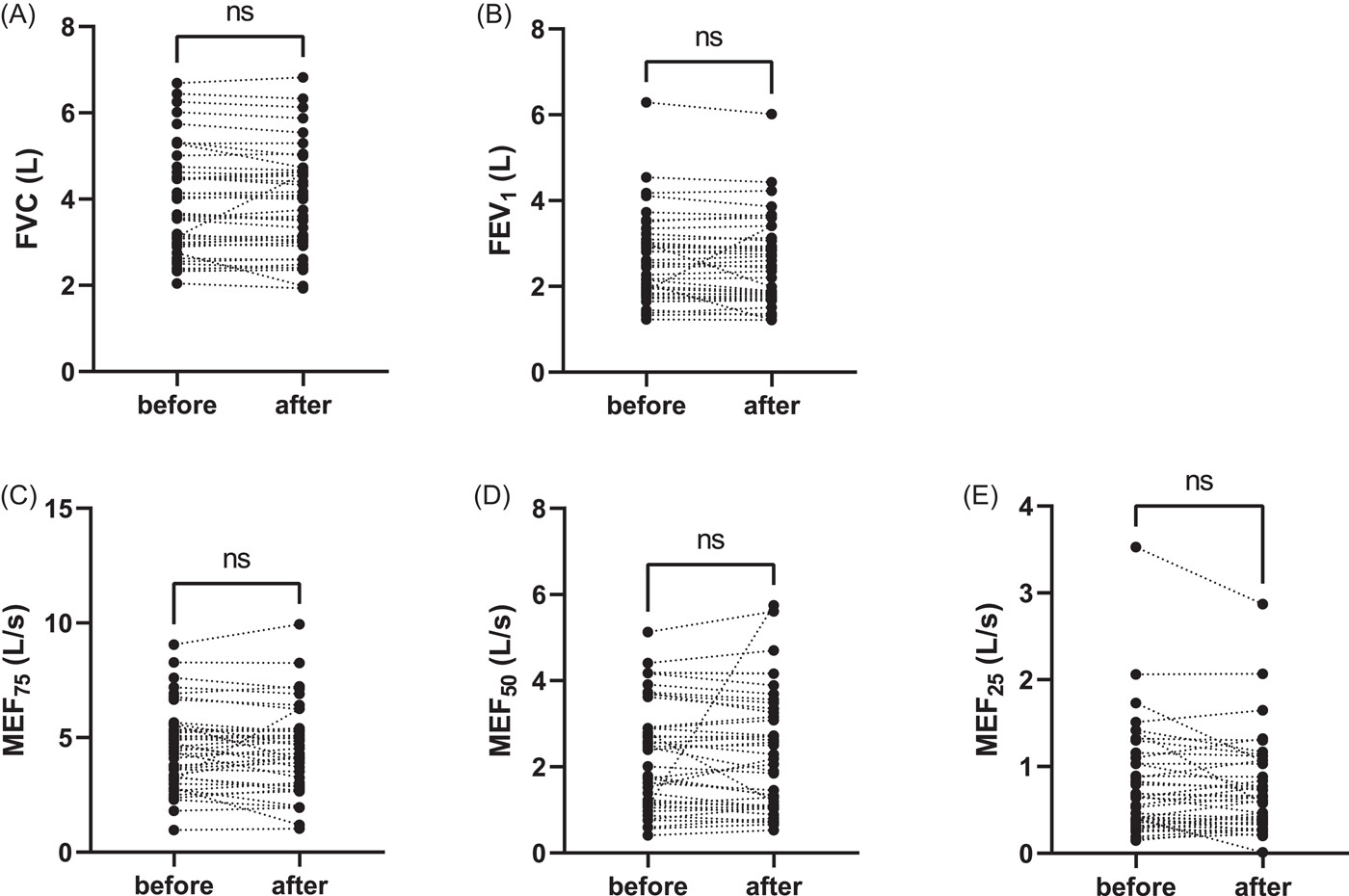

To evaluate the effect of the study device on pulmonary function tests (PFT), spirometry was performed before and after therapy with the BDD (Figure 3). FVC, FEV₁, MEF75, MEF50, and MEF25 before and after the intervention were compared and analyzed using Student's paired t test (FVC, FEV₁, MEF75) and accordingly Wilcoxon matched-pairs signed rank test for not normally distributed data sets (MEF50 and MEF25). No differences in the above-listed parameters were found between the two time points for FVC, FEV₁, MEF25, MEF50, and MEF75, respectively.

3.4 Mucus properties

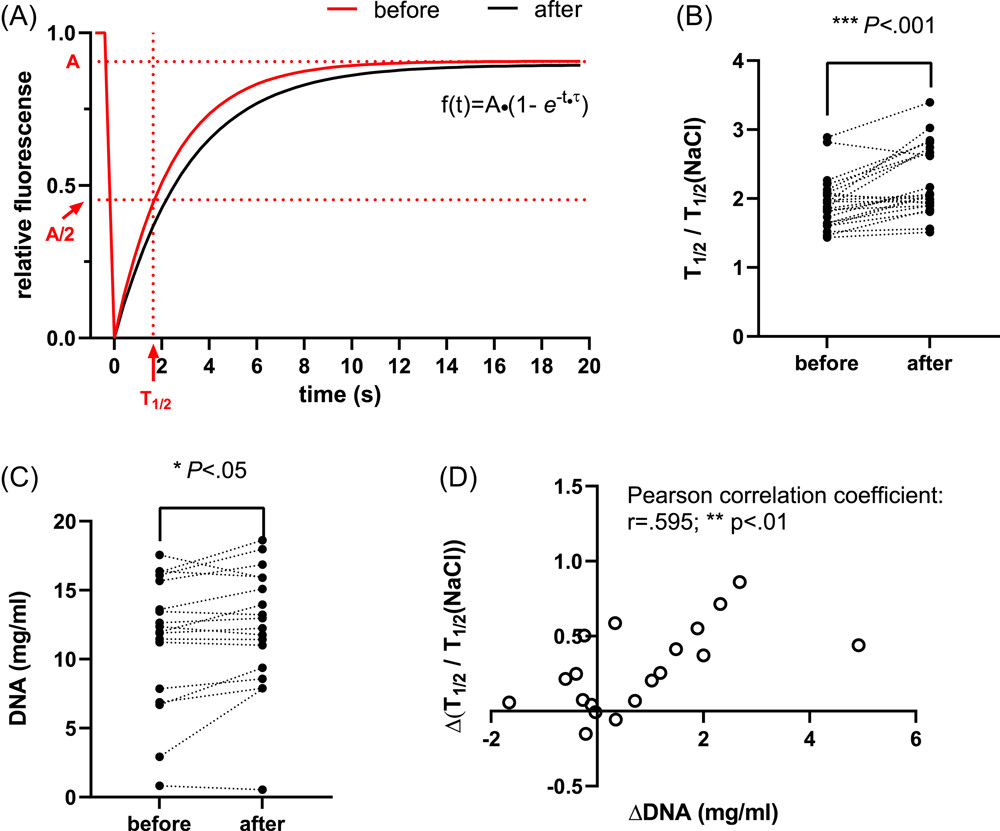

Spontaneously expectorated mucus samples both before and after the intervention could be collected in 55% of all study sessions. Forty-three percent of patients with normal baseline lung function (FEV₁ > 80%) and 60% of patients with decreased baseline lung function (FEV₁ < 80%) provided sputum. Halftime of FRAP recovery of mucus samples (T_1/2) normalized to the halftime of NaCl 0.9% solution (T_1/2[NaCl]) was assessed as a surrogate measure of sputum microstructure as demonstrated in Figure 4A for a representative individual data set of samples before and after using the BDD. T_1/2/T_1/2(NaCl) markedly increased from 1.93 ± 0.37 s (mean±SD) before to 2.24 ± 0.49 s after the intervention (p < 0.001), indicating a change of sputum properties in the sputum portion after ACT with the BDD (Figure 4B). In the airway of subjects with CF and other inflammatory lung diseases, the accumulation of neutrophils leads to high levels of DNA in the airway mucus, which substantially contributes to mucus hyperviscosity.¹⁸ In this study, we investigated mucus DNA levels as they represent a major determining factor of mucus properties in CF. Quantification of total mucus DNA concentrations revealed elevated DNA levels in samples expectorated after using the BDD compared to samples collected before, as DNA concentrations increased from 11.43 ± 4.7 to 12.29 ± 4.4 mg/ml (p = 0.02) (Figure 4C). To test for a potential correlation between elevated DNA concentrations and alteration of mucus properties, the differences of FRAP T_1/2/T_1/2(NaCl) between the samples before and after the intervention were plotted against the differences of DNA concentrations before and after the using the BDD of the respective pair of sputum samples of each individuum (Figure 4D). As data sets were normally distributed we applied Pearson correlation analysis²³ that showed a relevant dependency between changes of FRAP T_1/2/T_1/2(NaCl) and DNA concentrations (Pearson correlation coefficient: 0.59, p = 0.007). Those results indicate the contribution of DNA concentration and point to changes in sputum properties upon therapy with the BDD.

4 DISCUSSION

In this study, we show the first data set on the clinical effects of a novel airway clearance device (Simeox®) in subjects with stable CF. We demonstrate that therapy with the investigated BDD can improve diaphragm mobility and promotes the expectoration of mucus with altered properties.

In contrast to our initial hypothesis, we found no effect of BDD use on spirometry parameters (FCV, FEV₁, MEF25, MEF50, MEF75). In line with our results, a randomized trial previously demonstrated, that neither different modes of physical exercise nor chest physiotherapy had short-term effects on lung function parameters in subjects with CF, although some of the interventions significantly increased sputum expectoration.²⁴ Probably, acute effects of airway clearance may be too subtle for detection via spirometry. It can be hypothesized that regular therapy with the device over a longer time period might also positively affect lung function as this is well known from chest physiotherapy in general.^{6, 8} So far, only a published trial concerning the Simeox® device, found beneficial effects in a cohort of pediatric subjects with exacerbated CF on most lung function parameters after regular use of the BDD over 2 weeks. However, the level of improvement was comparable to a control group treated with conventional physiotherapy only. As MEF25 improved only in the BDD and not in the control group, the authors assumed the superiority of the BDD regarding the effect on small airways.¹⁰ The potential of spirometry parameter changes also depends on their baseline level. In the present study, we investigated a heterogenous study cohort as subjects were included independently from the severity of lung disease, and baseline values ranged from 35% of predicted FEV₁ to participants with normal lung function parameters. As the latter group will hardly show any further improvement in spirometry values, cohort composition may mask potential differences in subjects with more severe lung disease. Due to the small cohort size, we could not address this question in subgroup analyses.

Spirometry represents the standard diagnostic method to determine lung function in chronic lung diseases. Ultrasound-based diaphragm analysis provides an additional tool that allows noninvasive monitoring of respiratory function. This technique has been frequently used in intensive care medicine to assess diaphragm dysfunction in critically ill patients ^{20, 25} and patients with suspected neuromuscular diaphragmatic dysfunction.²⁶ In the study reported here, we found a detectable increase in diaphragm mobility after using the novel BDD. In recent years, there is an increasing number of studies concerning COPD using ultrasound-based diaphragm analysis.^11-14 In this group, impaired diaphragm mobility seems to correlate with pulmonary function parameters that reflect air trapping and airway obstruction ^{14, 27} and is inversely correlated with disease severity.^{13, 27} Interestingly, impaired diaphragm mobility can be partially reversed by chest physiotherapy training and rehabilitation. Moreover, a recent publication by Grabrysz-Forget et al.¹⁵ described that diaphragm ultrasound has been used in CF patients for disease severity assessment. Of note, Chun et al.¹² found that pulmonary rehabilitation improved diaphragm mobility in subjects with COPD without affecting spirometry parameters. Though using a slightly different ultrasound analysis, this is in accordance with our findings and suggests that diaphragm mobility analysis is a sensitive method to detect subtle changes in respiratory function upon physiotherapy. Although measurement techniques and readouts sometimes considerably differ between studies, maximum diaphragm excursion either during tidal breathing or forced inspiration is one of the most frequently used parameters reflecting diaphragm mobility^{14, 22, 27, 28} and was therefore measured in the present study together with the slopes during inspiration and expiration, which reflect the respective velocity of diaphragm excursion. Although established for COPD, diaphragm ultrasound has been only occasionally used in subjects with CF to monitor therapy effects, mostly using parameters aiming at diaphragm strength rather than mobility. For instance, the diaphragm thickening ratio increased upon inspiratory muscle training in subjects with CF.²⁹ Recently, an ultrasound study in children with chronic pulmonary disease including CF, demonstrated reduced diaphragm excursion in this group compared to healthy children.³⁰ As indicated in this study, diaphragm mobility is most likely also impaired in advanced CF lung disease as it is known from COPD. Therefore, ultrasound-assessed diaphragm excursion seems to be a suitable readout for the monitoring of ACT effects in subjects with CF as we demonstrate in this study.

Oscillatory devices, for example, flutter, cornet, or high-frequency chest wall oscillators are commonly used alone or in combination with manual physiotherapy in CF care to facilitate mucus expectoration. In this context, mechanical reduction of viscoelasticity of airway mucus is postulated as a putative mechanism.⁶ We investigated a BDD providing a novel oscillatory technology. According to the device's developers, the applied vibrating signals are supposed to liquefy mucus and thereby promote its removal. Previous trials analyzing sputum properties upon ACT with oscillatory devices were inconsistent regarding the effects on sputum viscosity. Dwyer et al.³¹ found a reduction of mechanical impedance upon both the use of flutter and treadmill exercise. In contrast, in another study aiming at the effect of flutter and cycling exercise, sputum viscoelasticity was not affected by any intervention.³² It should be noted that flutter or OPEP apply positive expiratory pressure at variable frequencies,³² whereas the BDD used in our study applies negative pressure impulses, set at 12 and 6 Hz (personal communication with Physio Assist GmbH). In the present study, we quantified the diffusion of FITC-dextrans in mucus samples using FRAP. This parameter has been shown to correlate with increased airway surface liquid viscosity of CF airways,^{16, 17} even though it does not directly measure viscosity. We observed reduced FITC-dextran diffusion in samples after the use of the BDD compared to samples collected before. This result may appear contradictory to the mucus liquefying effect, that is claimed by the device's developers and generally expected from oscillatory devices. In this context, it is noteworthy, that in this study two separate sputum samples were analyzed. Mucus samples expectorated at different time points can differ regarding their origin and composition. Such changes will interfere with the impact of mechanical forces and may explain contradictory results. As FRAP measurements do not comprehensively assess complex sputum rheology, but rather nanoscopic particle diffusion, we additionally measured DNA concentrations. High levels of DNA concentrations, mainly arising from neutrophil granulocytes, markedly contribute to thickened mucus in subjects with CF as well as other inflammatory lung diseases.^{18, 19} We found a correlation between increased FRAP and elevated total DNA concentrations of sputum samples and therefore could reproduce this relationship within our pilot study cohort. This indicates that varying DNA concentrations at least partially account for altered mucus properties. As high DNA concentrations point to the high abundance of neutrophil granulocytes, we suppose that mucus expectorated before and after BDD may derive from different regions with presumably different levels of inflammation within the airways, respectively.

The strength of our study is the first evaluation of a potential short-term effect of a novel BDD by concomitant investigation of three different parameters: lung function, diaphragm mobility, and sputum properties. Even though we aimed at fulfilling the STROBE guidelines (http://www.strobe-statement.org). our study has some limitations. As we carried out a pilot study to evaluate the basic effects of the BDD, the study design was monocentric and a relatively low number of cases was targeted, which additionally resulted from personal and technical capacities but also from the availability of appointments for our patients. With regard to the pilot study design, the case number was approved by the Institute for Epidemiology and Medical Biometry of Ulm University.

Based on the results of our pilot study, further trials are required to evaluate the beneficial effects of the novel BDD compared to established bronchial drainage methods and to identify patient groups, particularly benefitting from the novel airway clearance therapy.

5 CONCLUSION

Our study demonstrated that the investigated novel BDD improves diaphragm mobility and changes sputum properties, namely, molecular composition (DNA concentration) and microstructure. Whether the sputum macrorheology is also changed would be a possible subject of further studies in subjects with CF. The novel BDD with unique properties should be further evaluated in CF-specific physiotherapy and could complement the physiotherapy methods for CF patients suffering from severe mucus retention.
