Assessing neuronal density in peri-infarct cortex with PET: Effects of cortical topology and partial volume correction

Subjects

All participants were prospectively recruited from the Jewish General Hospital and Montreal General Hospital acute stroke units between March 2012 to October 2014. This study was approved by McGill Faculty of Medicine Institutional Review Board. All participants were enrolled after informed consent in accordance with regulations for human participant's studies.

Eleven participants were enrolled if they presented with first ever anterior circulation ischemic stroke within 31 days post stroke onset, had a neurological deficit defined on National Institutes of Health Stroke Scale (NIHSS) score ≤5 upon entry to the study, were between 40 and 90 years of age and able to speak either English or French (Table 1). Patients were excluded if there was evidence of alcoholism or psychoactive drug use, benzodiazepine use ≤24 hour prior to the PET study, if they were unable to complete the initial MRI or PET studies or had a history of either epilepsy, psychiatric or neurodegenerative diseases. One participant withdrew from the study after the initial scan and was excluded from analysis when initial and follow-up PET images were compared directly.

Enrolled patients were evaluated in the sub-acute phase of their stroke and on 6 months follow-up images using a clinical assessment battery for motor and cognitive recovery, and with both MRI and PET scans to measure the peri-infarct cortical thickness and estimate the neuronal cell density changes, respectively.

T1 and Flair MR Acquisition

All MR images were acquired on a SIEMENS MAGNETOM TrioTim syngo MR B17. The Fluid attenuated inversion recovery (FLAIR)—a T2 weighted MR image with attenuated CSF signal-sequence used a TR of 9000 ms, TE of 75 ms and TI of 2500 ms with a flip angle of 150 degrees to acquire 60 transaxial slices with thickness of 2 mm and a base resolution of 192 × 192 voxels in plane. The T1-weighted data set for surface extraction was acquired using a MPRAGE sequence with TR 2300 ms, TE 2.98 ms, TI 9 ms and 9 degree flip angle comprising 160 sagittal slices with isotropic 1mm voxels and 256 × 256 voxels in plane resolution.

The FLAIR image was upsampled to the resolution of the T1 image using linear interpolation and blurred with a 2 mm FWHM Gaussian kernel to attenuate noise.

CIVET

CIVET is an image processing pipeline that generates mesh representations of the cortical GM from T1 MR images. CIVET uses the non-parametric N3 method to correct MR field non-uniformity [Sled et al., 1998]. The MRI is then transformed to MNI stereotaxic space of the ICBM 152 6th generation non-linear brain atlas (Mazziotta et al., 2001), using a 12 parameter affine transformation [Collins et al., 1994]. Spatially normalized images are then segmented into three tissue classes: GM, WM and cerebral spinal fluid using INSECT [Zijdenbos et al., 1998], a discrete classifier, as well as a probabilistic classifier [Tohka et al., 2004]. The Constrained Laplacian Anatomic Segmentation using Proximity algorithm generates a mesh representation of the cortical GM using two deformable mesh models consisting of 81924 vertices connected to form triangles. Cortical thickness is measured by taking the distance between the mesh fitted to the WM-GM boundary and that fitted to the GM-pia matter boundary.

Volumetric cortical GM binary images were created from the WM-GM and GM-Pia mater surface meshes using a ray-tracing algorithm to identify the voxels that lie between the two surface meshes [Funck et al., 2014]. The GM masks and WM were transformed from MNI stereotaxic space to T1 native using nearest-neighbor interpolation.

PET Acquisition

[18-F]-FMZ scans were obtained for all participants with an ECAT HRRT PET scanner in list mode (Siemens Medical Solutions, Knoxville, TN, USA) [Wienhard et al., 2002]. The ECAT HRRT is a dedicated full 3D high resolution brain scanner, with a field view of 25.2 cm (axially) and 31.2 cm (diameter), and has a spatial resolution of between 2.3 mm and 2.8 mm FWHM and enables data acquisition with high spatial resolution combined with high sensitivity. In addition, the use of two crystal layers (LSO/LYSO) permits photon detection with depth-of-interaction information. After a transmission scan for attenuation correction (137Cs-source), approximately 370 MBq [18-F]-FMZ were injected intravenously as a slow bolus over 60 s. The list mode data were acquired for 60 min after injection and were subsequently binned into 2209 sinograms (each of size 256 radial bins × 288 azimuthal bins) using span 9 compression for a total of 17 time frames (40 s, 20 s, 2 × 30 s, 360 s, 4 × 50 s, 3 × 300 s, and 3 × 600 s), resulting in images with a voxel size of 1.22 × 1.22 × 1.22 mm³. Fully 3D FBP by 3D reprojection (3D RP) was carried out with a Hamming windowed Colsher filter (alpha = 0.5, cut off at the Nyquist frequency). The PET image was co-registered and resampled using linear interpolation to the native T1 using a six parameter rigid transformation.

Partial-Volume Correction

PET images were partial-volume corrected using the idSURF algorithm [Funck et al., 2014]. IdSURF is an iterative algorithm based on Lucy-Richardson deconvolution and attempts to make subsequently better guesses of the true tracer-distribution [Lucy, 1974; Richardson, 1972]. The algorithm proceeds by filtering an estimate of the true tracer-distribution, initially the PET image itself, with a model of the PET scanner point-spread function; in this case a Gaussian filter (FWHM = 2.5). The difference between the original PET image and the filtered test image is used to update the estimate of the true tracer distribution. Anatomically constrained filtering is performed by taking the local mean of voxels within predefined anatomic regions. Whereas traditional linear filtering, e.g., Gaussian smoothing, are effective at removing noise, they also smooth between anatomic regions and thus increase PVE. By constraining the filtering to within anatomic regions, idSURF controls for noise while preserving edges between these regions. The infarct core, GM and WM were treated as separate anatomic regions for this analysis. Both the uncorrected PET and idSURF corrected images were compared to evaluate the effect of PVC on measured radiotracer concentrations in the PIC.

Tracer Kinetic Analysis

Tracer kinetic analysis was used to quantify specific tracer binding across patients. We computed the BP_ND maps from the PET images. BP_ND of a reversibly binding radioligand is related to the maximum available concentration of its receptor (Bmax) accounting for the binding affinity of the tracer and the fraction of non-displaceable binding (i.e., tracer irreversibly bound to other molecules than the receptor) in the tissue. Parametric images of BP_ND were created using the Logan plot method [Logan et al., 1996], with a white matter (WM) reference region and a start time of 300 seconds for the linear regression. To avoid any potential spill-over signal between the WM and GM, the WM reference region was eroded by 4 voxels, i.e., 4 mm.

Surface Infarct ROI

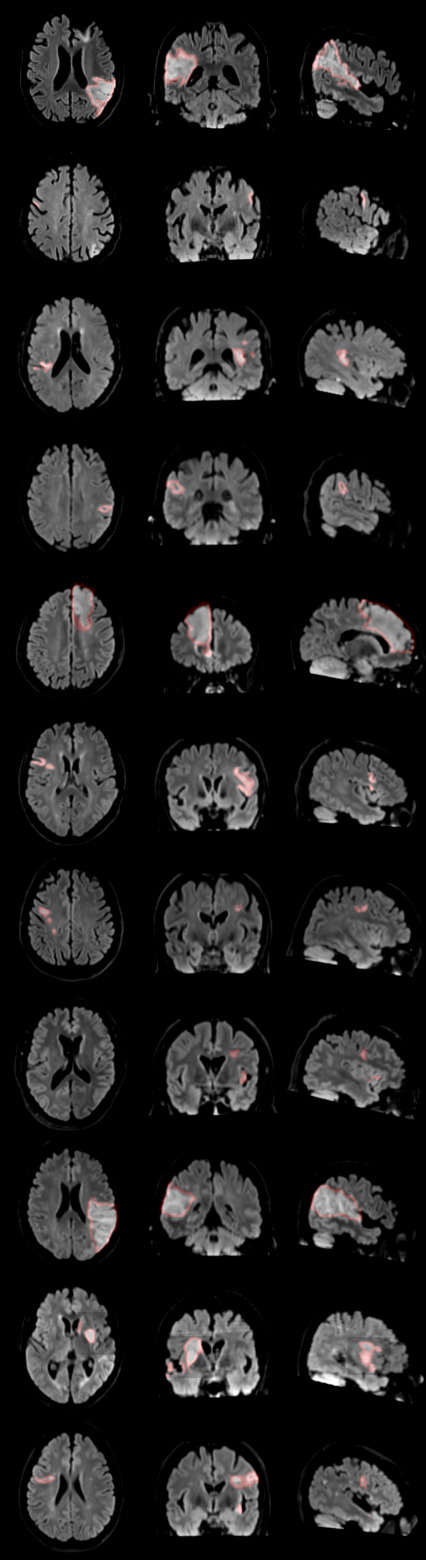

Volumetric ROIs were drawn on the FLAIR MR images acquired for each participant for both initial and follow-up scans and independently verified by two stroke neurologists (Fig. 1). Initial surface infarct masks were produced by nearest neighbour interpolation of the volumetric infarct ROI with the mid-surface produced using CIVET (Fig. 2.1C). The surface ROIs were then defragmented to remove isolated points outside, as well as holes within, the main infarct. All regions smaller than 25% of the largest ROI were removed.

Geodesic Peri-Infarct Rings

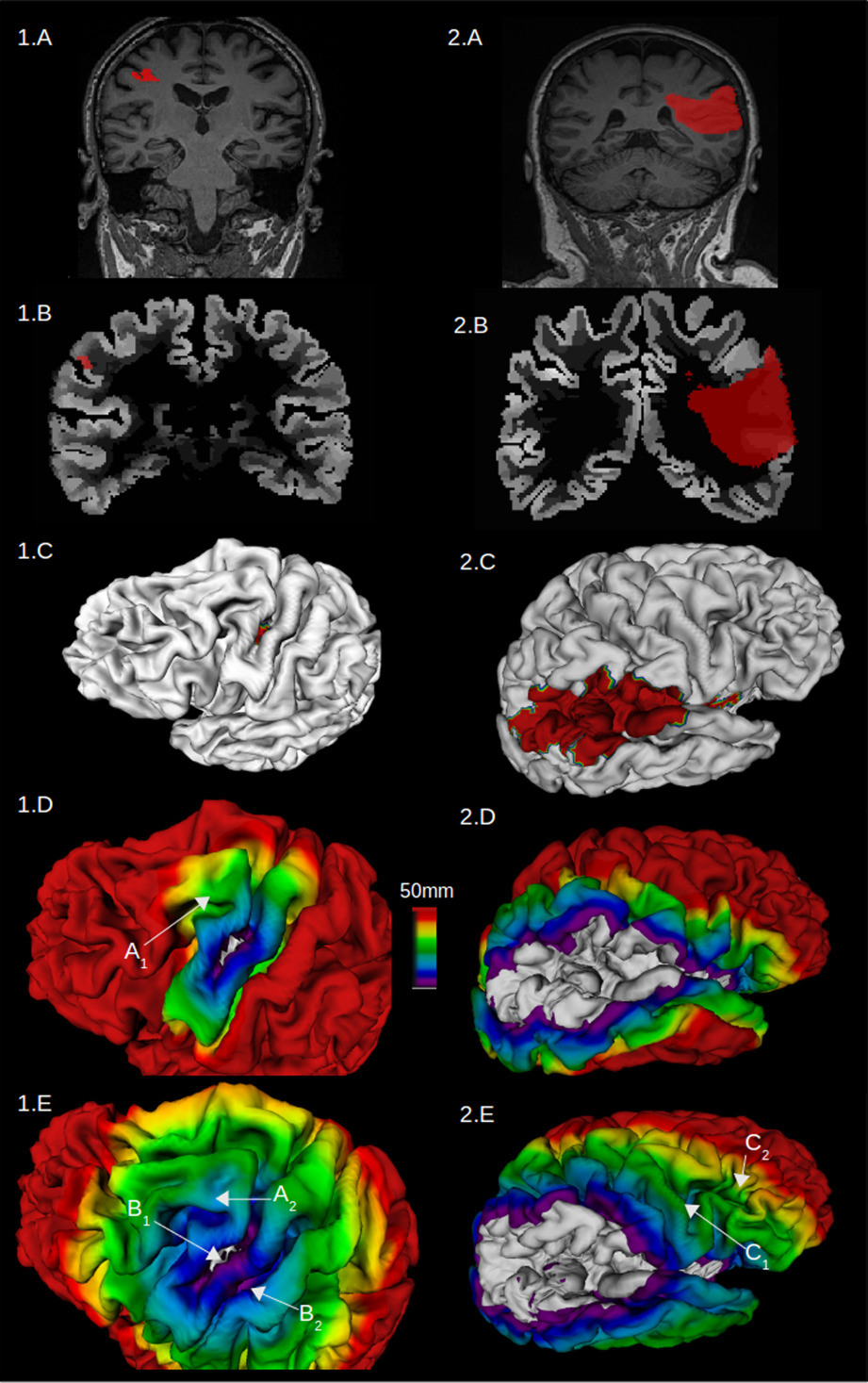

Geodesic distances were calculated from the border of the infarct ROI. This produces a surface map where the value at each surface vertex is the minimum distance from the vertex to the border of the infarct (Fig. 2.1D). Distance maps were created using in-house software that calculates the minimum distances by expanding a closed region outwards along the edges of a surface mesh. The distance maps were segmented into five rings of 3 mm, from 0 to 15 mm from the infarct. The rings were named such that the 3 mm contains vertices from 0 to 3 mm and the 6 mm ring contains vertices from 3 mm to 6 mm from the infarct core, and so forth for the other rings.

The PIC ring width of 3 mm was chosen because this approaches the spatial resolution of 2.5 mm FWHM of the HRRT [Wienhard et al., 2002]. Histological studies have shown decreased neuronal density up to 10 mm from the infarct core [Torvik and Svindland, 1986]. Hence the 9–12 mm PIC ring was the maximum distance at which BP_ND was expected to be reduced in the affected hemisphere. The maximum distance of 15 mm was therefore chosen to include a 12–15 mm PIC ring that would, presumably, include healthy tissue.

Geodesic PIC rings for the contralateral hemisphere were produced by reflecting the surface mesh along the midline of the x axis. The reflected surface mesh was then intersected with the infarct ROI to produce a surface ROI of the infarct in the contralateral hemisphere. Geodesic distances were calculated from the infarct reflected onto the unaffected hemisphere ROI and segmented to produce contralateral PIC rings.

Euclidean Peri-Infarct Rings

Whereas the geodesic PIC rings were defined on a surface, the Euclidean PIC rings were volumetric and produced in a similar manner as [Zepper et al., 2012]. The first step was to intersect the infarct and GM ROI. Euclidean distance maps from the GM infarct were than calculated. As with the geodesic peri-infarct rings, the Euclidean distance maps were segmented into five rings of 3 mm, from 0 to 15 mm from the infarct. These rings were then intersected with a binary GM image to eliminate voxels outside of the GM. Euclidean PIC rings for homologous regions in the unaffected hemisphere were created by reflecting the infarct ROI along the x-axis and intersecting it with a volumetric binary image of the GM. Euclidean distances were then calculated in the unaffected hemisphere and segmented into Euclidean PIC rings.

Statistical Methods

The effect of the ischemic insult on the PIC was measured by subtracting BP_ND in the unaffected hemisphere by that of the affected hemisphere to give the inter-hemispheric difference of BP_ND (IHD_BP =BP_ND^{Unaffected H.}−BP_ND ^{Affected H}). In all but one of the two-way repeated measures (2RM) ANOVA described below, the geodesic PIC rings were used as one of the two factors.

The following tests were performed on initial and follow-up images separately. The effect on BP_ND of (1) PIC ring and (2) cerebral hemisphere (i.e., unaffected vs ischemia affected) was tested using a 2RM ANOVA. For the purpose of comparison, this same test was performed with the Euclidean peri-infarct rings. To determine that the two distance metrics produced different results, the 2RM ANOVA used (1) PIC ring and (2) distance metric (i.e., Euclidean vs. geodesic) as factors. Lastly, to evaluate the effect of PVC on IHD_BP we performed a 2RM ANOVA with (1) PIC ring and (2) PVC method (i.e., uncorrected vs idSURF) as factors.

To determine if there was a change in the IHD_BP between initial and follow-up images, a 2RM ANOVA was performed with (1) PIC ring and (2) scanning session as factors. This same test was also performed for the cortical thickness values extracted from the initial and follow-up MRI.

If the interaction effect of the 2RM ANOVA reached significance at the 5% level, post-hoc tests were performed on each PIC ring to test if there was a significant difference in the measured response variable between the two-levels of the factor. The purpose of the post-hoc testing was to determine which PIC rings contributed to the significant interaction effect of the ANOVA. This was done using Wilcoxon signed-rank [Wilcoxon, 1945], with P-values adjusted for multiple comparisons with Hochberg's method [Hochberg, 1988]. The correction for multiple comparisons was performed independently for each set of ANOVA, because these tests asking conceptually independent questions about the data and do not use the same set of response variables.

Surface Geodesic Distances Show Decreased BP_ND Closer to Infarct

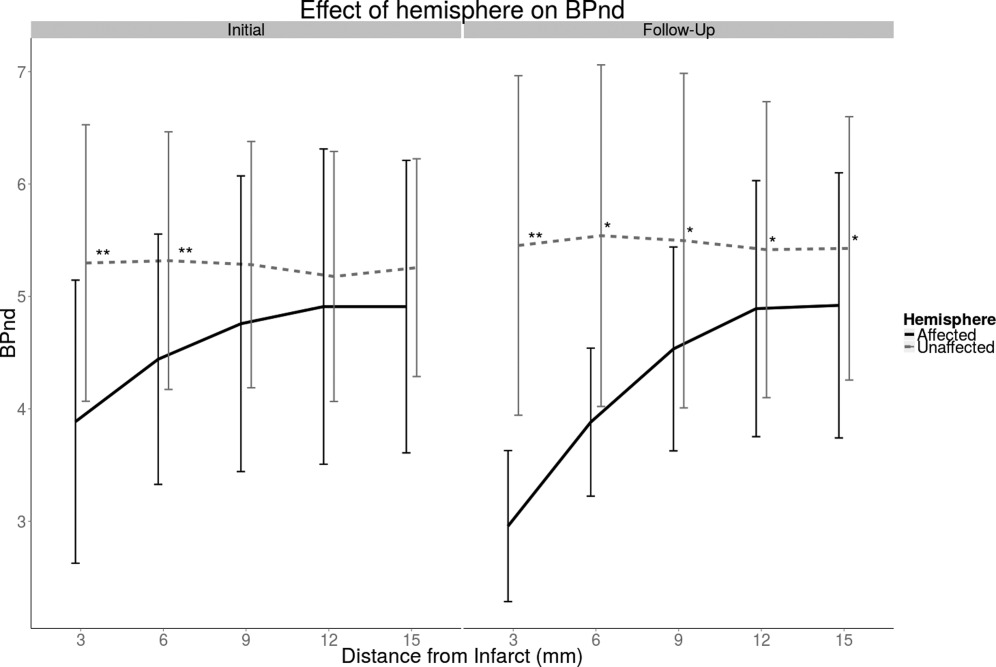

The results of the surface PIC analysis indicate first that BP_ND is lower in the affected hemisphere compared to the unaffected hemisphere in both the initial and follow-up images. The difference in BP_ND between hemispheres was significant both in the main effect of hemisphere (Initial: P < 0.01, F = 16.15; Follow-Up: P < 0.001; F = 20.98) and in the interaction between hemisphere and PIC ring in both initial and follow-up images (Initial: P < 0.001, F = 18.78; Follow-Up: P < 0.001; F = 20.34). Post-hoc testing revealed that the difference in BP_ND between hemispheres is significant from 0 mm to 6 mm in the initial images and 0 mm to 15 mm in the follow-up images (Fig. 3).

There appears to have been a significant increase in IHD_BP from initial PET images to follow-up. The 2RM ANOVA showed an overall significant difference in IHD_BP in the PIC rings between initial and follow-up images (P < 0.01, F = 4.88). However, using the Wilcoxon signed-rank test for post-hoc testing, none of the individual PIC were significantly different in IHD_BP between initial and follow-up images.

Geodesic and Euclidean Distances Produce Different Results

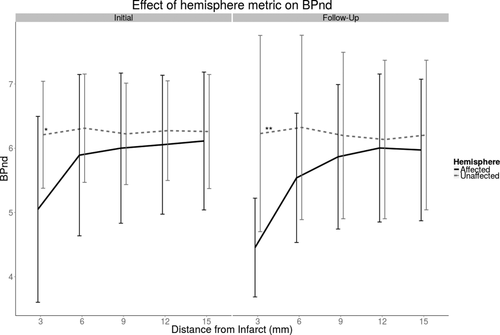

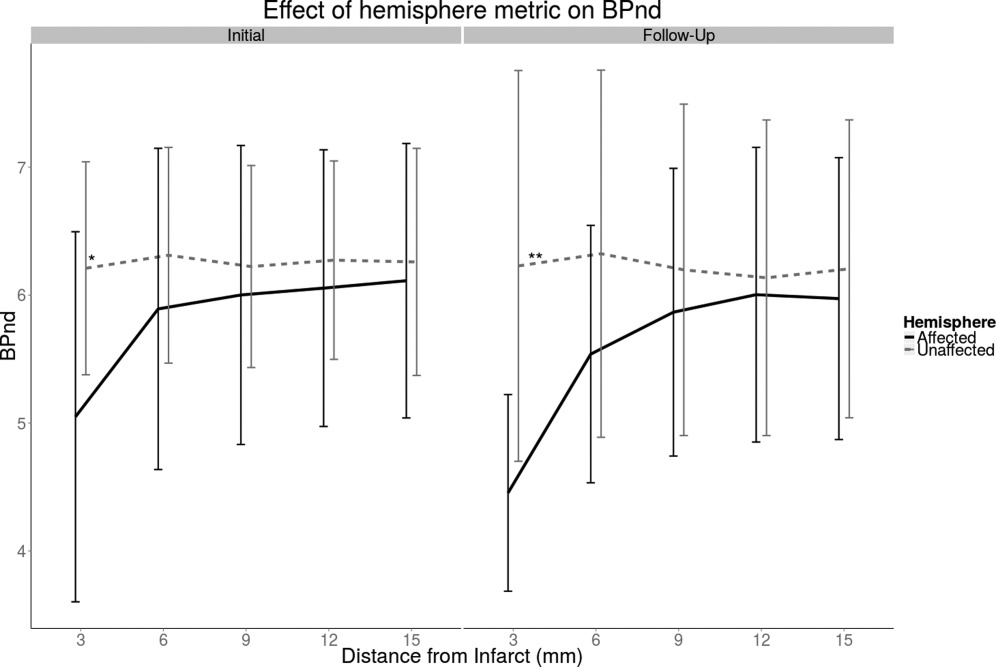

The distance profiles produced with the Euclidean PIC rings do not show the gradual increase in BP_ND in the stroke affected hemisphere that was observed with the geodesic profiles (Fig. 4). In the main effect of hemisphere, the difference in BP_ND between hemispheres was trending towards significant in the initial scanning session and significant in the follow-up session (Initial: P < 0.1, F = 4.59; Follow-Up: P < 0.01; F = 11.7). There was a significant interaction effect between hemisphere and PIC ring in both initial and follow-up images (Initial: P < 0.001, F = 15.06; Follow-Up: P < 0.001; F = 19.95). In post-hoc testing, however, the difference between hemispheres was only significant in the 0–3 mm PIC rings.

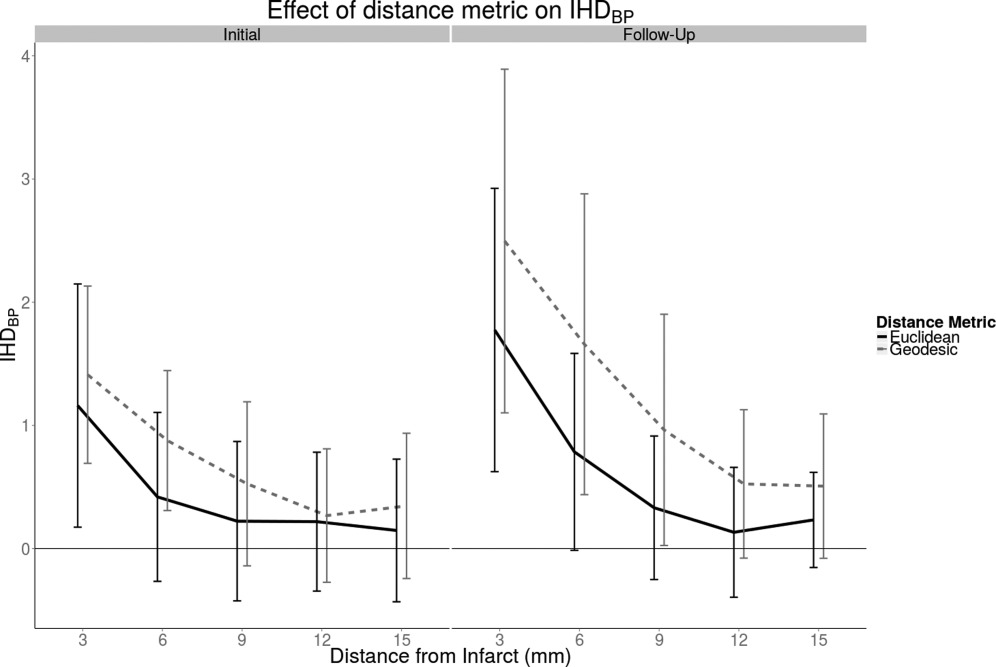

We compared the Euclidean IHD_BP profiles to the IHD_BP profiles produced with a geodesic distance metric (Fig. 5, see Fig. 2 for visual example). In the initial and follow-up scans, there was a significant difference in IHD_BP due to the main effect of distance metric (Initial: P < 0.05, F = 6.45; P < 0.01, F = 13.09), but no significant interaction effect between distance metric and peri-infarct ring. The area under the geodesic IHD_BP profile was 35% larger than that under the Euclidean IHD_BP profile in the initial images and 48% larger in follow-up images.

Partial-Volume Correction Increases BP_IDH

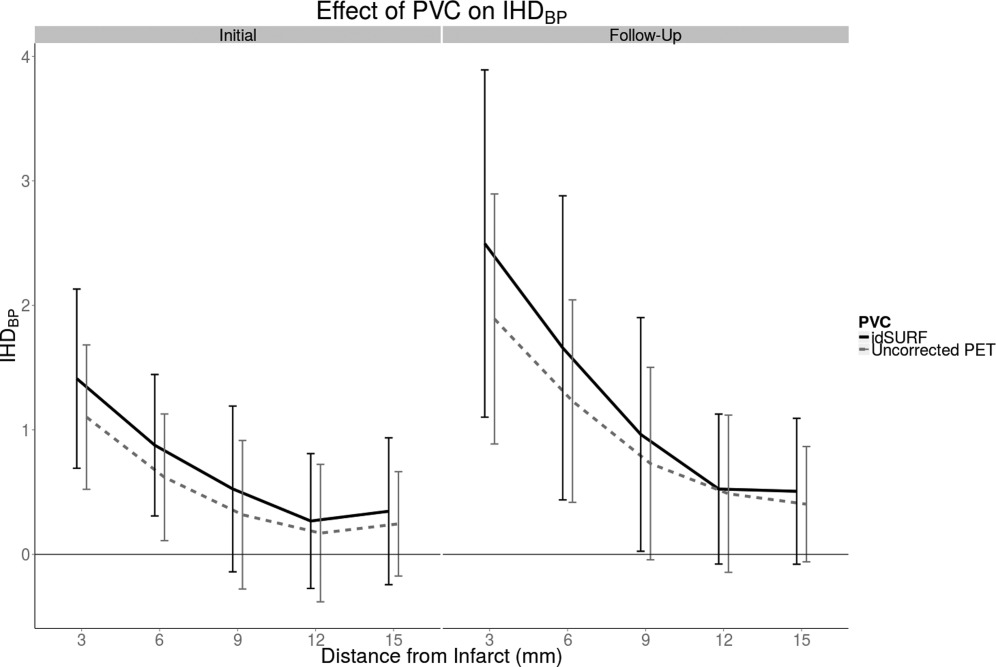

PVC produces larger IHD_BP than observed in uncorrected PET images (Table 2). However, only in follow-up images was there a significant interaction effect between PIC ring and PVC. In post-hoc testing, the only significant difference between PVC and uncorrected images was in follow-up images in the 3 mm PIC ring, but this did not survive correction for multiple comparisons (Fig. 6). PVC IHD_BP was found to be 17% larger than uncorrected IHD_BP in the initial images and 20% larger in the follow-up images.

Cortical Thickness Is Reduced in Follow-up Scans

The difference in cortical thickness between affected and unaffected hemispheres was only trending towards significance in the initial cortical thickness maps and was found to be significant in the follow-up maps (Table 3). The interaction effect between PIC rings and hemisphere was significant in the follow-up images, but this was not attributable to any specific PIC ring.

IHD_BP Measured with Geodesic PIC Rings Show Long-Term Neuronal Cell Loss

Distances measured relative to the cortical vasculature are better modeled with a geodesic distance metric than an Euclidean metric, because the former does not cut across the folds of the cortical surface. Defining the PIC using a geodesic distance metric allows for a more anatomically realistic measurement of changes in BP_ND along the cortical surface. There was a significant reduction of BP_ND in the PIC in the affected hemisphere compared to the unaffected hemisphere and this difference was larger closer to the infarct core. This suggests that the effect of the stroke on viable cortex does not have a sharp boundary and should be studied at regular distance intervals from the infarct border rather than in a single region.

IHD_BP was significantly larger at follow-up than in the initial images. [18-F]-FMZ binds to GABAA receptors on cortical neurons and is used as a surrogate marker of neuronal density [Heiss et al., 1998; la Fougère et al., 2011]. The increase in IHD_BP between initial and follow-up is consistent with long-term neuronal cell death in the peri-infarct grey matter after ischemic stroke. This interpretation is consistent with findings from post-mortem histological studies of humans with ischemic infarcts [Nedergaard et al., 1986, 1984; Torvik and Svindland, 1986]. In these participants, a transition zone of decreased neuronal density from 0–5 mm (and up to 10 mm in some patients) around the infarct border was observed. It should be noted that these histological studies measured distance from the infarct by projecting distances along the cortical surface onto the outside surface of the brain, excluding the sulcal depths. This distance metric will produce uniformly larger distances than the geodesic distance metric. In the initial PET images we found a decrease in BP_ND in the affected hemisphere from 0 mm to 6 mm, which was consistent with previous results from histological studies. In the follow-up images, however, the decrease in BP_ND in the affected hemisphere extended up to 15 mm, suggesting a larger and more gradual transition zone between infarcted and healthy tissue.

In vivo evidence has also been found for selective neuronal loss in the non-infarcted penumbra both in FMZ PET [Carrera et al., 2013; Guadagno et al., 2008; Zepper et al., 2012] and [123-I]-Iomazenil SPECT [Nakagawara et al., 1997; Saur et al., 2006]; for a review, see [Baron et al., 2014]. The limitation of these methods is that they define the PIC as a single, uniform region and do not reveal changes in BP_ND within the PIC. The current findings suggest that the PIC is not homogeneous and may vary as a function of the distance from the infarct core.

Previous studies of the effect of stroke on cortical thickness have also reported changes in cortical thickness. Some studies have also reported increases in cortical thickness in regions associated with functional remapping in both acute [Schaechter et al., 2006] and chronic stroke [Brodtmann et al., 2012]. A study of sub-cortical infarcts from cerebral small vessel disease found long-term cortical thinning in GM regions connected via WM tracts to the infarct [Duering et al., 2012].

Euclidean PIC Rings Are Less Sensitive to IHD_BP

The PIC can be defined morphologically by measuring the distance from the border of the infarct to the surrounding tissue. Traditional approaches have delineated the PIC using a Euclidean distance metric [Cramer et al., 2006; Fink et al., 1993; Heiss et al., 1992; Markus et al., 2003; Price et al., 2006]. These methods start by defining a volumetric ROI of the infarct. The PIC is then defined by identifying points that are within a given distance from the infarct, where the distance is measured as a straight line in 3D space. This is typically done by performing a pixel- or voxel-wise dilation of the infarct to produce PIC rings or spheres. Dilations of the infarct implicitly use a Euclidean metric by assuming that all voxels contained within a dilation are equally far from the infarct.

The geodesic and Euclidean PIC rings produced different BP_ND profiles. With the Euclidean peri-infarct rings, unlike the geodesic IHD_BP profiles, there was little difference between the stroke affected and unaffected hemispheres beyond the 3 mm ring. The difference between geodesic and Euclidean IHD_BP was larger in follow-up images. The reason for this appears to be that the BP_ND profiles produced with Euclidean and geodesic PIC rings differ in how they relate to the topology of the cortical surface and its vasculature.

The Euclidean metric measures distances in the PIC as a straight line to the border of the infarct. The limitation of this method is that it cuts across folds in the cortical surface (Fig. 2.1.E and 2.2.E), and thus underestimates the true distance traveled by the vasculature (Fig. 2.1.D and 2.2.D). The result of this underestimation is that beyond 3 mm, where the geodesic and Euclidean rings sample approximately the same voxels, the Euclidean PIC rings include regions that are relatively unaffected by the stroke and thus have normal BP_ND. Hence, beyond the 3 mm PIC rings, the Euclidean PIC rings exhibited no difference in BP_ND between the unaffected and stroke affected hemispheres in both initial and follow-up images.

The surface-fitting used by CIVET depends on a sharp WM-GM gradient, which may be eroded or eliminated by the infarction caused by acute ischemia. Visual inspection of the CIVET surfaces revealed that they closely followed the cortical mantle outside of the infarct where the WM-GM border was preserved. The surfaces did not follow the cortical mantle inside of the infarct, but this region was not used in the present analysis.

Partial-Volume Correction Results in Higher Sensitivity to Long-Term Neuronal Cell Loss

In the initial and follow-up PET images there was significant difference between uncorrected and PVC IHD_BP. However, at follow-up there was a significant interaction between PVC and PIC ring. This suggests that PVEs are a more important confounds in PET-images acquired 6 months after the stroke.

Despite these concerns, PVC has not been widely implemented in studies involving the PIC and may be a source of bias in results. For example, several PET and SPECT studies have reported decreased binding to GABAA receptors [Carrera et al., 2013; Kim et al., 2014; Nakagawara et al., 1997; Saur et al., 2006; Sette et al., 1993] at several weeks to months post-stroke. Without PVC it is difficult to conclude whether their results are consistent with those reported here, because it remains possible that their reported decrease in radiotracer binding to GABAA was the result of a change in cortical thickness and not a change in the availability of GABAA receptors.

While PVC is not widely used in studies of the PIC, some studies have used simple PVC algorithms that compensate for spill-out effects [Guadagno et al., 2008; Zepper et al., 2012]. In the present study we found that spill-in PVE were particularly important because small but significant changes in radiotracer binding within a region can be obscured by spill-in radiotracer concentration from adjacent regions.

There are a multitude of factors that come into play when determining whether or not PVC be important in PET images of stroke patients: size of the infarct, presence of cortical thinning, the gradient of radiotracer concentration between the infarct and healthy tissue. It is difficult to know a priori how these will come into play. The use of PVC methods that correct for both spill-in and spill-out effects in the analysis may thus reduce the risk of overlooking significant results due to PVE and should be considered in standard data analysis procedures.

The aforementioned studies of GABAA with PET and SPECT use mismatch between an image of the initial hypoperfusion, e.g., from perfusion CT, with the an image of the final infarct, e.g., from FLAIR MRI, and thereby define one large peri-infarct region [Carrera et al., 2013; Guadagno et al., 2008; Kim et al., 2014; Nakagawara et al., 1997; Saur et al., 2006; Sette et al., 1993]. Our geodesic PIC method is compatible with this approach because the image of the initial hypoperfusion can be mapped onto a surface representation of the cortical GM and used to constrain the spatial extent of the PIC rings. This would ensure that the PIC rings only sample from tissue that is known to be hypoperfused and improve the signal-to-noise ratio of the BP_ND distance profiles.

Limitations

One limitation of the present study was the use of he contra-lateral hemispheres instead as comparator. Kim et al. [2014] have reported both widespread bilateral decrease in GABAA receptor density in human stroke patients as well as some localized increase in GABAA receptor density in the contralateral peri-infarct. A global decrease however should not affect the results presented here, because the difference between the hemispheres remains the same given a global reduction in both hemispheres. Moreover, if the peri-infarct rings of the unaffected hemisphere in this study do include regions with increased GABAA receptor density, then the results would only tend to underestimate the true difference in BP_IHD and would only introduce a bias into the conservative direction.

Infarction causes a local reduction in the gradient of the MRI signal between the WM and GM and and thus interferes with the definition of a WM-GM surface mesh. Without a reliable WM-GM surface mesh, it is impossible to accurately measure cortical thickness. Visual inspection of the surface meshes revealed that the distortion of the mesh is limited to the infarct and thus had no visible effect on the surrounding PIC.

The most important limitation is the high variability of the size, shape and location of the stroke volumes. The only way to account for this variability would be to use the size or location of the stroke as an additional factor in the statistical analysis. A complex statistical analysis such as this would require additional participants and was not possible in the present study.

Conclusions

In cortical strokes, a geodesic distance metric provides an anatomically realistic method for modeling the PIC because it conforms more closely to the anatomy of the vasculature than traditional, Euclidean distance metric. PVC may be important in the context of cortical ischemic stroke because it gives a more anatomically realistic estimate of BP_ND and controls for long-term changes in cortical thickness due to the ischemic insult.
