Systematic review and meta-analysis registration

This project was registered (CRD42020164642) with, and the ethics approved by, the prospective register of systematic review (PROSPERO).

Eligibility criteria

Eligible studies were those that used TTE to predict or estimate pulmonary capillary wedge pressure (PCWP) or LVEDP. The primary endpoint was the agreement between invasive and non-invasive methods. This was evaluated by both the correlation coefficient and statistical bias in the respective studies. This study mainly focused on the correlation coefficient (r), and all subsequent meta-analyses were planned using r values. We limited our search to peer-reviewed journals, medicine, and human adult (age ≥18 years) participants. Studies with fewer than 12 patients were excluded.

Search strategy

The Scopus database, which incorporates all MEDLINE and Embase results, formed the basis of the literature search, undertaken on 21 November 2019. Search terms included ‘invasive’, ‘noninvasive/echocardiography’, and ‘LVEDP/Pulmonary Capillary Wedge Pressure/PCWP’. The full search strategy is included in the supporting information. An identical search of the Cochrane Central database returned no additional results. An extensive review of the referenced literature identified 11 additional studies. Duplicate results (n = 1) were removed, and the remaining results were combined (n = 207).

Study selection

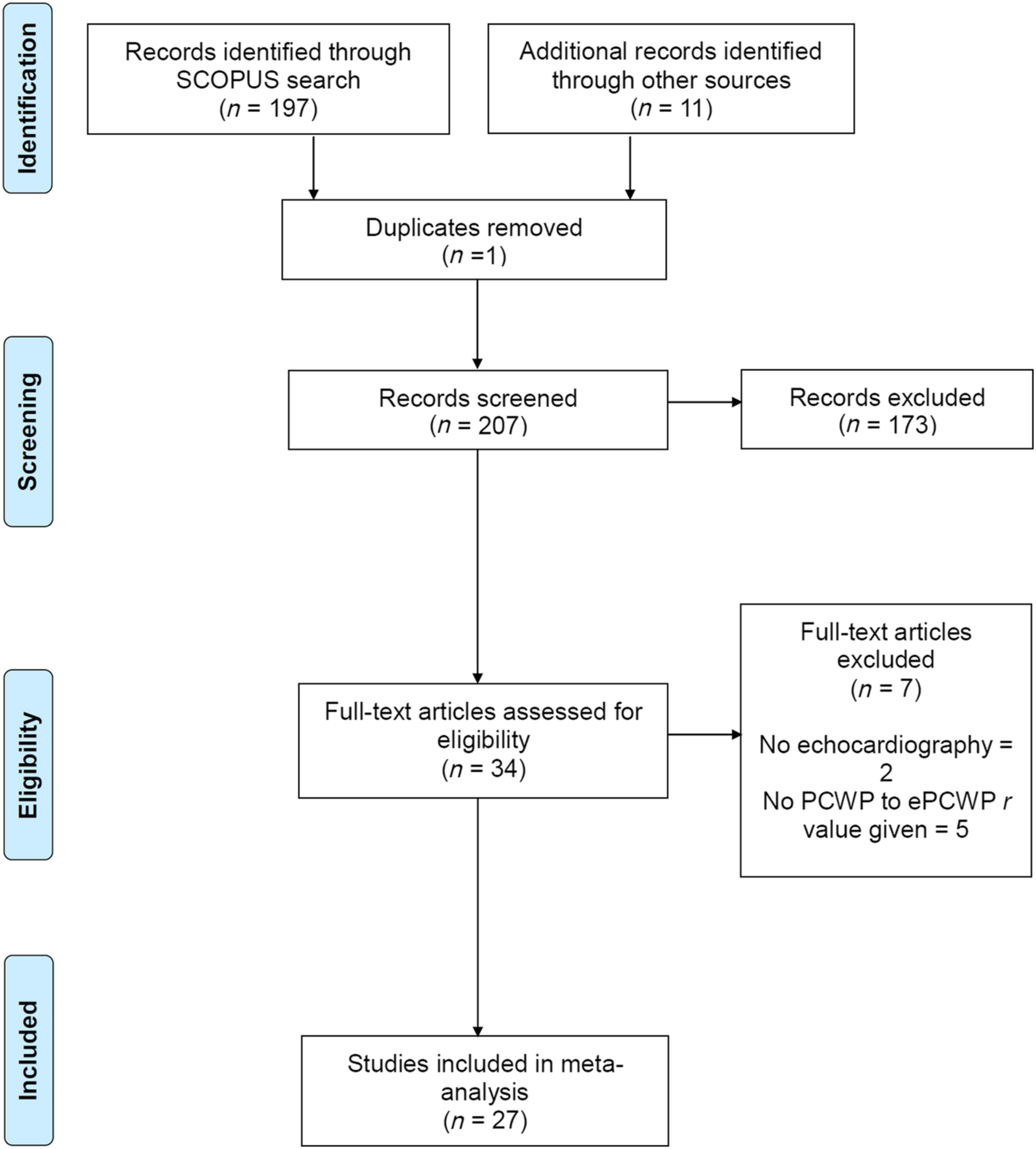

Preliminary vetting of the results, according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines, was undertaken by R. J. The shortlist was subsequently reviewed by an independent assessor, P. G. A third independent expert, A. J. S., was involved to resolve disagreements. The PRISMA flow chart is detailed in Figure 2.

Assessment of clinical applicability

We adapted the Critical Appraisal Skills Programme (CASP) tool to ensure clinical applicability to the evidence synthesis. This is detailed in the Supporting Information, Tables S1 and S2.

Statistical analysis and meta-analysis

Statistical analysis was performed using MedCalc (MedCalc Software, Belgium, Version 19.1.5). We pooled the values of correlation coefficients and numbers recruited in each study for agreement between invasive and non-invasive LVFPs. Detailed statistical methods are described in the supporting information.

Study characteristics

All studies were diagnostic cohort studies, using the invasive haemodynamic study as the reference test for LVFP. Consecutive patient recruitment was reported in 17 studies. Except for Nagueh et al.²⁷ and Andersenet al.,³² all studies were single tertiary centre studies. All studies were published between 1997 and 2019. While some studies focused on specific disease states such as HFrEF (n = 8) and HFpEF (n = 11), some recruited heterogeneous patient populations (n = 11). From the 27 studies, only 8 studies (30%) reported both correlation coefficient and bias (Supporting Information, Table S3). The majority of studies (74%, 20/27) recorded invasive PCWP as a surrogate for LVEDP. Seven studies recorded LVEDP directly.^{10, 14, 18, 22, 24, 30, 31}

Meta-analysis results for all studies

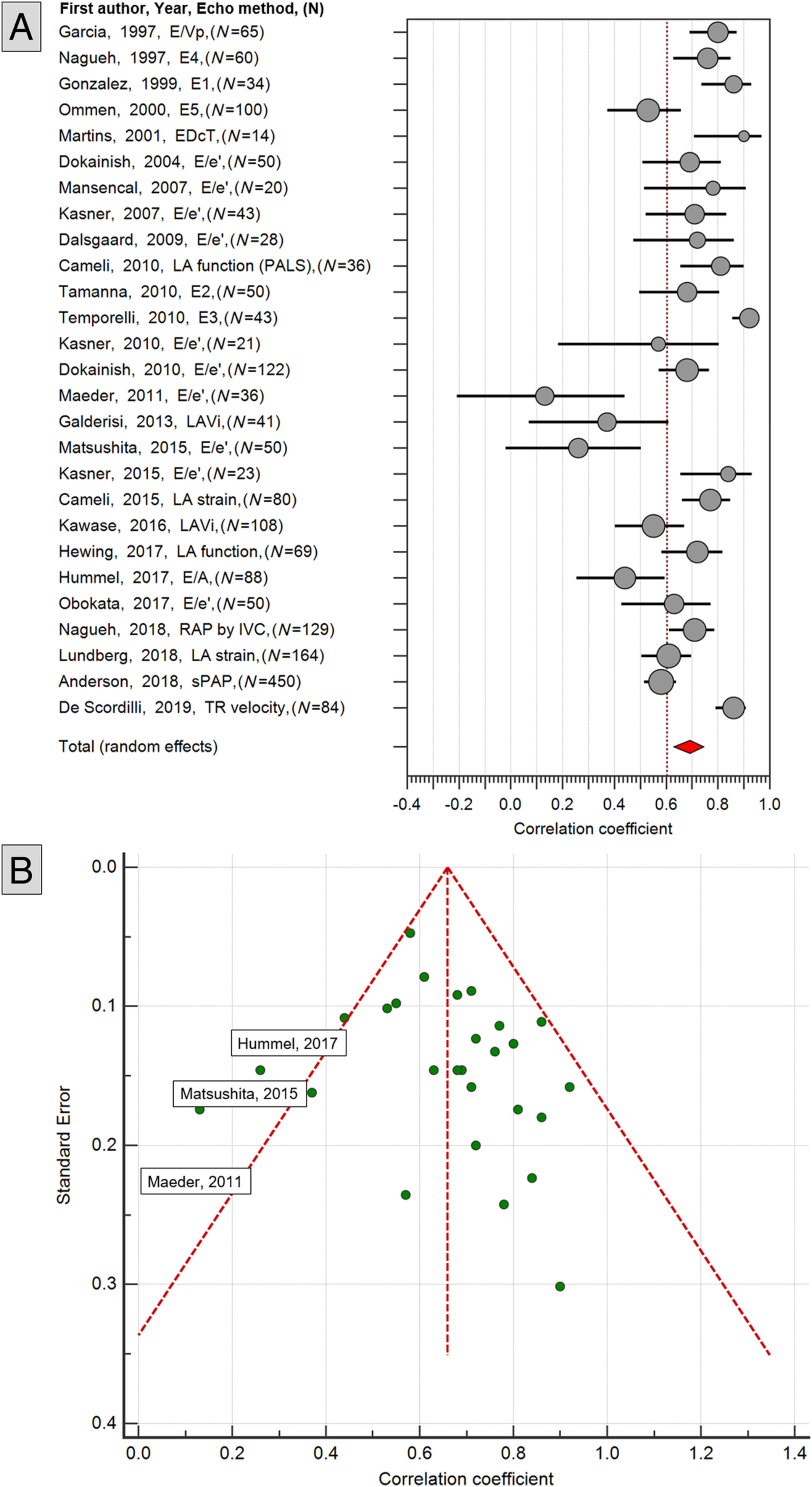

The pooled analysis across all studies showed a statistically significant association of invasive haemodynamic assessment to echocardiographic methods—the weighted average (random effects) correlation coefficient for all the 27 studies was 0.69 [95% confidence interval (CI) 0.63–0.75, P < 0.01] (Supporting Information, Table S4). Figure 3 shows the forest plot of the pooled correlation coefficients, CIs, and percentage weighting for all studies included. Visual scrutiny of the forest plots suggests that a degree of between-study variation exists in terms of the effect sizes. I² values of 81.6% confirmed significant levels of heterogeneity.

Temporelli et al. demonstrated the highest correlation coefficient with invasive measurement (r = 0.92, 95% CI 0.86–0.96), using an integrated mitral inflow velocity (MIV) equation (Figure 3).²⁹ However, they recruited only 43 patients, reducing the overall weight of the study. The study by Anderson et al. had the highest weight, closely followed by the Lundberg et al. work into left atrial (LA) strain.^{32, 33}

Eight studies reported bias in the agreement between echocardiographic modelled LVFP vs. invasively measured LVFP. The maximum bias (bias = 9 mmHg) was reported by Maeder et al. in an HFpEF cohort (Supporting Information, Table S3).¹⁹ In HFrEF, the bias was comparatively less for the two studies by Cameli et al. and Temporelli et al.^{16, 29}

Meta-analysis results for echocardiography metric

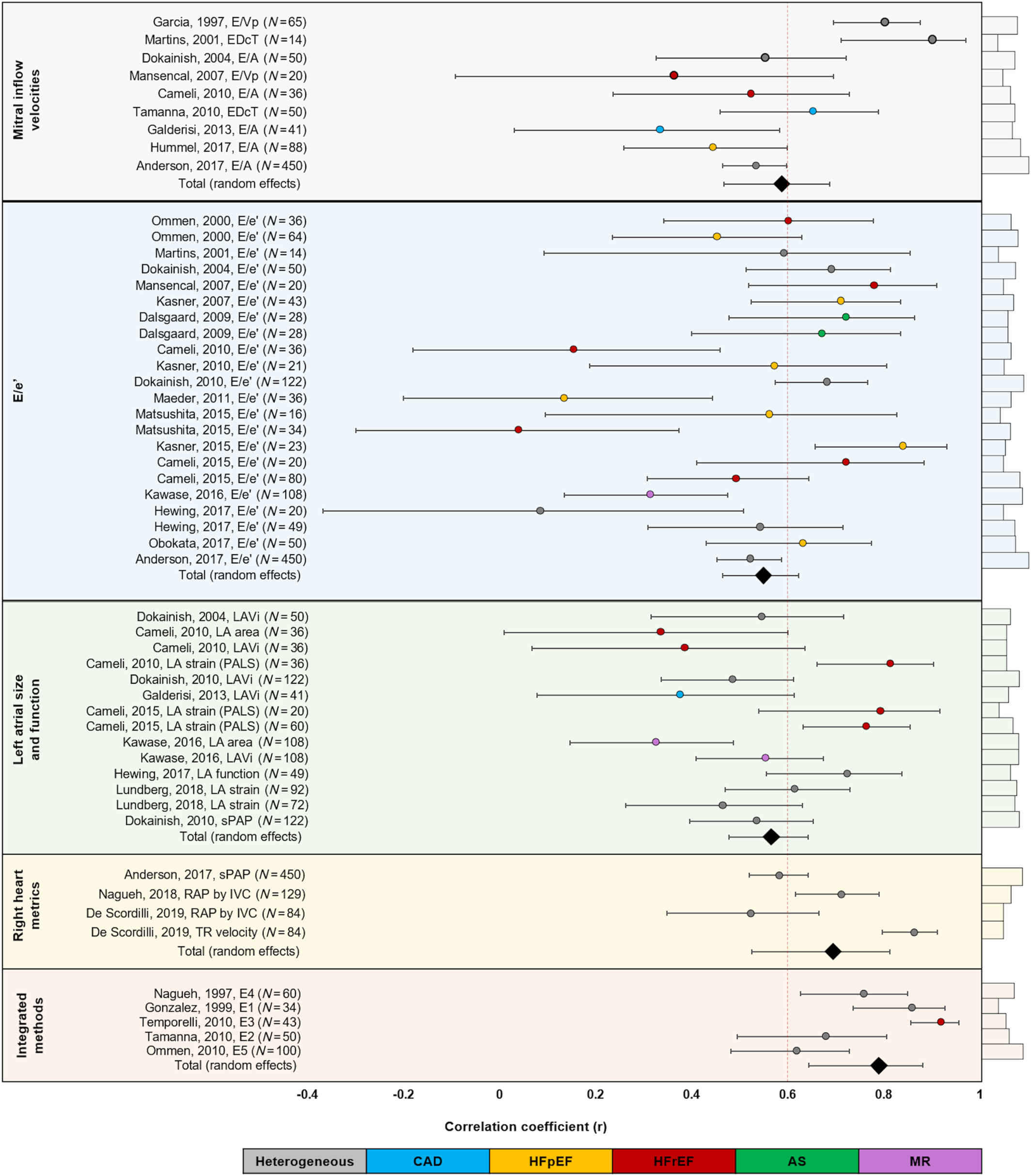

The first group, MIVs, had a pooled (random effects) correlation coefficient of 0.58 (95% CI 0.46–0.68, P < 0.01) (Figure 4, Supporting Information, Table S5). Four MIV studies comprised a heterogeneous patient population: two studies investigated HFrEF (n = 91), and two investigated coronary artery disease (CAD) (n = 56). The study with the highest correlation was that by Martins et al. (r = 0.90, 95% CI 0.71–0.97).¹¹ However, this study had the lowest weighting within this category, recruiting only 14 patients. The most highly weighted study was that by Anderson et al. (n = 450), showing moderate association between E/A and invasive LVFP (r = 0.53).³² The most widely studied MIV parameter was E/A (n = 665). Other echocardiography metrics studied included E/Vp (n = 85) and EDcT (n = 64).

The second category, E/e′, was the largest, incorporating 17 studies and 1348 patients [HFpEF, n = 253; HFrEF, n = 126; heterogeneous, n = 785; aortic stenosis (AS), n = 28; mitral regurgitation (MR), n = 108]. E/e′ had a pooled random effects correlation coefficient of 0.55 (95% CI 0.46–0.62, P < 0.01, z = 11). Correlation coefficients varied greatly between studies, ranging from 0.08 (95% CI −0.38 to 0.5) (Hewing et al.) to 0.84 (95% CI 0.65–0.93) (Kasner et al.).^{22, 24} The Kawase et al. study investigating E/e′ in MR patients (r = 0.33) recruited 108 patients, contributing significant weight in reducing the pooled correlation coefficient.²³

The third major parameter studied was LA size and function. Overall, these studies had a pooled random effects correlation of 0.56 (95% CI 0.47–0.64, P < 0.01, z = 10, n = 952). Of these, LAVi was investigated in five studies, including 357 patients; LA area was also investigated in 144 patients, and LA strain assessments were undertaken in 280 patients. One study evaluated LAVi in MR cases (n = 108) and found a correlation coefficient of 0.55 (95% CI 0.40–0.67) (Kawase et al.), much stronger than that found for LA area alone (r = 0.33, 95% CI 0.00–0.59).²³ Of the LA parameters, LA strain assessment had the strong correlations, ranging from 0.46 (Lundberg et al.) to 0.81 (Cameli et al.).

Assessment of the right heart comprised three studies and is the most novel category, with all studies published since 2017. These studies combined had a strong correlation coefficient of 0.69 (95% CI 0.52–0.811 P < 0.01, z = 6.1, n = 747). The largest study was by Anderson et al., investigating systolic pulmonary artery pressure (r = 0.58, 95% CI 0.52–0.64).³² Nagueh et al.²⁷ and de Scordilli et al. investigated right atrial pressure, with the latter also studying TRV.²⁸ TRV had a stronger correlation (r = 0.86, 95% CI 0.79–0.91), compared with right atrial pressure; however, this is weighted lower due to fewer patient numbers. All studies recruited heterogeneous populations. The five integrated approach studies (n = 287) combined several echocardiographic parameters into equations (Table 1) to estimate LVFP. This category had the highest weighted average (random effects) correlation coefficient at 0.79 (95% CI 0.64–0.88, P < 0.001, z = 6.84). Ommen et al. had the highest weighting at 28.6% (n = 100) but also had the lowest correlation of all the equations (r = 0.62, 95% CI 0.48–0.73) and the lowest clinical applicability of all studies.¹⁰ In comparison, Temporelli et al. found a correlation of 0.92 (95% CI 0.86–0.96) using an equation focusing on MIV and had excellent clinical applicability.²⁹ The integrated approach studies incorporated a range of patient cohorts; Nagueh et al. and Gonzalez-Vilchez et al. studied heterogeneous populations (n = 95), Ommen et al. and Temporelli et al. recruited HFrEF patients (n = 63), Ommen et al. further studied 64 patients with HFpEF, and Tamanna et al. investigated CAD (n = 50).^{8-10, 17, 29}

Meta-analysis results for disease

From the 27 eligible studies, five primary patient cohorts were recruited: HFpEF, HFrEF, CAD, AS, and MR. Furthermore, 11 studies did not specify diagnoses, grouped into ‘heterogeneous’ for the purpose of this meta-analysis.

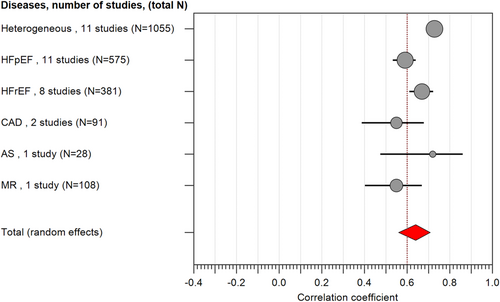

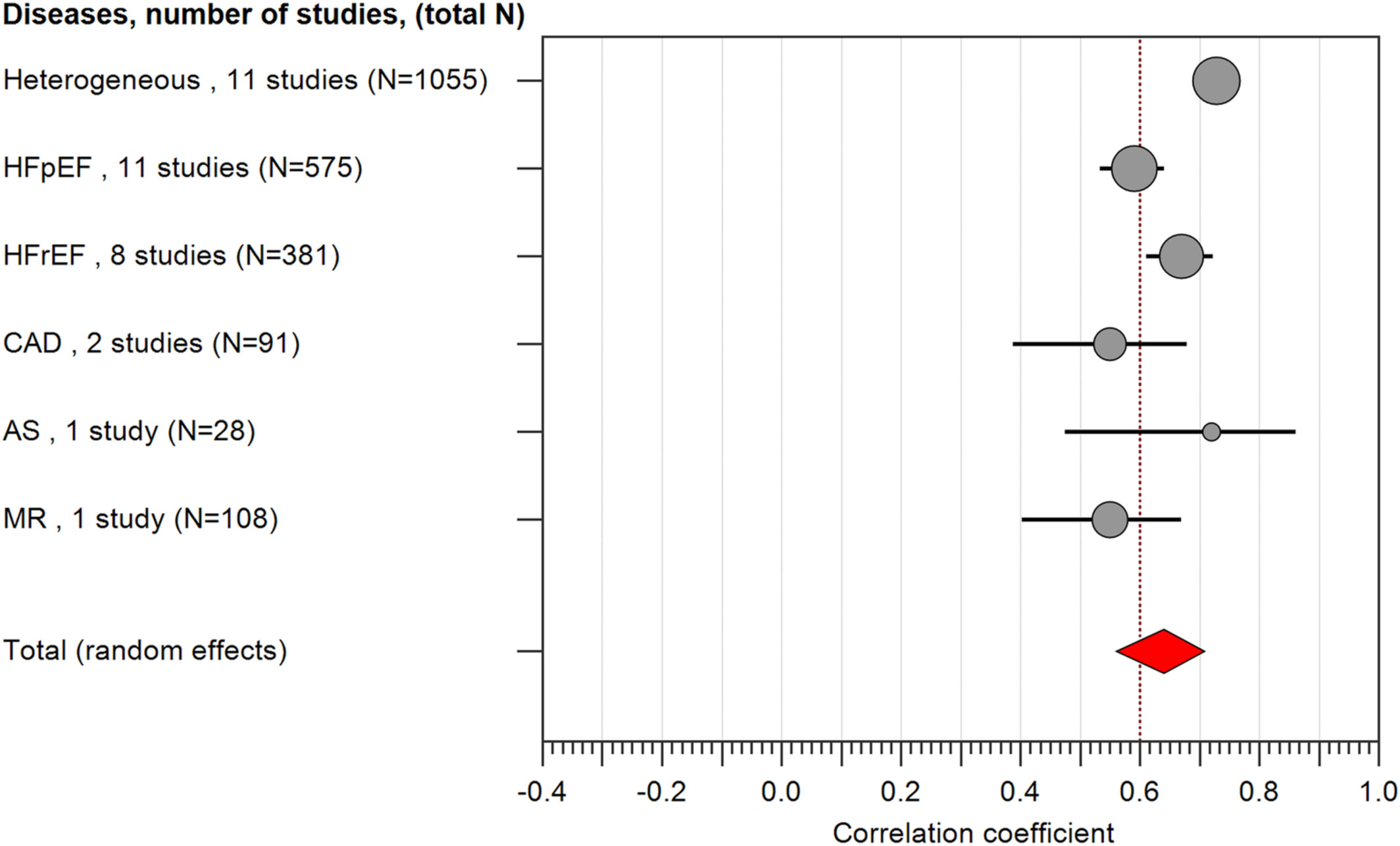

The pooled analysis across all cohorts revealed a modest association between echocardiographic and invasive haemodynamic assessment (r = 0.64, 95% CI 0.56–0.71, P < 0.01, z = 11.9) (Figure 5, Supporting Information, Table S6).

In total, 1055 patients were categorized as ‘heterogeneous’, and this group demonstrated the best association with the least effect size (r = 0.73, 95% CI 0.70–0.76) and highest weighting (22.16%). A small proportion of these patients were intubated in intensive care (n = 160). HFpEF (r = 0.59, 95% CI 0.53–0.64, n = 575) patients were found to have a lower correlation coefficient than HFrEF patients (r = 0.67, 95% CI 0.61–0.72, n = 381). Patients recruited with a diagnosis of CAD and MR demonstrated the lowest correlation coefficient (r = 0.55, 95% CI 0.38–0.68, n = 91 and r = 0.55, 95% CI 0.40–0.67, n = 108, respectively).

Clinical applicability (Critical Appraisal Skills Programme) results

The modified CASP tool showed that 19% (n = 5) of studies were ‘highly clinically applicable’, 56% (n = 15) ‘moderately clinically applicable’, and 26% (n = 7) ‘less clinically applicable’. Of those ‘less clinically applicable’, most failed to report bias or undertake suitable reproducibility assessments (Supporting Information, Table S2). Three studies scored 100%; all evaluated a heterogeneous cohort.

Principal findings

This meta-analysis demonstrates that echocardiographic approaches to estimating LVFP are feasible and can be applied clinically. However, there was significant heterogeneity in both the quality of studies and their findings. Many studies recruited a heterogeneous cohort of patients, which makes it challenging to apply their methods to predict LVFP in groups of HF patients.

In patients with MR, Kawase et al. demonstrated that LA volume and function (minimum LAVi and KT index, a marker of LV function) appears to have a better correlation to invasive PCWP than E/e′.²³ The main limitation was the poor reproducibility for the novel KT index. In patients with AS, a single small study demonstrated promising results for E/e′ (r = 0.72, 95% CI 0.47–0.86), but more evidence is needed to predict LVFP in this cohort. We did not identify any study that has developed personalized non-invasive models in either mitral stenosis or aortic regurgitation.

Patients with HFpEF represent the second largest group where LVFP has been studied non-invasively. The pooled correlation with invasive LVFP was modest. Maeder et al. demonstrated that E/e′ has a weak association to LVFP in patients with HFpEF.¹⁹ Two other studies by Hummel et al. and by Ommen et al. again confirmed a poor correlation of LVEDP to E/e′.^{10, 25} The only study showing promising correlation and high clinical applicability within HFpEF was Obokata et al. (r = 0.63, 95% CI 0.43–0.77, n = 50).²⁶ They also identified the incremental role of non-invasive stress E/e′ to improve diagnostic sensitivity.

In HFrEF, the pooled correlation coefficient was much stronger for clinical translation across five studies. However, only one study demonstrated excellent clinical applicability for estimating LVFP by an integrated equation focusing on MIV profile (E3) (Temporelli et al.).²⁹ The main limitation of this proposed equation is that no validation via a multicentre trial has been undertaken to support widespread clinical adoption. Cameli et al. demonstrated a strong correlation using LA strain parameters in HFrEF in a small study of 36 patients. In patients with CAD, the pooled association was only modest, and both studies that specifically recruited CAD patients demonstrated only medium to limited clinical applicability.

Further, our study is unique due to its prominent inclusion of heterogeneous patient populations, consisting of a number of cardiac pathologies as well as patients with normal LVFP. While the algorithm laid out in ASE/EACVI 2016 recommendations excludes patients without cardiac pathologies,⁶ we decided a heterogeneous cohort better matches that seen in clinical practice, where diagnoses are often unclear at the time the algorithm is applied.³⁴ This decision is supported by our finding that the most clinically applicable methods comprised the heterogeneous cohorts.^{7-9, 28} These studies demonstrated good association and scored high on the modified CASP. However, one of these studies was on only intubated patients.⁷ Nonetheless, Nagueh et al. recruited a combination of intubated and non-intubated patients to derive their non-invasive equation and overall, demonstrated a high correlation coefficient of 0.87.⁸ However, overall, there is a lack of clarity of evidence in HFpEF patients supporting the routine clinical use of E/e′ as an accurate estimate of LVFP.

Comparisons with other recent meta-analyses

Sharifov et al. undertook a systematic review and meta-analysis of 24 studies investigating the correlation between invasive LVFP using non-invasive E/e′ in patients with HFpEF.³⁵ However, there are differences between ours and the Sharifov et al. work. Firstly, the majority of their included studies did not perform simultaneous echocardiography and right heart catheterization. Our study has addressed this issue, with 26/27 of our included studies having simultaneous investigation. Sharifov et al. concluded a lack of evidence for a substantive correlation with E/e′, requiring further validation, and this statement is supported by our findings. Furthermore, Nauta et al. also performed a systematic review studying the correlation between echocardiographically estimated and invasively measured LVFP in patients with HFpEF and again found a modest correlation using the E/e′ method.³⁶ This study further considered the prognostic relevance of this, demonstrating improvements when using multiple parameters simultaneously. These conclusions strengthen our findings on the utility of integrated approaches. These studies, however, are limited to HFpEF cohorts. Our meta-analysis has divided patients by a variety of diagnoses, providing a broader view of the usefulness of echocardiography in estimating LVFP in HF.

Context, implications for health policy, and future research

It is clear that one single non-invasive echocardiographic parameter cannot reliably estimate LVFP across all cardiovascular pathologies. Importantly, in HFpEF, where it is critically important to have such a non-invasive diagnostic tool, we have very limited evidence to support any current single or even integrated method by echocardiography. This meta-analysis supports previous publications calling for further research to validate non-invasive LVFP estimates in HFpEF. Future studies should consider robust clinical validation including reproducibility tests, which was identified as one of the reasons why some studies were less clinically applicable. When reporting correlation coefficients, the studies should also report either bias or standard error, between non-invasive and invasive methods. In patients with HFrEF, the evidence is much stronger, and a cautious approach to inform LVFP can be applied.

Limitations

In this systematic review and meta-analysis, we did not include studies specifically looking at the diagnostic accuracy of any echocardiographic metric or integrated equation on a categorical scale. Hence, we did not report studies that have performed sensitivity/specificity analysis. We did this intentionally to investigate the true continuum of any non-invasive method vs. the reference invasive method. In addition, this work did not evaluate the prognostic role of non-invasive echocardiographic parameters.
