Does cardiac resynchronization therapy restore peripheral circulatory homeostasis?
Institutions where work was performed: (A) The Queen Elizabeth Hospital, 28 Woodville Road, Woodville South, South Australia. (B) Basil Hetzel Institute, Woodville South, South Australia (C) The Lyell McEwin Hospital, Haydown Road, Elizabeth Vale, South Australia (D) The Flinders Medical Centre, Flinders Drive, Bedford Park, South Australia
Abstract
Aims
To evaluate whether peripheral circulatory ‘remodelling’ as measured by changes in vascular compliance and in markers of nitric oxide signalling contributes to patient response to cardiac resynchronization therapy (CRT).
Methods and results
Effects of CRT were evaluated in 33 patients pre-procedure and 6 months post-procedure. Peak oxygen consumption, 6 min walk distance, New York Heart Association class, and quality of life score were evaluated. Augmentation index and its interactions with nitric oxide (NO) were evaluated by applanation tonometry. Platelet NO responsiveness and content of thioredoxin-interacting protein were assessed. Plasma concentrations of N-terminal proBNP, asymmetric and symmetric dimethylarginine (SDMA), high sensitivity C-reactive protein, catecholamines, and matrix metalloproteinases-2 and -9 were assessed. Despite significant improvement in 6 min walk distance (P = 0.005), New York Heart Association class (P < 0.001), quality of life (P = 0.001), and all echocardiographic parameters post-CRT, there were no significant changes in augmentation index measurements, thioredoxin-interacting protein content, and platelet NO response. Significant falls in N-terminal proBNP (P = 0.008) and SDMA (P = 0.013; independent of renal function) occurred. Falls in SDMA predicted reduction in high-sensitivity C-reactive protein (P = 0.04) and increases in peak oxygen consumption (P = 0.04). There were no correlations between changes in echocardiographic parameters and those in vascular function.
Conclusions
These data suggest that the beneficial effects of CRT over 6 months are independent of any change in peripheral NO-related signalling. However, there is evidence that suppression of inflammation occurs, and its magnitude predicts extent of clinical improvement.
Introduction
Over the last two decades, as a result of several landmark trials demonstrating mortality and morbidity benefits with cardiac resynchronization therapy (CRT) with or without defibrillation insertion,1-3 CRT has become a standard of care in select patients with systolic heart failure and concomitant left ventricular dyssynchrony. Substantial limitations of CRT include not only the 30–40% of recipients classified as ‘non-responders’2 but also significant heterogeneity in the commonly used criteria of response and poor agreement between these different clinical and echocardiographic parameters of response.4 There has been considerable interest in understanding the mechanisms underlying benefits associated with CRT and specifically whether these arise purely from mechanical correction of dyssynchrony. Of particular interest is the putative effect of CRT on peripheral vascular function. Two small studies have shown consistent improvement in microvascular cutaneous reactive hyperaemia post-CRT insertion,5, 6 while studies of the effects of CRT on large conduit vessels utilizing flow-mediated [i.e. nitric oxide (NO)-dependent] dilatation (FMD) have shown conflicting results.7-9 In this present study, we sought to evaluate the effect of CRT on peripheral vascular function and associated markers of inflammation, as well as vascular and platelet NO signalling, we also examined the effects of CRT on parameters of inflammatory and neurohumoral activation.
- To evaluate whether the optimal outcome post-CRT is engendered not only by reversal of left ventricular systolic dysfunction but also by amelioration of peripheral circulatory dysfunction.
- To evaluate the effects of CRT on neurohumoral activation.
Methods
Thirty-three patients with conventional indications for CRT were prospectively evaluated before and 6 months after CRT insertion. Clinical characteristics were noted, including New York Heart Association functional class status, and quality of life was evaluated using the standard (and well-validated) Minnesota Living with Heart Failure Questionnaire.
Exercise capacity was evaluated both by 6 min walk distance and by cardiopulmonary exercise testing.
Six minute walk distance
The protocol for the 6 min walk distance has been described.10 This test was performed indoors in a dedicated and marked hallway that is 30 m long with a hard floor. Cones were used to delineate the turn-around points. The procedure was duly explained, and patients were asked to walk as far as possible and as fast as they could for a timed period of 6 min. They were allowed to slow down, to rest or to lean against the wall if necessary, at their own discretion, and to resume walking again at their possible fastest pace. Running or jogging was not allowed. The test was terminated if a patient developed chest pain, became unduly dyspnoeic, or looked ashen with significant diaphoresis. If any patient ordinarily mobilized with a walking aid, he or she was allowed to use the same during the test. The maximum distance walked at 6 min was recorded for each patient.
Cardiopulmonary exercise testing
Cardiopulmonary exercise testing was performed according to established guidelines.11 Briefly, a bicycle ergometer (Model: ergoline/100/200 GmbH, Germany) and linked to ExpAir Medisoft S.A Belgique 1.31.02 software were utilized in all cases. Before performing each test, the equipment was calibrated both for airflow and volume, including low and high flows (with calculated volumes within ±3%) using a 3 L syringe and also for gases with carbon dioxide set at 4% and oxygen at 20%. A semi-automated progressive incremental (ramp) protocol in which the pre-test was set at 0 W while the workload started from 10 W and increased by 10 W every minute was used. Patients pedalled for a minute on the pre-test setting of 0 W before loading commenced. They were encouraged to exercise as long as possible, ideally for up to 8 to 12 min, and especially aiming to achieve a respiratory exchange ratio of 1 and above, with cycling rate kept at 60–70 revolutions per minute. Volitional exhaustion was the usual endpoint although exercise was terminated if a patient developed chest pain, acute ischaemic changes on the electrocardiogram, or hypotension. After unloading, the patient pedalled for a further 1 min. Measurements of oxygen consumption (VO2), carbon dioxide output, ventilator equivalent, and respiratory exchange ratio were automatically acquired and finally averaged and displayed at 10 s interval. The highest reading of the three last averages at peak exercise was chosen as the peak oxygen consumption (VO2 max).
Echocardiographic measurements
All echocardiographic measurements were performed according to the American Society of Echocardiography and the European Association of Cardiovascular Imaging guidelines.12 A Phillips echocardiogram machine model iE33, 2009, Bothell WA, 98041 USA was used for image acquisition, and analyses were performed using Echopac Software Only BT 11 Version 113, 2013 General Electric Co. M-mode echocardiographic analysis was used to assess left ventricular interventricular dyssynchrony. Septal to posterior wall delay was calculated as the time difference between the onset of the QRS to that of the peak of deformation of the inter-ventricular septum and the left ventricular posterior. Although extent of dyssynchrony was analysed as a continuum, septal to posterior wall delay of 130 ms or more was considered diagnostic of clinically significant of intraventricular mechanical dyssynchrony.13 Left ventricular volumes including end-diastolic, end-systolic, and stroke volumes were measured in two dimensions and ejection fraction calculated by the modified Simpson's method in biplane using 2D images.
Vascular endothelial function
Vascular endothelial function was assessed by changes in augmentation index (AIX) using radial artery applanation tonometry as previously described.14 Briefly, patients were first rested in a supine position for 30 min. Using a commercially available pulse waveform analyser, the SphygmoCor system (AtCor Medical, Sydney, Australia, model CvMS V9), baseline AIX was computed as the average of three readings. Sublingual glycerine trinitrate (GTN 300 μg) was administered and AIX remeasured every 5 min for 20 min. The difference between the lowest value of AIX with GTN and the baseline AIX (that is, the maximum fall in AIX with GTN) was utilized as a measure of endothelium-independent NO signalling. Subsequently, 400 μg of inhaled salbutamol was administered, and measurements were repeated every 5 min for 20 min. The difference between the lowest AIX with salbutamol and the baseline (the maximum fall in AIX with salbutamol) represents a measure of endothelium-dependent NO signalling.15 Using the acquired radial artery waveform, a validated, generalized transfer function was used to generate the corresponding central aortic pressure waveform from which AIX values were calculated. All measurements were indexed to a heart rate of 75 b.p.m., and only high fidelity tracings were used.
Platelet expression of thioredoxin-interacting protein
Platelet expression of thioredoxin-interacting protein (TXNIP) was quantified by immunofluorescence as previously described.16 Briefly, blood was collected in ethylenediaminetetraacetic acid (EDTA) tubes and spun at 250 g for 10 min at room temperature. Slides were smeared, air-dried, and fixed with 4% paraformaldehyde and stored in −70°C freezer, and immunofluorescence staining performed within 6 months.
For immunofluorescence staining, the slides were allowed to warm to room temperature and then washed three times in phosphate-buffered saline (PBS) for 5 min per wash. A 100 μL of diluted goat's serum 1:5 with PBS (as a blocking solution) was added and incubated at room temperature for 30 min. Primary antibody was prepared by diluting rabbit anti-Vitamin D3 Up-regulated Protein (VDUP) TXNIP, (Invitrogen Corporation, Carlsbad, CA, USA) with 1% (w/v) bovine serum albumin in PBS in 1:50 ratio. The blocking solution was discarded without washing the slides, and then, 100 μL of the primary antibody was added and incubated overnight at 2–4°C. The primary antibody was discarded the next day, and the slides were washed three times in PBS for 5 min per wash. Two conjugated 2° antibodies: dilute phycoerythrin-labelled CD41 antibody (Becton, Dickinson and Company, USA), in 1:50 with PBS, serving as a platelet marker, and dilute fluorescein isothiocyanate-labelled anti-rabbit polyclonal antibody (Becton, Dickinson and Company, USA), in 1:100 with PBS were prepared while shielded from light. A 100 μL of each of the 2° antibodies was added to the slide and incubated at room temperature for 60 min. The slides were again washed three times in PBS for 5 min per wash, dried with lens tissue, and one drop of Dako fluorescent mounting medium was added, covered with a slip, and allowed to sit at room temperature for 10 min. Image acquisition was performed with Carl Zeiss Microscope, Germany, using ×400 magnification, multichannel for rhodamine and green fluorescent protein and exposure time set at 5000 ms. The intensities of TXNIP staining for each platelet were obtained utilizing image analysis software (AxioVision 40 version 4.8.2, Carl Zeiss Microscopy, Germany)
Subsequent analysis or counting was performed by randomly identifying 100 platelets per slide and average TXNIP obtained.
Asymmetric dimethylarginine and symmetric dimethylarginine
For asymmetric dimethylarginine (ADMA) and symmetric dimethylarginine (SDMA) concentration estimation in plasma, 10 mL of blood was collected in heparinized tubes and immediately put in ice, before centrifugation at 4°C at 1800 g for 15 min. Plasma was collected in Eppendorf tubes and stored at −70°C until analysed. Plasma ADMA and SDMA concentrations were determined by high performance liquid chromatography, as described previously.17 Briefly, this involved extraction, derivatization with fluorescent derivatizing reagent (AccQ-Fluor™), and chromatography.
Matrix metalloproteinase-2 and matrix metalloproteinase-9
Matrix metalloproteinase-2 was estimated from blood samples collected in EDTA tubes, while matrix metalloproteinase-9 was estimated from blood samples collected in heparinized tubes. For both, collected blood was immediately put in ice and was centrifuged for 15 min at 1800 g at 4°C within 30 min of collection. Platelet-poor plasma was collected and stored at −70°C until analysed. Assays were performed with R&D Quantikine quantitative sandwich enzyme-linked immunosorbent assay (ELISA) kits (R&D Systems Ltd, Minneapolis USA) according to the manufacturer's instructions. Plasma concentrations of matrix metalloproteinase-2 and matrix metalloproteinase-9 were determined by ELISA (R&D Systems Ltd) according to manufacturer's instructions.
Platelet aggregometry test; responsiveness to nitric oxide
Platelet response to NO was assessed in vitro in whole blood using a 4-channel impedance aggregometer (Chrono-Log Corporation, model 700) according to a previously described protocol, which required temporary interruption of therapy with P2Y12 receptor antagonists.18 Briefly, 9 mL of blood was collected into plastic tubes containing 1 mL of acid citrate anticoagulant. The blood was allowed to stand at room temperature for 20 min before testing. A 500 μL of normal saline was pre-warmed to 37°C in a 4-channel impedance aggregometer after which 450 μL of whole blood was added to the saline and both pre-warmed for 5 min. All tests were run at 37°C and a stirring speed of 900 rpm. Platelet aggregation was induced with adenosine 5′-diphosphate (ADP) (2.5 μM), and responses were measured as an increase in impedance (in Ohms), at 7 min. When NO donor sodium nitroprusside (10 μM) was added to samples 1 min before adenosine 5′-diphosphate, the resultant inhibition of aggregation was evaluated as a percentage relative to control.
N-terminal proBNP levels
These were analysed by the South Australia Pathology laboratory at the Queen Elizabeth Hospital. Samples were collected in heparinized tubes and analysed for N-Terminal proBNP with the Elecsys proBNP system (Roche diagnostics GmbH, Sandhofer Strasse 116, D-68305 Mannheim). The Sandwich principle was used: this involves a first incubation with a biotinylated monoclonal NT-proBNP-specific antibody and a monoclonal NT-proBNP-specific antibody labelled with a ruthenium complex. A second incubation was performed with the addition of streptavidin-coated microparticles, and the microparticles were subsequently captured on the surface of the electrode magnetically. A photomultiplier finally measured the chemiluminescent emission induced by application of voltage to the electrode.
Plasma metanephrine and normetanephrine
Analyses for catecholamine metabolites were performed with fresh samples collected in K3EDTA bottles and analysed utilizing liquid chromatography-tandem spectrometry. The upper limits of the normal ranges for plasma concentrations were <500 pmol/L for free metanephrine and <900 pmol/L for free normetanephrine.
High sensitivity C-reactive protein
Samples were collected in K3EDTA bottles and analysed by the immuno-turbidimetric quantification method on Beckman Coulter AU analysers (Beckman Coulter, Inc., Brea, CA, USA) according to the manufacturer's recommendations.
Ethics approval
The study complies with the Declaration of Helsinki, and approval for the study was granted by the Ethics and Human Research Committee of The Queen Elizabeth Hospital. All participants provided prior written informed consent.
Statistical analyses
The power of the study was calculated on the basis of variability in responsiveness of AIX to salbutamol and was approximately 80% to detect a 5% variation in response at P < 0.05.
All data are expressed as mean ± standard deviation unless stated otherwise. The effects of cardiac resynchronization therapy on clinical, biochemical, endothelial, and echocardiographic parameters were assessed using paired t-test for normally distributed variables and Wilcoxon matched-pairs signed-rank test for non-parametric data. Each patient served as his/her control. Interactions between changes in left ventricular contractility and endothelial functions as well as the interactions between changes in function and neurohumoral parameters were correlated using Pearson correlation coefficients for normally distributed data and Spearman correlation for non-parametric data. Relationship between categorical changes in SDMA and changes in high-sensitivity C-reactive protein concentrations and in VO2 max were evaluated by non-paired t-tests. A two-tailed P value < 0.05 was considered statistically significant.
All data were analysed with Prism 6 for Mac OS X version 6.0h October 2015.
Results
The baseline characteristics of patients are listed in Tables 1 and 2. The mean QRS duration was 158.7 ± 23.6 ms. Approximately half of the patients had an ischaemic aetiology of heart failure, and the majority were in New York Heart Association functional class III–IV pre-CRT implantation. All patients were also extensively treated for heart failure, and the majority were receiving β-adrenoceptor antagonists. One patient died 2 months after CRT insertion, while three patients declined the 6 month follow-up visit. Among the whole cohort, there was significant improvement post-CRT in all echocardiographic parameters and in all clinical parameters, with the exception of VO2 max, as shown in Figures 1 and 2 and Table 3. There was no significant change overall in vascular and platelet functions except for a statistically significant reduction in plasma concentrations of SDMA (paired t-test, P = 0.013).
| Age (years) | 71.2 ± 9.7 |
| Female, n (%) | 10 (30.3) |
| Weight (kg) | 87.1 ± 18.6 |
| Height (cm) | 172.5 ± 8.1 |
| BMI (kg/m2) | 29.3 ± 6.1 |
| Ischaemic aetiology of CHF, n (%) | 17 (52) |
| History of current/past smoking, n (%) | 19 (57.6) |
| NYHA class | |
| • I, n (%) | 3 (9) |
| • II, n (%) | 7 (21) |
| • III, n (%) | 19 (58) |
| • IV, n (%) | 4 (12) |
| Comorbidities | |
| • Hypertension, n (%) | 21 (64) |
| • Diabetes, n (%) | 14 (42) |
| • COPD, n (%) | 4 (12) |
| • Atrial fibrillation, n (%) | 5 (15) |
| Medications | |
| • ACE inhibitor | 22 (67) |
| • Angiotensin receptor blocker | 8 (24) |
| • β-adrenoceptor blocker | 25 (76) |
| • Aldosterone Antagonist | 18 (55) |
| • Digoxin | 9 (27) |
| • Frusemide | 24 (73) |
| • Statin | 18 (55) |
| • Aspirin | 17 (52) |
| • Clopidogrel | 7 (21) |
| • Perhexiline | 5 (15) |
| Clinical assessment | |
| Systolic BP (mmHg) | 126.4 ± 17.1 |
| Diastolic BP (mmHg) | 71.2 ± 9.2 |
| Heart rate (b.p.m.) | 69 ± 13.6 |
| 6MWD (m) | 321.74 ± 104.62 |
| VO2 max (mL/min/kg) | 13.8 ± 4.7 |
| QOL score | 41.9 ± 25.6 |
| Biochemistry | |
| NT-proBNP (ng/L) | 1814.0 (1091–3073) |
| eGFR (mL/min/1.73 m2) | 56.4 ± 22.2 |
| Plasma metanephrine (pmol/L) | 252.1 ± 158.3 |
| Plasma normetanephrine (pmol/L) | 996.5 ± 396.2 |
| Plasma MMP-2 (ng/mL) | 217.5 ± 51.2 |
| Plasma MMP-9 (ng/mL) | 27.7 ± 9.1 |
| high-sensitivity C-reactive protein (mg/L) | 2.4 (1.4–6.1) |
| Ventricular function | |
| LVESV (mL) | 137.4 ± 55.3 |
| LVEDV (mL) | 192.8 ± 67.4 |
| EF (%) | 29.8 ± 6.1 |
| SPWD (ms) | 120.0 ± 195.0 |
| IVMD (ms) | 43.9 ± 44.0 |
- 6MWD, 6 min walk distance; ACE, angiotensin-converting enzyme; BMI, body mass index; BP, blood pressure; CHF, chronic heart failure; COPD, chronic obstructive pulmonary disease; CRT, cardiac resynchronization therapy; EF, ejection fraction; eGFR, estimated glomerular filtration rate; IVMD, interventricular mechanical delay; LVEDV, left ventricular end-diastolic volume; LVESV, left ventricular end-systolic volume; MMP, matrix metalloproteinase; NT-proBNP, N terminal proBNP; NYHA, New York Heart Association; QOL, quality of life; SPWD, septal to posterior wall delay; VO2 max, peak oxygen consumption during exercise.
- Normally distributed data are mean ± SD; skewed data are expressed as median values and interquartile values.
| Baseline AIX (%) | 19.9 ± 7.8 |
| GTN AIX change (%) | −13.9 ± 10.0 |
| Salbutamol AIX change (%) | −11.3 ± 10.2 |
| ADMA (μM) | 0.6 ± 0.07 |
| SDMA (μM) | 0.73 (0.60–1.0) |
| Platelet SNP response (%) | 33.9 ± 26.5 |
| Platelet TXNIP (AU) | 136.9 ± 111.2 |
- ADMA, asymmetric dimethyl arginine; AIX, augmentation index; CRT, cardiac resynchronization therapy; GTN, glycerine trinitrate; SDMA, symmetric dimethyl arginine; SNP, sodium nitroprusside; TXNIP, thioredoxin-interacting protein.
- Normally distributed data are mean ± SD; skewed data are expressed as median values and interquartile values.
| Parameters | Pre-CRT | Post-CRT | P-value |
|---|---|---|---|
| Clinical | |||
| NYHA | 2.7 (0.8) | 1.9 (0.7) | <0.001 |
| VO2 max (mL/min/kg) | 13.8 (4.67) | 14.1 (5.3) | NS |
| 6MWD (M) | 314.5 (112.8) | 357.0 (117.0) | 0.005 |
| QOL score | 40.7 (25.4) | 22.9 (22.3) | 0.001 |
| Vascular and Platelet | |||
| Baseline AIX (%) | 20.3 (8.2) | 20.3 (8.1) | NS |
| GTN response [AIX change (%)] | −14.1 (10.0) | −16.6 (8.1) | NS |
| Salbutamol response [AIX change (%)] | −9.9 (10.5) | −11.9 (8.3) | NS |
| SNP response (%) | 30.5 (21.8) | 25.2 (19.7) | NS |
| TXNIP (AU) | 144.8 (122.6) | 188.5 (126.6) | NS |
| ADMA (μM) | 0.66 (0.08) | 0.65 (0.09) | NS |
| SDMA (μM) | 0.83 (0.28) | 0.74 (0.20) | 0.013 |
| Biochemistry | |||
| Plasma metanephrine (pmol/L) | 257.8 (167.2) | 239.2 (88.8) | NS |
| Plasma normetanephrine (pmol/L) | 918.8 (356.6) | 900.7 (295.6) | NS |
| NT-proBNP (ng/L) | 1862 (1091–3185) | 1469 (774–2841) | 0.008 |
| MMP-2 (ng/mL) | 217.2 (52.5) | 219.8 (49.9) | NS |
| MMP-9 (ng/mL) | 27.5 (9.6) | 26.5 (10.0) | NS |
| High-sensitivity C-reactive protein (mg/L) | 2.4 (1.4–7.1) | 3.5 (1.6–11.0) | NS |
| Echocardiographic | |||
| LV ejection fraction (%) | 31.0 (6) | 38 (10) | <0.001 |
| LVESV (mL) | 136.6 (57.5) | 98.9 (52.1) | <0.001 |
| SPWD (ms) | 119.1 (201.2) | 1.74 (141.4) | 0.007 |
| IVMD (ms) | 43.6 (44.6) | 19.9 (33.9) | 0.008 |
- 6MWD, 6 min walk distance; ADMA, asymmetric dimethyl arginine; AIX, augmentation index; CRT, cardiac resynchronization therapy; GTN, glycerine trinitrate; IVMD, interventricular mechanical delay; LV, left ventricular; LVESV, left ventricular end-systolic volume; MMP, matrix metalloproteinase; NS, non-significant; NT-proBNP, N terminal proBNP; NYHA, New York Heart Association; QOL, quality of life; SDMA, symmetric dimethyl arginine; SNP, sodium nitroprusside; SPWD, septal to posterior wall delay; VO2 max, peak oxygen consumption; TXNIP, thioredoxin-interacting protein.

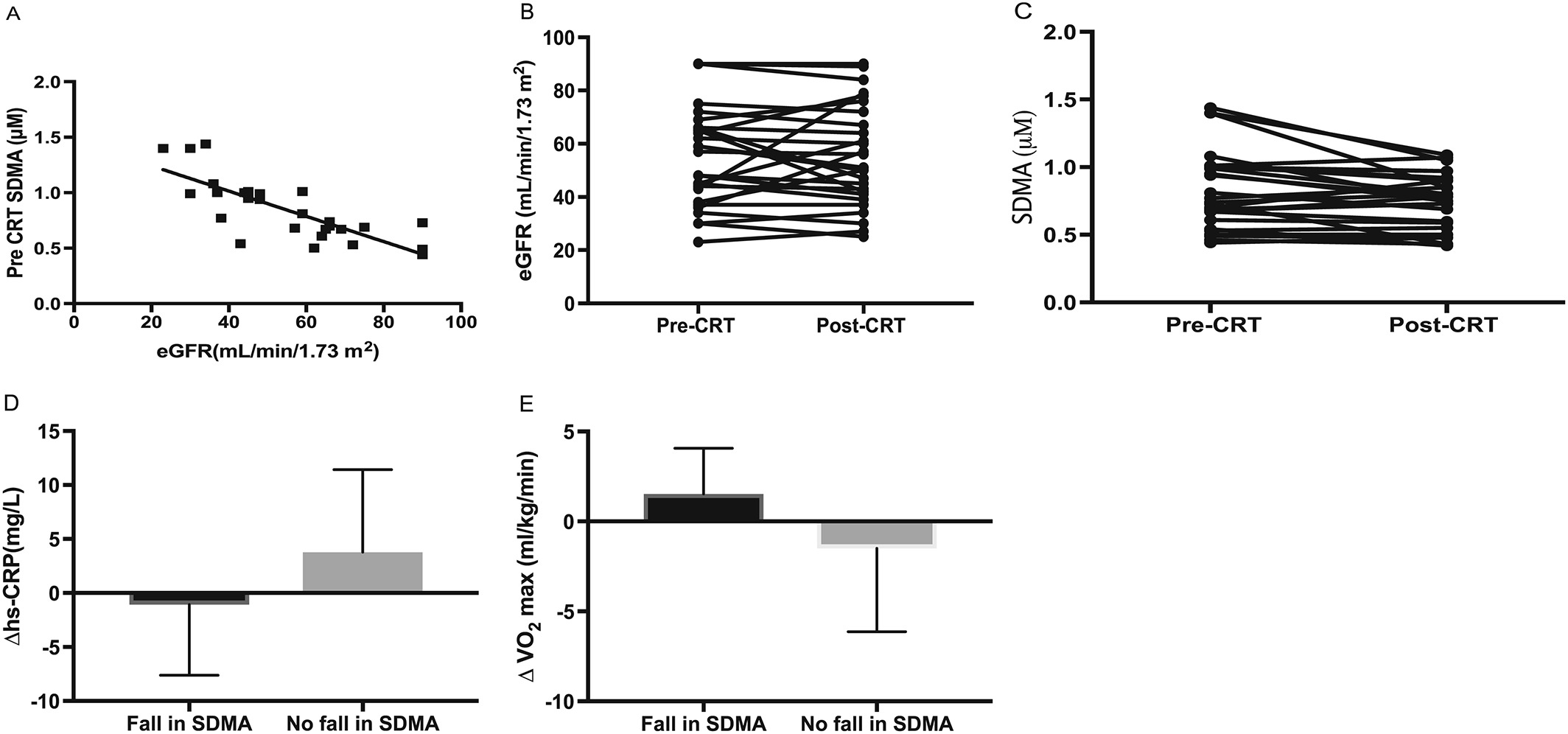

As shown in Figure 3A–C, although a statistically significant inverse correlation existed at baseline between estimated glomerular filtration rate and SDMA concentration, at 6 months, significant decreases in plasma levels of SDMA had occurred without any change in estimated glomerular filtration rate. It is therefore unlikely that changes in renal function had contributed to the observed fall in SDMA levels. A categorical reduction in SDMA concentrations was predictive of both a reduction in high-sensitivity C-reactive protein concentrations (P = 0.04: Figure 3D) and an increase in VO2 max (P = 0.04: Figure 3E). With regard to neurohumoral and inflammatory activation, there was a statistically significant reduction in plasma levels of NT-proBNP (paired t-test, P = 0.008) but no significant change in any other marker of NO signalling or of inflammatory activation. It must be noted, however, that in the absence of significant changes, effects of both salbutamol and GTN on AIX tended to increase (by about 20%). On univariate analysis, there was no significant correlation between change at 6 months in left ventricular end-systolic volume and changes at 6 months in baseline AIX, GTN-mediated fall in AIX, salbutamol-mediated fall in AIX, or with platelet NO response.
Discussion

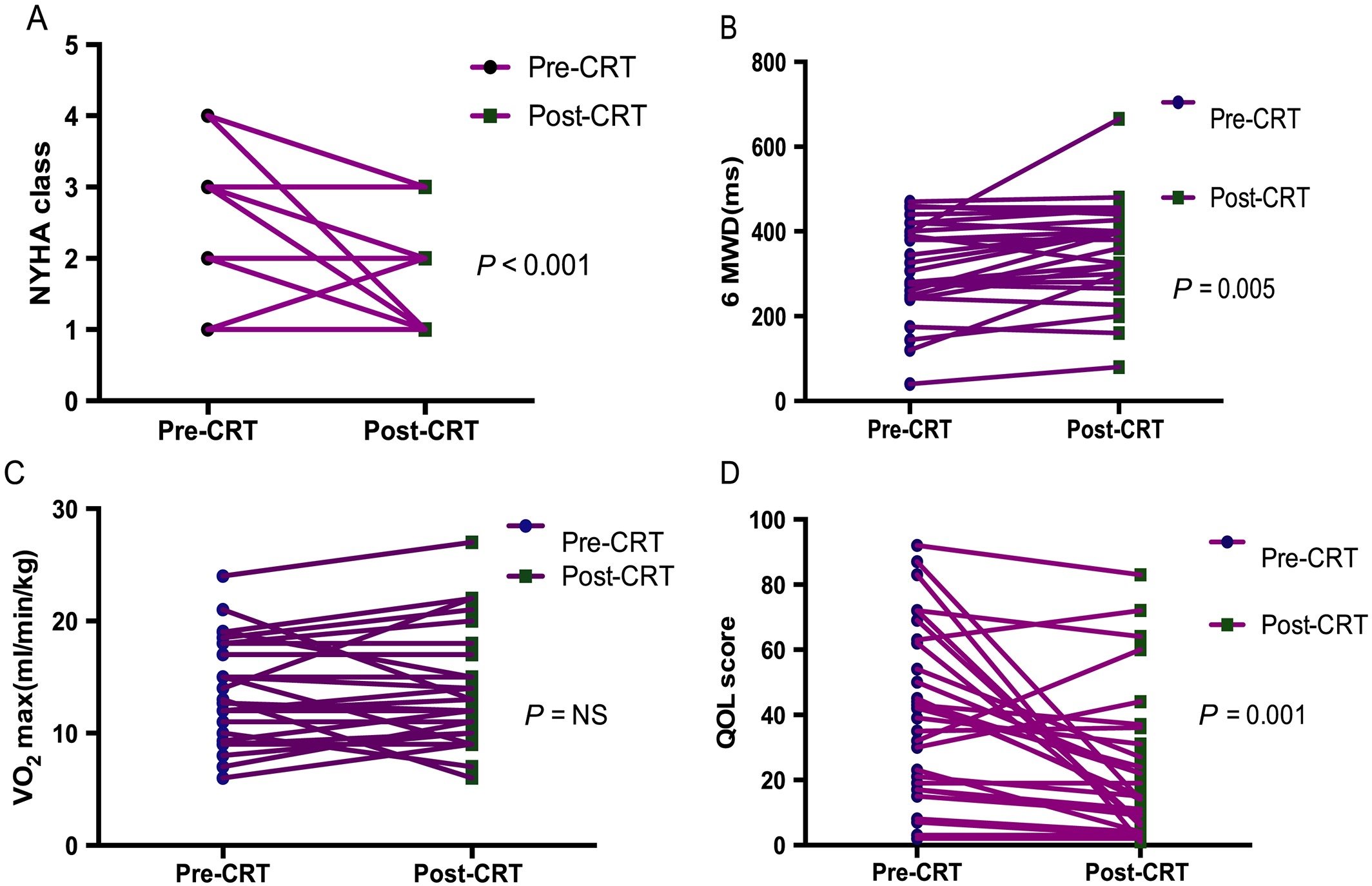

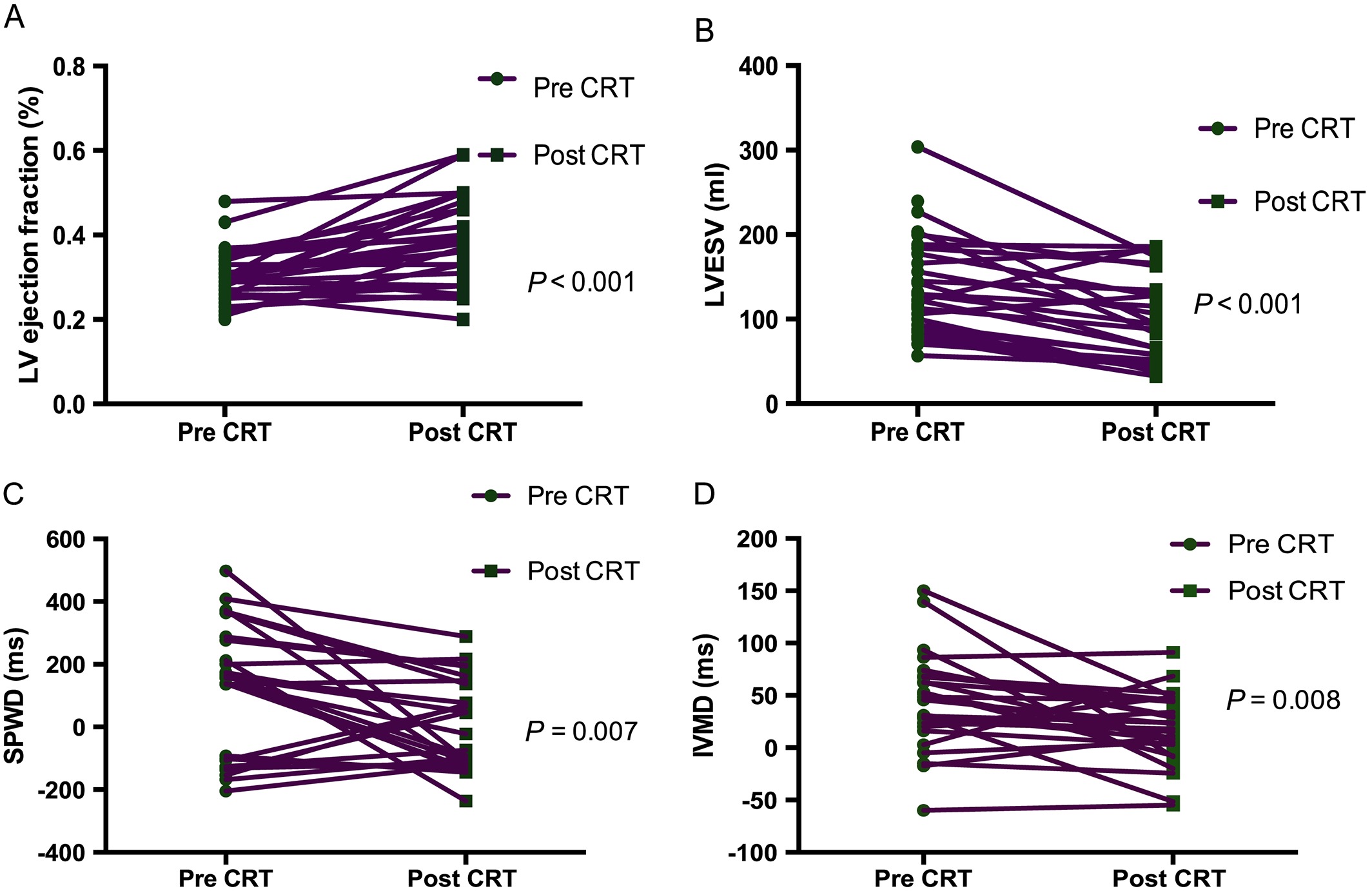

In this study, the first point to be noted is perhaps the fact that the cohort on the whole ‘responded’ to CRT, in the sense that there was significant improvement in parameters of left ventricular ejection fraction, as well as significant improvement in symptomatic status as shown in Table 3. Therefore, we have a cohort in whom there was effective mechanical cardiac resynchronization; otherwise, it would have been futile for us to proceed with the pursuit of understanding of any further mechanistic effect of CRT. The lack of statistically significant improvement in VO2 max was similar to the results of some previously reported CRT studies19, 20 although CRT has also been shown to improve VO2 max.2 In addition, there was a significant reduction in the plasma concentrations of N-terminal proBNP, a similar finding to the CARE-HF trial.2 In this regard, a post hoc analysis of the MADIT-CRT trial21 found that reduction in BNP following CRT was associated with significant decrease in hospitalized heart failure and mortality.
In spite of these salutary effects of CRT in our cohort, there was no significant change in conventional markers of peripheral vascular endothelial function as assessed by AIX with radial artery applanation tonometry. Specifically, there were no significant changes either in baseline AIX or in endothelium-independent and endothelial-dependent AIX, as assessed with GTN and salbutamol, respectively. A potential confounder to this apparent lack of effect on vascular endothelial function is the possibility that CRT may indeed have opposing effects on AIX: by increasing stroke volume into non-compliant vessels with already depressed Windkessel effect, there would be an increase in the velocity of both the forward and the reflected waves in the peripheral vasculature. It is also possible that extensive pharmacological treatment of our cohort for heart failure and dyslipidemia may have resulted in pre-CRT improvement of vascular endothelial function. Statins, for instance, are known to cause a reduction in aortic AIX,22 Angiotensin-converting enzyme inhibitors (ACE-I) also significantly reduce AIX,23 and 91% of our cohort were receiving ACE-I or angiotensin receptor blocker. It is also possible, given the observation of a (non-significant) 20% improvement on vascular responsiveness to salbutamol and GTN post-CRT, that a small improvement in these parameters might have been obscured via type II error. Indeed, the probability of detecting a change of less than 0.5 SD of baseline values would have been less than 80%. In the case of responses to salbutamol, for example, an absolute improvement of less than 5% might have gone undetected. In addition, the use of β-adrenoceptor antagonists would potentially blunt the effect of salbutamol on AIX, thus obscuring the effect of CRT. Interestingly, the study cohort included 24% of patients who were not receiving β-adrenoceptor antagonists presumably because of contra-indications and/or prior adverse effects. However at baseline, there was no significant difference in AIX response to salbutamol between patients receiving and not receiving β-adrenoceptor antagonists.
The lack of effect of CRT on either basal or NO-stimulated AIX was somewhat different from the results of previous studies that utilized FMD as a criterion of NO-mediated arterial vasomotion. All of these have shown some evidence of improvement in FMD. Akar et al.7 observed that although patients with worse FMD of the brachial artery responded better to CRT and that these responders had improvement in FMD at 90 days, the overall improvement was not statistically significant (P = 0.12).
In a subsequent study of 57 patients, Santini et al.8 found that in a CRT cohort, significant improvement in FMD occurred in both responders and non-responders at 3, 6, and 12 months although with somewhat greater improvement in the responder group than in the non-responder group, with these results being only of borderline statistical significance. A recent study by Warriner et al.9 also found that lower FMD predicts response to CRT at 12 months. However, in their cohort, CRT did not result in significant improvement in FMD in either the responder group or the non-responder group. It is not completely clear to what extent the reported differential FMD responses in the Santini study represent the phenomenon of regression to the mean. In any case, we are unable to make direct comparisons in the current study. We did not measure FMD, essentially because AIX is a more reproducible parameter than FMD.24, 25 Importantly, in our study, CRT did not affect ADMA concentrations also indicating that NO generation via endothelial NO synthase activation was likely to be unaffected. In one previous study, high ADMA concentrations tended to predict poor responses to endothelial NO synthase activation by FMD.26 A further caveat concerning the current findings is that evaluation of changes in platelets and blood may not be fully representative of changes within the myocardium.
It might have been expected that CRT would tend to normalize patterns of arterial distention and thus decrease expression of TXNIP given that the latter is shear stress-dependent.27 However, no change in platelet TXNIP content occurred. In retrospect, there have been no previous direct studies of effects of CRT on arterial shear stress, and it may be that reversal of LV dyssynchrony has minimal effects on this parameter. Furthermore, platelet TXNIP expression is suppressed by NO signalling, such as are induced by ACE inhibitor therapy.28
A notable exception to the overall negative data in this study was the observed fall in plasma SDMA concentrations (Figure 3). This is most unlikely to be a ‘false positive’ given first, the P = 0.013 value. SDMA, unlike ADMA, is only a very weak inhibitor of NO synthase, but it is a substantial mediator of inflammatory change.29 This could not be explained by improved renal function, an important consideration because SDMA is excreted (mainly) unchanged in the urine.30 A fall in SDMA concentrations independent of alterations in renal function post-CRT may have reflected either decreased protein catabolism (representing the mechanism of formation of SDMA via the enzyme, protein arginine methyltransferase type II). Importantly, although there was no significant fluctuation in other inflammatory markers in the cohort as a whole, patients with a reduction in SDMA levels also had significant reductions in high-sensitivity C-reactive protein relative to those without a fall in SDMA, which further supports the concept that amelioration of inflammation activation may occur post-CRT. Interestingly, a fall in SDMA concentrations also predicted increases in VO2 max (Figure 3E)
In summary, in an extensively medically treated cohort of patients, CRT did not significantly alter markers of NO signalling. It is therefore unlikely that changes in NO signalling significantly contribute to the salutary effects of CRT within 6 months. However, there is some evidence that CRT may lead to suppression of inflammatory activation within the systemic circulation.
Acknowledgements
The authors wish to thank Jeanette Stansborough for her help with the logistics of the research and the 6 min walk distance. The authors thank Irene Stafford for ensuring the laboratory bench ran smoothly and also thank Adrian Elliott for initial assistance with performing cardiopulmonary exercise tests.
Conflict of interest
None declared.
Funding
This research was supported by The Queen Elizabeth Hospital Research Foundation, APA Grant to C.N.A. by the University of Adelaide, and the National Health and Medical Research Council of Australia (NHMRC) postgraduate scholarship to C.-R.C. (APP1075767).
