2.1 Evolving hybrid populations in SLiM

To test the power of E&R experimental evolution studies to map DMIs, we simulated the evolution of hybrid populations containing DMIs using SLiM software (3.3.1) (Haller & Messer, 2019). We created artificial autosomal genomes containing: (1) a single two-locus DMI or (2) a suite of 10 randomly placed two-locus DMIs, then tracked their evolution in populations that mimic the hybridization of two species. Each replicate population contained 1000 diploid individuals, which stayed constant across generations. Over time, genotypes that created DMIs were selected against and purged from the populations, leading toward fixation of one or the other parental allele which we then attempted to map from patterns of parallel allele frequency changes across replicated hybrid populations.

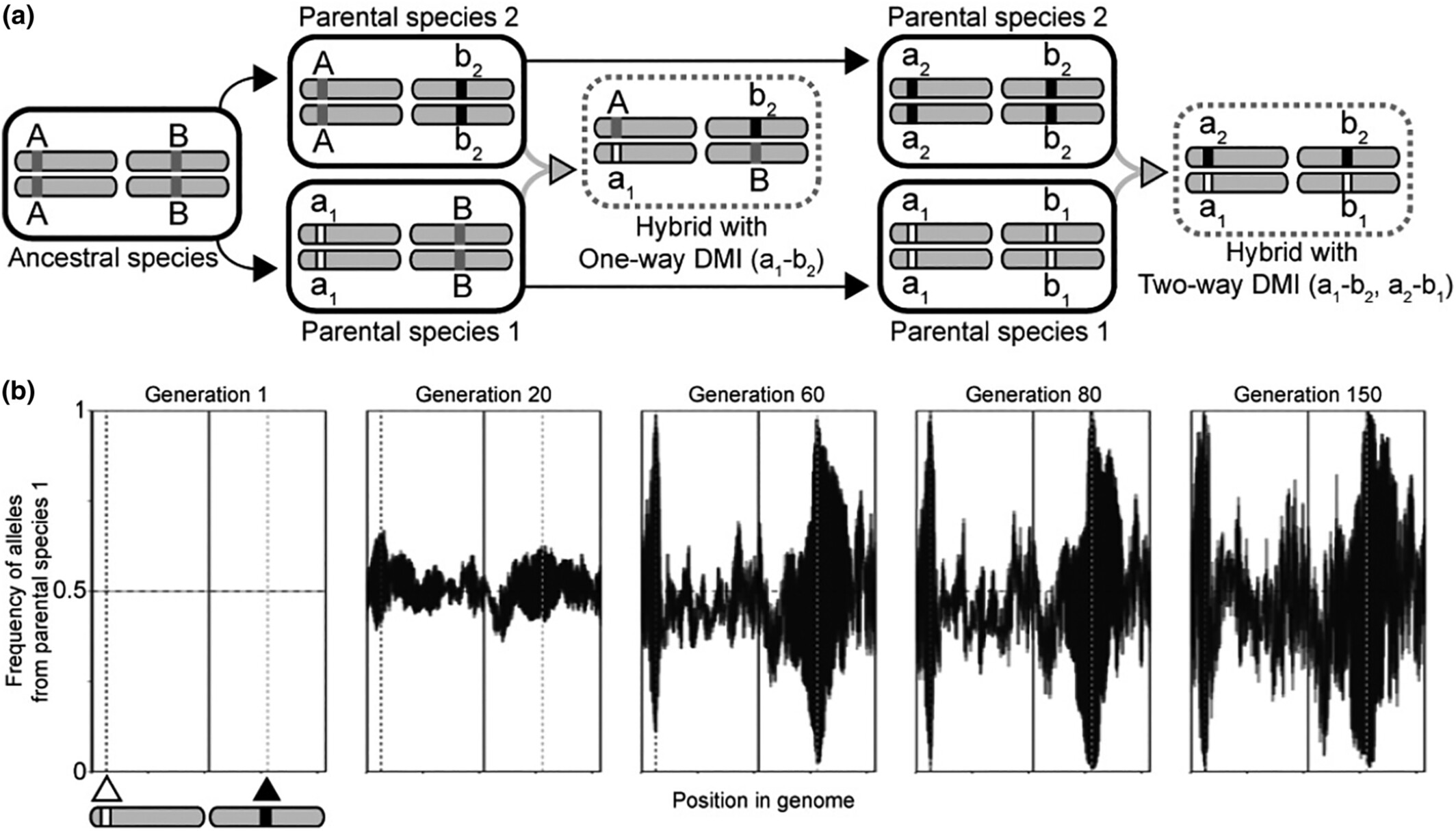

Each individual's genome started heterozygous at each locus, reflecting the logic that F₁ individuals that initialized the simulations would have inherited a distinguishable allele from each parental species (Figure 1). In the two-locus model, each locus of the DMI locus pair was linked to a separate autosome, with 10,000 evenly spaced neutrally evolving loci across the two autosomes as markers. No new mutations entered the populations over time. In the multi-locus model, the 20 loci that comprise 10 DMI pairs were randomly placed along two autosomes among an additional 10,000 evenly spaced neutrally evolving loci (approximately 1 marker per 2 kb). Because DMI locus positions in the multi-locus model were randomly assigned, they may overlap with neutrally evolving loci in some populations. While real-world systems might have >10,000 SNP markers, the LD between nearby markers over the modest timeframe of E&R would motivate pruning to a much smaller subset of diagnostic markers.

Each 20.8 Mb chromosome mimics the typical length of a Caenorhabditis chromosome (Teterina et al., 2020). Simulated genomes mimic the chromosome architecture of Caenorhabditis nematodes with a central region of low recombination and flanking arms of higher recombination (Rockman & Kruglyak, 2009), such that 50% of each chromosome is a low-recombination domain that contains 2500 neutral markers. Experimental evolution studies in Caenorhabditis, including C. elegans and C. remanei, commonly are run for tens to hundreds of generations (Gray & Cutter, 2014; Teotónio et al., 2017). Previous crosses between C. latens males and C. remanei females demonstrated X-autosome (causing hybrid male sterility), mito-autosomal, and autosomal-autosomal incompatibilities (the latter two responsible for inviability) (Bundus et al., 2018). The simulations, however, only consider autosome-autosome incompatibilities that are otherwise neutral, meaning that they do not individually confer a fitness advantage over alternative alleles. We also did not simulate explicitly the acquisition or analysis of short read sequence data, however, but assume that the simulated neutral marker loci represent distinguishable variants extracted from an E&R experiment. In this way, the simulation output may be used to guide the design of experiments with organisms such as C. latens and C. remanei to map hybrid incompatibilities between them.

We traced the evolutionary fate of alleles at DMI loci under a range of epistatic selection coefficients (s = 0.05, 0.2, 0.8 across all DMI pairs), interaction types (one-way or two-way interactions for the two-locus scenario), number of DMIs (multi-locus or two-locus scenarios with one-way interactions), and generation time sampling points (10–500 generations). Selection coefficients were chosen to allow us to investigate plausibly detectable effects ranging from mild to severe. For simulations of a single DMI pair, we encoded one DMI locus on an arm of one chromosome and the DMI partner locus on the center of the other chromosome (the high-recombination region “HRR” of 10 cM/Mb and low-recombination region “LRR” of 0.1 cM/Mb, respectively). For simulations of multiple DMI pairs, the DMI loci were randomly encoded throughout the two autosomes, irrespective of recombination regions; otherwise, the autosomes were constructed identically to those of the two-locus model. Parameter values were inspired by the biological range of what is known in Caenorhabditis species about chromosomal recombination landscapes and hybrid fitness (Bundus et al., 2018; Dey et al., 2014; Rockman & Kruglyak, 2009; Teterina et al., 2020). The simulated recombination rates are slightly more extreme than empirical averages, allowing these simulations to provide both high and low bounds with respect to less extreme recombination environments.

In modeling one-way incompatibilities, we followed the classical depiction of DMIs that occur when each parental species contributes only one allele to a derived-derived DMI pair (Figure 1). Alternate allele combinations at the two loci would be compatible, because they would include ancestral alleles shared by the two species (Figure 1). In two-way incompatibilities, by contrast, each allele contributed by a parent at a DMI locus is incompatible with both of the alleles that could be contributed by the other parent at the partner DMI locus. Two-way DMIs thus result in two incompatibility types involving four derived alleles at two loci (Figure 1), which can occur when distinct mutations arose and fixed at both loci in each species separately after they diverged from their common ancestor, or from negatively epistatic ancestral-ancestral and ancestral-derived allelic interactions (Figure 1).

For simplicity in the multi-locus case involving 10 pairwise one-way DMIs, we simulated only one dominance scenario such that both DMI alleles of a pair acted dominantly. For one-way DMIs of the two-locus model, by contrast, we considered four dominance scenarios. First, both DMI alleles at each locus acted dominantly (dominant × dominant), resulting in expression of the incompatibility regardless of whether an individual was homozygous or heterozygous at a given DMI locus, and manifesting in the F₁ generation. Second, both DMI alleles were recessive (recessive × recessive), resulting in expression of the incompatibility only when an individual was homozygous for both DMI alleles and thus manifesting only in the F₂ and later generations. For the final two dominance scenarios (dominant × recessive), dominance differed by recombination region: the DMI allele in the high-recombination region was recessive and the DMI allele in the low-recombination region was dominant, or vice versa. The 10 DMI locus pairs conferred additive fitness effects, such that, for example, in the moderate selection case, each DMI decremented relative fitness by 0.02 for a maximum possible reduction of 20% across all 10 DMIs.

For the two-locus model with two-way DMIs, we simulated just two dominance scenarios. In one scenario, all four DMI alleles at each locus were dominant, resulting in the expression of both negative interactions starting in the first generation. Fitness effects from each incompatibility were multiplicative. For example, in the moderate selection case, for s = 0.106 for both DMIs present in an individual, fitness was reduced by 20% (80% of ancestral fitness) versus the 10.6% reduction (89.4% of ancestral fitness) when only one negative interaction was present. In the second scenario, all four DMI alleles were recessive, resulting in the expression of the DMIs only in later generations. Unlike in the first dominance scenario, both negative interactions could not be expressed at the same time in a given individual, resulting in a maximum fitness reduction of 10.6% when s = 0.106.

2.2 Estimating DMI locations

Our simulations mimicked an E&R experiment by evaluating the power to detect DMIs from parallel allele frequency changes across replicate populations. We considered experimental evolution of 5, 10, and 20 replicate populations used to map DMIs for a given parameter set. Using an R script that processed allele frequencies to assess parallel evolution across a given set of replicate populations, we attempted to infer DMI locations on the simulated autosomes, iterating this procedure for each of 500 independent sets of population replicates to assess the precision and accuracy of mapping estimation (github.com/Cutterlab/Generating-DMI-Estimates; Figure 1). All simulation runs were carried out via gnu-parallel on the University of Toronto's Niagara/SciNet supercomputer (Ponce et al., 2019).

Estimates of the DMI locus locations were based on allele frequencies that were consistently more extreme than what would be expected from genetic drift alone. In some cases, this procedure inferred no DMI. To infer the location of DMI loci, we searched for overlapping genomic regions with extreme frequency values among the replicate populations. Allele frequencies were deemed extreme in a given replicate population when they exceeded values plausibly caused by genetic drift alone. The drift cutoff to define extreme allele frequencies was determined from 2.5th and 97.5th percentiles of 1000 neutral simulations that otherwise resembled the non-neutral simulations, including linkage structure, except that the alleles at the “DMI loci” exerted no fitness impacts. After counting the number of replicate populations with an extreme value at a given locus, we calculated with stats package in R the binomial probability of retrieving the observed number of extreme populations for each locus given the number of replicate populations considered (i.e., 5, 10, or 20 replicate populations), flagging loci with probabilities <.05 after false discovery rate correction.

In the two-locus scenario, genomic positions within the two-log ~95% confidence interval of the maximum negative log-binomial p-value for each chromosome were included to define the edges of the DMI location. If no loci significantly demonstrated an extreme number of populations with extreme allele frequencies for one or both chromosomes, then no DMI was estimated for that set of replicate populations (thus contributing to imperfect “detectability”). We then assessed whether the estimated DMI locations were accurate based on whether they overlapped with the correct DMI positions input into the simulations, with accuracy defined as the proportion of correct detections regardless of the size of the detected region. The precision of the estimates was then calculated as the length of the regions that accurately overlapped true DMI loci divided by the length of the chromosome, subtracted from 1. This process was repeated 500 times for each distinct parameter set to assess the overall variability, detectability, accuracy, and precision of mapping DMI locations in the simulated genomes. We report the accuracy for a parameter set by tallying the number of estimates that overlapped the true DMI loci and dividing by the number of estimates made (usually 500, except when detectability was imperfect) and the precision for the parameter set by calculating the median relative length of the estimated DMI intervals.

In the multi-locus DMI simulations, we marked estimated DMI locus positions as blocks of adjacent loci with flagged probabilities <.05, provided that they included at least two loci. If two or more blocks of loci occurred within 6240 bp of each other (a span of 2.5 neutral loci), they were merged into a single estimate of DMI locus position. We report the number of loci inferred to be mapped, the incidence of true-positive detection among the estimated DMI mappings, and the width of the regions spanning estimated DMI positions to assess the accuracy and precision of mapping DMI loci in genomes simulated to have 20 pairs of DMI loci.

3.1 Weak-to-moderate strength one-way DMIs can be mapped feasibly with E&R

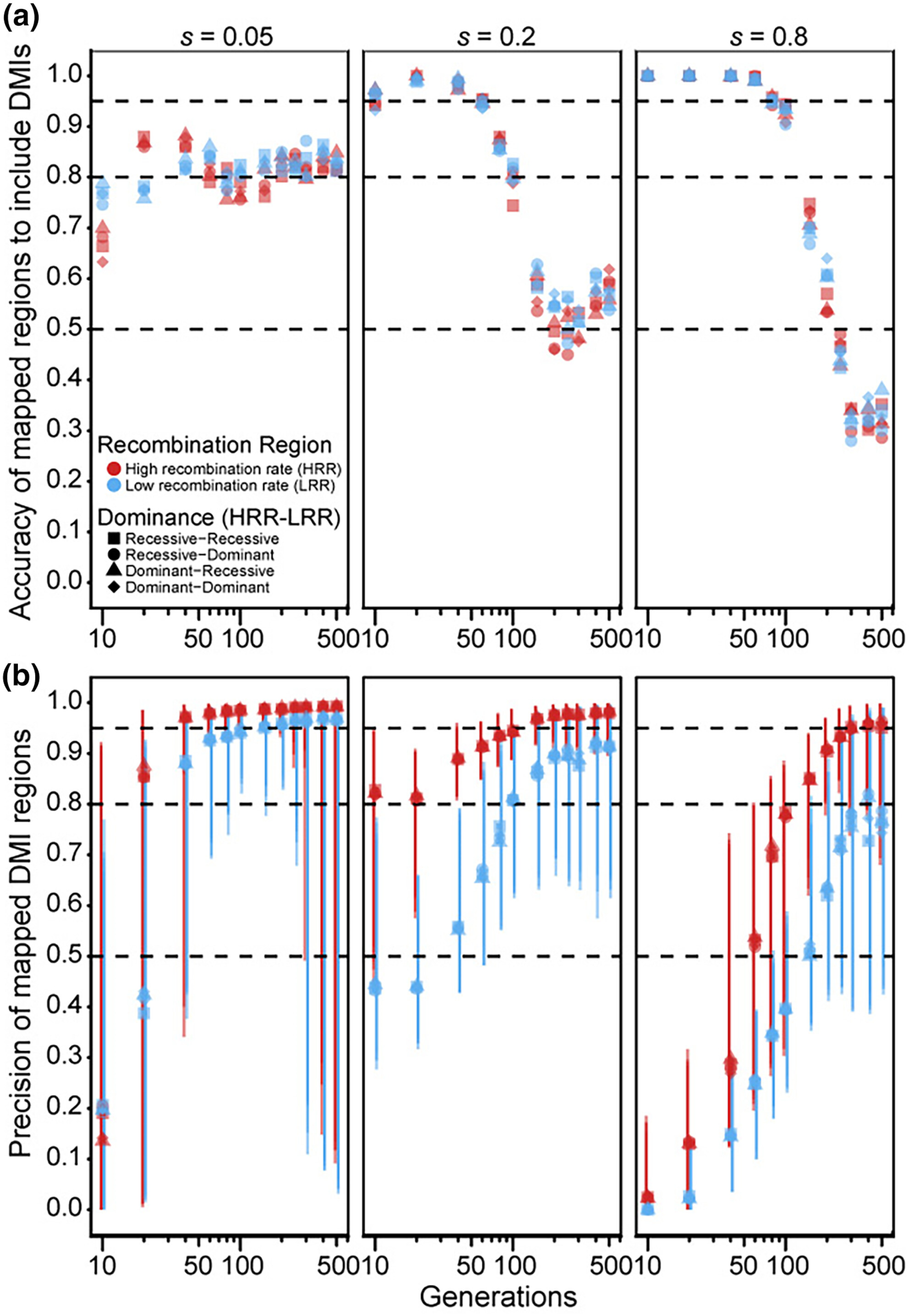

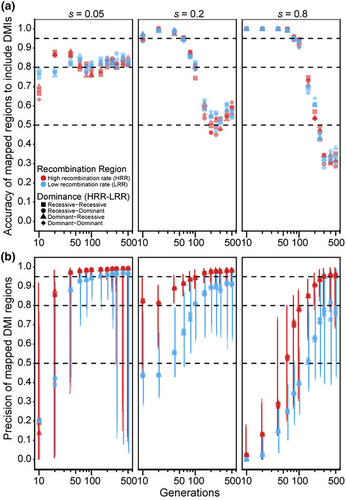

When considering a single pair of DMI loci that express one-way incompatibility, the estimated map positions most accurately overlap the true DMI loci for intermediate durations of experimental evolution (Figure 2a). The precision of those map positions, however, increases with the number of generations of experimental evolution (Figure 2b). These general trends hold for weak to strong fitness effects, dominance regimes, and high-versus low-recombination environments; as expected, mapping precision is greater in high-recombination regions for a given duration of experimental evolution (Figure 2b). The dominance of interactions showed at most a negligible effect on overall mapping accuracy and precision (Figure 2). Mapping accuracy and precision, however, are most sensitive to the duration of experimental evolution when selection is strong (s = 0.8), showing best accuracy for durations ≤100 generations and best precision for durations ≥100 generations. With weak selection (s = 0.05), by contrast, the relatively flat sensitivity to duration of experimental evolution yields the best trade-off between accuracy and precision between 40 and 200 generations. For both strong and weak selection on DMI loci, the precision of mapping is extremely poor and highly variable if populations experience 40 generations or fewer (the mapping interval often comprises >70% of the length of the chromosome), with the inference method unable to detect any DMI loci at all in 16% of runs after 10 generations with weak selection (Figure S2). Intermediate selection on DMI loci (s = 0.2), however, permits robust accuracy and precision of DMI locus mapping from 10 to 100 generations in high-recombination regions, with mapping intervals spanning as little as 8% of the chromosome length (Figure 2b). Overall, an E&R approach may be most suitable to mapping pairwise one-way DMI loci of weak-to-moderate effect in a timeframe of 40–100 generations of experimental evolution.

3.2 Accurate and precise mapping of most two-way DMIs with E&R requires 100 generations or more

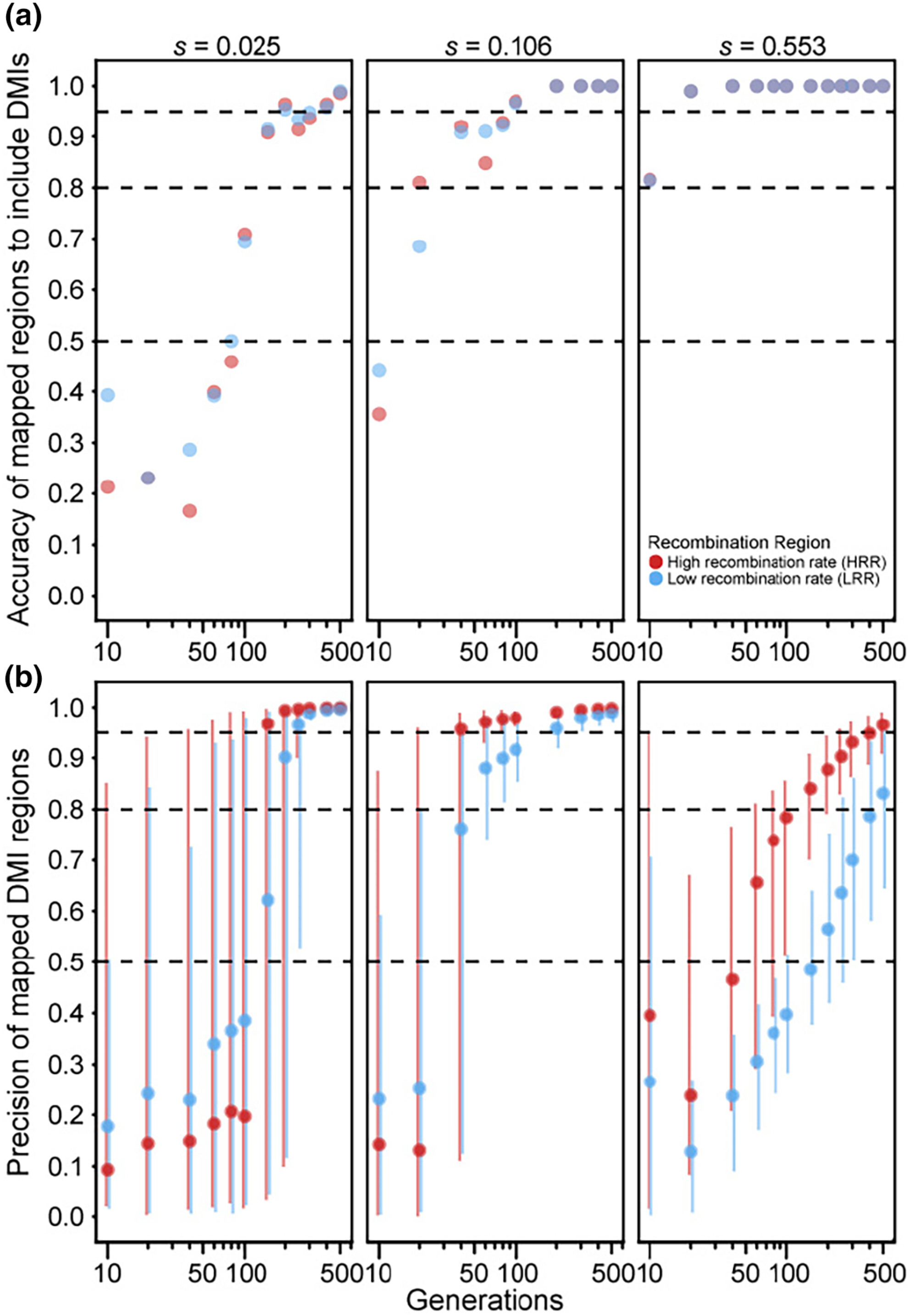

When considering a single pair of DMI loci that express two-way incompatibilities, such that both alleles at one locus experience reciprocal negative interactions with both alleles at the other locus (Figure 1), we observed that both precision and accuracy of the estimated map positions tend to increase with the number of generations of experimental evolution (Figures 3 and 4). This pattern contrasts with the trends for one-way DMI loci that showed a trade-off between accuracy and precision (Figures 3a and 4a cf. Figure 2a). The improving accuracy and precision of two-way DMI mapping with duration of experimental evolution holds for weak to strong fitness effects, dominance regimes, and high- versus low-recombination environments. Similar to one-way DMI loci, mapping precision is greater in high-recombination regions for dominant DMIs for a given duration of experimental evolution (Figure 3b). For instance, when selection is strong, we observed that mapping precision in high-recombination regions reaches a peak value of 96.5% versus a peak value of 83.1% for low-recombination regions. For recessive DMIs, however, a discernible beneficial influence of recombination on mapping precision holds true only when selection is strong (Figure 4b). More generally, we observe a clear interaction between dominance and strength of selection on the accuracy and precision of the estimated map positions for two-way DMI loci. When selection is moderate or weak on incompatibilities, mapping precision tends to be better for dominant than for recessive DMI loci for any given duration of experimental evolution and, in absolute terms, mapping resolution of recessive incompatibilities is poor with fewer than 150 generations. Strong selection, by contrast, shows greater mapping precision for recessive two-way DMIs for all but the shortest durations of experimental evolution and with only modestly reduced accuracy for durations of 40 generations and less. When recombination is high, we observed that mapping precision reaches a value of 96.1% by generation 100 for recessive DMIs (Figure 4b), compared to 78.4% for dominant DMIs (Figure 3b). Strong selection on two-way recessive DMIs in high-recombination regions thus provide the most promising circumstances for mapping two-way DMI loci, with nearly 90% precision and accuracy after just 20 generations of experimental evolution (Figure 4). However, most other circumstances that we explored require 100 generations or longer for high accuracy and precision in mapping two-way DMI loci.

3.3 Complex trade-offs between true- and false-positive mapping with many pairs of DMI loci

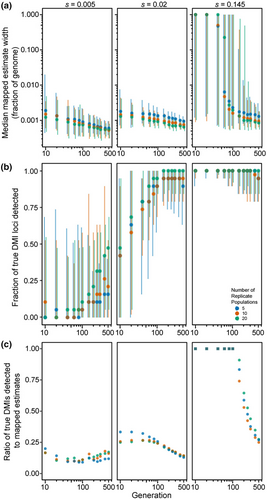

Finally, we considered genomes with 20 DMI loci (10 pairs) that express one-way incompatibilities, such that just one allele at each locus experiences reciprocal negative interactions with one allele from another locus. We observed that the median size of estimated map locations tends to decrease with the number of elapsed generations (Figure 5a), consistent with the pattern of increasing precision observed in simulations of just a single pair of one-way DMI loci (Figure 2b). Median estimated size of DMI regions is not very sensitive to the range in number of replicate populations that we explored, though simulations of the fewest replicate populations (five) tend to have widest genomic spans around estimated DMI locations. When selection on each DMI pair is weak (s = 0.005) or moderate (s = 0.02), mapping intervals are quite narrow (median estimated width does not exceed 0.2% of the genome). When selection is strong (s = 0.145), however, mapping resolution is entirely uninformative for the first 40 generations (Figure 5a). Specifically, we observed 100% of the genome typically to be implicated in incompatibility, regardless of the number of population replicates, though eventually reaching high precision after 60 generations or more (achieving mapping resolution for strong selection below 0.1% of chromosome length after 200 generations with 20 replicate populations; Figure 5a; Figure S1).

As the regions spanning estimated DMI locations get narrower as generations elapse, the number of true DMI loci detected also increases (Figure 5b), reaching 90% or more of the 20 DMI loci after 100 generations with moderate selection (s = 0.02 for five replicate populations). However, the total number of estimated DMIs also increases with time, surpassing the true number of DMI loci, and leading to an accumulation of false-positives (Figure S2). Consequently, we observed that the fraction of true-positive estimates of DMI location exhibits a complex relationship with time and selection strength (Figure 5c). When selection is strong, true-positive detection of DMIs is highest in earlier generations when the regions span most of the genome and so have poor resolution. In later generations, true-positives decline to account for approximately 25% of mappings by generation 500 when the roughly 20 estimated DMI locations each represent about 0.1% of the length of a chromosome (Figure 5c). With strong selection, essentially all 20 DMI loci occur within the estimated regions, irrespective of the number of generations elapsed (Figure 5b). When selection is moderate (s = 0.02), the proportion of true-positive estimates for DMIs is highest with just 5 replicate populations until generation 150 (Figure 5c), as a result of the fewer estimates made with this lower powered design (Figure S2). However, the rapid growth of DMI estimates over time with moderate selection leads to a decline in true-positives down to ~14% by generation 500, irrespective of the number of population replicates (Figure 5c). As a result, early generations permit detection of only about ~45% of the 20 true DMI loci, reaching about ~100% of true DMI loci detected by generation 150 (Figure 5b). With such weak selection, less than ~20% of true DMI loci (~4 of 20) are detected within the mapped regions at generation 10, reaching a maximum of 50% (10 of 20) by generation 500 and with only ~25% lying within estimated DMI regions even after this long timeframe (Figure 5b).

4.1 Weak-to-moderate effect DMIs are more feasible to map for one-way incompatibilities

We find that strength of selection, duration of experimental evolution, and recombination rate all affect the power to localize one-way DMI loci and show a trade-off between precision and accuracy that is especially sensitive to stronger fitness effects (Figure 2). Our results indicate that if selection in hybrids arises from just a small number of strong-effect DMIs, then mapping with an E&R experiment would require propagation for an infeasible number of generations in most common study systems, albeit possible for organisms like Caenorhabditis nematodes (i.e., the best accuracy-precision trade-off of ~100 generations would take ~400 days). DMIs linked to high-recombination regions, of course, can be mapped with greater power for a given duration of experimental evolution (Blanckaert & Bank, 2018). A DMI locus pair that exerts weak to moderate effects, however, show more promise in yielding accurate and precise mapping resolution within 20–40 generations, with simulations showing the best trade-off at ~60 generations. Thus, when few DMI loci are anticipated, it may prove more expedient to pursue classic mapping strategies with controlled crosses.

The higher precision of map estimates for weak- and moderate-effect DMIs may be explained by the average time of DMI resolution: it takes longer to fix alleles that contribute to DMIs with weaker fitness effects (vertical dashed line in Figure S3). This slower resolution of DMI allows for more rounds of recombination to break up linked haplotype blocks surrounding the incompatibility loci. While this leads to estimates with higher precision, the resulting presence of fewer linked loci to draw information from compromises accuracy, demonstrating why the accuracies among weak selection coefficients do not exceed 90% in our simulations.

We did not find dominance relations between DMI loci to strongly affect the power to localize one-way DMI loci. In our design of an F₁ hybrid starting population, selection can quickly “see” both dominant and recessive incompatibilities starting in the F₂ generation. We expect dominance relations between DMI loci would exert a greater effect, however, when incompatibility alleles are not all present initially as heterozygotes. Incompatibility alleles starting at lower initial frequencies and in linkage disequilibrium might more closely match conditions simulated in other studies that report a stronger influence of DMI dominance interaction type (Blanckaert & Bank, 2018; Turner & Harr, 2014).

4.2 Mapping of two-way incompatibilities benefits from long duration of experimental evolution

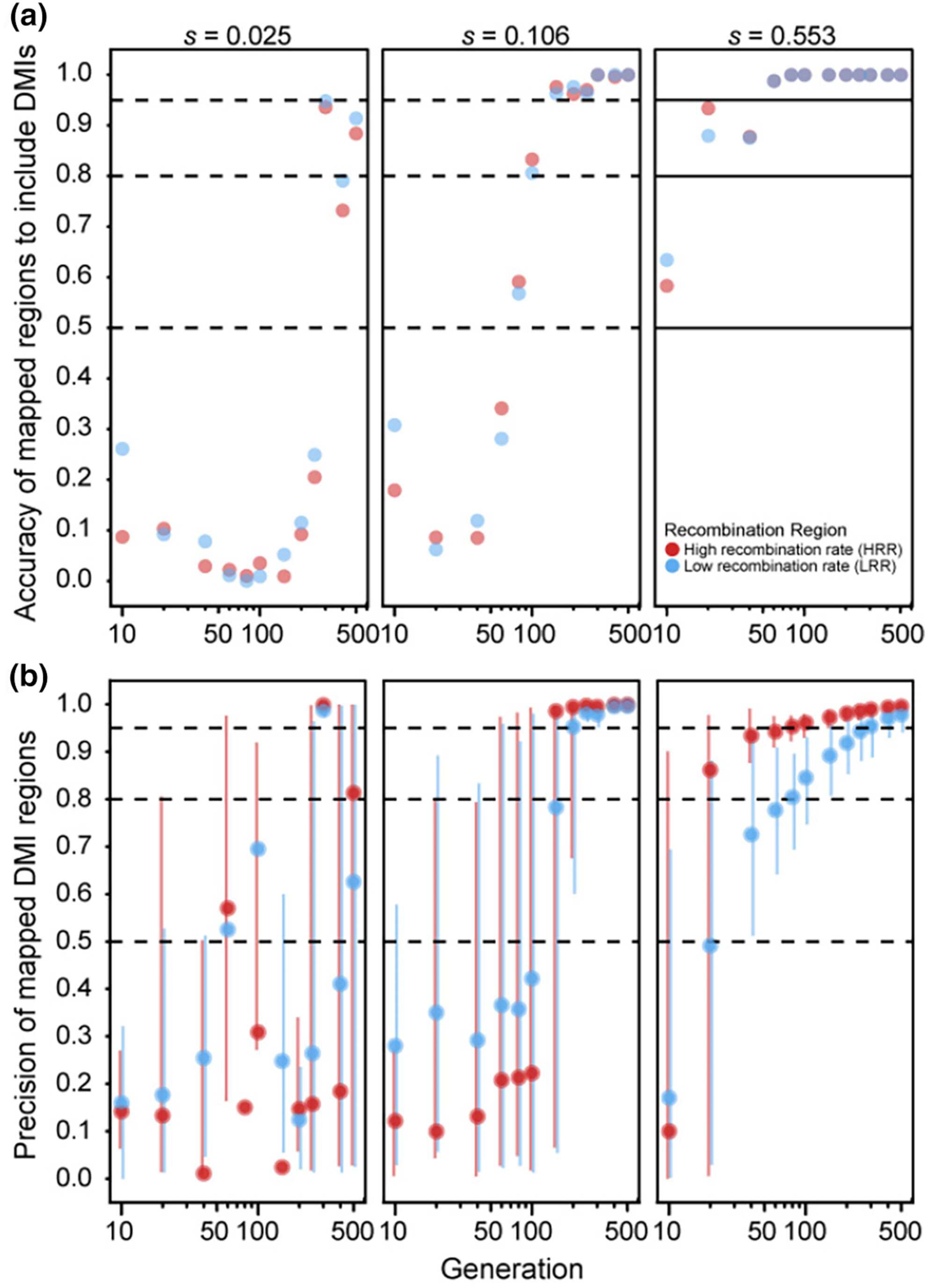

Two-way DMIs might be more common for species with greater overall divergence or for loci that experience rapid coevolution. In contrast to locus pairs involved in one-way incompatibilities, we observed both accuracy and precision of mapping two-way DMI loci to increase with the duration of experimental evolution (Figures 3 and 4). In two-way incompatibilities, all four alleles contribute to DMIs at the two loci and so selection affects both loci until both loci fix a single allele each. This requirement for fitness resolution in hybrid populations contrasts with one-way DMIs, which require fixation of only one locus, allowing polymorphic alleles at the partner DMI locus to then drift (Figure S3). The persistence of selection in the two-way scenario following fixation at one locus drives extreme allele frequencies at linked loci for both DMI loci to confer increased mapping power in later generations. Schumer et al. (2015) demonstrated a similar effect for what they referred to as symmetrical/coevolved incompatibilities (two-way) versus asymmetrical/neutral incompatibilities (one-way) in their simulations of hybrid speciation.

Mapping of DMI loci that cause two-way incompatibilities also differed from one-way incompatibilities in that we observed a strong influence of dominance. We observed high precision and accuracy of mapping for dominant two-way DMIs with moderate-to-small fitness effects in high-recombination regions within a modest duration of experimental evolution (i.e., 20–40 generations, which could take ~40 to ~80 days in a real-world scenario applied to Caenorhabditis nematodes). Dominant two-way DMIs with the strongest fitness effects, however, suffer from poor precision until at least generation 150, even with high recombination. Recessive two-way DMIs, by contrast, show best mapping power when selection is strong-to-moderate. For example, strong-effect recessive DMIs have both precision and accuracy values above 80% by generation 20 for high-recombination regions. These results indicate that mapping of two-way DMI loci may be most successful, for a given duration of experimental evolution, when the DMIs exert moderate fitness effects and lie in high-recombination regions.

4.3 Abundant one-way DMI pairs can generate substantial false-positive mappings

While our analysis of single pairs of DMI loci proved instructive to assessing mapping power with an experimental evolution approach, the genomes of species are likely to encode many DMI loci (Masly & Presgraves, 2007; Schumer et al., 2014). Consequently, we assessed DMI mapping in the context of hybrid simulations involving 10 pairs of one-way incompatibilities. Reflecting the accuracy-precision trade-off that we documented for pairs of one-way incompatibilities, we observed that longer durations of experimental evolution did not enhance the incidence of true-positive mappings in the face of many DMI pairs in the simulated genomes. Allelic drift following fixation of one locus in a given DMI pair likely contributes to the inability of longer durations of experimental evolution to improve mapping confidence with many one-way DMI locus pairs encoded in genomes, based on our detection strategy that seeks to find parallel skews in allele frequency among replicate populations that exceed neutral expections. The median width of the region surrounding estimated DMI locations narrows with longer durations of experimental evolution and smaller selection coefficients. However, the number of estimated DMIs increases over time beyond the true number of DMI loci, leading the fraction of true-positives among estimated mapping locations to decline with the number of elapsed generations.

When selection on DMIs is strong, this trade-off between accuracy and precision leads to the best compromise near generation 100, and essentially all true DMI loci are detectable. Small-to-moderate fitness effects of the DMIs, however, lead to many more false-positives in this timeframe and fewer true DMIs amenable to detection (i.e., lower accuracy), although the size of mapped regions are reasonably precise when they do overlap true DMI loci (mapping spans of 0.2% of chromosome length or less). These patterns indicate that if selection against many DMIs is suspected to be strong in real-world hybrid populations, then accurate and precise estimates of them could be achieved in a realistic amount of time in hybrid populations of organisms with rapid generation times. When selection against DMIs in hybrid genomes with many DMI pairs is weak-to-moderate, mapping also can be feasible if one is willing to accept the presence of many false-positives. However, it is important to note that if selection against many DMIs is too strong, it could lead to population extinction. Population size was kept constant in these simulations and thus the potential for population extinction was not accounted for in these simulations, but could lead to lower power to detect DMIs in real-world settings. Similarly, our simulations excluded the potential for genetic drive elements or species-specific alleles that confer lab adaptive advantage, as well as fluctuations in population size, to influence allele frequency change. The presence of such factors could further obfuscate DMI mapping under real-world conditions. Moreover, hybrid genomes with high density of DMIs may lead to evolutionary reversion to a genomic state indistinguishable from just one of the parental species, as has been observed in experimental hybrid populations of Drosophila (Matute et al., 2020). This outcome could be exacerbated by higher genetic load in one of the parental species or by asymmetric potential for parental genotypes to be adaptive under lab conditions. Consequently, the power analyses of our simulations may overestimate mapping ability in the face of such additional real-world complications.

Finally, we found that the number of replicate populations exerted only a modest effect on the power to localize DMI loci in most cases with our approach, at least for the range of population replication considered in our simulations (5–20 populations). Consequently, excessive effort devoted to additional population replicates beyond 5 in real-world experiments often may not be worthwhile. This observation contrasts with the positive influence of replicates in traditional quantitative trait locus mapping in E&R experiments (Kofler & Schlötterer, 2014), and may reflect differences due to starting allele frequencies, additive versus epistatic selection, and alternative mapping inference techniques.

4.4 Extensions to the investigation of DMIs with E&R

The populations modeled here simplify real-world DMIs, suggesting a number of potentially valuable extensions amenable to future work. For example, we only considered pairwise DMI interactions, but DMIs involving multiple interacting loci may be important in reproductive isolation (Dzur-Gejdosova et al., 2012; Satokangas et al., 2020; Schumer et al., 2014; Tiago et al., 2015; Turner & Harr, 2014). Moreover, it remains unresolved how often species ought to exhibit one-way versus two-way versus multi-way incompatibilities, though this may depend in part on the amount of accumulated divergence. Future work also could account for linkage between DMI loci, which is more likely when multiple genes are involved, rather than the encoding of partner loci on different chromosomes as in our simulations, or apply a co-ancestry disequilibrium scan approach to DMI detection in E&R studies (Schumer & Brandvain, 2016). Related to the issue of linkage is genome collinearity between species, such that the genomes of real species may show inversions and other rearrangements (Faria & Navarro, 2010; Fuller et al., 2018), as well as gene drives or alleles derived from one species that are adaptive under experimental evolution conditions, that could compromise the power to localize DMIs relative to simulations like ours that presume perfect synteny. Consequently, mapping of DMI loci with an E&R strategy should treat mapped regions as DMI candidates requiring further validation, as with any genetic mapping approach. Future work that explores the potential for E&R experiments to map DMIs will benefit from incorporating these issues, as well as other possible study designs (e.g., permitting gene flow from parental species), and direct contrasts of the efficacy of mapping DMIs via controlled crosses or QTL mapping.

Another important extension of this work would be sex-linkage or sex-limited expression of DMI loci (Coyne & Orr, 1998). Autosomal DMI loci with sex-limited expression will expose their fitness effects in only half of a population, so the power to detect them may resemble the small-effect DMIs simulated here. There is no real consensus, however, on what the fitness effects of DMI locus pairs should be, and thus it also will prove valuable to explore a broader spectrum of selection coefficients. Moreover, the DMI alleles that we modeled are neutral in their respective parental species' backgrounds, but adaptive alleles could also be modeled. Schumer et al. (2015) note that it is currently not known whether adaptive or neutral DMI alleles are more prevalent, and they modeled hybrid populations with both types of incompatibilities. In the adaptive case, alleles at distinct DMI loci are more likely to fix for the same parental species' allele combination (Schumer et al., 2015). Consequently, the outcomes of our two-way DMIs that also tend to fix DMI alleles in this way may capture some of the features of adaptive DMI allele introgression.

Another potential extension of this work would be to investigate whether the results could apply to detecting other forms of epistasis, as may be important among loci within species (Montooth et al., 2010; Whitlock et al., 1995). Detecting parallel allele frequency changes across replicate populations under specific parameter spaces might permit detection of loci implicated in meiotic drive and other intragenomic conflicts (Kofler et al., 2012; Rice, 2013). We welcome the future development of any alternative or more elegant approaches to detecting epistasis, whether within species or in the form of interspecies DMIs, in experimental populations that employ E&R study designs.
