3.1 Statherotmantis Diakonoff, 1973

Statherotmantis Diakonoff, 1973: 288. Type species: Proschistis pictana Kuznetzov, 1969.

Key to Statherotmantis species from China based on the male genitalia

3.2 Statherotmantis laetana Kuznetzov, 1988

Statherotmantis laetana Kuznetzov, 1988: 170 (male, Vietnam) (Figures 1, 5, 9 and 13).

Material examined. China, Hainan Prov.: 1♂, Limushan Reserve, 19°17′ N, 109°73′ E, 640 m, 5.V.2014, leg. Tengteng Liu, Wei Guan and Xuemei Hu; 1♂, Bawangling Reserve, 19°12′ N, 109°08′ E, 600 m, 10.VI.2007, leg. Zhiwei Zhang and Weichun Li; Yunnan Prov.: 1♂, Mt. Gaoligong, 27°41′ N, 98°16′ E, 380 m, 1.VI.2017, leg. Kaijian Teng.

This species is in GenBank as GenBank accession number: OR134092.1.

Distribution. Vietnam, China (Hainan, Yunnan).

Note. This species is newly recorded for China. It can be easily distinguished from other species within the genus by the hooked uncus (Figure 13a), the socius with dense fine hairs, the gnathos with long hooked median prominence and short hooked lateral prominences, and the cup-like anellus in the male genitalia (Figure 13).

3.3 Statherotmantis miniscula Jing et Yu, sp. nov.

Type material. Holotype: ♂, China, Guangxi Prov.: Mt. Leigong, 26°22′ N, 108°11′ E, 1541 m, 20.VI.2019, leg. Yongyan Li, genitalia slide no. LYY18506. Paratype: 1♂, same data as holotype except 17.VI.2019; 1♀, same data as holotype (Figures 2, 6, 10, 14 and 17).

This species is in GenBank as GenBank accession number: OR138297.1, OR138298.1.

Diagnosis. This newly described species exhibits significant differences in the male genitalia compared with previously described species of Statherotmantis. Its uncus is remarkably small, triangular, and pointed at the apex. The valva is slender, and the length of the cucullus is approximately six times the width of its middle. While in other species of the genus the uncus is rounded, bilobed or hooked, and the length of the cucullus is no more than four times the width of its middle. The gnathos of S. miniscula resembles that of S. shicotana in terms of shape, but it is shorter and the distal part expands to a rounded form. In contrast, the gnathos in S. shicotana are finger-like and doesn't broaden distally. In addition, the distinct male genitalia features, such as the shape of the uncus, valva, and gnathos, clearly differentiate this new species (S. miniscula) from other known species, particularly S. shicotana.

Description. Adult (Figure 2). Head (Figure 6): ocellus well developed. Vertex is roughly scaled, yellowish brown. Frons dark brown. Antenna dark fuscous, reaching to the middle of forewing. Labial palpus ascending and sinuate, basal segment creamy, median segment pale yellow suffused with pale gray, moderately widened distally, terminal segment porrect, pale gray, and pointed apically.

Thorax: anterior half dark fuscous, posterior half fuscous, without posterior crest. Collar fuscous with pale brown margin. Tegula is dark brown, suffused with brown distally. The hind tibia (Figure 10) in males is not expanded, with a pale yellow hair pencil extending from the base along the inner surface. Forewing length 7.5–8.0 mm; elongate subrectangular, costa slightly curved, distal 4/5 nearly straight, apex blunt, termen oblique; upperside fuscous to blackish fuscous, suffused with pale fuscous, with a large semicircular white mark tinged ochreous centered on costa from about 1/3 to 3/4 length, reaching halfway across the wing, bordered by an indistinct blackish band; pairs of costal strigulae distinctive, nine pairs from the base of costa to R₄, they are distributed as follows: four pairs (strigulae one to four) between the base of the wing and the point where the Sc meets the costa, two pairs (strigulae five and six) between Sc and R₁, one pair (strigula seven) between R₁ and R₂, one pair (strigula eight) between R₂ and R₃, one pair (strigula nine) between R₃ and R₄; basal two pairs of strigulae broad, pale fuscous, distal seven pairs white suffused with ochreous, strigula nine represented by a single marking; cilia dark brown, with a white baseline; underside dark brown. Hindwing brown; cilia pale gray; underside grayish white.

Abdomen: pale brown dorsally, pale yellow ventrally. Male genitalia (Figure 14): tegumen broad, moderately high. Uncus (Figure 14a) is small, triangular, and spined. Socius large, dropping, and rounded, densely covered with long hairs. Gnathos without median prominence, lateral prominences constricted basally, short and rounded, naked. Valva slender, basal part slightly broader than the cucullus, the protruding rim of the basal excavation raised from the base of the costa across the cucullus and connected with the projecting ventroproximal angle of the cucullus; sacculus narrow, with sparse short hairs; cucullus very narrow, approximately six times the width of its middle in length, sparsely hairy, ventroproximal base protruding to an acute angle and carrying a strong, short thorn apically. Caulis very short, narrow; anellus broad, more or less cup-shaped; aedeagus moderate in width and length, slightly narrow distally; cornuti absent. Female genitalia (Figure 17): ovipositor lobes elongate-ovate. The apophyses anterior is shorter than the apophyses posterior. The 8th tergite is well sclerotized. Sternum 7 with a nearly straight hindmargin. Sterigma is somewhat circular, with a raised central rim encircling the entrance to the ostium, and lower lips (lamella antevaginalis) broad, aciculate. The ostium is somewhat semicircular, flat. Ductus bursae are membranous and smooth, with a long colliculum. Corpus bursae are large, ovate, and densely granulated, with two pectinate signa almost equal in size.

Etymology. The specific name is derived from the Latin minisculus (=small), referring to the small uncus in the male genitalia of the species.

3.4 Statherotmantis calva Jing et Yu, sp. nov.

Type material. Holotype: ♂, China, Sichuan Prov.: Mt. Emei, 29°34′ N, 103°24′ E, 731 m, 19.VII.2021, leg. Ruiqin Dong, genitalia slide no. JWQ21648. Paratype: 13♂, same data as holotype; 3♂, same data as holotype except 20.VII.2021 (Figures 3, 7, 11 and 15).

This species is in GenBank as GenBank accession number: OR138299.1, OR138300.1, OR138301.1.

Diagnosis. This new species mostly resembles S. spinulifera, particularly in the male genitalia. However, it can be distinguished by the male genitalia with uncus bilobed, and gnathos with lateral promimences naked; in S. spinulifera, the uncus is rounded and the lateral prominences of gnathos are densely spinulose.

Description. Adult (Figure 3). Head (Figure 7): vertex roughly scaled, grayish brown to fouscous. Frons dark brown to fuscous. Antenna dark brown, reaching to the middle of the forewing. Labial palpus sinuate, porrect or ascending, basal segment creamy, median segment pale brown or grayish brown, suffused with fuscous laterally, distally moderately widened, terminal segment porrect, gray to dark gray, pointed apically.

Thorax: anterior half fuscous suffused with blackish fuscous, posterior half grayish brown to fuscous, posterior crest distinct, dark brown. Collar gray. Tegula fuscous suffused with grayish brown. Hind tibia (Figure 11) in male not expanded, with a pale yellow hair pencil extending from the base along the inner surface. Forewing length 6.5–7.5 mm; elongate subrectangular, costa slightly curved, apex blunt, termen straight; upperside dark fuscous to blackish fuscous; costa with nine pairs of strigulae from the base to R₄, which arranged in the same way as S. miniscula; strigulae one and two leaden, striae from them extending to basal half of dorsum, discontinuous; distal seven pairs of strigulae white; a large triangular mark tinged with ochreous centered on costa between 2/5 and 3/4 length, reaching halfway across the wing and bordered by a V-shaped blackish fuscous band, which extends to the middle of dorsum; distal area intricately marked by broken leaden striae originating from costal strigulae; cilia fuscous; the underside is black brown and the overlapping part with the hindwing is leaden. Hindwing brown except pale yellow in area of overlap with forewing; cilia gray, with pale brown baseline; underside brown.

Abdomen: pale fuscous dorsally, pale yellowish-brown ventrally. Male genitalia (Figure 15): tegumen narrow and high. Uncus broad, bilobed caudally, with long spines. Socius large, pendent, elongate rounded, with densely long spines. Gnathos with median prominence long, distal part narrowed, less than half width of basal part, furcated apically, inverted T-shaped, with the branches as long as stem; lateral prominences (Figure 15a) broad, tongue-like, naked. Valva is slender, nearly straight; sacculus ill-defined, with sparse short spines, more or less constricted beyond the basal excavation, a small longitudinal lobe along the ventral margin between sacculus and cucullus, broad and very short; a few long spines on the inside of the lobe; cucullus with sparse spines, basal part slightly broader than the distal part. Caulis narrow, anellus a narrow ring, aedeagus moderate in width and length, cornuti absent. Female unknown.

Etymology. The specific name is derived from the Latin calvus (=hairless), referring to the naked lateral prominences of gnathos in the male genitalia.

3.5 Statherotmantis longiuscula Jing et Yu, sp. nov.

Type material. Holotype: ♂, China, Zhejiang Prov.: Mt. Jiulong, 28°19′ N, 118°59′ E, 623 m, 5.VII.2013, leg. Aihui Yin and Xiuchun Wang, genitalia slide no. JWQ21617. Paratype: Zhejiang Prov.: 3♂, 2♀, same data as holotype; 1♂, same data as holotype except 30°23′ N, 119°29′ E, 866 m, 13.VIII.2014; 1♂, Mt. Tianmu, 30°19′ N, 119°24′ E, 555 m, 17.VIII.2014, leg. Aihui Yin, Qingyun Wang and Suran Li; 1♀, Wangdongyang Reserve, 27°40′ N, 119°38′ E, 1301 m, 12.VIII.2016, leg. Qingyun Wang, Meiqing Yang and Ping Liu; Hubei Prov.: 1♀, Yingshan County, 30°59′ N, 116°01′ E, 635 m, 23.VI.2014, leg. Wei Guan and Meiqing Yang (Figures 4, 8, 12, 16 and 18).

This species is in GenBank as GenBank accession number: OR138302.1, OR138303.1.

Diagnosis. The male genitalia of S. longiuscula resembles a few congeners from China, such as S. maoerica, S. expansa, S. spinulifera, S. calva sp. n., and S. triangularis, but it can be distinguished by the bilobed uncus, the gnathos with distally furcated median prominence and short, naked lateral prominences, elongate valva with a slender basal lobe on the costa. Meanwhile, the median prominence of gnathos is rounded or truncate apicallly and the valva has no lobes on the costa in S. maoerica and S. expansa; the lateral promenences of gnathos are relatively large, tongue-like in S. spinulifera and S. calva sp. n.; the uncus is rounded and the cucullus is elongate triangular in S. triangularis.

Description. Adult (Figure 4). Head (Figure 8): vertex roughly scaled, pale brown to pale gray. Frons pale brown to brown. Antenna brown to dark brown, reaching to the middle of the forewing. Labial palpus porrect or ascending, sinuate, creamy tinged with pale gray slightly, median segment distally moderately widened, terminal segment porrect, pointed.

Thorax: brown, suffused with fuscous medially and posteriorly. Collar brown. Tegula fuscous, dark brown distally. The hind tibia (Figure 12) is pale, with a short, pale yellow hair pencil extending from the base along the inner surface in males. Forewing length 7.0–8.0 mm; elongate subrectangular, costa slightly curved, apex blunt, termen straight; upperside fuscous to blackish fuscous; costa with nine pairs of strigulae from base to R₄, which arranged in the same way as S. miniscula; basal two pairs leaden or pale fuscous, striae from them distinct, extending to basal half of dorsum, lower part discontinuous; distal seven pairs of costal strigulae white; a semicircular mark tinged with ochreous between 2/5 and 3/4 length of costa, reaching the upper edge of cell across wing, bordered by a significant blackish fuscous band, which zigzagging across wing from 1/3 length of costa to middle dorsum, then back towards apex, curving below the pair of costal strigula seven and divided into two branch, the proximal branch a straight band extending to end of dorsum, scattered with white scales, the distal branch ending in termen between R₅ and M₃, proximal edge with a narrow white line; cilia pale fuscous suffused with dark fuscous; underside is dark brown, the overlapping part with the hindwing is gray. Hindwing dark brown; cilia gray; underside dark brown.

Abdomen: pale brown dorsally, pale yellow ventrally. Male genitalia (Figure 16): tegumen high and narrow. Uncus broad, rounded, and bilobed caudally, with dense hairspines. Socius pendent, large and oval, with densely long spines. Gnathos with median prominence broad, distal half furcated, the branches narrow and away from each other; lateral prominences small rounded angle, short, and naked. Valva slender, roughly straight, with an elongate, naked costal prominence at the base (Figure 16a); sacculus sparsely setose, with a transversal lobe medially, somewhat triangular, with short spines; cucullus with sparse thorns, ventral edge sinuate, ventroproximal base slightly projecting, bearing one or two short thorns apically. Caulis is short and very thin, anellus a narrow ring, aedeagus slender, moderate in length, cornuti absent. Female genitalia (Figure 18): ovipositor lobes subtriangular. Apophyses anterior is short, about half the length of the apophyses posterior. The 8th tergite is well sclerotized. Sternum 7 with a weakly concave hindmargin. Sterigma derived from a raised fold encircling the ostium, with lateral portions produced posteriorly into spinulose points. Ostium rounded. Ductus bursae are long and smooth, with a bipartite colliculum below the ostium. Corpus bursae ovate, densely granulated, with two pectinate signa, almost the same size.

Etymology. The specific name is derived from the Latin longiusculus (=long), referring to the long median prominence of gnathos in the male genitalia.

3.6 Molecular data analyses

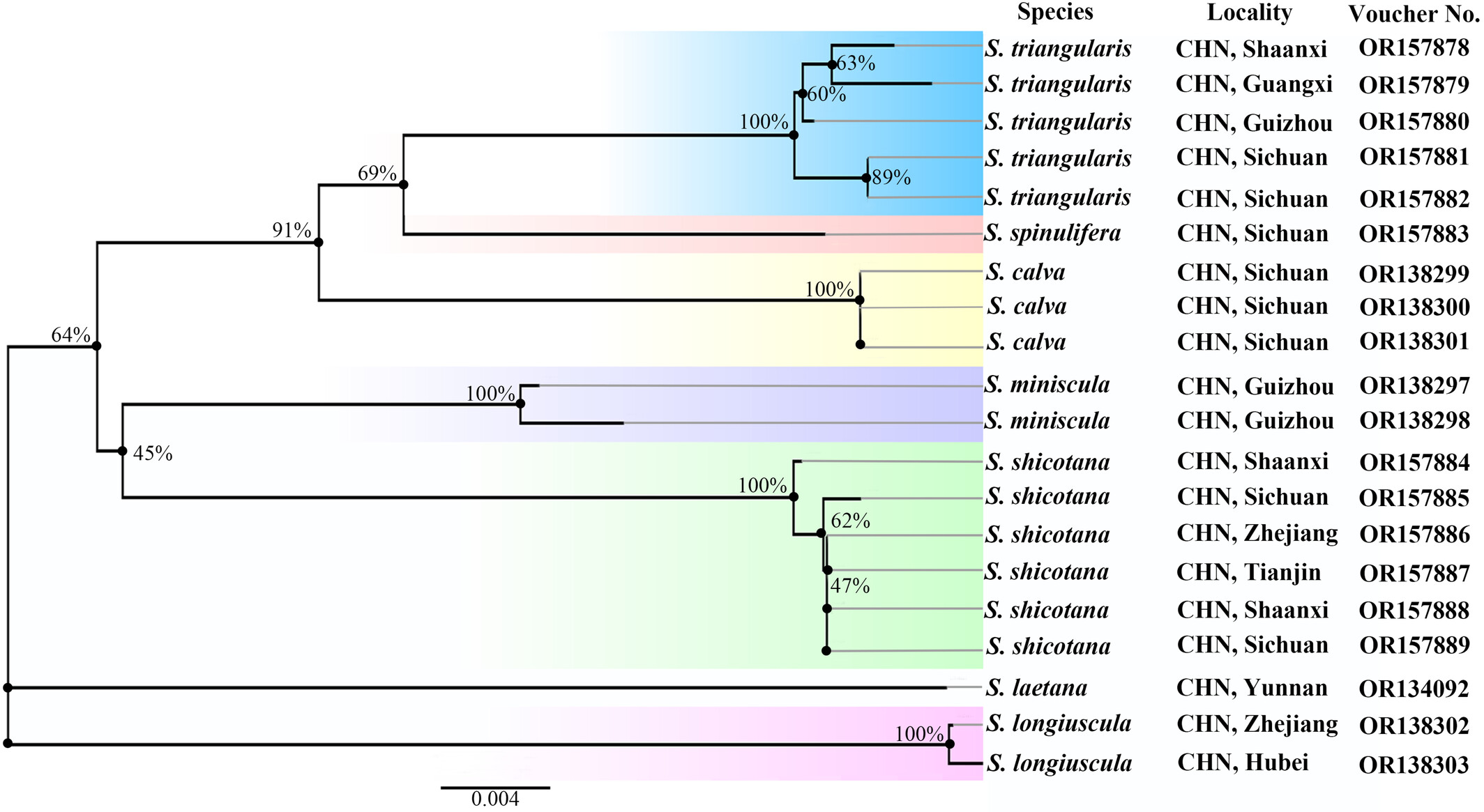

A total of the 20 exemplar specimens were successfully sequenced (Table S1), and all COI gene sequences were 658 bp in length. Based on the neighbor-joining analysis of these 20 sequences (Figure 19), revealed the presence of seven well-supported clades with high-bootstrap values, each clade represented one species. The genetic distances are presented in Table S2. The interspecific genetic distances within the seven species varied from 3.4% to 7.5%, and the average divergence was 5.9%. The intraspecific divergence in the five species (except S. laetana and S. spinulifera) varied from 0% to 0.5% and the average divergence was 0.26%.
