2.1 Taxon sampling

A total of 179 samples, representing 124 species of the Euchrysops section and seven outgroups, were included in our study. This includes 80 of 137 described Lepidochrysops species, nine of 11 Orachrysops species, 14 of 28 Euchrysops species, six of seven Oboronia species, and seven of 15 Thermoniphas species. Many of the missing species are very scarce in collections or only known from the type locality. A specimen of Lycaena phlaeas (Lycaeninae) was included to root the trees. Sample information can be found in Data S1B.

2.2 Probe design

We developed enrichment probes targeting 200 Anchored Hybrid Enrichment (AHE) loci (Lemmon et al., 2012), 400 anonymous loci, and four legacy loci. We used the following genomic resources: (1) previously published assembled genomes (Danaus plexippus [Zhan et al., 2011] Heliconius melpomene [The Heliconius Genome Consortium, 2012]); and (2) ~20× coverage raw genomic reads from Espeland et al. (2018) (Phengaris arion, Lepidochrysops patricia) and this study (Euchrysops cnejus, Jalmenus evagoras) (Data S1C). We prepared libraries from DNA extracts of the four latter species (following Prum et al., 2015) and sequenced the libraries with a paired-end 100 bp protocol (single, 8 bp indexing) on Illumina HiSeq2000 sequencers at the College of Medicine Transitional Lab at Florida State University and at the Hudson Alpha Institute for Biotechnology. More information about these genomic resources is available in Data S4.

2.3 Molecular methods, data cleaning, and assembly

DNA was extracted from ethanol-preserved thorax or leg tissue, or dried legs using either the Qiagen Blood & Tissue kit or an AutoGenPrep 965 Tissue DNA Extraction Kit (Autogen). DNA concentration was measured using a Qubit dsDNA HS or BR Assay kit on a Qubit 2.0 fluorometer (ThermoFisher Scientific). We prepared dual-indexed Illumina libraries following (Meyer & Kircher, 2010), with adaptations in Prum et al. (2015). In short, we sonicated extracted DNA using a Covaris ultrasonicator to a size of ~300 bp. After adding adapters using a Beckman Coulter FxP liquid-handling robot, we quantified, then pooled (in equal concentration) libraries into 16-sample pools. We enriched these library pools using the AHE probes described above (Agilent SureSelect XT probes), then quantified and pooled the resulting enriched library pools for sequencing. We sequenced the libraries on 11 Illumina HiSeq2500 PE150 lanes (~450 Gb in raw data). Molecular work was carried out at Harvard University and Florida State University.

After demultiplexing raw reads using 8 bp dual indexes (no mismatches allowed), we removed adapters, corrected for sequencing errors, and merged overlapping reads following (Rokyta et al., 2012). We assembled the reads using sequences from all five probe-design species (see above) as divergent references in a quasi-denovo reference assembly (as described in Hamilton et al., 2016). Assembly clusters containing fewer than 100 reads were removed to prevent any contaminated samples from being used downstream. We constructed a consensus sequence for each assembly cluster by statistically distinguishing between sequencing error and heterozygosity (Hamilton et al., 2016). Haplotypes were phased following (Pyron et al., 2016). We established orthology among homologous consensus sequences using alignment-free pairwise distances and a neighbor-joining approach, as outlined in Hamilton et al. (2016). After aligning the corresponding orthologous haplotype sequences using MAFFT, we trimmed and masked the misaligned regions following (Hamilton et al., 2016), but with masking parameters set to MINGOODSITES = 15, MINPROPSAME = 0.5 and MISSINGALLOWED = 0.5. We visually inspected alignments in Geneious to ensure that the automated masker and trimmer settings were appropriate.

2.4 Molecular data, phylogeny, and dating

The final dataset contained 179 taxa, 419 loci (196 anchored and 223 anonymous loci), and 256,998 bp (average locus length, 613 bp), with 14.1% missing data. Summary statistics for each locus alignment were calculated using AMAS (Borowiec, 2016) (Data S1A). In the concatenation approach, one allele for each taxon was chosen randomly following (Barrow et al., 2014). Trees were inferred with IQ-TREE 1.6.7 (Nguyen et al., 2015), using ModelFinder (Kalyaanamoorthy et al., 2017) for finding the best partition scheme (greedy algorithm) and model selection. Alignments and the selected models for each partition can be found on Zenodo (DOI: 10.5281/zenodo.4590738). Ten likelihood searches were performed and the tree with the highest likelihood was selected. Branch support was calculated using ultrafast bootstrap support (Hoang et al., 2018) with the -bnni option to reduce the risk of overestimating support, and using the SH-like approximate likelihood ratio test (Guindon et al., 2010), both with 1000 replicates. A species tree was inferred in ASTRAL-III (Zhang et al., 2017) with the method by Rabiee et al. (2019) for multi-allele data. Gene trees were generated for each locus based on phased data in IQ-TREE, as above, and used as input. Local posterior probabilities (LPP) (Sayyari & Mirarab, 2016) were calculated as a measure of support. Molecular dating was performed with a reduced, unphased, unpartitioned, dataset with one representative per species (124 spp.) in MCMCtree 4.9g (Yang, 2007) using approximate likelihood estimation and an independent clock. The topology obtained from the concatenation analyses above, reduced to only include one member per species, was used as fixed input topology. Model selection on this unpartitioned dataset was run in ModelFinder as above, but only allowing the models available in MCMCtree, and the selected model (HKY85) was used in dating analyses. No fossils are available for the family Lycaenidae, and we, therefore, used secondary calibrations from a recent, dated genus-level butterfly tree (Chazot et al., 2019). Based on that study, we set the split between Euchrysops and Lepidochrysops as a uniform prior with a lower bound of 9 My and an upper bound of 21 My. Finally, the root calibration was set as a uniform prior with lower bound of 44 My and an upper bound of 69 My based on the age of Lycaeninae + Theclinae + Polyommatinae from Chazot et al. (2019). Other priors were kept as default. We ran four runs with a burn-in of 100,000, sample frequency of 1000 and number of samples set to 10,000. Convergence was assessed in Tracer 1.7.1 (Rambaut et al., 2018) and by plotting the mean ages and the 95% highest posterior density (HPD) credibility intervals from the posterior distribution of all four runs against each other. Plots showing convergence of runs are available on Zenodo (DOI: 10.5281/zenodo.4590738). The dated tree with credibility intervals (ci) can be found in Figure S3.

2.5 Historical biogeography

We inferred ancestral areas using DECX (Beeravolu & Condamine, 2016), a C++ implementation of the dispersal-extinction-cladogenesis (DEC) model (Ree & Smith, 2008). Biogeographical areas were defined based on a simplified classification of the ecosystems of Africa by Dinerstein et al. (2017), including a total of 16 biomes (Figure 1, Data S1E). The map showing these biomes was produced using QGIS v. 3.14 (QGIS Development Team, 2020). The single included species from Madagascar, Lepidochrysops cf. azureus, as well as the only non-Afrotropical species, Euchrysops cnejus, were both excluded from the biogeographical analyses to reduce the number of biomes. Similarly, Oboronia bueronica, the only species found in the East African coastal forests, which is a separate biome, was added to the “East African forest” category. We designed a time-stratified model in which areas and ranges possibly occupied varied across four different time periods: 0–5, 5–8, 8–11, and 11–25 Mya (Data S1F). The maximum ancestral range size was set to four areas.

Ancestral area estimation was used to calculate the relative frequency of lineages in large biome categories through time. We first identified branches along which dispersal occurred by comparing the ranges with the highest probability between ancestral and descendent nodes. When a dispersal event was detected, we assigned the branch mid-point as the timing for the dispersal event. Time was then divided into 0.5 My intervals, and within each interval, the number and relative frequency of lineages in each biome was calculated. Rather than working with the 16 areas, we combined them into the following functional categories: forests, woodland and grassland, and Fynbos and Karoo. Within each category we also separated the lineages belonging to Lepidochrysops from the rest of the tree (backbone), to calculate, for example, the frequency of forest species versus non-forest species within each part of the tree.

We also compared the number of transitions between biomes. We identified branches along which dispersal occurred by comparing the ranges with the highest probability between ancestral and descendent nodes. For each branch with a dispersal event, we randomly sampled a time for the event along the branch. In case of multiple source areas for a dispersal event, we used the time-stratified matrix of areas allowed to narrow the possible sources down to only those permitted during each time period. If multiple sources were still possible, we sampled one of these randomly. We repeated this procedure 1000 times, and each time, we summed the number of transitions between all pairs of areas. The mean number of transitions was then calculated and represented using the R package qgraph (Epskamp et al., 2012).

2.6 Diversification dynamics

We are aware that these diversification models are controversial (see also Discussion part in Section 3), and while we recognize the shortcomings, we nevertheless wanted to see how multiple models compare with each other and think that it is still valuable to report these results. The hypothesis-driven model selection framework used here is suitable for investigating speciation and extinction dynamics with appropriate assumptions (Helmstetter et al., 2021; Louca & Pennell, 2020).

We estimated the dynamics of speciation and extinction rates through time using three different birth-death models to cross-validate the results: First, we used the model TreePar (Stadler, 2011). The timing of divergence between the backbone and the Lepidochrysops was included in the backbone analysis. We isolated the Lepidochrysops clade from the rest of the tree (the ‘backbone’ throughout this paper) and modeled diversification for each partitioned tree independently. For each partition and 100 trees randomly sampled from the posterior distribution of our dating analysis, we fitted TreePar using fixed time bins of 4 My. Second, we used the model proposed by Morlon et al. (2011) and implemented in the R-package RPANDA v.1.8 (Morlon et al., 2016). As above the phylogenetic tree was partitioned into the Lepidochrysops clade and the backbone. Speciation and extinction rates were modeled using both linear and exponential functions of time. For each partition of the tree, we fitted 12 models: constant speciation, no extinction; constant speciation, constant extinction; time-dependent speciation (exponential or linear), no extinction; time-dependent speciation (exponential or linear), constant extinction; constant speciation, time-dependent extinction (exponential or linear); time-dependent speciation (exponential or linear); and time-dependent extinction (exponential or linear). For the backbone, the models accounted for the divergence event between the backbone and Lepidochrysops. However, the stem of the Lepidochrysops clade was included in the Lepidochrysops model of diversification, following the original implementation of the method. Sampling fractions were specified for each tree partition. Models were fitted on 100 trees randomly sampled from the posterior distribution of the dating analysis. Models were ranked according to their AIC scores averaged across the posterior distribution (Table S1). Third, the results of both the above methods indicated a consistent pattern of extinction around 10 Mya. Hence, we fitted the model CoMET (May et al., 2016) using the R-package TESS v. 2.1.0 (Höhna et al., 2016) on the full tree (no partitioning) to assess the support for a tree-wide extinction event. We performed a reversible-jump MCMC analysis assuming constant speciation and extinction rates through time. We set the number of expected sudden extinctions to 1, with an expected survival probability of 0.1. We ran the rjMCMC for 10 million generations, removing the first 10,000 as burn-in.

3.1 Diversification during the aridification of Africa

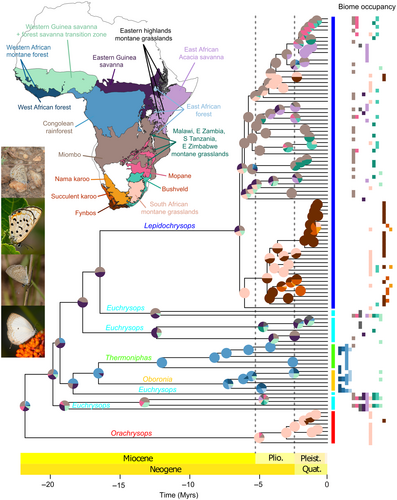

We inferred a molecular phylogeny for 179 members of the Euchrysops section, plus seven outgroups, based on 419 loci obtained from anchored hybrid enrichment. Concatenation and summary coalescent approaches produced similar topologies (Figures S1 and S2). Our dated phylogeny including 124 species showed that the Euchrysops section originated in the early Miocene, around 22 Mya (ci: 19–24 Mya) (Figure 1, Figure S3), congruent with the onset of African environmental change. The phyto-predaceous Lepidochrysops originated much later at around 6.4 Mya (ci: 5.5–7.5 Mya), a time characterized by increased aridification (Herbert et al., 2016).

3.2 Increasing occupation of drier biomes

We estimated that the Euchrysops section (Lycaenidae, Polyommatinae) likely originated in the emerging Miombo woodlands (Jacobs, 2004), now covering large parts of southern-central Africa (Figure 1).

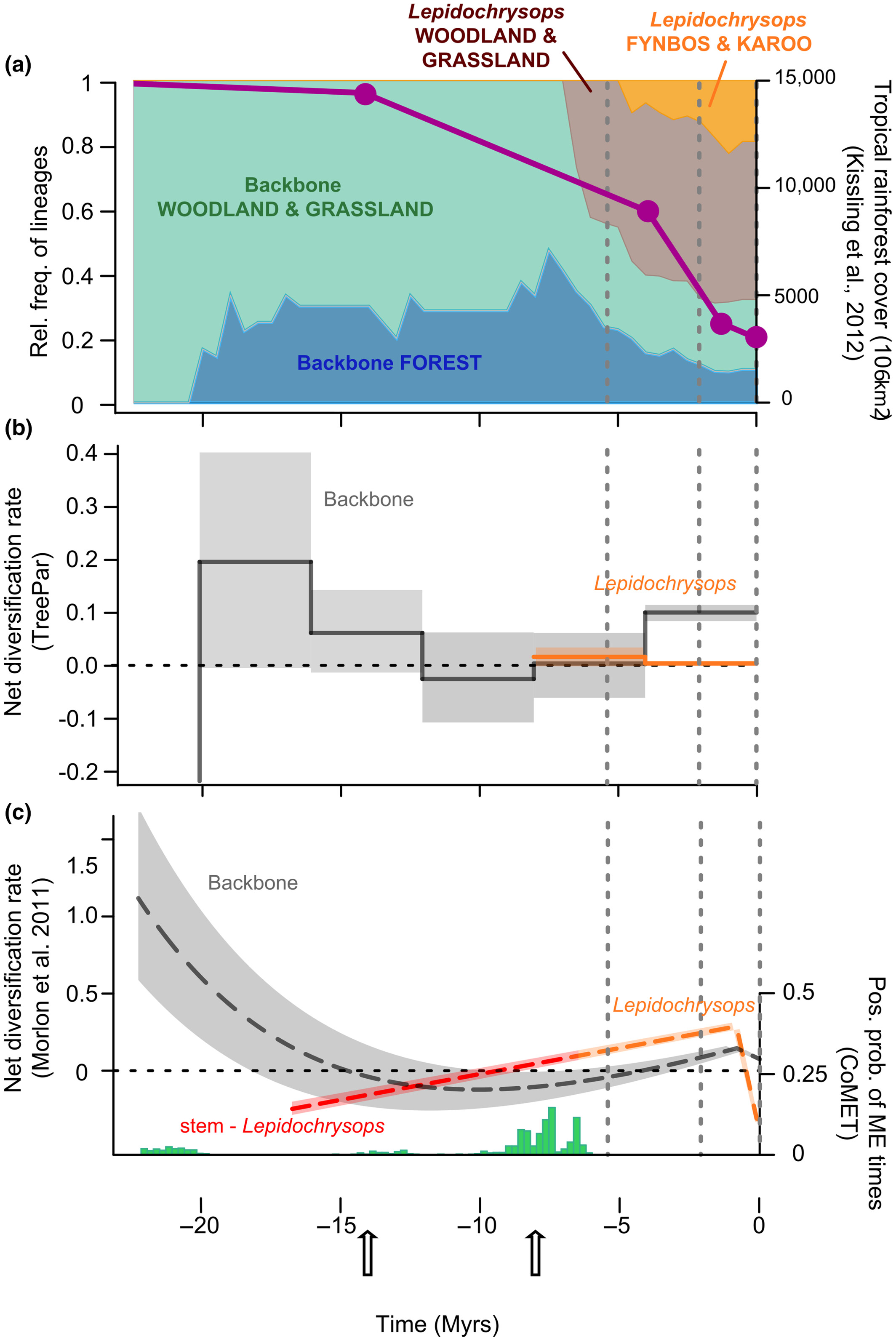

Biome occupation was characterized by extensive turnover during the last 7 My (Figure 2a). Between 20 and 8 Mya, ~30% of lineages occupied forests. With the diversification of Lepidochrysops, this fraction decreased to 10% in the last 8 My, coinciding with the dramatically decreasing rainforest cover in Africa during the Miocene (Kissling et al., 2012) (Figure 2a). No extant mainland-Africa Lepidochrysops currently inhabit forests (a few species occur in forest-savanna transition). The only forest Lepidochrysops are found in Madagascar where five species occur in dry spiny forest or rainforest, only one of which could be included in this study (Figure S1). We excluded this one from the biogeographical analyses in order to reduce the number of areas in the analysis. This should not have a strong impact on our analyses since these Malagasy species form a single, small radiation (Espeland, in preparation).

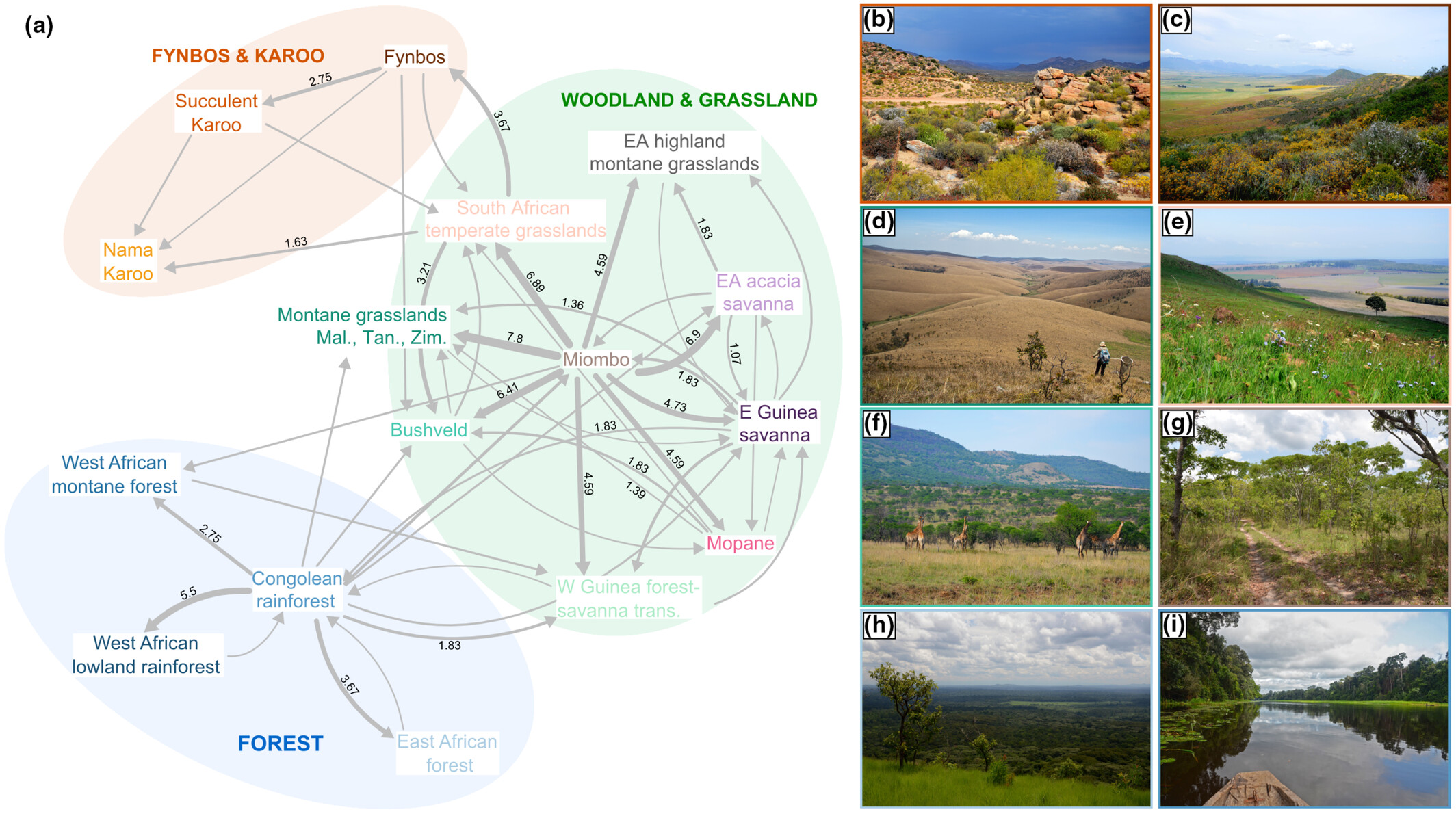

Miombo woodlands played a key role as the source for many dispersal events toward other woodland and grassland biomes, both for the clade as a whole (Figure 3) and for Lepidochrysops alone (Figure S4). Adding additional outgroups would not change this result, since the most closely related clades are largely non-African (Tonini et al., in prep.). Likewise, South African temperate grasslands constituted an important stepping-stone toward the more arid Fynbos and Karoo biomes for the phyto-predaceous Lepidochrysops lineages. These arid biomes were not reached by any phytophagous lineages in the clade, with the exception of the genus Orachrysops, where two species are found in wetter parts of coastal and montane Fynbos, but the remaining nine species exclusively occur in the South African montane grasslands. Orachrysops are phytophagous (feeding on Indigofera, Fabaceae) and the larvae are either facultatively or obligately ant associated. The larvae of several species feed on the rootstocks of Indigofera from the third instar onwards, tended by Camponotus ants, and thus spend most of their time underground tightly associated with ants (Edge & Van Hamburg, 2010; Lu & Samways, 2001). Interestingly, this genus, previously placed in Lepidochrysops, is sister to the rest of the section, and appears to have diversified within the last 5 My, coincident with the origin of the grassland biome (Jacobs et al., 1999).

Little dispersal has taken place between forests and drier biomes (Figure 3). The forest lineages Oboronia and Thermoniphas are sister groups, whose ancestor likely originated in the Congolian rainforest after dispersing from the Miombo woodlands. Oboronia feeds exclusively on Costus (Zingiberaceae) and is obligately mutualistic with Pheidole ants (Lamborn, 1914; Sourakov & Emmel, 1997). Little is known about the life history of Thermoniphas, but it is thought that ant association is limited, and one species is known to feed on Melastomataceae (Congdon et al., 2017; Heath et al., 2002).

Euchrysops is polyphyletic and consists of at least four different clades: the cnejus, barkeri, albistriata, and dolorosa groups (Figure S1). All four groups likely originated in the Miombo woodlands, although E. barkeri, which is sister to Oboronia and Thermoniphas (Figure S1), might have originated in the forest before dispersing back to the Miombo woodlands and subsequently becoming widespread but localized across savannas and woodlands. The E. dolorosa group is sister to Lepidochrysops, and widespread, occurring in most biomes except forests, Fynbos and Karoo. E. dolorosa group members largely feed on Ocimum (Lamiaceae), which is also used by many Lepidochrysops species, and have an apparently mutualistic association with ants (e.g. Larsen, 2005, personal observation ME), indicating a transition from mutualism to parasitism in the ancestor of Lepidochrysops, but no host-plant shift.

The genus Lepidochrysops is monophyletic. Although the group diverged more than 15 Mya (Figure 1), the last common ancestor of the extant lineages is only ~6.4 My old. Parasitism of ant associates arose along the 10 My-long stem branch, likely just prior to Lepidochrysops' rapid radiation. The genus consists of two major clades: one originated in the Southern African montane grasslands and dispersed from there to the Fynbos and Karoo biomes. The other originated further north, likely in the Miombo woodlands, and from there spread throughout the woodland and grassland biomes. Interestingly, a few species also in this clade reached the Southern African montane grasslands, before a single dispersal to the Fynbos, further underscoring the importance of these grasslands as a source of phyto-predaceous taxa in the summer arid biomes.

3.3 Extinction and rise of phyto-predation

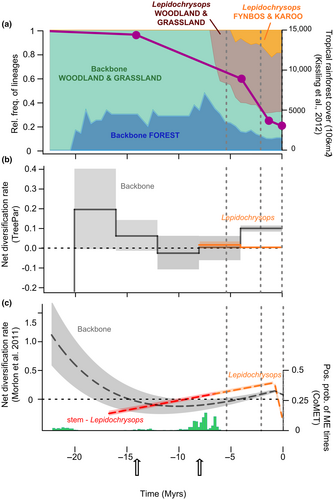

In TreePar analyses, the backbone showed a pattern of decreasing net diversification from the root, reaching its minimum around 10 Mya and increasing again towards the present. For the Lepidochrysops (stem branch excluded; Figure 2b) we estimated an overall constant positive net diversification rate.

Using the Morlon et al. model for the backbone, we found three models falling within an AIC interval of two (Table S1A–C), and all inferred a decline of diversity. The model with speciation and extinction as exponential and linear functions of time, respectively, was remarkably similar to the results from TreePar (Figure 2C). Net diversification declined rapidly, reaching a minimum around 10 Mya, before increasing again towards the present. Negative net diversification rates between 15 and 5 Mya indicated declining diversity. The other two models suggested either a global decrease of diversification through time with a negative net diversification rate during the last 8 My, or an earlier decline with a negative net diversification rate for the last 15 My. In Lepidochrysops (including stem branch) the best model corresponded to linear speciation and extinction functions of time (Table S1D–F). Net diversification increased through time but remained negative along the stem of the Lepidochrysops clade until ~10 Mya (Figure 2C). This result is unsurprising considering the length of the stem (10.2 My), which most likely results from past extinction events. Net diversification was positive during the last 10 My.

Finally, CoMET (Figure 2c) found a signal of tree-wide extinction around 6–8 Mya, with moderate support. The timing matches well with the pattern of declining diversity identified by both TreePar and Morlon et al. analyses during the late Miocene. It also coincides with the late Miocene cooling event, a time with increased aridification and a marked decrease in temperature (Herbert et al., 2016).

Our hypothesis that the Miocene aridification of Africa strongly influenced the Euchrysops section is supported by the consistent signal of extinction in the phytophagous backbone lineages during the middle- to late Miocene, and the rapid radiation of the phyto-predaceous Lepidochrysops lineages shortly thereafter. Our repeated finding of a pattern of extinction suggests that our phylogeny does carry some signal of extinction. Estimating extinction rates or diversity decline from phylogenies without fossils is, however, challenging and controversial (Beaulieu & O'Meara, 2015; Burin et al., 2019; Louca & Pennell, 2020; Morlon, 2014; Nee et al., 1994; Paradis, 2004), and phylogenetic studies have been criticized for showing low extinction rates compared with the fossil record (Burin et al., 2019; Louca & Pennell, 2020; Paradis, 2004; Quental & Marshall, 2011). This may result from use of inappropriate methods that preclude negative diversification estimates (Magallon & Sanderson, 2001; Rabosky, 2006), failure to properly consider time and clade heterogeneity (Morlon, 2014) or problems inherent to the models themselves (Louca & Pennell, 2020). Unfortunately, in groups where fossil information is largely unavailable, like butterflies, birth-death models currently provide the only resource available to assess past diversification.

Another important caveat is that our analysis is based only on lineages included in our phylogeny, which are necessarily extant taxa. High levels of extinction between 15 and 5 Mya, may well be obscuring the actual number of lineages during this period. If forest taxa were the most affected by extinctions as their habitats retreated, it is possible that forest biome lineages represented an even greater proportion of the diversity in the past.

3.4 Aphytophagy: A rare and risky life history strategy in Lepidoptera

The success of phyto-predation in the Lepidochrysops radiation is highly unusual: over 99% of Lepidoptera caterpillars are exclusively phytophagous (Pierce, 1995). The few butterfly species feeding on resources other than plants (i.e., aphytophagous lineages) are found primarily in Lycaenidae and Riodinidae, which have independently evolved high degrees of ant association (Espeland et al., 2018; Pierce et al., 2002). Symbiotic ant association is thought to have promoted diversification in the Lycaenidae as a whole (Pellissier et al., 2017; Pierce et al., 2002; Schär et al., 2018). However, even though entomophagy has evolved many times independently in Lycaenidae, this strategy generally appears to be an evolutionary dead-end since it has rarely led to diversification (Cottrell, 1984; Pierce, 1995; Pierce et al., 2002; Schär et al., 2018), with Lepidochrysops as the striking exception.

For Lepidochrysops, our results suggest that harsh conditions above ground, such as fire or long dry seasons, favored shifts into ant nests and contributed to the evolutionary success of phyto-predation (Cottrell, 1984; Fiedler, 1991, 1998). This hypothesis parallels findings that burrowing mammals better cope with climate change in arid environments than animals that do not live underground (Riddell et al., 2021), and that plants in fire-prone savannas repeatedly evolve underground life forms (Maurin et al., 2014).

Consistent with aphytophagy being evolutionarily precarious, it is over-represented among species with threatened conservation status on the IUCN Red List of Threatened Species and accounts for approximately 15% of the butterflies listed in the highest categories (IUCN, 2020), despite making up considerably less than 1% of butterfly species overall. Even in Lepidochrysops, which have adaptations to survive climate change, most of the assessed species are listed as endangered to rare, one is recorded as extinct, and others are thought to be extinct (Mecenero et al., 2020).

3.5 Ant association and adaptation to the aridification of Africa

Few studies have investigated the influence of the Miocene aridification (but see Aduse-Poku et al., 2021; Kergoat et al., 2018). Several of the few notable radiations in drier areas are, however, associated with ants. In addition to Lepidochrysops, these include the ant-parasitic Paussus beetles (>350 species) (Moore & Robertson, 2014), and ant-associated butterflies in the lycaenid genera Chrysoritis, Aloeides, and Thestor, with a moderate number of lineages (27–57 described species) found mainly in southern Africa (Heath et al., 2023; Quek et al., 2022; Rand et al., 2000; Talavera et al., 2020).

Larvae of Chrysoritis and Aloeides are strongly ant associated and belong to the Aphnaeinae, a largely African subfamily with about 300 species, where ant parasitism has evolved multiple times independently (Boyle et al., 2015; Pierce et al., 2002). Potential adaptations to life in arid biomes thus most likely evolved after they arrived in these areas. Chrysoritis occurs within a variety of biomes from semi-desert to forest (Talavera et al., 2020) in southern Africa, originating around 17 Mya but, like Lepidochrysops, only radiating rapidly in the Fynbos and the Succulent Karoo within the last 2.5 My (Talavera et al., 2020). The genera Aloeides and Thestor both arose between 5 and 10 My and have undergone limited radiation only in the GCFR (Boyle et al., 2015; Kaliszewska et al., 2015). Differently from Chrysoritis and Aloeides, Lepidochrysops species were already phyto-predaceous when they reached the Fynbos and Karoo and were thus pre-adapted to these arid environments. This is also the case for Thestor species, since all species in the subfamily Miletinae are aphytophagous where known, parasitizing either ants or ant-associated homopterans (Kaliszewska et al., 2015).
