Engineering heavy chain antibody-drug conjugates against solid tumors for a one-shot kill
Xue Liu, Wenjing Ning, and Lei Wang made equal contributions to this work.
List of Abbreviations
-
- ADC
-
- Antibody-drug conjugates
-
- CLSM
-
- confocal laser scanning microscopy
-
- DAR
-
- drug-to-antibody ratio
-
- FDA
-
- the United States Food and Drug Administration
-
- HCAb
-
- heavy chain antibody
-
- NBs
-
- Nanobodies
-
- MMAE
-
- monomethyl auristatin E
-
- TROP2
-
- trophoblast cell surface antigen 2
The inefficient tumor penetration of conventional antibodies has hampered the effective use of antibody-drug conjugates (ADCs) against solid tumors [1-5]. Compared with full-length antibodies and single-chain variable fragment (scFv), nanobodies (Nbs) have much smaller molecular weights, allowing them to achieve deeper tissue penetration, and they have become an attractive candidate platform for conjugating small-molecule drugs and tracers because of their favourable thermostability and high bioengineering potential [6, 7]. However, the clinical application of Nb-based ADCs is limited due to the short half-life of the Nbs [8]. This letter reports the identification and biological characterization of an innovative heavy chain antibody (HCAb)-drug conjugate based on a Nb from a trophoblast cell surface antigen 2 (TROP2)-immunized alpaca. HCAb has been verified to possess fast and efficient penetration into tumor tissues as its molecular weight (∼80 kDa) is half that of a classical antibody (∼150 kDa) [9]. We mutated the sites serine 149 and lysine 200 of the HCAb to cysteine, and then coupled the antimitotic agent monomethyl auristatin E (MMAE) to the engineered surface cysteine with the proteolyzable linker maleimidocaproyl-valine-citrulline-p-aminobenzoyloxycarbonyl (MC-Val-Cit-PAB), resulting in a conjugate abbreviated as C3 ADC (Figure 1A). Compared with conventional RS7 ADC, C3 ADC exhibits exceptionally higher stability, much deeper tumor penetration, significantly greater tumor uptake, and faster accumulation at tumor sites, leading to improved tumor inhibition. Notably, the engineered Nb-drug conjugate exhibits potent ‘one-shot kill’ efficacy against solid tumors. This study presents, for the first time, a HCAb drug conjugate strategy that can efficiently reduce tumor burden.

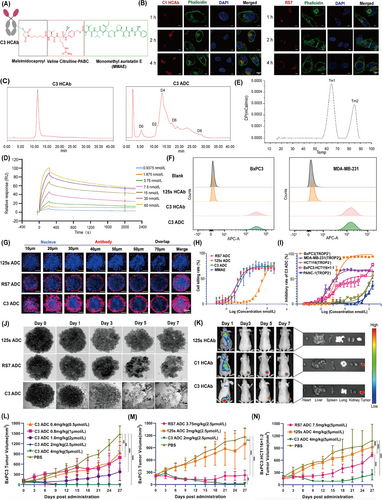

We screened and identified the TROP2 Nb following our protocol for specific Nbs (Supplementary Figure S1). To enhance the expression and extend the half-life, the Nb was fused with an hFc domain, termed C1 HCAb. C1 HCAb-DyLight 633 was more significantly endocytosed by TROP2-overexpressing MDA-MB-231 cells in a time-dependent manner than RS7-DyLight 633 (Figure 1B and Supplementary Figure S2). In contrast, Huh7 cells without TROP2 expression had poor internalization of C1 HCAb (Supplementary Figure S3). These results indicated that C1 HCAb can be selectively taken up by tumor cells expressing high levels of TROP2.
We then performed site-directed mutagenesis to design a site-specific mutant antibody, C3 HCAb (Supplementary Figures S4-S5). Here, lysosomal-cleavable MC-Val-Cit-PAB was used as a linker and the antimitotic agent MMAE was coupled to the engineered surface of cysteine, forming the conjugate C3 ADC. For the positive ADC control, site-directed mutation of the antibody portion of the FDA-approved ADC Trodelvy (sacituzumab) (hRS7) was performed at the same site, and the antibody was conjugated with the same linker and payload. The drug-to-antibody ratio (DAR) of C3 ADC was calculated by hydrophobic interaction chromatography. C3 ADC (DAR = 3.96) exhibited a homogeneous conjugation profile, suggesting the superior accessibility of the mutated C3 HCAb with respect to site-specific conjugation (Figure 1C, Supplementary Figures S6-S7). Next, we quantified the affinity between C3 HCAb and hTROP2 using SRP (surface plasmon resonance), revealing a KD value of 6.18 nmol/L (Figure 1D), indicating that C3 exhibited good affinity. Furthermore, C3 ADC demonstrated favorable thermostability and remarkable stability (Figure 1E, Supplementary Figure S8). Cathepsin B did not impact C3 HCAb but facilitated over 70% MMAE release from C3 ADC within 3 h (Supplementary Figure S9).
The ability of HCAb to bind to cell surface antigens and be internalized was assessed. C3 ADC achieved an internalization rate of approximately 50% in pancreatic cancer cell (BxPC-3) and triple-negative breast cancer cells (MDA-MB-231) within 3 h (Figure 1F, Supplementary Figure S10).
We evaluated the In vitro tumor penetration of the conjugates using 3-dimensional (3D) tumor spheroids composed of BxPC-3 cells. The spheroids were incubated with RS7 ADC, C3 ADC and 125s-vc-MMAE (a nonbinding control ADC, abbreviated as 125s ADC). Strong fluorescence from the RS7 ADC was observed on the surface of the tumor organoids. However, the fluorescence decreased in the centre, indicating that RS7 could not penetrate the inner tumor organoids. In contrast, the C3 ADC group exhibited remarkably widespread fluorescence signals throughout the tumor organoids, suggesting that the C3 ADC could penetrate deep into the solid tumor and be more extensively distributed (Figure 1G).
The rapid internalization and lysosomal degradation of receptors could contribute to effective ADC delivery and intracellular release of the payload in tumor cells. The majority of the internalized C3 ADCs were colocalized with the lysosomal marker LAMP-2, suggesting that they were successfully trafficked to lysosomes, as expected (Supplementary Figure S11). TROP2-positive (TROP2+) tumor cells were treated with ADCs for 3 days. The C3 ADC and RS7 ADC- exhibited similar and potent In vitro efficacy on MDA-MB-231 cells (Figure 1H and Supplementary Figure S12A). C3 ADC induced a dose-dependent increase in cell apoptosis in BxPC3 cells, whereas no significant increase of apoptotic cells was observed after treatment with 125s ADC (Supplementary Figure S13). The potent killing was also observed in a heterogeneous mixture of BxPC3 and HCT116 cells (50% TROP2+ cells) with C3 ADC (Figure 1I and Supplementary Figure S12B). Conversely, no inhibitory effect was observed on low TROP2-expressing cells, such as HCT116 and PANC-1 cells.
In BxPC3 tumor spheroid models, the negative control 125s ADC mildly affected spheroid integrity, while RS7 ADC caused marked edge disruption by day 5. Interestingly, C3 ADC treatment led to significant fragmentation, which was evident on day 3, and full cleavage by day 5 (Figure 1J).
The specific accumulation of C3 HCAb in the tumor site was monitored in a BxPC3 xenograft model (Figure 1K). C3 ADC exhibited potent dose-dependent antitumor activity in tumor xenografts, which were completely cleared by a single dose of 2 mg/kg administration (Figure 1L). There were no obvious signs of adverse events in any treatment groups (Supplementary Figure S14). After a single administration of C3 ADC, tumor proliferation was inhibited and apoptosis was induced, with marked regression of relatively large tumors observed compared to RS7 ADC (Supplementary Figure S15 and Figure 1M). In addition, in the BxPC3-Luc peritoneal model, a significant decrease in bioluminescence signal was observed in C3 ADC-treated mice (4 mg/kg, single injection, intravenously) after one week (Supplementary Figure S16). C3 ADC also significantly delayed MDA-MB-231 tumor growth and showed better in vivo efficacy than RS7 ADC (Supplementary Figure S17). The above results indicate that C3 ADC exhibits powerful antitumor activity against pancreatic and triple-negative breast tumor xenografts.
MMAE is a cell membrane-permeable toxin with bystander effects and a good substrate for drug efflux pumps. In the heterogeneous tumor model (1×106 TROP2+ BxPC3 cells mixed with 2×106 TROP2− HCT116 cells), a single administration of C3 ADC markedly reduced tumor size (Figure 1N, Supplementary Figure S18). C3 ADC showed an enhanced bystander killing effect, which has been speculated to be closely related to the efficient deep penetration ability of C3 ADC into tumors. In addition, C3 ADC is well tolerated and has no obvious in vivo toxicity (Supplementary Figures S19-S20).
In summary, our work demonstrates that a HCAb-based ADC, C3 ADC, exhibits advantages such as slight side effects, superior stability, rapid accumulation at tumor sites, and deep tumor penetration. Compared with previously reported TROP2-targeted Nb-based ADC [10] (Supplementary Table S1), this study presents, for the first time, a HCAb drug conjugate strategy with a potent ‘one-shot kill’ capability against large solid tumors, even those that are heterogeneous. This work provides important technical methods and a theoretical basis for ADC development and precise cancer treatment.
