2.1 In vitro assay data

VPA and nine structural analogues were tested with the devTOX^qP assay using human iPS cells (HYR0103, ATCC®ACS-1007™, Manassas, VA) to determine dTP concentrations as previously described (Palmer et al., 2017). The devTOX^qP assay (Stemina Biomarker Discovery, Inc., Madison, Wisconsin) is a biomarker-based human pluripotent stem cell assay for developmental toxicity screening across a dose-response range (Palmer et al., 2013, 2017). The devTOX^qP assay has been developed and validated using both human embryonic stem (hES) cells and iPS cells; the current work was carried out using iPS cells. The assay measures changes in the abundance (metabolism) of two metabolite biomarkers, ornithine and cystine, from which the ornithine to cystine (o/c) ratio is calculated at different chemical concentration. Both ornithine and cystine were identified as indicators of developmental toxicity. Perturbation of biochemical pathways that include these biomarkers has been shown to be associated with teratogenic mechanisms in vivo (Palmer et al., 2013). Using a set of chemicals with known information on developmental toxicity, the o/c ratios were shown to be predictive of developmental toxicity potency (Palmer et al., 2013). From the o/c ratio response curve (Figure S1), the dTP concentrations can be derived and used for determining in vitro developmental toxicity potency (Palmer et al., 2013, 2017). The dTP concentration is the interpolated concentration at which the o/c ratio response curve drops below the predefined developmental toxicity threshold, which was developed based on a set of pharmaceuticals with known human teratogenic potential. Conversely, the toxicity potential (TP) concentration is defined as the concentration at which cell viability drops below the same threshold. The TP concentration is used for assessing overall toxicity of a chemical (Figure S1). The dTP concentration was used for subsequent IVIVE analysis as it measures bioactivity relevant to teratogenic mechanisms.

2.2 Armitage model adjustment to in vitro concentrations

To calculate the free medium concentration corresponding to nominal concentration, the Armitage mass balance model contained in the high throughput toxicokinetic (httk) R package was used (Pearce et al., 2017). A set of assay-specific and chemical-specific parameters are required as inputs for executing the Armitage model. The values for assay-specific parameters (e.g., system temperature, number of wells on plate, total volume of wells) were provided by Stemina Biomarker Discovery, Inc. The values for physiochemical parameters (e.g., logP, Henry's law constant, water solubility and melting point) were obtained using the Open Structure-activity/property Relationship App (OPERA) (Mansouri, Grulke, Judson, & Williams, 2018).

2.3 In vivo developmental toxicity study data

The rat LELs from in vivo developmental toxicity studies for VPA and its analogues were obtained from the scientific literature. Information extracted include strains, dosing range, exposure routes, dosing period, and LELs for maternal and fetal toxicities. LELs for both maternal and fetal toxicities were combined to derive the range of developmental toxicity LELs.

2.4 Pharmacokinetic parameters

Values required as inputs for the PK and PBPK models included fraction of chemical unbound to plasma protein (fu) and intrinsic clearance rate (Cl_int) in primary hepatocytes. Experimental fu and Cl_int values in primary hepatocytes were obtained from literature sources (Mansouri et al., 2018; OECD, 2020) or provided by Dr. Ciaran Fisher (Certara). For Cl_int values that fall below the limit of quantitation for the assay (e.g., PHA), a value two-fold below the limit of quantitation was used. When experimental values are not available, predicted values from OPERA (v2.7) were used (Mansouri et al., 2018). All other model input parameters, for example, uptake rates from gut, tissue-to-plasma partition coefficients, were obtained from the U.S. Environmental Protection Agency's (EPA) high-throughput toxicokinetics (httk) R package (Pearce et al., 2017) or commercial software GastroPlus® v9.7 (Simulations Plus Inc, 2020). Structural similarity between VPA and the nine other analogues was calculated based on Tanimoto similarity score and extended connectivity fingerprints (ECFP₄) (Table S3). ECFP_x are circular topological fingerprints that measure the features x radius from the center of the chemical, where x is 0, 2, 4, 6 (O'Boyle & Sayle, 2016).

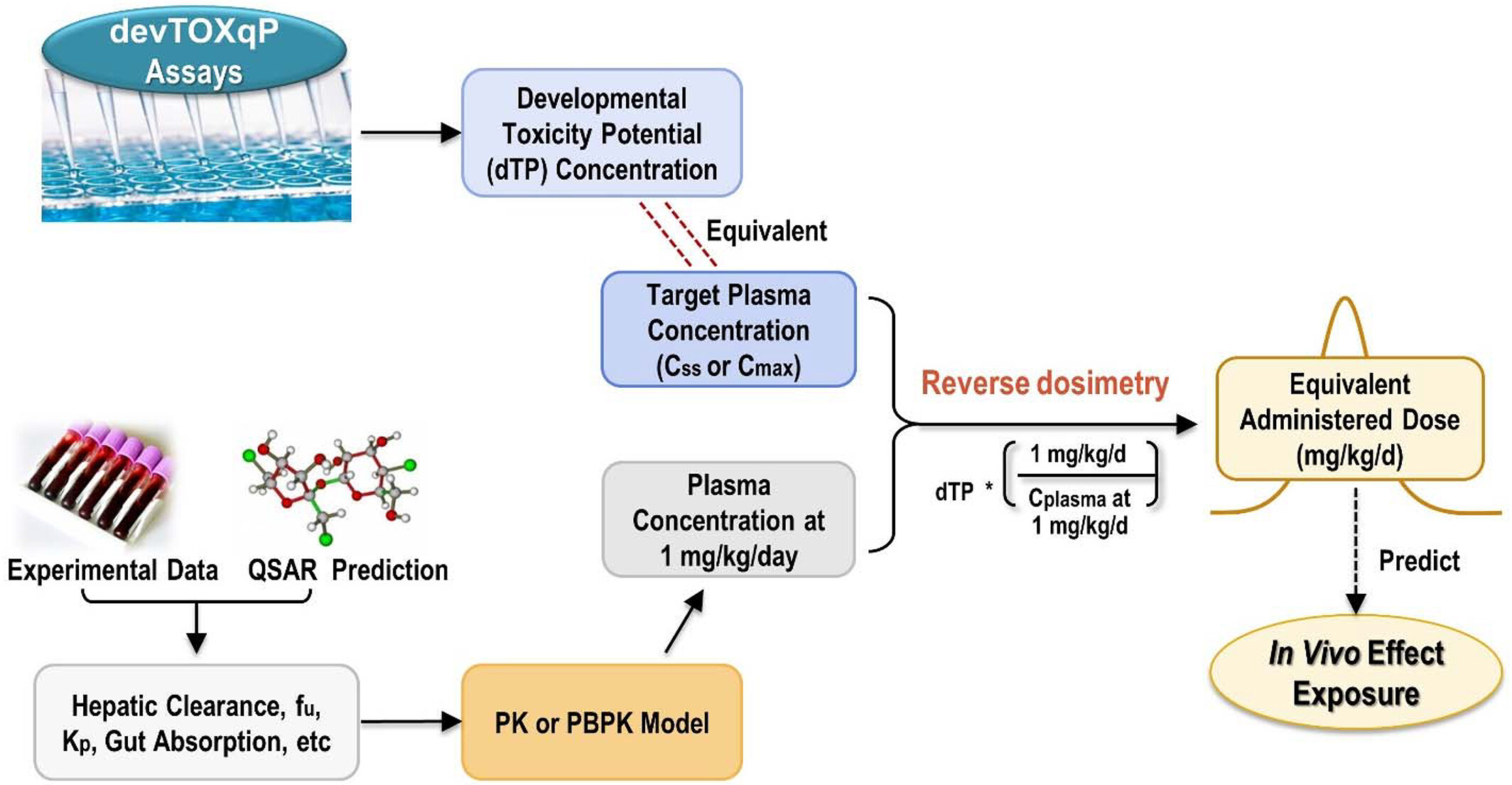

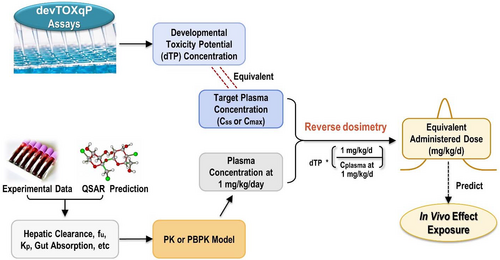

2.5 PK models and EAD estimates

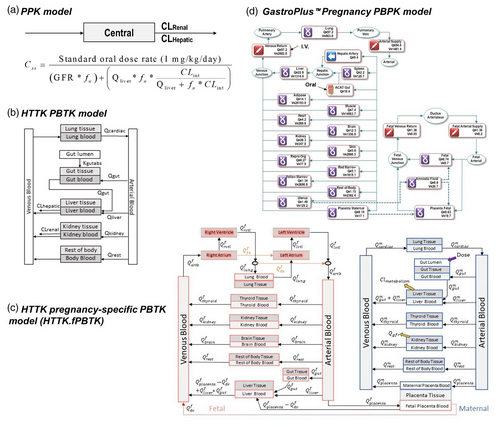

Four different PK and PBPK models of different complexity were used to estimate the daily EAD (expressed as mg/kg body weight/day) from the oral route of exposure (Figure 2). The simplest model (Figure 2a) was a one-compartment population-based PK (PPK) model (Wetmore et al., 2012) that assumes 100% absorption and calculates total clearance as the sum of hepatic clearance and renal clearance calculated based on passive glomerular filtration rate. For a given dose of test substance, this model estimates the upper 95th percentile steady-state plasma concentration (C_ss) for a Monte Carlo simulated population of 10,000 samples, which accounts for variability due to individual parameters such as liver size, hepatic clearance rate. Using this model, EADs were estimated that would result in the total C_ss equal to the dTP concentration from the devTOX^qP assay.

A pregnancy PBPK model from the commercial GastroPlus software (v9.7, Figure 2d) was also used in our analysis. The GastroPlus (GP) pregnancy model is a human 12-week gestation model built to simulate drug exposure via maternal ingestion of a delayed-release formulation (enteric coated tablet or capsule). Compartments in this model include maternal lung, liver, spleen, gut, adipose tissue, muscle, heart, brain, kidney, skin, reproductive tract, red marrow, yellow marrow, uterus, placenta, and rest-of-body, as well as fetus, amniotic fluid, and fetal placenta. The model simulates a 30-year-old American female with pre-pregnancy body weight of 61 kg and a two-week oral chemical exposure of 1 mg/kg/day starting at 12 weeks of gestation. To calculate the EAD that leads to a maternal or fetal plasma C_max equal to dTP concentrations, we first used Equation (3) to have a rough estimation on EADs, then we adjusted EAD values by comparing simulated maternal or fetal C_max at the EADs to dTP concentrations. For chemicals with C_max plateau reached, the dose at the starting point of plateau is used as EAD.

3.1 Comparison of in vitro dTP and TP concentrations

As noted above, the devTOX^qP assay produces two statistics for each chemical tested. The dTP concentration describes developmental toxicity potency, while the TP describes the concentration where a chemical is cytotoxic in human pluripotent stem cells (Palmer et al., 2013; Palmer et al., 2017). Since the dTP concentration is used for predicting the developmental toxicity potency of a chemical, it was used as the in vitro activity concentration input for the IVIVE analysis. The dTP concentration for all of the VPA analogues was lower than or within two-fold of the TP concentration (Table 1). Two analogues, EBA and MPA, did not decrease iPS cell viability at the concentrations tested in this study (Table 1).

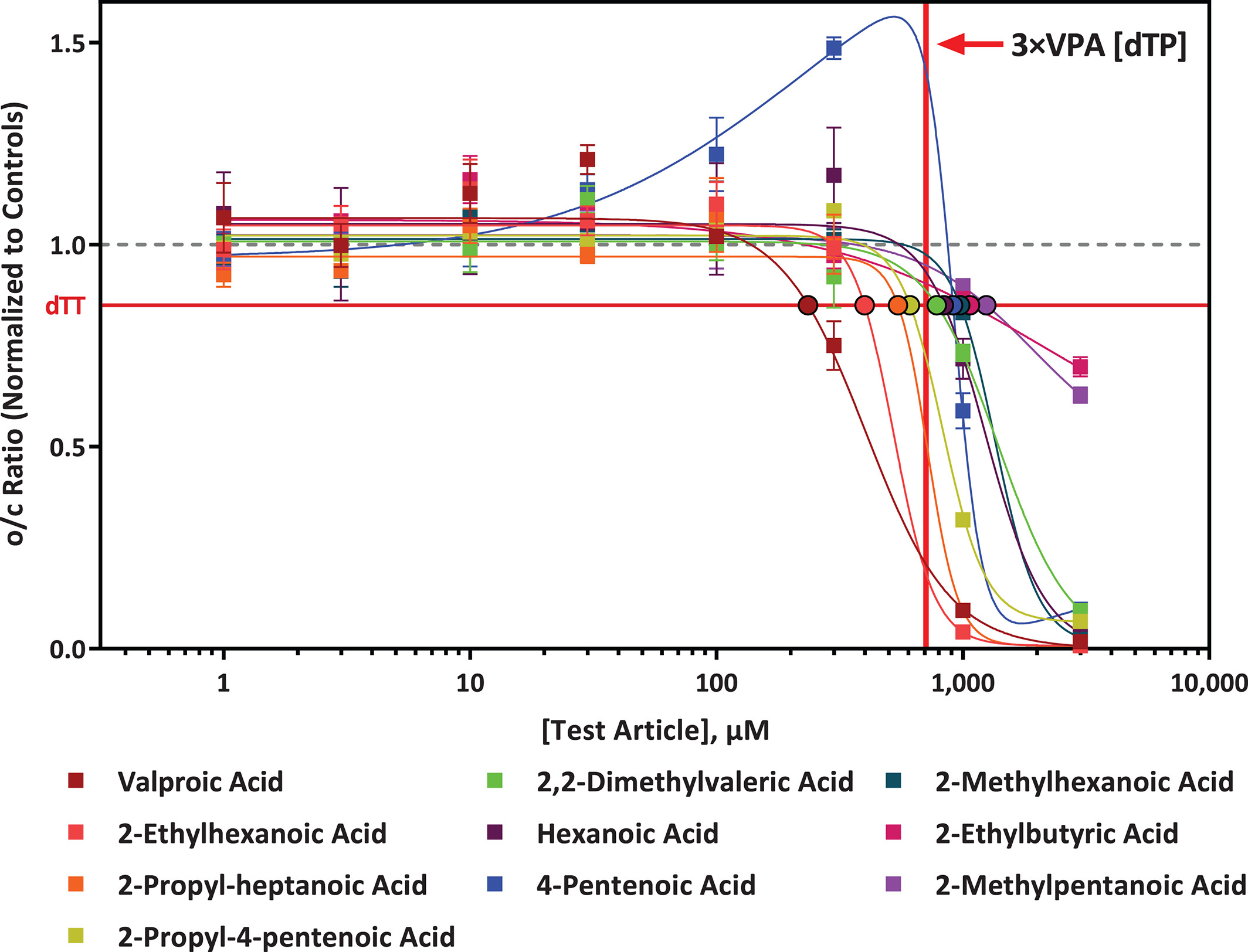

VPA has the lowest dTP concentration (Table 1, Figure 3), indicating that it is the most potent developmental toxicant of all the chemicals tested in this study. For VPA, the dTP and TP concentrations from a similar assay but using hES cells have also been reported (Palmer et al., 2013), and were found to be slightly different (dTP of 91 μM and TP of 1,114 μM), but within the expected range for variability (3-fold), especially considering that different cell lines were used. Assay specific information and results comparison can be found in Table S1. Interestingly, the o/c ratio dose-response curve for PA was biphasic and differed from VPA and the other analogues (Figure 3). This effect was the result of increased cystine uptake prior to cell death, which may be due to an adaptive response to oxidative stress.

In addition, chemical structure similarity between VPA and the rest of chemicals were calculated based on ECFP₄ fingerprints and the Simplified Molecular Input Line Entry Specification (SMILES), which is a widely used chemical notation system designed for chemical information (Weininger, 1988) (Table 1). Based on dTP concentration, EHA is the second most potent analogue and also has the highest structure similarity score. PHA, 4-ene-VPA, EBA, MPA have relatively higher structure similarity score (0.58–0.64) (Table 1). However, based on dTP concentration, 4-ene VPA and PHA are considered to have high potency, while EBA and MPA show lowest potency.

3.2 Assay-specific and chemical-specific parameters

The parameters describing the devTOX^qP assay system are listed in Table S2. Chemical specific parameters (e.g., physiochemical parameter, fu and Cl_int) used in IVIVE analyses are listed in Table S3. The fu values for ten VPA analogues are ≥0.15, indicating these substances are highly unbound to plasma protein.

Experimental Cl_int values in primary hepatocytes for five chemicals (EHA, MHA, EBA, MPA, VPA) were obtained from a recent OECD report (OECD, 2020). Experimental Cl_int values for two additional chemicals, HA and PHA, were obtained through communication with one co-author of the OECD report. For Cl_int values that fall below the limit of quantitation for the assay (e.g., PHA), a default value for Cl_int that was two-fold below the limit of quantitation was used (Table S3). The range of experimental values for Cl_int is 0.07–33.6 (μl/min/10⁶), suggesting a large variation in clearance among these chemicals.

The same fu and Cl_int values for each chemical were used regardless of PK/PBPK model type. However, for other parameters required for populating PK/PBPK models (e.g., uptake rate of chemical from the gut, tissue to plasma partition coefficients) default values provided by httk package or GastroPlus v9.7 were used respectively. The use of these default values is to evaluate the impact of different modeling approaches on EAD estimates under routine applications.

3.3 In vivo developmental toxicity study data

We performed a literature search to obtain rat in vivo developmental toxicity data for VPA and nine VPA analogues (Table 2). Search terms included the CASRN or chemical name for each chemical in combination with “developmental toxicology,” “teratogen,” “teratogenicity,” or “developmental toxicity.” From the articles returned, we selected articles with relevant information in the titles and abstracts for data extraction. The LELs inducing toxicities in both dams and fetuses were collected and combined to define a range of developmental toxicity LELs, which we used to evaluate the performance of the IVIVE analyses. To be inclusive, general adverse effects such as maternal body weight changes are also included (Narotsky et al., 1994).

Rat development toxicity study data are only available for five chemicals (EHA, PA, VPA, EBA, and MPA). For EBA and MPA, LELs only for maternal adverse effects are available. For those chemicals with LELs for both maternal and fetal toxicities, LELs for fetal toxicity are generally lower than those for maternal toxicity, suggesting that fetal toxic endpoints are more sensitive to chemical exposure.

Since LEL data was only available for a subset of the analogues, we compared the relative potency of the analogues in vitro to the relative potency in vivo as determined in the Naval Medical Research Institute (NMRI) exencephaly-mouse model (Eikel et al., 2006), which had results for 8 of the 10 analogues (Table 1). The mouse model is described in detail in an early publication (Nau, Zierer, Spielmann, Neubert, & Gansau, 1981). Using the dTP concentration of VPA as a baseline, we calculated the relative developmental toxicity potency of each chemical by determining ratio of each analogue's dTP concentration relative to VPA's dTP concentration (Table 1). A higher ratio indicates a low relative potency (less likely to be developmentally toxic), while a lower ratio indicates a relatively high potency (more likely to be developmentally toxic). Using this ratio, the relative potency of the analogues can be categorized into two groups. Analogues with high potency in the NMRI exencephaly-mouse model elicited a response in human iPS cells <3-fold of the VPA dTP concentration, whereas the dTP concentrations for analogues with little to no effect this model were >3-fold higher than VPA's dTP.

3.4 EAD estimates using rat nonpregnancy models and comparison to rat LELs

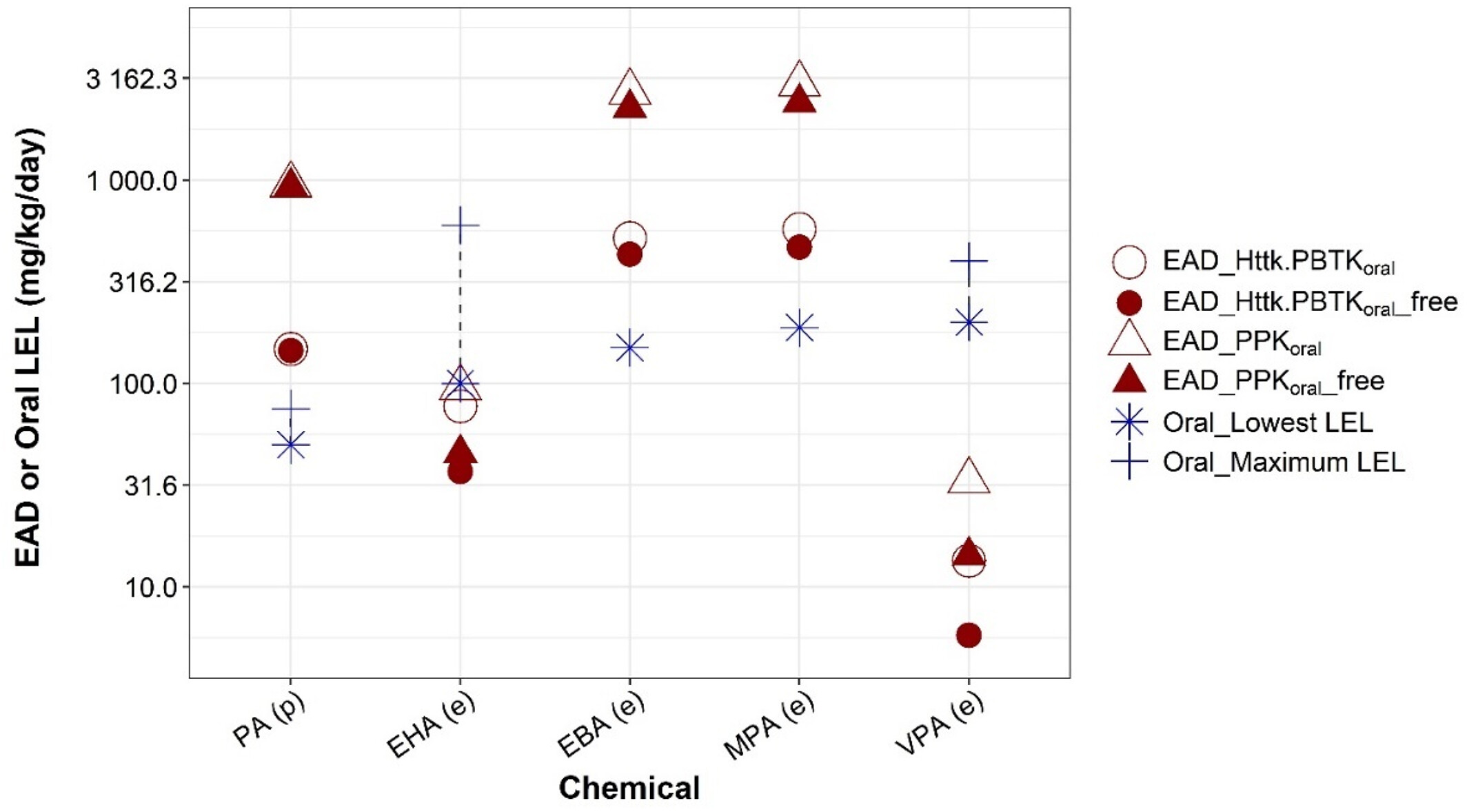

Table 3 compares EAD estimates from the two rat nonpregnancy models (PPK and httk.PBTK models) to the rat developmental toxicity LELs. Except for one chemical, EADs produced using PPK model are 1.2–6.4-fold higher than those estimated using httk.PBTK model. The EAD difference between the two models for all chemicals are <10-fold, ranging from 1.9 to 6.5-fold, which is expected considering the differences between the two models regarding model structure and types of plasma concentrations used for IVIVE (Table 3). Figure 4 compared EADs to oral rat LELs for the five chemicals with rat developmental toxicity study data. Both PPK and httk.PBTK models accurately predict the lowest LEL (within 1.5-fold) for EHA. Both models overpredicted the rat LELs for PA, EBA, and MPA, and underpredicted the rat LEL for VPA. Of the two models, the httk.PBTK model provided more conservative, and accurate, estimates of rat LELs. The EADs produced from the httk.PBTK model were within 3.5-fold of rat LEL range for all chemicals except for VPA.

Both nominal dTP concentration and corresponding free medium concentration (predicted using the Armitage mass balance model) were used in IVIVE. To evaluate the impact of the two types of in vitro concentration on IVIVE outcomes, ratios of free medium versus nominal concentration for each chemical were calculated (Table S4). In general, EAD estimates using free concentration are lower than those obtained from the nominal concentration for all chemicals, with a ratio spanning from 0.23 to 0.98 for all chemicals (Table S4). The predicted free concentration is about 80% of corresponding nominal concentration for 4 chemicals (EBA, MPA, HA, and 4-ene-VPA), 40–60% of nominal concentration for the other four chemicals (EHA, VPA, DMPA, and MHA), almost the same (98%) as nominal concentration for PA, and the smallest ratio is 23% for PHA.

3.5 EAD estimates using human regular and pregnancy-specific PK/PBPK models

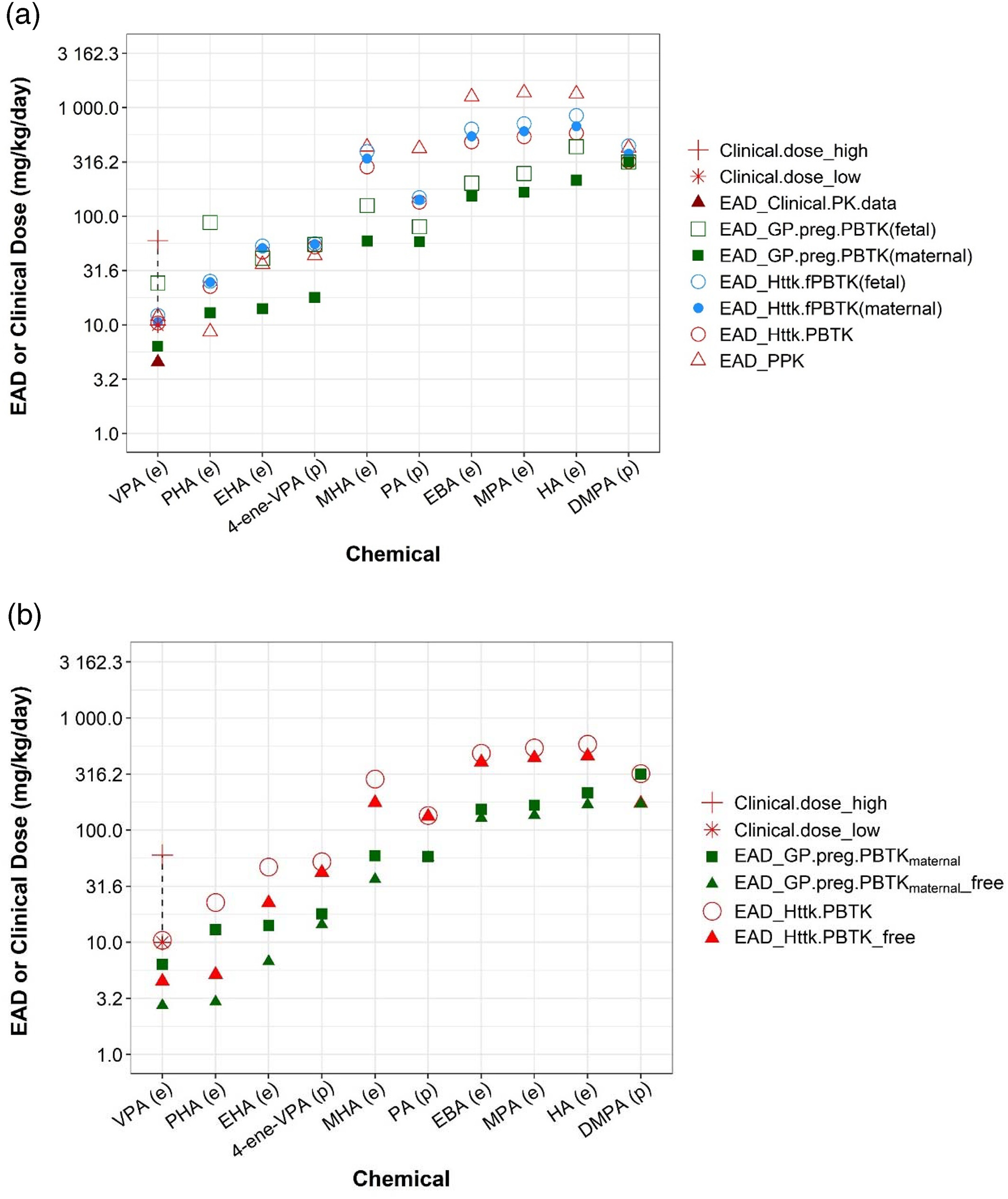

The human EADs predicted using nonpregnancy models (i.e., PPK and httk.PBTK models) and pregnancy-specific PBPK models (i.e., httk.fPBTK and GP pregnancy models) are shown in Figure 5. Compared to regular PK models, pregnancy PBPK models have separate fetus compartments, so they can simulate dynamic change of both maternal and fetal plasma concentrations. To determine which of the two plasma concentrations gives more conservative estimates of in vivo LELs, EADs corresponding to both maternal and fetal plasma C_max were calculated for pregnancy models.

EADs estimated using the httk pregnancy model (httk.fPBTK, Figure 5 blue circles) are similar (< 1.5-fold) to those using the httk nonpregnancy model (httk.PBTK, Figure 5, red open circle). Using the same PK/PBPK models, EAD values for humans are in general lower than those for rat (Table 3, Table S5), suggesting that at similar external doses, humans would achieve higher plasma concentrations as compared to rat. For both pregnancy models (i.e., httk.fPBTK and Gp.preg.PBTK) EAD estimates with maternal C_max as target concentration are less than those when fetal plasma C_max was chosen as target concentration. This suggests that compared to maternal C_max, a higher exposure level is needed for fetal C_max to reach the same target concentration. This observation is expected considering the existence of blood placenta barrier between mother and fetus. EAD calculated from different PK/PBPK models varies. The variation in these EADs is ~1.4-10-fold across PK/PBPK models and chemicals (Table S5, Column of “Ratio_max EAD vs min EAD”). The GastroPlus pregnancy model with maternal C_max as target plasma concentration (Figure 5a, solid square) provided the lowest, thus most conservative, EAD estimates for all chemicals except for PHA. For VPA, it also produces an EAD value (6.4, solid square) that is closest to the EAD value (4.6, red solid triangle) calculated by linear extrapolation of human clinical dose-C_max data reported in the PharmaPendium (Figure 5a).

For VPA, we were able to get information on its clinical usage. Our results showed that all models produce EADs that approximate the minimum clinical dose of VPA. The lowest EAD was provided by the GP pregnancy model, which was 1.6-fold less than the lowest clinical dose of VPA (Figure 5a). This result suggests that the human EADs derived from the devTOX^qP assay dTP provide a quantitative estimate of the VPA clinical dose, and indicates that the VPA clinical dose may exert developmental toxicities. This observation is consistent with the established warning that VPA is not safe in pregnancy (Diav-Citrin et al., 2008; Jentink et al., 2010).

Figure 5b showed EAD comparison between two PBPK models using free and nominal dTP concentrations. Same as shown for rat, EAD estimates using free concentration are lower than those obtained from the nominal concentration for all chemicals, with a ratio spanning from 0.23 to 0.98 for all chemicals (Figure 5b, Table S4).

3.6 Comparison of EAD estimates to literature reported values

A recent OECD case study explored the possibility of using read-across information from a subset of the VPA structural analogues tested here to predict the developmental toxicity of the target compound, MHA (OECD, 2020). In the study, several structural related aliphatic carboxylic acids of MHA were selected and tested using a battery of in vitro testing models that are relevant to developmental toxicity. These models include Zebrafish Embryo Test (ZET), ZET ceratohyal angle assay, mouse Embryonic Stem cell Test (mEST), iPSC-based neurodevelopmental model (UKN1), and Chemically Activated LUciferase eXpression (CALUX) reporter gene assay. The methods and suitability of these in vitro models are described in detail in the OECD report (OECD, 2020).

In the report, in vitro effect concentrations (e.g., EC₁₀) for each endpoint measured with these models and corresponding mouse or human oral equivalent doses (OEDs) were presented (OECD, 2020). We extracted all human OEDs (Table S6) from the report and calculated the OED range across all assays (OED_all) for five VPA analogues (row 4, Table 4). The OED_all ranges are quite large with fold differences between minimum and maximum OEDs spanning from 24- to ~1,200-fold, indicating a large variation in endpoint sensitivity among these assays. To narrow this down and be conservative, we selected only OED values (OED_narrow) derived from the most sensitive endpoint in each in vitro model and calculated another OED range (row 5, Table 4).

Next, we compared EADs estimated using the devTOX^qP assay and httk.PBTK or Gp.preg.PBTK models to these two OED ranges. Regardless the type of PBPK we used, all EADs we estimated fell within the “all-inclusive” OED ranges, which is not surprising as OED_all range is quite large. When compared to the OED_narrow range that covers only the most sensitive endpoints in each in vitro model category, EADs estimated using Gp.preg.PBTK model simulating maternal plasma C_max were within range for most chemicals (row 3, Table 4), whereas EADs estimated using httk.PBTK model were outside of the range for four chemicals (row 2, Table 4), albeit within an order of magnitude. The difference between EADs predicted from nominal dTP concentrations and the high end of the OED_narrow range is ≤2-fold for EBA and MPA, 3.25-fold for VPA, and 4.7-fold for EHA, and the difference is even smaller for EADs predicted from free medium concentrations. In general, our EAD values are comparable to literature values, providing an additional layer of validation for the approach combining the devTOX^qP assay and IVIVE.

4.1 Nontargeted IVIVE versus targeted IVIVE

Several important factors need to be considered when conducting IVIVE: biological relevance of the in vitro assay to in vivo endpoints, assay- and chemical-specific data to inform in vitro and in vivo kinetics, and suitability of the PK/PBPK models for reverse dosimetry. Whether an in vitro assay measures interaction with a molecular target that can be linked to in vivo toxicity through an adverse outcome pathway (AOP) or demonstrated biological plausibility impacts IVIVE applicability. “Nontargeted” IVIVE uses in vitro assays with nonspecific molecular targets for an in vivo outcome, which is useful for prioritizing chemicals for further testing. One good example of such application is to use half-maximal activity concentration (AC₅₀) values from all in vitro ToxCast assays (>500) measuring diverse endpoints to predict EAD distributions, and choose the lowest EAD to be compared to actual human exposure to determine testing priority for chemicals (Wetmore et al., 2012). A chemical with EAD estimates far above the actual human exposure has low testing priorities, while those with EAD estimates close to or below human exposures will have high testing priorities.

However, to quantitively predict in vivo doses exerting any specific toxic outcome, in vitro assays that measure an endpoint targeting to the same AOP or informing the same mechanism of action is preferred for IVIVE, referred to here as “targeted IVIVE.” As a good example of this “targeted IVIVE,” Casey et al. used a set of in vitro assays measuring key aspects of estrogen receptor pathway activation to accurately predict LELs of rodent uterotrophic bioassays (Casey et al., 2018). Applying a similar rationale, here we used an iPSC-based assay that provides information on dTP to predict rat developmentally toxic LELs and human clinical doses for VPA and nine closely related structural analogues and achieved good agreement between EADs and in vivo data. In fact, for VPA, the range of EADs (2.7–24.4 mg/kg/day) derived from the in vitro dTP concentration predicted to result in human developmental toxicity was substantially closer to the reported teratogenic clinical doses (10–60 mg/kg/day) than the LEL derived from the rat developmental toxicity study (200 mg/kg/day), in addition to being more protective.

4.2 Effect of model type on EAD prediction

Our analysis evaluated the performance of several types of PK/PBPK models with different structures and applicability for IVIVE. We used both open-source and proprietary PK models to generate EAD estimates that would produce maternal or fetal plasma concentrations equal to dTP concentrations in the devTOX^qP assay. However, no pregnancy-specific rat PBPK models were available from either open-source and proprietary platforms. Due to significant physiology differences in pregnancy between humans and rats, extrapolation from humans to rat via allometric modeling is not feasible. Thus, only nonpregnancy models were used for rat IVIVE, while both nonpregnant and pregnant models were used for human IVIVE.

The PK/PBPK models used in this analysis had vastly different complexity (Figure 2). Therefore, some variations were expected in the predictive performance between these models. Our results showed ~1.4-10-fold variation in human EAD estimates across models and chemicals (Table S5). Surprisingly, we did not see significant differences in EAD estimates produced by the httk.PBTK (nonpregnancy) and httk.fPBTK (pregnancy) models. The closeness between the predictions produced by these two models is likely due to the simulated early gestation age (12 weeks). This finding suggests that, for early pregnancy predictions of EAD, the httk.PBTK model can approximate httk.fPBTK models in simulating maternal and fetal plasma concentrations, justifying our approach of using httk.PBTK model for predicting rat developmental toxicity LELs. Of all human models, the GP pregnancy model that simulated maternal plasma concentration provided the lowest EAD estimates for majority of tested chemicals, suggesting that this is the most conservative approach for risk evaluation. All PK/PBPK models produce EADs that approximated the minimum clinical dose of VPA, which is in agreement with observations that VPA clinical doses are not safe for pregnant women (Diav-Citrin et al., 2008; Jentink et al., 2010).

Both httk.PBTK and httk.fPBTK models assume constant absorption rate and clearance, thus plasma C_max is linearly related to external dose in those approaches. On the other hand, the GastroPlus pregnancy model incorporates nonlinear components in chemical absorption, protein binding and clearance mechanism, leading to potential nonlinear relationships between external dose and plasma C_max. Nonlinearities in absorption and bioavailability can cause increases in chemical concentrations that are disproportionately high or low relative to the change in external dose (Ludden, 1991). Nonlinear pharmacokinetics also occur when the amount of chemical exceeds the capacity of the enzymes to metabolize it (Stein & Peletier, 2018). To determine possible existence of nonlinear PK, and to validate the EADs predicted under linearity assumption, we simulated maternal and fetal C_max at the predicted EADs using GastroPlus pregnancy model and compared these C_max values to the corresponding dTP concentrations. We found that for the range of EAD estimates, the linear assumption between external dose and C_max largely holds true for most VPA analogues except for 2,2-dimethylpentanoic acid (DMPA). On a dose-plasma C_max curve for DMPA, a C_max plateau is reached at ~20,000 mg/day, suggesting a possible absorption saturation (Figure S2). Further increases in dosing amount did not significantly increase C_max. Thus, it is difficult to estimate an EAD that would yield plasma C_max equal to the dTP concentration for DMPA. Instead, the dose at the starting point of saturation plateau is used as EAD for DMPA, providing a more conservative estimate.

The httk models do not incorporate nonlinear PK, limiting their use for simulating nonlinear kinetics. However, the linearity assumption between external dose and C_max holds true for the majority of chemicals at the dose ranges tested. Considering the attractive features of being open-source and high throughput, the httk models demonstrate great potential in IVIVE applications and can be readily accessed via the National Toxicology Program Integrated Chemical Environment (https://ice.ntp.niehs.nih.gov/) (Abedini et al., 2021).

4.3 Effect of pharmacokinetic parameters on EAD prediction

The lack of accurate experimental data for key pharmacokinetic parameters (e.g., Cl_int) is often the limiting factor in developing IVIVE approaches for large chemical sets. Fortunately, experimental data for Cl_int are available for several VPA analogues (OECD, 2020). The Cl_int range for these VPA analogues is 0.07–33.6 μl/min/10⁶, covering a relatively large range from low to high. In general, chemicals with low clearance tend to have a lower EAD estimate, as low clearance rate will cause chemical accumulation in the body, thus less exposure is needed for C_max to reach the target concentration.

When experimental values are not available, open-source QSAR models provided in OPERA (v2.7) (Mansouri et al., 2018) can be used to predict the fu and Cl_int of a chemical. Using in silico models to adequately estimate input parameter values for PK and PBPK modeling greatly expands the utility of IVIVE for risk assessment. However, the reliability of QSAR predictions depends on the number and structural diversity of the chemicals included in the model's training set (Cherkasov et al., 2014). The training set for the OPERA (v2.7) Cl_int model includes experiment values for several VPA analogues, which ensures that VPA-like chemicals are included within the model's applicability domain.

4.4 Adjusting for in vitro nominal concentration

IVIVE relies on in vitro measurements of bioactivity to predict EADs in exposed subjects. As a result of lacking experimental in vitro kinetics data, the nominal concentration has routinely been used to derive the effect concentration for IVIVE. However, theoretically, only the chemical portion unbound to plasma protein or culture vessel should be considered available for uptake into cells and exert toxicity (Groothuis et al., 2015). Therefore, the free medium concentration would be a better representative for the true effective concentration.

In our study, both nominal and free medium dTP concentration were used for IVIVE. The ratio of free versus nominal concentration in devTOX^qP assay system was calculated using a published mass-balance model that considers essential assay components and physicochemical characteristics (Armitage et al., 2014). The free:nominal concentration ratio was 0.23–0.98 across chemicals (Table S4). EAD adjustment with these ratios led to lower EADs across all chemicals, suggesting a more conservative EAD estimate when free medium concentration is used. These biologically more relevant values represent relative intrinsic potencies of the chemicals to induce effects in these various in vitro systems. The fu parameter is particularly important in affecting free medium concentration. For example, the chemical that had the lowest ratio of free versus nominal concentration (0.23, for PHA) also has the lowest fu value (0.057), whereas the chemical with the highest ratio (0.98, for PA) also has the second highest fu value (0.66) (Table S4).

4.5 Chemical structure similarity analysis and comparison to OECD studies

Chemical structure similarity between VPA and the rest of chemicals were also calculated (Table 1) and used to help understand the potency differences between VPA analogues. EHA is the second most potent analogues based on devTOX^qP dTP concentration. Interestingly, it also has the highest structure similarity score to VPA. However, four other chemicals (PHA, 4-ene-VPA, EBA, MPA) had relatively high structure similarity scores (0.58–0.64), but their potencies (based on dTP concentration) were different (Table 1). For example, PHA and EBA had almost the same structure similarity score relative to VPA (0.58 vs. 0.6), but there is approximately a two-fold difference in their dTP concentrations (546 μM vs. 1,071 μM). This discrepancy could be explained by data shown in the OECD report (OECD, 2020), which suggested that side-chain length is related to the teratogenic potency of these chemicals, and PHA has the longest side chains while EBA has the smallest side chain. Our result suggests that chemical structure information may help explain differences in toxicity potency of this series of aliphatic carboxylic acids, but the exact functional group or moiety that is related to potency needs further investigation.

In the recent OECD case study, multiple in vitro testing models with various endpoints relevant to developmental toxicity, for example, pericardial and yolk edema, cranio-facial deformation for zebrafish embryo test, HDAC inhibition assay using mouse embryonic stem cell, were used for IVIVE of the VPA analogues. In the OECD report, the nominal EC₁₀ values were also converted into biologically more relevant EC₁₀ values by assay-specific in vitro biokinetics models that consider factors of evaporation, plastics binding, and binding to serum lipids and protein, etc (OECD, 2020). Two ranges were calculated to summarize OED data from the OECD report, one includes data from all in vitro assays (OED_all), the other only includes the most sensitive endpoint of each in vitro assay (OED_narrow). The OED_all range is quite large with fold differences between the lowest and highest OEDs spanning from 24- to ~1,200- fold across the tested chemicals, suggesting a large variation in in vitro assay/endpoint sensitivity. The CALUX reporter assay and ZET CHA reporter assay seem more sensitive than the rest of assays in detecting developmental toxicity, which is not surprising as reporter gene assays were generally observed to possess greater endpoint sensitivity than other assay types (Dreier, Connors, & Brooks, 2015). In the OECD case study, there was another in vitro assay using human stem cells, that is, human neural embryonic cells (UKN1 assay), which was also used for IVIVE for the VPA analogues. The UKN1 assay measures changes in gene expression and differentiation using human neural embryonic cells and provides valuable information on a chemical's neurodTP (OECD, 2020). However, the assay is not adaptable to high throughput platform because the differentiation needs to be done in 6 or 12 well plates. In comparison, devTOX^qP assay can be adapted to a medium/HTS platform, has a relatively short testing period (3-day), and high balanced accuracy in predicting in vivo developmental toxicity for a wide variety of chemicals (Zurlinden et al., 2020), making it suitable in screening chemicals for dTP in a high throughput manner.

Using devTOX^qP assay and PBPK models, all EADs estimated from dTP concentration fell within the OED_all range. Depending on the type of PBPK models used, the EADs were either within the OED_narrow range or ≤ 5-fold different when compared to the high end of the OED_narrow range. In all, our EAD values are comparable to the literature reported values that used a diverse set of in vitro assays, further validating our IVIVE approach. However, considering the large variance in assay/endpoint sensitivity, how to consolidate results from multiple assays with various molecular initiation and signaling events remains a challenging question to answer.

When examining this type of approach for pairing in vitro testing with IVIVE projections, a detailed understanding on mode of action or AOP for toxicity endpoints (e.g., developmental toxicity) and the relevance of an in vitro assay endpoint to specific molecular and biological process leading to an adverse outcome (e.g., dysmorphic effects) will facilitate establishing confidence and supporting widespread application. The predictive accuracy of all in silico models (e.g., QSAR and PBPK models) should be evaluated, and efforts are also needed to characterize applicability domain and model uncertainty. Work is underway to account for population variability in the PBPK models (Cohen Hubal et al., 2019), and promote use of guidance documents for model reporting and validation to help users determine the suitability of a model for a specific IVIVE application (Bell et al., 2018; OECD, 2021).
