TERS of CoPcF₁₆ Molecules on a Gold Surface

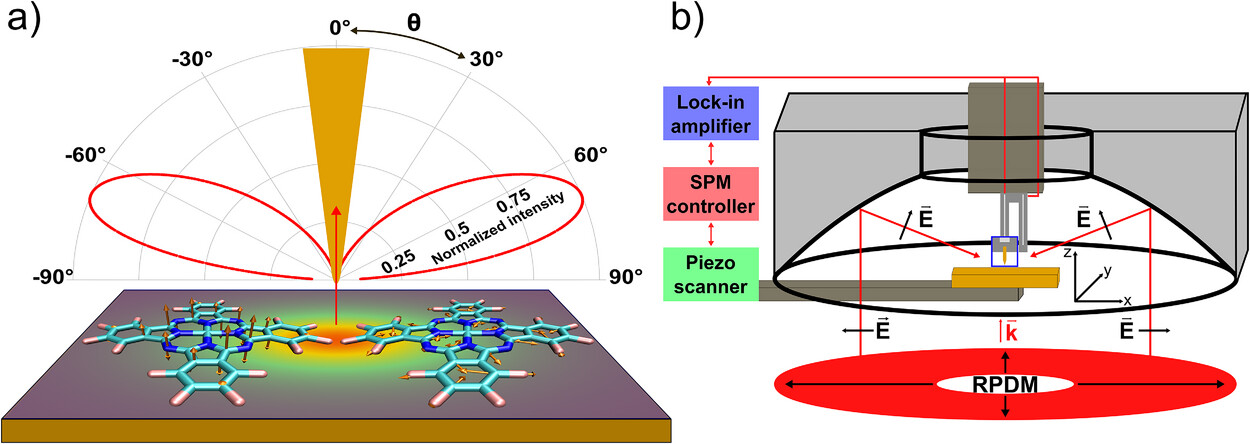

The impact of the excited gap-plasmon mode on the Raman signals of the molecules is illustrated in Figure 1a. The angular distribution of the Raman dipole emission is affected by the local electric field in the nanometer gap in several ways. First, the total radiated power can be enhanced through the excitation of gap plasmon resonances. Second, the angle-resolved radiation intensity p(θ, ϕ) of the Raman dipole can be altered by gap-plasmon radiation behavior. These effects lead to the radiated power per solid angle being modified by the radiation enhancement. If the Raman dipole frequency coincides with a certain plasmonic resonance, the emission pattern of Raman scattering will be greatly modified by this plasmonic mode.

To study this process experimentally, the TERS configuration shown in Figure 1b is used. Detailed information about the TERS setup can be found in Supporting Information 1. An electrochemically etched gold tip is brought into proximity of the sample via a mechanically excited shear-force tuning fork. Decreasing the tip-sample distance is controlled by approaching the sample to the tip while monitoring the phase shift of the tuning fork oscillation. In our experiments, for the TERS gap consisting of a gold tip and a gold surface, typically for a phase shift of 4.5 degrees, the tip-sample gap is about 4 nm, henceforth referred to as “large gap”. Increasing the phase shift to 15 degrees decreases the gap distance to about 2 nm, henceforth referred to as “small gap”.^[20] To excite the gap-plasmon mode efficiently along the optical axis a radially polarized donut mode (RPDM) with a wavelength of 633 nm is used. For comparison, an azimuthally polarized donut mode (APDM) possessing exclusive x-y field intensity |E_x,y|² is also used. Detailed information about the field distributions of RPDM and APDM can be found in Supporting Information 1. A CoPcF₁₆ film of about two layers thick (0.7 nm) is evaporated onto an ultra-smooth gold substrate without a spacer layer in between as a sample, see Supporting Information 2.

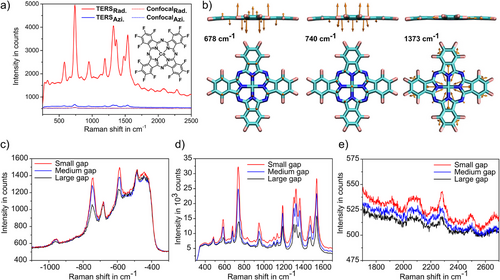

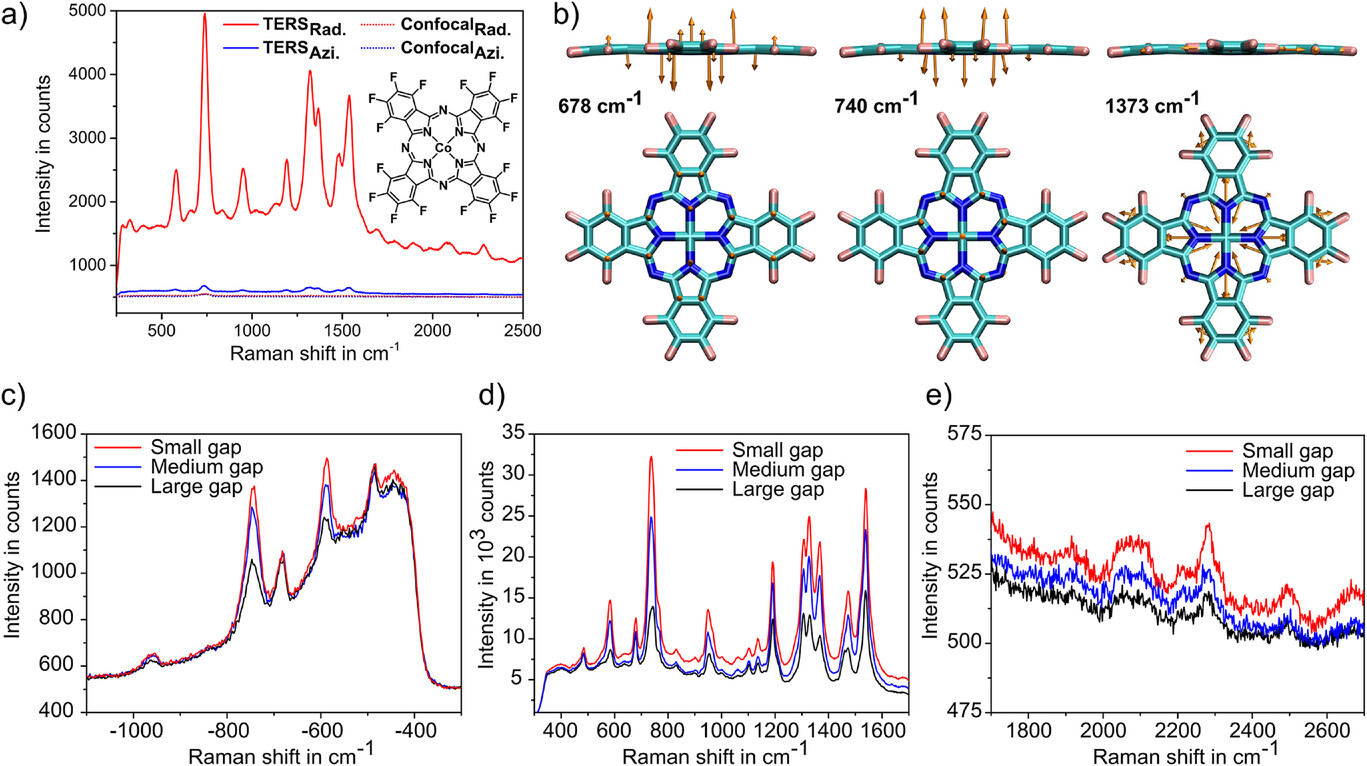

Experimentally acquired TERS spectra are shown in Figure 2a. Using RPDM (red solid line) leads to significant enhancement as compared to the spectrum taken without a tip (red dotted line). This complies with the strong vertical gap-mode that is excited by the dominant E_z component in the focus of a RPDM beam. The TERS spectrum taken with an APDM (blue solid line) is also shown. As compared to the case without tip (blue dotted line), the APDM-TERS spectrum also shows Raman enhancement, though it is moderate compared to the RPDM-TERS. These results further confirm the effective excitation of the vertical plasmonic gap mode that is essential for the electromagnetic (EM) enhancement of the TERS signal. To analyze the individual Raman vibrational modes, we have calculated the resonant- Raman active modes using (time-dependent) density functional theory ((TD-)DFT) for CoPcF₁₆ on a gold substrate considering the adsorption geometry and the gold-tip gold-substrate configuration (see Supporting Information 3). Most of the prominent Raman-active peaks correspond to in-plane vibrational modes, such as 967, 1194, 1307, 1335, 1373, 1474, and 1540 cm⁻¹. However, there are two peaks associated with out-of-plane modes at 678 and 740 cm⁻¹, which can be assigned to vibrations of C- and N-atoms in the macrocycle structure (see Figure 2b). The vibrational geometry will be essential to elucidate the angularly resolved Raman scattering discussed later.

We note that different from the recent work reporting the TERS quenching from ZnPc molecules,^[19] we observe strong TERS enhancements. There are a few factors that could contribute to these different phenomena. First, in our study a CoPcF₁₆ film with a nominal thickness of 0.7 nm is used. In the case of homogeneously distributed molecules over the gold surface, this nominal thickness accounts for two layers of CoPcF₁₆ molecules that are flat-lying on the substrate. This is different from the single molecule case reported by Yang et al.^[19] Secondly, the parabolic mirror collects optical signals around the TERS gap over a much larger angle range than it is for the 60 degrees TERS detection configurations. This different detection scheme needs to be considered, which will be detailed in this paper. Finally, the tip used in our study is not specially designed for having atomic protrusions at the tip apex. Combined with the larger tip-sample distances in the nm regime, the field confinement and polarization are different from the aforementioned work.

Further, we observe that the Stokes and anti-Stokes peaks as well as the overtones all increase as the gap-distance decreases, confirming the essential role of EM enhancement in our study (see Figure 2c–e). Notably, our previous work has shown that charge transfer occurs between CoPcF₁₆ and the gold substrate, and this process is expected to be bidirectional, involving both the central metal atom and the macrocycle.^[18] Therefore, the contribution of chemical enhancement to the different Raman peaks cannot be excluded. A closer look at the individual peak ratios in the anti-Stokes region reveals different peak ratios as compared to their corresponding Stokes lines. For example, $$ is 3.4, and the $$ is 7.8. We consider the selective Raman peak enhancement, e.g., the anti-Stokes peak at −678 cm⁻¹, to be related to its proximity to the gap plasmon resonance maximum. Previous findings in surface-enhanced resonance Raman spectroscopy (SERRS) studies have shown that the peaks close to the plasmon resonance maxima are selectively enhanced.^[21] We then indirectly derive the gap plasmon resonance information from the spectral background of the TERS spectrum. The broad “continuum” TERS (and SERS) spectral background, though still under debate,^[22-24] has been shown to be closely related to the metal PL and is impacted by the plasmon resonance.^{[20, 25-31]}

As shown in Figure 2d, the maximum of the spectral background is at 1.890 ± 0.005 eV at small gap distance, which blue shifts to 1.905 ± 0.007 eV at large distance, a phenomenon that is typical for the distance-dependent gap-plasmon mode (for details, see Supporting Information 4). In Figure 2c, the −678 cm⁻¹ anti-Stokes peak is closer to the spectral background maximum, hence is more enhanced by the gap-plasmon mode than the −740 cm⁻¹ one. Indeed, at the far-end of the spectral background, the last anti-Stokes Raman peak at −967 cm⁻¹ is just visible, indicating the significantly decreased impact from the gap-plasmon resonance. In other experiments, where the TERS spectral background is much broader than the one in Figure 2c, we can observe the anti-Stokes peaks up to −1540 cm⁻¹ (see Figure S6a).

Simulated Directed Emission of a TERS Configuration

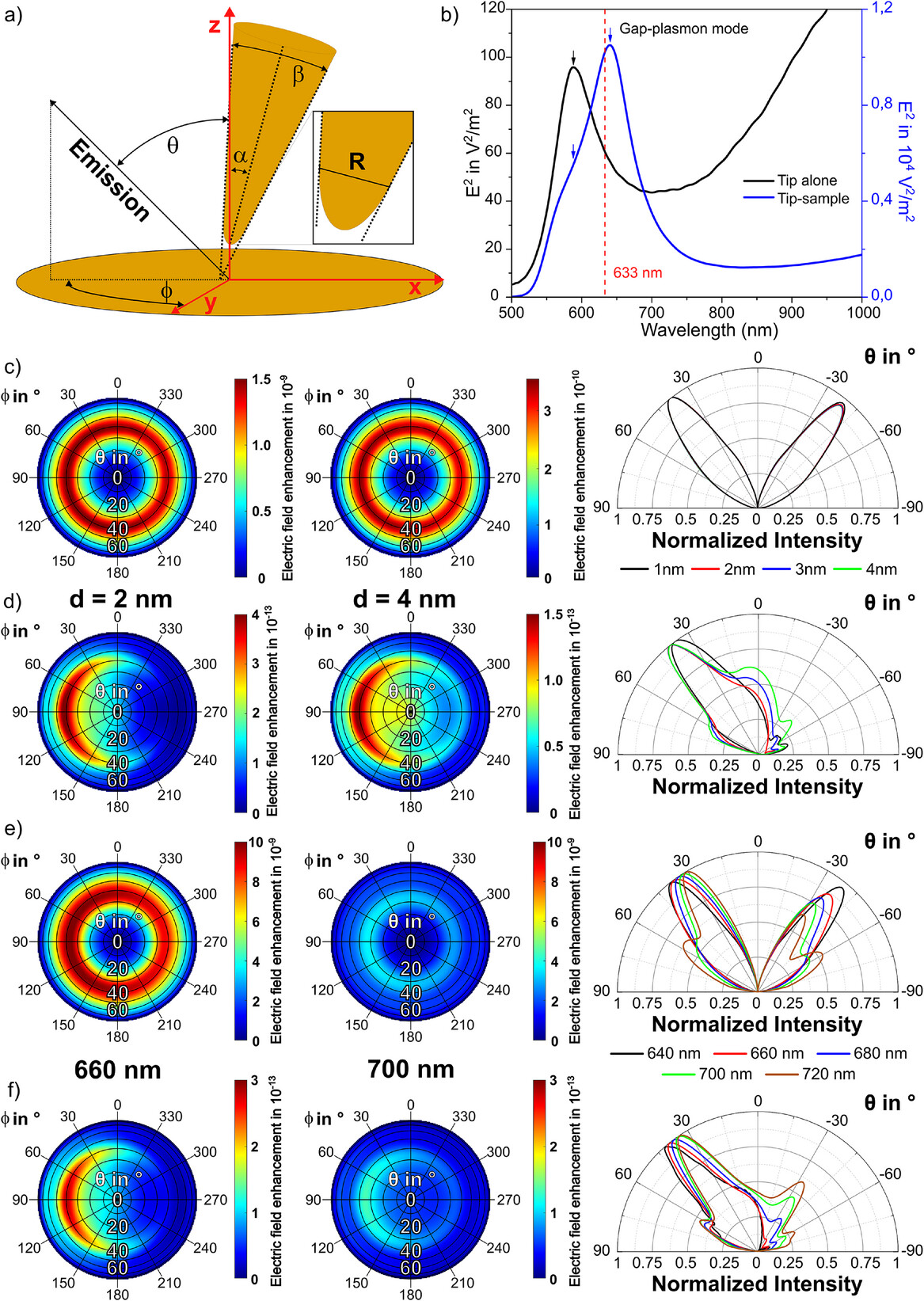

We explore the angularly distributed optical signals in the far-field using the finite-difference time-domain (FDTD) method (see Supporting information 5). The simulation model consists of a slightly tilted gold tip above a gold film that is covered with a CoPcF₁₆ thin film with a thickness of 1 nm. The tip geometry is defined by the apex diameter (R), opening angle (β), and tilting angle with respect to the optical axis (i.e., the sample normal) (α) shown in Figure 3a. To comply with the experimental conditions and the real experimental tip shape observed in a scanning electron microscope image, α, β, and R of the gold tip are simulated as α = 3 °, β = 18 °, and R = 70 nm, respectively. The plasmon resonance of such a tip-sample gap is calculated as 640 nm for a gap distance of 2 nm, which is blue shifted to 587 nm for the tip alone (Figure 3b).

We first calculate the far-field emission of a dipole (either vertical or parallel to the sample plane) in a tip-sample configuration. The results show that in both cases there is a highly directional emission pattern. In detail, the far-field emission pattern for the vertical (to the sample surface) dipole emerges in a uniform ring (Figure 3c) that is nearly independent of the azimuthal angle (φ) but strongly depends on the polar angle (θ). In contrast, guided by the slightly tilted tip, the far-field emission for the parallel (to the sample surface) dipole is shown in a crescent shape that depends on both θ and φ. The parallel dipole also couples to the gap mode due to the complex electromagnetic field in the tip-film nanogap, in which the vertical and parallel components of the localized electric field exist simultaneously though with different strengths.^[32-34]

We then compare the gap-distance dependent far-field emission intensity patterns for various θ angles in the x-z-plane of the polar plots shown in Figure 3c,d. Three characteristics can be found: (1) The vertical dipole shows two main symmetric lobes at θ = ± 39°. In contrast, for a parallel dipole (Figure 3d), most of the radiation concentrates in one main lobe emission pattern with the strongest signal at θ = 40° on the opposite side of the tip-tilt angle (here at φ = 90°). For both cases, the maximum emission angle remains almost unchanged as decreasing the tip-sample distance from 4 to 1 nm. Notably, for the parallel dipole the relative emission intensity ratio $$ is increasing for larger tip-sample distances, indicating the decreased directivity of the tip antenna. (2) The far-field emission intensity for the vertical dipole is changing faster at varying gap distance than that for the parallel dipole. It indicates that the vertical dipole interacts with the tip with larger coupling strength g_e (see Supporting Information 5) than the parallel dipole. Indeed, the far-field emission intensity for the vertical dipole is approximately four orders of magnitudes larger than that for the parallel dipole at the same tip-sample distance d. This is in good agreement with previous experimental results, where mostly the out-of-plane vibrational modes appeared in the TERS spectra.^{[35, 36]} (3) The emission pattern of the vertical dipole shows a smaller divergence angle (∼28°), which is defined as the full width at half maximum (FWHM) of the radiation lobe, than that of the parallel dipole (∼37°) at d = 2 nm. The divergence angle for the vertical dipole remains unchanged while that for the parallel dipole is increased from ∼37° to ∼59° as increasing the gap distance d from 2 to 4 nm. Hence, we conclude that the antenna directivity is stronger for a vertical dipole than for a parallel dipole. We continue the investigation by simulating the wavelength-dependent directivity by the tip-sample nanogap. As shown in Figure 3e,f, the closer the emission wavelength to the plasmon resonance, the higher the intensity and the smaller the divergence are.

We summarize the findings from the simulation results. The plasmonic near-field distribution in the tip-sample nanogap shapes the radiation pattern, and the tip-sample configuration guides the far-field emissions of vertical and parallel dipoles resulting in high directionality; however, with significant differences in the maximum emission angle, intensity, and the divergence. The directed emission is both gap-distance and wavelength dependent. These distinct angularly distributed far-field emission characteristics lead to different detection efficiencies for the radiation dipoles of varying orientations (see Supporting Information 6). Although the vertical dipole is coupled to the tip more efficiently, it should be noted that a side-illumination TERS setup may have a higher signal collection efficiency for a parallel dipole compared to a vertical dipole due to its single lobe emission pattern. We assume a case that an aspherical lens with a NA of 0.51 positioned at an angle of 60° from the surface normal is used to detect the optical signal from a parallel dipole in a tip-sample gap where the tip is slightly tilted (α ≈ 3°). If the lens is located at the single lobe direction, the detection efficiency would be 20.5%, while it is only 6.4% if the lens is located at the opposite side (see Figure S11). For a vertical dipole, the lens position is comparably less critical because of its more symmetric emission pattern, which leads to a detection efficiency between 14.9% and 12.6%. Thus, the angular radiation of different vibrational modes, and the position of the objective lens should be considered to interpret the TERS spectral features, particularly the relative peak ratios between in-plane and out-of-plane vibrational modes.

Experimental Angularly Resolved TERS Signal

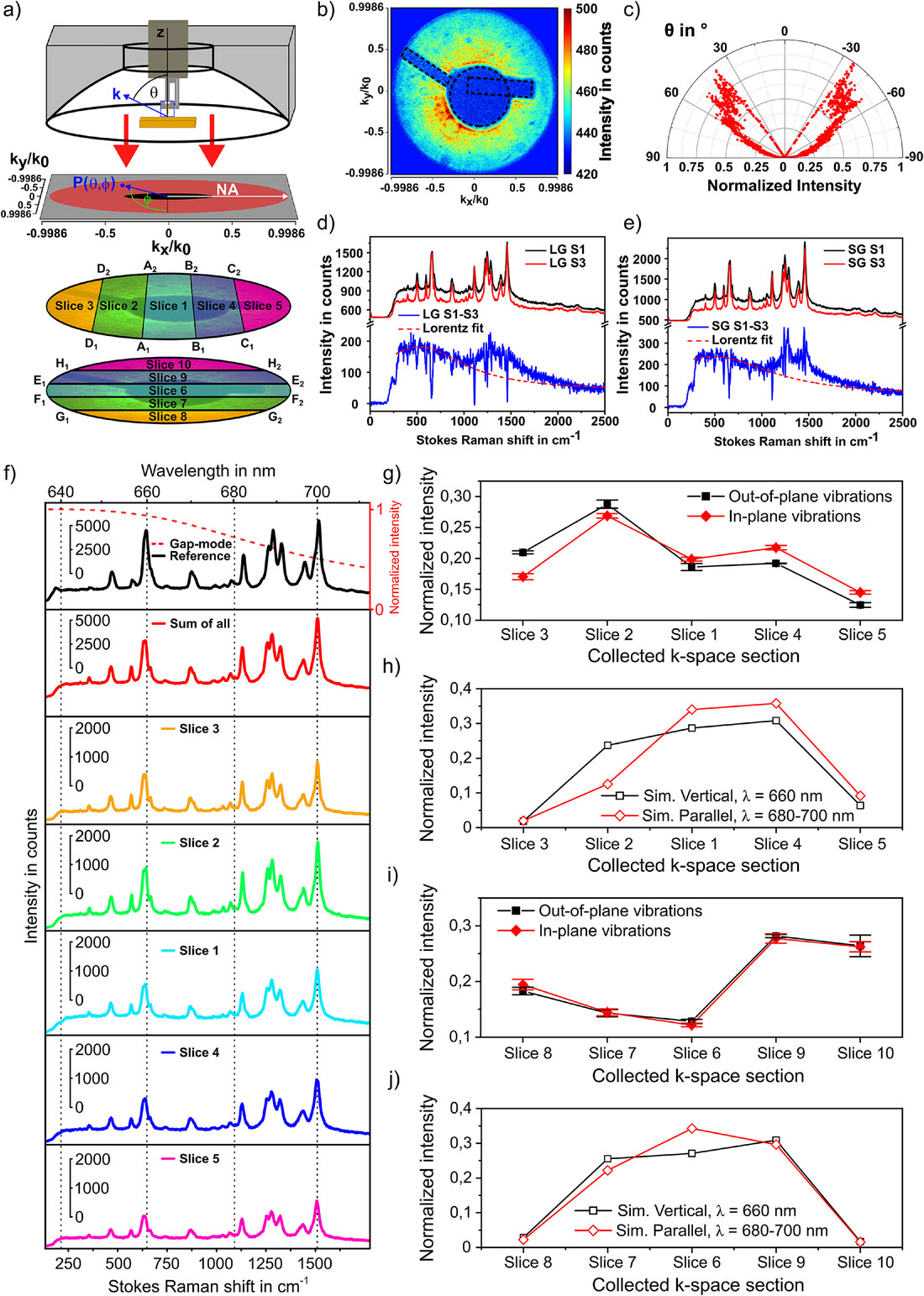

We implement the back-focal plane (BFP) imaging technique^[37-39] to the TERS setup (see Supporting Information 7) to visualize the radiation pattern experimentally. Shown in Figure 4a, the radiation intensity p (θ, ϕ) of a dipole in a TERS gap is projected to the BFP indicated as a red disk. The BFP pattern is scaled by the normalized wavevector components as k_x/k₀ and k_y/k₀, where $$. The dimension of the BFP image is determined by the NA of the parabolic mirror that allows the maximum collection angles of θ = 87 °and φ = 360 °. We note that in our experiment, only the polar angle range from θ = 27° to 87° is collected. The angular information (θ, φ) of the inspected signal is derived from the image considering the parabola equation of the parabolic mirror. Figure 4b shows an experimental BFP image taken from a 2 nm TERS gap. Intense signals are distributed in the range of θ = 35 to 55 °, see Figure 4c). The area with no intensity is due to the shadowing of the sample holder and one prong of the tuning fork (see dashed area).

We further implemented the energy momentum spectroscopy technique^[40-43] to the TERS setup to distinguish the angularly distributed sharp TERS peaks from the broad PL spectral background. This is achieved by spatially slicing optical signals of certain angles (θ, ϕ) as shown in Figure 4a, and spectrally dispersing them with a CCD-coupled spectrometer (for more details, see Supporting Information 7). The Slices 1–5 are sectioned parallel to k_y, while Slices 6–10 are sectioned parallel to k_x. Figure 4d compares the energy momentum TERS spectra that are taken from two different angular ranges shown as Slice 1 and Slice 3 at the tip-sample distance of 4 nm. Here, Slice 1 covers all points in between the two lines from A₁ to A₂ and B₁ to B₂ in Figure 4a. Similarly, Slice 3 contains all points between the line from D₁ to D₂ and the left edge of the aperture in Figure 4a. The precise angular information for all sections is summarized in Table S2. When subtracting the TERS spectrum taken from Slice 1 by that from Slice 3, the following features can be clearly seen in Figure 4d: (1) Raman peaks in the spectral range of 473–1129 cm⁻¹ appear as “dips” in the subtracted spectrum indicating their lower intensities in the angular range of Slice 1; (2) Raman peaks in the spectral range 1184–1540 cm⁻¹ still show negative intensities, but the PL background turns positive. These phenomena are more significant for the smaller tip-sample distance of 2 nm in Figure 4e, where the subtracted Raman peaks in the 1184–1540 cm⁻¹ range turn positive.

We analyze the energy momentum TERS spectra by deriving the angularly distributed Raman intensities for all prominent Raman modes and compare them with the simulated results in Figure 3. Figure 4f shows a series of TERS spectra taken from different angle ranges. The top-most spectrum is a normal TERS spectrum without angular selection. The second spectrum from the top is the sum of all energy momentum TERS spectra taken from Slices 1 to 5. These two spectra have similar peak intensity ratios. However, the intensity of the individual Raman modes in the spectra taken from different angle ranges varies in distribution. To manifest these variations, we integrate the intensity of a certain vibrational mode for each angle range and then normalize it by the total intensity of this vibrational mode in all angular slices. Taking the Raman peak at 678 cm⁻¹ (out-of-plane vibrational mode) as an example, the normalized intensity $$ is derived as $$. The normalized intensity $$ of the other out-of-plane vibrational mode is derived in the same way. Afterwards, the value of $$ is used to plot the y-axis and the sequence of the spatial section is shown as the x-axis in Figure 4g to illustrate the angularly distributed Raman intensity of all out-of-plane vibrational modes. The same procedure is carried out for all in-plane vibrational modes (967, 1309, 1331, 1373, 1469, and 1540 cm⁻¹), giving rise to the red line in Figure 4g. The simulated far-field emission from a vertical or parallel dipole, in analogue to the out-of-plane or in-plane vibrational modes, was processed in the same manner, and the result is shown in Figure 4h. Following the same procedure, Slices 6 to 10 were processed, see Figure 4i,j.

We first compare the evolving tendencies of out-of-plane modes with those of the in-plane modes at different angular ranges. We observe that out-of-plane and in-plane vibrational modes have different intensity distribution in the inspected ten angular ranges. For example, in the angular range of Slice 2 (see Figure 4g), the normalized intensity of the out-of-plane Raman modes is larger than that of the in-plane vibrational modes, which inverts for Slices 1, 4, and 5. This tendency is in line with the simulated results (see Figure 4h). It is important to realize from inspection of Figure 4g that the average intensity of the out-of-plane vibrational mode in Slice 2 is approximately 231% higher than in Slice 5. We observe distinct angular distributions for the Raman intensities of out-of-plane and in-plane vibrational modes. For example, in Slice 3 of Figure 4g, the average out-of-plane vibrational mode intensity is approximately 24% higher than that of the in-plane vibrational modes. For the Slices 4 and 5, the average in-plane vibrational mode intensity is higher by 14% and 17%, respectively. For Slices 6 to 10, the normalized intensities of the out-of-plane modes are similar to the in-plane modes, as shown both in the experimental results (see Figure 4i) and simulations (see Figure 4j). In sum, in Figure 4 we experimentally demonstrate the angular distribution of TERS signals. We performed the same experiments and analysis for a medium and large tip-sample distance, the results are shown in Figure S13 in the Supporting Information. The impact of the tip-sample distance on the angular distribution of the Raman scattering signal is weak in the studied gap distance range, which agrees with the FDTD simulation results shown in Figure 3c,d.

We note that although the changing tendencies of the experimental results go along with the simulated ones in most of the cases, for some angle ranges, such as Slice 1 and 6, the agreement between experiment and simulation is less satisfactory. To understand the discrepancies, the following considerations need to be made: (1) As seen in the BFP images, part of the sample holder and one prong of the tuning fork block and/or scatter the optical signal, which modifies the observed radiation patterns of the Raman vibrational modes. (2) CoPcF₁₆ thin film has been used instead of a single molecule. Slight variations in molecular orientations cannot be excluded, which makes the comparison between the simulation and the experiment less consistent. (3) The realistic tip geometry in the tip-sample gap is approximated as the true geometry regarding the sub-nanometre structure of the tip apex cannot be imaged. It has been well-accepted that atomic protrusions play a significant role in the TERS signal generation^{[44, 45]} though the stability and thus the effect of such protrusions under ambient condition is still unclear.^{[46, 47]} In our simulation, no such kind of atomic features have been considered, which could potentially bring further inconsistencies between the simulation and the experiments.

We interpret the observations above by considering vibrational mode geometry, and wavelength-dependent directivity. As shown in Figure 3e,f, the closer the emission wavelength is to the nanogap resonance, the stronger the intensity, and the smaller the divergence are. In Figure 4d,e, the spectral background maximum locates at 651 and 656 nm, which are close to the simulated gap plasmon resonances in Figure 3b. The two out-of-plane Raman vibrational modes (678 cm⁻¹, 740 cm⁻¹) scatter at approximately 660 nm, which are closer to the gap plasmon resonance than all in-plane Raman modes (967, 1309, 1331, 1373, 1469, and 1540 cm⁻¹) which scatter between 680 and 700 nm. In turn, the radiation patterns of the out-of-plane Raman vibrational modes (678 cm⁻¹, 740 cm⁻¹) are significantly directed by the tip antenna, giving rise to the stronger scattered far-field intensity in the larger polar angles such as in Slice 3, rather than in Slice 1. Thus, these peaks appear to be “dips” in the subtracted spectra in Figure 4d,e. Comparably, the wavelength of the scattered photons in the spectral range 680–700 nm is less effectively overlapped with the gap mode resonance. Hence, in this spectral range the gap mode impacts on the angular distribution of the TERS signal less significantly. Here, intensity features of the few in-plane Raman modes are more complex, where both “dips” and “peaks” are visible. Interestingly, the peak widths are slightly increased for some peaks (1309, 1331, 1373, and 1540 cm⁻¹), giving rise to “peaks” in the subtracted spectra. Further studies need to be performed to understand these details.
