Synthesis and Characterization of the Co(II) Complexes

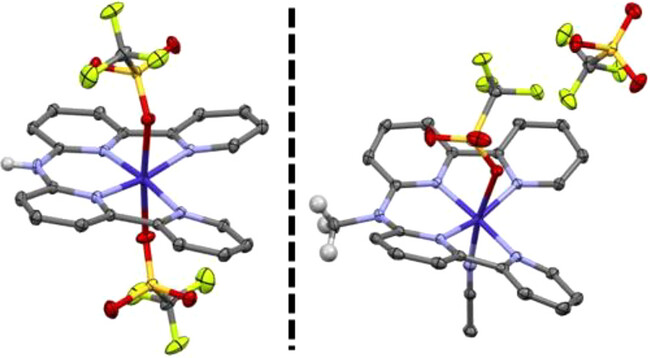

The ligands N,N-bis(2,2′-bipyrid-6-yl)amine (Hbbpya), and N-([2,2′-bipyridin]-6-yl)-N-methyl-[2,2′-bipyridin]-6-amine (Mebbpya) and the corresponding cobalt complexes have been synthesized as previously described^[54] and characterized thoroughly (Schemes S1–S3, Figures S1–S10). The solid-state structures of [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ exhibit a distorted octahedral geometry with four N atoms from the bipyridine moieties coordinated at the equatorial positions, and either the triflate counteranions or one triflate and one solvent molecule are bound in the two axial positions (Scheme 1). Both of the complexes show similar structural properties; the difference in Co-N bond lengths between the structures is below 1 pm (Table S7), and the N-N-N-N dihedral angles amount to 9.7 and 11.2 degrees for [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺, respectively (Figure S11). Furthermore, both complexes are stabilized in their S = 1/2 ground state, as evident from their X-band EPR spectra (Figure S12). DFT calculations reveal that the unpaired electron in [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ is located in a d_z²-type orbital of the Co center (Figure S13 for [(Hbbpya)Co^II]²⁺) and the computed g values reproduce the experimentally observed values well (Table S8).

Synthesis and Characterization of the Reduced Complexes

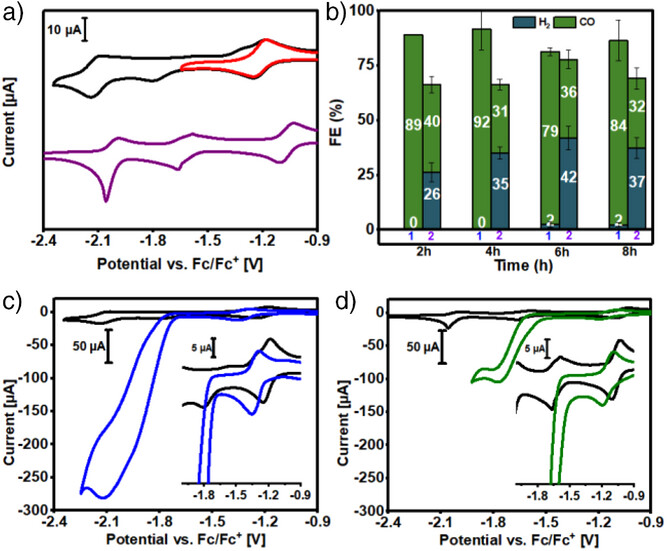

The black and red traces in Figure 1a represent cyclic voltammograms of [(Hbbpya)Co^II]²⁺ in MeCN solution containing 0.1 M [N(n-Bu)₄]PF₆ as the supporting electrolyte. Complex [(Hbbpya)Co^II]²⁺ features a reversible (Figure S14A–B) cobalt-based one-electron reduction at E_1/2 = −1.21 V and irreversible (see Figure S14C–F) ligand-based reduction processes at E_red = −1.78  and −2.11 V (all potentials are referenced vs. Fc/Fc⁺). The assignment of the redox processes (Co vs. ligand based) is made by comparison with the CV of [(Hbbpya)Zn^II]²⁺ (Figure S15), which has been also extensively characterized (Figures S16–20). The UV-Vis spectrum of S = 1/2 [(Hbbpya)Co^II]²⁺ in MeCN is featureless in the visible region (Figure 2a, black trace). Chemical or electrochemical one-electron reductions of [(Hbbpya)Co^II]²⁺ lead to EPR-silent [(Hbbpya)Co^I]⁺, with characteristic UV-Vis absorptions at λ_max (ε, M⁻¹ cm⁻¹): 527 (3000), 827 (1600), and 937 (5200) (Figure 2a,b, red trace; Figure S21).

The NIR features presumably originate from a Co(I)-to-ligand charge transfer transition in [(Hbbpya)Co^I]⁺, which corroborate the Co(II)-ligand radical state being close in energy relative to the ground low-spin S = 0 Co(I) configuration (Table S5). Indeed, initial studies with multireference (MR) electronic structure methods indicate that the electronic ground state of [(Hbbpya)Co^I]⁺ is multiconfigurational in nature, which has previously been observed for other cobalt complexes with redox non-innocent ligands.^{[55, 56]}

The 527-nm band is blue-shifted to 465 nm (5100 M⁻¹ cm⁻¹) and the NIR bands are red-shifted to 860 (1200 M⁻¹ cm⁻¹) and 968 nm (5000 M⁻¹ cm⁻¹) upon further reduction of [(Hbbpya)Co^I]⁺ (Figure 2a, blue trace; see also Figures S22, S23 for electrochemical generation). In EPR, it reveals a diagnostic ligand radical signal corresponding to the formation of [(Hbbpya^{• ̶})Co^I]⁰ (Hbbpya^{• ̶} represents the one-electron reduced ligand; Figure 2b, blue trace; Figure S24A) in 10% yield (based on spin quantification; Figure S25). DFT calculation predicts a low-spin Co(I) ground state that features a single unpaired electron delocalized over the entire ligand (Figure S26); the experimental EPR parameters could be nicely reproduced in the calculation (Table S8). However, [(Hbbpya^{• ̶})Co^I]⁰ is metastable, and a majority of it decays to an EPR-silent species, which is characterized by XRD to be [(bbpya ^̶)Co^I]⁰ that contains a deprotonated Hbbpya ligand (Figure S27), and is formed by the release of 0.5 equivalents of hydrogen (Scheme S4; see Figure S28 for the GC-MS detection of H₂).

The redox chemistry of [(Mebbpya)Co^II]²⁺ is similar to [(Hbbpya)Co^II]²⁺ (see Figure 1a, purple trace and Figure S29 for CV data). The electronic structures of [(Mebbpya)Co^II]²⁺ and the (electro)chemically generated one- and two-electron reduced species are found to be analogous to the [(Hbbpya)Co]^2+/+/0 complexes, as evident from UV-Vis and EPR studies (Figure 2c,d), and also supported by theoretical calculations (Tables S9, S10). Crystals suitable for single-crystal XRD were obtained for the one-electron reduced species [(Mebbpya)Co^I]⁺ (Figure S30). Interestingly, the average Co-N_bpy distance in [(Mebbpya)Co^I]⁺ is 1.887(7) Å, which is significantly shorter than that in [(Mebbpya)Co^II]²⁺ (1.946(1) Å), consistent with a stronger Co(I)- to-ligand back-bonding interaction in [(Mebbpya)Co^I]⁺ (Table S4). Furthermore, the two-electron reduced species [(Mebbpya^{• ̶})Co^I]⁰ is more stable compared to [(Hbbpya^{• ̶})Co^I]⁰, and could be generated in near-quantitative yields (Figures 2D and S31 for spin quantification).

Electrocatalytic Reduction of CO₂ Catalyzed by [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ in MeCN

In spite of their similar electronic and geometric structures, [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ exhibit different reactivities and product selectivity in electrocatalytic CO₂ reduction reactions. The different CO₂RR activities are reflected in the CVs of [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ in presence of both CO₂ and PhOH (Figure 1c,d). For [(Hbbpya)Co^II]²⁺, at a scan rate of 100 mV s⁻¹ (Figure 1c), the emergence of significant catalytic current with an onset potential of about −1.65 V is observed, which reaches a maximum at −2.1 V; this, together with the non-reactivity of the chemically generated [(Hbbpya)Co^I]⁺ toward CO₂ and PhOH (as confirmed by UV-Vis experiment; data not shown), indicates that a second one-electron reduction is necessary to generate the reactive intermediate responsible for CO₂RR activity. The current increases approximately linearly with increasing phenol concentration and reaches a plateau at 2.5 M (100 mV s⁻¹ scan rate; Figure S32) or 1.0 M phenol (3 mV s⁻¹ scan rate; Figure S33). This increase in current can be attributed to efficient CO₂ reduction activity of [(Hbbpya)Co^II]²⁺ in the presence of an acid source (3.0 M PhOH) with i_cat/i_p ≈ 28 (100 mV s⁻¹) or ≈ 75 (3 mV s⁻¹). Notably, for [(Mebbpya)Co^II]²⁺, the magnitude of the catalytic current under similar conditions (Figure 1D) is significantly smaller (i_cat/i_p ≈ 10; scan rate of 100 mV s⁻¹ or i_cat/i_p ≈ 35; scan rate of 5 mV s⁻¹; Figures S34, S35).

To verify our findings regarding the trends of CO₂RR activity of [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺ from CV experiments, controlled potential coulometry (CPC) was conducted over 8 h using a 0.5 mM complex solution in MeCN with 3 M PhOH as a proton source at a constant CO₂ pressure (1 atm). Post catalysis analysis confirmed that there was no electrodeposition after 8 h and the solution concentration of the catalysts did not alter significantly (see SI for details), thereby corroborating the molecular origin of catalysis. The gaseous products were analysed in 2-h intervals for the entire 8-h period by injection into a gas chromatograph with a barrier discharge ionization detector (GC-BID). At a potential of −1.8 V, [(Hbbpya)Co^II]²⁺ shows a faradaic efficiency (FE) of 92(±8) % for CO after 4 h of electrolysis (Figure 1b). The whole 8 h of catalysis produced only negligible amounts of H₂ (FE of < 2%), while the FE for the production of CO remained stable between 80% and 90%. The replacement of the −NH group in [(Hbbpya)Co^II]²⁺ by -NCH₃ in [(Mebbpya)Co^II]²⁺, however, led to a significant decrease in selectivity for CO production and also in overall activity (CO + H₂ production all together). After 2 h of electrocatalysis by [(Mebbpya)Co^II]²⁺ at −1.75 V, FEs of 40% and 26% are measured for CO and H₂, respectively. The extent of HER increases with time and H₂ becomes the predominant product (over 60% selectivity for H₂ production) between 4 and 8 h of electrocatalysis. For the two catalysts, a product analysis via GC-MS was carried out after 8 h electrolysis to detect any formic acid formed. Only a small amount of formic acid was detected (3% for [(Hbbpya)Co^II]²⁺ and 0.8% for [(Mebbpya)Co^II]²⁺). Thus, the remaining charge most likely flows into decomposition processes such as solvent decomposition, which is visible by deposition of small amounts of material on the electrode. To further analyse the electrocatalytic stability of the complexes, the electrolyte solutions were analysed by UV-Vis spectroscopy after electrolysis (see SI; page S39). The measurements show that the complexes are largely retained, so that electrochemical deposition processes are not significant.

Kinetic Analysis of Electrochemical CO₂RR Catalyzed by [(Hbbpya)Co^II]²⁺ and [(Mebbpya)Co^II]²⁺

Encouraged by the high selectivity of [(Hbbpya)Co^II]²⁺ for electrochemical CO₂RR and the difference in selectivity compared to [(Mebbpya)Co^II]²⁺ towards competing HER, we sought to evaluate the kinetic factors leading to the different selectivities in the two complexes. Accordingly, CV studies were conducted using increasing PhOH and PhOD concentrations (0.5 M–3/5 M) (Figures S32–S35). Kinetic isotope effect (KIE) values were determined from the linear plots of (i_cat/i_p) with respect to PhOH or PhOD concentrations. A KIE value of 1.11 was calculated for [(Hbbpya)Co^II]²⁺ (Figures S32, S33), which is consistent with the involvement of a rate-determining hydrogen-bond mediated proton transfer step from PhOH in the catalytic process to yield CO.^{[57, 58]} Interestingly, a significantly higher KIE of 8.50 was determined for [(Mebbpya)Co^II]²⁺ (Figures S34,S35), which suggests the involvement of a Co-H intermediate^[59-63] leading to competing HER, consistent with the CPC results. The KIE values were found to be independent of the scan rates employed. Furthermore, the plot of catalytic current density versus [(Hbbpya)Co^II]²⁺ concentration shows a linear correlation (Figure S36), indicating a predominantly mononuclear mechanism^{[64, 65]} that is first-order in [(Hbbpya)Co^II]²⁺.

Stoichiometric Reactions of [(Hbbpya^.−)Co^I]⁰ and [(Mebbpya^.−)Co^I]⁰ with H⁺ and CO₂

The conclusions derived from the kinetic analysis of electrocatalytic CO₂RR are also supported by the kinetics of the stochiometric reactions of CO₂ and PhOH with chemically generated doubly reduced [(Hbbpya^{• ̶})Co^I]⁰ and [(Mebbpya^{• ̶})Co^I]° complexes. Notably, a solution containing [(Hbbpya^{• ̶})Co^I]⁰ (16%) and its decay product [(bbpya ^̶)Co^I]⁰ react with CO₂ at room temperature as evident from the decay of the NIR band at 968 nm (Figure S37) along with the concomitant formation of CO in 61% yield (based on Co; Figure S38). The EPR spectrum of the resultant solution reveals a S = 1/2 signal (Figures S37B, S39) corresponding to the formation of [(Hbbpya)Co^II(CO₃²⁻)] (see Figure S40 for the molecular structure determined by SC-XRD) in 15% yield, which matches the starting concentration of [(Hbbpya^{• ̶})Co^I]⁰. The rest of the cobalt species is EPR silent, and presumably corresponds to non-isolated [(bbpya⁻)Co^III(CO₃²⁻)] generated by two-electron oxidation of [(bbpya ^̶)Co^I]⁰ in the presence of CO₂ (Scheme S5). Under stopped-flow conditions, a pseudo-first order rate constant of 18.51 s⁻¹ was determined (Figure S41) in CO₂-saturated MeCN (0.28 M CO₂).^[66] In the presence of PhOH, the NIR band at 968 nm undergoes a blue shift to 936 nm and decays at a rate constant (0.022 s⁻¹; Figure S42) that is three orders of magnitude slower than with CO₂. In the presence of both PhOH and CO₂ (data not shown), the reaction becomes too fast to be followed even under stopped-flow conditions; exclusive formation of CO is observed in near quantitative yield.

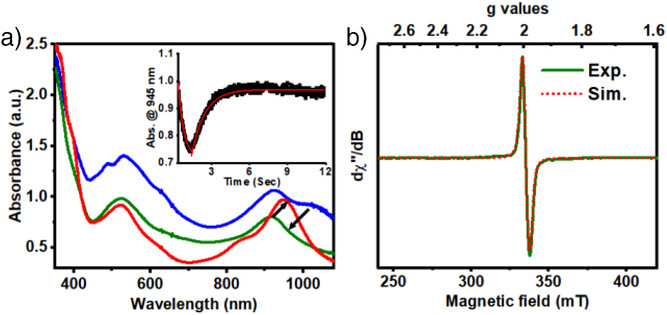

For [(Mebbpya^{• ̶})Co^I]⁰, the reactivity trend is reversed; a faster reaction with PhOH (7.76 s⁻¹) relative to CO₂ (2.31 s⁻¹) is observed, leading to the stoichiometric formation of H₂ (Figures S43, S45). Furthermore, in contrast to [(Hbbpya^{• ̶})Co^I]⁰ or [(bbpya ^̶)Co^I]⁰, which act as two- electron reductants for CO₂, [(Mebbpya^{• ̶})Co^I]° can only transfer one electron to CO₂, forming the one-electron oxidized [(Mebbpya)Co^I]⁺ species, as evident from the generation of the UV-Vis band at 945 nm (Figure 3a, red trace) corresponding to [(Mebbpya)Co^I]⁺. The conversion of [(Mebbpya^{• ̶})Co^I]⁰ to [(Mebbpya)Co^I]⁺ in the presence of CO₂, however, involves the generation of an intermediate, as evident from stopped-flow studies (Figure 3a; green trace). We tentatively assign the intermediate to [(Mebbpya)Co^I-CO₂^{• ̶}] species, which shows UV-Vis absorption features at λ_max (ε, M⁻¹ cm⁻¹): 522 nm (2120) and 918 nm (1400), and a typical radical-like EPR feature with [g_x, g_y, g_z] = [2.008, 1.994, 1.972] (Figure 3b). When ¹³CO₂ is used in the reaction, additional broadening is observed in the EPR spectrum, which could be simulated by incorporating weak anisotropic hyperfine coupling from the ¹³C nucleus with [Ax, Ay, Az] = [0, 21, 69] MHz (Figure S46). Under aprotic conditions, [(Mebbpya)Co^I-CO₂^{• ̶}] undergoes a bimolecular decay to yield oxalate and [(Mebbpya)Co^I]⁺. The formation of oxalate anion was confirmed on the basis of ¹³C NMR and IR spectroscopy and by comparison with authentic H₂C₂O₄, K₂C₂O₄, and K₂CO₃ (Figures S47–S51) samples. The origin of the oxalate was confirmed to be CO₂, as evidenced by the shift in the C-O stretching vibration upon ¹³CO₂ labelling, which corresponds to the formation of ¹³C-labeled oxalate (Figure S51).

Proposed Mechanism Supported by DFT Calculations

Two mechanisms consistent with the experimental observations include intramolecular phenol-assisted proton transfer from the pendant amine to CO₂ or intermolecular pendant amine-assisted proton transfer from phenol to CO₂. However, based on the geometric and energetic considerations, we exclude the intramolecular mechanism. It would warrant a direct proton transfer from the equatorial amine to the axially coordinated CO₂ ligand, which according to our geometrical analysis is expected to be strongly hindered. The relevant N─H bond of the equatorial amine points away from the CO₂ ligand, as evidenced by the H_eq. amine–N_eq. amine–Co angle of 178.8 degrees and the relatively large distance between this hydrogen and the nearest CO₂ oxygen (approx. 4.14 Å, see Figure S52a). Moreover, we evaluated the transformation of [(Hbbpya)CoCO₂]⁰ to [(bbpya)CoCO₂H]⁰ energetically. According to our results at the DFT level of theory, the intramolecular proton transfer is endergonic by approximately +10.7 kcal mol⁻¹, further suggesting that it is unfavourable.

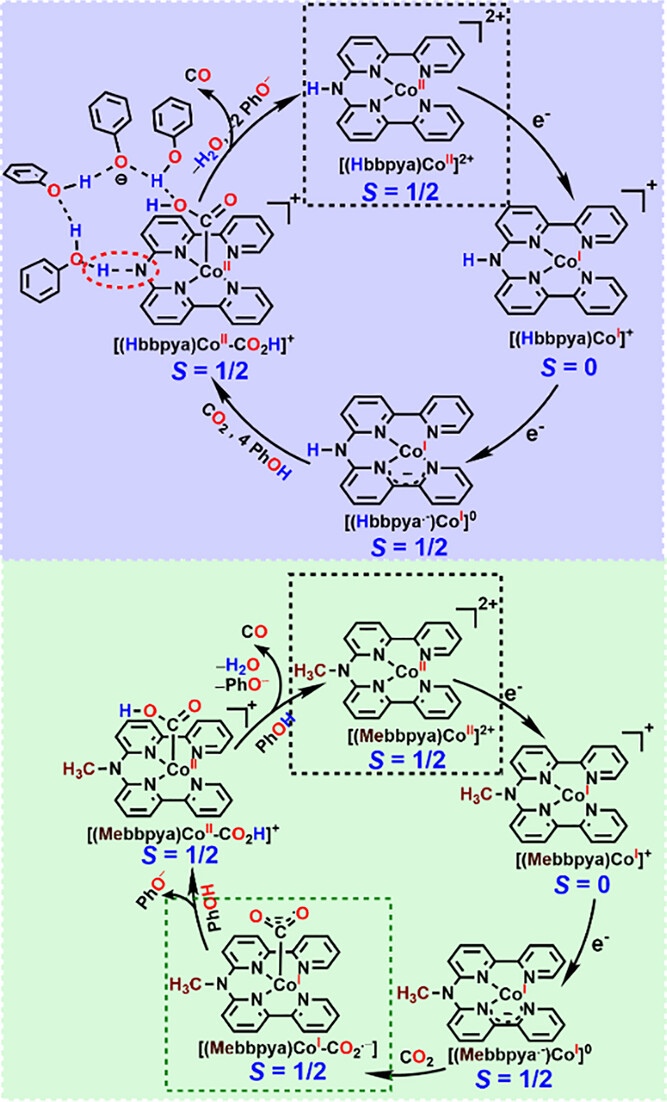

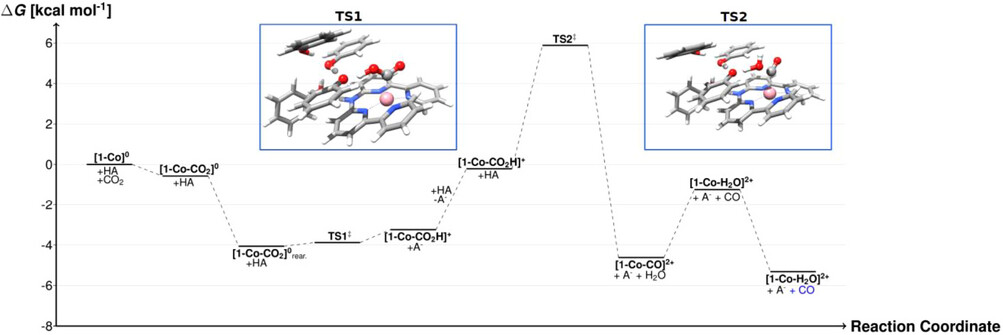

Our calculations rather support an intermolecular proton-transfer mechanism as shown in Scheme 2 and Figure 4. The starting [(Hbbpya)Co^II]²⁺ must initially undergo a two-electron reduction process to form [(Hbbpya^{• ̶})Co^I]⁰ or [(bbpya ^̶)Co^I]⁰, both of which are capable of performing two-electron reduction of CO₂. Under catalytic conditions with excess PhOH and CO₂ the formation of [(bbpya ^̶)Co^I]⁰ is likely suppressed and the sole reactive intermediate is [(Hbbpya^{• ̶})Co^I]⁰. DFT calculations suggest that the -NH group in [(Hbbpya^{• ̶})Co^I]⁰ interacts via a hydrogen bond to a PhOH moiety and thereby acts as a structural anchor to organize further PhOH molecules that form a hydrogen-bonded network (Scheme 2, top), which facilitates the binding of CO₂ to the Co center. When four PhOH molecules are assembled in the hydrogen-bonded network and a CO₂ molecule approaches the Co center, formation of [(Hbbpya)Co^II-CO₂²⁻], where CO₂ is doubly reduced to CO₂²⁻, is exergonic by ∆G = −4.1 kcal mol⁻¹ (Figure 4). The influence of phenol on CO₂ binding can best be quantified by the energy difference of −3.5 kcal mol⁻¹ between [1-Co-CO₂]^o and [1-Co-CO₂]^o_rear. (see Figures 4 and S52b). The former refers to the phenol cluster loosely bound to the Co centre on the opposite side of the CO₂ and the latter to the phenol cluster hydrogen bonded to CO_2, both on the same side of the complex. In [1-Co-CO₂]^o_rear,_. the bound substrate interacts via hydrogen bonding with one of the present phenol molecules. The same phenol can readily transfer its proton to the carboxylate group (with a low energy barrier of <1 kcal mol⁻¹) and the resulting phenolate is then stabilized by three neighbouring phenol molecules, one of which is polarized by a hydrogen bond to the NH group of the Hbbpya ligand.

The PhOH network also helps in the subsequent protonation of [(Hbbpya)Co^II-CO₂²⁻]. If only a single PhOH acts as proton source, the reaction is predicted to be endergonic by ΔG = +5.2 kcal mol⁻¹. After one proton is transferred, we assume that the PhOH group is readily recharged by either the excess PhOH or water that is being formed during the reaction. The subsequent second protonation step that leads to the formation of [(Hbbpya)Co^II-CO]²⁺ and water is again facilitated by a phenol-mediated proton transfer to the CO₂H group. However, owing to the C–O bond breaking this step is associated with a reaction barrier of ∆G^‡ = 6.0 kcal mol⁻¹. At this point, we would like to emphasize that our results rather provide a “proof of principle” for the sequential proton transfer, stabilization of the phenolate, and the involvement of the NH moiety as an external polarizer and directing group. Of course, larger networks of phenols as well as networks that also involve water molecules (which are progressively formed during the CO₂ reduction reaction) can facilitate the proton transfer. In [(Mebbpya^.−)Co^I]⁰, in the absence of any anchor for a H-bonded phenol network, stepwise electron transfer and proton transfer events take place en route to CO formation (Scheme 2, bottom), which make the kinetics slower and the whole process less efficient. Furthermore, both CO₂ and H⁺ compete for binding to the Co centre, leading to the observed loss of selectivity.
