The study of ferroelectricity in perovskite-type oxides is now more prominent than ever following the boom in fundamental and applied research into multiferroic materials.^1-4 While proper ferroelectric instabilities typically originate in pseudo-Jahn–Teller (pJT) d⁰ covalency (e.g. Ti⁴⁺)⁵ or stereochemical lone-pair activity (e.g. Pb²⁺ or Bi³⁺),^{6, 7} the perovskite framework has the potential to support more exotic mechanisms of electric polarisation. The so-called GdFeO₃ distortion⁸ is ubiquitous in ABO₃ simple perovskites and can be understood in terms of antiphase BO₆ octahedral rotations within the ab-plane, accompanied by in-phase octahedral rotations about the c-axis; (a⁻,a⁻,c⁺) in Glazer notation.⁹ These rotations together introduce displacements of A site cations that are exactly opposite in direction from one layer to the next on moving along c. If alternate layers are made symmetry inequivalent a net polarisation may be established, as is the case for some Ruddlesden-Popper¹⁰ and Dion-Jacobson¹¹ phases, or composite heterostructures.^{12, 13} This form of electric polarisation, known as hybrid improper ferroelectricity, was demonstrated relatively recently and has generated new directions in ferroelectrics and multiferroics research.¹⁴

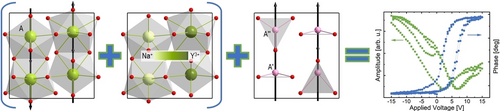

In this communication, we go beyond the layered paradigm of hybrid improper ferroelectricity and demonstrate that a similar phenomenon can be activated in the columnar perovskite (NaY)MnMnTi₄O₁₂ (general formula A₂A′A′′B₄O₁₂). In this material Na⁺ and Y³⁺ ions are distributed over oppositely displaced A site columns established by an (a⁺,a⁺,c⁻) octahedral tilting scheme, in contrast to the oppositely displaced layers discussed above. Mn²⁺ ions are found in square-planar (A′) and tetrahedral (A′′) sites, while Ti⁴⁺ ions are located at the pervoskite B sites.¹⁵ We show that a partial ordering of Na⁺ and Y³⁺ between the oppositely displaced columns can be controlled by the annealing temperature, and stabilised to generate a hybrid improper polarisation. (NaY)MnMnTi₄O₁₂ also supports a pJT ferroelectric instability associated with underbonded, square-planar coordinated Mn²⁺ ions as found in CaMnTi₂O₆.^{16, 17} We show that in the absence of A site cation order the pJT instability leads to a globally centrosymmetric Mn²⁺ dipolar-glass, while in the presence of A site cation order a Mn²⁺ proper ferroelectric polarisation is established. Finally, we show that antiferromagnetic order of the same Mn²⁺ ions develops in both structures below T_N=12 K.

Two polycrystalline samples of (NaY)MnMnTi₄O₁₂ with the same nominal composition were prepared from stoichiometric mixtures of MnO, “Na₂TiO₃” (a mixture of β-Na₂TiO₃ and Na₈Ti₅O₁₂), Y₂O₃ and TiO₂ at 6 GPa using a belt-type high-pressure apparatus (Supporting Information). One sample was annealed at 1550 K (labeled LTA for low-T annealing), and the other was annealed at 1750 K (labeled HTA for high-T annealing). The 100 K crystal structure of both samples was characterised by synchrotron powder X-ray diffraction (PXRD) performed at beamline BL02B2 of SPring-8, Japan,^{18, 19} and by neutron powder diffraction (NPD) using the WISH instrument²⁰ at ISIS, UK.

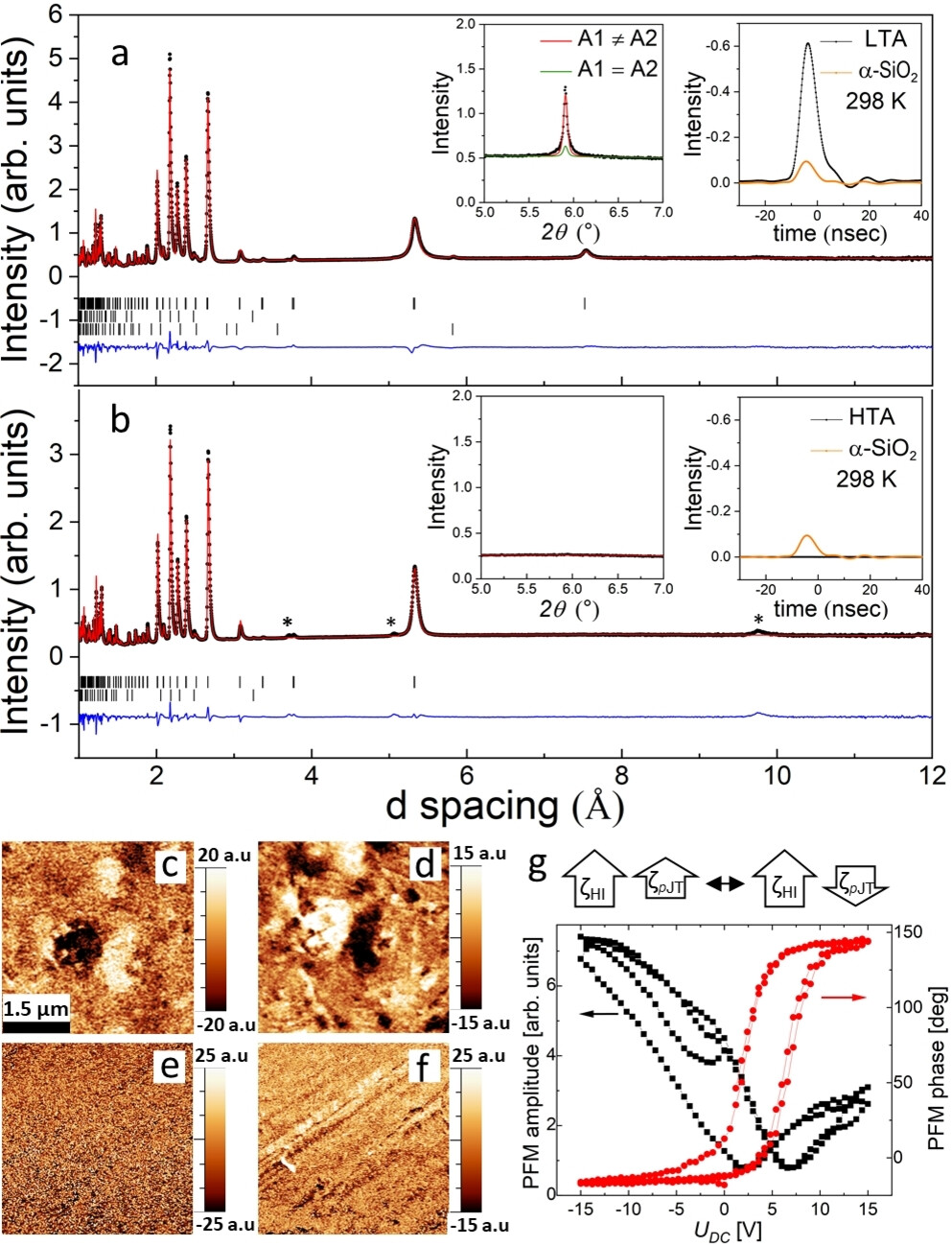

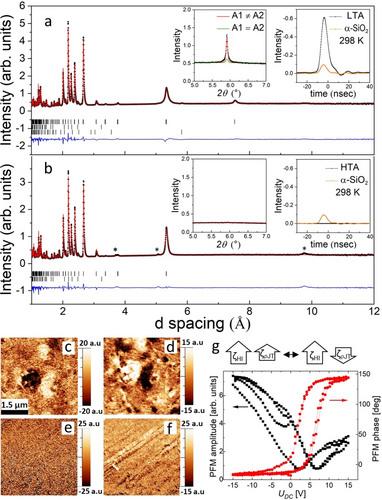

The PXRD and NPD data from sample LTA (Figure 1a) could be fitted by a main phase with the columnar perovskite parent symmetry of P4₂/nmc²¹ (Figure 2a), plus trace TiO₂ and Y₂Ti₂O₇ impurity phases. In addition, a weak {100} family of reflections, indexed with respect to the main phase but forbidden by the n-glide was clearly observed (Figure 1a left inset). Hence, the symmetry of sample LTA could be no higher than the polar space group P4₂mc, as found for the proper ferroelectric CaMnTi₂O₆.¹⁶ The assignment of a polar space group to sample LTA was confirmed by second-harmonic-generation (SHG) measurements (Figure 1a right inset, see Supporting Information for details) and the observation of piezoelectric activity in RT piezoresponse force microscopy (PFM). The dark and light regions in the PFM images (Figure 1c and d) revealed the presence of domains with opposite polarity, and the piezoresponce induced by a dc electric field (Figure 1g) demonstrated strongly asymmetric hysteretic polarization switching.

The atomic displacements that contribute towards the ferroelectric polarization in P4₂mc symmetry occur parallel to the c-axis.¹⁶ One can show that such displacements give zero diffraction intensity at the {100} Bragg positions. Instead, the {100} intensity may originate in displacements of Ti⁴⁺ and/or O²⁻ ions within the ab-plane, and/or a degree of Na⁺/Y³⁺ cation ordering between two A site sublattices that become inequivalent in P4₂mc (Wyckoff sites 2a and 2b). To disentangle these two structural modifications we performed a joint refinement against PXRD and NPD data using FULLPROF,²² exploiting the different sensitivity of the X-ray and neutron scattering amplitudes to Ti⁴⁺/O²⁻ displacements and ordering of Na⁺ and Y³⁺ (Supporting Information). We obtained a structural model in which Ti⁴⁺/O²⁻ displacements were minimal, but with a significant degree of Na⁺ and Y³⁺ cation ordering (≈25 %) that maintained the Na⁺/Y³⁺ compositional ratio of 1 : 1. Analysis of (NaY)−O bond lengths showed that the partial cation ordering was accompanied by contractions and expansions of the local oxygen coordination spheres consistent with the different cation radii. The refined structural model also included substantial ordered polar displacements of A′ Mn²⁺ ions parallel to the c-axis. This additional contribution to the macroscopic polarization implies the possibility of partial switching under external electric field; a likely origin of the hysteresis loop asymmetry observed in our PFM measurements (Figure 1g). The polar phase of sample LTA was found to persist up to 1070 K—close to the expected decomposition temperature—with no evidence for a polar to centrosymmetric phase transition at high temperature (Supporting Information).

In contrast, the {100} peak was absent in PXRD and NPD patterns collected from sample HTA (Figure 1b) indicating a centrosymmetric P4₂/nmc crystal structure for the main phase. This space group assignment was confirmed by SHG and PFM, which showed no measurable intensity (Figure 1b right inset) or piezoelectric activity (Figure 1e and f), respectively. Joint refinement of a P4₂/nmc structural model against the X-ray and neutron data confirmed a 1 : 1 ratio of Na⁺ and Y³⁺ cations statistically distributed across the symmetry equivalent A-sites. The A′ Mn²⁺ cations had an unphysically large isotropic thermal parameter, and a better fit could be achieved by including positional disorder above and below the square planar coordination. These disordered A′ Mn²⁺ displacements break local inversion symmetry, and hence represent a proper ferroelectric instability. While in sample LTA cooperative ferroelectric order has emerged, the HTA sample maintains a disordered dipolar-glass-like state at the A′ site.

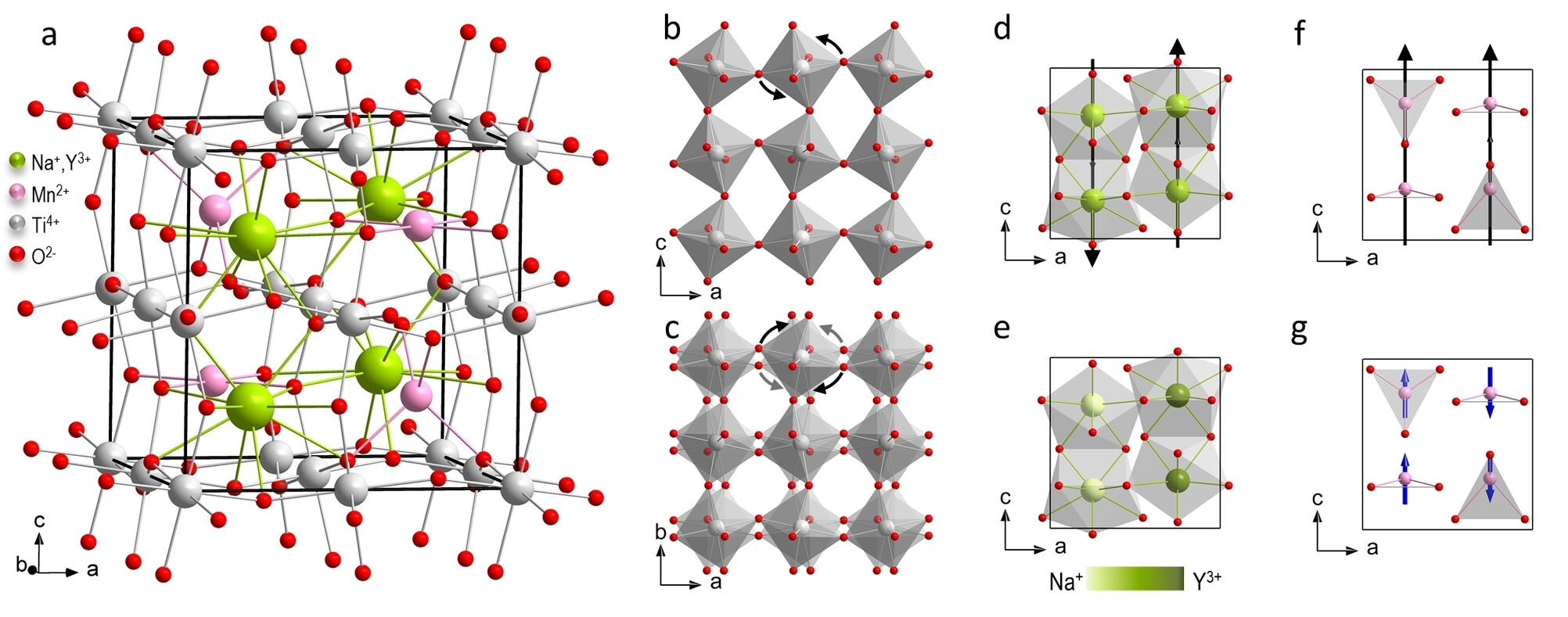

To explore symmetry relations and coupling schemes between structural distortions, we used a higher symmetry parent tetragonal structure with space group P4/mmm that has the same atomic connectivity as both P4₂/nmc and P4₂mc structures (Figure 2) but with octahedral rotations and columnar shifts removed (Supporting Information). From decomposition of the polar P4₂mc structure with respect to symmetry adapted distortion modes of the parent²³ (Supporting Information) we identified a trilinear free energy invariant of the form η₁η₂ϵ, which describes the stabilization of alternating A-site columnar shifts (ϵ) by large octahedral tilt modes (η₁,η₂) (see Figure 2). One can show that this coupling is also present in the centrosymmetric P4₂/nmc symmetry, and it is analogous to the alternating shifts of A-site layers induced by octahedral tilts in ABX₃ perovskites. Our analysis found another trilinear invariant of the form ζ_HIδϵ (Supporting Information), which generates hybrid improper ferroelectricity (ζ_HI) by A-site cation ordering (δ) coupled to the columnar shifts (ϵ)—again in close analogy to hybrid improper ferroelectricity in the layered systems. Finally, one can identify a bilinear invariant of the form ζ_HIζ_pJT that directly couples the pJT instability associated with the A′ Mn²⁺ ions to the hybrid improper ferroelectric polarisation, hence stabilising additional improper ferroelectric order out of an otherwise disordered Mn²⁺ dipolar glass.

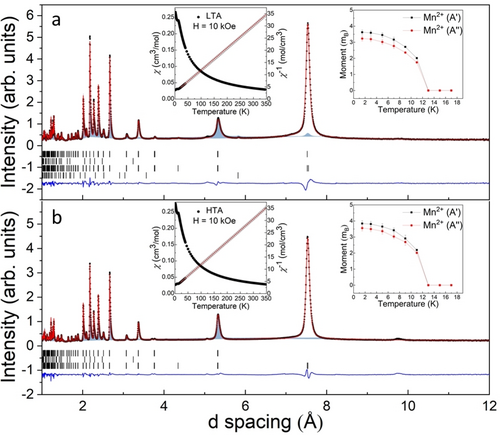

The magnetic susceptibilities of both samples indicate phase transitions to an antiferromagnetic (AFM) ground state below T_N=12 K (Figure 3 left insets). For both samples, variable temperature NPD data showed magnetic intensities developing below T_N at Bragg positions that uniquely identify AFM layers stacked ferromagnetically along c (Figure 2g). A very weak magnetic intensity was measured at {111}, which implied different size moments on the A′ and A′′ sites. This magnetic structure (magnetic space groups P4₂′/n′m′c (No. 137.512) and P4₂′m′c (No. 105.213) for the non-polar and polar structures, respectively) was refined against NPD data collected at 1.5 K, as shown in Figure 3, where the temperature evolution of the refined magnetic moments is shown in the right insets.

In summary, we have shown that Na⁺/Y³⁺ cation order in (NaY)MnMnTi₄O₁₂ can be introduced on A site columns oppositely displaced by B site octahedral tilts, resulting in an emergent polar phase in direct analogy to layered hybrid improper ferroelectrics. The hybrid improper ferroelectricity in (NaY)MnMnTi₄O₁₂ couples to a second polar instability of the Mn²⁺ ions, which develops additional ferroelectric order out of an otherwise disordered dipolar glass, giving rise to asymmetric electric field switching of the net electric polarisation. We note that the presence of unpaired d-electrons and the respective magnetic moment is typically assumed to reduce the tendency for pJT ferroelectric distortions,²⁴ yet we show that the Mn²⁺ ions adopt long range antiferromagnetic order below 12 K. Hence, the polar (NaY)MnMnTi₄O₁₂ perovskite presents a rare case in which ordered electric and magnetic dipoles reside on the same transition metal sublattice, opening a new route to combining ferroelectric and magnetic orders in the solid state. The columnar perovskite framework provides great chemical flexibility, and one might anticipate a number of materials similar to (NaY)MnMnTi₄O₁₂ that can realise hybrid improper ferroelectricity with cross-coupled polar instabilities intimately related to magnetism.
