Lysine vs. site-specific linkage for monomeric streptavidin-biotin interactions

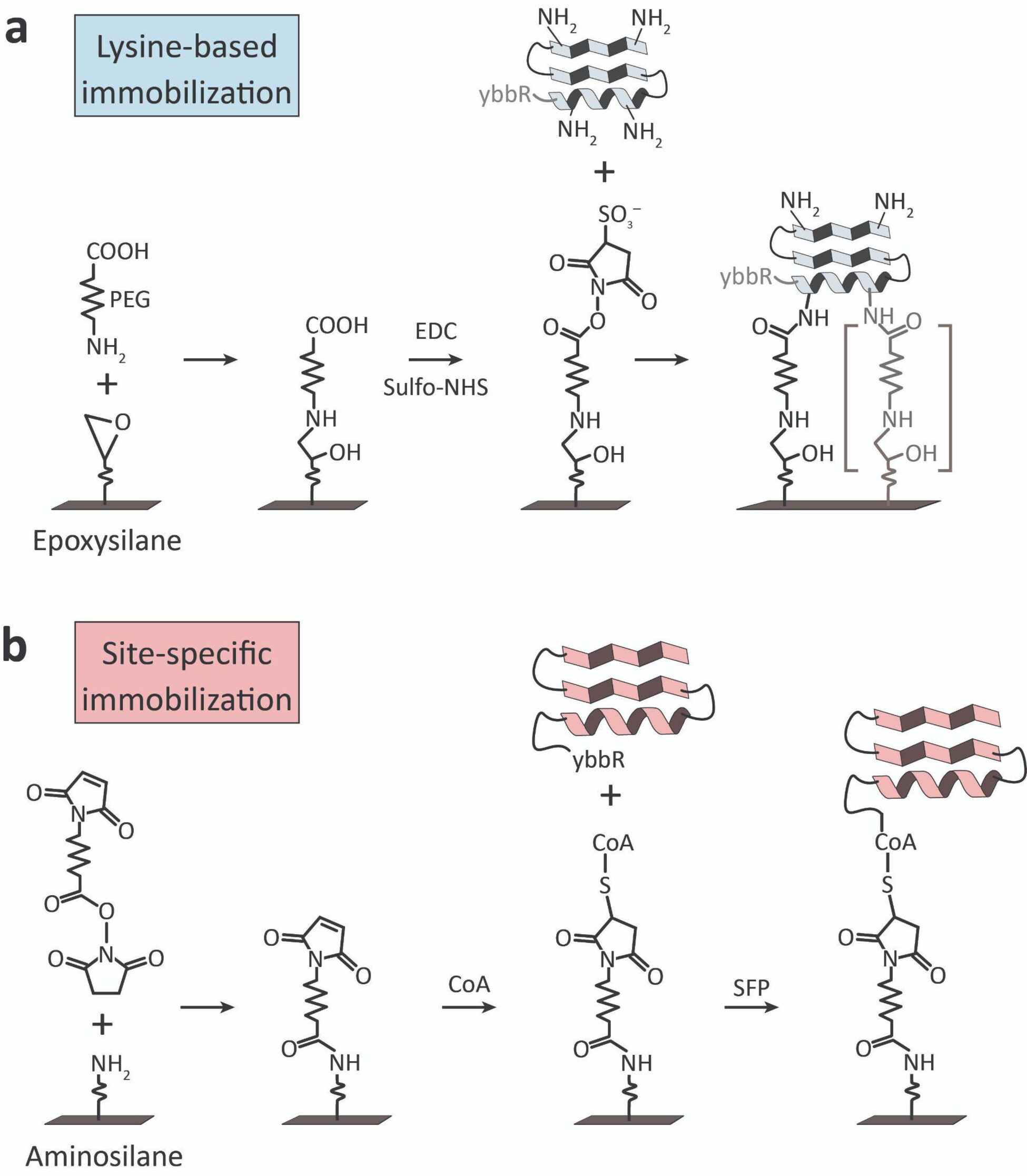

We first conducted AFM-SMFS on complexes consisting of a monomeric variant of streptavidin (mSA)^40-42 bound to biotin, where mSA was immobilized on a glass surface and PEG-biotin was attached to a cantilever. As one of the first receptor-ligand systems measured in AFM-SMFS,⁴³ the streptavidin-biotin interaction has been well characterized while the newly developed monomeric variants with unambiguous binding stoichiometry shows slightly different rupture forces compared to those in tetramer form.^{44, 45} We attached identical fusion proteins of ybbR-ddFLN4-mSA to a glass surface through poly(ethylene) glycol (PEG) linkers using either EDC/Sulfo-NHS to couple to lysine residues in the fusion protein. Alternatively, we used Coenzyme A (CoA) together with Sfp phosphopantetheinyl transferase to couple to the N-terminal ybbR tag comprising the sequence DSLEFIASKLA. The fusion domain (ddFLN4) refers to the 4th domain of the F-actin cross-linking filamin rod of Dictyostelium discoideum, a commonly used fingerprint domain in SMFS assays. The respective chemical schemes for lysine-based and site-specific protein immobilization onto the glass surface are shown in Figure 1. For measurements on both lysine-based and site-specific immobilized ybbR-ddFLN4-mSA, biotin was covalently coupled to the cantilever through a PEG linker attached at the C5 carboxylic acid away from the tetrahydrothiophene ring in biotin. The mSA fusion protein studied here (Figure 2a) contains 9 total lysine residues (6 in ddFLN4, 3 in mSA), each of which can serve as potential PEG linkage sites in the lysine-based method. The rupture force data for the lysine-based method therefore reflects an average of the mechanical responses of the system when anchored from lysines, however, we expect not all of the lysine residues are equally reactive.

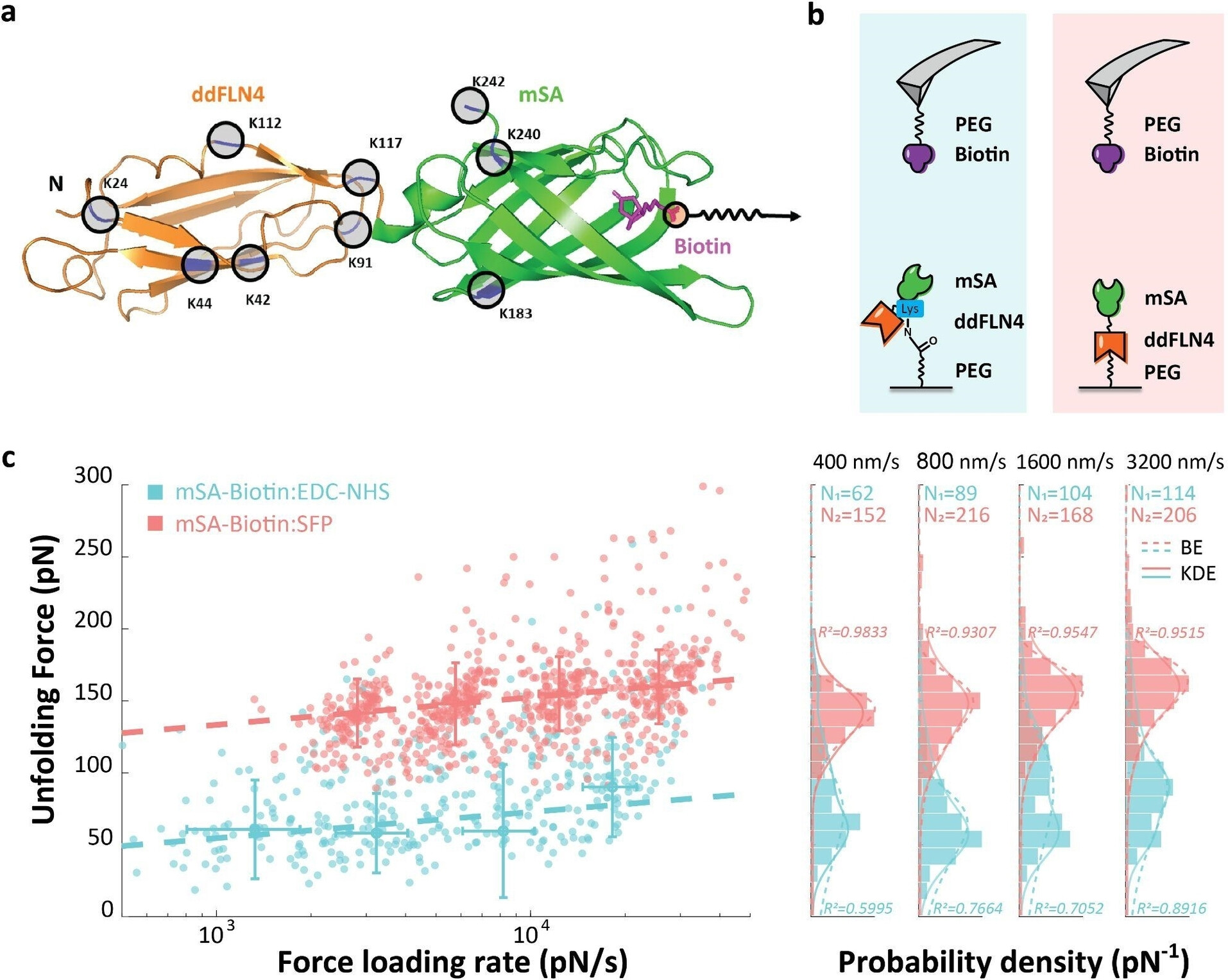

We probed mSA-biotin complex rupture events using AFM-SMFS at constant pulling speeds of 400, 800, 1600 and 3200 nm s⁻¹ (Figure 2c). The selection of valid force extension curves was performed under criteria of fitting force-extension behavior with a WLC model using a threshold force and distance value for the minimum adhesion force. In the case of site-specific mSA immobilization, an additional filter was applied based on fingerprint unfolding of ddFLN4 with characteristic contour length increment ≈32 nm from a two-step unfolding pattern, as a marker of single molecule interactions, so that non-specific adhesion was filtered out from the measurement. This type of filtering for fingerprint domain unfolding was not possible for the lysine-based method. For the lysine-based AFM measurement, we acquired 12 040 force-extension curves over a measurement time of 18 hours, resulting in 359 curves that passed our contour length filter (3.0 %). For the ybbR site-specific immobilization, we acquired 13 464 force-extension curves in 18 hours and obtained 742 usable curves, for a curve yield of 5.6 %. This indicated that even though we used a more stringent filter based on fingerprint domain unfolding for the site-specific method, we obtained a higher number of high-quality usable curves. The rupture force histograms (Figure 2c, right) demonstrate that the force distribution had higher magnitude and narrower width in the case of site-specific mSA immobilization as compared with lysine-based immobilization. The average full width at half maximum (FWHM) from fitted KDE distribution under four pulling speeds is 48.2 pN for the Sfp method and 67.9 pN for the EDC/NHS method. We also found that the site-specific method afforded rupture force distributions that more closely followed a theoretical two-state Bell–Evans model prediction (average fitting R² under all pulling speeds for Sfp is 0.9551, compared to average R²=0.7399 for EDC/NHS method, shown in Figure 2c, right panel), with a left-skewed unimodal distribution, e.g. under a pulling speed of 400 nm s⁻¹, most probable rupture force±asymmetric FWHM is: site-specific: 141.8 [+19.9/−23.7] pN; lysine-based: 60.4 [+42.3/−21.8] pN (Supporting Information Table S1). The rupture forces measured using the Sfp method are found to be in a comparable range around 150 pN at force loading rates of 1E4 pN/s as for previously published under the same experiment configuration.⁴¹ A comparison of the Bell–Evans parameters between our measurement and previously reported literature is shown in Supporting Information Table S2. Statistical analysis of replicates for the mSA-biotin system under different surface chemistries, including statistical tests are provided in Supporting Information Tables S3 and S4.

Resolving multiple dissociation pathway in SMFS

Next we compared lysine-based and site-specific immobilization for a protein–protein interaction that can unbind along different reaction pathways. We sought to understand how the coupling chemistry influences our ability to observe and classify different unfolding paths. We studied the multi-domain Xmodule-Dockerin/Cohesin (XDoc-Coh) receptor-ligand complex derived from the cellulolytic complex of Ruminococcus champanellensis (Rc)^[37] (Figure 3), which exhibits three distinct unfolding/unbinding pathways when dissociated under force, arising from the presence of dual binding modes in the complex and unfolding of the allosteric X-module domain. Following X-module unfolding, the binding interface is significantly destabilized, giving rise to a low force rupture event. Multi-pathway mechanical dissociation has been shown for a homologous XDoc/Coh system, and several distantly related Coh-Doc pairs were reported to have dual binding modes that give rise to multi-pathway dissociation reactions.^{37, 46, 47}

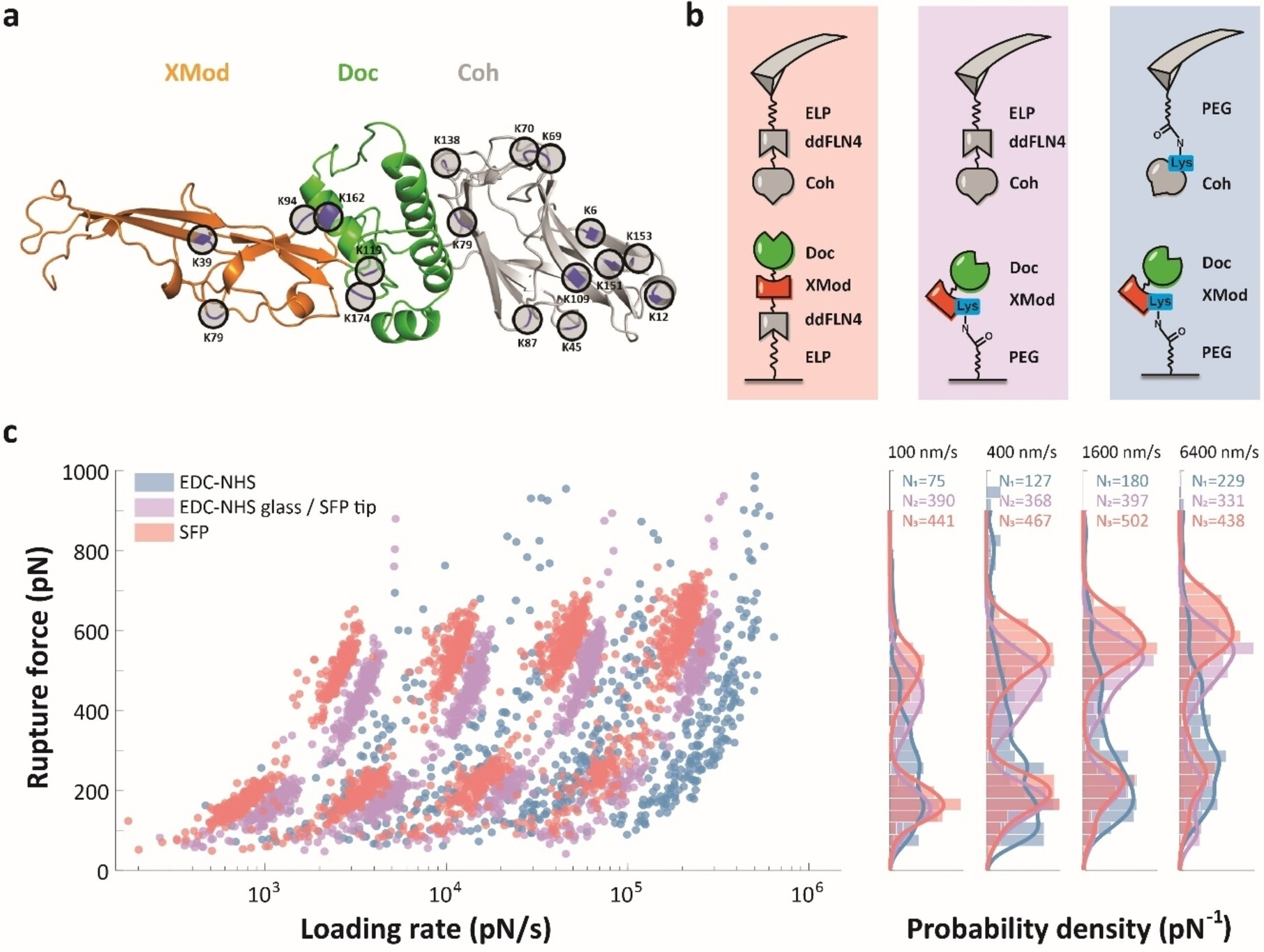

The three signature unfolding pathways are shown in Supporting Information Figure S1. In all three pathways, the final peak in the data trace represents breaking of the binding interface between Doc and Coh. We analyzed this final rupture event as a function of the loading rate and found substantial differences depending on the immobilization chemistry that was used. In this evaluation, we conducted AFM-SMFS on the XDoc-Coh complex using three coupling techniques: (i) site-specific immobilization on both cantilever and glass surface (Figure 3, pink); (ii) lysine-based immobilization on both cantilever and glass surface (Figure 3, blue); and (iii) a mixed method where ybbR/Sfp site-specific coupling was used to attach Coh to the cantilever and lysine-based coupling was used to attach XMod-Doc to the glass surface (Figure 3, purple). For the Sfp site-specific coupling method with a fixed pulling terminus, the PEG linker was replaced by an ELP linker included in the fusion protein, which yields a better precision of the contour length for the pathway recognition and avoids PEG mechanical isomerization. These results show that when we used site-specific immobilization (Figure 3c, pink), we could clearly resolve two rupture force populations (high-force pathway 1 and low force pathways 2 and 3), as well as clearly differentiate the two unfolding pathways among the low-force events where one low force pathway (pathway 2) included unfolding of XMod (Supporting Information Figure S1a). When using lysine-based immobilization on both the cantilever and glass surface, we found that the high-force and low-force populations were not resolved and the distributions were broad and poorly defined (Figure 3c, blue). When using the mixed surface chemistry approach, we obtained distributions with two observable discrete force populations, however the high force had a lower magnitude and higher loading rate attributed to the shortened effective linker length (see below).

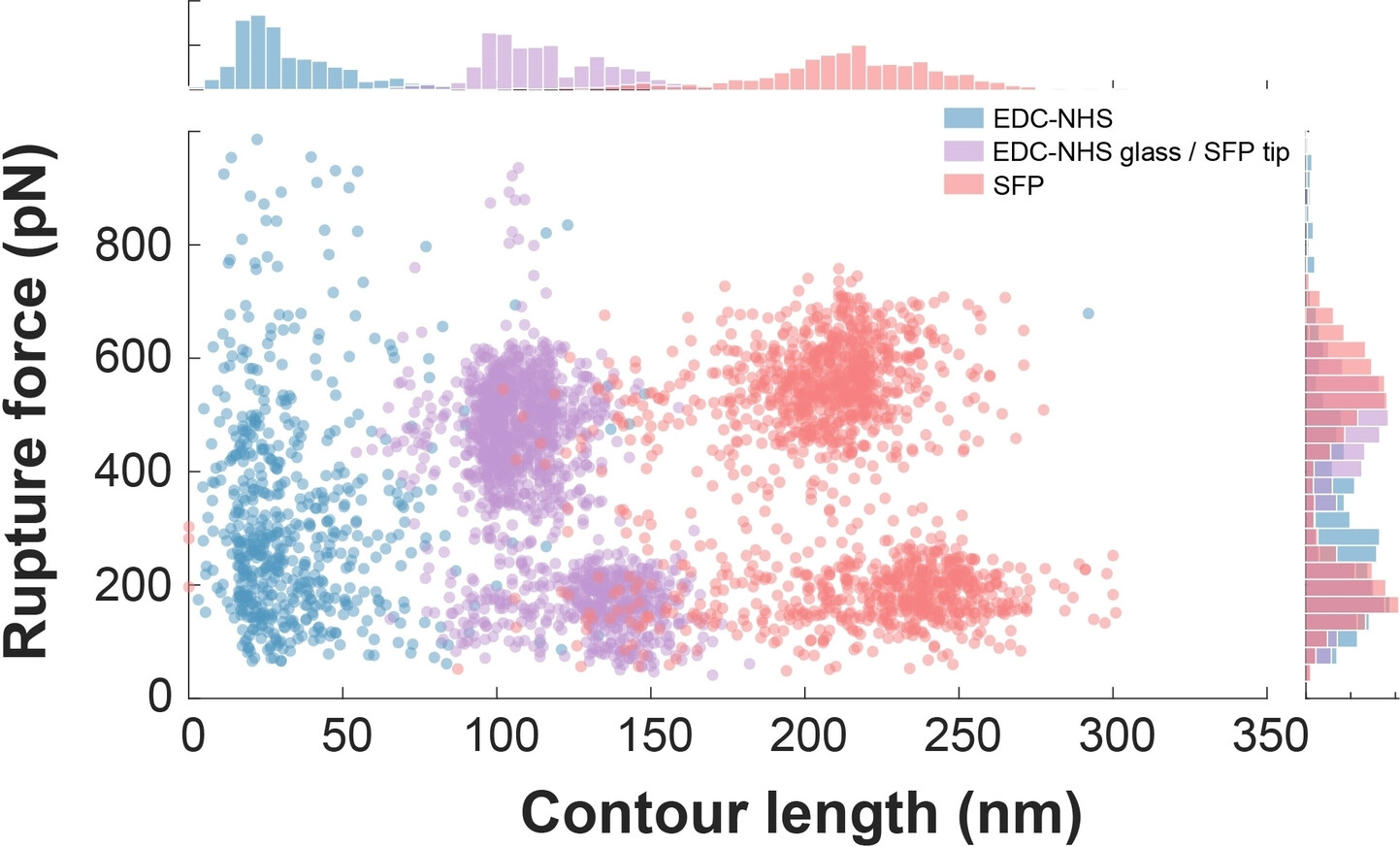

At a given pulling speed, the lysine-based method resulted in higher loading rates (Figure 3c). We also found that the complex rupture events occurred at shorter contour length for the lysine-based immobilization method (Figure 4). The contour length at the time of rupture for the XMod-Doc/Coh system was found to be ≈20 nm, which is significantly shorter than the expectation for two times the PEG linker length (≈120 nm). This implies that multiple lysine residues were coupled to PEG chains, effectively shortening the linker length in the system. For a direct comparison of EDC/NHS vs. Sfp-based immobilization of the XMod-Doc/Coh system with PEG linkers for both surface chemistries, see Supporting Information Figure S2.

Improved yield of useable data traces by site-specific coupling

Next we quantified the influence of site-specific methods in AFM-SMFS on yield and reproducibility of usable single-molecule traces. In AFM-SMFS, many of the acquired traces must be discarded because they do not represent the response of a single-molecule, and are difficult to interpret when multiple molecules are pulled in parallel. We found that the yield of single-molecule traces was significantly improved using the site-specific method. Under our measurement conditions using site-specific ybbR/Sfp coupling followed by an 18-hour AFM-SMFS measurement, around 20 000 approach-retract cycles on XMod-Doc/Coh were obtained. Among these, more than 2000 (>10 %) force-extension curves passed the analysis filter and represented single receptor-ligand rupture events. When the site-specific immobilization method was used, valid force curves could be precisely identified using the ddFLN4 domain as an unfolding fingerprint. For the lysine-based experiments, the selection of the force curves depends on ambiguous criteria including max adhesion force, distance of the rupture event and the force-extension behavior fitted using a WLC model. As a comparison, only around 200 curves were able to pass the selection filters for further analysis using the lysine-based EDC-NHS immobilization technique. This was due to a general low quality and short rupture distances of force-extension curves obtained using the lysine-based approach. The improved quality of the curves obtained with site-specific surface immobilization is further demonstrated in the rupture force vs. contour length plot (Figure 4). This plot demonstrates that the final rupture event occurred farther away from the surface in the case of site-specific Sfp immobilization (>200 nm). When Xmodule-Dockerin/Cohesin complexes were probed using the mixed immobilization strategy (Figure 4, purple), the contour length at rupture was at an intermediate length (100–150 nm). The slightly higher contour length at rupture for the low force rupture events in Figure 4 was due to the additional contour length increment upon XModule unfolding, which was characteristic of the low force pathway 2, and was observed for both site-specific immobilization and the mixed EDC-NHS/Sfp method. When only EDC/NHS was used on both the glass surface and the AFM cantilever tip, the contour lengths were severely shortened (<50 nm) even though the PEG linkers were of the same length. We attributed the shortened tether length to multiple tether points on the molecule (Figure 1a, right).

Compensation strategies to improve lysine-based methods

We attempted to improve the quality of the measurement for the lysine-based coupling method by minimizing the possibility of forming multiple PEG tethers that tended to shorten the system. We did so by diluting the surface density of the PEG linkers. The flexible linker included in the complex serves as an effective approach for the identification of molecular interactions at a single molecule level. Without flexible linker length, the measured complex rupture events are mixed with non-specific adhesion between the AFM tip and glass surface. We used a lower density of available binding sites by mixing the bifunctional COOH-PEG-NH₂ active linker with a monofunctional methoxy-PEG-NH₂ linker that lacks the carboxyl group required for EDC/Sulfo-NHS activation. As shown in Supporting Information Figure 5, the contour length of the complex using partially non-functional methoxy-PEG-NH₂ linkers was indeed higher, however, the curve yield in this case dropped even further to 142 curves that passed the analysis filter, obtained from 9118 extend-retract cycles with the AFM (≈1.5 %). The low yield was due to the high dilution of functional molecules on the surface, and the poor curve quality was not significantly improved in this case.
