Bioinspired Gradient Stretchable Aerogels for Ultrabroad-Range-Response Pressure-Sensitive Wearable Electronics and High-Efficient Separators
Xiaoyu Zhang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorZhenyu Hu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorQi Sun
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorXing Liang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorPuzhong Gu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorJia Huang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorCorresponding Author
Guoqing Zu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorXiaoyu Zhang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorZhenyu Hu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorQi Sun
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorXing Liang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorPuzhong Gu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorJia Huang
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorCorresponding Author
Guoqing Zu
Interdisciplinary Materials Research Center, Department of Polymeric Materials, School of Materials Science and Engineering, Tongji University, Shanghai, 201804 P.R. China
Search for more papers by this authorGraphical Abstract

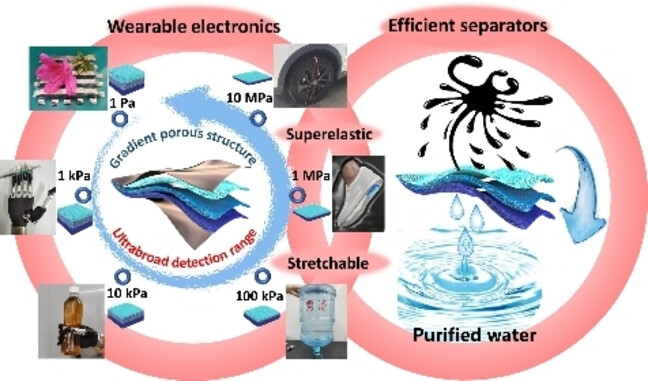

Gradient, stretchable and superelastic reduced graphene oxide/polyurethane nanocomposite aerogels have been achieved by a sol-gel/hot pressing/freeze casting/ambient pressure drying strategy. The gradient aerogels can be used for high-efficient separators and wearable electronics with an ultrabroad detection range of 1 Pa–12.6 MPa and ultrahigh fatigue resistance, showing great potentials in high-performance sensors and separators.
Abstract
Broad-range-response pressure-sensitive wearable electronics are urgently needed but their preparation remains a challenge. Herein, we report unprecedented bioinspired wearable electronics based on stretchable and superelastic reduced graphene oxide/polyurethane nanocomposite aerogels with gradient porous structures by a sol-gel/hot pressing/freeze casting/ambient pressure drying strategy. The gradient structure with a hot-pressed layer promotes strain transfer and resistance variation under high pressures, leading to an ultrabroad detection range of 1 Pa–12.6 MPa, one of the broadest ranges ever reported. They can withstand 10 000 compression cycles under 1 MPa, which can't be achieved by traditional flexible pressure sensors. They can be applied for broad-range-response electronic skins and monitoring various physical signals/motions and ultrahigh pressures of automobile tires. Moreover, the gradient aerogels can be used as high-efficient gradient separators for water purification.
