Photocleavable Fluorescent Membrane Tension Probes: Fast Release with Spatiotemporal Control in Inner Leaflets of Plasma Membrane, Nuclear Envelope, and Secretory Pathway

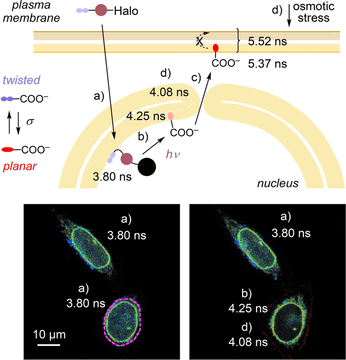

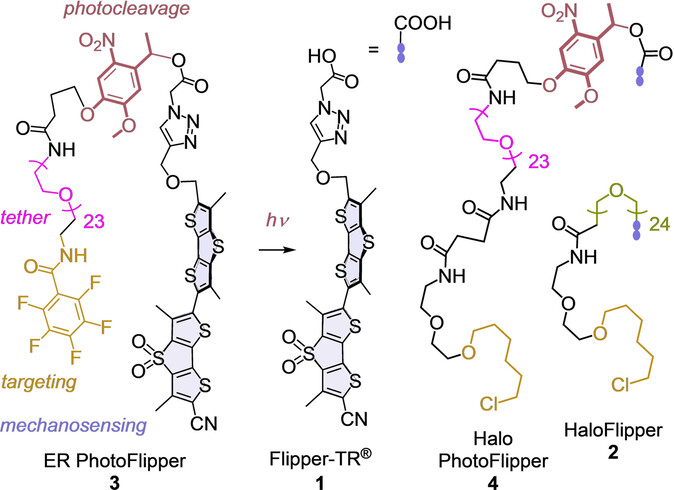

The imaging of order and particularly physical tension in biomembranes with fluorescent probes is a topic of current concern.^1-3 Beginning with the original 1, “Flipper” probes have been introduced to tackle this challenge with a planarizable push-pull mechanophore that responds to membrane compression with a red shift in excitation and an increase in fluorescence lifetime (Figure 1, Figure 2 A).^{4, 5} This mechanism of action differs from alternative approaches that report changes in hydration and viscosity,^6-11 and has been validated in many practical applications.⁵ In fluorescence lifetime imaging microscopy (FLIM), flipper probes report high order of membranes at rest with long fluorescence lifetimes, and the increasing tension applied to cellular membranes composed of mixed lipids with increasing lifetime.¹²

The targeting of fluorescent probes to different organelles inside cells has been widely explored. Probes equipped with empirical “tracker” groups can be simply added to cells and find their targets by different, sometimes unknown mechanisms.^{13, 14} With the alternative genetic engineering approach, probes are attached to ligands for proteins that are expressed at specific sites.¹⁵ With fluorescent flippers, both strategies have been explored, including HaloFlippers 2 to covalently bind to HaloTags¹⁶ and SupraFlippers to non-covalently bind to streptavidin expressed at the site of interest.¹⁷ This non-covalent targeting allows the release of SupraFlippers in response to chemical stimulation. However, for fast release with spatiotemporal control and minimal chemical interference, photouncaging is the method of choice.^18-25 The possibility to photorelease unmodified probes at specific sites is particularly valuable because the attachment of targeting groups often disturbs the properties of the original probes.^{18, 19} Here, we introduce PhotoFlippers for the rapid release of the fully optimized and characterized original Flipper-TR 1 to the membrane of interest (MOI) upon irradiation with light.

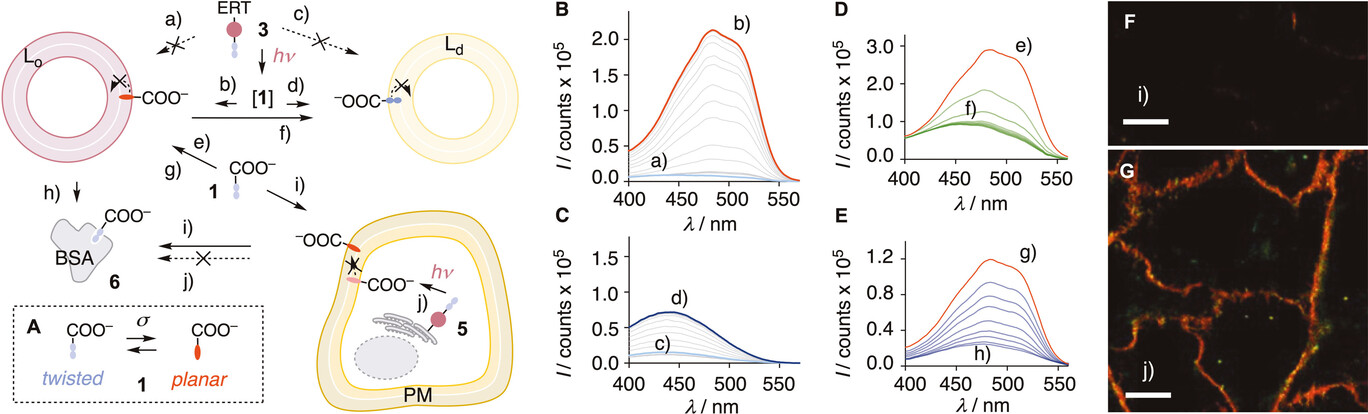

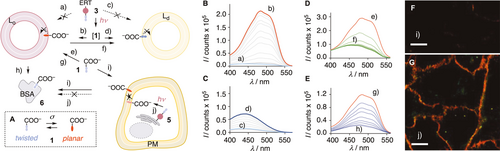

In PhotoFlippers 3 and 4, an o-nitrobenzyl group^{20, 23} was selected to minimize overlap with the red-shifted absorption of the flipper probe. This classical photocleavable group and a long tether are inserted between the original Flipper-TR scaffold and targeting motifs that operate by empirical tracking and genetic engineering, respectively. Both PhotoFlippers were synthesized by adapting established procedures (Scheme S1). Added to large unilamellar vesicles (LUVs) composed of sphingomyelin (SM) and cholesterol (CL), they exhibited weak blue shifted excitation maxima (Figure 2 Ba). This poor performance confirmed that the extra-long hydrophilic tether¹⁶ effectively hinders partitioning into liquid-ordered (L_o) membranes. Irradiation at 365 nm afforded within t_1/2≈3 min the red-shifted, intense maximum known⁵ for 1 in L_o LUVs (Figures 2 Bb, S1). Irradiation in the presence of liquid-disordered (L_d) dioleoyl phosphocholine (DOPC) LUVs yielded the corresponding bathochromic and weaker maximum (Figure 2 C). The conversion of 3 and 4 into 1 upon irradiation in the presence of LUVs was confirmed by HPLC to occur quantitatively within a few minutes (Figure S2).

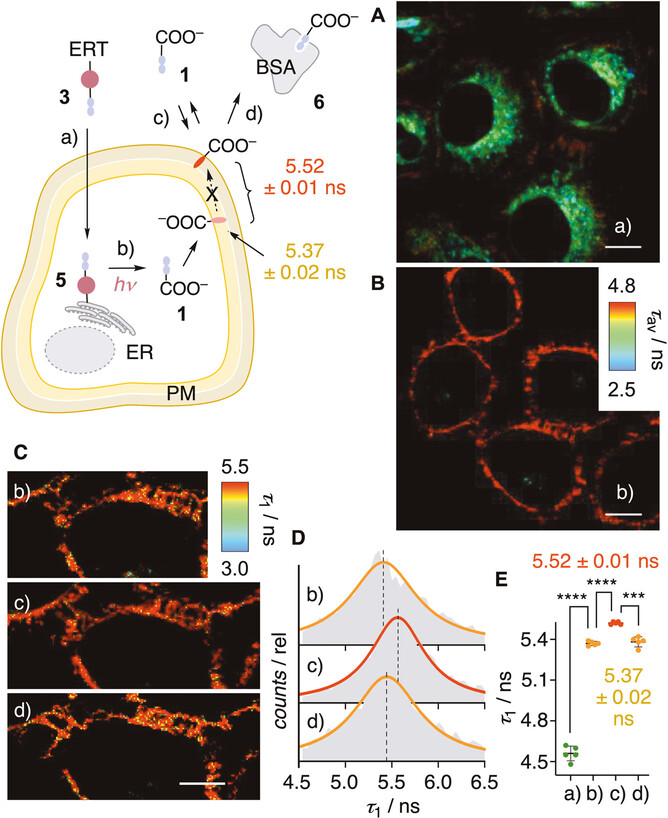

The pentafluorophenyl group in PhotoFlipper 3 is routinely used to label the endoplasmic reticulum (ER), presumably by nucleophilic aromatic substitution with thiols of proteins at the outer membrane surface.^{18, 26} Added to HeLa Kyoto (HK) cells, probe 3 labeled the ER with a Pearson correlation coefficient (PCC)=0.86 for co-localization with ER-Tracker Blue-White DPX (Figures 3 A, S3). Irradiation times were finetuned to observe maximal release at minimal phototoxicity, here 2.5 minutes. Eventual non-released probes were considered unproblematic because their fluorescence is much weaker (Figure 2 B,C). Irradiation of the resulting conjugate 5 caused an instantaneous and complete migration of flipper fluorescence to the plasma membrane (PM, Figure 3 B). This change was much too fast for flipper translocation along the secretory pathway.¹⁷ It thus indicated that, as soon as photoreleased from the ER surface within a few minutes (Figures 2 B,C, S2), flipper 1 re-distributes among all membrane leaflets accessible by free diffusion (Figures 2 D, S4). Only the most ordered membrane, here the PM, is labeled because planarization of flipper 1 in such membranes suppresses competing non-radiative decay and thus increases emission intensity decisively,⁵ as previously illustrated in FLIM images and computational simulations of phase-separated membranes^{12, 27, 28} (Figure 2 B,C).

The photo-released 1 thus provides access to the hard to obtain mechanical properties of the PM inner leaflet.^29-33 Biexponential reconvolution of FLIM images gave a τ₁=5.37 ns, which increased to τ₁=5.52 ns upon external addition of flipper 1 and returned to the original value upon addition of bovine serum albumin (BSA) to the cell culture medium to remove 1 from the outer leaflet. Although naturally small, the difference in τ₁ is reliable thanks to the direct comparison, and confirmed the lower order of the inner compared to the outer leaflet of the PM. These conclusions were in agreement with recent results from microinjection of probes into different cells,²⁹ and controls in LUVs and cells. For instance, addition of L_d to L_o LUVs with externally added 1 caused a decrease in intensity and a blue shift of the excitation band with t_1/2≈30 s, confirming instantaneous intermembrane transfer (Figures 2 D, S4). Addition of BSA to the same L_o LUVs caused an even stronger loss in intensity, confirming the binding of 1 to BSA (K_D=0.7 μM, Figure S5) and the negligible fluorescence of their complex 6 (Figure 2 E). In HK cells, externally added 1 was removed almost completely by washing with BSA-containing media (Figures 2 F, S6). The fluorescence of 1 photo-generated from 3 on the ER surface was not affected by the same procedure (Figure 2 G). This contrast demonstrated that photo-released 1 stays in the inner leaflet of the PM without flip-flop to the outer leaflet.

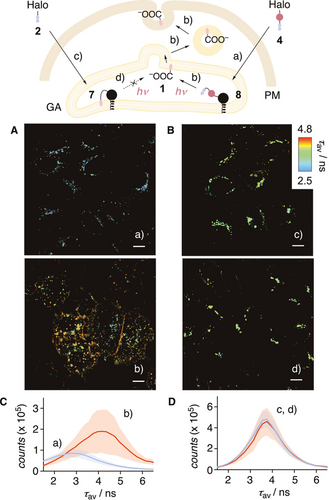

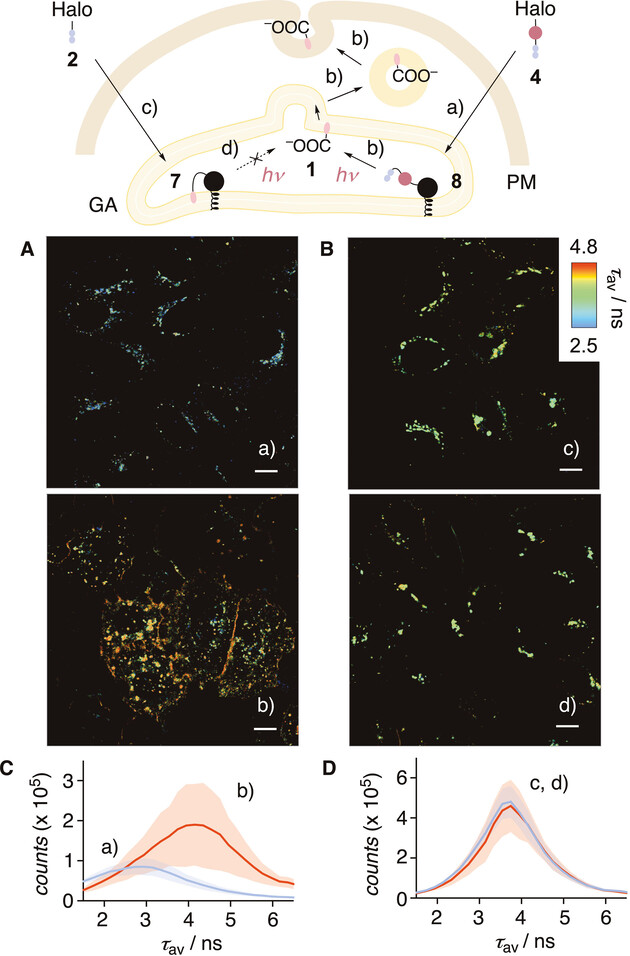

Targeting with the complementary, more general, genetically engineered HaloTag was envisioned with photocleavable HaloFlipper 4.^{11, 16} Cellular uptake was as efficient as for the uncleavable HaloFlipper 2 (CP₅₀=16±2 nM, Figure S7).^{16, 34} PhotoFlipper 4 was applied first to HK cells that transiently express a HaloTag in the luminal side of the Golgi apparatus (GA). Before irradiation, FLIM images showed labeled GA around the nucleus emitting with short lifetime (τ₁=3.85 ns, Figure 4 A,C, a). After irradiation, the number of labelled subcellular structures increased throughout the cells, and the overall lifetime jumped to τ₁=4.9 ns (Figure 4 A,C, b). The same experiment repeated with the uncleavable HaloFlipper 2 gave labelled GA emitting with longer and unchanged fluorescence lifetime before and after irradiation (τ₁=4.37 ns, Figure 4 B,D). These results suggested that both flippers covalently label the same HaloTag inside the GA. While the tethered HaloFlipper in conjugate 7 partitions into the surrounding membrane and reports on order, the slightly longer tether of PhotoFlipper in conjugate 8 prevents partitioning before irradiation, according to the much shorter lifetime observed. Upon irradiation, flipper 1 is released into the inner leaflet of the GA membrane. Unable to flip out, 1 presumably migrates along the secretory pathway from the GA to slowly fuse into the PM. Photoinduced release of 1 from 4 at the luminal side of the ER gave similar results (Figure S8). To elaborate on the mechanics of membrane trafficking along the secretory pathway, such fast release without chemical interference is important to label specific points in time with a narrow distribution; slow release smears labels over several connected sites.¹⁷

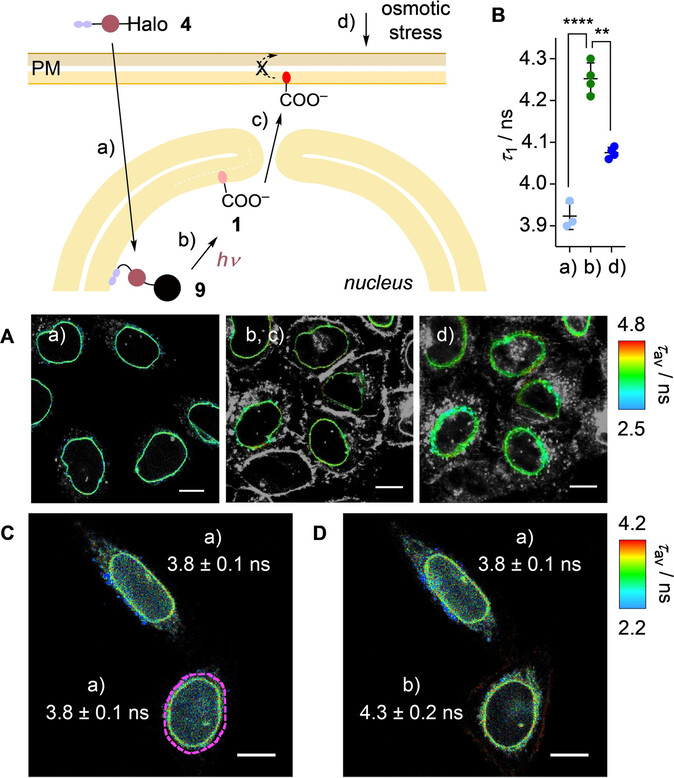

Labeling of the innermost leaflet of the nuclear membrane with tension probes is interesting because it plays a key role in chromatin organization but demanding because fast staining with spatiotemporal control is required to prevent diffusion to the outermost leaflet and the cytosol (Figure 5).^{35, 36} Thus, HaloTags equipped with nuclear localization sequence (NLS) were stably expressed in HK cells (Figure S9 a,b). Addition of 4 followed by an incubation with BSA resulted in labeling of the nuclear envelope, as well as the nucleus (Figures 5 Aa, S9 c–f). Before irradiation, the fluorescence lifetime τ₁ was very short, even after selecting only the nuclear envelope (3.92 ns), supporting LUV results that caged flippers like 9 partition poorly into membranes.

Photocleavage caused an increase in fluorescence lifetime to τ₁=4.3 ns in the nuclear envelope (Figure 5 Ab) and a decrease in fluorescence intensity inside the nucleus (clearly visible in Figure 5 D). The same lifetime change occurred upon focused irradiation on one nucleus using a FRAP module, demonstrating the spatial controllability of the process (Figure 5 D). This change was consistent with the photocleavage of low-emitting conjugates 9 to release 1 into the inner leaflet of the nuclear envelope. With time, 1 migrated from the nuclear envelope to the PM, which is feasible through the nuclear pore³⁶ (Figure 5 Ac). Hyperosmotic stress caused significant shape changes outside the nuclear membrane (Figure 5 Ad). Thus, focused analysis was performed of the nuclear envelope to give a lifetime decrease from τ₁=4.25 ns to τ₁=4.08 ns (Figure 5 Ab–d). The extent of lifetime change was in the range observed previously in other organelles, suggesting that hyperosmotic stress also reduces the membrane tension in the innermost leaflet of the nuclear envelope.

Taken together, this study introduces photocleavable flipper probes 3 and 4, which release small molecule mechanophores to image order and tension of any membrane of interest within cells. Facile and fast photoinduced release provides access to spatiotemporal control without chemical interference. The released probe is identical with the original, optimized Flipper-TR 1. This is important because it removes all possible effects of targeting groups on function. The released Flipper-TR 1 labels the leaflet of highest order that is accessible without flip-flop. The importance of rapid labeling with spatiotemporal control is exemplified with the innermost leaflet of the nuclear envelope and inner leaflets along the secretory pathway. Both sites of interest are elusive otherwise because of their dynamic nature, the former being connected to the outermost leaflet, and the latter in transit between ER, GA and PM. The importance of labeling with leaflet-level precision is further exemplified with the inner leaflet of the PM, which is confirmed to be less ordered than the outer leaflet. These examples on use in biology demonstrate that the next level of precision reached in imaging membrane order and tension is significant. They identify PhotoFlippers as the chemistry tools needed to address current challenges in biology that are otherwise intractable, and open attractive perspectives for future development.³⁷
