Alkyltin Keggin Clusters Templated by Sodium
Dr. Sumit Saha
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorDeok-Hie Park
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorDanielle C. Hutchison
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorMorgan R. Olsen
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorLev N. Zakharov
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Search for more papers by this authorDr. David Marsh
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Current address: Dept. of Chemistry, Alfred University, Alfred, NY, 14802 USA
Search for more papers by this authorDr. Sara Goberna-Ferrón
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Current address: ESRF-The European Synchrotron, 380000 Grenoble, France
Search for more papers by this authorRyan T. Frederick
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorJ. Trey Diulus
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorNizan Kenane
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorProf. Gregory S. Herman
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorProf. Darren W. Johnson
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Search for more papers by this authorProf. Douglas A. Keszler
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorCorresponding Author
Prof. May Nyman
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorDr. Sumit Saha
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorDeok-Hie Park
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorDanielle C. Hutchison
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorMorgan R. Olsen
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorLev N. Zakharov
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Search for more papers by this authorDr. David Marsh
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Current address: Dept. of Chemistry, Alfred University, Alfred, NY, 14802 USA
Search for more papers by this authorDr. Sara Goberna-Ferrón
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Current address: ESRF-The European Synchrotron, 380000 Grenoble, France
Search for more papers by this authorRyan T. Frederick
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorJ. Trey Diulus
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorNizan Kenane
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorProf. Gregory S. Herman
Department of Chemical, Biological & Environmental Engineering, Oregon State University, Corvallis, OR, 97331 USA
Search for more papers by this authorProf. Darren W. Johnson
Department of Chemistry and Biochemistry, University of Oregon, Eugene, OR, 97403 USA
Search for more papers by this authorProf. Douglas A. Keszler
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA
Search for more papers by this authorCorresponding Author
Prof. May Nyman
Center for Sustainable Materials Chemistry (CSMC), Oregon State University, USA
Department of Chemistry, Oregon State University, USA

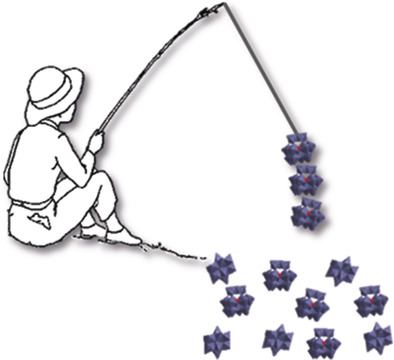

Search for more papers by this authorGraphical Abstract
Fishing for facts: Solution-phase characterization of n-BuSnOOH and structure determination of a neutral sodium-centered organotin Keggin cluster (β-NaSn13) extracted from the crude mixture brings new understanding to this widely used compound class. It is a unique model system, absent of counterions, to study the transformation of clusters to films and nanopatterns.
Abstract
Dodecameric (Sn12) and hexameric topologies dominate monoalkyltin–oxo cluster chemistry. Their condensation, triggered by radiation exposure, recently produced unprecedented patterning performance in EUV lithography. A new cluster topology was crystallized from industrial n-BuSnOOH, and additional characterization techniques indicate other clusters are present. Single-crystal X-ray analysis reveals a β-Keggin cluster, which is known but less common than other Keggin isomers in polyoxometalate and polyoxocation chemistry. The structure is formulated [NaO4(BuSn)12(OH)3(O)9(OCH3)12(Sn(H2O)2)] (β-NaSn13). SAXS, NMR, and ESI MS differentiate β-NaSn13, Sn12, and other clusters present in crude “n-BuSnOOH” and highlight the role of Na as a template for alkyltin Keggin clusters. Unlike other alkyltin clusters that are cationic, β-NaSn13 is neutral. Consequently, it stands as a unique model system, absent of counterions, to study the transformation of clusters to films and nanopatterns.
Supporting Information
As a service to our authors and readers, this journal provides supporting information supplied by the authors. Such materials are peer reviewed and may be re-organized for online delivery, but are not copy-edited or typeset. Technical support issues arising from supporting information (other than missing files) should be addressed to the authors.
| Filename | Description |
|---|---|
| anie201701703-sup-0001-misc_information.pdf2.1 MB | Supplementary |
Please note: The publisher is not responsible for the content or functionality of any supporting information supplied by the authors. Any queries (other than missing content) should be directed to the corresponding author for the article.
References
- 1D. Olynick, A. Schwartzberg, D. A. Keszler, Frontiers of Nanoscience: Materials and Processes for Next Generation Lithography, Vol. 11 (Eds.: ), Elsevier, Amsterdam, 2016, chap. 10, pp. 349–371.
10.1016/B978-0-08-100354-1.00010-7 Google Scholar
- 2D. D. Simone, M. Mao, M. Kocsis, P. De Schepper, F. Lazzarino, G. Vandenberghe, J. Stowers, S. Meyers, B. L. Clark, A. Grenville, V. Luong, F. Yamashita, D. Parnell, Proc. SPIE 9776, Extreme Ultraviolet (EUV) Lithography VII, 2016, 97760B.
- 3J. Stowers, J. Anderson, B. Cardineau, B. Clark, P. De Schepper, J. Edson, M. Greer, K. Jiang, M. Kocsis, S. Meyers, A. Telecky, A. Grenville, D. De Simone, W. Gillijns, G. Vandenberghe, Proc. SPIE 9779, Advances in Patterning Materials and Processes XXXIII, 2016, 977904.
- 4R. P. Oleksak, R. E. Ruther, F. Luo, K. C. Fairley, S. R. Decker, W. F. Stickle, D. W. Johnson, E. L. Garfunkel, G. S. Herman, D. A. Keszler, ACS Appl. Mater. Interfaces 2014, 6, 2917–2921.
- 5J. M. Amador, S. R. Decker, S. E. Lucchini, R. E. Ruther, D. A. Keszler, Proc. of SPIE. 2014, 9051, 90511A, 1–6.
- 6J.-H. Son, D.-H. Park, D. A. Keszler, W. H. Casey, Chem. Eur. J. 2015, 21, 6727–6731.
- 7S. Goberna-Ferrón, D.-H. Park, J. M. Amador, D. A. Keszler, M. Nyman, Angew. Chem. Int. Ed. 2016, 55, 6221–6224; Angew. Chem. 2016, 128, 6329–6332.
- 8R. E. Ruther, B. M. Baker, J.-H. Son, W. H. Casey, M. Nyman, Inorg. Chem. 2014, 53, 4234–4242.
- 9H. Puff, H. Reuter, J. Organomet. Chem. 1989, 373, 173–184.
- 10
- 10aF. Banse, F. Ribot, P. Toledano, J. Maquet, C. Sanchez, Inorg. Chem. 1995, 34, 6371–6379;
- 10bC. Eychenne-Baron, F. Ribot, N. Steunou, C. Sanchez, F. Fayon, M. Biesemans, J. C. Martins, R. Willem, Organometallics 2000, 19, 1940–1949;
- 10cC. Eychenne-Baron, F. Ribot, C. Sanchez, J. Organomet. Chem. 1998, 567, 137–142.
- 11
- 11aV. Chandrasekhar, R. O. Day, R. R. Holmes, Inorg. Chem. 1985, 24, 1970–1971;
- 11bR. O. Day, V. Chandrasekhar, K. C. Kumara Swamy, J. M. Holmes, S. D. Burton, R. R. Holmes, Inorg. Chem. 1988, 27, 2887–2893.
- 12V. Chandrasekhar, S. Nagendran, S. Bansal, A. Wallace Cordes, A. Vij, Organometallics 2002, 21, 3297–3300.
- 13S. U. Ahmad, J. Beckmann, A. Duthie, Organometallics 2009, 28, 7053–7054.
- 14G. Prabusankar, B. Jousseaume, T. Toupance, H. Allouchi, Angew. Chem. Int. Ed. 2006, 45, 1255–1258; Angew. Chem. 2006, 118, 1277–1280.
- 15F. Ribot, C. Eychenne-Baron, F. Fayon, D. Massiot, B. Bresson, Main Group Met. Chem. 2002, 25, 115–119.
- 16H. Reuter, Angew. Chem. Int. Ed. Engl. 1991, 30, 1482–1484; Angew. Chem. 1991, 103, 1487–1489.
- 17C60H73NaO30Sn13, M=2840.14, 0.08×0.06×0.03 mm, T=173(2) K, Orthorhombic, space group Pnma, a=32.2623(19), b=19.3472(11), c=16.0513(8) Å, α=β=γ=90°, V=10019.0(10) Å3, Z=4, ρcald=1.883 Mg m−3, μ(Cu)=25.851 mm−1, F(000)=5336, 2θmax=106.6°, 33 878 reflections, 6000 independent reflections [Rint=0.0818], R1=0.1277, wR2=0.3115, and GOF=1.113 for 6000 reflections (502 parameters) with I>2σ(I), R1=0.2049, wR2=0.3912, and GOF=1.158 for all reflections, max/min residual electron density=+1.780/−2.024 e Å−3. CCDC 1527536 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre.
- 18I. A. Weinstock, J. J. Cowan, E. M. G. Barbuzzi, H. Zeng, C. L. Hill, J. Am. Chem. Soc. 1999, 121, 4608–4617.
- 19F. Xin, M. T. Pope, G. J. Long, U. Russo, Inorg. Chem. 1996, 35, 1207–1213.
- 20C. A. Ohlin, J. R. Rustad, W. H. Casey, Dalton Trans. 2014, 43, 14533–14536.
- 21W. Wang, L. B. Fullmer, N. A. G. Bandeira, S. Goberna-Ferron, L. N. Zakharov, C. Bo, D. A. Keszler, M. Nyman, Chem 2016, 1, 887–901.
- 22O. Sadeghi, C. Falaise, P. I. Molina, R. Hufschmid, C. F. Campana, B. C. Noll, N. D. Browning, M. Nyman, Inorg. Chem. 2016, 55, 11078–11088.
- 23O. Sadeghi, L. N. Zakharov, M. Nyman, Science 2015, 347, 1359–1362.
- 24Y. Hou, L. N. Zakharov, M. Nyman, J. Am. Chem. Soc. 2013, 135, 16651–16657.
- 25T. M. Alam, M. Nyman, B. R. Cherry, J. M. Segall, L. E. Lybarger, J. Am. Chem. Soc. 2004, 126, 5610–5620.
- 26D. Dakternieks, H. Zhu, E. R. T. Tiekink, R. Colton, J. Organomet. Chem. 1994, 476, 33–40.
