Dynamic Mirror-Symmetry Breaking in Bicontinuous Cubic Phases^†

Design and investigation of chiral self-assembled superstructures represents a fascinating field of contemporary research which provides numerous potential applications. Beside enantiomeric mixtures of molecules, segregation of chiral supermolecular aggregates,¹, ², ³ and chiral molecular conformations were also found as sources of macroscopic chirality in the crystalline state and at surfaces.⁴ In recent years interest in mirror-symmetry breaking extended to soft matter systems. Special progress in this field was made with liquid crystalline phases formed by bent-core molecules and bent-shaped mesogenic dimers showing symmetry breaking in their lamellar⁵–¹¹ and nematic phases, respectively.¹², ¹³ Spontaneous formation of helical superstructures was also observed in soft columnar crystals at reduced temperature where packing density is increased and the mobility of the aromatic segments is reduced.¹⁴–¹⁷ The lateral coupling between columns is much weaker than the longitudinal, therefore macroscopic chiral segregation is usually not observed, except for one case.¹⁰ Though, there is one report about spontaneous stochastic symmetry breaking in a thermotropic cubic phase, the structure of this cubic phase and the possible origin of macroscopic chirality are not clear in this case.¹⁸

Herein we report that stochastic symmetry breaking is a general phenomenon typically observed in the bicontinuous cubic phases of achiral rod-like and polycatenar (multichain-terminated) liquid crystalline (LC) compounds.¹⁹ We show that optical activity and circular dichroism (CD) develop spontaneously whenever the cubic phase is of the triple-network type with symmetry²⁰, ²¹ whereas, in contrast, the “double gyroid” cubic phase always remains achiral. These observations are explained by the action of two newly recognized phenomena: a) the correlated helical twist of molecular axis in the segments of the infinite interpenetrating networks, and b) the percolation through mm-sized domains of uniform helical sense carried across the network through matching of molecular orientation twist sense at network junctions. The current findings also bring the understanding of thermotropic cubic phases to a qualitatively new level and contribute to the general appreciation of symmetry breaking in LCs of achiral molecules.

The compounds under investigation (compounds 1, see Table 1) represent polycatenar rod-like molecules based on a 5,5′-diphenylbithiophene core (for synthesis, see the Supporting Information (SI)).²³ Crystalline phases of compounds 1 melt between 110 and 139 °C and form optically isotropic and highly viscous mesophases which, based on X-ray diffraction (XRD) evidence (see below), are cubic LC phases, and which on further rising temperature transform to isotropic liquids. In some cases, an additional liquid-liquid transition (LLT) is observed and the liquid phase occurring between the cubic and the “ordinary” isotropic liquid is labelled here Iso_LT, the liquid phase at higher temperature as Iso_HT. Iso_LT phases have previously been found as intermediate phases at Cub-Iso transitions (labelled Iso₁)²² and have recently been found to be chiral in some cases, representing a conglomerate of two segregated enantiomeric liquids (Iso₁^[*]).²³ This chiral Iso_LT is denoted here as Iso_LT^[*]. While Iso_LT^[*] appears in 1 d both on heating and cooling,²³ in 1 b and 1 e it occurs only on cooling (monotropic phase). Compounds 1 a, 1 c, 1 f and 1 g form the cubic phases directly from the achiral Iso_HT. Sharp DSC peaks accompany Cub-Iso transitions on heating and Iso_HT-Cub transitions on cooling, but the Iso_HT-Iso_LT^[*] exotherm is broad and is better described as a heat capacity anomaly rather than a first-order transition (see Figure 3 c,d, Table 1 and Figures S1–S9 in the SI).

Table 1. Chemical structures, phase transitions (heating top lines, cooling bottom lines) and cubic lattice parameters of the compounds of series 1.^[a]

Compd.	n	R	Phase transitions on heating/cooling (T/°C)	acub [nm]
1 a	10	H	Cr 114 [39.7] Cub/ 162 [2.3] IsoHT IsoHT 156 [1.7] Cub/ 69 [3.8] Cr	10.8
1 b	10	4-OCH3	Cr 119 [55.3] Cub/ 192 [1.5] IsoHT IsoHT 192 [0.2] IsoLT[*] 170 [0.3] Cub/	11.4
1 c	10	3,4-(OCH3)2	Cr 137 [44.6] Cub/ 183 [3.3] IsoHT IsoHT 175 [2.5] Cub/ 105 [37.3] Cr	11.1
1 d23	6	4-OC6H13	Cr 139 [55.2] M 171 [-] Cub/ 205 [1.2] IsoLT[*] 213 [0.2] IsoHT IsoHT 212 [1.0] IsoLT[*] 177 [0.3] Cub/ 58 [19.4] Cr	10.3
1 e	10	4-OC10H21	Cr 134 [49.9] Cub[*]/ 183 [2.2] IsoHT IsoHT 178 [0.3] IsoLT[*] 173 [1.1] Cub[*]/ 109 [46.0] Cr	17.9
1 f	10	3-OC2H5	Cr 100 [27.8] Cub[*]/ 130 [3.1] IsoHT IsoHT 121 [2.1] Cub[*]/ <20 Cr	15.7
1 g	10	3,4,5-(OCH3)3	Cr 110 [70.2] Cub[*]/ 127 [2.9] IsoHT IsoHT 117 [2.1] Cub[*]/	15.4

• [a] Abbreviations: Cr=crystalline solid, Cub/=bicontinuous cubic phase with lattice (achiral); Cub^[*]/=chiral conglomerate cubic phase with lattice; Iso_LT^[*]=chiral isotropic liquid phase formed by a conglomerate of domains with opposite handedness; Iso_HT=achiral isotropic liquid phase.

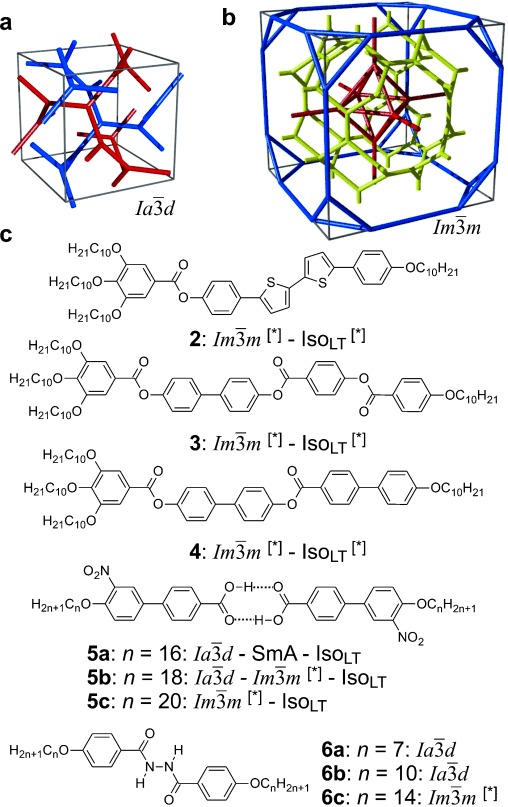

Cubic space groups were determined by powder small-angle XRD and grazing-incidence diffraction as shown in the SI (Figures S11, S12, and Tables S2–S8). Two cubic phases were observed, the double-network “gyroid”, with symmetry (Figure 1 a), and the triple-network phase with symmetry (Figure 1 b). The lattice parameters of the cubic phases are in the typical ranges around a_cub=11 nm for the phase and a_cub=15–18 nm for the phase.

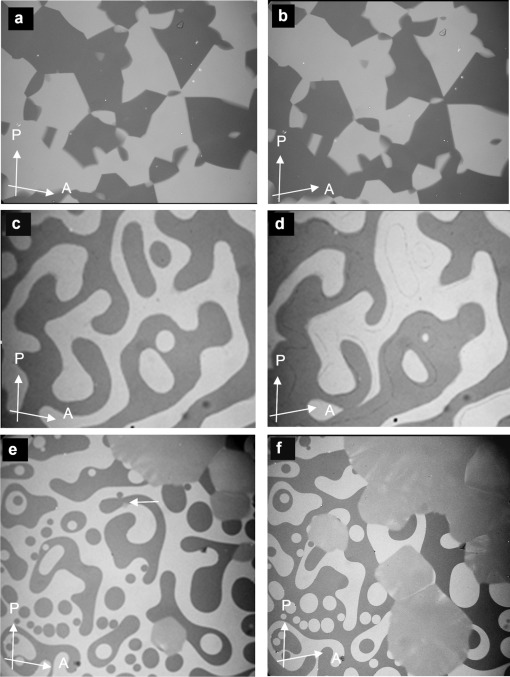

Symmetry breaking is observed in some of the cubic phases by polarized microscopy if the analyzer is rotated by a small angle out of the 90 °C crossed position with respect to the polarizer. In this way the polarizing microscope can be used as a polarimeter with the additional advantage of spatial resolution. Remarkably, all cubic phases of the investigated compounds are optically inactive, whereas for all phases darker and brighter domains become visible between slightly uncrossed polarizers, which exchange their contrast if the rotation of the analyzer is reversed (Figure 2 a,b). Rotating the sample between the polarizers does not change the contrast. This means that the phase represents a conglomerate of chiral domains with opposite handedness. Thus this cubic phase is denoted Cub^[*]/.²⁴

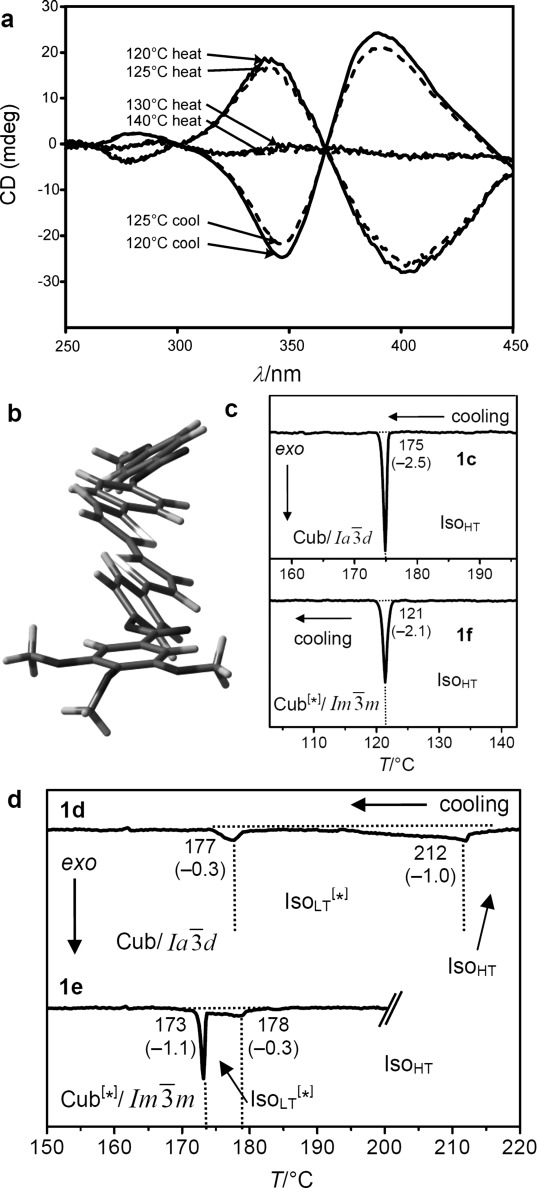

Microbeam circular dichroism (CD) spectroscopy confirmed the presence of chiral domains in the phase. Figure 3 a shows the CD evolution with temperature during heating a bulk film of 1 g from the Cub^[*]/ (120–125 °C) to the Iso_HT phase (130–140 °C), and then cooling back to the Cub^[*]/ (120–125 °C, dashed curves). As can be seen, there is strong CD in the cubic phase, disappearing in the isotropic Iso_HT liquid and reappearing in the Cub^[*]/, this time either with the same or with reversed chirality. In contrast, on no occasion did the Cub/ phase give any measurable CD.

While both, optical activity and CD, are strongly affected by helical order, CD is highly sensitive to molecular conformation. It is suggested that the chiral chromophore mainly responsible for the CD is the slightly twisted 5,5′-diphenyl-2,2′-bithiophene unit (Figure 3 b) which has its UV absorption maximum at the inflection point of the CD curves at 374 nm (Figure S10).

As mentioned above, there are two different types of transitions from the achiral Iso_HT liquid to the Cub^[*]/ phase, either directly (compounds 1 f and 1 g, Figure 2 a,b) or via the chiral Iso_LT^[*] phase (compounds 1 e and 2, Figure 2 c,d). The chirality of the Iso_LT^[*] phase, a conglomerate of chiral domains, is indicated by optical investigations in the same way as described for the cubic phases (see Figure 2 c). Where the transition takes place directly from the achiral Iso_HT phase the resulting chiral domains have mainly straight boundaries reflecting crystallographic facets (Figure 2 a,b). However, when the phase grows from the already chiral Iso_LT^[*] phase, the chiral cubic domain boundaries follow closely the curved borders between the enantiomeric liquid domains of the Iso_LT^[*] phase (see Figure 2 c,d and Video 1e on the SI website).

The transition to the phase can also occur in two ways. Other than by XRD, the direct transition Iso_HT-Cub/ is only detectable by a marked increase in viscosity (compounds 1 a and 1 c). In this case investigation between uncrossed polarizers give no evidence of chirality. What is more, where the is formed from the chiral Iso_LT^[*] phase (compounds 1 b and 1 d), the chirality is completely erased (see Figure 2 e,f).

Similar Iso_LT^[*]-Cub^[*]/ transition behavior as for compound 1 e, was also observed for compound 2, having a shorter bithiophene unit and for the tetracatenar compounds 3 and 4 without the bithiophene units. 5 (ANBC-n) and 6 (BABH-n) are members of the two best investigated homologous series of cubic phase forming compounds (see Table S1 and Figures 1, S7–S9, S13, S14, S17–S22).¹⁹, ²⁵ Remarkably, also for these compounds in all cases the phase is achiral (compounds 5 a, b and 6 a, b) whereas the phase appears as chiral conglomerate (compounds 2–4, 5 b, c and 6 c). For the 3′-nitro-4′-alkoxybiphenyl carboxylic acids 5 there is an additional enantiotropic (i.e. reversible) Iso_HT–Iso_LT transition; however in this case the Iso_LT phase is for all investigated compounds achiral. Nevertheless, chirality evolves for 5 c (n=20) at the transition to the Cub^[*]/ phase (see Table S1 and Figure S20e,f). For 5 b (n=18) an achiral phase is formed on cooling, but on heating an additional – transition occurs at T≈180 °C (Figure S20c,d).¹⁹ Again, chiral domains invariably appear at this transition. Thus, the Cub/ phase was found to be chiral in all these diverse non-chiral polycatenar compounds, without exception,²⁴ while the Cub/ was non-chiral, also without exception. Hence, chirality of the phases appears to be a general phenomenon, already present in long known systems, but surprisingly not previously recognized.²⁶ Chirality in the Cub^[*]/ phase has thus been seen to develop in four different ways, either 1) directly from the achiral isotropic liquid Iso_HT, via Iso_LT phases which can be either 2) chiral (Iso_LT^[*]) or 3) achiral (Iso_LT), or 4) from the achiral Cub/ phase.

For the understanding of the development of chirality in the cubic phase it must be recalled that the molecules have liquid like local order, with no hint of any Bragg-like X-ray reflection in the wide-angle range. Therefore, the classical approach of achiral symmetry breaking, where the formation of a more or less ordered crystalline phase energetically favors one chiral conformer over another,¹, ³, ⁷ cannot be applied here. Considering that the observed “static symmetry breaking” leads to a significant entropy penalty, there is a compelling mode of self-assembly that compensates for the entropy loss, yet does not involve crystallization at any level (“dynamic symmetry breaking”), as introduced recently as the underlying process for mirror-symmetry breaking in isotropic liquids.²³ The model must also explain why all Cub/ phases are chiral and all Cub/ ones are not.

In soft-crystal columns of short hexacatenar hydrazine rods²⁷ or broader board-like perylene bisimides²⁸ it was found that molecular pairs stack on top of one another with a nearly 90° twist. In this way the molten alkyls spread around the column while effective core–core π-stacking is still maintained. For long thin rods with less than six chains, as studied here, a smaller twist angle would be sufficient to alleviate the crowding of the alkyls,¹⁹, ²⁹ thus allowing the development of helical twist. Without any degree of 3D positional order of achiral molecules, as in the “disordered” hexagonal columnar LC phase, there is no long-range helical order (LRHO). However, the superstructural twist couples with the helical twist of the chiral molecular conformations, thus biasing each other and collectively favoring the helical superstructure in the fluid columns.²³ Thus, the preorganization in columns favors conformational segregation and vica verse. But even in this case, in 1D columns, without intercolumnar correlation, a helix reversal defect has no way of being corrected, so that macroscopic chirality cannot be observed in fluid columnar LC phases.

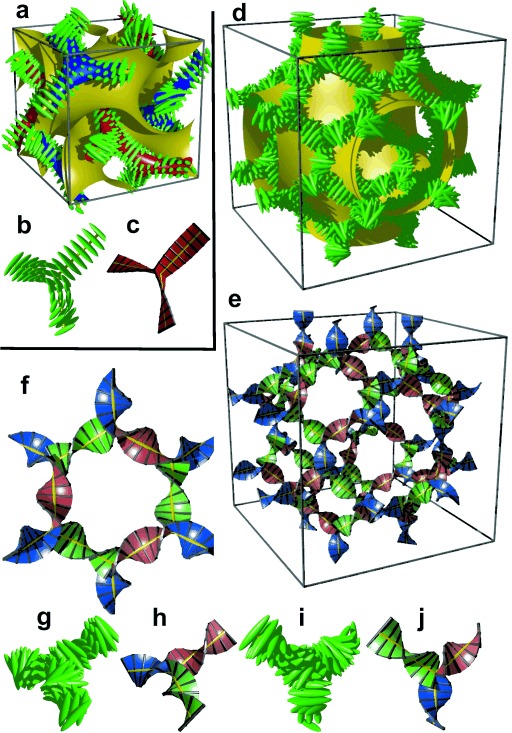

However, in the bicontinuous cubic phases we also must consider the network junctions. At the 3-fold junctions the three twisting “ribbons” that may be used to represent the network segments, must merge into one another smoothly. In an optimal junction the aromatic rods arrive parallel to each other and with a synchronized twist where the helices lock-in together as they approach each other—for the network junction (see Figure 4 b,c). The junction itself then effectively becomes a small triangular platelet, approximately normal to the molecular axis.¹⁹, ²⁵ We calculate that there is a distance of 0.345 a_cub≈3.9 nm between the junctions, which accommodates about 9 molecular triplets spaced at 0.45 nm. As the twist between the junctions is ϕ=±70.5°, there is an average rotation of ±8° between adjacent molecules. For details see SI. As is well known, the two networks in the phase have opposite chirality; the blue network in Figures 1 a and 4 a is right-handed and the red network is left-handed. Thus, although there is long-range helical order in each of the two interpenetrating infinite networks of the phase, there is no net chirality as the two cancel completely. Figure 4 a gives an impression of the proposed structure, including the minimum surface that separates the two networks (see also SI).

Turning to the phase, this contains three rather than two networks,²⁰, ²¹ a fact on which we base our explanation of its chirality. Examination of the three networks in Figure 1 b shows that they are not intrinsically chiral. However, it is reasonable to assume that they also contain molecular twist as in the phase. In fact even more so, as the molecules displaying the phase (e.g. 1 e–1 g) generally have larger terminal groups than -forming compounds (e.g. 1 a–1 d). They are thus expected to cause greater steric crowding. We concentrate here only on the middle (yellow) network, as it is the simplest of the three and, like in the phase, contains only 3-way junctions. The key assumption is, as with the phase, that at the junctions, in order to interlock smoothly, the molecules twist with the same sense. As an example, a portion of the middle network forming a closed loop of 6 junctions is shown in the ribbon representation in Figure 4 f. There are three “perfect” (I) and three “imperfect” (II) junctions in that loop, detailed in Figures 4 g,h and i,j, respectively. In junctions I all ribbons merge perfectly smoothly, while in junctions II the blue and red ribbons merge smoothly but the green comes at an angle. We note that the latter defect is of little consequence because even if all green segments were disconnected, the remaining network would still remain connected and percolating the entire domain of the phase. The full extent of the middle network within the unit cell is shown in Figures 4 d,e,, with the Schwartz P minimum surface added in Figure 4 d. A calculation similar to that for the phase (details in SI) gives the average twist angle between adjacent molecules as 30–35°, that is, significantly higher than the value for the phase, and in line with the expectation.

A similar calculation can be performed on the other two networks; however because of their complexity we shall not discuss them here. The important point to make, however, is that the chirality of the middle network will undoubtedly affect the chirality of the inner and outer networks. Because of their crystallographic equivalence, the helical sense of the inner and outer (red and blue) network will be the same. Whether it will be the same or opposite of that of the middle network, we cannot tell with certainty. However, what is certain is that, in the general case, there will always be at least a residual chirality in the cubic phase, as indeed observed.

The above model implies that each of the cubic structures is the solution best suited to accommodate a certain range of required molecular twist angles. It is not suggested that the provides a general solution for any situation that requires high twist. In fact experiments on the homologous series of compounds 5 and 6 have shown¹⁹ that as the terminal chains become very long, the is again replaced by the . It would thus appear that such molecules require a twist exceeding the range covered by the structure. In fact, one can speculate that for an intermolecular twist above 40° the exact match between the helical pitch and segment length ceases to dominate the choice of the phase, and the simpler wins once again. Furthermore, due to lateral thermal expansion of the terminal chains, the twist is expected to increase on heating. This would explain the different temperature sequences observed for some homologues, where for the short chain compound an - sequence is observed on heating, whereas for the long homologues this sequence is reversed (series of compounds 6).¹⁹

A closer look at the Iso_LT^[*]-Cub transitions indicates that the germs of the achiral phase emerge always at the interface between the domains with opposite handedness. This appears to be favorable for the formation of this superstructure composed of two enantiomorphic networks (see Figure 2 e and Video 1b). In contrast, the germs of the phase are not bound to the domain boundaries. The chiral sense of the nuclei once formed is retained and growth takes place preferentially within the same domain. But there is also a slower growth into domains with opposite chirality, leading to a change of the relative areas of the different domains (compare Figure 2 c,d, see also Video 1e). This means, that the growing Cub^[*]/ flips over the chirality of the liquid domains if required, although this causes a notable growth retardation.

In summary, we have discovered that, in spite of appearing in achiral compounds, the cubic LC phase is chiral in all compounds studied, while the phase is invariably achiral.³⁰ This previously unrecognized features have led us to propose a model of the two phases based on networks with helical segments where the twist sense propagates in 3D across macroscopic domains through matching twist at network junctions. While the opposing chiralities of the two networks of the phase cancel, this cannot happen in the triple network phase. This model also offers, for the first time, a feasible explanation for the existence of the complex phase, and for the observed – phase sequences as a function of chain length and temperature. The structural insight acquired herein promises to end one of the longest persisting mysteries in the liquid crystal field, that started with the discovery of the “smectic-D” phase over half a century ago.³¹, ³² But the importance of this finding goes far beyond the systems discussed herein and contributes to the general understanding of symmetry breaking in soft condensed matter.
