Tunable, Discrete, Three-Dimensional Hybrid Nanoarchitectures†
Dr. Feng Li
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorDing Gao
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Search for more papers by this authorDr. Xiaomin Zhai
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorYanhua Chen
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorDr. Tao Fu
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorProf. Dr. Dongmin Wu
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorProf. Zhi-Ping Zhang
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Search for more papers by this authorCorresponding Author
Prof. Dr. Xian-En Zhang
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Xian-En Zhang, State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Qiangbin Wang, Division of Nanobiomedicine andi-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorCorresponding Author
Prof. Dr. Qiangbin Wang
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Xian-En Zhang, State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Qiangbin Wang, Division of Nanobiomedicine andi-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorDr. Feng Li
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorDing Gao
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Search for more papers by this authorDr. Xiaomin Zhai
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorYanhua Chen
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorDr. Tao Fu
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorProf. Dr. Dongmin Wu
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorProf. Zhi-Ping Zhang
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Search for more papers by this authorCorresponding Author
Prof. Dr. Xian-En Zhang
State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Xian-En Zhang, State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Qiangbin Wang, Division of Nanobiomedicine andi-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorCorresponding Author
Prof. Dr. Qiangbin Wang
Division of Nanobiomedicine and i -Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Xian-En Zhang, State Key Laboratory of Virology, Wuhan Institute of Virology, Chinese Academy of Sciences, Wuhan, 430071 (China), Fax: (+86) 27-8719-9492
Qiangbin Wang, Division of Nanobiomedicine andi-Lab, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou, 215123 (China), Fax: (+86) 512-6287-2620
Search for more papers by this authorF.L. acknowledges funding by NSFC (Grant No. 31040032); Q.W acknowledges funding by the “Bairen Ji Hua” program from CAS, MOST (Grant No. 2011CB965004), NSFC (Grant No. 20173225, 91023038), and CAS/SAFEA International Partnership Program for Creative Research Teams; Z.Z. thanks funding by MOST (Grant No. 2011CB933600). The authors thank Peidong Yang at UC Berkeley for helpful discussions; Gang Ji and Lijun Bi at Institute of Biophysics, CAS for assistance in cryo-TEM sampling and testing; Haomiao Zhu and Xueyuan Chen at Fujian Institute of Research on the Structure of Matter, CAS for help with time-resolved fluorescence measurement; and Wen Zhao for 3D drawings. The authors express their appreciation to Electron Microscope Lab at Suzhou Institute of Nano-Tech and Nano-Bionics, CAS for the TEM facilities used in this research.
Graphical Abstract

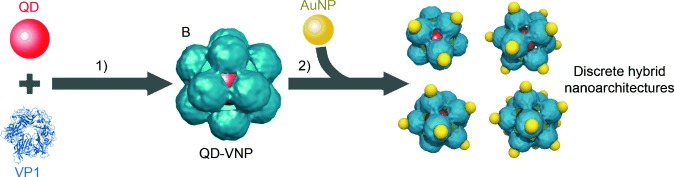

Virus-based nanoparticle scaffolds (VNPs) were used for two-step construction of discrete 3D nanoarchitectures (see picture): 1) loading of quantum dots (QDs) into VNPs formed by cysteine-modified capsid protein VP1 of simian virus 40; 2) attaching controlled numbers of Au nanoparticles (AuNPs) to VNP surfaces through AuS bond formation.
