High-Throughput Computational Evaluation of Low Symmetry Pd₂L₄ Cages to Aid in System Design**

Introduction

Nature has evolved spectacular control over self-assembly processes to produce biological machinery for which high-fidelity of composition and structure is essential for effective functionality. The exploitation of non-covalent interactions allows complex architectures, such as enzymes, to exhibit high substrate specificity through precise control of binding-site size, shape and positioning of functional groups. Over the last few decades, chemists have made great strides in developing approaches to utilise these principles for artificial systems. Metallo-supramolecular chemistry has become a prevalent method for assembling ever-more-complex architectures using the predictable coordination geometry of transition metal ions.^1-3

Since first being reported over twenty years ago,⁴ lantern-type Pd₂L₄ cages,^5-7 assembled from “naked” Pd^II ions and ditopic ligands (L), have become an extensively studied class of metal-organic polyhedra (MOPs).^8-12 Wide-ranging applications for these cages have been investigated, including in drug delivery,^13-15 biomedicine,^16-21 catalysis,^22-25 and guest encapsulation/recognition.^26-32 To simplify the self-assembly process, most previous reports have focussed on high-symmetry systems derived from single, symmetrical ligands. However, it is expected that through the controlled introduction of asymmetry, cages could be designed with more intricate, anisotropic binding sites with specific shapes and functionalities.³³

Pore asymmetry in M₂L₄ systems has been introduced through the controlled assembly of heteroleptic^34-36 and heteronuclear architectures.^{37, 38} Mixed-ligand [Pd₂L^a₂L^b₂] assemblies have been realised through both steric^{39, 40} and geometric control.^{41, 42} Clever and co-workers have demonstrated the effectiveness of pore asymmetry for improved binding of bent guests over linear counterparts.⁴³ Crowley and co-workers recently reported a [PdPtL₄] cage in which the different labilities of the two metal ions allowed selective sequestration of the Pd^II ions to open the cage without complete dissociation of the ligands.⁴⁴ We^{45, 46} and others^47-50 have recently begun to explore an alternative approach that uses unsymmetrical ligands to access lower symmetry structures.⁵¹ The lack of bilateral symmetry introduced into the ligand structure means four possible isomers of the resultant dipalladium cage can form (Figure 1). As with heteroleptic structures, high-fidelity self-sorting into a single isomer can be achieved using steric and/or geometric constraints. However, the inherent difficulty in designing such ligands that will reliably self-sort helps explain the paucity of examples in the literature.

Density functional theory (DFT) calculations have been previously used to rationalise experimentally observed self-sorting in low symmetry metallo-supramolecular systems by exploring the relative energies of the potential configurational isomers.^{41, 43, 45, 47, 48} Indeed, in recent work, we found that the formation of a single Pd₂L₄ cage isomer from the self-assembly of unsymmetrical ditopic ligands with Pd^II ions only occurred when there was a significant difference in the calculated energies (on the order of at least 5 kJ mol⁻¹) of the possible isomers.⁴⁵ As such, we envisaged that a high-throughput computational workflow could be used to rapidly explore the chemical space of low symmetry MOPs and aid in their design and minimise trial-and-error experimental efforts.

Computational screening has been successfully applied to aid in the rationalisation and/or prediction of self-sorting outcomes of porous organic cages using the relative energetics of possible products.^52-55 Until recently, however, it has not been possible to develop equivalent screening workflows for MOPs because no open-source structure generation software was available. Some of us previously developed the supramolecular toolkit (stk),^{56, 57} an open-source Python framework that handles the structure prediction of supramolecular architectures. Here, we highlight the first use of stk to screen candidate MOPs. Young and co-workers also recently developed the software cgbind, which performs structure prediction of M₂L₄ cages.⁵⁸ The generalisability of stk, however, makes it ideal for this work, where we aim to explore a diverse set of ligand and cage structures.

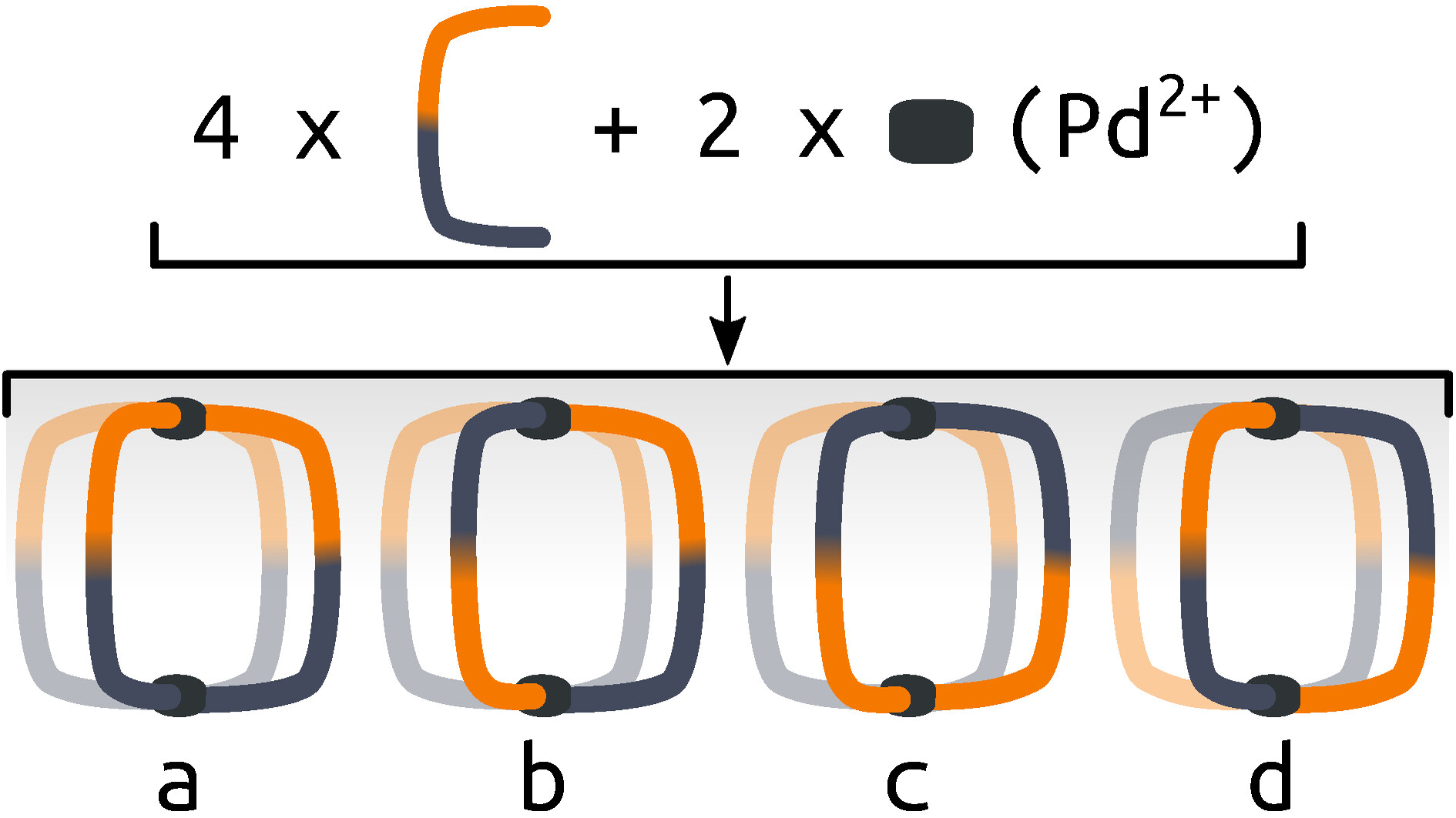

In this work we present a high-throughput computational workflow that was used to construct 60 unsymmetrical, ditopic ligands and the four possible Pd₂L₄ cage isomers for each in silico. Using metrics of geometrical stability and relative cage energies, the ligands were ranked based on their likelihood to form a single Pd₂L₄ isomer. A selection of five ligands with a range of rankings and chemistries were subsequently realised experimentally, and their self-assembly examined. This computer-aided approach facilitates an experimental design with a high success rate, leading to several new unsymmetrical cis-Pd₂L₄ cages being prepared. In this manner, the discovery of interesting candidates can be accelerated by providing a likelihood of success, expediting the synthesis of low symmetry MOPs with desirable structural properties. Indeed, this work highlights that a computer-aided approach allows a more efficient exploration of a larger chemical space of potential candidates than a purely experimental approach.

Results and Discussion

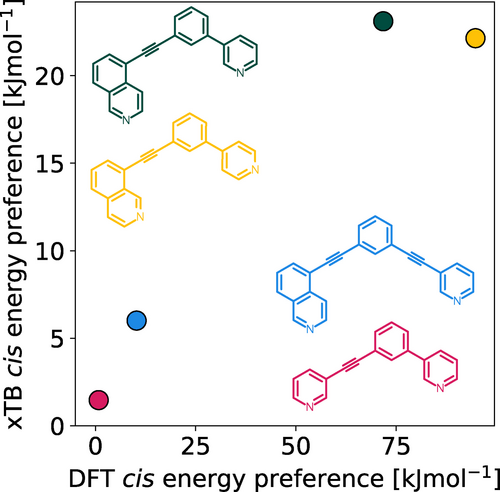

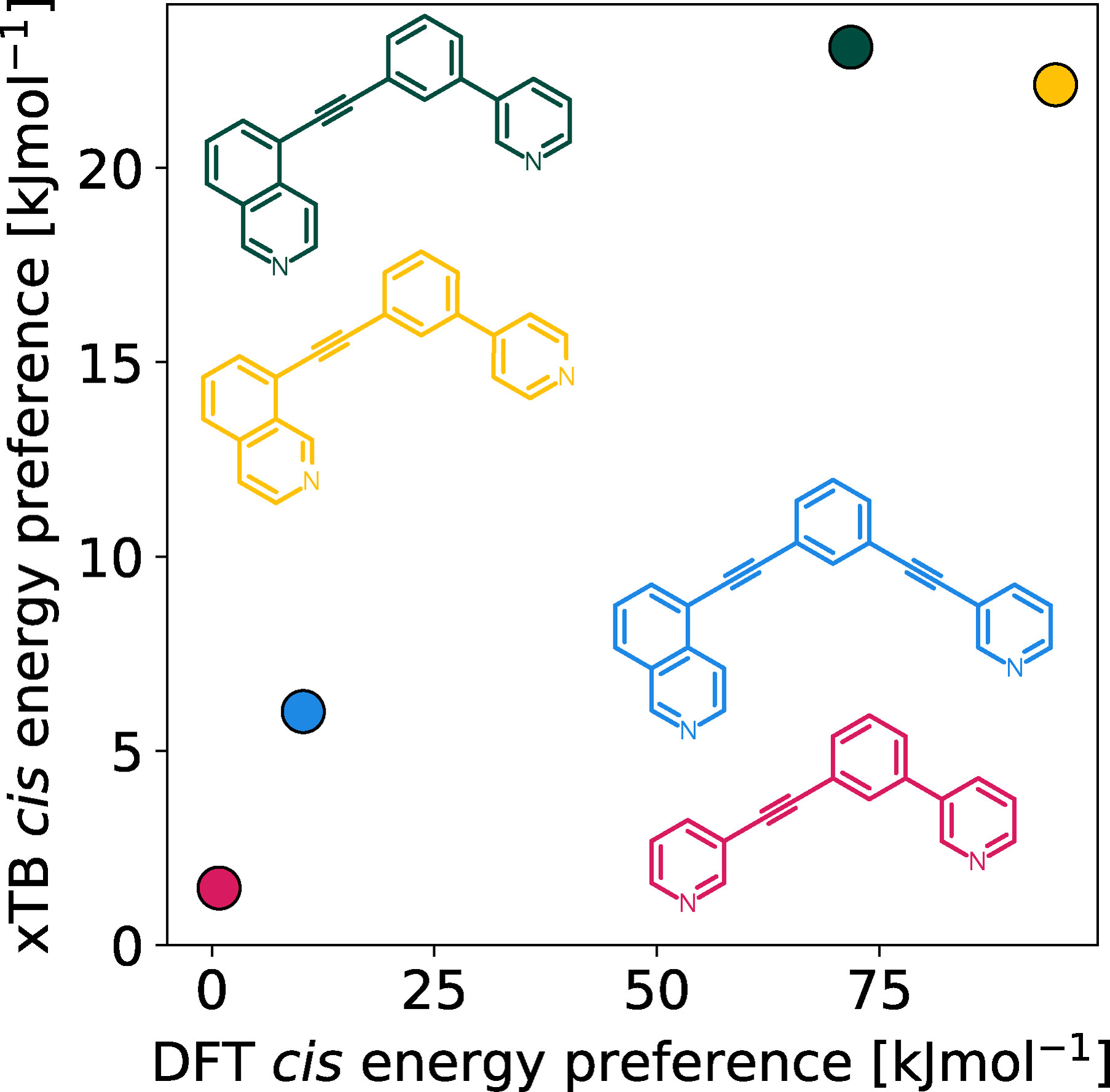

In previous work it was found that the energy separations of the isomers of [Pd₂L₄]⁴⁺ cages assembled from unsymmetrical ligands, calculated using DFT methods, correlated well with experimental observations of single isomer formation.⁴⁵ For larger data sets, it would be desirable to use efficient, semi-empirical methods for geometry optimisations and energy calculations to reduce computational cost and increase throughput. Therefore, we tested whether the xTB family of semi-empirical methods⁵⁹ could capture the same relative energy differences between Pd₂L₄ cage isomers as DFT methods. The xTB methods are tight-binding quantum chemical methods for the geometry optimisation of systems containing elements up to Z=86, and represent a robust and significantly cheaper alternative to DFT for metal-containing species.⁶⁰ A comparison of the xTB (specifically GFN2-xTB) and DFT-calculated energies of previously reported systems was undertaken (structures were taken directly from the computational workflow described below). DFT energies were obtained from single-point energy evaluations of xTB geometries using similar methods to those recently applied to related systems²⁵ (the final selected method uses the PBE0⁶¹ level of theory using the Ahlrichs basis set def2-SVP,^{62, 63} Grimme's D3BJ dispersion correction⁶⁴ and the polarizable continuum model (PCM)⁶⁵ implicit solvation representing DMSO; more details and a comparison to the B97-3c composite method are available in Supporting Information Section S3). The same trends in relative energies were found from both methods (Figure 2) and for free energies calculated using GFN2-xTB (Table S2), suggesting that GFN2-xTB can reasonably represent the relative energetics of the studied cage systems. Therefore, xTB methods were applied throughout this work for geometry optimisations and for energy evaluations toward a high-throughput workflow.

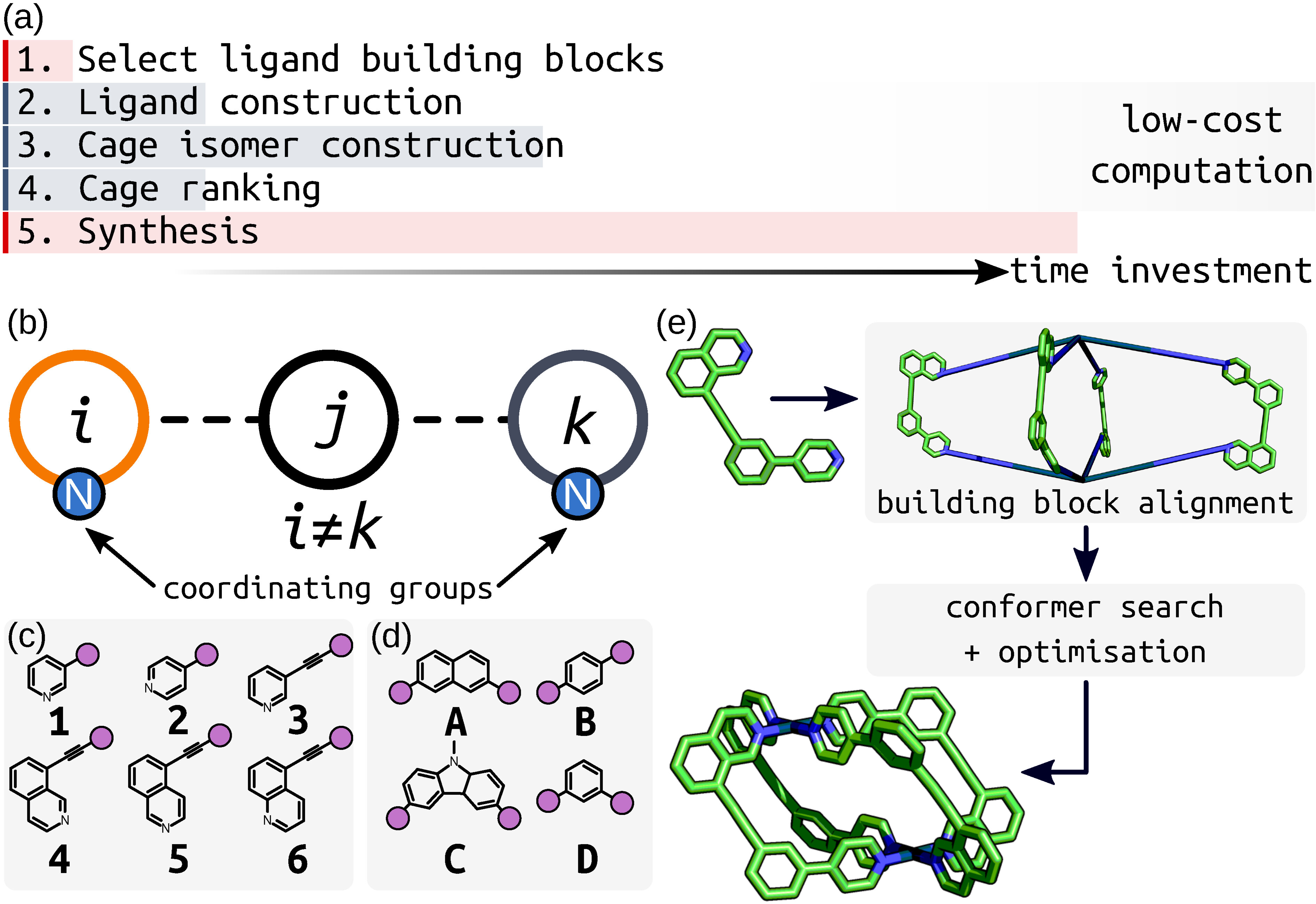

In this work, a joint computational and experimental workflow (Figure 3 a) was implemented to facilitate the search for new unsymmetrical ligands with sufficient geometrical constraints to drive the exclusive formation of single Pd₂L₄ cage isomers. This approach started with an initial experimental choice of building blocks. These were combined in silico to form the candidate ligands and their possible Pd₂L₄ cage isomers. The cage systems were then analysed using computationally cheap structural parameters to assess the likelihood of successful self-assembly into a single isomer, thus assisting in the synthetic decision-making process. A focus was placed on using relatively low-cost computational approaches before any experimental investment to minimise wasted efforts. Such an approach opens up the ability to search for new unsymmetrical cages with desirable properties, increasing ligand design efficiency (which is currently based on very few experimental examples).

A major goal of this computational workflow is generalisability, rendering it applicable to a large chemical space that can be adapted for future iterations of the process. To this end, stk,^{56, 57} UFF4MOF (Universal Force Field for MOFs^{66, 67}) and the xTB family of semi-empirical methods^{59, 68} were used for the assembly and geometry optimisation of ligand and cage structures. stk assembles building blocks onto topology graphs; this process includes the placement, alignment and reaction of the building blocks. Before optimisation with xTB, conformer searches were performed on the Pd₂L₄ systems using a broadly applicable force field that can handle common metal complex geometries (UFF4MOF implemented in the General Utility Lattice Program (GULP)^{69, 70}). Coupling the above methods affords low-cost structure generation, conformer searching and geometry optimisation (Figure 3 e). For each cage, the construction, conformer search and optimisation (at the xTB level) processes took approximately 2–3 hours on a workstation with an i7-9700K CPU (3.60 GHz), which allows for the evaluation of a ligand and its four isomers overnight on standard computer hardware.

To construct a range of unsymmetrical ditopic cage ligands using stk, the ligand structure was partitioned into three building blocks (Figure 3 b): a core (A–D in Figure 3 d) separating two inequivalent coordinating building blocks (1–6 in Figure 3 c). The building blocks were selected from structures commonly used in metallo-supramolecular systems. In this initial study, a relatively small selection of building blocks was used, giving a combinatorial library of 60 unsymmetrical ditopic ligands. With four possible Pd₂L₄ cage isomers for each ligand, a library of 240 cages was generated. Through enumeration of this set of common building blocks, a set of unconventional unsymmetrical cage ligands were generated and tested. The step-wise computational assembly and optimisation of ligands and cages (see Supporting Information Section S2) through stk is automated from the point of input of the ligand building blocks as text-based SMILES strings (Table S1). Therefore, this work is straightforward to extend to a larger chemical space using our hierarchical approach.

In the final step of the computational workflow, the assembled cages associated with each ligand were analysed to determine if a single Pd₂L₄ isomer (targeting the cis isomer) would be expected to form to the exclusion of others. Our validation of GFN2-xTB (see above) for providing relative energies of different Pd₂L₄ structures suggested that a GFN2-xTB energy separation of ca. 6 kJ mol⁻¹ between the two lowest energy isomers (ΔE) appeared to be sufficient to drive exclusive formation of the lowest energy cage isomer. Of the 60 ligands in the library, 34 (57 %), including three previously reported examples, had ΔE values of at least 6 kJ mol⁻¹, indicating that they might be promising candidates for experimental synthesis.

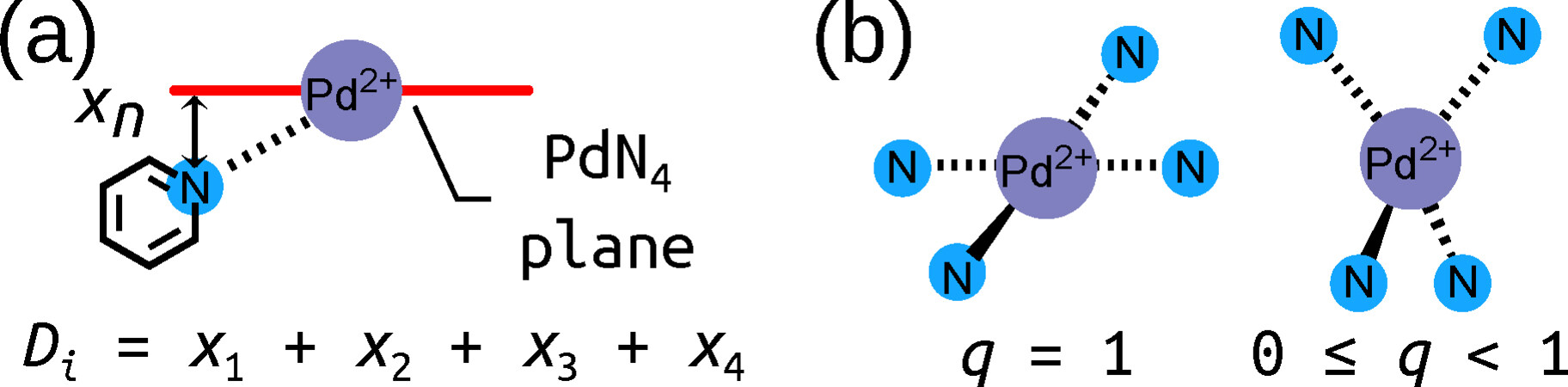

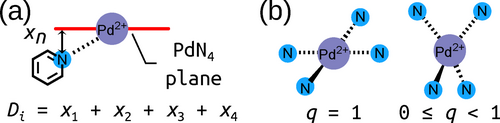

While the relative xTB energies provide information about the likely self-sorting behaviour of Pd₂L₄ cage isomers, they do not indicate if the desired Pd₂L₄ topology will be the favoured product of self-assembly, rather than a larger species. In fact, the prediction of the preferred topology of palladium cages requires costly computational methods.⁷¹ To bypass these methods, the assumption was made that if the Pd₂L₄ cage is geometrically stable, then, as the smallest possible Pd_nL_2n assembly, it is likely to form as the entropically favoured product. As a simple means to probe this, two structural metrics common to every cage in the library were employed (Figure 4): the maximum sum of the deviation of the four nitrogen atoms and palladium atom from each calculated average PdN₄ plane (D_max; 0.0 Å indicating no deviation) and the minimum square planar order parameter (q_sqp,min;⁷² 1.0 indicating a perfect square planar geometry) of the Pd^II ions. Both measures quantify the degree of square-planar-likeness in the most strained palladium ion of the cage. It is assumed that if the strain in the cage is significant, Pd₂L₄ formation will be enthalpically unfavourable. By applying ΔE (specifically ΔE_cis, which is the relative stability of the cis cage isomer), D_max and q_sqp,min within the workflow as computationally cheap heuristics, cage ligands with desirable properties can be selected for synthesis from the generated rankings favouring those that appear most likely to give successful self-assembly outcomes (where success is defined as exclusive formation of a single cage isomer). Figure 5 shows the relationship between the three heuristics used for ranking candidates.

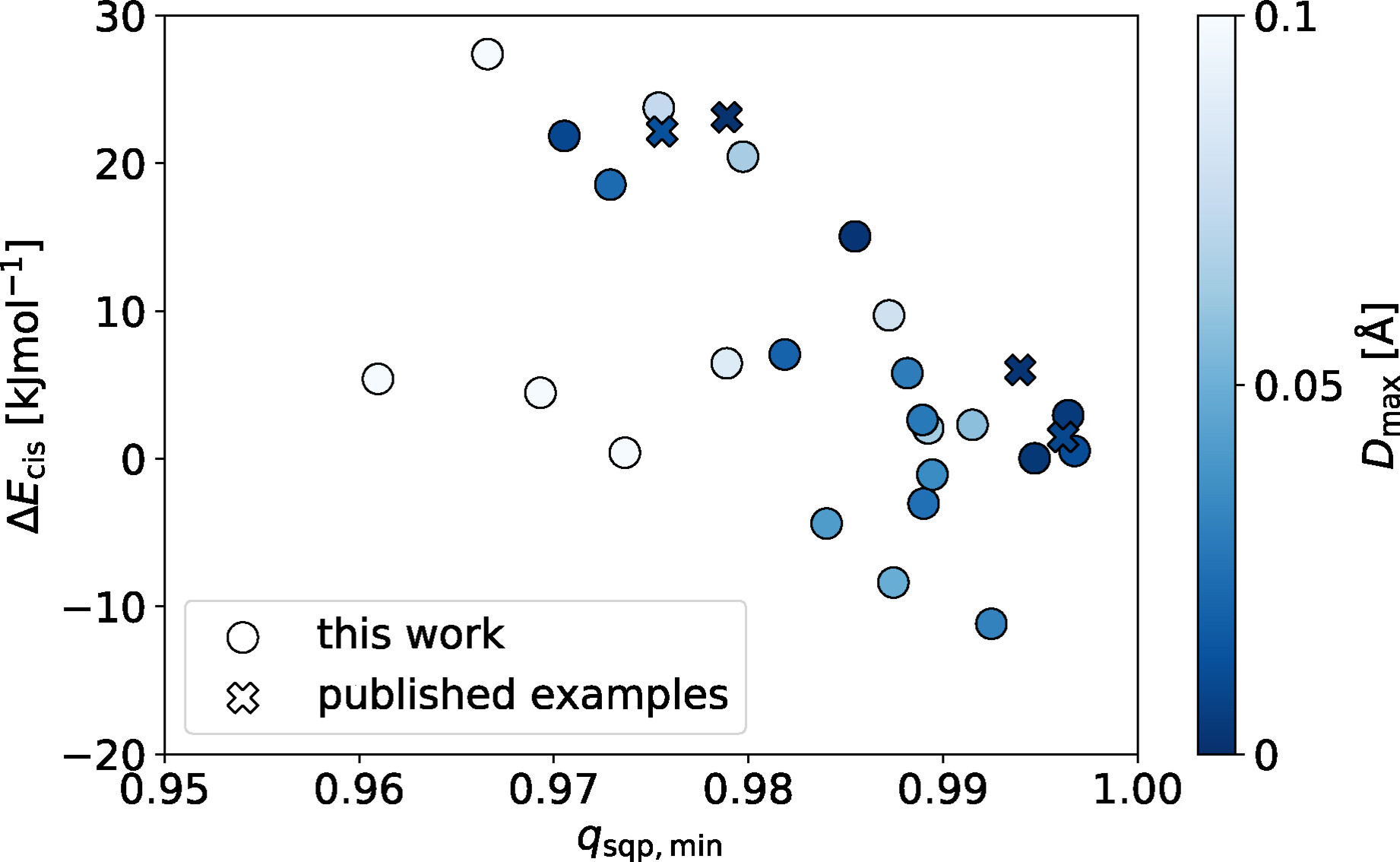

Of the 34 ligands with ΔE values ≥6 kJ mol⁻¹, 12 had lowest energy cage isomers exhibiting very favourable D_max and q_sqp,min values <0.1 Å and >0.95, respectively. Pleasingly, three had previously been synthesised and shown to exclusively form cis-Pd₂L₄ isomers.⁴⁵ Perhaps unsurprisingly, in each of these 12 instances, the cis-Pd₂L₄ isomer was predicted to be the favoured structure, again in agreement with previous work.^{45, 47, 48} Indeed, for most of the ligands (51 of 60; 85 %), the cis cage isomer was found to be the most stable (Figure S4a).

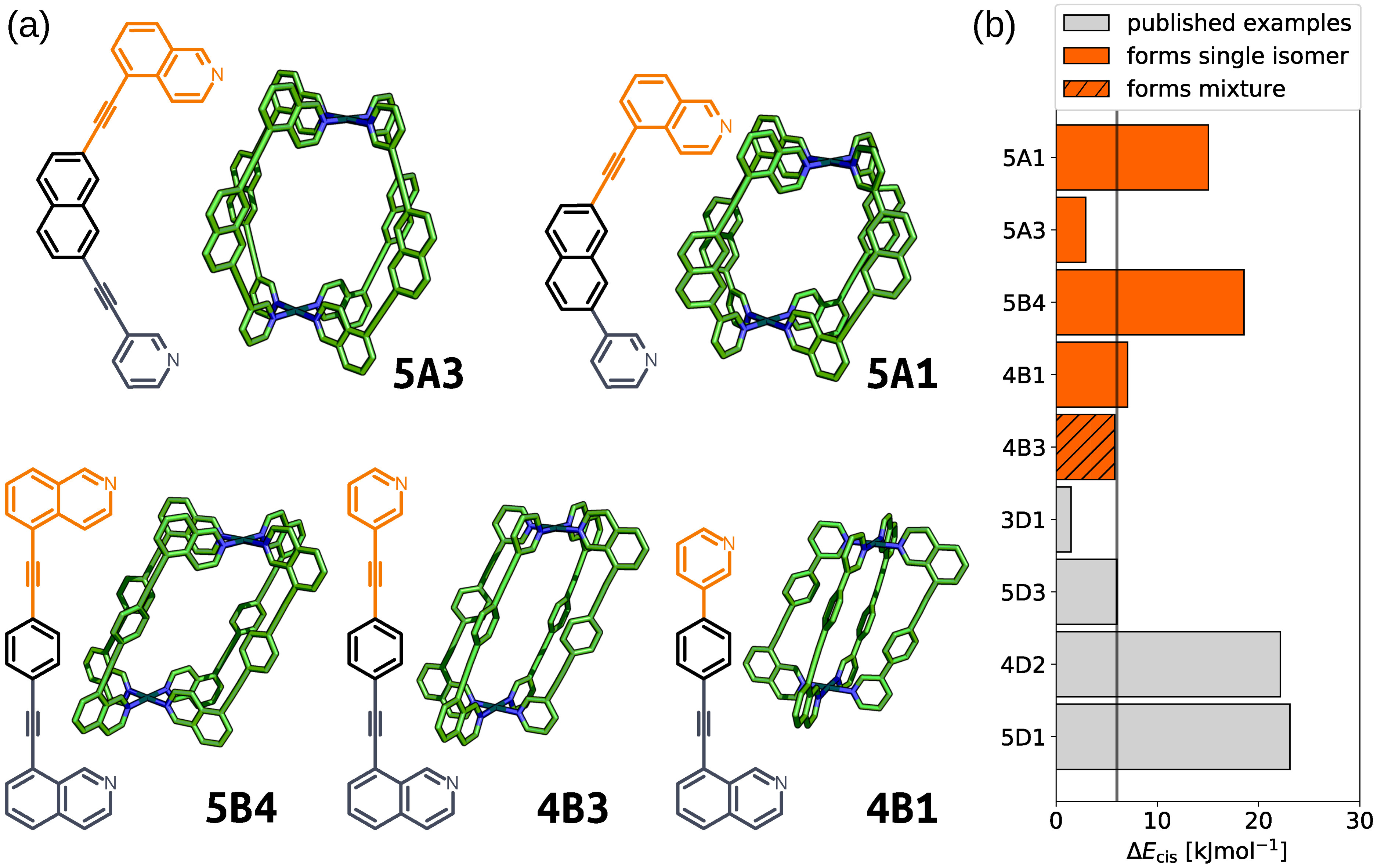

Five previously unreported ligands were selected for synthesis to investigate their self-assembly with Pd^II (Figure 6). These included four ligands from the 12 that adhered to the chosen parameter thresholds (Table 1), including with naphthalene (5A1) and para-phenylene (4B1, 4B3, 5B4) core building blocks, with combinations of pyridyl/isoquinolyl coordinating building blocks. A fifth ligand, 5A3, was also selected that displayed good structural parameters (D_max=0.0 Å; q_sqp,min=1.0) but a low energy separation (ΔE_cis=2.9 kJ mol⁻¹) to probe the fidelity of the ΔE value as a quantitative metric in predicting isomer equilibria, given the necessary simplicity of the workflow's modelling parameters. The ligands were prepared using standard synthetic techniques, and their identities confirmed by NMR spectroscopy and mass spectrometry (MS). In each instance, the ligand self-assembly with Pd^II was examined by combining the ligand and [Pd(CH₃CN)₄](BF₄)₂ in a 2:1 ratio in [D₆]DMSO (followed by standing at room or elevated temperature for a period of time, as necessary to reach equilibrium).

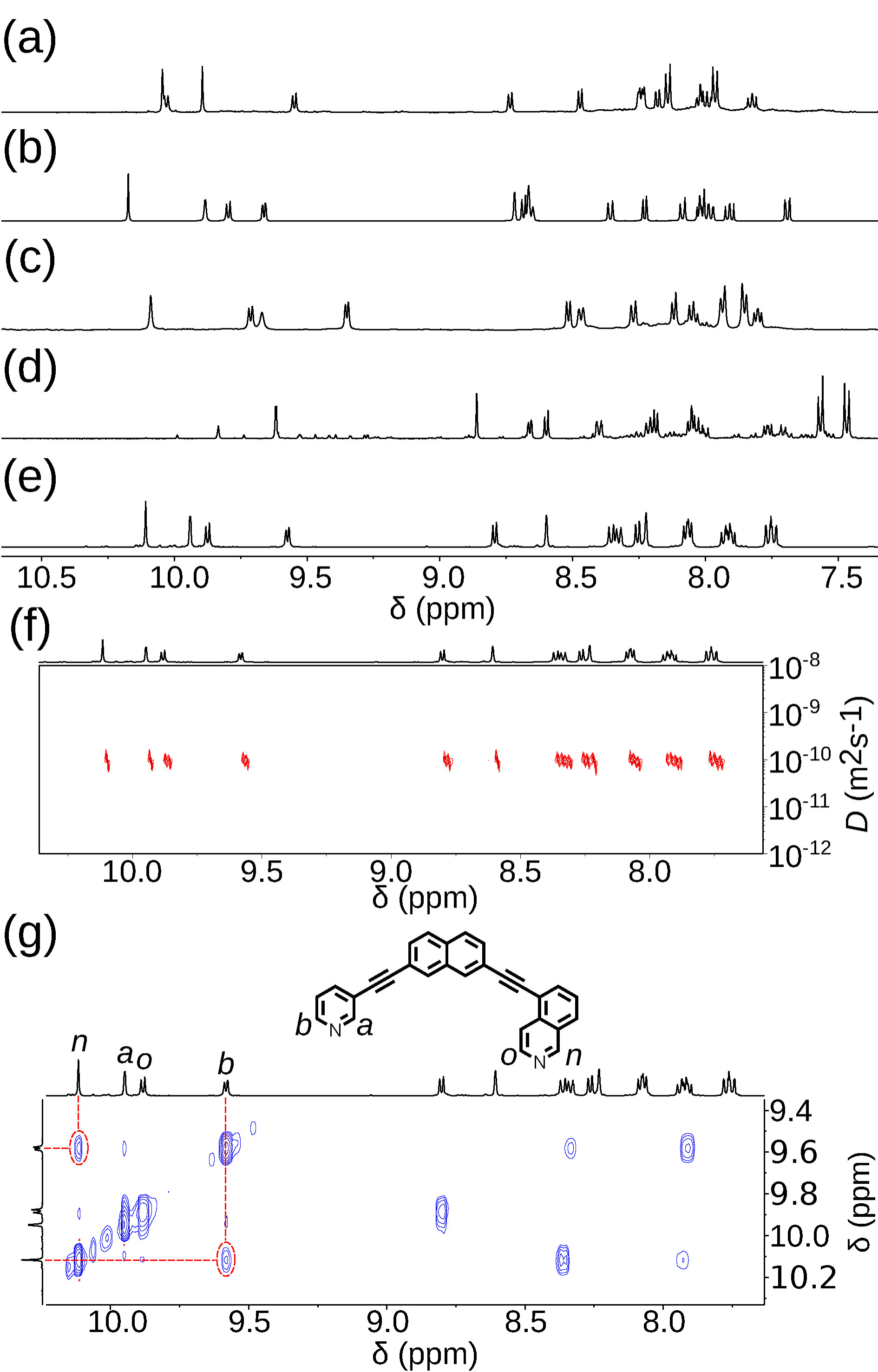

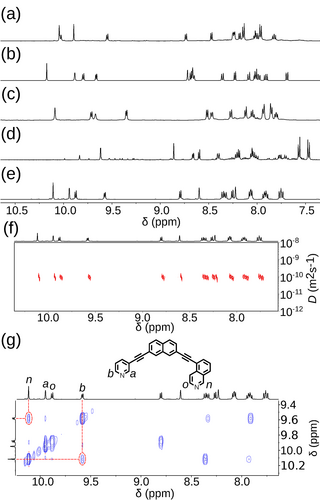

For the three ligands with calculated energy differences in excess of 6.0 kJ mol⁻¹ (5B4, 5A1, and 4B1), quantitative conversion to a single species was observed by ¹H NMR (Figure 7 a–c, respectively) and diffusion-ordered spectroscopy (DOSY). Calculated solvodynamic radii (R_s) from the latter (10.2 Å, 8.4 Å and 9.7 Å, respectively) indicated formation of assemblies of similar size to the calculated Pd₂L₄ cage structures. Additionally, isotopic patterns consistent with MOPs of these formulas were found by MS. Through-space interactions between the inequivalent coordinating moieties of the ligands were observed by NOESY which, alongside the symmetry of the ¹H NMR spectra, dictated that either the cis or trans isomers had been formed. Disappointingly, despite multiple attempts, no single crystals suitable for study by X-ray diffraction were obtained. Based on the calculated structures and extrapolating from previous work,⁴⁵ however, we are confident that the structures obtained were the anticipated cis-Pd₂L₄ cages.

In the case of 4B3 a major product formed but, even after prolonged heating, multiple species could still be observed by ¹H NMR (Figure 7 d). Although it could not be determined absolutely, using similar reasoning to that outlined above, it was concluded that the cis-Pd₂L₄ cage was the major species present in solution. It was clear that, under the conditions examined, the difference in energy between this major species and other potential products was not sufficient to drive the exclusive formation of a single assembly.

Intriguingly, despite there being less than 3.6 kJ mol⁻¹ difference in energy between the calculated structures of the cis, trans and “three-up-one-down” isomers of [Pd₂(5A3)₄]⁴⁺, a single species was found to form upon the self-assembly of 5A3 with Pd^II (Figure 7 e). Once again, DOSY (Figure 7 f; R_s=10.4 Å), MS, the symmetry of the ¹H NMR spectrum and cross-peaks observed by NOESY (Figure 7 g) led to the conclusion that either the cis or trans assembly had formed. Disappointingly, without single-crystal X-ray diffraction, whether the cis or trans isomer of the [Pd₂(5A3)₄]⁴⁺ assembly had formed could not be determined with absolute certainty with the spectroscopic data available.

From the five ligands examined experimentally, the calculated cis-Pd₂L₄ structures of three (5B4, 5A1 and 4B1) adhered strictly to our estimated parameter values necessary for quantitative self-assembly of these assemblies. In each instance, exclusive formation of a single Pd₂L₄ isomer was observed and concluded to be the anticipated cis-Pd₂L₄ by spectroscopic and computational data. For two of the ligands (4B3 and 5A3), the xTB values of ΔE fell at or below the predicted threshold. Interestingly, the ligand associated with the lower value of ΔE (5A3) successfully self-assembled into a single Pd₂L₄ cage isomer, whilst the other formed an isomeric mixture. It can be concluded that smaller values of ΔE make predictions of self-assembly outcomes more precarious. This is likely due to effects not taken into consideration within the current computational workflow, such as template effects from anions and/or solvent molecules. Such computationally expensive factors were purposefully omitted to streamline the process and increase throughput. Higher values of ΔE, however, appear to be associated with increased experimental success rates and highlight the efficacy of the workflow for indicating systems with the greatest chance of forming single isomers of the desired cage topology.

For the five synthesised ligands, we compared the xTB-calculated energy separations of their isomers with DFT single point calculations and found that the relative energy relationships were similar (Supporting Information Section S5). The relative stabilities of the cis isomers do change among these candidates. This suggests that ranking the ability of each ligand to self-sort using xTB, whilst qualitatively equivalent to DFT, is not quantitative. Additionally, the value of the relative energy threshold changes from ca. 6 kJ mol⁻¹ to ca. 10 kJ mol⁻¹ for the methods applied here based on the energy separation of 5D3. These energy differences are well within DFT error for such complex systems and GFN2-xTB⁵⁹ is not parameterised to produce energies accurately. However, this validation supports that the suggestions made by the computational rankings would be equivalent if more costly DFT methods were used.

Although five high-ranking candidates were selected for synthesis, models of many potential assemblies were generated in the computational workflow. This allows for an exploration of these calculated systems to search for those with desirable structural properties. The controlled introduction of anisotropy is of particular interest to the development of cages with advanced functionality.³³ For these Pd₂L₄ systems, a simple definition of anisotropy would be the displacement of the Pd^II centres from alignment perpendicular to the PdN₄ planes (Δ_Pd, shown inset in Figure 8 a). For Pd₂L₄ systems assembled from symmetrical ligands, Δ_Pd should be 0 Å. To this end, an analysis of Δ_Pd values compared to Pd⋅⋅⋅Pd distance (Figure 8 a) and pore size⁷³ (Figure 8 b) was undertaken; example structures with increasing anisotropy are shown in Figure 8 c.

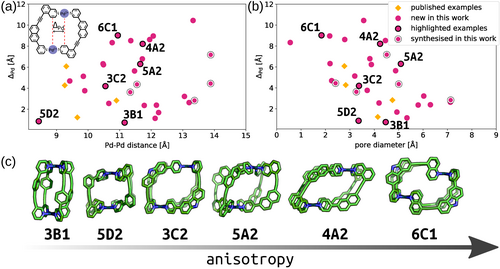

The combined family of cis-Pd₂L₄ cages previously reported⁴⁵ and realised in this work are represented within this analysis. A diverse anisotropy-property space is demonstrated with Δ_Pd values ranging from 1.2 to 7.2 Å and Pd⋅⋅⋅Pd distances between 9.3 and 11.3 Å. The successfully synthesised cages also show interesting, non-linear, relationships between their size (Pd⋅⋅⋅Pd) and calculated pore diameter (using a spherical probe), which we expect to be a crucial property to control for the application of reduced-symmetry cages. The calculated cis-Pd₂L₄ structures from ligands 4A2 and 6C1, for example, are of interest as they represent high-anisotropy assemblies with large and small pore diameters, respectively. Indeed, cis-[Pd₂(6C1)₄]⁴⁺ possesses two effectively isolated binding pockets within the cavity, in contrast to the large, single pore of cis-[Pd₂(4A2)₄]⁴⁺ (Figure 8 c).

Conclusion

The synthesis and investigation of unsymmetrical Pd₂L₄ assemblies with asymmetric pores, with potential utility in high specificity and affinity guest binding properties, is a growing field. The design of such systems to ensure high-fidelity self-assembly, however, remains non-trivial. Here we have shown that a simple and low-cost computational workflow can be used to inform decisions in experimental work, resulting in a “high hit-rate” synthesis of targeted unsymmetrical cis-Pd₂L₄ cages. The open-source and generalisable computational procedure provided efficient, and sufficiently accurate, predictions of cage structures starting from a combinatorially constructed library of 60 unsymmetrical ligands. Using a computational ranking scheme based on a small number of cheap and calculable metrics (parameterised based on limited existing experimental results), we have realised four previously unreported low-symmetry, cis-Pd₂L₄ cages, greatly expanding the existing repertoire of these systems and validating our workflow. Additionally, this work is a platform for further exploring the chemical space of unsymmetrical Pd₂L₄ assemblies. In this manner, the synthetic chemist can choose ligands and/or cages with desirable properties with confidence in the reliability of their self-assembly profile.

It was shown that a hierarchical and combinatorial computational screening approach, facilitated by open-source software, allowed the construction of large precursor and cage libraries for high-throughput screening. While focussed initially on a limited number of common building blocks, expanding the initial precursor library is trivial because the only required inputs to the automated workflow are SMILES strings. Additionally, the use of common building blocks did not limit the generation of unconventional and novel unsymmetrical cage ligands in this work. The applied computational workflow can be generalised to future problems to explore a much larger chemical space of metal-organic cages and other materials classes.

Finally, our experimental efforts led to one ligand out of five for which self-assembly with Pd^II did not produce a single species. In agreement with the metrics employed, however, a single cage isomer did appear to be predominate. This highlights that the heuristics applied do not capture all of the necessary information to ensure absolute fidelity of self-sorting, and we suggest that the role of ligand flexibility and explicit solvent/counter-ion templation could be significant. However, given the simplicity and high-throughput nature of this approach, it is remarkably effective for informing experimental decisions. As experimental data in this field is still limited, additional information obtained from this and future studies will help recognise metrics of importance to incorporate into the workflow, leading to a refinement of the process. Ultimately this will lead to improved certainty in future synthetic decisions using a joint computational and experimental discovery workflow. All code used in this work is available at https://github.com/andrewtarzia/unsymm match. All structure data and ligand ranking is available at https://github.com/andrewtarzia/citable data/tree/master/tarzia lewis 2021.
