Recent theoretical and experimental attempts have been successful in finding magnetic Weyl semimetal phases, which show nodal-point structure in the electronic bands as well as magnetic orders. Beyond uniform ferromagnetic or antiferromagnetic orders, nonuniform magnetic textures, such as domain walls and skyrmions, enrich the properties of the Weyl electrons even more in such materials. Here, a topical review on interplay between Weyl electrons and magnetic textures in those magnetic Weyl semimetals is given. The basics of magnetic textures in nontopological magnetic metals are reviewed first, and then the effect of magnetic textures in Weyl semimetals is discussed, regarding the recent theoretical and experimental progress therein. The idea of the fictitious “axial gauge fields” is pointed out, which effectively describes the effect of magnetic textures on the Weyl electrons and can well account for the properties of the electrons localized around magnetic domain walls.

1 Introduction

Magnetism has always been a fundamental concept in materials science. Along with the development of quantum mechanics, we have understood the behavior of spins contributing to magnetism, and have succeeded in designing various magnetic materials that exhibit exotic features useful for applications.1 Further technological developments have enabled us to manipulate spins microscopically, called “spintronics”,2, 3 which may possibly help us design highly efficient nanoscale devices that operate at high speed, with low energy consumption, etc. The discovery of the giant magnetoresistance (GMR) effect and its aplication to magnetic heads in hard disks are perhaps the most established and successful achievements in spintronics.4, 5 As well as writing and readout of magnetization in magnetic nanostructures, detection and manipulation of nanoscale spin textures in magnetic materials have been intensely studied, aiming to make use of those tiny objects as carriers of information in future devices.6, 7 Various magnetic materials, including both metals and insulators, have been synthesized and investigated, to find peculiar features of materials that may be useful for spintronics.

Recent studies have struggled to realize magnetism in topological materials, namely the materials whose characteristic electronic structures are protected by spatial and internal symmetries of the system and thus classified by topology.8, 9 The most famous class of topological electronic systems is perhaps topological insulator, which shows gapless states on the surface and is characterized by $Z_{2}$ topological invariants defined with the bulk electrons.10-12 The surface electrons of topological insulators show striking features, namely the linear (Dirac) dispersion robust under disorder, strong locking between electron momentum and spin degrees of freedom, etc., which have been attracting interest toward their application as well.13 By combining these surface Dirac electrons with magnetism, using magnetic heterostructures or magnetic dopants in experiments,14 various new phenomena were proposed and successfully observed: the quantum anomalous Hall effect,15-18 universal magneto-optical response,19, 20 spin–charge conversion,21, 22 current-induced control of magnetization (spin-transfer torque),23, 24 etc.

While topological insulators exhibit gapless states on the surface, recent studies have discovered the classes of materials showing topologically protected gapless states in the bulk, which are termed “Dirac” and “Weyl semimetals”.25-27 Dirac/Weyl semimetals, distinguished by degeneracy of the gapless states, are characterized by linearly dispersed bands (Dirac/Weyl cones) around certain band-touching points in momentum space. These band-touching points, namely the Dirac or Weyl points, serve as topological objects with monopole charges in momentum space,28 which give rise to the geometrical phase (Berry phase) of the electrons and thus contribute to the anomalous transport properties, such as the anomalous Hall effect or the spin Hall effect.29-32

Various unusual phenomena, such as the negative magnetoresistance due to the chiral anomaly,33-37 quantum oscillations related to the surface-involved Weyl orbits induced by a magnetic field,38-42 nonlinear optical responses,43-49 have been proposed and observed in Weyl semimetals. Moreover, Weyl semimetals with their Weyl cones tilted to the Fermi surface, namely type-II Weyl semimetals, are also of great interest.50 Due to their unconventional Fermi surface structure, modification of magnetic quantum oscillations,51 superconductivity,52-60 optical activity,61-64 etc., have been expected and observed in type-II Weyl semimetals.

Weyl semimetals with broken inversion symmetry have been experimentally realized in TaAs,65-68 NbAs,69 TaP,70 etc. On the other hand, the Weyl semimetal phase without time-reversal symmetry due to magnetism has been theoretically proposed from the early days.71, 72 Over the last few years, several ferromagnetic and antiferromagnetic materials hosting Weyl electrons have been numerically demonstrated and experimentally verified.73-77 The combination of spin–orbit coupling and magnetism is essential to retain the band crossing at each Weyl point, from which we are expecting strong interplay between the magnetism and the electronic properties around the Weyl points in those “magnetic Weyl semimetals.”

Regarding the above interests, this article reviews recently developing researches on magnetic Weyl semimetals, especially focusing on the interplay between nonuniform magnetic textures and behavior of Weyl electrons. As seen in ordinary magnetic materials, magnetic textures, namely spatial or temporal modulation of the (anti)ferromagnetic orders, enrich the electronic properties in comparison with those under uniform and static orders. In magnetic Weyl semimetals, such effects can be efficiently treated with the help of the idea of fictitious “axial electromagnetic fields”,78 which is the main focus of this review. The idea of the axial electromagnetic fields, or gauge fields, was first introduced to describe physics of elementary particles,79 and is now frequently employed for Dirac and Weyl quasiparticles in condensed matter to describe effects of various types of spatial and temporal modulations in the systems.80

This article is organized as follows. In Section 2, I review common topics about magnetic textures in conventional magnetic materials, and see how they alter the electron transport behavior, for later comparison with the case in Weyl semimetals. In Section 3, I review current research status about the axial electromagnetic fields in Weyl semimetals by starting with a minimal model Hamiltonian, and list up their effects on the structure and transport properties of Weyl electrons. In Section 4, I focus on the properties of magnetic domain walls in magnetic Weyl semimetals, as typical magnetic textures possibly seen in experiments. In Section 5, I summarize recent theoretical and experimental achievements toward realization of magnetic Weyl semimetal phase, and discuss how the axial electromagnetic field picture can be applied in the proposed systems. Finally, I conclude this article with some future prospects about interplay between magnetism and topological electron systems in Section 6.

2 Magnetic Textures in Normal Metals: Spin Gauge Fields

In this section, I review general theories accounting for the interplay between magnetic textures and electron dynamics in normal magnetic materials, which shall be compared with the treatment in Weyl semimetals for our better understanding. Topological magnetic textures are characterized by topological invariants defined in real space, which cannot be created or unwound unless they are perturbed by any topological defects. Thanks to this topological robustness, these magnetic textures can be macroscopically described as isolated objects; in the context of spintronics, a lot of attempts have been made to efficiently manipulate magnetic textures, in order to make use of them as carriers of information in future devices such as magnetic racetrack memories6, 81 and logic gates.82

Magnetic domain walls are perhaps the most commonly seen magnetic textures in materials, since domain structure is necessary to reduce magnetostatic energy from stray field. Domain wall dynamics has been widely observed in magnetic materials, which has given us good understanding of the spin torques that can be present in each system.83, 84 Magnetic skyrmions, namely point-like structures characterized by swirling spin textures inside, also play an important role in the studies on magnetic materials. While skyrmions usually form lattice structure, called skyrmion crystal, at ground state, detection and manipulation of individual skyrmions have been successfully demonstrated in recent experiments.85-87

For electric manipulation and detection of such magnetic textures, we need to understand the interplay between electron transport and magnetic textures. Electron transport through metallic magnets is affected by magnetic textures via the adiabatic phase (Berry phase) accumulated on the electron wave function, since the electron spin gets eventually modulated by the localized spins in the magnetic textures. This Berry phase effect can be encoded into the fictitious “spin electromagnetic fields” for the electrons, which act on the majority and minority spin states of the electrons under spin splitting by the exchange interaction.88, 89 Topological magnetic textures and their dynamics can host spin electromagnetic fields, which alter the electron transport through the spin textures, in a similar manner as with the ordinary electromagnetic fields. Here we briefly review the idea of spin electromagnetic fields and see some typical phenomena that are well described by this idea. (See refs. [83, 90, 91] for detailed reviews on spin electromagnetic fields.)

Let us start with the minimal model for conduction electrons under magnetic textures.

H = \frac{p^{2}}{2 m} + J n (r, t) \cdot σ

(1)

where m is the effective mass of the electron and

p = - i \nabla

is the momentum operator. The second term represents the exchange interaction between the electron spin, denoted by Pauli matrices σ, and the local magnetic moment in the magnetic texture, with its direction given by the unit vector

n = (\sin θ \cos ϕ, \sin θ \sin ϕ, \cos θ)

, where

J (> 0)

is the exchange coupling energy. The key idea to obtain the spin electromagnetic fields is to rotate the magnetization n to a fixed quantization axis, namely z-axis, which is achieved by the SU(2) unitary transformation with the matrix

\begin{matrix} U (r, t) = e^{i \frac{θ}{2} σ_{y}} e^{i \frac{ϕ}{2} σ_{z}} \end{matrix}

(2)

By the unitary transformation

\begin{matrix} H^{'} = U^{†} H U - i U^{†} \partial_{t} U \end{matrix}

(3)

the transformed Hamiltonian

H^{'}

takes the form

\begin{matrix} H^{'} = \frac{{(p + e A)}^{2}}{2 m} + J σ_{z} - e A_{0} \end{matrix}

(4)

where the SU(2) gauge fields

(A, A_{0})

are given by

\begin{matrix} A & = - \frac{i}{e} U^{†} \nabla U = - \frac{1}{2 e} [(\cos θ σ_{z} - \sin θ σ_{x}) \nabla ϕ + σ_{y} \nabla θ] \end{matrix}

(5)

\begin{matrix} A_{0} & = \frac{i}{e} U^{†} \partial_{t} U = \frac{1}{2 e} [(\cos θ σ_{z} - \sin θ σ_{x}) \dot{ϕ} + σ_{y} \dot{θ}] \end{matrix}

(6)

In general, these gauge fields are in 2 × 2 matrix structure. If the spin splitting J is larger than any other energy scales so that the interband transition can be neglected, their diagonal components, namely the projection onto U(1) subspace, dominantly affect the electron transport. Focusing on the majority spin state, which correspond to the lower component of the electron wave function, the projection of

(A, A_{0})

onto the majority spin state reads

\begin{matrix} \tilde{A} = \frac{1}{2 e} \cos θ \nabla ϕ, {\tilde{A}}_{0} = - \frac{1}{2 e} \cos θ \end{matrix}

(7)

These gauge fields yield fictitious electromagnetic fields

\begin{matrix} \tilde{E} & = - \nabla {\tilde{A}}_{0} - \partial_{t} \tilde{A} = \frac{1}{2 e} \sin θ (\dot{θ} \nabla ϕ - \dot{ϕ} \nabla θ) \end{matrix}

(8)

\begin{matrix} \tilde{B} & = \nabla \times \tilde{A} = - \frac{1}{2 e} \sin θ (\nabla θ) \times (\nabla ϕ) \end{matrix}

(9)

which read in terms of the local magnetization vector n,

\begin{matrix} {\tilde{E}}_{i} = \frac{1}{2 e} n \cdot (\dot{n} \times \partial_{i} n), {\tilde{B}}_{i} = - \frac{1}{4 e} ε_{i j k} n \cdot (\partial_{j} n \times \partial_{k} n) \end{matrix}

(10)

As long as the electron remain on the majority spin state, which is called the adiabatic limit, these spin electromagnetic fields act on the majority spin electrons like the ordinary U(1) electromagnetic fields. Once we incorporate the effect of interband transitions, we need to consider the nonadiabatic components on the off-diagonal positions of the matrices, for which I will not go into detail in this article.

From Equation 9, we can see that the spin magnetic field $\tilde{B}$ is related to the solid angle spanned by the spatial modulation of the magnetization vector n. A typical magnetic texture that yields such a spin magnetic field is a skyrmion,85 since $\nabla θ$ is in the radial direction and $\nabla ϕ$ is in the azimuthal direction in a rotationally symmetric skyrmion. The spin magnetic field attached to the skyrmions gives rise to the unconventional Hall transport of the conduction electrons, which cannot be described as the regular Hall effect related to the applied magnetic field or the anomalous Hall effect related to the net magnetization of the system.92, 93 This skyrmion-induced Hall effect, called the topological Hall effect, was successfully measured in some magnetic materials (e.g., MnSi,94, 95 MnGe96) as a good evidence for the skyrmion crystal phase, which was originally termed the A-phase.

The spin electric field $\tilde{E}$ is induced by dynamics of a magnetic texture. This field exerts a force on the electron, which is referred to as the spin motive force, and drives a conduction current attached to the magnetic texture.97-100 The spin motive force was experimentally observed as a current pulse induced by motion of domain walls in magnetic nanowires,101, 102 and also as a dc voltage induced by ferromagnetic resonance in a comb-patterned ferromagnetic film.103

The form of the spin electromagnetic fields shown above applies only to the case where the electron system in the absence of the exchange interaction is spin-SU(2) symmetric. In the presence of spin–orbit coupling for the electrons, the spin electromagnetic fields gets modified from the above form; under Rashba spin–orbit coupling, for example, the spin electromagnetic fields acquire additional terms proportional to the Rashba coupling constant.104-106 The Weyl dispersion can be viewed as the limit of extremely strong spin–orbit coupling around the band crossing points, which implies that the effect of spin textures on the Weyl electrons should be distinct from that in normal metals, as shall be reviewed in the following sections.

3 Weyl Semimetal and Magnetic Textures

Now we shall see how the interplay between electron transport and magnetic textures gets altered in magnetic Weyl semimetals. Due to strong spin–momentum locking around the Weyl points, the spin gauge field picture introduced in the previous section is no longer applicable to the Weyl electrons. Nevertheless, the effect of magnetic textures can still be mapped to fictitious electromagnetic fields for the Weyl electrons, which are categorized as the axial electromagnetic fields, coupling to the pair of valleys with the opposite signs to each other.78, 80 This picture is available since the location of the Weyl points depends on the magnetization in magnetic Weyl semimetal, which is the consequence of strong spin–momentum locking around the Weyl points. As a result, spatial and temporal modulations of the magnetization lead to the anomalous responses in the electronic structure and transport,107 which are distinct from those expected in normal metals.

In this section, I review the effect of magnetic textures on the electrons in magnetic Weyl semimetals based on the idea of the axial magnetic fields. In the first subsection, I review the general characteristics of Weyl semimetals with broken time-reversal symmetry, starting with the toy model. Although Weyl semimetals are intensely studied and known to show various exotic features, here I mainly explain the fundamental features of Weyl semimetals that are necessary for the discussion below on the effect of magnetic textures. Then I introduce spatial and temporal inhomogeneity in the second subsection, to see how the fictitious axial electromagnetic fields are defined associated with magnetic textures. With the idea of the axial electromagnetic fields, I summarize in the third subsection how magnetic textures modulate the electronic structure and transport from macroscopic point of view. Under the dynamics of magnetic texture, in particular, we can see pumping of electric charge attached to the magnetic texture, which is reviewed in the fourth subsection. Finally, in the last subsection, I mention the inverse effect, namely the effect of electron distribution and transport on the magnetic texture dynamics via spin torques, which can also be described by using the idea of the axial electromagnetic fields.

3.1 Weyl Semimetal with Broken Time-Reversal Symmetry

The essence of Weyl semimetal is the linear band touching at certain points, namely Weyl points, in momentum space. In contrast to band-touching points (Dirac points) in Dirac semimetals, each of which shows fourfold degeneracy due to the protection by time-reversal and inversion symmetries, each Weyl point in Weyl semimetals has twofold degeneracy, since either time reversal or inversion symmetry is broken.72 Each Weyl point behaves as a source or sink of Berry curvature in momentum space, which is defined by $Ω (k) = i ⟨ \nabla_{k} u (k) | \times | \nabla_{k} u (k) ⟩$ with the Bloch eigenstate $| u (k) ⟩$ , and thus a topological charge +1 or −1 is associated with each Weyl point.28, 108 The net topological charge in momentum space vanishes, that is, the numbers of sources and sinks cancel each other over the whole Brillouin zone, and hence Weyl points with topological charge + and − arise always in pair(s). This restriction is known as Nielsen–Ninomiya's theorem,109, 110 which has originally been employed to construct lattice models of chiral fermions for numerical simulations of quantum chromodynamics (QCD).111

In a Weyl semimetal with inversion symmetry preserved but time-reversal symmetry broken,71, 72 inversion symmetry demands that Weyl points at ±k₀ in momentum space should be paired (see Figure 1). Assuming cubic symmetry, the band dispersion in the vicinity of each Weyl node

η k_{0} (η = \pm)

is described by the minimal Hamiltonian

\begin{matrix} H_{η} (k) = η v_{F} σ \cdot (k - η k_{0}) \end{matrix}

(11)

where the Pauli matrices σ denote the electron spin and v_F is the Fermi velocity around the Weyl points.71 (It should be noted that cubic symmetry is not necessarily present in general, which implies that σ may consist not only of spin degrees of freedom but of other degrees of freedom, such as orbital, sublattice, as well.) Thus the Weyl-point separation 2k₀ characterizes the degree of time-reversal symmetry breaking in the system, arising from a magnetization, an external magnetic field, etc. If k₀ = 0, the Hamiltonian reduces to that of Dirac semimetal with a Dirac point degenerate at k = 0.

Details are in the caption following the image — **Figure 1**
Open in figure viewer PowerPoint

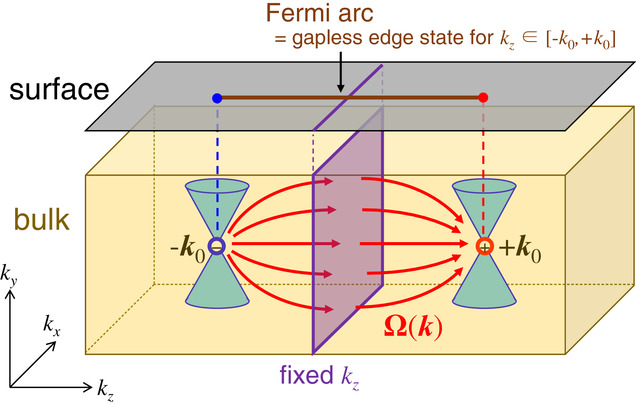

Schematic picture of the momentum–space structure of a Weyl semimetal. The small circles denote the Weyl points, with $+ / -$ inside the circles denoting the valley index η. Gapless “Fermi arc” modes emerge on the surface Brillouin zone, which is the projection of bulk Brillouin zone onto two dimensions. See the main text for details.

The electrons residing around the Weyl point at ηk₀, which we call “valley η” for short, exhibit spin–momentum locking feature. The electron spin s_{η, k} and the momentum

δ k \equiv k - η k_{0}

are aligned either parallel or antiparallel, depending on the valley index η. In other words, η indicates the helicity (chirality) of the Weyl fermion

\begin{matrix} \frac{s_{η, k} \cdot δ k}{| s_{η, k} | | δ k |} = η \end{matrix}

(12)

which distinguishes right-handed

(η = +)

and left-handed

(η = -)

modes. The velocity operator in the valley η is given by

\begin{matrix} v_{η} = \frac{\partial H_{η} (k)}{\partial k} = η v_{F} σ \end{matrix}

(13)

whose expectation value for the Bloch state at k becomes proportional to the spin s_{η, k}.

The Weyl point η possesses a topological charge

- η

, with the Berry curvature

\begin{matrix} Ω_{η} (k) = - η \frac{δ k}{{2 | δ k |}^{3}} \end{matrix}

(14)

for the electron band (with positive energy). This Berry curvature distribution leads to the anomalous Hall effect due to the breaking of time-reversal symmetry.29-32 Slicing the Brillouin zone by a plane between the two Weyl points, the first Chern number on this momentum plane, namely the total Berry flux piercing this plane, becomes finite, which leads to the anomalous Hall effect in this system. For instance, if the Weyl points are located at

η k_{0} = (0, 0, \pm k_{0})

k_{z}

-axis, the Chern number on the plane at fixed

k_{z} \in [- k_{0}, k_{0}]

becomes unity, as shown by the purple plane in Figure 1, leading to the quantized anomalous Hall conductivity

σ^{A (2 D)} (k_{z}) = e^{2} / 2 π

on this plane.112 Therefore, summing over the whole Brillouin zone, the anomalous Hall conductivity in

x y

-plane is given by

\begin{matrix} σ^{A} = \int \frac{d k_{z}}{2 π} σ^{A (2 D)} (k_{z}) = \frac{e^{2}}{4 π^{2}} 2 k_{0} \end{matrix}

(15)

which is directly related to the Weyl-point separation 2k₀.

The anomalous Hall effect in the bulk is also related with the gapless “Fermi arc” states on the surface.113, 114 Since the plane at fixed $k_{z} \in [- k_{0}, k_{0}]$ between the two Weyl points host Chern number 1, as shown above, there arises a gapless edge mode unidirectionally propagating along the 1D edge of this plane. The emergence of such a gapless edge state is common in 2D quantum anomalous Hall insulator (Chern insulator) states, such as the gapped Dirac surface state of a magnetically doped 3D topological insulator.15-18, 115 Therefore, on the surface of a Weyl semimetal, the gapless states emerge for $- k_{0} < k_{z} < k_{0}$ , connecting the locations of the two Weyl points projected onto the surface. We can see from this discussion that, in a Weyl semimetal with broken time-reversal symmetry, the emergence of the gapless Fermi arc state is the surface (boundary) counterpart of the anomalous Hall effect in the bulk, which shall be revisited in Section 4 to see the effect of magnetic domain walls. Fermi arcs appear in time-reversal-symmetric Weyl semimetals as well (although they do not show the anomalous Hall effect), which have been clearly seen in angle-resolved photoemission spectroscopy (ARPES) measurements.65-68 In Dirac semimetals, each Dirac point is doubly degenerate and thus serves as a source of two branches of Fermi arcs, which renders the surface state into closed loops in momentum space, in contrast to open Fermi arcs in Weyl semimetals 116, 117.

3.2 Magnetization and Axial Electromagnetic Fields

In Weyl semimetals with broken time-reversal symmetry, the separation of the Weyl points in momentum space characterizes the effect of the breaking of time-reversal symmetry, as seen in the previous subsection. If the breaking of time-reversal symmetry is due to magnetization, modulation in the magnetization yields shift of the Weyl points in momentum space, which can be regarded as an effect of a fictitious vector potential. Based on this idea, we can consider the effect of magnetic textures and their dynamics in terms of fictitious electromagnetic fields for the Weyl electrons.

Let us start from the minimal Hamiltonian Equation 11. If the background magnetization is coupled to the electron spin σ by the exchange interaction J, its modulation δM gives a perturbation term

J δ M \cdot σ

, which can be incorporated in the Weyl Hamiltonian as

\begin{matrix} H_{η} (k) = η v_{F} σ \cdot (k - η k_{0} - η e A_{5}) \end{matrix}

(16)

Here A₅ is defined by

\begin{matrix} A_{5} = - \frac{J}{v_{F} e} δ M \end{matrix}

(17)

which couples to the Weyl electrons in a similar manner to the gauge field, whereas the sign of its coupling depends on the valley index η.78 In the context of relativistic quantum field theory, a gauge field coupled to the two chirality channels (right/left handed) of Dirac fermions with the signs opposite to each other is termed the axial gauge field, or the chiral gauge field, which transforms as an axial vector under the parity operation, in contrast to the ordinary gauge field as a polar vector.79 Since the structure of spin–momentum locking is material dependent, the correspondence between magnetization and the axial gauge field should be modified in some Weyl materials observed in experiments, which shall be discussed in Section 5.

Just like the ordinary gauge field, what affects the electronic structure and transport is not the value of A₅ itself but the spatial and temporal structures of A₅, corresponding to the electromagnetic fields. Let us introduce spatial and temporal structures in δM, yielding the axial gauge potential

\begin{matrix} A_{5} (r, t) = - \frac{J}{v_{F} e} δ M (r, t) \end{matrix}

(18)

Here the spatial and temporal variations in δM should be moderate enough to rely on the axial gauge field picture, since a short-range or high-frequency fluctuation in δM may lead to hybridization of the two valleys (Weyl nodes). Under this condition, we can define the axial electric field

\begin{matrix} E_{5} (r, t) = - {\dot{A}}_{5} (r, t) = \frac{J}{v_{F} e} \dot{M} (r, t) \end{matrix}

(19)

and the axial magnetic field

\begin{matrix} B_{5} (r, t) = \nabla \times A_{5} (r, t) = - \frac{J}{v_{F} e} \nabla \times M (r, t) \end{matrix}

(20)

which couple to the two valleys

η = \pm

with the opposite signs η.107 The axial electric field comes from dynamics of the magnetization, while the axial magnetic field resides at a curled magnetic texture.78 The simplest example of a magnetic texture that gives rise to the axial magnetic field is a

180^{c i r c}

domain wall, as a domain wall always accompanies flip of the magnetization M in real space. In the presence of these axial electromagnetic fields, as in the case of normal electromagnetic fields, the exchange term cannot be absorbed by the local U(1) gauge transformation, and hence they modulate the electron transport at low energy.

The pseudo-electromagnetic field picture of magnetic textures is also available for the 2D Dirac electrons on surfaces of topological insulators, as they show spin–momentum locking around the Dirac point in the surface Brillouin zone.118 With this picture, electric charging of magnetic textures, arising from the fictitious magnetic flux corresponding to the magnetic texture, was proposed on topological insulator surfaces.118, 119 It should be noted that there are two major differences. Since the surface of topological insulator show only a single Dirac cone, the pseudo-electromagnetic fields from magnetic textures couple to the surface Dirac electrons just like the ordinary electromagnetic fields. Moreover, only the in-plane two components of magnetization contributes to the pseudo-electromagnetic fields for the surface Dirac electrons, since the out-of-plane component does not shift but gaps out the surface Dirac point. These properties are in clear contrast to those in the axial electromagnetic field picture, which is defined for the pair of Weyl points in three dimensions.

Although the idea of the axial electromagnetic fields introduced here appears similar to the spin electromagnetic fields mentioned in the previous section, they are different in some aspects. Conceptually, while the spin electromagnetic fields are obtained by projecting the exchange coupling term to the magnetic textures onto the majority/minority spin states, the axial electromagnetic fields for the Weyl electrons are derived by projecting them onto the fully spin–momentum-locked states around the Weyl nodes. The idea of the axial electromagnetic fields is applicable to the limit of a strong spin–momentum locking and a weak spin splitting, which is opposite to the situation for the spin electromagnetic fields. From the phenomenological point of view, the species of magnetic textures that lead to the axial electromagnetic fields in Weyl semimetals is much broader than that for the spin electromagnetic fields in normal metals. For instance, the spin magnetic field $\tilde{B}$ given by Equation 10 in normal magnetic metals requires at least 2D magnetic textures, such as skyrmions (see Equation 9). On the other hand, the axial magnetic field B₅ can be generated even from a 1D spin texture, such as a domain wall (the case for domain walls shall be discussed in detail in Section 4). Moreover, dynamics of even a uniform magnetization can lead to the axial electric field E₅ in a Weyl semimetal, which is in clear contrast with the spin electric field $\tilde{E}$ , namely the spin motive force, requiring dynamics of a spin texture. Such a difference arises because the axial gauge potential A₅ is tied directly to the local magnetization M, whereas the spin gauge potential comes from the spin connection, which corresponds to the relative angle between two neighboring spins. Therefore, the effect of magnetic textures on the electron transport in Weyl semimetals should be qualitatively different from that in normal magnetic metals, as long as the electrons are fully spin–momentum locked on the Fermi surface.

While the idea of the axial electromagnetic fields is introduced to describe the effect of magnetic textures here, the axial electromagnetic fields can also be reproduced by lattice strain in Dirac and Weyl semimetals.80, 120-122 Since a lattice site displacement leads to the modulation of hopping amplitudes and shifts the Dirac/Weyl points, a lattice strain, namely a spatially nonuniform lattice displacement, can be regarded as the axial electromagnetic fields in the vicinity of the Dirac/Weyl points. The effect of the strain-induced axial magnetic field has been intensely studied over recent few years from the theoretical point of view: Landau quantization,121 modulation of the Fermi arc structure,123 and quantum oscillations due to the Weyl orbits connecting bulk and surface,124, 125 has been predicted under the strain-induced axial magnetic field. It is also proposed that spatial modulation in the chemical composition of antiperovskite Dirac materials can replicate the pseudomagnetic field for the Dirac electrons, since the locations of the Dirac points in those materials are related to the ratio of the chemical composition.126 The discussions below about the effect of axial gauge fields can be applied to those systems in almost the similar manner, while this article will not go into details of them.

3.3 Charge and Current Responses to Axial Electromagnetic Fields

The axial electromagnetic fields couple to the Weyl electrons in the same manner with the realistic electromagnetic fields, as long as the Weyl nodes can well be treated separately. Therefore, provided that the length scale of the magnetic texture and the time scale of the magnetization dynamics are much longer than those corresponding to the Weyl-node separation k₀, one may consider the behavior of the electrons within the individual valley

η = \pm

, under the net electromagnetic fields

\begin{matrix} E_{η} = E + η E_{5}, B_{η} = B + η B_{5} \end{matrix}

(21)

With these electromagnetic fields, one can estimate the charge and current responses phenomenologically for each Weyl node.78, 80, 107 Here I focus on the responses to the fields up to their first order

O (E_{η}, B_{η})

, and assume that the Fermi level μ of the electrons is well defined in equilibrium around the Weyl nodes. The currents induced by (E, B) and (E₅, B₅) are summarized in Figure 2 and Table 1.

Table 1. Summary of the current responses generated by the normal electromagnetic fields (EMFs) (E, B) and the axial EMFs (E₅, B₅). For the cell “Not applicable,” see anomalous Hall effect in Section 3.3.2

Classification	Normal EMFs	Axial EMFs
Chiral magnetic effect	$j_{5}^{(C)} \propto B$	j^(C)∝B₅
Drift effect	j^(D)∝E	$j_{5}^{(D)} \propto E_{5}$
Anomalous Hall effect	$j^{(A)} \propto {\hat{k}}_{0} \times E$	Not applicable
Regular Hall effect	$j^{(H)} \propto \hat{B} \times E$	$j^{(H)} \propto {\hat{B}}_{5} \times E_{5}$

3.3.1 Equilibrium Response

Let us start from the static system, without any driving by electric field E or magnetization dynamics characterized by E₅. In the presence of a magnetic field B_η, including the axial field B₅ from magnetic textures, it induces the Landau quantization with the cyclotron frequency

ω_{c} = v_{F} \sqrt{2 e | B_{η} |}

127, just like the quantum Hall effect in 2D Dirac electron systems, such as graphene.128, 129 In particular, the zeroth Landau level is linearly dispersed along the direction of

η B_{η}

for each valley

η = \pm

, with the velocity v_F. The density of states of this zeroth Landau state (per single valley) is given by

ν_{η} = e | B_{η} | / 4 π^{2} v_{F}

, which is independent of the Fermi energy μ due to its 1D unidirectional dispersion. Therefore, if the Fermi level μ lies below the first Landau level

ε_{1} (k_{z} = 0) = ω_{c}

so that it may cross only the zeroth Landau levels, the electric charge is accumulated around the magnetic flux, with the charge density

\begin{matrix} ρ_{B} = - e (ν_{+} + ν_{-}) μ = - \frac{e^{2}}{4 π^{2}} \frac{μ}{v_{F}} (B_{+} + B_{-}) \end{matrix}

(22)

summed over the two valleys. (Note that the background charge density without the magnetic field is negligible around the charge neutrality, since the charge density of free Weyl electrons is proportional to μ³.) In particular, even in the absence of the realistic magnetic field B, the axial magnetic flux B₅(r) from a magnetic texture leads to the localized charge, with its density

\begin{matrix} ρ_{B} (r) = - \frac{e^{2}}{2 π^{2}} \frac{μ}{v_{F}} | B_{5} (r) | \end{matrix}

(23)

at the magnetic texture.121 This localized charge is explicitly derived under a 1D domain wall in terms of the Fermi arc modes localized at the boundary;130, 131 see Section 4 for details. Although the spatially localized charge in metallic regime is inevitably screened once we consider the Coulomb interaction, the screening effect is smaller than that in normal metals, since the density of states in topological semimetals becomes small around the band crossing points.132

Since the zeroth Landau level for each valley is dispersed along the direction of

η B_{η}

, the electrons in this Landau level contribute to the current

\begin{matrix} j_{η}^{(C)} = ρ_{B η} v_{F} η {\hat{B}}_{η} = - \frac{e^{2}}{4 π^{2}} μ η B_{η} \end{matrix}

(24)

for each valley η,121, 133 where a bold symbol with a “hat” denotes its unit vector (

\hat{X} \equiv X / | X |

). Therefore, the net current induced by the magnetic fields reads

\begin{matrix} j^{(C)} = - \frac{e^{2}}{4 π^{2}} μ (B_{+} - B_{-}) = - \frac{e^{2}}{2 π^{2}} μ B_{5} \end{matrix}

(25)

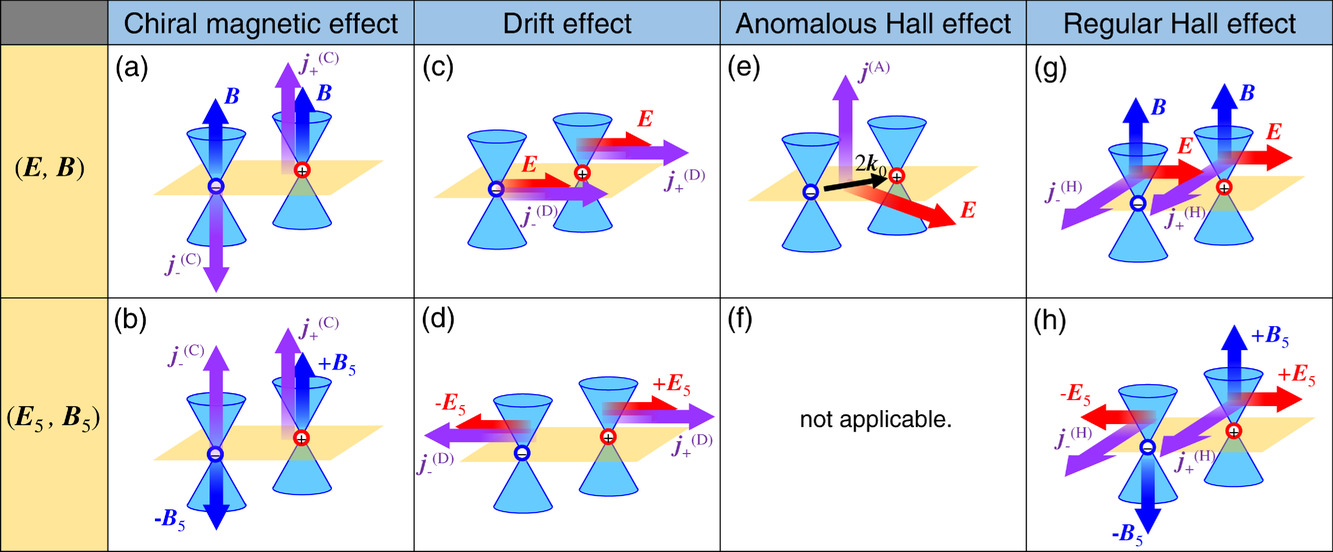

which depends only on the axial magnetic field B₅ (see Figure 2b). This effect is named the “chiral pseudomagnetic effect” or the “chiral axial magnetic effect” in the literature.107, 134, 135

The chiral pseudomagnetic effect is the axial counterpart of the chiral magnetic effect, namely the current generation by a magnetic field B in the presence of chemical potential imbalance between two valleys (left-/right-handed fermions), which has long been known in the context of chiral fermions at high energy (heavy ion collisions, neutron stars, etc.).136-140 It is shown that the chiral magnetic effect in equilibrium is absent in lattice systems, since the imbalance in the Fermi levels of two valleys within the same lattice model is not available in equilibrium.141, 142 The magnetic field B in equilibrium contributes only to the axial current (see Figure 2a): $j_{5}^{(C)} = j_{+}^{(C)} - j_{-}^{(C)} = - (e^{2} / 2 π^{2}) μ B$ .143 The chiral magnetic effect is thus sought for in inequilibrium;144-147 the negative magnetoresistance in Dirac/Weyl semimetals is a typical inequilibrium phenomenon that stems from the chiral magnetic effect.33, 34

The chiral pseudomagnetic effect due to the axial magnetic field B₅, on the other hand, can locally induce an equilibrium current. One can qualitatively understand this local equilibrium current in connection with the orbital magnetization M_orb of the electron system, by the relation $j (r) = \nabla \times M_{orb} (r)$ .133 The logic is threefold: i) The orbital magnetization M_orb of a Weyl semimetal appears proportional to the spin magnetization M. (This can be easily understood if M is uniform, as the surfaces host a circulating current carried by the Fermi arc states.) ii) If there is a spatial inhomogeneity in M(r), the orbital magnetization M_orb(r) is also inhomogeneous, leading to the local current $j (r) = \nabla \times M_{orb} (r)$ present in the bulk. iii) Since $\nabla \times M (r)$ corresponds to the axial magnetic field B₅(r), we can regard this local current j(r) as the bound current localized at the axial magnetic flux B₅(r). (This bound current was calculated explicitly under a magnetic domain wall.130) It was also numerically demonstrated on lattice models that an axial magnetic field corresponding to lattice strain leads to an equilibrium current localized at the torsion axis, although the net current over the whole system is zero.121, 148

3.3.2 Nonequilibrium Response

When the electric fields E_η are switched on, the electron distribution is driven to nonequilibrium state and it gives rise to various current responses. E_η consists of the normal electric field E and the axial electric field E₅ corresponding to the dynamics of magnetization. Up to the linear response to E_η, the current response in Weyl semimetals is classified into three contributions: i) the drift current, ii) the anomalous Hall current, and iii) the regular Hall current.107 I summarize these contributions below, first using the generalized electric field E_η, and then limiting it to the axial electric field E₅ corresponding to the magnetization dynamics in the magnetic Weyl semimetal.

i) Drift effect: This is the current response longitudinal to the applied electric field E_η, given by

\begin{matrix} j_{η}^{(D)} = σ_{η}^{D} E_{η} \end{matrix}

(26)

for each valley η (see Figure 2c). Here

σ_{η}^{D}

denotes the longitudinal conductivity for valley η, which is well defined as long as the Fermi surfaces of the two valleys are well separated in momentum space so that the intervalley scattering can be negligible. Under this condition,

σ_{η}^{D}

can be estimated semiclassically:

σ_{η}^{D} = e^{2} v_{F}^{2} D (μ) τ / 3

for spherically symmetric Weyl dispersion, where

D (μ) = μ^{2} / 2 π^{2} v_{F}^{3}

is the density of states (per single Weyl cone) and τ is the transport relaxation time.

In the absence of the realistic electric field E, the current and the axial current induced by the axial electric field E₅ are given by

\begin{matrix} j^{(D)} = (σ_{+}^{D} - σ_{-}^{D}) E_{5}, j_{5}^{(D)} = (σ_{+}^{D} + σ_{-}^{D}) E_{5} \end{matrix}

(27)

In magnetic Weyl semimetals, the two valleys have the identical structure due to its inversion symmetry. Therefore, the longitudinal conductivities for the two valleys are equal, and hence the axial electric field induces no net current j^(D) = 0 (see Figure 2d); it only drives the axial current

j_{5}^{(D)}

, which corresponds to the spin accumulation

⟨ σ ⟩

if spin and momentum are fully locked.

ii) Anomalous Hall effect: This is the current response transverse to the applied electric field. In contrast to the regular Hall effect, the anomalous Hall effect does not require any magnetic field and arises from other time-reversal symmetry breaking effect, such as magnetization.149 As is well known, the anomalous Hall effect can be classified into the extrinsic effect coming from the asymmetric scattering by impurities and the intrinsic effect due to the anomalous velocity driven by the nonzero Berry curvature in momentum space. In magnetic Weyl semimetals, as shown in Section 3.1, the intrinsic anomalous Hall effect arises from the separation of two Weyl points: the induced current is given by

\begin{matrix} j^{(A)} = σ^{A} {\hat{k}}_{0} \times E \end{matrix}

(28)

where the anomalous Hall conductivity is tied to the Weyl-point separation 2k₀ as

σ^{A} = (e^{2} / 2 π^{2}) | k_{0} |

(see Figure 2e). Since this intrinsic Hall effect comes from all the occupied states below the Fermi level, it cannot be separated to the individual valleys. Thus the “axial electric field” picture cannot be applied to see the intrinsic anomalous Hall effect contribution (the cells ‘Not applicable” in Table 1 and Figure 2f); it may depend on the modulation of band structure by the magnetic texture dynamics away from the Weyl points.

iii) Regular Hall effect: This is the current response induced by the electric field E_η in the presence of the magnetic field B_η: provided the regular Hall conductivity

σ_{η}^{H}

is defined for the valleys η separately, the current is written as (see Figure 2g)

\begin{matrix} j_{η}^{(H)} = σ_{η}^{H} {\hat{B}}_{η} \times E_{η} \end{matrix}

(29)

The Hall conductivity

σ_{η}^{H}

can be estimated in either semiclassical or quantum regime, depending on the magnetic field strength

| B_{η} |

, the Fermi energy μ, and the level broadening effect

τ^{- 1}

by impurities.

Quantum regime: If the Fermi level μ and the level broadening $τ^{- 1}$ are both below the first Landau level $ε_{1} (k_{z} = 0) = ω_{c}$ , only the zeroth Landau level contributes to the regular Hall effect. The Hall conductivity in this regime is $σ_{η}^{H (q)} = (e^{2} / 4 π^{2}) (μ / v_{F})$ , which is the 3D counterpart of the 2D quantum Hall conductivity $e^{2} / 2 π$ .127
Semiclassical regime: If the Fermi level μ is far beyond the Landau-level spacing $\sim ω_{c}$ , we can treat the Hall transport unquantized. The semiclassical Hall conductivity from the Boltzmann transport theory is given by $σ_{η}^{H (c)} = - (τ^{2} e^{3} μ / 6 π^{2}) | B_{η} |$ .

In the absence of the realistic electromagnetic fields, the axial electromagnetic fields (E₅, B₅), corresponding to the dynamics and texture of the magnetization in a magnetic Weyl semimetal, are the only source of the regular Hall effect. Since both E₅ and B₅ couple to the valley η by the sign η, the regular Hall current is induced in the same direction for the two valleys (see Figure 2h),

\begin{matrix} j_{η}^{(H)} = σ_{η}^{H} η {\hat{B}}_{5} \times η E_{5} = σ_{η}^{H} {\hat{B}}_{5} \times E_{5} \end{matrix}

(30)

In particular, if the axial magnetic field B₅ is strong enough to reach the quantum regime, the net regular Hall current for the two valleys is simply given as

\begin{matrix} j^{(H)} = (σ_{+}^{H} + σ_{-}^{H}) {\hat{B}}_{5} \times E_{5} = \frac{e^{2}}{2 π^{2}} \frac{μ}{v_{F}} {\hat{B}}_{5} \times E_{5} \end{matrix}

(31)

which is independent of the field strength

| B_{5} |

In addition to the current responses mentioned above, the Weyl fermions are subject to the chiral anomaly, namely the violation of charge conservation in the presence of electromagnetic fields. The idea of chiral anomaly was originally established in the context of relativistic field theory, to account for the anomalous decay of a pion,150, 151 and recently it has been intensely applied to Dirac and Weyl electrons in materials.152 If we naively focus on the electron dynamics around the Fermi surface, the chiral anomaly states that charge conservation within each valley (chirality)

η = \pm

is violated by the electromagnetic fields

(E_{η}, B_{η})

\begin{matrix} \partial_{t} ρ_{η} + \nabla \cdot j_{η} = - \frac{e^{3}}{4 π^{2}} E_{η} \cdot B_{η} \end{matrix}

(32)

which is called the covariant anomaly.153, 154 The covariant anomaly, however, appears to violate the conservation of net charge as

\begin{matrix} \partial_{t} ρ + \nabla \cdot j = - \frac{e^{3}}{2 π^{2}} (E \cdot B_{5} + E_{5} \cdot B) \end{matrix}

(33)

This unphysical situation is resolved by supplementing the regularization-dependent terms in the Lagrangian, namely the “Bardeen polynomials.”155, 156 This treatment yields the charge-conserving relation

\begin{matrix} \partial_{t} ρ + \nabla \cdot j = 0, \partial_{t} ρ_{5} + \nabla \cdot j_{5} = - \frac{e^{3}}{2 π^{2}} [E \cdot B + \frac{1}{3} E_{5} \cdot B_{5}] \end{matrix}

(34)

which is called the consistent anomaly. The Bardeen polynomials correspond to the current and charge carried by the occupied states away from the valleys in the context of Weyl semimetals on lattice, including the anomalous Hall current j^(A) mentioned above.123, 148 The consistent anomaly leads to the chiral charge imbalance, namely the imbalance in the numbers of right-handed and left-handed fermions, which gives rise to several observable phenomena; for instance, the negative magnetoresistance in Dirac/Weyl semimetals is described as the combined effect of the chiral charge imbalance from the anomaly and the current induction by the chiral magnetic effect.34 While the chiral anomaly is present under the axial electromagnetic fields as well, I will not go into details in the discussions below, since it does not modulate the net charge and current profiles at linear response to those fields.

3.4 Charge Pumping by Magnetic Texture Dynamics

Based on the aforementioned list of current responses to the axial electromagnetic fields, we are now ready to discuss the charge and current responses to the dynamics of magnetic textures in a Weyl semimetal. If there is a magnetic texture M(r, t) that is spatially localized and temporally modulating, we can define the axial electric field E₅ and the axial magnetic field B₅ localized at the magnetic texture (Equations 19 and 20). If the spatial and temporal modulations of the magnetic texture are moderate enough compared to the mean-free path and time of the electrons, we can consider the axial electromagnetic fields locally uniform within these scales, which enables us to use the macroscopic response picture summarized above in the vicinity of the magnetic texture. Here I focus on the local current distribution in response to the axial electromagnetic fields, and derive the dynamics of electric charge distribution accompanied by the magnetic texture dynamics.107, 157

In the absence of real electromagnetic fields (E, B), the chiral pseudomagnetic effect j^(C) and the regular Hall effect j^(H) are the only contribution to the net charge current j_ind(r, t), up to linear response to the axial electromagnetic fields (E₅, B₅). Since the chiral anomaly from E₅ · B₅ leads only to the chiral charge imbalance and does not violate the net charge conservation, we can use the charge conservation relation

\begin{matrix} \partial_{t} δ ρ (r, t) = - \nabla \cdot j_{ind} (r, t) = - \nabla \cdot [j^{(C)} (r, t) + j^{(H)} (r, t)] \end{matrix}

(35)

to estimate the charge density profile

δ ρ (r, t)

modulated (pumped) by the magnetic texture dynamics. Since the chiral pseudomagnetic effect contribution

j^{(C)} \propto B_{5} \propto \nabla \times A_{5}

is divergence free, the only contribution to the pumped charge

δ ρ

is from the regular Hall current j^(H). If the magnetic texture is well localized so that the axial magnetic field should be strong enough, only the zeroth Landau level contributes to the charge pumping; substituting j^(H) in the quantum regime (Equation 31) to the charge conservation relation Equation 35, one obtains the relation

\begin{matrix} \partial_{t} δ ρ (r, t) = \frac{e^{2}}{2 π^{2}} \frac{μ}{v_{F}} [{\hat{B}}_{5} \cdot (\nabla \times E_{5}) - E_{5} \cdot (\nabla \times {\hat{B}}_{5})] \end{matrix}

(36)

from which one can derive the time evolution of the charge distribution

δ ρ (r, t)

induced by the magnetic texture dynamics.

Assuming there is no curl in the direction of the axial magnetic field

{\hat{B}}_{5}

, the second term on the right-hand side of Equation 36 vanishes and this relation can be further simplified. While it is difficult to rewrite this condition for the magnetic texture M(r) in general, we can consider some extreme cases that satisfy this condition: if M(r) is aligned within a certain plane, which can be realized under a strong easy-plane magnetic anisotropy, B₅ points perpendicular to this plane and thus

{\hat{B}}_{5}

becomes homogeneous. In such cases, by using the general relation

\nabla \times E_{5} = - \partial_{t} B_{5}

, we obtain a further simplified relation

\begin{matrix} δ ρ (r, t) = - \frac{e^{2}}{2 π^{2}} \frac{μ}{v_{F}} | B_{5} (r, t) | + const \end{matrix}

(37)

This relation is consistent with Equation 23 obtained in equilibrium. Therefore, we can see that the localized charge

ρ_{B}

arising from the axial magnetic flux B₅ moves together with the dynamics of magnetic texture.

The charge pumping effect in magnetic Weyl semimetal appears similar to the current induction by the spin motive force in normal magnetic metals, mentioned in Section 2. Their difference can be understood by considering the work (energy transfer) on the electrons exerted by the magnetic texture. The spin motive force in normal metals act on an electron as the drift force $- e \tilde{E}$ by the spin electric field $\tilde{E}$ . Since the drift force exerts a work on the transported electron, the energy of the magnetic texture dynamics is eventually transferred to the ensemble of electrons, which is usually dissipated via the electron scattering by impurities. On the other hand, in magnetic Weyl semimetals, the driving force from the axial electromagnetic fields (E₅, B₅) is the Lorentz force $- e \dot{r} \times B_{5}$ , which is perpendicular to the path of the electron. Therefore, it does not exert a work on the electrons, and the magnetic texture dynamics does not lose its energy by this pumping effect. The energy is dissipated only via the Gilbert damping of the constituent spins in the magnetic texture, so that the magnetic texture dynamics does not significantly heat up the Weyl electrons. In this sense, this pumping effect in magnetic Weyl semimetal can be regarded “adiabatic.”107

3.5 Field-Induced Dynamics of Magnetic Textures

So far we have seen that the electron dynamics driven by magnetic texture dynamics can be understood with the idea of the axial electromagnetic fields. Similarly, driving of magnetic texture dynamics by the electrons, namely the spin-transfer torque and the spin–orbit torque, can also be formulated by using the idea of the axial electromagnetic fields.157

Generally speaking, the spin torque is induced by the electron spin accumulation

⟨ σ ⟩

. It gives an effective magnetic field

J ⟨ σ ⟩

on the magnetization vector n via the exchange interaction J, leading to the torque

T = J ⟨ σ ⟩ \times n

. In a Weyl semimetal of the toy model Equation 11, in particular, the spin accumulation is given equivalent to the axial current,

\begin{matrix} j_{5} = - e \sum_{η = \pm} η {⟨ v_{η} ⟩}_{η} = - e v_{F} \sum_{η = \pm} {⟨ σ ⟩}_{η} = - e v_{F} ⟨ σ ⟩ \end{matrix}

(38)

by using Equation 13, where

{⟨ \cdot ⟩}_{η}

denotes the expectation value within valley η. Therefore, here we need to focus on the axial current response to estimate the field-induced torques on the magnetic texture.

When an electric field E is applied to the magnetic texture, there arises a spin-transfer torque described by the regular Hall effect:157 since the magnetic texture accompanies the axial magnetic field B₅, the current driven by the regular Hall effect is an axial current

\begin{matrix} j_{5}^{(H)} = j_{+}^{(H)} - j_{-}^{(H)} = \frac{e^{2}}{2 π^{2}} \frac{μ}{v_{F}} {\hat{B}}_{5} \times E \end{matrix}

(39)

in the quantum regime. As a result, the regular Hall effect induces spin accumulation localized at the magnetic texture, leading to the switching of magnetization via the spin torque. In contrast to the conventional spin-transfer torque driven by conduction current, the spin torque noted here does not require a conduction current. Therefore, although the Weyl electrons cannot be transmitted through a sharp magnetic texture, as the valleys are shifted in momentum space in accordance with the magnetization, this spin torque is still present and drives a motion of the magnetic texture. This effect can also be regarded macroscopically as the electric driving of the localized charge

ρ_{B}

shown above attached to the magnetic texture.130, 131

In magnetic Weyl semimetals, it is also proposed that an external magnetic field B under a gate voltage induces a spin torque, which is termed charge (voltage)-induced spin torque.158, 159 This effect can be described in terms of the chiral magnetic effect: when the Fermi level is lifted by

δ μ

due to the gate voltage, the magnetic field B induces the axial current

\begin{matrix} j_{5}^{(C)} = j_{+}^{(C)} - j_{-}^{(C)} = - \frac{e^{2}}{2 π^{2}} δ μ B \end{matrix}

(40)

which is the axial current counterpart of the chiral magnetic effect (see Figure 2a). Therefore, if the gate voltage

δ μ

is applied in a limited area, the spin accumulation, corresponding to the axial current

j_{5}^{(C)}

, enables one to switch the magnetization within this area, without driving any electric current.

4 Example: Magnetic Domain Walls

Based on the general theory about magnetic texture dynamics in Weyl semimetals, let us focus on the effect of magnetic domain walls in this section, as a typical example. There have been several theoretical works on the electron dynamics and transport in the presence of magnetic domain walls in magnetic Weyl semimetals. It was seen both analytically and numerically that a magnetic domain wall in a Weyl semimetal gives rise to a large domain wall magnetoresistance, due to the mismatch of the electron helicity beyond the domain wall.160, 161

One of the peculiar features of magnetic domain walls in Weyl semimetals is the emergence of 1D zero modes localized at the domain wall.130, 131 These zero modes can be regarded as the remnant of the surface Fermi arc of Weyl semimetal. Macroscopically, this localized mode corresponds to the Landau states under the axial magnetic field from the domain wall texture. Let us here see this correspondence by using a typical 1D domain wall structure.

For a 1D magnetic domain wall, several types of internal structure are possible. If the domain wall is centered at

x = 0

and the magnetization in each region separated by the domain wall points to the direction parallel to the wall, that is,

M (x \to \infty) = \pm M_{0} e_{z}

, the internal structure of the domain wall can be formulated as

\begin{matrix} M (x) = M_{0} (sech \frac{x}{w} \cos α, sech \frac{x}{w} \sin α, \tanh \frac{x}{w}) \end{matrix}

(41)

where the length scale w corresponds to the thickness of the domain wall. The internal structure is characterized by the angle α: the Néel domain wall, in which the magnetization is twisted in a coplanar manner (within

x z

-plane), corresponds to

α = 0, π

, whereas the Bloch domain wall, in which the magnetization is twisted transverse to x-axis (within

y z

-plane), corresponds to

α = \pm π / 2

. In realistic magnetic materials, the internal structure of the domain wall is governed by the magnetic anisotropy and the Dzyaloshinskii–Moriya interaction (under the broken inversion symmetry). The head-to-head domain wall

M (x) = M_{0} (\pm \tanh (x / w), 0, sech (x / w))

can also be considered, which we will not go into detail in this article.

Under this domain wall, the Weyl electrons feel the axial magnetic field (Equation 20)

\begin{matrix} B_{5} (x) & = - \frac{J}{e v_{F}} \nabla \times M (x) \\ = \frac{J M_{0}}{e v_{F} w} {sech}^{2} \frac{x}{w} (0, 1, \sinh \frac{x}{w} \sin α) \end{matrix}

(42)

which is localized around the domain wall at

x = 0

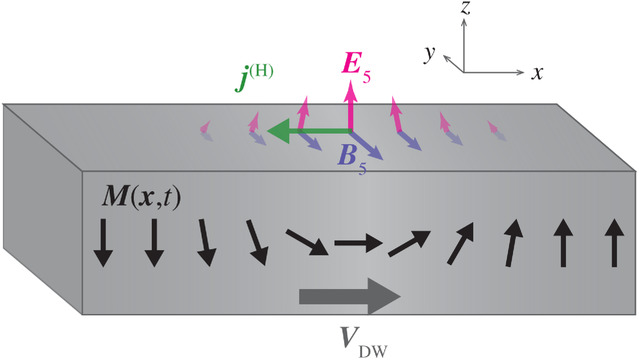

(see Figure 3). As seen in the previous section, this axial magnetic field leads to the Landau quantization and gives rise to the localized charge

ρ_{B} (x)

around the domain wall. If we assume that the Fermi level μ is in the quantum regime, that is, μ is between the zeroth and first Landau levels throughout the whole system, only the zeroth Landau level contributes to the localized charge and the induced charge density obeys Equation 23. Thus the localized charge per unit area of the domain wall can be estimated as

\begin{matrix} q = \frac{e}{π^{2}} \frac{J M_{0}}{v_{F}^{2}} μ (Néel), \frac{e}{2 π} \frac{J M_{0}}{v_{F}^{2}} μ \end{matrix}

(43)

for each type of the domain wall.107 This result was verified analytically for Néel domain wall using the Jackiw–Rebbi formalism,130 and numerically for both types of domain walls using the lattice model,131 which implies that the zeroth Landau level considered in this macroscopic description really has a dominant contribution to the charging of domain walls. It was seen in these literatures that the localized modes contributing to the charging show the band structure similar to the Fermi arcs on the surface, crossing the zero-energy plane by an open contour that bridges two Weyl points in momentum space. The equilibrium current j^(C) from the chiral pseudomagnetic effect (Equation 25) was also explicitly seen by using the wave functions of the localized modes.

What will occur to this localized charge if the domain wall is moving? In order to see the dynamical behavior, here I assume that the domain wall is parallelly moving with velocity V_DW for simplicity, which is reproduced by substituting the position x in Equation 41 by

x - V_{DW} t (\equiv x^{'})

. Such a domain wall motion can be driven by, for example, applying a magnetic field externally. The motion of the domain wall yields both the axial magnetic field, given by substitution

x \to x^{'}

in Equation 42, and the axial electric field

\begin{matrix} E_{5} (x^{'}) = \frac{J}{e v_{F}} \partial_{t} M (x^{'}) = - \frac{J V_{DW}}{e v_{F}} \partial_{x^{'}} M (x^{'}) \\ = \frac{J M_{0} V_{DW}}{e v_{F} w} {sech}^{2} \frac{x^{'}}{w} (\sinh \frac{x^{'}}{w} \cos α, \sinh \frac{x^{'}}{w} \sin α, - 1) \end{matrix}

(44)

Since B₅ and E₅ are perpendicular to one another, they give rise to the regular Hall current j^(H) localized at the domain wall (see Figure 3). Among the regular Hall current, its x-component

\begin{matrix} j_{x}^{(H)} (x^{'}) = - \frac{e J M_{0} V_{DW} μ}{v_{F}^{2} w} {sech}^{2} \frac{x^{'}}{w} \sqrt{1 + \sinh^{2} \frac{x^{'}}{w} \sin^{2} α} \end{matrix}

(45)

contributes to the pumping of the localized charge, satisfying the charge conservation

\partial_{t} ρ_{B} + \partial_{x} j_{x}^{(H)} = 0

. Therefore, we can see from the macroscopic axial electromagnetic field picture that a magnetic domain wall in the Weyl semimetal bears a certain amount of localized charge depending on the internal structure of the domain wall, and that the localized charge is carried along with the motion of the domain wall, which can be regarded as the regular Hall current driven by the axial electromagnetic fields.

The localized modes discussed here can also be understood in connection with the Jackiw–Rebbi mode, which arises as the zero-energy solitonic solution of the Dirac equation localized at a domain wall in the Dirac mass term.162 Let us consider the case of a Néel domain wall (

α = 0

in Equation 41). By taking the transverse momentum components

k_{y}

to zero and

k_{z}

to a fixed value, the Weyl Hamiltonian coupled with the magnetic texture reduces to a 1D Dirac Hamiltonian along x,

\begin{matrix} H_{η, k_{z}} & = [- i v_{F} η \partial_{x} + J M_{0} sech \frac{x}{w}] σ_{x} + m_{η, k_{z}} (x) σ_{z} \end{matrix}

(46)

with the x-dependent Dirac mass term

m_{η, k_{z}} (x) = η v_{F} k_{z} + J M_{0} \tanh \frac{x}{w}

. By the U(1) gauge transformation with

U (x) = \exp [- i η \frac{J M_{0}}{v_{F}} \int d x sech \frac{x}{w}]

, the Hamiltonian can be further reduced as

H_{η, k_{z}} = - i v_{F} η \partial_{x} σ_{x} + m_{η, k_{z}} (x) σ_{z}

, to which one can apply Jackiw–Rebbi's discussion. The localized zero mode arises when

m_{η, k_{z}} (x)

changes its sign at

x = 0

, which occurs if

| k_{z} | < J M_{0} / v_{F}

, corresponding to the condition for the surface Fermi arc. While the Jackiw–Rebbi mode interpretation is successful for the Néel domain wall, it is not applicable to the Bloch domain wall, since the Hamiltonian cannot exactly be reduced to the Jackiw–Rebbi form by the gauge transformation due to the z-component in B₅ (see Equation 42). Thus we need correction by the pseudomagnetic fields to Jackiw–Rebbi's discussion, when we investigate spin–momentum-locked electrons under magnetic domain walls.

It is suggested that the localized charge on the domain wall can serve as a “knob” for the manipulation of the domain wall motion by an external electric field; this electric manipulation was numerically simulated by solving the Landau–Lifshitz–Gilbert equation on the lattice model, using the spin torques mentioned in Section 3.5.157

5 Magnetic Textures in Various Weyl Semimetals

So far we have taken a fully spin–momentum-locked Weyl semimetal model, namely the minimal model containing $σ \cdot k$ term, to get an intuitive understanding on the interplay between spin–momentum locking of the electrons and real-space magnetic textures. In realistic Weyl semimetal materials, on the other hand, the spin–momentum locking structure around the Weyl points is material dependent, since the band crossing comes from spin–orbit coupling characteristic to each material. As I have mentioned in the first section, significant progress in the material-based first-principles calculations and the experimental measurement techniques has enabled us to observe several compounds as candidates for Weyl semimetals. In this section, I review the current status of theoretical and experimental works on realizing ferromagnetic/antiferromagnetic Weyl semimetals, and see how magnetic textures and the electronic properties are related in these materials.

5.1 Topological Insulator Multilayers

From the early days of the theoretical works on Weyl semimetals, it has been proposed that the ferromagnetic Weyl semimetal phase can be realized in magnetic multilayers composed of thin films of magnetically doped topological insulator (TI) and normal insulator (NI).71, 72 When a 3D TI is magnetically doped, its surface Dirac cone becomes gapped out due to the breaking of time-reversal symmetry by the ferromagnetic order, leading to the quantum anomalous Hall effect.16, 17, 115 By stacking these TI films with NI films in between, the top and bottom surface states of the TI films are moderately coupled due to intralayer and interlayer tunneling, leading to band dispersion perpendicular to the layers. Depending on the ratio between the intralayer and interlayer tunneling amplitudes, the system can exhibit 3D TI and NI phases. Between these phases emerges the Weyl semimetal phase, with closing of the band gap at the Weyl points.163

The Hamiltonian around the Weyl points can be symbolically written as

\begin{matrix} H (k) = v_{F} (e_{z} \times σ) \cdot k + m (k_{z}) σ_{z} \end{matrix}

(47)

where

σ_{x, y, z}

are the spin Pauli matrices mixed with orbital degrees of freedom. The function

m (k_{z})

, governed by the tunneling amplitudes and the exchange energy by the magnetic dopants, reaches zero at two

k_{z}

points, corresponding to the Weyl points. In this Hamiltonian, the in-plane spin–momentum locking is inherited from that of the TI surface states and hence is Rashba like.164, 165 Therefore, an in-plane magnetization leads to an effective vector potential perpendicular to the magnetization direction. On the other hand, the out-of-plane magnetization gives rise to shift of the Weyl points along

k_{z}

-axis via the

m (k_{z})

-term, yielding an out-of-plane effective vector potential. Since all three components of spin are coupled to momentum, the magnetic textures formed by the magnetic dopants in this system lead to the charge and current profile similar to those listed in Section 3, except for the in-plane spin texture here being twisted by 90

^{c i r c}

from that under the

(k \cdot σ)

-Hamiltonian, due to the Rashba-like spin–momentum locking. (Since the spin Pauli matrices here are mixed with orbital degrees of freedom, the effective vector potentials mentioned here should be viewed as the mixture of the normal and axial vector potentials.)

Similarly to the TI multilayers, it is proposed that a magnetically doped bulk 3D TI can also exhibit the Weyl semimetal phase provided that the doping ratio is properly tuned: the Weyl phase again emerges as the intermediate phase between the TI and NI phases.166 From the mean-field theory, it was shown that about 10% doping of Cr in ${Bi}_{2} {({Se}_{x} {Te}_{1 - x})}_{3}$ can drive the system from the TI phase into the Weyl phase. Since it is based on the band inversion by spin–orbit coupling in TI, the spin–momentum locking structure in this system is similar to that in the above multilayer system, where the in-plane part is given by the Rashba-like form.

5.2 Layered Kagome Ferromagnet: Co₃Sn₂S₂

Recent studies suggested that a cobalt-based shandite material Co₃Sn₂S₂ works well as a Weyl semimetal with the ferromagnetic order.75-77 The ferromagnetic order consists of the magnetic moments in Co atoms arranged in kagome-lattice layers, with the out-of-plane magnetic moment $\approx 0.3 μ_{B}$ for each Co atom.167 The Weyl points due to the breaking of time-reversal symmetry reside just 60meV beyond the Fermi energy, with no other bands crossing the Fermi level.75 Thus Co₃Sn₂S₂ may serve as a good platform for realizing the anomalous transport characteristic to Weyl semimetals: for instance, first-principle calculations and transport measurements show both a large anomalous Hall conductivity up to $\approx 10^{3} Ω^{- 1} {cm}^{- 1}$ and a large anomalous Hall angle (the ratio of the anomalous Hall conductivity to the longitudinal conductivity) up to ≈20, which are not simultaneously reached in conventional magnetic materials.75 The Weyl band structure and the emergent Fermi arcs on surface were also observed by ARPES measurements.77

Identification of magnetic textures in kagome magnets is also an important question from the viewpoint of magnetism, as the kagome lattice can host various kinds of unconventional spin correlations, such as the spin frustration and Dzyaloshinskii–Moriya interaction. From the measurement of magnetization and ac susceptibility by superconducting quantum interference device (SQUID), an anomalous magnetic phase (A-phase) distinct from the ferromagnetic phase was observed in Co₃Sn₂S₂, which appears just below the Curie temperature $T_{C} = 173 K$ at low magnetic field.168 It was suggested that this phase may host nonuniform spin textures such as stripe domains, magnetic bubbles, or biskyrmions. Further observation of magnetic textures in the A-phase, by neutron scattering, magnetic force microscopy, etc., is now pending.

Due to its layered structure, spin–orbit coupling in Co₃Sn₂S₂ is highly anisotropic, which may result in an anisotropy in the spin–momentum locking structure around the Weyl points. It was suggested by the first-principles calculations that a rotation of the magnetization from the out-of-plane direction to the in-plane direction eventually modulates the arrangement of the Weyl nodes, with their complicated trajectories in the Brillouin zone.169 It was also theoretically confirmed that a simplified two-orbital tight-binding model on kagome lattice with Kane–Mele-type spin–orbit interaction well reproduces the Weyl-node structure observed in the first-principles calculations;170 their agreement implies that the out-of-plane spin component dominantly participates in spin–orbit coupling in Co₃Sn₂S₂, in the vicinity of the Fermi level. As a result, we can roughly expect that the out-of-plane component of the magnetization shifts the Weyl nodes and contributes to the pseudo-gauge field, as we have seen in the spin–momentum-locked model Hamiltonian, while the in-plane component couples to the electron spin conventionally as in normal metals. The effect of the experimentally suggested magnetic textures mentioned above on the electronic structure and transport is left as an important question for future spintronics application of this material.

5.3 Noncollinear Antiferromagnet: Mn₃Sn

While we have so far focused on the Weyl semimetals with time-reversal symmetry broken by ferromagnetism, we may also consider antiferromagnets with Weyl-node structure. Mn₃Sn and Mn₃Ge are known to exhibit both antiferromagnetism and the Weyl nodes, which was first proposed by first-principles calculations73 and later manifestly observed by transport and ARPES measurements.74, 171-174 Mn atoms are responsible for the antiferromagnetic order in these materials, arranged in kagome-lattice layers. The magnetic moments on these kagome sites form a 120° noncollinear antiferromagnetic order, with the Néel temperature up to ≈430K in Mn₃Sn.175-178 It is understood that this noncollinear antiferromagnetism arises from the combination of the antiferromagnetic exchange coupling and the Dzyaloshinskii–Moriya interaction. Although their net magnetization is vanishingly small ( $\approx 0.002 μ_{B}$ for each Mn atom)176, 177 and the scalar spin chirality is zero, it was numerically and experimentally observed that these materials show large anomalous Hall conductivity,171-173 which can be regarded as an effect from the strong Berry flux in momentum space around the Weyl points. A tight-binding model calculation on kagome layers confirmed that the k-space Berry curvature indeed reproduces this large anomalous Hall conductivity around the Fermi level.179 Although there exist trivial metallic bands in addition to the Weyl cones at the Fermi level so that they cannot be regarded as “semimetals,” the Weyl points thus contribute strongly to the anomalous transport properties.

One can consider a spatial modulation of this 120° pattern at macroscopic length scales much longer than the lattice constant. Since there is no unified order parameter such as magnetization in ferromagnets and Néel vector (staggered magnetization) in collinear antiferromagnets, one should pick up some other vectorial quantity that characterizes the macroscopic magnetic textures. One powerful quantity that we can rely on is the cluster octupole moment, which was derived by the multipole expansion in each cluster.180 It has the same symmetry as the magnetic dipole moment, and gives rise to the anomalous Hall effect in the same manner with dipole. Domain structure identified by the cluster octupole moment was experimentally distinguished by measuring the magneto-optical Kerr effect (MOKE).181

Since the spin–momentum locking structure is complex due to the noncollinear spin texture, it seems difficult to apply the pseudo-gauge field picture to treat the effect of macroscopic magnetic textures. One way to resolve this problem theoretically is to list up the possible terms allowed by the symmetry of the system. In ref. 182, the structure of domain wall in the kagome antiferromagnet was parameterized by the in-plane twisting angle of the noncollinear order, and the current-induced domain wall dynamics was qualitatively discussed by using the collective force on the domain wall allowed by the symmetry. The orbital magnetization may be helpful to understand the qualitative effect of magnetic textures on the shift of Weyl points, since they are closely related via the intrinsic anomalous Hall conductivity.183, 184 It was seen by the tight-binding model calculation that the direction and magnitude of the orbital magnetization significantly depend on the tilting angles of the noncollinear spins.179 Thus one can assume that a twist in the noncollinear spin texture leads to shift of Weyl points, giving rise to the pseudo-gauge field texture.

6 Conclusion

In this article, we have reviewed the current understanding of the interplay between magnetic textures and electronic properties in magnetic Weyl semimetals. Since the magnetization contributes to the shift of Weyl points in momentum space, the effect of magnetic textures on the electrons can be effectively treated as axial gauge fields, with which one can macroscopically treat the electronic structure and transport in a similar manner as with those under the realistic electromagnetic fields. In contrast to the spin gauge fields $A (r)$ in normal metals, which depend on spatial gradients in the magnetization pattern ∇M(r) (Section 2), the axial gauge fields A₅(r) for the Weyl electrons is directly related to the local magnetization M(r) due to spin–momentum locking (Section 3). From this difference, we have seen that the electronic structure in Weyl semimetals gets largely altered by magnetic textures; even a simple 1D domain wall leads to the localization and pumping of electric charge, as we have seen in Section 4.

We have mainly focused on the effect of long-range and low-frequency magnetic textures introduced by hand in this article. On the other hand, magnetically ordered materials generally host spin-wave excitations, namely magnons, which arise as collective dynamics in the precession of spins interacting with each other. It is well known that magnons carry spin current,185 and hence their properties are being intensely studied to make use of them as carriers in spintronics devices, generically termed as magnonics.186, 187 Since magnons can couple to spin–momentum-locked Weyl electrons in magnetic Weyl semimetals, there have been several theoretical proposals about magnon-induced anomalous responses.78, 188, 189 Interplay between electrons and magnons in realistic Weyl semimetals needs to be questioned in future studies.190

Acknowledgements

This work was supported by JSPS KAKENHI Grant Number JP17K14316. The author acknowledges K. Nomura and A. Yoshida for the related collaborations. The author thanks D. Kurebayashi for the fruitful discussions.

Conflict of Interest

The author declares no conflict of interest.

Biography

Yasufumi Araki is a senior postdoctoral researcher at the Japan Atomic Energy Agency. He was a postdoctoral researcher at the University of Texas at Austin in the United States from 2013 to 2015, and a research associate at Tohoku University in Japan from 2015 to 2018. His research interest is mainly related to relativistic fermions in materials, such as graphene, Dirac and Weyl semimetals.

References

1C. Kittel, Introduction to Solid State Physics, John Wiley & Sons, New York 1953.
Google Scholar
2I. Žutić, J. Fabian, S. Das Sarma, Rev. Mod. Phys. 2004, 76, 323.
10.1103/RevModPhys.76.323
CAS Web of Science® Google Scholar
3S. D. Bader, S. S. P. Parkin, Annu. Rev. Condens. Matter Phys. 2010, 1, 71.
10.1146/annurev-conmatphys-070909-104123
CAS Web of Science® Google Scholar
4M. N. Baibich, J. M. Broto, A. Fert, F. Nguyen Van Dau, F. Petroff, P. Etienne, G. Creuzet, A. Friederich, J. Chazelas, Phys. Rev. Lett. 1988, 61, 2472.
10.1103/PhysRevLett.61.2472
CAS PubMed Web of Science® Google Scholar
5G. Binasch, P. Grünberg, F. Saurenbach, W. Zinn, Phys. Rev. B1989, 39, 4828(R).
Google Scholar
6S. S. P. Parkin, M. Hayashi, L. Thomas, Science2008, 320, 190.
Google Scholar
7A. Fert, V. Cros, J. Sampaio, Nat. Nanotechnol. 2013, 8, 152.
10.1038/nnano.2013.29
CAS PubMed Web of Science® Google Scholar
8B. Yan, S.-C. Zhang, Rep. Prog. Phys. 2012, 75, 096501.
10.1088/0034-4885/75/9/096501
CAS PubMed Web of Science® Google Scholar
9C.-K. Chiu, J. C. Y. Teo, A. P. Schnyder, S. Ryu, Rev. Mod. Phys. 2016, 88, 035005.
10.1103/RevModPhys.88.035005
Web of Science® Google Scholar
10M. Z. Hasan, C. L. Kane, Rev. Mod. Phys. 2010, 82, 3045.
10.1103/RevModPhys.82.3045
CAS Web of Science® Google Scholar
11X.-L. Qi, S.-C. Zhang, Rev. Mod. Phys. 2011, 83, 1057.
10.1103/RevModPhys.83.1057
CAS Web of Science® Google Scholar
12B. A. Bernevig, T. L. Hughes, Topological Insulators and Topological Superconductors, Princeton University Press, Princeton 2013.
Google Scholar
13D. Pesin, A. H. MacDonald, Nat. Mater. 2012, 11, 409.
10.1038/nmat3305
CAS PubMed Web of Science® Google Scholar
14Y. Tokura, K. Yasuda, A. Tsukazaki, Nat. Rev. Phys. 2019, 1, 126.
10.1038/s42254-018-0011-5
Web of Science® Google Scholar
15K. Nomura, N. Nagaosa, Phys. Rev. Lett.2011, 106, 166802.
Google Scholar
16R. Yu, W. Zhang, H.-J. Zhang, S.-C. Zhang, X. Dai, Z. Fang, Science 2010, 329, 61.
10.1126/science.1187485
CAS PubMed Web of Science® Google Scholar
17C.-Z. Chang, J. Zhang, X. Feng, J. Shen, Z. Zhang, M. Guo, K. Li, Y. Ou, P. Wei, L.-L. Wang, Z.-Q. Ji, Y. Feng, S. Ji, X. Chen, J. Jia, X. Dai, Z. Fang, S.-C. Zhang, K. He, Y. Wang, L. Lu, X.-C. Ma, Q.-K. Xue, Science 2013, 340, 167.
10.1126/science.1234414
CAS PubMed Web of Science® Google Scholar
18J. G. Checkelsky, J. Ye, Y. Onose, Y. Iwasa, Y. Tokura, Nat. Phys. 2012, 8, 729.
10.1038/nphys2388
CAS Web of Science® Google Scholar
19W.-K. Tse, A. H. MacDonald, Phys. Rev. Lett. 2010, 105, 057401.
10.1103/PhysRevLett.105.057401
CAS PubMed Web of Science® Google Scholar
20K. N. Okada, Y. Takahashi, M. Mogi, R. Yoshimi, A. Tsukazaki, K. S. Takahashi, N. Ogawa, M. Kawasaki, Y. Tokura, Nat. Commun. 2016, 7, 12245.
10.1038/ncomms12245
CAS PubMed Web of Science® Google Scholar
21I. Garate, M. Franz, Phys. Rev. Lett. 2010, 104, 146802.
10.1103/PhysRevLett.104.146802
CAS PubMed Web of Science® Google Scholar
22Y. Shiomi, K. Nomura, Y. Kajiwara, K. Eto, M. Novak, K. Segawa, Y. Ando, E. Saitoh, Phys. Rev. Lett. 2014, 113, 196601.
10.1103/PhysRevLett.113.196601
CAS PubMed Web of Science® Google Scholar
23F. Mahfouzi, N. Nagaosa, B. K. Nikolić, Phys. Rev. Lett. 2012, 109, 166602.
10.1103/PhysRevLett.109.166602
PubMed Web of Science® Google Scholar
24A. R. Mellnik, J. S. Lee, A. Richardella, J. L. Grab, P. J. Mintun, M. H. Fischer, A. Vaezi, A. Manchon, E.-A. Kim, N. Samarth, D. C. Ralph, Nature 2014, 511, 449.
10.1038/nature13534
CAS PubMed Web of Science® Google Scholar
25B. Yan, C. Felser, Annu. Rev. Condens. Matter Phys. 2017, 8, 337.
10.1146/annurev-conmatphys-031016-025458
Web of Science® Google Scholar
26A. A. Burkov, Annu. Rev. Condens. Matter Phys. 2018, 9, 359.
10.1146/annurev-conmatphys-033117-054129
CAS Web of Science® Google Scholar
27N. P. Armitage, E. J. Mele, A. Vishwanath, Rev. Mod. Phys. 2018, 90, 015001.
10.1103/RevModPhys.90.015001
CAS Web of Science® Google Scholar
28G. E. Volovik, The Universe in a Helium Droplet, Clarendon, Oxford 2003.
Google Scholar
29A. G. Grushin, Phys. Rev. D 2012, 86, 045001.
10.1103/PhysRevD.86.045001
Web of Science® Google Scholar
30P. Goswami, S. Tewari, Phys. Rev. B 2013, 88, 245107.
10.1103/PhysRevB.88.245107
Web of Science® Google Scholar
31A. A. Burkov, Phys. Rev. B 2014, 89, 155104.
10.1103/PhysRevB.89.155104
Web of Science® Google Scholar
32A. A. Burkov, Phys. Rev. Lett. 2014, 113, 187202.
10.1103/PhysRevLett.113.187202
CAS PubMed Web of Science® Google Scholar
33H. B. Nielsen, M. Ninomiya, Phys. Lett. B 1983, 130, 389.
10.1016/0370-2693(83)91529-0
Web of Science® Google Scholar
34D. T. Son, B. Z. Spivak, Phys. Rev. B 2013, 88, 104412.
10.1103/PhysRevB.88.104412
CAS Web of Science® Google Scholar
35X. Huang, L. Zhao, Y. Long, P. Wang, D. Chen, Z. Yang, H. Liang, M. Xue, H. Weng, Z. Fang, X. Dai, G. Chen, Phys. Rev. X 2015, 5, 031023.
Web of Science® Google Scholar
36C.-L. Zhang, S.-Y. Xu, I. Belopolski, Z. Yuan, Z. Lin, B. Tong, G. Bian, N. Alidoust, C.-C. Lee, S.-M. Huang, T.-R. Chang, G. Chang, C.-H. Hsu, H.-T. Jeng, M. Neupane, D. S. Sanchez, H. Zheng, J. Wang, H. Lin, C. Zhang, H.-Z. Lu, S.-Q. Shen, T. Neupert, M. Zahid Hasan, S. Jia, Nat. Commun. 2016, 7, 10735.
10.1038/ncomms10735
CAS PubMed Web of Science® Google Scholar
37F. Arnold, C. Shekhar, S.-C. Wu, Y. Sun, R. D. dos Reis, N. Kumar, M. Naumann, M. O. Ajeesh, M. Schmidt, A. G. Grushin, J. H. Bardarson, M. Baenitz, D. Sokolov, H. Borrmann, M. Nicklas, C. Felser, E. Hassinger, B. Yan, Nat. Commun. 2016, 7, 11615.
10.1038/ncomms11615
CAS PubMed Web of Science® Google Scholar
38A. C. Potter, I. Kimchi, A. Vishwanath, Nat. Commun. 2014, 5, 5161.
10.1038/ncomms6161
CAS PubMed Web of Science® Google Scholar
39Y. Zhang, D. Bulmash, P. Hosur, A. C. Potter, A. Vishwanath, Sci. Rep. 2016, 6, 23741.
10.1038/srep23741
CAS PubMed Web of Science® Google Scholar
40P. J. W. Moll, N. L. Nair, T. Helm, A. C. Potter, I. Kimchi, A. Vishwanath, J. G. Analytis, Nature 2016, 535, 266.
10.1038/nature18276
CAS PubMed Web of Science® Google Scholar
41C. Zhang, A. Narayan, S. Lu, J. Zhang, H. Zhang, Z. Ni, X. Yuan, Y. Liu, J.-H. Park, E. Zhang, W. Wang, S. Liu, L. Cheng, L. Pi, Z. Sheng, S. Sanvito, F. Xiu, Nat. Commun. 2017, 8, 1272.
10.1038/s41467-017-01438-y
PubMed Web of Science® Google Scholar
42C. Zhang, Y. Zhang, X. Yuan, S. Lu, J. Zhang, A. Narayan, Y. Liu, H. Zhang, Z. Ni, R. Liu, E. S. Choi, A. Suslov, S. Sanvito, L. Pi, H.-Z. Lu, A. C. Potter, F. Xiu, Nature 2019, 565, 331.
10.1038/s41586-018-0798-3
CAS PubMed Web of Science® Google Scholar
43J. E. Moore, J. Orenstein, Phys. Rev. Lett. 2010, 105, 026805.
10.1103/PhysRevLett.105.026805
CAS PubMed Web of Science® Google Scholar
44I. Sodemann, L. Fu, Phys. Rev. Lett. 2015, 115, 216806.
10.1103/PhysRevLett.115.216806
CAS PubMed Web of Science® Google Scholar
45T. Morimoto, N. Nagaosa, Sci. Adv. 2016, 2, e1501524.
10.1126/sciadv.1501524
PubMed Web of Science® Google Scholar
46T. Morimoto, S. Zhong, J. Orenstein, J. E. Moore, Phys. Rev. B 2016, 94, 245121.
10.1103/PhysRevB.94.245121
Web of Science® Google Scholar
47C.-K. Chan, P. A. Lee, K. S. Burch, J. H. Han, Y. Ran, Phys. Rev. Lett. 2016, 116, 026805.
10.1103/PhysRevLett.116.026805
CAS PubMed Web of Science® Google Scholar
48X.-X. Zhang, T. T. Ong, N. Nagaosa, Phys. Rev. B 2016, 94, 235137.
10.1103/PhysRevB.94.235137
Web of Science® Google Scholar
49F. de Juan, A. G. Grushin, T. Morimoto, J. E. Moore, Nat. Commun. 2017, 8, 15995.
10.1038/ncomms15995
PubMed Web of Science® Google Scholar
50A. A. Soluyanov, D. Gresch, Z. Wang, Q. Wu, M. Troyer, X. Dai, B. A. Bernevig, Nature 2015, 527, 495.
10.1038/nature15768
CAS PubMed Web of Science® Google Scholar
51T. E. OâĂŹBrien, M. Diez, C. W. J. Beenakker, Phys. Rev. Lett. 2016, 116, 236401.
10.1103/PhysRevLett.116.236401
PubMed Web of Science® Google Scholar
52M. Alidoust, K. Halterman, A. A. Zyuzin, Phys. Rev. B 2017, 95, 155124.
10.1103/PhysRevB.95.155124
Web of Science® Google Scholar
53M. Alidoust, Phys. Rev. B 2018, 98, 245418.
10.1103/PhysRevB.98.245418
CAS Web of Science® Google Scholar
54B. Rosenstein, B. Ya. Shapiro, D. Li, I. Shapiro, Phys. Rev. B 2017, 96, 224517.
10.1103/PhysRevB.96.224517
Web of Science® Google Scholar
55B. Rosenstein, B. Ya. Shapiro, D. Li, I. Shapiro, Phys. Rev. B 2018, 97, 144510.
10.1103/PhysRevB.97.144510
CAS Web of Science® Google Scholar
56B. Ya. Shapiro, I. Shapiro, D. Li, B. Rosenstein, J. Phys.: Condens. Matter2018, 30 335403.
Google Scholar
57Z. Hou, Q.-F. Sun, Phys. Rev. B 2017, 96, 155305.
10.1103/PhysRevB.96.155305
Web of Science® Google Scholar
58Q. Li, C. He, Y. Wang, E. Liu, M. Wang, Y. Wang, J. Zeng, Z. Ma, T. Cao, C. Yi, N. Wang, K. Watanabe, T. Taniguchi, L. Shao, Y. Shi, X. Chen, S.-J. Liang, Q.-H. Wang, F. Miao, Nano Lett. 2018, 18, 7962.
10.1021/acs.nanolett.8b03924
CAS PubMed Web of Science® Google Scholar
59R. C. Xiao, P. L. Gong, Q. S. Wu, W. J. Lu, M. J. Wei, J. Y. Li, H. Y. Lv, X. Luo, P. Tong, X. B. Zhu, Y. P. Sun, Phys. Rev. B 2017, 96, 075101.
10.1103/PhysRevB.96.075101
Web of Science® Google Scholar
60S. Das, Amit, A. Sirohi, L. Yadav, S. Gayen, Y. Singh, G. Sheet, Phys. Rev. B 2018, 97, 014523.
10.1103/PhysRevB.97.014523
CAS Web of Science® Google Scholar
61S. P. Mukherjee, J. P. Carbotte, Phys. Rev. B 2017, 96, 085114.
10.1103/PhysRevB.96.085114
Web of Science® Google Scholar
62S. P. Mukherjee, J. P. Carbotte, Phys. Rev. B 2018, 97, 035144.
10.1103/PhysRevB.97.035144
CAS Web of Science® Google Scholar
63K. Halterman, M. Alidoust, A. Zyuzin, Phys. Rev. B 2008, 98, 085109.
10.1103/PhysRevB.98.085109
Web of Science® Google Scholar
64S. Mignuzzi, S. Vezzoli, S. A. R. Horsley, W. L. Barnes, S. A. Maier, R. Sapienza, Nano Lett.2019, 19, 3, 1613.
Google Scholar
65S.-M. Huang, S.-Y. Xu, I. Belopolski, C.-C. Lee, G. Chang, B. Wang, N. Alidoust, G. Bian, M. Neupane, C. Zhang, S. Jia, A. Bansil, H. Lin, M. Z. Hasan, Nat. Commun. 2015, 6, 7373.
10.1038/ncomms8373
CAS PubMed Web of Science® Google Scholar
66S.-Y. Xu, I. Belopolski, N. Alidoust, M. Neupane, G. Bian, C. Zhang, R. Sankar, G. Chang, Z. Yuan, C.-C. Lee, S.-M. Huang, H. Zheng, J. Ma, D. S. Sanchez, B.K. Wang, A. Bansil, F. Chou, P. P. Shibayev, H. Lin, S. Jia, M. Zahid Hasan, Science 2015, 349, 613.
10.1126/science.aaa9297
CAS PubMed Web of Science® Google Scholar
67B. Q. Lv, H. M. Weng, B. B. Fu, X. P. Wang, H. Miao, J. Ma, P. Richard, X. C. Huang, L. X. Zhao, G. F. Chen, Z. Fang, X. Dai, T. Qian, H. Ding, Phys. Rev. X 2015, 5, 031013.
Web of Science® Google Scholar
68L. X. Yang, Z. K. Liu, Y. Sun, H. Peng, H. F. Yang, T. Zhang, B. Zhou, Y. Zhang, Y. F. Guo, M. Rahn, D. Prabhakaran, Z. Hussain, S.-K. Mo, C. Felser, B. Yan, Y. L. Chen, Nat. Phys. 2015, 11, 728.
10.1038/nphys3425
CAS Web of Science® Google Scholar
69S.-Y. Xu, N. Alidoust, I. Belopolski, Z. Yuan, G. Bian, T.-R. Chang, H. Zheng, V. N. Strocov, D. S. Sanchez, G. Chang, C. Zhang, D. Mou, Y. Wu, L. Huang, C.-C. Lee, S.-M. Huang, BaoK. Wang, A. Bansil, H.-T. Jeng, T. Neupert, A. Kaminski, H. Lin, S. Jia, and M. Z. Hasan, Nat. Phys. 2015, 11, 748.
10.1038/nphys3437
CAS Web of Science® Google Scholar
70S.-Y. Xu, I. Belopolski, D. S. Sanchez, C. Zhang, G. Chang, C. Guo, G. Bian, Z. Yuan, H. Lu, T.-R. Chang, P. P. Shibayev, M. L. Prokopovych, N. Alidoust, H. Zheng, C.-C. Lee, S.-M. Huang, R. Sankar, F. Chou, C.-H. Hsu, H.-T. Jeng, A. Bansil, T. Neupert, V. N. Strocov, H. Lin, S. Jia, M. Z. Hasan, Sci. Adv. 2015, 1, e1501092.
10.1126/sciadv.1501092
PubMed Web of Science® Google Scholar
71A. A. Burkov, L. Balents, Phys. Rev. Lett. 2011, 107, 127205.
10.1103/PhysRevLett.107.127205
CAS PubMed Web of Science® Google Scholar
72A. A. Burkov, M. D. Hook, L. Balents, Phys. Rev. B 2011, 84, 235126.
10.1103/PhysRevB.84.235126
CAS Web of Science® Google Scholar
73H. Chen, Q. Niu, A. H. MacDonald, Phys. Rev. Lett. 2014, 112, 017205.
10.1103/PhysRevLett.112.017205
CAS PubMed Web of Science® Google Scholar
74K. Kuroda, T. Tomita, M.-T. Suzuki, C. Bareille, A. A. Nugroho, P. Goswami, M. Ochi, M. Ikhlas, M. Nakayama, S. Akebi, R. Noguchi, R. Ishii, N. Inami, K. Ono, H. Kumigashira, A. Varykhalov, T. Muro, T. Koretsune, R. Arita, S. Shin, T. Kondo, S. Nakatsuji, Nat. Mater. 2017, 16, 1090.
10.1038/nmat4987
CAS PubMed Web of Science® Google Scholar
75E. Liu, Y. Sun, N. Kumar, L. Muechler, A. Sun, L. Jiao, S.-Y. Yang, D. Liu, A. Liang, Q. Xu, J. Kroder, V. Süss, H. Borrmann, C. Shekhar, Z. Wang, C. Xi, W. Wang, W. Schnelle, S. Wirth, Y. Chen, S. T. B. Goennenwein, C. Felser, Nat. Phys. 2018, 14, 1125.
10.1038/s41567-018-0234-5
CAS PubMed Web of Science® Google Scholar
76Q. Xu, E. Liu, W. Shi, L. Muechler, J. Gayles, C. Felser, Y. Sun, Phys. Rev. B 2018, 97, 235416.
10.1103/PhysRevB.97.235416
CAS Web of Science® Google Scholar
77Q. Wang, Y. Xu, R. Lou, Z. Liu, M. Li, Y. Huang, D. Shen, H. Weng, S. Wang, H. Lei, Nat. Commun. 2018, 9, 3681.
10.1038/s41467-018-06088-2
PubMed Web of Science® Google Scholar
78C.-X. Liu, P. Ye, X.-L. Qi, Phys. Rev. B 2013, 87, 235306.
10.1103/PhysRevB.87.235306
CAS Web of Science® Google Scholar
79M. E. Peskin, D. V. Schroeder, An Introduction to Quantum Field Theory, Westview Press, Boulder, CO 1995.
Google Scholar
80R. Ilan, A. G. Grushin, D. I. Pikulin, arXiv:1903.11088.
Google Scholar
81R. Tomasello, E. Martinez, R. Zivieri, L. Torres, M. Carpentieri, G. Finocchio, Sci. Rep. 2014, 4, 6784.
10.1038/srep06784
CAS PubMed Web of Science® Google Scholar
82X. Zhang, M. Ezawa, Y. Zhou, Sci. Rep. 2015, 5, 9400.
10.1038/srep09400
PubMed Web of Science® Google Scholar
83G. Tatara, H. Kohno, J. Shibata, Phys. Rep. 2008, 468, 213.
10.1016/j.physrep.2008.07.003
Web of Science® Google Scholar
84K.-J. Kim, Y. Yoshimura, T. Ono, Jpn. J. Appl. Phys. 2017, 56, 0802A4.
10.7567/JJAP.56.0802A4
Web of Science® Google Scholar
85N. Nagaosa, Y. Tokura, Nat. Nanotechnol. 2013, 8, 899.
10.1038/nnano.2013.243
CAS PubMed Web of Science® Google Scholar
86A. Fert, N. Reyren, V. Cros, Nat. Rev. Mater. 2017, 2, 17031.
10.1038/natrevmats.2017.31
CAS Web of Science® Google Scholar
87K. Everschor-Sitte, J. Masell, R. M. Reeve, M. Kläui, J. Appl. Phys. 2018, 124, 240901.
10.1063/1.5048972
Web of Science® Google Scholar
88V. Korenman, J. L. Murray, R. E. Prange, Phys. Rev. B 1977, 16, 4032.
10.1103/PhysRevB.16.4032
CAS Web of Science® Google Scholar
89G. E. Volovik, J. Phys. C: Solid State Phys. 1987, 20, L83.
10.1088/0022-3719/20/7/003
Web of Science® Google Scholar
90J. Ieda, S. Maekawa, in Spin Current, 2nd ed. (Eds: S. Maekawa, S. O. Valenzuela, E. Saitoh, T. Kimura), Oxford University Press, Oxford 2017, Ch. 7.
Google Scholar
91G. Tatara, Physica E 2019, 106, 208.
10.1016/j.physe.2018.05.011
CAS Google Scholar
92J. Ye, Y. B. Kim, A. J. Millis, B. I. Shraiman, P. Majumdar, Z. Tešanović, Phys. Rev. Lett. 1999, 83, 3737.
10.1103/PhysRevLett.83.3737
CAS Web of Science® Google Scholar
93G. Tatara, H. Kawamura, J. Phys. Soc. Jpn. 2002, 71, 2613.
10.1143/JPSJ.71.2613
CAS Web of Science® Google Scholar
94M. Lee, W. Kang, Y. Onose, Y. Tokura, N. P. Ong, Phys. Rev. Lett. 2009, 102, 186601.
10.1103/PhysRevLett.102.186601
CAS PubMed Web of Science® Google Scholar
95A. Neubauer, C. Pfleiderer, B. Binz, A. Rosch, R. Ritz, P. G. Niklowitz, P. Böni, Phys. Rev. Lett. 2009, 102, 186602.
10.1103/PhysRevLett.102.186602
CAS PubMed Web of Science® Google Scholar
96N. Kanazawa, Y. Onose, T. Arima, D. Okuyama, K. Ohoyama, S. Wakimoto, K. Kakurai, S. Ishiwata, Y. Tokura, Phys. Rev. Lett. 2011, 106, 156603.
10.1103/PhysRevLett.106.156603
CAS PubMed Web of Science® Google Scholar
97A. Stern, Phys. Rev. Lett. 1992, 68, 1022.
10.1103/PhysRevLett.68.1022
CAS PubMed Web of Science® Google Scholar
98C.-M. Ryu, Phys. Rev. Lett. 1996, 76, 968.
10.1103/PhysRevLett.76.968
CAS PubMed Web of Science® Google Scholar
99L. Berger, Phys. Rev. B 1999, 59, 11465.
10.1103/PhysRevB.59.11465
CAS Web of Science® Google Scholar
100S. E. Barnes, S. Maekawa, Phys. Rev. Lett. 2007, 98, 246601.
10.1103/PhysRevLett.98.246601
CAS PubMed Web of Science® Google Scholar
101S. A. Yang, G. S. D. Beach, C. Knutson, D. Xiao, Q. Niu, M. Tsoi, J. L. Erskine, Phys. Rev. Lett. 2009, 102, 067201.
10.1103/PhysRevLett.102.067201
CAS PubMed Web of Science® Google Scholar
102P. N. Hai, S. Ohya, M. Tanaka, S. E. Barnes, S. Maekawa, Nature 2009, 458, 489.
10.1038/nature07879
CAS PubMed Web of Science® Google Scholar
103Y. Yamane, K. Sasage, T. An, K. Harii, J. Ohe, J. Ieda, S. E. Barnes, E. Saitoh, S. Maekawa, Phys. Rev. Lett. 2011, 107, 236602.
10.1103/PhysRevLett.107.236602
CAS PubMed Web of Science® Google Scholar
104K.-W. Kim, J.-H. Moon, K.-J. Lee, H.-W. Lee, Phys. Rev. Lett. 2012, 108, 217202.
10.1103/PhysRevLett.108.217202
CAS PubMed Web of Science® Google Scholar
105N. Nakabayashi, G. Tatara, New J. Phys., 2014, 16, 015016.
Google Scholar
106G. Tatara, N. Nakabayashi, K.-J. Lee, Phys. Rev. B 2013, 87, 054403.
10.1103/PhysRevB.87.054403
Web of Science® Google Scholar
107Y. Araki, K. Nomura, Phys. Rev. Appl. 2018, 10, 014007.
10.1103/PhysRevApplied.10.014007
CAS Web of Science® Google Scholar
108G. E. Volovik, in Quantum Analogues: From Phase Transitions to Black Holes and Cosmology (Eds.: W. G. Unruh and R. Schützhold), Springer, Berlin, Heidelberg 2007.
Google Scholar
109H. B. Nielsen, M. Ninomiya, Nucl. Phys. B 1981, 185, 20.
10.1016/0550-3213(81)90361-8
Web of Science® Google Scholar
110H. B. Nielsen, M. Ninomiya, Nucl. Phys. B 1981, 193, 173.
10.1016/0550-3213(81)90524-1
Web of Science® Google Scholar
111S. Chandrasekharan, U.-J. Wiese, Prog. Part. Nucl. Phys. 2004, 53, 373.
10.1016/j.ppnp.2004.05.003
CAS Web of Science® Google Scholar
112D. J. Thouless, M. Kohmoto, M. P. Nightingale, M. den Nijs, Phys. Rev. Lett. 1982, 49, 405.
10.1103/PhysRevLett.49.405
CAS Web of Science® Google Scholar
113X. Wan, A. M. Turner, A. Vishwanath, S. Y. Savrasov, Phys. Rev. B 2011, 83, 205101.
10.1103/PhysRevB.83.205101
CAS Web of Science® Google Scholar
114G. Xu, H. Weng, Z. Wang, X. Dai, Z. Fang, Phys. Rev. Lett. 2011, 107, 186806.
10.1103/PhysRevLett.107.186806
CAS PubMed Web of Science® Google Scholar
115F. D. M. Haldane, Phys. Rev. Lett. 1988, 61, 2015.
10.1103/PhysRevLett.61.2015
CAS PubMed Web of Science® Google Scholar
116Z. K. Liu, B. Zhou, Y. Zhang, Z. J. Wang, H. M. Weng, D. Prabhakaran, S.-K. Mo, Z. X. Shen, Z. Fang, X. Dai, Z. Hussain, Y. L. Chen, Science 2014, 343, 864.
10.1126/science.1245085
CAS PubMed Web of Science® Google Scholar
117M. Neupane, S.-Y. Xu, R. Sankar, N. Alidoust, G. Bian, C. Liu, I. Belopolski, T.-R. Chang, H.-T. Jeng, H. Lin, A. Bansil, F. Chou, M. Z. Hasan, Nat. Commun. 2014, 5, 3786.
10.1038/ncomms4786
CAS PubMed Web of Science® Google Scholar
118K. Nomura, N. Nagaosa, Phys. Rev. B2010, 82, 161401(R).
Google Scholar
119R. Wakatsuki, M. Ezawa, N. Nagaosa, Sci. Rep. 2015, 5, 13638.
10.1038/srep13638
PubMed Web of Science® Google Scholar
120A. Cortijo, Y. Ferreirós, K. Landsteiner, M. A. H. Vozmediano, Phys. Rev. Lett. 2015, 115, 177202.
10.1103/PhysRevLett.115.177202
PubMed Web of Science® Google Scholar
121D. I. Pikulin, A. Chen, M. Franz, Phys. Rev. X 2016, 6, 041021.
Web of Science® Google Scholar
122V. Arjona, M. A. H. Vozmediano, Phys. Rev. B2018, 97, 201404(R).
Google Scholar
123J. Behrends, S. Roy, M. H. Kolodrubetz, J. H. Bardarson, A. G. Grushin, Phys. Rev. B2019, 99, 140201(R).
Google Scholar
124T. Liu, D. I. Pikulin, M. Franz, Phys. Rev. B 2017, 95, 041201.
10.1103/PhysRevB.95.041201
Web of Science® Google Scholar
125D. I. Pikulin, R. Ilan, arXiv:1802.00512.
Google Scholar
126T. Kariyado, arXiv:1707.08601.
Google Scholar
127K.-Y. Yang, Y.-M. Lu, Y. Ran, Phys. Rev. B 2011, 84, 075129.
10.1103/PhysRevB.84.075129
CAS Web of Science® Google Scholar
128A. H. Castro Neto, F. Guinea, N. M. R. Peres, K. S. Novoselov, A. K. Geim, Rev. Mod. Phys. 2009, 81, 109.
10.1103/RevModPhys.81.109
CAS Web of Science® Google Scholar
129H. Aoki, M. S. Dresselhaus, Physics of Graphene, Springer, New York 2014.
Google Scholar
130Y. Araki, A. Yoshida, K. Nomura, Phys. Rev. B 2016, 94, 115312.
10.1103/PhysRevB.94.115312
Web of Science® Google Scholar
131Y. Araki, A. Yoshida, K. Nomura, Phys. Rev. B 2018, 98, 045302.
10.1103/PhysRevB.98.045302
CAS Web of Science® Google Scholar
132Y. Ominato, A. Yamakage, K. Nomura, Condens. Matter2018, 2018, 3(4), 43.
Google Scholar
133A. G. Grushin, J. W. F. Venderbos, A. Vishwanath, R. Ilan, Phys. Rev. X 2016, 6, 041046.
Web of Science® Google Scholar
134J.-H. Zhou, H. Jiang, Q. Niu, J.-R. Shi, Chin. Phys. Lett. 2012, 30, 027101.
10.1088/0256-307X/30/2/027101
Web of Science® Google Scholar
135Z.-M. Huang, J. Zhou, S.-Q. Shen, Phys. Rev. B 2017, 96, 085201.
10.1103/PhysRevB.96.085201
Web of Science® Google Scholar
136A. Vilenkin, Phys. Rev. D 1980, 22, 3080.
10.1103/PhysRevD.22.3080
CAS Web of Science® Google Scholar
137K. Fukushima, D. E. Kharzeev, H. J. Warringa, Phys. Rev. D 2008, 78, 074033.
10.1103/PhysRevD.78.074033
CAS Web of Science® Google Scholar
138D. E. Kharzeev, L. D. McLerran, H. J. Warringa, Nucl. Phys. A 2008, 803, 227.
10.1016/j.nuclphysa.2008.02.298
CAS Web of Science® Google Scholar
139D. E. Kharzeev, Prog. Part. Nucl. Phys. 2014, 75, 133.
10.1016/j.ppnp.2014.01.002
Web of Science® Google Scholar
140D. T. Son, N. Yamamoto, Phys. Rev. Lett. 2012, 109, 181602.
10.1103/PhysRevLett.109.181602
PubMed Web of Science® Google Scholar
141M. M. Vazifeh, M. Franz, Phys. Rev. Lett. 2013, 111, 027201.
10.1103/PhysRevLett.111.027201
CAS PubMed Web of Science® Google Scholar
142N. Yamamoto, Phys. Rev. D 2015, 92, 085011.
10.1103/PhysRevD.92.085011
Web of Science® Google Scholar
143K. Taguchi, Y. Tanaka, Phys. Rev. B 2015, 91, 054422.
10.1103/PhysRevB.91.054422
Web of Science® Google Scholar
144Y. Chen, S. Wu, A. A. Burkov, Phys. Rev. B 2013, 88, 125105.
10.1103/PhysRevB.88.125105
Web of Science® Google Scholar
145J. Ma, D. A. Pesin, Phys. Rev. B 2015, 92, 235205.
10.1103/PhysRevB.92.235205
Web of Science® Google Scholar
146A. Sekine, K. Nomura, Phys. Rev. Lett. 2016, 116, 096401.
10.1103/PhysRevLett.116.096401
PubMed Web of Science® Google Scholar
147S. Zhong, J. E. Moore, I. Souza, Phys. Rev. Lett. 2016, 116, 077201.
10.1103/PhysRevLett.116.077201
PubMed Web of Science® Google Scholar
148E. V. Gorbar, V. A. Miransky, I. A. Shovkovy, P. O. Sukhachov, Phys. Rev. B 2017, 96, 085130.
10.1103/PhysRevB.96.085130
Web of Science® Google Scholar
149R. Karplus, J. M. Luttinger, Phys. Rev. 1954, 95, 1154.
10.1103/PhysRev.95.1154
Web of Science® Google Scholar
150S. L. Adler, Phys. Rev. 1969, 177, 2426.
10.1103/PhysRev.177.2426
Web of Science® Google Scholar
151J. S. Bell, R. Jackiw, Nuovo Cimento A 1969, 60, 47.
10.1007/BF02823296
CAS Web of Science® Google Scholar
152A. A. Burkov, J. Phys.: Condens. Matter 2015, 27, 113201.
10.1088/0953-8984/27/11/113201
CAS PubMed Web of Science® Google Scholar
153K. Landsteiner, Phys. Rev. B 2014, 89, 075124.
10.1103/PhysRevB.89.075124
CAS Web of Science® Google Scholar
154K. Landsteiner, Acta Phys. Pol. B 2016, 47, 2617.
10.5506/APhysPolB.47.2617
Web of Science® Google Scholar
155W. A. Bardeen, Phys. Rev. 1969, 184, 1848.
10.1103/PhysRev.184.1848
Web of Science® Google Scholar
156L. Alvarez-Gaumé, P. Ginsparg, Nucl. Phys. B 1984, 243, 449.
10.1016/0550-3213(84)90487-5
Web of Science® Google Scholar
157D. Kurebayashi, K. Nomura, Sci. Rep. 2019, 9, 5365.
10.1038/s41598-019-41776-z
PubMed Web of Science® Google Scholar
158K. Nomura, D. Kurebayashi, Phys. Rev. Lett. 2015, 115, 127201.
10.1103/PhysRevLett.115.127201
PubMed Web of Science® Google Scholar
159D. Kurebayashi, K. Nomura, Phys. Rev. Appl. 2016, 6, 044013.
10.1103/PhysRevApplied.6.044013
Web of Science® Google Scholar
160Y. Ominato, K. Kobayashi, K. Nomura, Phys. Rev. B 2017, 95, 085308.
10.1103/PhysRevB.95.085308
Web of Science® Google Scholar
161K. Kobayashi, Y. Ominato, K. Nomura, J. Phys. Soc. Jpn. 2018, 87, 073707.
10.7566/JPSJ.87.073707
Google Scholar
162R. Jackiw, C. Rebbi, Phys. Rev. D 1976, 13, 3398.
10.1103/PhysRevD.13.3398
CAS Web of Science® Google Scholar
163S. Murakami, New J. Phys. 2007, 9, 356.
10.1088/1367-2630/9/9/356
CAS Web of Science® Google Scholar
164H. Zhang, C.-X. Liu, X.-L. Qi, X. Dai, Z. Fang, S.-C. Zhang, Nat. Phys. 2009, 5, 438.
10.1038/nphys1270
CAS Web of Science® Google Scholar
165C.-X. Liu, X.-L. Qi, H. Zhang, X. Dai, Z. Fang, S.-C. Zhang, Phys. Rev. B 2010, 82, 045122.
10.1103/PhysRevB.82.045122
CAS Web of Science® Google Scholar
166D. Kurebayashi, K. Nomura, J. Phys. Soc. Jpn. 2014, 83, 063709.
10.7566/JPSJ.83.063709
Google Scholar
167M. A. Kassem, Y. Tabata, T. Waki, H. Nakamura, J. Phys. Soc. Jpn. 2016, 85, 064706.
10.7566/JPSJ.85.064706
Web of Science® Google Scholar
168M. A. Kasssem, Y. Tabata, T. Waki, H. Nakamura, Phys. Rev. B 2017, 96, 014429.
10.1103/PhysRevB.96.014429
Web of Science® Google Scholar
169M. P. Ghimire, J. I. Facio, J.-S. You, L. Ye, J. G. Checkelsky, S. Fang, E. Kaxiras, M. Richter, J. van den Brink, arXiv:1903.03179.
Google Scholar
170A. Ozawa, K. Nomura, arXiv:1904.08148.
Google Scholar
171S. Nakatsuji, N. Kiyohara, T. Higo, Nature 2015, 527, 212.
10.1038/nature15723
CAS PubMed Web of Science® Google Scholar
172N. Kiyohara, T. Tomita, S. Nakatsuji, Phys. Rev. Appl. 2016, 5, 064009.
10.1103/PhysRevApplied.5.064009
Web of Science® Google Scholar
173A. K. Nayak, J. E. Fischer, Y. Sun, B. Yan, J. Karel, A. C. Komarek, C. Shekhar, N. Kumar, W. Schnelle, J. Kübler, C. Felser, S. S. P. Parkin, Sci. Adv. 2016, 2, e1501870.
10.1126/sciadv.1501870
PubMed Web of Science® Google Scholar
174M. Ikhlas, T. Tomita, T. Koretsune, M.-T. Suzuki, D. Nishio-Hamane, R. Arita, Y. Otani, S. Nakatsuji, Nat. Phys. 2017, 13, 1085.
10.1038/nphys4181
CAS Web of Science® Google Scholar
175E. Krén, J. Paitz, G. Zimmer, É. Zsoldos, Physica B 1975, 80, 226.
10.1016/0378-4363(75)90066-2
Web of Science® Google Scholar
176S. Tomiyoshi, Y. Yamaguchi, J. Phys. Soc. Jpn. 1982, 51, 2478.
10.1143/JPSJ.51.2478
CAS Web of Science® Google Scholar
177T. Nagamiya, S. Tomiyoshi, Y. Yamaguchi, Solid State Commun. 1982, 42, 385.
10.1016/0038-1098(82)90159-4
CAS Web of Science® Google Scholar
178P. J. Brown, V. Nunez, F. Tasset, J. B. Forsyth, P. Radhakrishna, J. Phys.:Condens. Matter 1990, 2, 9409.
10.1088/0953-8984/2/47/015
CAS Web of Science® Google Scholar
179N. Ito, K. Nomura, J. Phys. Soc. Jpn. 2017, 86, 063703.
10.7566/JPSJ.86.063703
Google Scholar
180M.-T. Suzuki, T. Koretsune, M. Ochi, R. Arita, Phys. Rev. B 2017, 95, 094406.
10.1103/PhysRevB.95.094406
Web of Science® Google Scholar
181T. Higo, H. Man, D. B. Gopman, L. Wu, T. Koretsune, O. M. J. van't Erve, Y. P. Kabanov, D. Rees, Y. Li, M.-T. Suzuki, S. Patankar, M. Ikhlas, C. L. Chien, R. Arita, R. D. Shull, J. Orenstein, S. Nakatsuji, Nat. Photonics 2018, 12, 73.
10.1038/s41566-017-0086-z
CAS PubMed Web of Science® Google Scholar
182J. Liu, L. Balents, Phys. Rev. Lett. 2017, 119, 087202.
10.1103/PhysRevLett.119.087202
PubMed Web of Science® Google Scholar
183P. Streda, J. Phys. C: Solid State Phys. 1982, 15, L717.
10.1088/0022-3719/15/22/005
CAS Web of Science® Google Scholar
184M. Koshino, I. F. Hizbullah, Phys. Rev. B 2016, 93, 045201.
10.1103/PhysRevB.93.045201
Web of Science® Google Scholar
185Y. Kajiwara, K. Harii, S. Takahashi, J. Ohe, K. Uchida, M. Mizuguchi, H. Umezawa, H. Kawai, K. Ando, K. Takanashi, S. Maekawa, E. Saitoh, Nature 2010, 464, 262.
10.1038/nature08876
CAS PubMed Web of Science® Google Scholar
186V. V. Kruglyak, S. O. Demokritov, D. Grundler, J. Phys. D: Appl. Phys. 2010, 43, 264001.
10.1088/0022-3727/43/26/264001
CAS Web of Science® Google Scholar
187A. V. Chumak, V. I. Vasyuchka, A. A. Serga, B. Hillebrands, Nat. Phys. 2015, 11, 453.
10.1038/nphys3347
CAS Web of Science® Google Scholar
188J. A. Hutasoit, J. Zang, R. Roiban, C. -X. Liu, Phys. Rev. B 2014, 90, 134409.
10.1103/PhysRevB.90.134409
Web of Science® Google Scholar
189Y. Araki, K. Nomura, Phys. Rev. B 2016, 93, 094438.
10.1103/PhysRevB.93.094438
Web of Science® Google Scholar
190O. O. Shvetsov, V. D. Esin, A. V. Timonina, N. N. Kolesnikov, E. V. Deviatov, arXiv:1904.07762.
Google Scholar

Citing Literature

Volume532, Issue2

Special Issue:Dynamic Quantum Matter

February 2020

1900287

Magnetic Textures and Dynamics in Magnetic Weyl Semimetals

Abstract

1 Introduction

2 Magnetic Textures in Normal Metals: Spin Gauge Fields

3 Weyl Semimetal and Magnetic Textures

3.1 Weyl Semimetal with Broken Time-Reversal Symmetry

3.2 Magnetization and Axial Electromagnetic Fields

3.3 Charge and Current Responses to Axial Electromagnetic Fields

3.3.1 Equilibrium Response

3.3.2 Nonequilibrium Response

3.4 Charge Pumping by Magnetic Texture Dynamics

3.5 Field-Induced Dynamics of Magnetic Textures

4 Example: Magnetic Domain Walls

5 Magnetic Textures in Various Weyl Semimetals

5.1 Topological Insulator Multilayers

5.2 Layered Kagome Ferromagnet: Co₃Sn₂S₂

5.3 Noncollinear Antiferromagnet: Mn₃Sn

6 Conclusion

Acknowledgements

Conflict of Interest

Biography

References

Citing Literature

Figures

References

Information

About Wiley Online Library

Help & Support

Opportunities

Connect with Wiley

Magnetic Textures and Dynamics in Magnetic Weyl Semimetals

Abstract

1 Introduction

2 Magnetic Textures in Normal Metals: Spin Gauge Fields

3 Weyl Semimetal and Magnetic Textures

3.1 Weyl Semimetal with Broken Time-Reversal Symmetry

3.2 Magnetization and Axial Electromagnetic Fields

3.3 Charge and Current Responses to Axial Electromagnetic Fields

3.3.1 Equilibrium Response

3.3.2 Nonequilibrium Response

3.4 Charge Pumping by Magnetic Texture Dynamics

3.5 Field-Induced Dynamics of Magnetic Textures

4 Example: Magnetic Domain Walls

5 Magnetic Textures in Various Weyl Semimetals

5.1 Topological Insulator Multilayers

5.2 Layered Kagome Ferromagnet: Co3Sn2S2

5.3 Noncollinear Antiferromagnet: Mn3Sn

6 Conclusion

Acknowledgements

Conflict of Interest

Biography

References

Citing Literature

Figures

References

Related

Information

5.2 Layered Kagome Ferromagnet: Co₃Sn₂S₂

5.3 Noncollinear Antiferromagnet: Mn₃Sn
