A genome-wide search for risk genes using homozygosity mapping and microarrays with 1,494 single-nucleotide polymorphisms in 22 eastern Cuban families with bipolar disorder

INTRODUCTION

Bipolar disorder is a severe psychiatric disorder with a lifetime prevalence of 0.3–1.5%. Though most individuals with bipolar disorder do not have affected first-degree relatives, the high concordance ratio for mono- and dizygotic twins suggest that genetic factors are of importance. Bipolar disorder is a complex disorder in which rare, large families with multiple affected individuals do occur. It is possible that the inheritance in such families is monogenic or at least oligogenic. Most studies of bipolar disorder have applied parametric or non-parametric linkage analyses to larger families and a number of chromosome regions potentially containing risk genes have been identified [Baron, 2002].

Homozygosity mapping as a method for identifying chromosome regions harboring disease genes for rare recessive diseases was originally suggested by Lander and Botstein [1987]. The basic principle of homozygosity mapping is that an affected person has inherited two identical copies of the disease gene from a common ancestor. In consanguineous families, patients with rare recessive diseases are likely to be homozygous by descent (HBD) for the disease allele and nearby markers. This method has almost exclusively been applied to rare recessive diseases in patients whose parents are first or second cousins [e.g., Wang et al., 2001]. The average size of a segment, which is HBD surrounding a rare recessive disease gene, is on average 33.3, 25, and 20 cM, respectively, for a single affected offspring of first, second, or third cousins [Wright et al., 1997]. Offspring of first cousins are on average HBD on 1/16 of their genome, while offspring of second or third cousins are on average HBD on 1/64 and 1/256 of their genome, respectively. The disease gene for a rare recessive disease has been identified by initially searching for homozygous segments among more distantly related cases from isolated populations, with incomplete knowledge about their genealogy [Houwen et al., 1994; Bull et al., 1998, 1999]. It has been suggested to apply homozygosity mapping on complex disorders [Miano et al., 2000]. However, to our knowledge, this method has only been applied to an apparently recessive subform of early-onset Parkinsonism [van Duijn et al., 2001], and a single inbred pedigree with several siblings with bipolar disorder [Ewald et al., 2003]. Homozygosity mapping is a very powerful method when applying parametric, recessive LOD score analyses as one affected offspring of parents who are first cousins may yield a LOD score around 1.2 for a rare, fully penetrant, recessive disease (Table I).

In inbred families with more than one affected offspring, parametric as well as non-parametric linkage analyses can be applied [Ewald et al., 2003; Modin et al., 2003]. It has not yet been attempted to apply homozygosity mapping on families with a possibly more complex inheritance pattern with only a single affected offspring. Recessive risk alleles may be present in complex disorders such as bipolar disorder. Furthermore, “sporadic” cases without known affected close relatives are compatible with recessive risk alleles.

The present study searched for homozygous chromosome regions among 24 cases with bipolar disorder whose parents were third cousins or more closely related. A genome wide scan was performed, using the AFFYMETRIX, Inc., Santa Clara, CA. GeneChip HuSNP Mapping Assay with 1,494 single nucleotide polymorphisms (SNPs).

MATERIALS AND METHODS

Collection of Cases, Controls, and Diagnostic Assessment

Well-documented cases with severe bipolar disorder were sought among in- or out-patients, who originated from a specific subregion around the city of Velasco, in the Holguín region in Eastern Cuba. The majority of the inhabitants in the region are of Caucasian descent, while a smaller minority is of Afro-American descent. The population size of the Velasco region is today around 44,000, and there has been a tradition for marriages between cousins and previously an average of nine children per marriage.

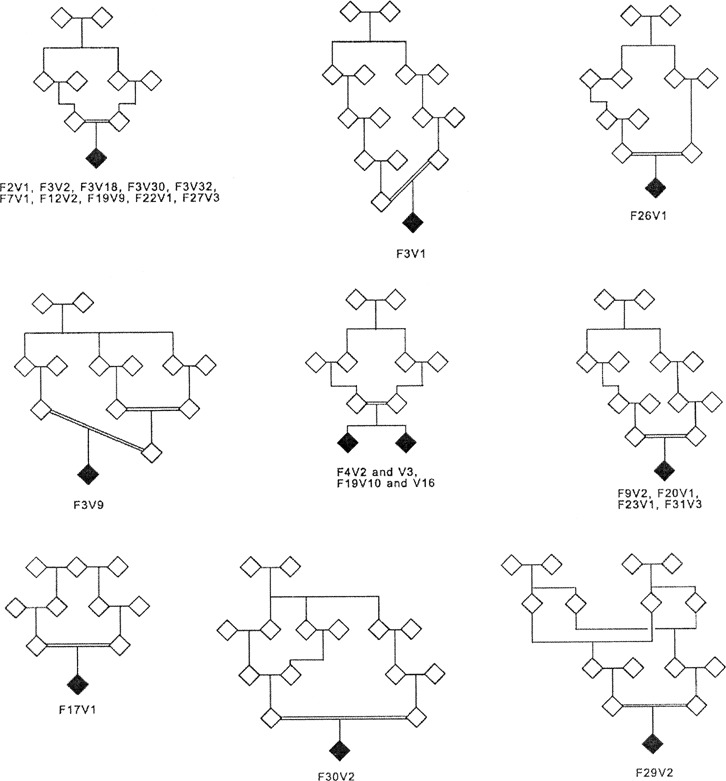

In order to be included the cases had to be Caucasian, of European descent and their parents had to be related, preferably as first or second cousins (Fig. 1). Cases were collected irrespective of their age of onset of bipolar disorder and the presence or absence of other affected family members. Some of the cases were close relatives. The affected persons in F3V1 and F3V2 were parent and child who were inbred through partly different loops (not shown in Fig. 1). F4V2 and F4V3 were siblings and F19V10 and F19V16 were siblings. F19V9 and the siblings F19V10–V16 were third degree relatives. Some of the other cases were more distantly related. Furthermore F3V1 and F3V2 were related to F3V9 (second degree relative of F3V1), and more distantly to F3V30. F3V18 and F3V32 were first cousins. At present, no first-degree relatives of cases in families F2V1, F3V9, F3V30, F7V1, F22V1, and F26V1 have affective disorder.

After obtaining informed consent the patients were interviewed by an experienced psychiatrist Dr. Mario Torralba, Holguín, Cuba, using the full Spanish language version 2.1 of the SCAN [Wing et al., 1990]. Based on the interview and hospital case notes, a clinical narrative was made for each patient. The final diagnosis was made as a consensus best-estimate diagnosis by two experienced psychiatrists Dr. O. Mors and Dr. A. Bertelsen, Aarhus, Denmark, who independently reviewed the clinical narrative and if necessary other relevant material. The diagnoses were made in accordance with ICD-10, Diagnostic Criteria for Research [World Health Organization, 1993], and the fourth edition of the Diagnostic and Statistical Manual (DSM-IV) [American Psychiatric Association, 1994]. All 24 included patients had bipolar affective disorder according to ICD-10 and bipolar type 1 disorder according to DSM-IV. The range of age of onset of affective disorder was 9–50 years. Seventeen of the 24 cases were women. Controls with similar age as the cases and without known history of psychiatric diseases were selected randomly among residents from the Velasco region. Of the 54 included controls 27 were men.

RESULTS

Single- and multipoint parametric LOD scores above 1.0 are shown in Table II. High single point LOD scores at WIAF-3227 on chromosome 14 and at WIAF-1706 on chromosome 22 were found to be errors upon regenotyping. These SNPs were excluded from the multipoint analysis.

The highest LOD score found was a multipoint LOD score of 1.96 distally on chromosome 17q25 for the two neighboring markers WIAF-2407 and WIAF-2405. On chromosome 10, a multipoint LOD score of 1.24 was found at WIAF-4519 in a very broad region with 25 neighboring markers yielding positive multipoint LOD scores. A multipoint LOD score of 1.19 was found at WIAF-1969 on chromosome 20q in a region with nine neighboring markers yielding positive multipoint LOD scores. On chromosome 11p, a peak multipoint LOD score of 1.13 at WIAF-3023 was found in a region with 15 neighboring markers all with positive multipoint LOD scores.

The highest single point LOD score was 1.26 at WIAF-1805 on chromosome 12p (Table II). In this region nine neighboring markers yielded positive multipoint LOD scores with a maximum of 0.67 at WIAF-3049. No positive multipoint LOD scores or single point LOD scores above 0.15 were found distally on chromosome 8q, suggesting that the single point LOD score of 1.26 at WIAF-583 in this region was a chance finding. In the region on chromosome 17q25 suggested by multipoint LOD scores, WIAF-2858 yielded a single point LOD score of 1.18. In this region eight of the ten most distal markers yielded positive single point LOD scores. On chromosome 10p, WIAF-3130 yielded a LOD score of 1.10, however, the neighboring markers yielded single point LOD scores close to zero. WIAF-303 on chromosome 10 yielded a LOD score of 1.05. Nearby markers yielded negative single point LOD scores. WIAF-786 on chromosome 19 yielded a LOD score of 1.04, but was only weakly supported by LOD scores from other neighboring markers and all multipoint LOD scores in the region were negative. Finally, a single point LOD score of 1.04 at WIAF-2137 on chromosome 18p received support from a number of nearby markers.

In individual families the highest LOD scores were 1.25 at WIAF-2303 for the affected sib-pair F19V10–V16 at chromosome 10q23.31, 1.17 at WIAF-3130 for sib-pair F4V2–V3 at chromosome 10p and 1.02 at WIAF-3310 for sib-pair F19V10–V16 at chromosome 9q34.2.

Concerning the ten randomly chosen SNPs, that were regenotyped several times, eight markers produced consistent and identical results, for one marker a single genotyping was discrepant, while a single marker yielded very inconsistent results. Considering all ten markers a total of 56 out of 706 genotypings were different (7.9%).

For further evaluation 19 microsatellite markers on 17q (D17S1299-D17S928: 62–126.5 cM) were genotyped. Microsatellite markers usually are more informative than SNPs and may further help to decide whether a given region is HBD or by state.

The highest multipoint parametric LOD score was 2.08, 1.5 cM proximal to D17S668.

Positive LOD scores were seen for the seven most distal microsatellite markers from D17S1847 at 111.2 cM to D17S928 at 126.5 cM. The highest single point LOD scores were 2.12 at the most distal marker D17S928.

DISCUSSION

The present study is to our knowledge one of the first studies which applies homozygosity mapping to a complex disorder and one of the first linkage studies using microarrays. Using GENEHUNTER it was possible to calculate multipoint parametric LOD scores including all markers in one analysis on every autosome except chromosomes 1, 2, 6, and 8 on which markers were subdivided into two segments. Combining all families the highest parametric multipoint LOD scores were found at chromosome 17q25, peaking at a LOD score of 1.96. This finding was further supported by analyzing 19 microsatellites in the region, yielding a maximum multipoint parametric LOD score of 2.08 1.5 cM proximal to D17S668. The region identified by the microsatellite markers was around 4 Mb and 20 cM more distal than the most significant SNP markers, (WIAF-2407 and WIAF-2405) and around 3 Mb and 14 cM more distal than the most distal SNP marker (WIAF-3305) the distal neighbor of WIAF-2405. Additional information was obtained when genotyping seven more telomeric microsatellite markers as the LOD score increased and as the final region of most interest were found to be more distal.

A non-parametric significant LOD score of 3.63 between bipolar disorder and D17S928 has recently been reported in a sample of 250 pedigrees with bipolar disorder [Dick et al., 2003]. D17S928 is located around 200,000 bp more distal than our most interesting marker, D17S668. Our finding formally replicates their finding. Bennet et al. [2002] investigated 154 affected sib-pairs from Ireland and United Kingdom and found a LOD score (MLS) of 1.38 also peaking around D17S928. Curtis et al. [2003] investigated seven larger pedigrees with bipolar disorder and unipolar disorder from United Kingdom and Iceland. Assuming a recessive mode of inheritance and only including unipolar patients from bipolar families they found a four-point LOD score of 1.9 at D17S939 at 105.7 cM, i.e., proximal to the loci suggested by the other studies. This region did not receive much support in a recent meta-analysis of bipolar disorder [Segurado et al., 2003]. However, the meta-analysis ranked findings from individual investigations and the genome-wide scans included in the meta-analysis mainly investigated larger pedigrees, which may preferentially harbor dominant risk alleles. The finding of a common region on chromosome 17q in four studies using different linkage analysis methods and different family material, ranging from single affected individuals to large pedigrees from various mainly Caucasian populations, is encouraging. The 17qter is a gene rich region which contains a number of interesting neurogenes.

Though the families were obtained from a specific subregion in Cuba it is uncertain whether this is a founding population. Around 700 inhabitants lived in the Holguín region in 1726 increasing to 12,695 in 1820. After 1817 more immigrants came to the region, especially males from certain Canary Islands and later from other regions of Spain. In 1862, the population had increased to 53,128. Today the size of the population is above 1 million. In a heterogenous population many different haplotypes may harbor a risk locus in a specific region. This will also decrease the power when applying homozygosity mapping as many affected individuals will be heterozygous at neighboring marker loci though they may be homozygous at the risk locus.

In each family multipoint LOD scores close to the maximum obtainable (Table I) were identified in one or more chromosome regions. This indicate that the density and informativity of SNPs in general is sufficient to detect segments which are inherited HBD, whether containing a disease allele or not, through the specified genealogy. The affected sib-pairs in families 4 and 19 yielded LOD scores on chromosome 10 close to the maximum obtainable value (Table I). All offspring of parents who are first cousins yielded from one to five regions with LOD scores above 0.5, most of which were above 0.6. So even when genotyping only one person, the affected offspring, in each family the LOD scores were close to the maximum obtainable value given the genetic parameters chosen (Table I). Concerning LOD scores in families where the parents of cases were more distantly related, more variable maximum LOD scores were found ranging from a high LOD score of 0.66 in family F3V9 (first and second cousins, Fig. 1) to no LOD scores above 0.3 in family F9V2 (second cousins, Fig. 1). However, all offspring of second cousins except F9V2 yielded LOD scores above 0.4. The highest LOD score in F3V1, whose parents were second and third cousins, was 0.34.

Our study indicates that it may be possible to identify regions HBD by genotyping only a single offspring from first or second cousins using microarrays with 1,100 or more SNPs. Cases without affected first degree relatives also yielded regions with high LOD scores, i.e., three, four, three, five, two, and zero regions with a LOD score above 0.5 in families F2V1, F3V9, F3V30, F7V1, F22V1, and F26V1, respectively. Therefore, it seems reasonable also to apply homozygosity mapping to “sporadic” cases with bipolar disorder and probably also in other complex disorders with high twin concordance ratios.

The genetic intermarker distances used in the calculations are derived directly from the physical distances by translating 1 Mb to 1 cM. Even if these estimates are not correct, we feel confident that the LOD scores are rather robust towards misspecification of genetic distances as the high density of SNPs ensures detection of HBD regions.

False low LOD scores may be obtained by multipoint analyses if the specified marker order is incorrect. We chose also to perform single point analyses in order to diminish the risk of missing interesting chromosome regions due to wrongly ordered markers.

By regenotyping ten SNPs, we found that a single of these had a high error rate while the others were quite accurate. A high error rate in individual markers may lead to false negative findings. However, as the average size of the homozygous segments surrounding a recessive disease gene should be around 25–30 cM, corresponding to eight to ten markers, such segments might be identified by applying single point analyses in addition to multipoint analyses. In addition, if a single heterozygous marker is surrounded by a long homozygous segment this may be a genotyping error which could be detected by regenotyping. Concerning the direction of the errors if the biallelic marker is in Hardy–Weinberg equilibrium, most genotypes will be truly homozygous (except when both alleles are of equal frequency). If the percentages of misclassified genotypings are equal for homozygous and heterozygous genotypings, more homozygous genotypes will be wrongly classified as heterozygous, than vice versa.

We suggest that homozygosity mapping might be applied for finding recessive risk alleles in complex disorders. It may be possible among offspring from first or second cousins and even more distant related parents. It may also be useful for finding risk genes in late onset disorders where parents are often not available, for finding rare phenotypic subgroups, endophenotypes or modifying genes in monogenic or complex diseases. If a number of affected siblings could be investigated it may even be applied in very heterogeneous disorders [Wright et al., 1997]. It seems to be the only possible method for doing linkage analyses on families with only one affected person. Sporadic cases are more common than familial cases, and thus clinically very important, in most complex disorders. In the future homozygosity mapping of even distantly related cases may be facilitated by using microarrays with a very high density of SNPs. Finally, the use of SNP microarray genotypings is a flexible method to apply in genome scans as additional cases may be included during the study.
