Length-dependent MRI of hereditary neuropathy with liability to pressure palsies
Funding Information
This research is supported by grants from National Institutes of Health/NINDS, R01NS066927 (J.L.) and R01NS097821 (R.D.), the Muscular Dystrophy Association, and the National Center for Advancing Translational Sciences (UL1TR000445).
Abstract
Objective
Hereditary neuropathy with liability to pressure palsies (HNPP) is caused by heterozygous deletion of the peripheral myelin protein 22 (PMP22) gene. Patients with HNPP present multifocal, reversible sensory/motor deficits due to increased susceptibility to mechanical pressure. Additionally, age-dependent axonal degeneration is reported. We hypothesize that length-dependent axonal loss can be revealed by MRI, irrespective of the multifocal phenotype in HNPP.
Methods
Nerve and muscle MRI data were acquired in the proximal and distal leg of patients with HNPP (n = 10) and matched controls (n = 7). More specifically, nerve magnetization transfer ratios (MTR) were evaluated to assay proximal-to-distal gradients in nerve degeneration, while intramuscular fat percentages (Fper) were evaluated to assay muscle fat replacement following denervation. Neurological disabilities were assessed via the Charcot-Marie-Tooth neuropathy score (CMTNS) for correlation with MRI.
Results
Fper values were elevated in HNPP proximal muscle (9.8 ± 2.2%, P = 0.01) compared to controls (6.9 ± 1.0%). We observed this same elevation of HNPP distal muscles (10.5 ± 2.5%, P < 0.01) relative to controls (6.3 ± 1.1%). Additionally, the amplitude of the proximal-to-distal gradient in Fper was more significant in HNPP patients than controls (P < 0.01), suggesting length-dependent axonal loss. In contrast, nerve MTR values were similar between HNPP subjects (sciatic/tibial nerves = 39.4 ± 2.0/34.2 ± 2.5%) and controls (sciatic/tibial nerves = 37.6 ± 3.8/35.5 ± 1.2%). Proximal muscle Fper values were related to CMTNS (r = 0.69, P = 0.03), while distal muscle Fper and sciatic/tibial nerve MTR values were not related to disability.
Interpretation
Despite the multifocal nature of the HNPP phenotype, muscle Fper measurements relate to disability and exhibit a proximal-to-distal gradient consistent with length-dependent axonal loss, suggesting that Fper may be a viable biomarker of disease progression in HNPP.
Introduction
Hereditary neuropathy with liability to pressure palsies (HNPP) is a dysmyelinating polyneuropathy caused by heterozygous deletion of the peripheral myelin protein 22 (PMP22) gene.1 The clinical presentation consists of reversible, focal numbness, and weakness that may or may not be triggered by mechanical compression or repetitive limb movements. Pathological studies reveal “tomacula” (excessively folded myelin in paranodes)2 and length-dependent axonal loss, the latter of which develops during aging.3 Previous studies indicate that axonal loss, not demyelination, is correlated with disability in other inherited neuropathies, such as CMT1A.4 However, it is still unclear if accumulative axonal loss in HNPP is correlated with disabilities due to the transient and multifocal nature of the disease phenotype.
Although tools are available to assess HNPP (e.g. nerve conduction studies [NCS], skin biopsies, and Charcot-Marie-Tooth neuropathy score [CMTNS]5), they primarily target distal nerves, which may be degenerated in some patients, resulting in “floor effects.”6 Consistent with magnetic resonance imaging (MRI) studies in the brain,7-9 we demonstrated10 that nerve magnetization transfer ratio (MTR) MRI can overcome these limitations and provide sensitive measures to myelin content changes from de/dysmyelination and axonal loss. Others have demonstrated that fat-water MRI of skeletal muscle assays atrophy and fat replacement in neuromuscular diseases,11-14 which indirectly reflects axonal degeneration.
The present study evaluated these nerve MTR and muscle fat-water protocols in patients with HNPP. Given that axonal loss may accumulate over time, we hypothesize that nerve/muscle MRI can reveal axonal degeneration in HNPP, thereby serving as a noninvasive, objective measure related to disease severity. Both the proximal and distal leg were scanned to assess length-dependence. Our results show a correlation between certain MRI findings and disability.
Methods
Human subjects and clinical information
Ten patients (100% female, age: 47.1 ± 12.5 years; body mass index, BMI: 29.3 ± 4.3) with genetic confirmation of a PMP22 heterozygous deletion were recruited from the CMT clinic at the Vanderbilt University Medical Center, which is a part of the Inherited Neuropathy consortium. Seven healthy volunteers (100% female, age: 54.4 ± 3.5 years, BMI: 26.1 ± 6.3) were enrolled as controls by matching for mean age, gender, and BMI (see Table 1).
| Controls (n = 7) | HNPP (n = 10) | P-value | |
|---|---|---|---|
| Age (years) | 54.4 ± 3.5 (50–59) | 47.1 ± 12.5 (18–63) | 0.10 |
| BMI (kg/m2) | 26.1 ± 6.3 (16.95–37.67) | 29.3 ± 4.3 (19.79–34.45) | 0.19 |
| Female (%) | 100 | 100 | – |
| MTR – sciatic (%) | 39.4 ± 2.0 (35.89–41.34) | 37.6 ± 3.8 (34.27–45.94) | 0.16 |
| MTR – tibial (%) | 34.2 ± 2.5 (30.44–36.75) | 35.5 ± 1.2 (33.50–37.38) | 0.47 |
| Intramuscular fat – proximal (%) | 6.9 ± 1.0 (4.89–7.69) | 9.8 ± 2.2 (6.71–13.72) | 0.01* |
| Intramuscular fat – distal (%) | 6.3 ± 1.1 (5.17–8.09) | 10.5 ± 2.5 (6.94–15.14) | <0.001* |
- Data collected in all subjects within each cohort and presented as mean ± standard deviation (range). P-values from Wilcoxon rank sum analyses are presented, with an asterisk indicating significance. MTR, magnetization transfer ratio; HNPP, hereditary neuropathy with liabilities to pressure palsies.
Clinical disability was assessed via the CMTNS version 2 in all patients. The CMTNS is an ensemble of sensory symptoms, muscle strength, as well as physical findings, with higher scores indicating more impairment (range: 0–36). All HNPP subjects also underwent NCS using conventional methods15 (see Table 2). In the control group, subjects self-reported no symptoms that were suggestive of peripheral nerve diseases and physical examination indicated no evidence of peripheral neuropathies. Due to well-established normative values in normal controls, it is standard practice that NCS data from patients are evaluated by comparison to these normatives.16 As a result, NCS data were not obtained in the control cohort, which did not allow for a correlation of MRI data and clinical findings in this cohort.
| n | Mean ± SD | Range | Norma | P-value | |
|---|---|---|---|---|---|
| CMTNS | 10 | 6.6 ± 3.1 | 2.0–12.0 | – | – |
| MCV (m/s) | |||||
| Median | 10 | 49.30 ± 4.30 | 44.0–58.0 | 49 | 0.91 |
| Ulnar – proximal | 10 | 48.70 ± 5.85 | 41.0–57.0 | 49 | 0.79 |
| Ulnar – distal | 8 | 44.88 ± 10.15 | 24.0–55.0 | – | – |
| Peroneal – proximal | 7 | 37.29 ± 3.04 | 32.0–41.0 | 44 | 0.02* |
| Peroneal – distal | 7 | 45.43 ± 8.56 | 36.0–61.0 | – | – |
| DML (ms) | |||||
| Median | 10 | 5.59 ± 1.04 | 3.9–7.0 | 4.4 | 0.01* |
| Ulnar | 10 | 3.64 ± 0.83 | 2.9–5.8 | 3.3 | 0.28 |
| Peroneal | 7 | 7.21 ± 1.64 | 5.3–9.7 | 6.5 | 0.30 |
| Tibial | 9 | 6.34 ± 2.27 | 4.6–12.1 | – | – |
| CMAP (mV) | |||||
| Median | 10 | 8.50 ± 2.73 | 3.9–12.0 | 4 | 0.004* |
| Ulnar | 10 | 11.77 ± 7.27 | 5.2–31.0 | 6 | 0.004* |
| Peroneal | 7 | 2.76 ± 1.16 | 1.0–4.8 | 2 | 0.11 |
| Tibial | 9 | 5.12 ± 3.77 | 0.8–10.7 | – | – |
| SPL (ms) | |||||
| Median | 9 | 4.56 ± 1.08 | 3.2–6.7 | 3.5 | 0.02* |
| Ulnar | 10 | 3.66 ± 0.57 | 2.8–4.6 | 3.5 | 0.45 |
| Radial | 7 | 2.77 ± 0.27 | 2.4–3.1 | – | – |
| Sural | 5 | 4.60 ± 0.31 | 4.2–5.0 | 4.4 | 0.31 |
| SNAP (mV) | |||||
| Median | 9 | 13.90 ± 7.55 | 1.1–22.7 | 22 | 0.02* |
| Ulnar | 10 | 15.04 ± 7.90 | 5.8–34.4 | 10 | 0.04* |
| Radial | 7 | 25.84 ± 13.72 | 11.0–52.0 | – | – |
| Sural | 5 | 5.84 ± 2.18 | 3.2–9.2 | 6 | 0.88 |
- P-values from Wilcoxon signed rank analyses are presented, with an asterisk indicating significance. HNPP, hereditary neuropathy with liabilities to pressure palsies; CMTNS, Charcot-Marie-Tooth neuropathy score; MCV, motor conduction velocity; DML, distal motor latency; CMAP, compound muscle action potential; SPL, sensory peak latency; SNAP, sensory nerve action potential; n, number of subjects examined; SD, standard deviation.
- a Normative values from Hu et al.16 Distal latency numbers listed are the upper limit of normal. Amplitude and conduction velocity numbers are listed in the lower limit of normal. Ulnar and peroneal MCV reported contains both proximal and distal measures.
Standard protocol approvals, registrations, and patient consents
The study was approved by our local Institutional Review Board and all participants provided informed consent prior to all examinations.
Data availability
Deidentified data related to the current study will be made available from the corresponding author upon reasonable request.
MRI data acquisition
Participants were examined via MRI, lying feet-first and supine in a Philips 3.0-T Acheiva MRI scanner (Philips Healthcare, Best, The Netherlands), with R5.3 software. A Philips dStream 16-channel anterior coil was used for full coverage of the lower extremities. The multi-parametric imaging protocol included nerve MTR and muscle fat-water MRI scans, which were used to estimate nerve MTR and intramuscular fat percentage (Fper), respectively. Two volumes were acquired in each subject as shown in Figure 1. The first volume was acquired proximal to the knee to estimate proximal muscle Fper and sciatic nerve MTR values. The second volume was acquired distal to the knee to estimate distal muscle Fper and tibial nerve MTR values.
MTR data were acquired via a 3D, multi-shot EPI sequence acquired with and without the application of an MT-prepulse (1000° nominal flip angle, 1.5 kHz off-resonance) and the following: resolution = 0.8 × 0.8 × 6 mm3, TR/TE = 60/11 ms, water-selective excitation pulse (10°), k-space lines per shot = 5, SENSE factor = 1, NEX = 2, and a total scan time of ≈6 min. The radiofrequency (RF) transmit field (B1) was estimated using the actual flip-angle imaging approach to correct MTR values for B1 variations. Fat-water data were acquired via a six-echo gradient echo sequence: resolution = 0.75 × 0.75 × 3 mm3, TR/first TE/echo spacing = 300/13/17 ms, and a total scan time of ≈2 min.
MRI data analysis
The ratio of the fat-to-water signal, or fat percentage (Fper), was estimated from the multi-echo gradient data via the optimized tools within the ISMRM Fat-Water Toolbox.19 From these maps, the entire muscle volume was segmented from surrounding fat and the median Fper was tabulated to ensure that the reported value was indicative of intramuscular fat replacement.
Statistical analysis
All statistical analyses were conducted using MATLAB. Tests were performed to evaluate (1) differences between patients and controls for each MRI measure, (2) within-cohort differences between scanning locations (proximal vs. distal) for each MRI measure, (3) across-cohort differences in the strength of the effect of scanning locations (distal minus proximal) for each MRI measure (i.e. tests for whether length-dependent effects were more significant in patients), and (4) the relationship between MRI measures and clinical disability score (CMTNS) in patients. Nonparametric statistical approaches were primarily employed for analysis due to the small sample size of the study. Given the exploratory nature of this study, we did not correct for multiple comparisons and deemed a threshold of P < 0.05 as indicative of relationships that warrant further investigation.
Four MRI parameters were included in these analyses: sciatic nerve MTR, tibial nerve MTR, proximal muscle Fper, and distal muscle Fper. We first tested for differences in each MRI parameters across cohorts with a Wilcoxon rank sum test. In addition, Wilcoxon signed rank tests were employed within each cohort to test for length-dependent differences in each MRI parameter per subject (proximal and distal leg measurements). The difference between proximal and distal measures was then estimated for each subject and MRI measure, and linear regression analyses were performed across cohorts to test for significant inter-cohort differences in these length-dependent effects. Finally, associations between MRI parameters and CMTNS were tested via Spearman's rank correlations.
Although we attempted to match our control and HNPP cohorts for age and BMI, subtle differences between cohorts may influence findings. As a result, we tested for (1) differences in age and BMI across cohorts using a Wilcoxon rank sum test and (2) associations between the MRI parameters and both age and BMI in our control cohort using Spearman's rank correlations. In addition, NCS values in patients with HNPP were compared to normative values using a Wilcoxon signed rank test.
Results
Clinical features of patients
Significant differences for age (P = 0.10) and BMI (P = 0.19) were not detected across the control and HNPP cohorts. In addition, significant relationships were not observed between BMI (P > 0.12) and age (P > 0.43) and any of the reported MRI parameters.
All patients with HNPP reported 1–3 incidents of reversible focal sensory loss and weakness throughout their life, which may or may not be triggered by mechanical compression. Results of NCS show focally slowed nerve conduction at the sites susceptible to mechanical pressure. For instance, eight out of 10 patients had a significantly prolonged distal latency of the median motor nerve across the wrist (average value in Table 2 = 5.59 ± 1.04 ms), but only two out of 10 patients had a mildly prolonged distal latency of ulnar motor nerve across the wrist (average value in Table 2 = 3.64 ± 0.83). A similar difference was observed between peroneal and tibial motor nerves. In addition, a focal slowing of conduction velocities was observed in the (1) ulnar motor nerves across the elbow in two patients and (2) peroneal motor nerve across the fibular head in the other two patients. All these features suggest a representative population typical of the HNPP phenotype.20, 21
In addition, only one patient had a reduced amplitude of sensory nerve action potential (SNAP) in the ulnar nerves, but sural nerves in all patients were either nonresponsive or had a reduced amplitude of SNAP.
Muscle Fper values are elevated in HNPP

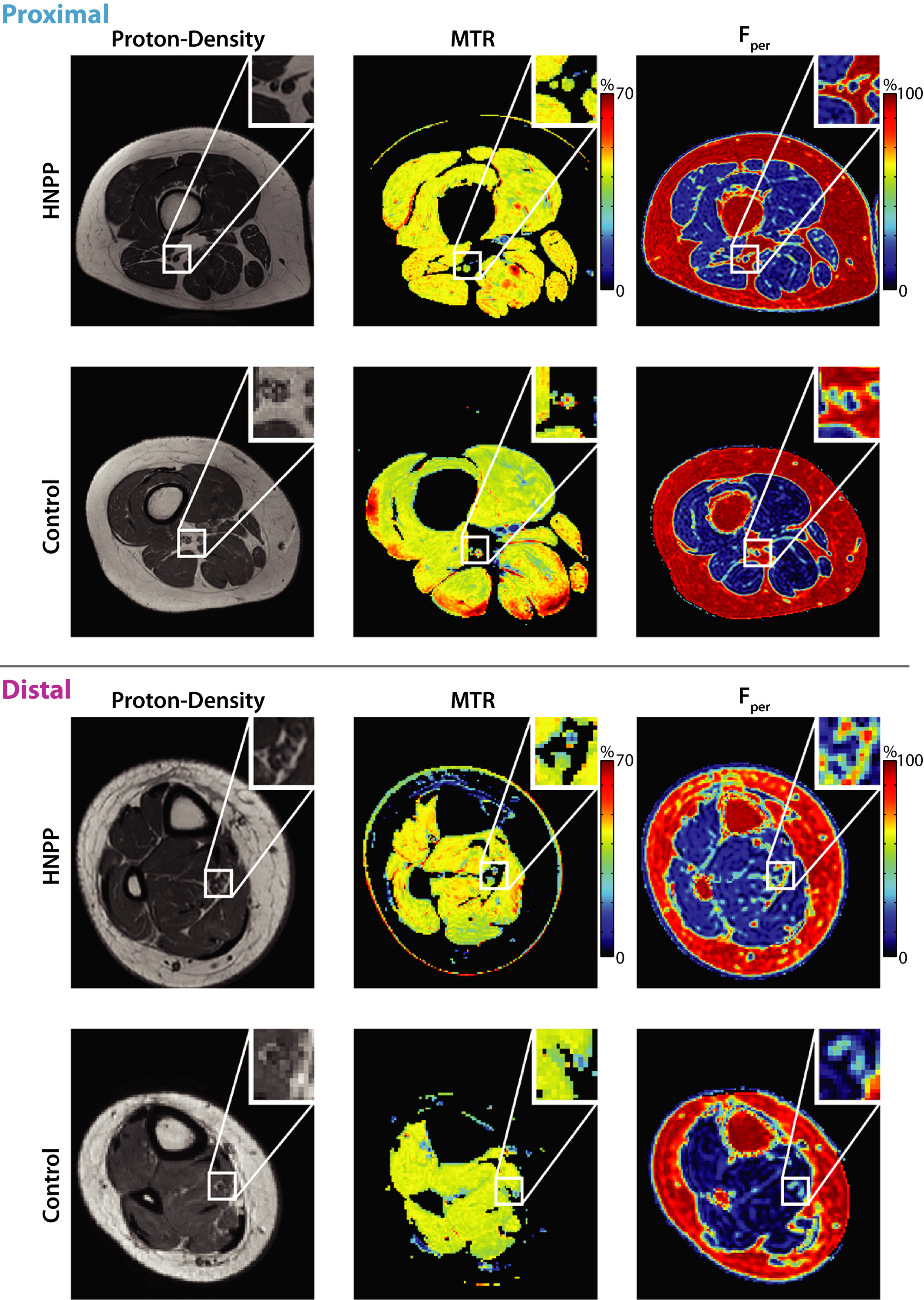

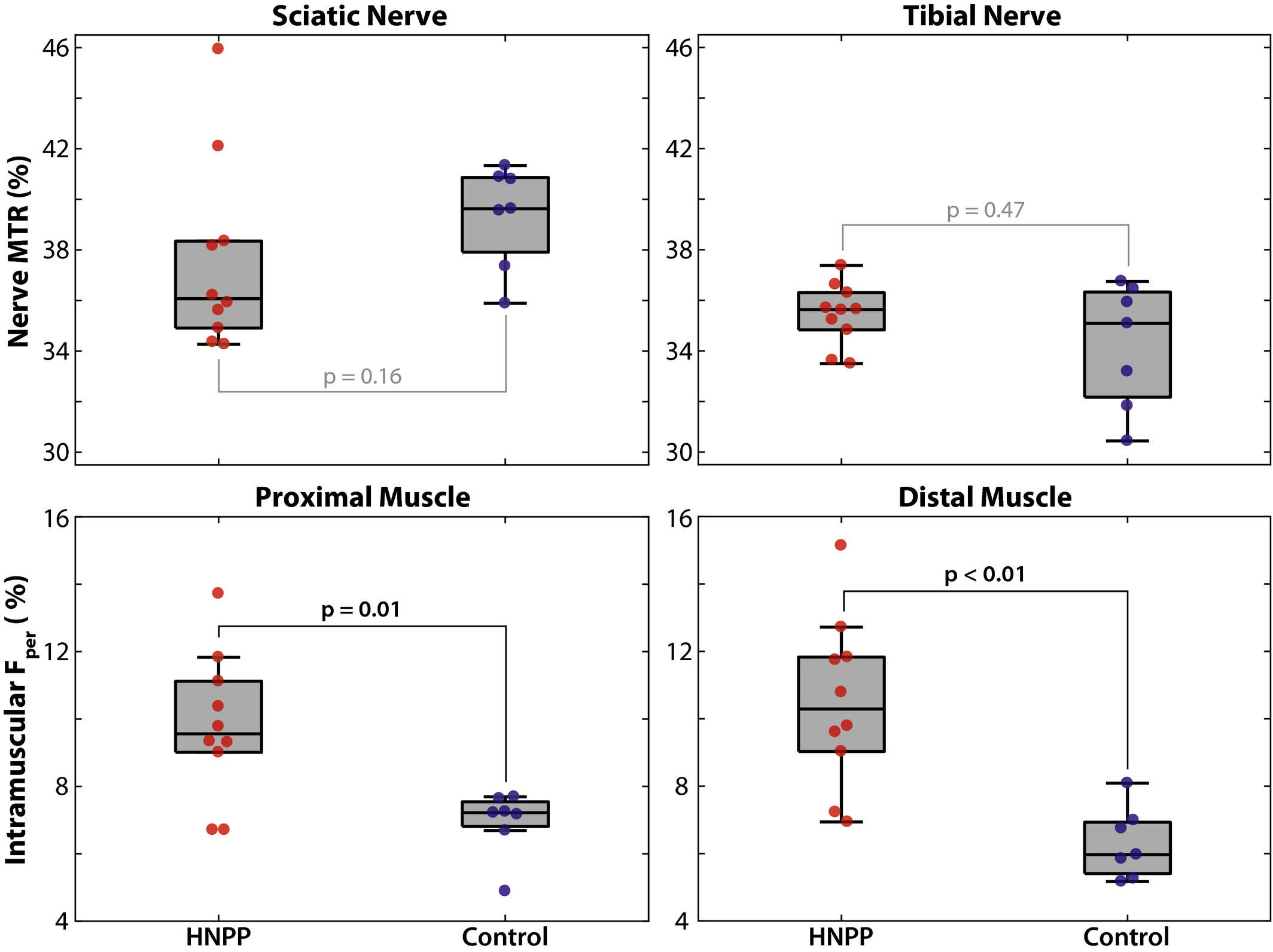

Figure 2 shows sample MRI findings in the proximal and distal leg, respectively, and these results are further quantified for each cohort in Figure 3 and Table 1. As shown in the zoomed insets, the sciatic and tibial nerves can be readily distinguished from surrounding fat (appears bright in the proton density images), muscle, and blood vessels in all slices. Across cohorts, Fper values in patients with HNPP were significantly elevated in proximal (P = 0.01) and distal muscles (P < 0.01) relative to controls. In contrast, MTR values were similar across cohorts in both the sciatic nerve (P = 0.16) and tibial nerve (P = 0.48).
Muscle Fper values exhibit length-dependent changes

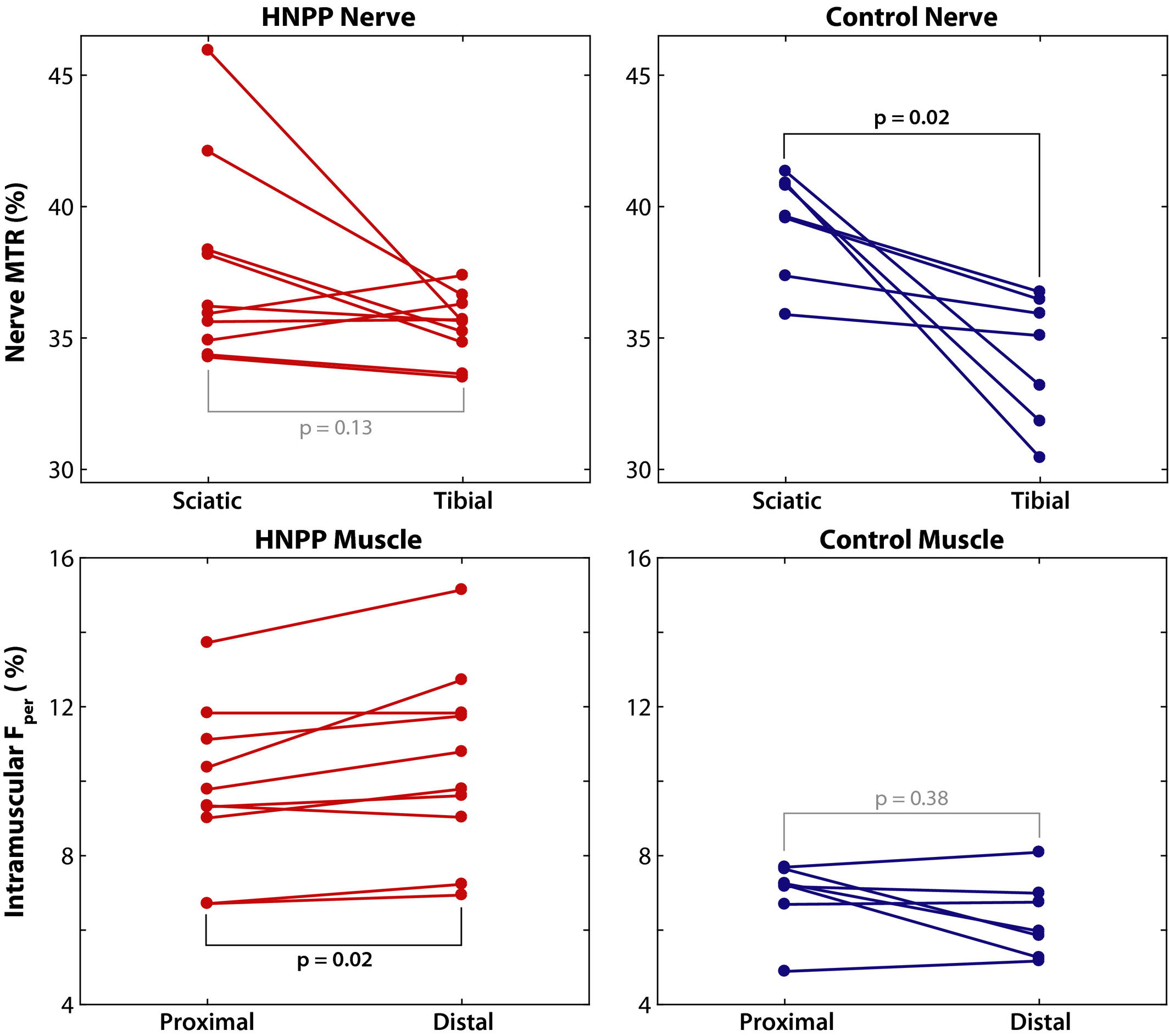

Paired MRI results between proximal and distal tissues per group and MRI metric are shown in Figure 4. A significant increase in distal Fper values was detected in HNPP patients (proximal/distal muscle = 9.8 ± 2.2/10.5 ± 2.5%, P = 0.02), but not controls (proximal/distal muscle = 6.9 ± 1.0/6.3 ± 1.1%, P = 0.38), which is consistent with the length-dependent nature of axonal loss. Furthermore, linear regression of the difference between proximal and distal measures across cohorts showed that HNPP patients exhibited significantly stronger length-dependent changes compared to controls (P = 0.01, adjusted R2 = 0.35).
In contrast, sciatic and tibial nerve MTR values were similar in HNPP subjects (sciatic/tibial nerves = 39.4 ± 2.0/34.2 ± 2.5%, P = 0.13). In addition, although controls (sciatic/tibial nerves = 37.6 ± 3.8/35.5 ± 1.2%, P = 0.02) showed significantly lower values in distal tibial nerves, linear regression of the difference between proximal and distal measures across cohorts did not indicate that this affect was stronger than that observed in patients (P = 0.13, adjusted R2 = 0.09).
Muscle Fper values relate to disability

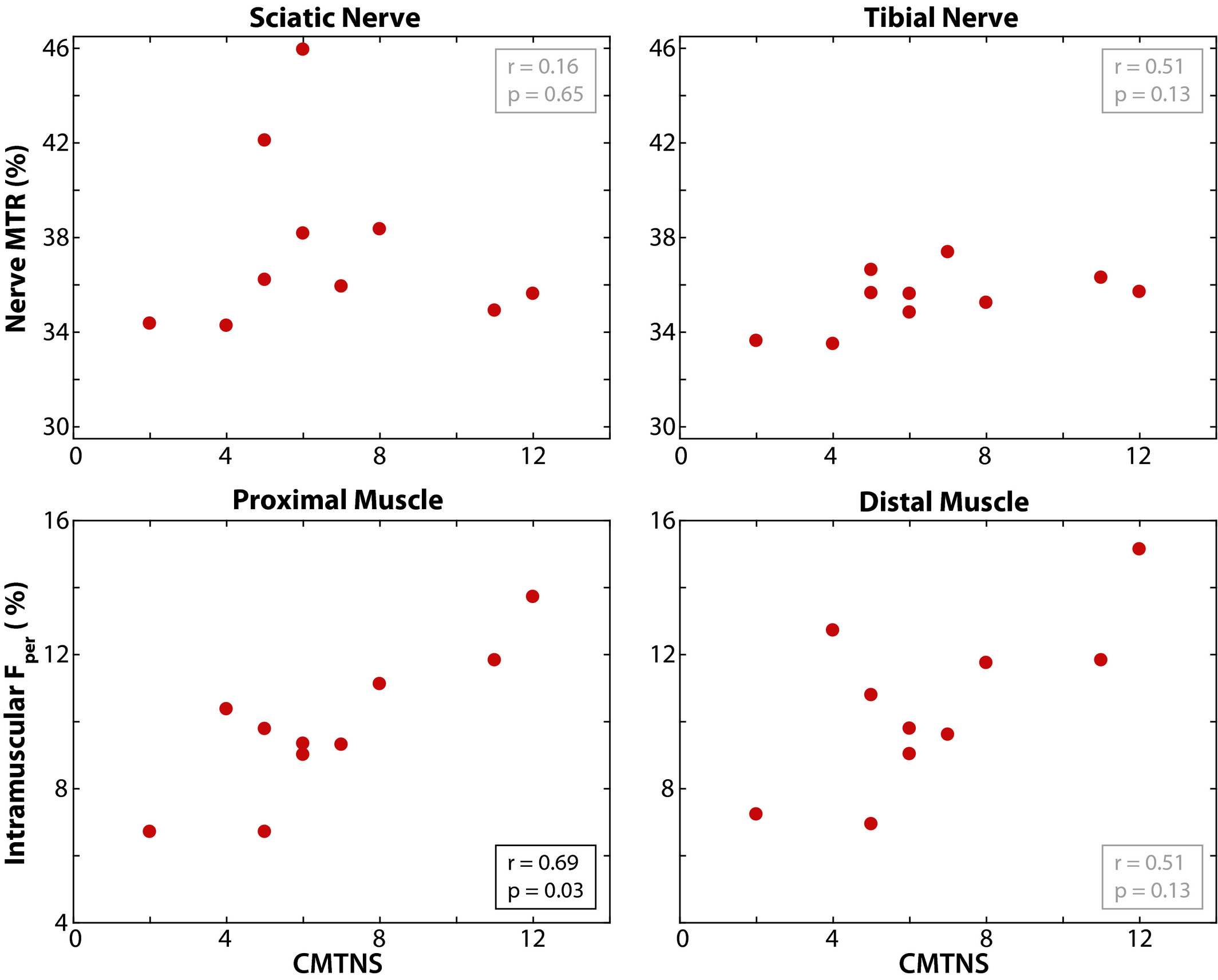

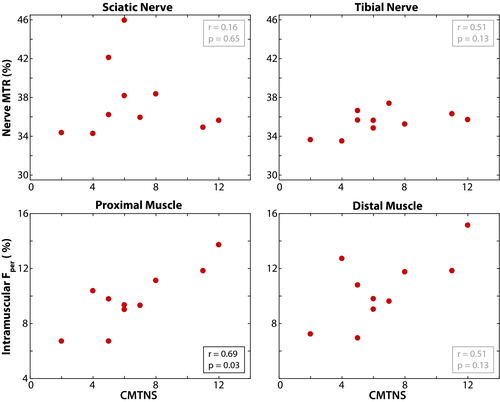

As shown in Figure 5, a significant relationship was observed between proximal muscle Fper and CMTNS measures (r = 0.69, P = 0.03). Sciatic nerve MTR (r = 0.16, P = 0.65), tibial nerve MTR (r = 0.51, P = 0.13), and distal muscle Fper (r = 0.51, P = 0.13) were not significantly related to CMTNS.
Discussion
In this study, we demonstrated that muscle Fper values are elevated in patients with HNPP. The changes in Fper support a length-dependent process of denervation that results from axonal loss in the disease. Therefore, despite the multifocal nature of phenotype in HNPP, pathology accumulated over time still results in length-dependent axonal degeneration, which is consistent with previous reports in animal models20 and human studies in older subjects.22 In line with previous literature in other types of neuropathies,23 this axonopathy in HNPP appears to be the key factor leading to disabilities since Fper value is correlated with CMTNS.
Although numerous biomarkers have been proposed for CMT subtypes (NCS,24 quality of life assessments, sensorimotor testing, CMTNS), they may be compromised in HNPP due to the disease phenotype. For example, although quality of life is affected in HNPP, these surveys are not particularly sensitive to disease progression in inherited neuropathies.25, 26 In addition, CMTNS may be inadequate to describe the progression of HNPP given the transient nature of clinical deficits. For instance, proximal arm weakness by brachial plexopathy may result in a high score of CMTNS, but only lasts a few weeks. Once the weakness recovers, CMTNS would decrease substantially, presenting difficulties in assessing disease progression.
In contrast, MRI can be used as a noninvasive, quantitative, and objective tool to simultaneously assess pathologies in the proximal and distal nerves and muscles of patients with HNPP. In other words, the quantitative MRI methods presented herein may improve our ability to longitudinally study HNPP, provide viable biomarkers for disease progression and treatment response independent of the clinical presentation of HNPP, and may provide insight into the pathogenesis of the disease.
Fat-water MRI exploits the chemical shift difference inherent in fat and water protons in order to generate fat percentage maps of tissue.14, 27, 28 Developments in skeletal muscle MRI methods29, 30 have allowed researchers to assay the possible downstream effects of denervation in other inherited neuropathies such as Charcot-Marie-Tooth neuropathy type 1A (CMT1A).11 Fat-water measurements have been shown to be valid, reliable,31 and sensitive to CMT1A progression,11 making this method a viable option for use as a disease biomarker for HNPP as they arise from abnormalities in the PMP22 gene.1 However, previous studies have focused on single-slice acquisitions. Here, we applied this method to HNPP patients for the first time at multiple levels of limbs. To better assess the relationship between length-dependent axonal loss and disease progression, we performed MRI in the proximal and distal leg, noting that the optimal level of deployment for these measurements may vary across patients and time due to the length-dependent nature of CMT. In this study, we found (1) Fper measures were elevated in HNPP patients relative to controls consistent with previously published findings,11 (2) the observed elevation was significantly higher in the distal leg muscles consistent with the length-dependent nature of this disease, and (3) Fper measures were related to CMTNS disability scores.
One potential drawback of these findings is that fat replacement represents the downstream effect of the nerve pathology and is the chronic endpoint of disease progression and, thus, is unlikely to be reversed with treatment. Additionally, the method only gives us information on motor fibers, and muscle atrophy patterns are not consistent between patients.32 It should also be noted that these differences may be influenced by factors not associated with the disease process, such as the degree and frequency of exercise.33
As a result, we deployed our previously developed nerve MTR protocol to overcome these limitations and directly assay peripheral neuropathy in the nerves of the leg. Previous studies have shown that MTR correlates with myelin content changes34-36 that result from de/dysmyelination and axonal loss in the central and peripheral nervous system.37 Furthermore, previous work has indicated that nerve MTR (1) is reliable and related to disability across multiple cohorts with inherited neuropathies10 and (2) exhibits proximal-to-distal gradient in controls that increases with age, which is consistent with the findings from the older control cohort studied herein (Figure 4, upper-right panel).40 In the current study, we measured proximal nerve MTR in HNPP for the first time and used this method in distal leg nerves to probe length-dependent effects. We found that, surprisingly, MTR was similar in controls and patients with HNPP. We postulate that these findings are due to the competing effects of axonal loss, which reduces MTR values, and the formation of tomacula, which is expected to increase MTR values. This is consistent with previous ex vivo nerve studies in mouse models of HNPP, where similar MT effects were observed in the sciatic nerve of mice with PMP22 deletions and age-matched wild-type mice.38 The MTR findings herein are consistent with these ex vivo studies and are supportive of a length-dependent axonal loss superimposed on the aforementioned focal abnormalities in HNPP. When axons degenerate, denervated muscles become atrophic with a fraction of muscles replaced by fat tissues. Thus, muscle Fper by MRI provides complementray, albeit indirect, information on axonal loss.39
Despite promising results, the current study had several limitations. Most notable of these limitations is the sample size. HNPP is a rare disease with an estimated prevalence of 2–5:100,000, although the actual prevalence may be underestimated.5 The second main limitation is the cross-sectional design of this study. Testing the relationship of BMI and age with our MRI parameters suggests that the observed differences in MRI parameters across cohorts are not confounded by these demographic factors. Nevertheless, longitudinal studies are warranted to investigate the responsiveness of each metric to progression over time. Finally, MTR is only a semiquantitative measure as it is difficult to implement and is sensitive to differences in hardware. For example, although we attempted to correct for B1 errors, our previous results10 showed that this can be a source of variance. This can be further visualized in the superficial muscle regions in the control MTR map shown in Figure 2, where MTR was overestimated due to large B1 errors within these regions (red hues). Although we did not observe similar errors within the nerves themselves, this could partially explain why we did not observe a significant relationship between MTR and CMTNS in our analysis. Future work will focus on quantitative MT methods that can overcome these issues and provide more reliable and specific measures of myelin content.41 In addition, the novel contrast from the MTR sequence may also be useful in other more common neuropathies and/or aid in the anatomical segmentation of nerves.42
In conclusion, this study demonstrates the importance of implementing multi-parametric acquisitions (MTR/Fper) at multiple scanning locations (proximal/distal leg) to assess HNPP. Our measurements show that (1) fat percentage is elevated in the HNPP population, (2) there are length-dependent changes of fat percentage occurring between the proximal and distal leg locations, and (3) fat percentage in proximal muscle correlates with clinical disability in patients with HNPP. Our MTR measures did not detect significant differences between cohorts, and this may be due to the fact that (1) our HNPP sample size is small and (2) MTR values are affected by both myelin content and the formation of tomacula – both of which are occurring in HNPP. These results herein suggest that these measures, particularly muscle fat percentages, may be of value as a biomarker for HNPP disease and warrant further investigation in larger longitudinal studies.
