Communication
Polymetallic Cobalt and Manganese Cages with Phosphinate and Phosphonate Ligands
Euan K. Brechin Dr.,
Robert A. Coxall Dr.,
Andrew Parkin,
Simon Parsons Dr.,
Peter A. Tasker Prof.,
Richard E. P. Winpenny Prof.,
Euan K. Brechin Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorRobert A. Coxall Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorAndrew Parkin
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorSimon Parsons Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorPeter A. Tasker Prof.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorRichard E. P. Winpenny Prof.
Department of Chemistry The University of Manchester Oxford Road, Manchester M13 9PL (UK) Fax: (+44) 161-275-4616
Search for more papers by this authorEuan K. Brechin Dr.,
Robert A. Coxall Dr.,
Andrew Parkin,
Simon Parsons Dr.,
Peter A. Tasker Prof.,
Richard E. P. Winpenny Prof.,
Euan K. Brechin Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorRobert A. Coxall Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorAndrew Parkin
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorSimon Parsons Dr.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorPeter A. Tasker Prof.
Department of Chemistry The University of Edinburgh (UK) Fax: (+44) 131-650-4743
Search for more papers by this authorRichard E. P. Winpenny Prof.
Department of Chemistry The University of Manchester Oxford Road, Manchester M13 9PL (UK) Fax: (+44) 161-275-4616
Search for more papers by this authorFirst published: 10 July 2001
Citations: 148
This work was supported by the EPSRC (UK).
Graphical Abstract

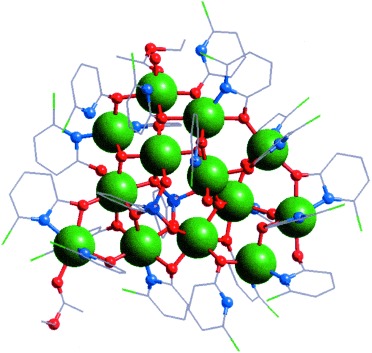

Addition of a coligand in reactions of phosphonates with salts of late 3d metals can lead to more soluble and tractable materials, such as the {Co13} cage shown (Co: green; P: purple). The structure contains two central PhPO32− ligands, surrounded by a hexanuclear cobalt helix, capped by seven further cobalt sites.
